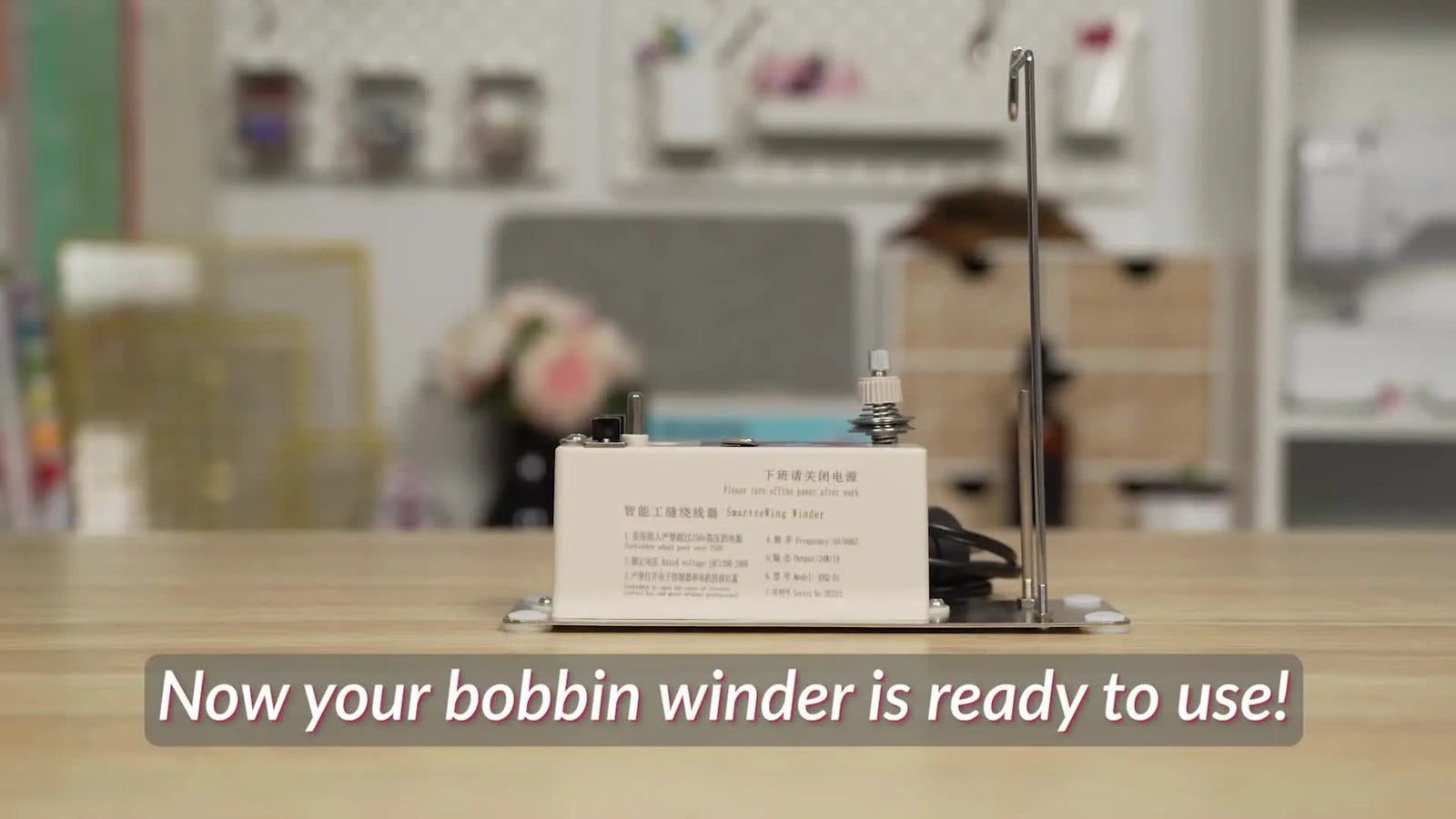

RXQ-01 Bobbin Winder Setup That Actually Works: From Loose “Spongy” Bobbins to Clean, Consistent Wind Every Time

The Invisible Foundation of Quality: Mastering the RXQ-01 Bobbin Winder

If you have ever stared at a "bird’s nest" of thread under your hoop, or watched a bobbin that looked full unspool like a limp spring during a complex design, you know the truth: Embroidery is physics.

Bobbin winding is not a passive task; it is the foundation of tension stability. In my 20 years on the production floor, I have seen more projects ruined by "spongy" bobbins than by bad digitizing. The RXQ-01 automatic bobbin winder is a deceptively simple tool. Treated casually, it is a frustration engine. Mastered, it is the secret weapon that stops your machine from acting "moody."

This guide will take you from "taking it out of the box" to winding bobbins that feel as solid as a drum.

1. The Strategy: Why Standalone Winding Improves Stitch Quality

The RXQ-01 is a dedicated unit designed to isolate the winding process from your embroidery machine. In a professional workflow, we call this Parallel Processing.

Why does this matter?

1. Motor Longevity: It saves wear on your main machine’s motor.
2. Tension Isolation: It creates a bobbin using a dedicated tension system, independent of your sewing speed.
3. Workflow Rhythm: You wind the next color batch while the machine is stitching.

If you are building a workflow around repeatable results, this is the same philosophy behind specific prep tools like a hooping station for machine embroidery: you separate the "setup" bottlenecks from the "stitching" revenue time.

2. Unboxing & The "don't Skip" Inventory

Before you touch a screwdriver, perform a "Pre-Flight Inventory." Missing a washer now means a wobbly spindle later.

The Box Contains:

• Main RXQ-01 motor unit
• Metal Base Plate (The foundation)
• Straight Metal Spool Pin
• Bent Wire Thread Guide
• Fixing hardware (Small screws, nuts)

Hidden Consumables (You need to provide these):

• A "Catch Tray": A magnetic bowl or heavy mug to hold screws (they will roll).
• Thread Snips: Keep these permanently next to the winder.
• Standard Screwdriver (Phillips) & Small Wrenches.

Expert Note: You may find "long screws" in the package. Ignore them. These are for industrial table mounting. For a tabletop setup, you only need the short screws.

Prep Checklist: The Workspace

• Surface Check: Is the table flat? A wobbly table causes vibration, which causes uneven winding.
• Power Check: The label supports AC100–240V. Ensure your cord is not pulled tight; it creates drag on the unit.
• Hardware Check: Verify you have the short screws for the base attachment.


3. Physical Assembly: The Alignment Principle

This is where 90% of failures occur. If the unit is crooked on the base, the thread drags against the metal eyelets, creating friction burn before the thread even hits the bobbin.

Step 1: Base Plate Orientation

1. Place the metal base plate on your table.
2. Align the main winder body so the screw holes are strictly adjacent to the tension discs side.
3. Sensory Check: The unit should sit flush. If it rocks, check for debris under the plastic flange.

Step 2: Securing the Body

1. Insert the two small screws from the top.
2. Tighten with a Phillips screwdriver.
3. The "Handshake" Test: Tighten until snug, then give the unit a firm shake. It should move with the base plate, not independently.




Warning: Rotating Machinery Risk
The RXQ-01 spins at high RPM.
* Tie back long hair.
* Remove loose jewelry (bracelets/necklaces).
* Keep fingers clear of the spindle once the blue button is pressed. A spinning thread tail can slice skin like a paper cut.

4. The Thread Path: Creating the "Triangle of tension"

Geometry matters. We are building a path that guides the thread without adding drag, until we want drag (at the tension disk).

Step 1: Spool Pin Logic

1. Locate the hole on the base plate closest to the tension unit.
2. Install the straight metal spool pin here.
3. Expert Tip: Tighten the nut underneath with a wrench. Finger-tight is not enough; the vibration of the motor will loosen it within 50 bobbins.


Step 2: The Overhead Guide

1. Install the bent wire thread guide in the hole furthest from the tension discs.
2. Crucial Alignment: The loop of the wire must be higher than the top of your thread cone.
   • Why? If the loop is too low, the thread drags over the lip of the cone, causing "hiccups" in tension.


Step 3: The Tension Disks (The Most Critical Step)

This is the quality gate. If you get this wrong, you get "spongy bobbins."

1. Pass thread from the cone, through the overhead loop.
2. Pass thread into the tension unit's guide hole.
3. The "Floss" Maneuver: Bring the thread around to the tension disks. Do not just lay it there. Pull it firmly down between the metal plates like you are flossing your teeth.
4. Sensory Check: Listen for a faint click or feel the thread snap into place. When you pull the thread by hand, you should feel consistent, smooth drag—like pulling a zipper.










Why this matters: If the thread rides on top of the disks (floating), the bobbin will be soft. A soft bobbin collapses under the 800+ SPM (Stitches Per Minute) of a commercial machine, causing loop-prone stitching.

Use the same rigor here as you would when setting up hooping stations for production runs: standardized input equals standardized output.

5. The Winding Ritual: The 6-Wrap Rule

Never rely on the machine to "catch" the thread. That creates a loose tail that will tangle later.

1. Place the bobbin on the spindle.
2. Feed the thread through the bobbin hole (inside out) if available.
3. The Manual Anchor: Wind the thread clockwise around the bobbin core by hand.
4. The Magic Number: Do this at least 6 times.
   • Less than 6: It might slip on startup.
   • More than 10: It creates a bulk knot.
5. Trim the tail close before starting.

Expected outcome: When you press the Blue Start Button, the thread anchors immediately. No slipping, no noise.

Setup Checklist (The "Pre-Flight")

• Cone Check: Is the thread cone sitting flat?
• Path Check: Is the thread passing through the guides, not wrapped around them?
• Tension Check: Did you do the "Floss Snap" into the disks?
• Anchor: Did you do the 6 manual wraps?

6. Fine Tuning: Calibration for Production

Now that you are winding, you need to dial in the "Feel."

A. The Optical Sensors (Fill Level)

The RXQ-01 uses light sensors to stop automatically.

• To Adjust: Loosen the screw on the black sensor plate.
• Less Thread: Slide sensors Inward (toward the spindle).
• More Thread: Slide sensors Outward.
• Expert Advice: Aim for 90% capacity. Filling a bobbin to 100% (flush with the edge) increases the risk of the thread scraping against your machine's bobbin case, which causes thread breaks.


B. The Tension Knob (Bobbin Hardness)

Turn the knob on top of the tension disks.

• Clockwise: More tension (Harder bobbin).
• Counter-Clockwise: Less tension (Softer bobbin).

The Squeeze Test: Squeeze the finished bobbin with your thumb and index finger. It should feel like a ripe orange—firm, but with a tiny bit of give.

• Too Hard (Rock solid): Can stretch delicate polyester thread.
• Too Soft (Squishy): Will cause "bird nesting."


7. Troubleshooting: Structured Diagnostics

If the machine is acting up, use this logic flow. Always fix the "Physical" before the "Mechanical."

8. The Growth Path: When to Upgrade Your Toolkit

Embroidery is a journey of removing variables. The RXQ-01 removes the "Bobbin Variable." But if you are still frustrated, look at your other bottlenecks.

A Decision Tree for Tool Upgrades

Scenario 1: You have "Hoop Burn" or struggle to hoop thick items.

• Diagnosis: Standard plastic hoops force fabric into unnatural shapes.
• Solution (Level 1): Use better backing.
• Solution (Level 2): Magnetic Hoops. For single-needle machines, magnetic frames remove the need for hand-force tightening. For pros, they are essential. Just as a machine embroidery hooping station standardizes placement, magnetic hoops standardize holding force.

Scenario 2: You spend more time changing thread than stitching.

• Diagnosis: Single-needle limitations.
• Solution: This is the trigger for a Multi-Needle Machine (SEWTECH). If you are doing orders of 20+ shirts, the time saved on thread changes alone pays for the machine.

Scenario 3: Your logos are crooked.

• Diagnosis: Human error in placement.
• Solution: Invest in a hoop master embroidery hooping station. It ensures every logo is in the exact same spot on every shirt, regardless of operator fatigue.

Commercial Wisdom

Studios that scale effectively separate their stations. They have a winding station, a hooping station (often with brother accessories or universal equivalents), and a stitching station.

Warning: Magnetic Hoop Safety
If you upgrade to Magnetic Hoops:
* Pacemaker Risk: These magnets are industrial strength. Keep 6+ inches away from medical implants.
* Pinch Hazard: They snap together with substantial force. Keep fingers clear of the "snap zone."

Operation Checklist: The Daily Routine

• Batching: Wind 5-10 bobbins at the start of the day.
• Review: Squeeze test every bobbin.
• Clean: Blow dust out of the sensor area weekly.

Mastering the distinct rhythm of the RXQ-01 is your first step toward "Production Mindset." Good luck, and happy stitching.

FAQ

• Q: What hidden consumables and tools do I need for the RXQ-01 automatic bobbin winder tabletop setup?
  A: Bring a catch tray, thread snips, and basic hand tools before assembly to avoid missing-screw problems.
  • Use a magnetic bowl or heavy mug as a catch tray so screws don’t roll away.
  • Keep thread snips next to the RXQ-01 so trimming the tail happens before every start.
  • Use a Phillips screwdriver and small wrenches to tighten hardware properly (finger-tight often loosens with vibration).
  • Success check: All small parts stay organized, and the RXQ-01 runs without parts “mysteriously” loosening after a few bobbins.
• Q: Which screws should be used for assembling the RXQ-01 automatic bobbin winder on a tabletop, and which screws should be ignored?
  A: Use the short screws for tabletop assembly and ignore the long screws intended for industrial table mounting.
  • Sort the hardware first and set the long screws aside so they don’t get installed by mistake.
  • Attach the RXQ-01 body to the base plate using the two small screws from the top.
  • Tighten until snug, then do the “handshake” shake test to confirm nothing shifts.
  • Success check: The winder body moves together with the base plate (not independently) when shaken firmly.
  • If it still fails: Re-seat the unit to ensure it sits flush and check for debris under the plastic flange.
• Q: How do I stop the RXQ-01 automatic bobbin winder from making spongy or soft bobbins?
  A: Re-seat the thread firmly between the RXQ-01 tension disks (“floss” it in), then increase the tension knob slightly.
  • Re-thread the path and pull the thread down between the tension plates like flossing teeth (do not let it ride on top).
  • Listen/feel for the thread snapping into place, then test hand-pulling for smooth, consistent drag.
  • Turn the tension knob clockwise a small amount to increase bobbin hardness.
  • Success check: The finished bobbin feels firm—like a ripe orange (firm with a tiny bit of give), not squishy.
  • If it still fails: Confirm the thread is routed through the guide hole into the tension unit before the disks.
• Q: What is the correct RXQ-01 automatic bobbin winder start procedure to prevent the thread tail from slipping or tangling?
  A: Do the RXQ-01 “6-wrap rule” by hand before pressing the blue start button so the thread anchors immediately.
  • Feed thread through the bobbin hole (inside out) if the bobbin has a hole.
  • Wind the thread clockwise around the bobbin core by hand at least 6 times (avoid fewer than 6 and avoid overdoing it).
  • Trim the tail close before starting the motor.
  • Success check: When the blue start button is pressed, the thread catches instantly with no slipping and no rattly start.
  • If it still fails: Recheck that the thread is properly seated in the tension disks (not floating).
• Q: How do I fix uneven winding (cone-shaped winding) on the RXQ-01 automatic bobbin winder?
  A: Adjust the RXQ-01 overhead wire thread guide so the loop sits higher than the thread cone and the thread feeds smoothly.
  • Install the overhead wire guide in the hole farthest from the tension disks.
  • Raise/position the wire loop so it is higher than the top of the thread cone to prevent drag and “hiccups.”
  • Ensure the thread passes through the guides (not wrapped around them).
  • Success check: The bobbin fills evenly rather than building up in a cone shape.
  • If it still fails: Confirm the spool pin is firmly tightened with a wrench so vibration isn’t shifting alignment.
• Q: What are the key safety rules when operating the RXQ-01 automatic bobbin winder at high speed?
  A: Treat the RXQ-01 spindle like any high-RPM rotating tool: secure hair/jewelry and keep fingers away once started.
  • Tie back long hair and remove loose bracelets/necklaces before pressing the blue start button.
  • Keep fingers clear of the spindle and thread tail during spin-up (a loose tail can cut like a paper cut).
  • Start only after trimming the tail and confirming the thread path is correct to avoid sudden snags.
  • Success check: The RXQ-01 runs smoothly without needing hands near the spindle during rotation.
• Q: When should an embroidery business upgrade from basic workflow fixes to magnetic hoops or a SEWTECH multi-needle embroidery machine?
  A: Upgrade based on the bottleneck: fix stabilization first, use magnetic hoops for hooping-force problems, and consider a SEWTECH multi-needle machine when thread-change time dominates production.
  • Diagnose the trigger: hoop burn/thick items usually point to hooping pressure and stabilization; constant thread changes point to single-needle limits; crooked logos point to placement inconsistency.
  • Try Level 1 first: improve backing/stabilizer choices to reduce hoop burn and improve control.
  • Move to Level 2: choose magnetic hoops when manual tightening and fabric distortion are the recurring problem (especially on thick items).
  • Move to Level 3: consider a SEWTECH multi-needle machine when you routinely run larger shirt batches and thread changes consume more time than stitching.
  • Success check: The upgrade removes the specific bottleneck (less hoop burn, faster turnaround, or more consistent placement) rather than just “feeling nicer.”
  • If it still fails: Re-audit the workflow as separate stations (winding, hooping, stitching) so each step is standardized.
