Run the Honpo 1501 Like a Pro: Faster Hooping, Cleaner Traces, and Fewer “Oops” Moments on Garments, Denim, and Flat Frames

If you have ever stood in front of a commercial embroidery head with a hooped garment in your trembling hands and thought, “One wrong move and I’m going to crash a needle into plastic,” you are not alone. That fear is rational—commercial machines are powerful industrial tools. However, the difference between a terrified novice and a confident operator isn't magic; it is protocol.

The Honpo single-head commercial machine shown in this training (15 needles, touchscreen control) is straightforward once you build a repeatable routine. This article breaks down that routine into a "zero-friction" guide. We will reconstruct the exact operational flow—garment hooping, mounting, control panel setup, tracing, and large flat sash-frame installation—and inject the "shop-floor" sensory details that keep your blanks clean, your stitches consistent, and your profit margins healthy.

Meet the Honpo 15-Needle Head: What You’re Looking At (and Why It’s Not as Scary as It Feels)

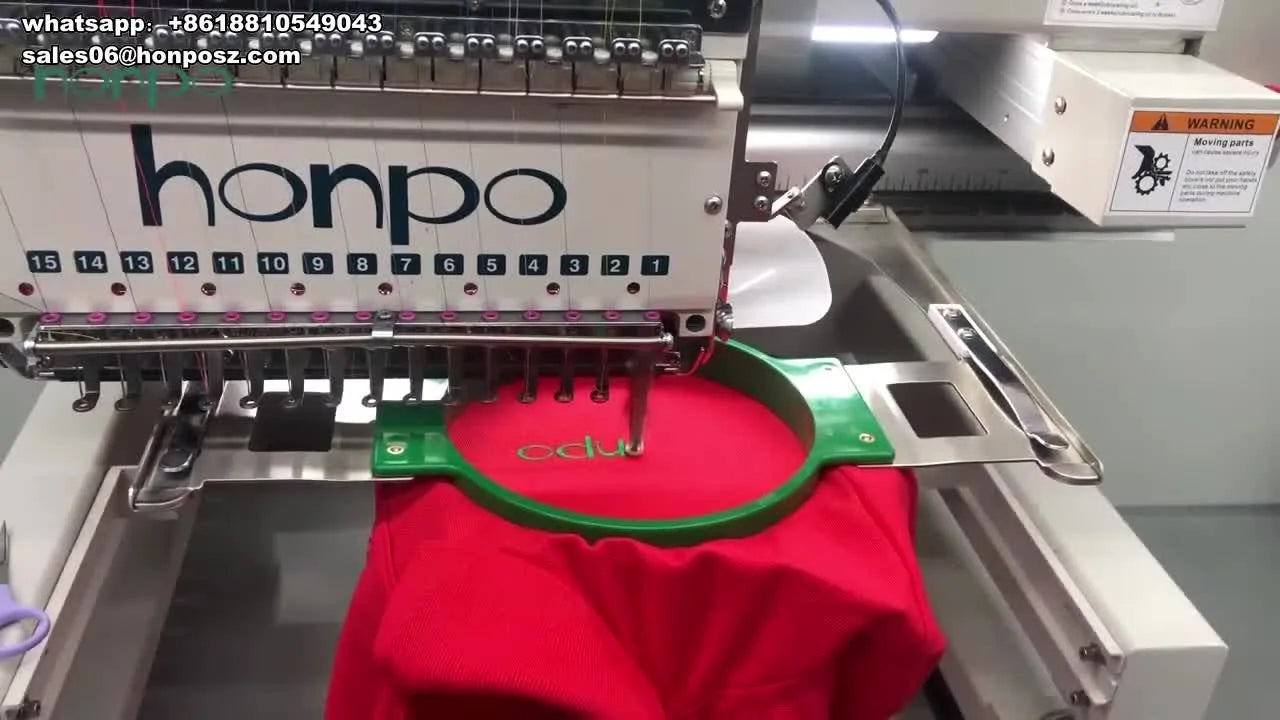

The video opens on a Honpo single-head machine with 15 needles and a touchscreen control panel. That needle count matters because it changes your fundamental role. You are no longer just "threading a machine" like a home hobbyist; you are managing a miniature production line. You have 15 colors on standby, multiple stops, and higher speeds.

The "Experience-Based" Reality Check: Most beginners are terrified of the software. But in 20 years of floor experience, I can tell you that 90% of "disasters" (broken needles, bird-nesting, ruined shirts) come from two physical mistakes:

1. Poor Hoop Tension: The fabric moves like a trampoline skin instead of a drum head.
2. Skipping the Trace: You didn't check the boundaries, and the needle bar hit the hoop.

The Strategy: Treat every setup like you are preparing to run 50 identical pieces, even if you are only running one. That discipline is what separates "hopeful" results from "sellable" results.

The Prep Nobody Wants to Do (Until They Waste a Shirt): Hoop, Stabilizer, Tools, and a Clean Work Surface

In the garment segment, the operator lays the outer green tubular hoop on a table, loosens the adjustment screw, places stabilizer over the hoop, then pulls the polo shirt over the assembly and smooths the front panel.

This looks simple, but this is where the war for quality is won or lost.

The Hidden Consumables (What you actually need):

• Stabilizer: Cutaway for knits (polos), Tearaway for woven caps/towels. Never guess.
• Temporary Spray Adhesive (KK100/505): To prevent the stabilizer from sliding.
• Precision Scissors: For snipping jump threads.
• Fresh Needles: If you don't know how old the needle is, change it (75/11 is your standard start).

The "Hooping Station" Concept: The video shows a flat table. However, experienced operators know that fighting a shirt on a flat table leads to crooked logos.

• Level 1 (Skill): Mark your table with tape to create a center alignment guide.
• Level 2 (Tool): If you are doing this daily, a dedicated embroidery hooping station ensures the hoop is in the exact same spot for every shirt. It saves your wrists and ensures your placement is repeatable.

Warning: Keep your fingers strictly on the outside of the outer ring when pressing the inner ring down. A pinch between these plastic rings can cause genuine injury.

Prep Checklist (Do this OR Fail)

1. [ ] Inspect Hoop Rings: Run your finger along the plastic edges. Any burrs or chips? Sand them down or they will snag your $40 polo.
2. [ ] Screw Check: Loosen the hoop screw enough that the inner ring drops in with resistance, but you don't have to force it.
3. [ ] Stabilizer Size: Must extend at least 1 inch beyond the hoop capability on all sides.
4. [ ] Machine Clearance: Ensure the bobbin case area is free of lint (blow it out).


The “Palm-Press” Hooping Move on a Polo Shirt: Get Drum-Tight Without Stretching the Knit

The operator inserts the inner hoop into the shirt, aligns it with the outer hoop underneath, then uses body weight and palms to press the inner ring down until it snaps into place.

This is the most difficult physical skill in embroidery. You are fighting a paradox: you need the fabric tight, but you cannot stretch it.

The Sensory Check (The "Drum Skin" Test): Once hooped, tap the fabric with your finger.

• Sound: You should hear a dull thump, like a drum.
• Sight: Look at the vertical ribs of the polo fabric. Are they straight? If they bow outward like parentheses ( ), you have over-stretched the fabric. This will cause "puckering" once you un-hoop it.

The "Hoop Burn" Pain Point: Traditional plastic hoops require you to crush the fabric between two rings to hold it. on delicate items or dark performance wear, this leaves a permanent shiny ring called "hoop burn."

• Trigger: You are ruining shirts with marks, or your wrists hurt from wrestling screws.
• Solution (Tool Upgrade): This is why many shops switch to Magnetic Hoops. They use downward magnetic force rather than friction to hold fabric. They eliminate hoop burn and reduce hooping time by 30%. Terms like hooping for embroidery machine often lead professionals toward magnetic solutions purely for speed and fabric safety.


Mounting the Green Tubular Hoop on the Pantograph Arms: The “Side-Slide Click” That Prevents Wobble

In the video, the operator identifies the metal bracket arms on the machine pantograph, then slides the hoop’s metal clips sideways onto the brackets until they click/lock.

The "Double-Check" Protocol:

1. Slide: Align the metal clips.
2. Snap: Push firmly until you hear a sharp metallic CLICK.
3. Wiggle Test: Grab the hoop frame (not the shirt) and gently shake it left and right.
   • If it rattles: You are not locked in. Stop.
   • If the whole machine arm moves: You are locked in.

Why this matters: Even a 1mm wiggle in the hoop mount will result in jagged satin columns and outlines that don't match your fill.

Touchscreen Setup on the Topwisdom/Dahao-Style Panel: USB Design Import, Needle Mapping, and Speed Limits

The operator uses the touchscreen to select a design, map thread colors to needle numbers, and set limits. The screen shows a max speed setting of 1200 RPM, but an operating speed around 850 RPM.

The Beginner Sweet Spot (Speed): The machine can go 1200 stitches per minute (SPM). You should not.

• High Speed = High Vibration + High Tension.
• Recommendation: Set your speed to 600-700 SPM for your first 50 hours of operation. You will get cleaner stitch definition and fewer thread breaks. Only ramp up when you trust your stabilization.

Needle Mapping (The "Don't Guess" Rule): You must tell the machine that "Color 1 in the design" = "Needle 5 on the head."

• Pro Tip: Create a physical chart taped to the machine head listing which color thread is on which needle number. Don't rely on memory.

If you are researching a 15 needle embroidery machine, understand that this software setup time is the trade-off for not having to re-thread the machine for every color change.

Setup Checklist (Before you touch "Trace")

1. [ ] Design Orientation: Is the design right-side up relative to the shirt? (Rotate 180° if needed).
2. [ ] Color Mapping: Verify Needle 1 matches Stop 1.
3. [ ] Speed Limit: Cap at 700 RPM for safety.
4. [ ] Hoop Selection: Tell the screen exactly which hoop size you used (e.g., Hoop E / 150mm). If you skip this, the machine limits won't work.


The Trace Habit That Saves Needles and Hoops: Centering with Arrow Keys + Boundary Check

The operator uses arrow keys to move the pantograph, centering the design. Then they execute a “Trace” command. A laser dot (or the needle bar) moves around the perimeter of the design.

The Golden Rule of Tracing: Never, ever press "Start" without Tracing. Visual Check: Watch the presser foot (the metal foot behind the needle). Does it come within 5mm of the plastic hoop edge?

• Yes: You are in the "Danger Zone." Re-center or choose a larger hoop.
• No: You are safe to stitch.

If the needle strikes a plastic hoop at 800 RPM, it can shatter the needle (blinding risk), break the bobbin case, or ruin the garment.

Denim Jeans on a Specialty Clamp Frame: Holding Power, Clearance, and Why Thick Seams Change Everything

The video shows jeans embroidery using a specialty frame and metal binder clips.

The Physics of Denim: Denim is visually tough but structurally loose (twill weave). It wants to shift. Plus, the thick side seams are obstacles. The presser foot will hit a thick seam and "bounce," causing skipped stitches.

Decision Criteria: When to Upgrade Holding Methods?

• Standard Clamp: Works for occasional jobs.
• The Upgrade: If you are doing heavy tote bags or denim legs daily, standard clips are slow and can pop off. This is a prime scenario for SEWTECH Magnetic Frames. The magnets provide continuous pressure even over thick seams, preventing the fabric directly under the needle from flagging (bouncing up and down).

Warning (Safety): Magnetic hoops use powerful Neodymium magnets. They can pinch skin severely (blood blisters) and can interfere with pacemakers. Handle with extreme respect.

The Finished Denim Sample: Use It as a Quality Checklist, Not Just a Photo Moment

The video shows a finished yellow flower. Don't just admire it; audit it.

The forensic audit:

1. Registration: Is the yellow fill strictly inside the black outline? Or are there gaps? (Gaps = Hoop moved or Stabilizer failed).
2. Density: Is the fabric showing through the stitches? (Too loose).
3. Clarity: Is the text readable?


Installing the Extension Table for Large Flat Work: Level It Like You Mean It

The operator slides the heavy metal table extension onto the chassis and tightens bolts.

The Mechanical "Why": Embroidery is a game of vibration. If this table is not level, or if the bolts are loose, the large sash frame will vibrate at high speeds. This vibration travels down the needle and creates "jagged" lines. Action: Use an Allen wrench. Tighten until you feel hard resistance. Then give it one more quarter-turn.

Clipping Fabric into the Aluminum Sash Frame: “Drum Skin” Tight, Even Tension, No Lazy Corners

The operator spreads stabilizer and fabric over the sash frame, using purple clamps to snap over the edges.

The Technician's Technique: Do not clip one side completely, then the other. You will pull the grainline crooked.

• Correct Sequence: Clip Top Center -> Clip Bottom Center (pull tight) -> Clip Left Center -> Clip Right Center -> Work your way to the corners.
• THIS is where the term embroidery frame refers to structural rigidity. A weak frame bends under tension; a good sash frame stays rigid.


Tightening the Underside Screws: The “Hidden” Step That Stops Table Creep Mid-Run

There is a close-up of tightening screws underneath. Risk: If the table slides away from the machine just 2mm during a 50,000 stitch design, your entire design will shift 2mm. You won't notice until the outlining stitch misses the flower by an inch. Check these screws every morning.

Running Large Flat Designs on the Honpo Head: What Changes When the Stitch Field Gets Big

The video shows a tiger head. The Large Field Challenge: On a small hoop, friction holds the fabric. On a large sash frame, gravity pulls on the fabric.

• Support: Ensure nothing is dragging on the floor. The weight of the fabric hanging off the table can pull the design, creating distortion.


Large Landscape Embroidery in Progress: The Quiet Lesson About Thread Planning and Stop Management

The video shows a Chinese landscape. Thread Break Strategy: In large designs, thread breaks happen.

• Protocol: When the thread breaks, the machine stops. Do not just re-thread and start. You must back up the machine (using the "Back" button icon) about 10-15 stitches to overlap the break point. If you don't, you will have a visible gap in the landscape.

Operating a single head embroidery machine for large art requires patience. You are the quality control engineer.

When One Head Isn’t Enough: What the 3-Head Demo Teaches You About Scaling Orders

The video ends showing a 3-head machine.

The Growth Logic: How do you know when you have outgrown your single-head machine?

1. Turnaround Time: Are you turning down orders because you can't meet the deadline?
2. Setup Fatigue: Are you spending 50% of your time hooping and only 50% stitching?

The Solution Ladder:

• Step 1 (Optimize): Buy a Hooping Station and Magnetic Hoops. This makes your loading 2x faster.
• Step 2 (Scale): If you need to produce 50+ shirts a day, a single head isn't enough. Moving to SEWTECH Multi-needle Machines (multi-head systems) allows you to stitch 2, 4, or 6 garments in the same time it takes to stitch one.


Packing and Shipping Prep: Why Accessory Organization Matters More Than People Admit

The video shows accessories laid out. Inventory your "Life-Savers": Keep a "Crash Kit" next to your machine:

• Spare Bobbin Case (drops happen).
• Spare Rotary Hook (expensive, but necessary).
• Magnetic Hoop Adapter Brackets.
• Precision Tweezers.


Crating the Machine: The Last “Training Step” Is Respecting Weight, Balance, and Shock

The machine is crate-packed. Takeaway: If you ever move your machine, you must lock the pantograph (head) in place (usually with a red shipping bracket). If the head slides freely during transport, it will knock the calibration out, and you will spend $500 on a technician to re-center your needle timing.

Decision Tree: Fabric Type → Stabilizer & Hoop Choice

Stop guessing. Use this logic flow before every job.

Q1: Is the fabric Stretchy (Polo, T-shirt, Hoodie)?

• YES:
  • Stabilizer: CUTAWAY (2.5oz or 3.0oz). No exceptions.
  • Hoop: Tubular Round. Pro Move: Magnetic Hoop to avoid burn marks.
  • Needle: Ball Point (BP).
• NO (Canvas, Denim, Cap, Towel):
  • Stabilizer: TEARAWAY (is usually sufficient).
  • Hoop: Standard Clamp or Magnetic Frame.
  • Needle: Sharp point.

Q2: Is the Design Heavy (High stitch count, >30,000 stitches)?

• YES: Double your stabilizer layer. Use spray adhesive to bond the stabilizer to the fabric so they move as one unit.
• NO: Standard single layer is fine.

Troubleshooting: The "Quick Fix" Grid

Follow this sequence from Low Cost (Free) to High Cost.

The Upgrade That Pays You Back: Faster Loading, Cleaner Results

The comments on the video ask about pricing, agents, and caps. This signals the shift from hobbyist to business owner.

Here is the path to profitability using your honpo embroidery machine or similar equipment:

1. Master the Ritual: Hoop, Mount, Trace.
2. Eliminate the "Burn": If you are fighting hoop marks on dark shirts, do not wait. Upgrade to a Magnetic Hoop system compatible with your head. It is the cheapest way to look like a professional.
3. Scale Up: When your volume demands it, look for reliable multi-head partners like SEWTECH to multiply your output. For specialized work like hats, ensuring you have a robust cap hoop for embroidery machine system is critical for efficiency.

Operation Checklist (The "Press Start" Final Check)

1. [ ] Hoop: Locked and clicked (No wiggle).
2. [ ] Trace: Completed and visually safe.
3. [ ] Bobbin: Full enough to finish the job? (Check visual window).
4. [ ] Thread Path: No thread caught on the tree or signal light.
5. [ ] Panic Finger: Hover your finger over the "Stop" button for the first 100 stitches. Listen for the smooth thump-thump. If you hear a CRUNCH, hit stop.

Welcome to the world of commercial embroidery. Respect the machine, trust the physics, and keep your hoops tight.

FAQ

• Q: What consumables and tools are required before hooping a polo shirt on a Honpo 15-needle single-head commercial embroidery machine?
  A: Use the correct stabilizer plus a few “hidden” basics before hooping, or quality and safety will suffer.
  • Choose stabilizer on purpose: cutaway for knits (polos), tearaway for woven items (caps/towels)—don’t guess.
  • Add temporary spray adhesive to keep stabilizer from sliding.
  • Keep precision scissors and fresh needles ready (a safe starting point is a 75/11 if needle age is unknown).
  • Clean the bobbin case area and remove lint before mounting the hoop.
  • Success check: the garment and stabilizer do not creep when smoothing the fabric over the hoop.
  • If it still fails: switch stabilizer type/weight per fabric and re-hoop with correct tension.
• Q: How do I hoop a polo shirt “drum-tight” on a Honpo commercial embroidery machine without stretching the knit and causing puckering?
  A: Press the inner ring in with palms/body weight, but keep the knit straight—tight is required, stretching is not.
  • Align the inner hoop inside the shirt, then press down evenly with palms until it snaps into place.
  • Watch the fabric ribs/grain while pressing; stop if the ribs bow outward like parentheses.
  • Avoid hoop burn on delicate/dark performance wear by upgrading to a magnetic hoop system (it often reduces marks and speeds loading).
  • Success check: tap test sounds like a dull “thump” (drum skin), and the knit ribs remain straight (not bowed).
  • If it still fails: loosen the hoop screw slightly and re-hoop; if hoop marks persist, consider magnetic hoops as the tool upgrade.
• Q: How do I correctly mount a green tubular hoop on Honpo pantograph arms so the hoop does not wobble during embroidery?
  A: Slide the hoop clips sideways onto the pantograph brackets until a clear click, then confirm with a wiggle test.
  • Align the metal clips to the bracket arms, then push sideways until a sharp metallic “CLICK.”
  • Grab the hoop frame (not the garment) and gently wiggle left/right to check lock-in.
  • Stop immediately if any rattle is felt—re-seat the clips before stitching.
  • Success check: the hoop does not rattle; instead, the whole machine arm moves slightly when shaken.
  • If it still fails: inspect clips/brackets for misalignment and re-mount before proceeding.
• Q: What speed and needle mapping settings are a safe starting point on a Honpo 15-needle touchscreen panel (Topwisdom/Dahao-style) for new operators?
  A: Cap speed low and verify color-to-needle mapping and hoop size on-screen before tracing.
  • Set operating speed to 600–700 SPM for the first ~50 hours to reduce vibration and thread issues.
  • Map “Color 1 in the design” to the correct needle number on the head—do not guess; use a taped-on needle/color chart.
  • Select the exact hoop size used in the control panel so boundary limits work correctly.
  • Success check: the design orientation is correct on the garment and the machine’s stops match the intended needle colors.
  • If it still fails: re-check hoop selection and re-map colors before running Trace again.
• Q: How do I use the Trace function on a Honpo commercial embroidery machine to prevent the needle from hitting a plastic hoop?
  A: Always Trace before Start, and confirm the presser foot stays at least 5 mm from the hoop edge.
  • Center the design using arrow keys before running Trace.
  • Watch the presser foot path during Trace—not just the needle bar—to confirm clearance.
  • Re-center the design or switch to a larger hoop if the trace path approaches the hoop edge.
  • Success check: during Trace, the presser foot never comes within about 5 mm of the hoop rim.
  • If it still fails: stop and re-hoop or re-select the correct hoop size on the touchscreen so limits calculate properly.
• Q: How do I fix bird nesting (a huge knot under the throat plate) on a Honpo commercial embroidery machine during a run?
  A: Stop, cut the nest carefully, then re-thread the top thread so it sits deep in the tension disks.
  • Cut away the thread bundle without pulling hard on the fabric to avoid shifting registration.
  • Re-thread the top path and “floss” the thread into the tension disks like dental floss.
  • Restart at a controlled speed (a safe starting point is staying under the beginner cap you set, such as 700 SPM).
  • Success check: the underside returns to normal with no growing knot and stitches form consistently.
  • If it still fails: stop and re-check top threading path again and inspect for lint around the bobbin area.
• Q: What are the safety rules for using magnetic embroidery hoops/frames on commercial embroidery machines (including pinch and medical risks)?
  A: Treat magnetic hoops as powerful tools—keep skin clear of the closing gap and avoid use around pacemakers.
  • Keep fingers outside the closing area when magnets snap together; pinch injuries can be severe.
  • Handle magnets slowly and deliberately; do not “let them jump” into place.
  • Do not use magnetic hoops near pacemakers (magnetic fields may interfere).
  • Success check: the hoop closes without trapping fabric folds or fingers, and the material lies flat under steady pressure.
  • If it still fails: pause and reposition the garment/stabilizer before closing; do not force magnets together.
