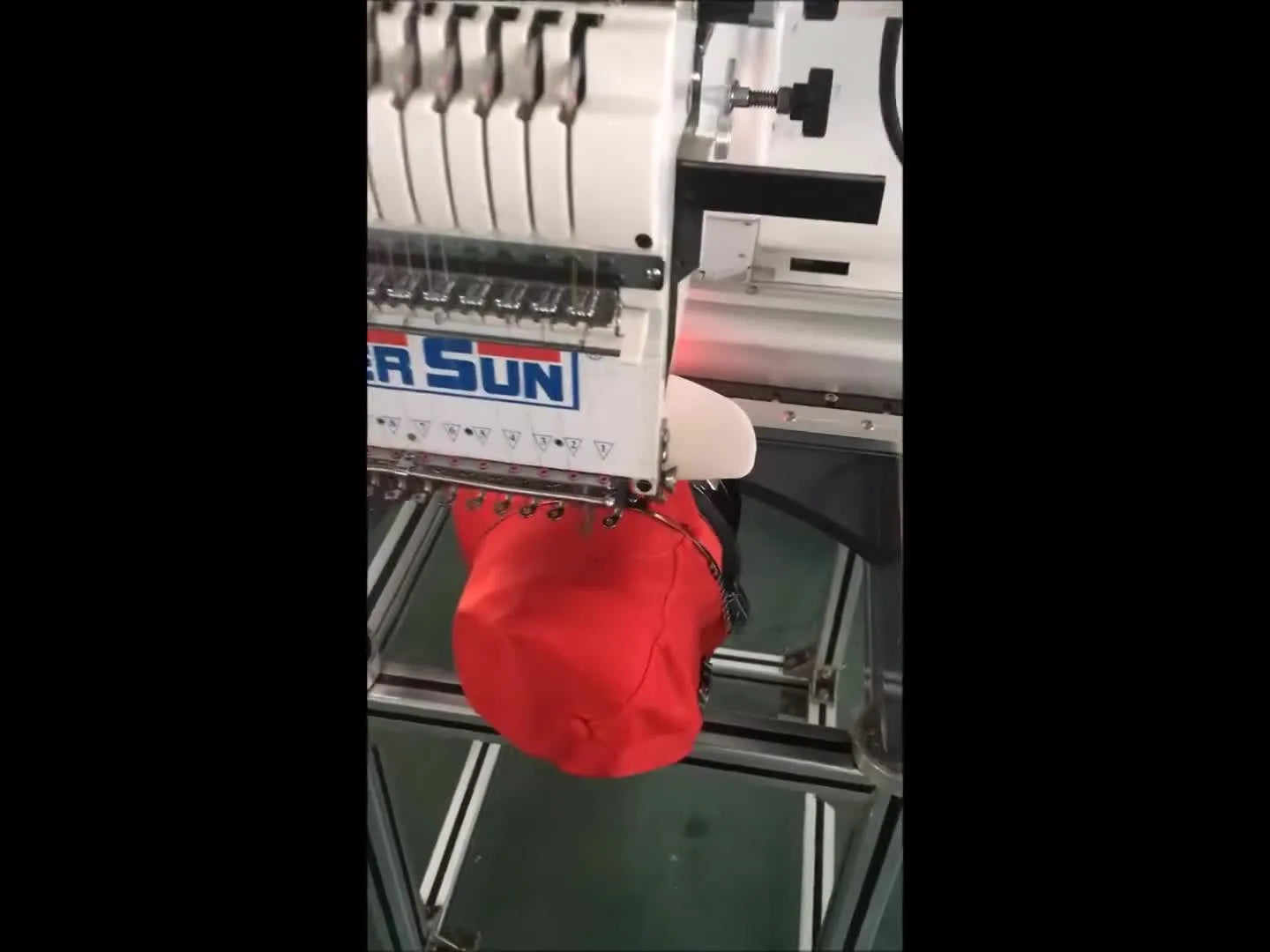

Run Caps with Confidence on the Silver Sun SMX-1501/CP: Dahao USB Import, Needle Mapping, and a Cap Station Hooping Routine That Stays Centered

Mastering Cap Embroidery on the Silver Sun SMX-1501/CP: A Production-Grade Workflow

Cap embroidery is one of those jobs that can make even experienced operators tense up. Unlike flat garments, a hat is a structured, 3D object that fights you every step of the way. A small alignment mistake here doesn’t just mean a ruined design; it often means a needle strike against a metal frame, creating an expensive repair bill and a very loud, frightening noise.

But fear not. The Silver Sun SMX-1501/CP, equipped with the Dahao touchscreen interface, is a capable workhorse for headwear if—and only if—you follow a strict, repeatable routine.

This guide rebuilds the workflow from the ground up. We will move beyond simple button-pushing and into the "why" and "how" of professional operation. We will cover USB import, color mapping, the critical outline check, and the physical art of hooping a cap.

Know What You’re Driving: Silver Sun SMX-1501/CP Specs and the Real-World Meaning of “15 Needles”

The machine in front of you is a single-head, 15-needle commercial unit. The spec sheet lists an embroidery area of 500 mm × 350 mm, but for caps, you must ignore that number. Your reality is the "sew field" of the cap driver (usually about 60mm to 70mm high for standard caps, up to 270 degrees wide).

If you’re transitioning from a home machine, here is the mental shift required: A 15 needle embroidery machine is not just about sewing rainbows with 15 colors. It is about efficiency.

The Efficiency Mindset:

• Home Machine: You stop to change thread for every color.
• 15-Needle Machine: You load your standard black, white, red, royal, navy, gold, and silver onto needles 1-7 and leave them there.
• Result: When a rush order comes in, you are already threaded. You reduce downtime, knot-tying, and threading errors.


The “Hidden” Prep Before You Touch the Dahao Screen: Thread Paths, Backing, and a Cap Reality Check

Amateurs rush to the screen; professionals start at the prep table. Caps are difficult because they are pre-constructed, curved, and often contain buckram (stiffener) and thick center seams.

Your first decision involves consumables. The "Standard" setup is rarely enough for every hat.

Decision Tree: Fabric Type → Stabilizer Formula

This is your roadmap to preventing puckering and registration errors.

• Structured Cap (Stiff Front/Trucker Mesh):
  • Feel: Hard, stands up on its own.
  • Prescription: 1 Layer of Tear-Away Backing.
  • Why: The cap provides its own support; the backing is there to give the stitches something to grip.
• Unstructured Cap (Dad Hat/Washed Cotton):
  • Feel: Floppy, collapses when you put it down.
  • Prescription: 2 Layers of Tear-Away OR 1 Layer of Cut-Away (if the design is dense).
  • Why: The fabric is unstable. Without extra support, the machine will push the fabric around, causing the outline to drift away from the fill.
• Thick Center Seam:
  • Observation: A ridge of fabric exactly where your logo goes.
  • Prescription: Use a Titanium Needle (75/11 Sharp) and ensure your hoop strap is tight. You may need to ease up on the presser foot height slightly to clear the bump without flagging.

Hidden Consumables Checklist: You need more than just thread and hats. Ensure you have:

• Temporary Adhesives: A light mist of spray adhesive keeps the backing attached to the cap rotary system.
• Spare Needles: Cap embroidery breaks needles. Keep a pack of 75/11s tapped to the machine stand.
• Binder Clips: For securing the back of the cap (the "ear" flaps) so they don't get sewn to the front.

Prep Checklist (Pre-Flight):

• Cap is clean and free of deep packaging creases.
• Needles are straight (roll them on a flat table to check).
• Thread path is clear; pull thread through the needle eye. It should feel like flossing teeth—some resistance, but smooth.
• Bobbin is full. (Check visually: do you see the diamond pattern on the bobbin case?)


USB Design Import on the Dahao Touchscreen: Load the.DST and Save It to a Memory Number

In the workflow, you insert the USB drive into the Dahao panel's side port. Navigating this interface can be intimidating, but it follows a logic.

1. Select USB Icon: Read the drive.
2. Locate File: Find your .DST file (e.g., "SILVER SUN").
3. Assign to Memory: You cannot sew directly from the stick. You must copy it to the machine's brain (Memory Number).

The "Fat Finger" Risk: On a single head embroidery machine, selecting the wrong file is common. You might select Logo_v1 instead of Logo_vFinal.

• Visual Check: Always look at the preview thumbnail. Does it look like the right shape?
• Orientation: Caps are sewn "upside down" relative to the machine head (270 mode) or right-side up depending on your digitizing. Most commercial files for caps should appear rotated 180 degrees on the screen if the machine doesn't auto-rotate. Check this!


Needle Mapping That Actually Matches Your Thread Rack: Dahao Color Sequence Setup (12 Colors → 9 Needles)

The digitizer gave you a file with 12 color changes. You only have 9 cones of thread loaded. Do you panic? No. You map.

The Dahao "Color Sequence" menu acts as a bridge between the digital file and the physical reality of your machine. You will tell the machine: "When the file asks for Color 1, use Needle 3."

Sensory Tip: Look at your thread rack. Say the colors out loud as you program: "Needle 1 is Red, Needle 2 is Blue." Then look at the screen. Trusting your memory causes mismatched colors.

Pro Tip (The Operator's Notebook): Keep a magnetic whiteboard or a notepad on the machine. Write down your "Needle Map" for every job (e.g., " Job: Smith Electric. N1=Black, N2=Yellow"). Consistency is the only difference between a hobbyist and a professional.

The Border-Check Habit That Saves Hoops and Needles: “Move Frame Along Design Border” → Outline Check

This is the most important button on the machine. Period. Use: “Move Frame Along Design Border” → “Outline Check.”

Because caps are sewn on a curved, rotating driver, the space is tight. If your design is too low, you hit the metal strap. If it's too high, you hit the crown.

The Sensory Anchor:

1. Look: Watch the red laser (or the needle bar 1). It traces a box around your design.
2. Listen: The machine motors will whine as the frame moves.
3. Gap Check: There must be a physical gap (at least 5mm) between the needle and the metal cap frame at the bottom and top of the trace. If any part of that trace touches metal, you WILL break a needle and potentially ruin the hook timing.

Warning: Mechanical Safety
NEVER skip the outline check on a cap job. A "Frame Strike" at 800 RPM sends metal shrapnel flying and can strip the gears of your X/Y motors. If the trace looks close, move the design or resize it. Safety margin > Heroics.

Auto vs Manual Color Change on Dahao: Pick the Mode That Matches Your Operator Skill (and Your Risk Tolerance)

The screen shows A (Auto) and M (Manual).

• Auto: The machine changes colors and keeps sewing. This is for production.
• Manual: The machine stops at every color change and waits for you to press Start.

Beginner Strategy: Use Manual for your first test cap. This forces a pause, allowing you to inspect the quality, trim any stray tails, and ensure the registration is holding before the machine commits to the next layer. Once confident, switch to Auto.

Lay Out the Cap Embroidery System Like a Surgeon: Cap Driver, Cap Rings, and the Cap Station

Do not treat these parts as random accessories. This is a precision embroidery hooping system.

1. Cap Driver: The heavy unit attached to the machine. It drives the rotation.
2. Cap Ring (Hoop): The circular frames that hold the hat. You usually get two per head.
3. Cap Station: The heavy gauge mounting device clamped to your table.

Workflow Efficiency: You should be "looping." While the machine is sewing Cap A on Ring 1, you should be standing at the Cap Station hooping Cap B on Ring 2. This eliminates machine downtime.

Clamp the Cap Station So It Doesn’t Lie to You: Tighten the Thumb Screws Until the Station Won’t Wobble

The operator places the heavy metal cap station on the table edge.

The Physical Check: Tighten the two black thumb screws. Now, grab the station and shake it.

• Sensory: If it rattles or slides, it is too loose.
• Consequence: If the station moves while you are pulling the cap strap tight, your "center" is no longer center. Stable station = Centered logo.


Hooping the Cap on the Ring: Align the Center Seam to the Station Mark, Then Lock the Strap Like You Mean It

This is the hardest physical skill to master. A well-hooped cap sounds like a drum; a poorly hooped cap feels like a wet sock.

1. Snap the Ring: Place the cap ring onto the station. Listen for the distinct click of the three spring-loaded tabs.
2. Placement: Slide the cap onto the ring. Ensure the sweatband is flipped out (or under the locating tab, depending on style).
3. Alignment: The cap station has a red line or a metal groove notch. The center seam of the cap must align perfectly with this mark.
4. The Strap: Swing the metal strap over the brim/bill seam.
5. Tension: Hook the buckle and clamp it down.

The "Tautness" Test: Run your fingers over the front face of the cap.

• Success: The fabric is smooth, tight, and does not ripple.
• Fail: If you can pinch fabric in the middle, it's too loose. Loosen the strap, tighten the adjustment screw, and re-clamp.

Using a Professional Hooping Station: Using a dedicated hooping station for machine embroidery ensures that every hat is uniform. The station holds the ring rigid so you can apply the necessary force to the strap without fighting gravity.

Warning: Pinch Hazard
The latch on a cap ring snaps shut with significant force. Keep your fleshy fingertips away from the hinge and the mating surfaces. It can and will draw blood if you are careless.

The “Centerline Test” Before You Walk Away: Confirm the Cap Seam Is Level and the Stitch Field Is Where You Think It Is

Before taking the ring off the station, look at it straight on. Is the center seam vertical? Sometimes, tightening the strap torques the hat to the left. If it looks crooked on the station, it will sew crooked on the machine.

The Fix: Unlatch. Twist the cap slightly to compensate. Re-latch.

If you are struggling with slippage, check your cap hoop for embroidery machine hardware. Sometimes the rubber grip strip on the strap is worn out and needs replacement.

Running the Cap at 600 RPM: Why Slower Often Looks Better (and Breaks Less)

The demo shows a speed of 600 RPM. Many novices try to run caps at 1000 RPM because the machine "can" do it.

• Physics: A cap on a driver is a heavy, off-balance weight being shaken violently.
• Result of High Speed: The cap vibrates (flagging). The needle deflects. You get thread breaks and "shaky" looking satin columns.

The Sweet Spot: Start at 600-700 RPM. Only go higher if your stabilizer is perfect and your design is low-stitch-count.

The “Why It Works” (So You Can Repeat It): Hooping Physics, Tension Balance, and What Causes Crooked Logos

1. The "Flagging" Phenomenon: If the cap isn't tight, the fabric bounces up with the needle. This causes loop-de-loops and bird nests. The solution is tighter hooping, not tighter thread tension.

2. The Center Seam Lie: Cap seams are thick. If your needle lands directly on the hard seam ridge, it can deflect. Good digitizers often avoid placing small lettering directly over the bulky center seam.

3. The Friction Factor: Backing provides friction. It keeps the slick polyester cap material from sliding around on the metal throat plate.

When Things Go Wrong on the Dahao/SMX-1501/CP: Symptoms → Likely Cause → Fix

Don't guess. Use this diagnostic table.

Setup Checklist (Do Not Press Start Without This)

• Design: Correct file loaded and orientation checked (upside down?).
• Colors: Needles 1-15 mapped correctly to the design colors.
• Physical Space: Machine has clearance (wall/table) for the pantograph to move back.
• Outline Trace: Performed and visually confirmed clear of metal.
• Bobbin: Full and tensioned.

Operation Checklist (The "live" Phase)

• Watch Layer 1: Watch the underlay sew out. If it's crooked, stop immediately (Cost: 1 hat). If you wait, cost = Time + Thread + 1 Hat.
• Listen: A rhythmic thump-thump is good. A grinding noise is bad. A sharp snap is a thread break (or needle break).
• Speed: Keep it steady at 600-700 RPM.

The Upgrade Path: Solving Pain Points with Better Tools

You have mastered the process, but perhaps you face new bottlenecks.

Scenario A: "I hate hoop burn on my polo shirts." Standard hoops leave rings that are hard to steam out.

• Solution: Magnetic Hoops. They use magnets instead of mechanical pressure, leaving zero marks on delicate fabrics.

Scenario B: "Hooping takes me too long." Hooping a shirt with a standard hoop takes 45-90 seconds.

• Solution: hooping for embroidery machine efficiency is revolutionized by magnetic frames. You just lay, snap, and go. Reducing hooping time by 30 seconds per shirt saves hours per week.

Scenario C: "I need to do 500 hats by Friday."

• Solution: A single-head machine is great, but it has limits. This is where you look at SEWTECH Multi-Needle Machines (2-head or more) to multiply your output without multiplying your labor.

Warning: Magnet Safety
If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets.
1. Pacemakers: Keep at least 6 inches away.
2. Pinch: Do not put your fingers between the magnets. They snap together with enough force to cause blood blisters.

A Final Word from the Shop Floor: Repeatability Beats Speed

The Silver Sun SMX-1501/CP is a tool. Like a chisel or a paintbrush, it is only as good as the hand guiding it.

The secret to profitable cap embroidery isn't running at 1200 RPM. It is the discipline to perform the Outline Check every single time. It is the patience to verify your Center Seam alignment before latching the buckle. It is the wisdom to map your needles correctly before hitting start.

Trust your process. Listen to your machine. And when the volume gets too high for one head to handle, know that there are tools ready to help you scale.

FAQ

• Q: What consumables and pre-flight checks should be done before cap embroidery on the Silver Sun SMX-1501/CP with the Dahao touchscreen?
  A: Do the prep-table checks first; most cap problems start before the Start button is pressed.
  • Verify needle condition: roll needles on a flat table to confirm they are straight; keep spare 75/11 needles ready.
  • Confirm thread path: pull thread through the needle eye—smooth with slight resistance (not jerky).
  • Check bobbin: use a full bobbin and visually confirm proper winding (you should see the consistent “diamond” pattern).
  • Prepare consumables: use a light mist of temporary spray adhesive to hold backing on the cap system; use binder clips to keep the cap “ears” from getting stitched.
  • Success check: the cap/backing feels secure (no sliding), the thread pulls smoothly, and the bobbin is visibly full and evenly wound.
  • If it still fails: stop and replace the needle first, then re-check backing choice and hooping tension before adjusting any tensions.
• Q: What stabilizer/backing should be used for structured caps vs unstructured caps on the Silver Sun SMX-1501/CP cap driver?
  A: Match backing to cap stability; structured caps usually need less, unstructured caps often need more support.
  • Choose 1 layer of tear-away for a structured cap (stiff front/trucker mesh) to give stitches something to grip.
  • Choose 2 layers of tear-away for an unstructured cap (dad hat/washed cotton), or 1 layer of cut-away if the design is dense.
  • Secure backing with light spray adhesive so it doesn’t creep during rotation.
  • Success check: during the early underlay, the outline does not “walk” away from where it should be and the fabric does not look like it’s being pushed around.
  • If it still fails: reduce speed to the 600–700 RPM range and re-hoop tighter before changing thread tensions.
• Q: How do I use “Move Frame Along Design Border” (Outline Check) on the Silver Sun SMX-1501/CP to prevent a cap frame strike?
  A: Always run the outline check and confirm at least a small safety gap from metal before sewing.
  • Run: select “Move Frame Along Design Border” and perform the outline trace.
  • Watch the trace path (laser/needle position) around the full design boundary, especially top and bottom edges near the cap frame/strap area.
  • Confirm clearance: keep a visible physical gap (about 5 mm minimum) between the traced boundary and any metal parts.
  • Success check: the traced border never touches or “kisses” the metal cap frame/strap area at any point in the rotation.
  • If it still fails: move the design position or resize the design and repeat the outline check—do not “try it anyway.”
• Q: How tight should a cap be hooped on a cap ring using the Silver Sun SMX-1501/CP cap station to avoid crooked logos and bird nests?
  A: Hoop tighter than you think; the cap front should feel like a drum, not like a wet sock.
  • Align the cap center seam exactly to the station’s center mark/groove before locking anything.
  • Clamp the strap firmly and re-adjust the strap screw if you can pinch fabric in the center.
  • Clip the back “ear” flaps so they can’t drift into the sewing field.
  • Success check: the cap face is smooth with no ripples, and the center seam looks vertical when you view the hooped cap straight-on at the station.
  • If it still fails: unlatch and re-center (strap tightening can torque the cap), and inspect the strap grip strip for wear if slippage keeps happening.
• Q: Why does cap embroidery on the Silver Sun SMX-1501/CP look shaky or keep breaking needles at high speed, and what RPM should be used?
  A: Slow down first; 600–700 RPM is a safe starting range for caps and often produces cleaner satin and fewer breaks.
  • Set speed to around 600–700 RPM and keep it steady, especially on dense designs or unstable caps.
  • Observe the cap for vibration/flagging; treat excessive bounce as a hooping/support issue, not a “tighten tension” issue.
  • Swap to a fresh needle immediately if you hear a sharp snap or see thread shredding.
  • Success check: the machine sound stays rhythmic (no grinding), the cap doesn’t visibly bounce, and satin columns look steady rather than wavy.
  • If it still fails: re-check backing choice and hooping tension, then consider switching needle type/size for thick seams as described for seam-heavy caps.
• Q: What should I do when the Silver Sun SMX-1501/CP cap job has a loud “bang” frame strike or repeated broken needles?
  A: Stop immediately, then correct design clearance and seam/needle setup before restarting.
  • Perform the outline check again and reposition/resize the design until the border trace clears metal everywhere.
  • Inspect the needle for damage and replace it; do not continue with a bent or burred needle.
  • If the design crosses a thick center seam, use the recommended sharper/titanium needle option and consider slowing down.
  • Success check: after corrections, the outline trace clears metal and the first stitches run without impact sounds or sudden snaps.
  • If it still fails: do not keep test-running at speed—verify hooping alignment/tension and consult the machine manual/service if timing damage is suspected after a strike.
• Q: When should an embroidery business upgrade from technique tweaks to magnetic hoops or to SEWTECH multi-needle machines based on recurring production pain points?
  A: Upgrade in layers: fix process first, then upgrade tools for the specific bottleneck, then upgrade machine capacity if volume demands it.
  • Level 1 (technique): reduce hoop burn and mis-registration by improving hooping consistency, backing selection, and always running outline checks.
  • Level 2 (tool): if standard hoops leave marks on polos or hooping time is the bottleneck, magnetic hoops can reduce pressure marks and speed up “lay, snap, go” hooping.
  • Level 3 (capacity): if order volume exceeds what a single head can realistically output (e.g., large hat runs on deadline), move to multi-head capacity to multiply throughput without multiplying labor.
  • Success check: the chosen upgrade removes the measured bottleneck (fewer hoop marks, faster hooping cycles, or higher daily output with stable quality).
  • If it still fails: track where time/defects occur (hooping vs sewing vs rework) and upgrade the step that is actually limiting production, not the one that feels most frustrating.
