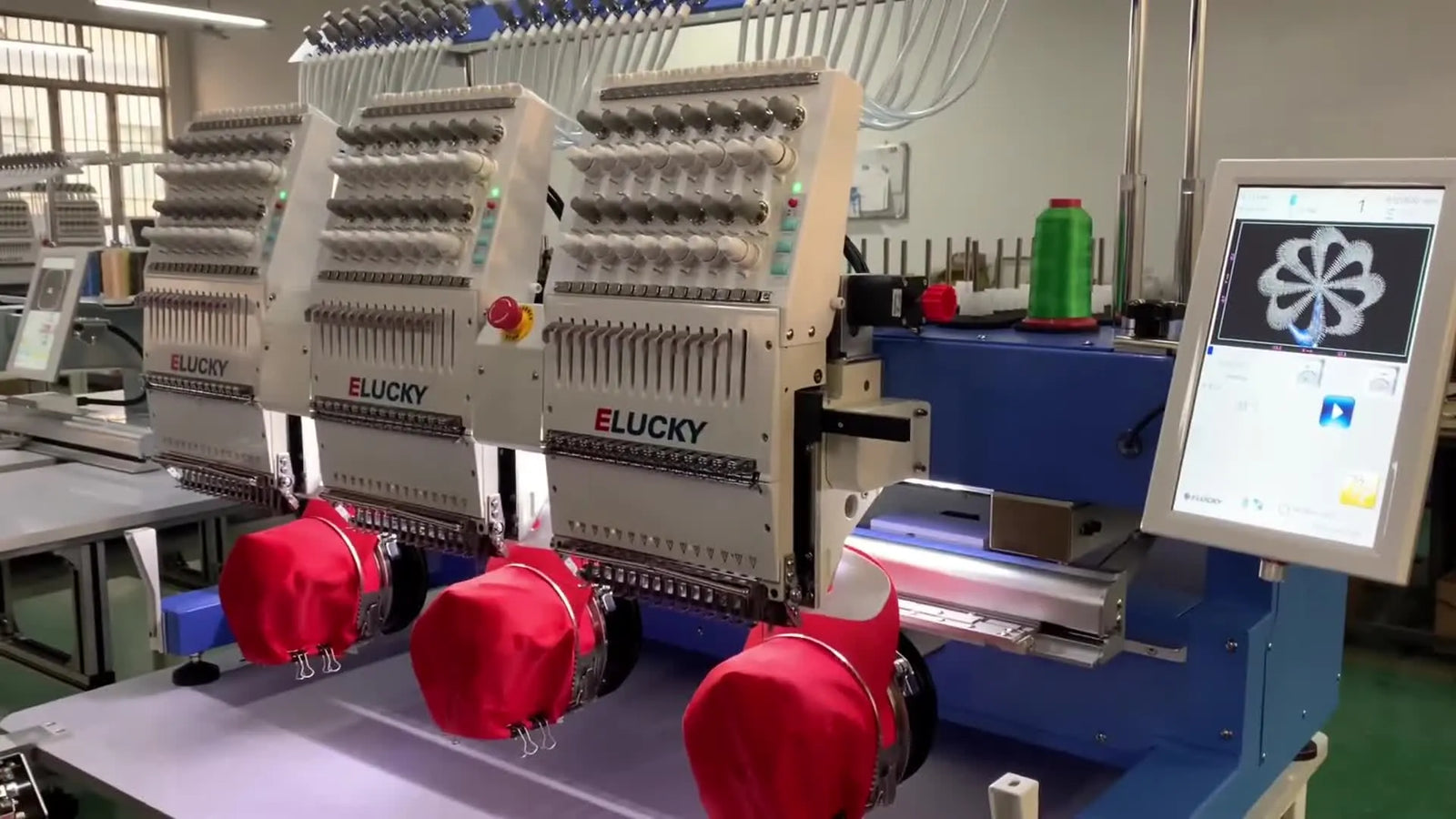

Run Caps Like a Pro on an ELUCKY Multi-Head Embroidery Machine: Cap Station Setup, Border Check, and a Faster Hooping Workflow

The Multi-Needle Cap Embroidery Manifesto: From "Structure Nightmare" to Production Ritual

Cap embroidery is the "final boss" of the trade. It looks deceptively simple on YouTube, but in reality, it combines three of an embroiderer's worst enemies: a curved surface, a restricted sewing field, and a suspension system that loves to vibrate.

If you are reading this, you’ve likely experienced the "Cap of Shame": a broken needle, a design that drifted 5mm into the brim, or a logo that looks like waves on a storm tossed sea.

This guide is not just a walkthrough of the ELUCKY workflow; it is a production protocol. We will break down the physics of why caps fail and how to use sensory feedback (sound, touch, sight) to guarantee success. We will also identify the exact moments where manual skill isn't enough, and where upgrading your tools—like SEWTECH multi-needle machines or professional magnetic hoops—becomes a business necessity rather than a luxury.

Phase 1: The Foundation – Locking Down the Station

A cap station that moves is a design that fails. The video demonstrates a bench-mount setup. This is your "Zero Point." If this station shifts by even 1mm while you are hooping, your design will be off-center on the machine.

The "White Knuckle" Stability Test

In the video, the station is clamped to the table edge. Here is the sensory check you must perform:

1. Tighten the clamp: Turn the screw until it stops.
2. The Shake Test: Grab the protruding metal tongue of the cap station and shake it firmly with your wrist locked.
3. Sensory Anchor: The table should move with the station. If you feel any "play," "clicking," or independent movement, it is not tight enough.

Expert Insight: A loose station causes "phantom registration errors." You will blame the digitizer, but the fault lies in the bench clamp.

Warning: Pinch Point Hazard. When tightening the under-table screw or engaging the heavy spring-loaded cap driver, keep fingers clear of metal-on-metal contact points. These springs are strong enough to bruise bone.

Phase 2: The Art of Hooping – Defeating the "Flagging" Beast

This is where 90% of quality issues are born. The video uses a standard mechanical cap frame with a strap and binder clips. Why binder clips? Because of Flagging.

The Physics of Flagging: When the needle penetrates the cap, it pulls the fabric up as it retracts. If the cap isn't plastered against the needle plate, the fabric bounces up and down (flags). This causes birdnesting, loopiness, and broken needles.

The Protocol (Step-by-Step)

1. Slide & Seat: Place the cap frame on the driver. Slide the cap on.
2. Sweatband Management: This is critical. Flip the sweatband out or smooth it flush.
3. The Strap: Lock the metal strap over the brim seam.
4. The "Third Hand" Hack: The video uses two black binder clips at the back.


Why the clips matter: Your mechanical frame pulls from the front (the strap). The binder clips provide counter-tension from the rear. Without them, the back of the cap is loose, creating a "bubble" of fabric that destroys stitch quality.

The Problem with Mechanical Clips (And the Upgrade Path)

While binder clips work, they are a fatigue nightmare. They mark the fabric ("hoop burn"), hurt your wrists after 50 caps, and are inconsistent.

• The Pain Point: You start seeing indentation marks on delicate caps, or your thumbs ache from manipulating stiff clips.
• The Solution (Level 2 Upgrade): This is where professionals switch to Magnetic Hoops.
  • Terms like magnetic embroidery hoop are your gateway to efficiency. Magnetic frames clamp the entire sweatband uniformly without "pinching" specific spots.
  • They reduce "hoop burn" significantly and are faster to load.
  • If you are doing production runs of 50+ shirts or caps, the time saved per hoop pays for the upgrade in weeks.

Phase 3: The "Hidden" Consumables – Bobbin & Backing

The video moves immediately to the bobbin case. This is correct. You cannot check bobbin tension once the cap is loaded.

The Bobbin Architecture

1. Thread Path: Ensure thread passes through the slit and under the tension leaf.
2. The "Yoyo" Test: Hold the thread end. Drop the bobbin case. It should stop; it should not slide down uncontrollably (too loose) or refuse to budge (too tight). It should slide down a few inches only when you jerk your wrist.
3. The Click: Insert into the rotary hook.
   • Sensory Anchor: Listen for the SNAP. No snap = No sewing. A bobbin case that isn't seated will fly out at 850 RPM and shatter your needle.


Decision Tree: Stabilizer Selection

Users often ask about hooping stations but forget that stabilization is just as important as the hardware.

Phase 4: Mounting – The Driver Rail Connection

You are now connecting the frame to the machine.

The Action: Align the frame rails with the machine driver. Push until it locks. The Sensory Check:

• Feel: Solid mechanical engagement.
• Sight: The frame should look equidistant from the needle plate on both sides.
• Check: Gently tug the frame. If it wobbles, check the wheel bearings on the driver.

Note: On a multi-head machine, mount all caps before touching the control panel. This is a batch process.

Phase 5: The Digital Brain – UI Setup & Orientation

The ELUCKY panel logic is standard for industrial machines.

1. USB Load: "Read USB" -> Select File.
2. The Critical Decision: Orientation.


Why is 43mm x 43mm vital? The video shows a design size of 43.00 x 43.00 mm.

• The Safety Zone: Standard caps have a height limit of about 55mm to 60mm before you hit the curve where the needle plate can't reach. Keeping designs under 50mm height (approx 2 inches) is the "Safe Zone" for beginners. 43mm is excellent—it keeps you away from the brim (hard metal) and the crown (loose fabric).




Phase 6: The "Insurance Policy" – The Border Check

Never skip this. It is the only thing standing between you and a $500 repair bill.

The Action: Press "Check Border" (or Trace). The Observation: The machine outlines the square area of the design.

What to look for (The "Kill Criteria"):

• Clearance: Does the foot come within 5mm of the metal strap or the brim? If yes, STOP.
• Centering: Is the laser/needle centered on the seam?
• Level: Does the bottom line look parallel to the brim?

If you are researching multi hooping machine embroidery workflows, understand that the "Border Check" is the great equalizer. It compensates for slight variations in how you hooped each cap.

Phase 7: Production – Speed & Sound

The video shows the machine running at 850 RPM.

Velocity Guidelines (The "Sweet Spot")

• Expert (850-1000 SPM): Only for perfectly digitized files and highly structured caps.
• Beginner (600-700 SPM): Start here.
  • Why? Slower speeds reduce hoop vibration (flagging) and give you time to hit the E-Stop if you hear a strange noise.

Sensory Monitoring

• Sound: You want a rhythmic "thump-thump-thump." A sharp "clack-clack" usually means the needle is hitting the needle plate guard or the hoop is loose.
• Sight: Watch the thread path on the top tension knobs. The check spring should be twitching like a heartbeat. A still spring = thread break or tension loss.

Phase 8: Unloading & Quality Audit

Upon removal:

1. Check the Back: Is the bobbin thread width about 1/3 of the satin column? (1/3 white, 2/3 color).
2. Check the Edges: Is the registration tight? If the outline has gaps, your clip tension was too loose (flagging).
3. Hoop Burn: Are there shiny rings? Steam them out. If they don't come out, consider upgrading to a magnetic frame setup for future runs.

Troubleshooting: The "Quick Fix" Table

Chapter 9: The Commercial Upgrade Path

When you move from doing 5 caps a week to 500, your body and your equipment will tell you it's time to upgrade.

1. Level 1: Output Stability (Consumables)
   Invest in premium Embroidery Thread (polyester for durability) and dedicated Cap Backing. Don't use standard tearaway; use heavy-duty specifically meant for caps.
2. Level 2: Workflow Efficiency (Hooping)
   If you are fighting with binder clips and alignment, look for advanced holding systems. Many user search for hoop master embroidery hooping station or generic hooping station for embroidery equivalents.
   • The SEWTECH Advantage: Consider Magnetic Hoops compatible with your machine. They snap on instantly, hold thick seams without crushing them, and eliminate the "binder clip gymnastics."
3. Level 3: Scale (Machinery)
   If you are running a single-needle machine and taking 2 hours to do 6 caps, you are losing money.
   SEWTECH Multi-Needle Machines are built for this volume. They allow you to:
   • Queue colors (no manual thread changes).
   • Run at higher stable speeds.
   • Use professional cap drivers that are far more rigid than home-machine attachments.

Warning: Magnetic Safety. Commercial magnetic hoops use Neodymium magnets. They are incredibly powerful.
* Do not place near pacemakers.
* WATCH YOUR FINGERS. If they snap together, they can pinch severely.
* Slide them apart; do not try to pull them apart.

Pre-Flight Checklist: The "No-Fail" Protocol

Before you press start on that high-value order, run this 60-second audit:

PREP:

• Cap Driver Station is rigid (Shake Test passed).
• Bobbin case "clicked" into place.
• Fresh Needle installed (Type 80/12 Sharp is best for canvas caps).

SETUP:

• Design Orientation confirmed (usually rotating 180 degrees).
• Design Height < 55mm (ideally < 50mm).
• Border Check Run: Clearance confirmed visually.

EXECUTION:

• First stitch speed set to Slow/Medium (600 SPM).
• Operator standing by E-Stop for first 200 stitches.
• "Hidden Consumables" ready: Snips, Lighter (for cleanup), Silicone spray (if thread drags).

Cap embroidery requires respect for the physics of the machine. Respect the setup, listen to the sound, and when the volume gets too high for manual tools, upgrade your workflow to match your ambition. Happy stitching!

FAQ

• Q: How do I stop a mechanical cap hooping station bench clamp from causing crooked cap embroidery alignment on an industrial multi-needle machine?
  A: Lock the cap station so the table moves with it—any “play” at the clamp will translate into off-center sewing.
  • Tighten the under-table screw until it stops, then re-check.
  • Perform the “Shake Test”: grab the metal tongue of the station and shake firmly with a locked wrist.
  • Reposition the station on a sturdier table edge if the clamp area flexes.
  • Success check: the station should feel like one piece with the table—no clicking, no independent movement.
  • If it still fails: bolt the station permanently to the table to eliminate repeat drift.
• Q: How do I seat an industrial rotary hook bobbin case correctly to prevent birdnesting or the bobbin case flying out at high speed during cap embroidery?
  A: Insert the bobbin case fully into the rotary hook until an audible snap confirms it is seated.
  • Thread the bobbin case correctly: pass thread through the slit and under the tension leaf.
  • Do the “Yoyo Test”: the case should slide down a few inches only when you jerk your wrist (not free-fall, not stuck).
  • Insert into the hook and press until it clicks into place.
  • Success check: listen for the SNAP; no snap usually means the case is not locked in.
  • If it still fails: remove and reinsert the case—do not run the machine until the click is confirmed.
• Q: How do I reduce cap embroidery flagging and birdnesting when using a mechanical cap frame with a strap and binder clips?
  A: Increase rear counter-tension—binder clips at the back are the fastest way to stop the “bubble” that causes flagging.
  • Flip the sweatband out or smooth it flush before clamping.
  • Lock the front metal strap over the brim seam, then add two binder clips at the back for counter-tension.
  • Add sticky backing if the cap fabric slips under the clips.
  • Success check: fabric stays plastered down during stitching—no bouncing, fewer loops, and no sudden nests under the needle plate.
  • If it still fails: slow the machine speed (beginner-safe starting point is 600–700 SPM) and re-check the border/trace for clearance and positioning.
• Q: What stabilizer should I use for structured caps vs unstructured dad hats vs performance polyester caps on a multi-needle embroidery machine?
  A: Match the stabilizer to how much structure the cap provides—stabilizer choice is often the difference between clean registration and distortion.
  • Use tearaway (about 2.5–3.0 oz) for structured caps where the cap already holds shape.
  • Use heavyweight cap cutaway for unstructured “dad hats” to add rigidity and prevent design distortion.
  • Use fusible cutaway or sticky stabilizer for performance/polyester/stretchy caps to prevent slipping.
  • Success check: the outline stays registered with tight edges, and the cap surface does not pucker or wave during the run.
  • If it still fails: increase stabilization (heavier or stickier option) and reduce speed to cut vibration.
• Q: How do I use “Check Border/Trace” on an industrial multi-needle cap driver to avoid needle strikes on the brim or metal strap?
  A: Always run Check Border before sewing—stop immediately if the presser foot comes within about 5 mm of metal parts.
  • Load the design and confirm the intended orientation before tracing.
  • Run Check Border/Trace and watch the full outline path, not just the front.
  • Stop and reposition the design if clearance is tight near the brim seam or strap area.
  • Success check: the traced box clears the brim/strap and looks level (bottom line visually parallel to the brim).
  • If it still fails: reduce the design height (a safe beginner target is under 50 mm; caps often max around 55–60 mm depending on style) and trace again.
• Q: What machine speed should I run for multi-needle cap embroidery, and what sounds indicate a problem at 850 RPM?
  A: Start slower (600–700 SPM) and only push to 850–1000 SPM when the cap is stable and the file is clean—sound is the quickest warning system.
  • Set the first run slower to reduce vibration and give time to hit E-Stop during the first stitches.
  • Listen for a steady rhythmic “thump-thump”; avoid continuing if a sharp “clack-clack” appears.
  • Watch the top thread path: the check spring should twitch like a heartbeat.
  • Success check: consistent rhythm, no sudden clacking, and the check spring stays active without going still.
  • If it still fails: re-check hooping tension (flagging), run Border Check again, and inspect for loose frame/driver engagement.
• Q: What safety precautions should operators follow for cap driver stations and commercial magnetic embroidery hoops to prevent pinch injuries?
  A: Treat springs and magnets as pinch hazards—keep fingers out of metal-on-metal contact points and slide magnets apart instead of pulling.
  • Keep hands clear when tightening the under-table clamp screw and when engaging spring-loaded cap driver parts.
  • When using magnetic hoops, guide pieces together carefully and keep fingertips away from the closing edges.
  • Slide magnetic hoop parts apart to separate; do not try to “pull” them straight apart.
  • Success check: no moment where fingers are between closing metal parts or snapping magnets during loading/unloading.
  • If it still fails: pause production and change the handling method (use a safer grip position); follow the machine and hoop safety guidance for your specific setup.
