Run 6 Logos in One Hoop on a Smartstitch Multi-Needle Machine: Repeated Embroidery Settings That Don’t Bite Back

If you’ve ever watched a multi-needle machine stitch one logo perfectly… then ruin the next one because the layout was too tight, off-center, or clipped by the hoop range, you’re not alone. I call this "The Second Shirt Syndrome." It is the precise moment where embroidery shifts from an art to a logistical challenge.

Repeated layouts are a production superpower—but only when you set them up like a cautious operator, not like a gambler. When you are running a single piece, you can babysit the machine. When you run a 6-up grid, you are entrusting your profit margin to math and mechanics.

This guide rebuilds the exact Smartstitch workflow shown in the video: a 3×2 grid (six total) of the letter “K,” with 15 mm horizontal spacing and 20 mm vertical spacing. But we are going deeper than the buttons. We are going to look at the physics of the hoop, the sensory cues of a safe run, and how to scale this process without breaking needles or your spirit.

Repeated Embroidery vs. Cyclic Embroidery on Smartstitch: Don’t Pick the Wrong Mode and Waste a Hoop

The video opens with a critical distinction that trips up 40% of beginners: Repeated Embroidery is not the same as Cyclic Embroidery.

Think of it like this:

• Repeated Embroidery (The Grid): You are telling the machine, "I have a limited canvas (the hoop), and I want to fill it with X columns and Y rows." The machine focuses on spatial boundaries.
• Cyclic Embroidery (The Loop): You are telling the machine, "Finish this design, stop, wait for me to change the hoop, and do it again." This is for assembly lines.

If you’re setting up a batch of small logos, patches, or name tags inside a single frame, Repeated Embroidery is the only safe choice. It forces you to think in Counts + Intervals + Boundaries.

One practical production note: Repeated embroidery is where your time savings come from—one hooping, multiple sellable pieces—but it also concentrates risk. A single bad spacing decision or a loose hoop screw doesn't just ruin one patch; it ruins six.

Load the Design in the Smartstitch Parameter Screen: Start Clean So the Grid Behaves

From the design gallery, the operator selects the pattern (the “K” logo) and enters the Set Design Parameter interface.

That “parameter” screen is your Command Center. This is where repeated embroidery becomes predictable because you’re defining the grid mathematically instead of eyeballing it on a small screen.

The "Clean Slate" Rule: If you operate a busy shop with multiple machines, never assume the previous settings are cleared. The #1 cause of "ghost stitching" (where the machine thinks the hoop is larger than it is) is leftover offsets from a previous job. Always reset your X/Y counts to 1 before building a new grid.

Use this setup style when you’re planning to scale. Terms like smartstitch embroidery frame setups appear complicated, but they are just standard operating procedures designed to keep the needle away from the plastic frame.

Dial In a 3×2 Grid (X=3, Y=2): The Fastest Way to Get 6 Identical Logos Without Rehooping

In the video, the operator sets:

• Repetition X Amount = 3 (Columns across)
• Repetition Y Amount = 2 (Rows down)

That creates 6 total designs.

Checkpoint (Visual): Look at your screen preview. You should see a distinct grid. If you see a blob or a single thick line, your spacing (Interval) is set to zero or your design is too large for the multiplier.

Pro Tip: The Density Factor Before you commit to a 3×2 layout on a standard 300x200mm or similar hoop, check your stitch count.

• High Density (15,000+ stitches per logo): The fabric will shrink slightly with every logo stitched (the "pull effect"). By the time you get to the 6th logo, the fabric tension may be loose.
• Solution: For heavy designs, reduce the grid to 2x2. It’s better to hoop twice than to have the final two logos puckered.


Spacing That Actually Works: Using “Outline” Interval Type with 15 mm (X) and 20 mm (Y)

This is the question that plagues forums and comments sections: “How do you determine the space between designs?”

Smartstitch (and most industrial interfaces) offers two logic modes:

1. Center-to-Center: You define the distance from the middle of Logo A to the middle of Logo B. (Hard to calculate mentally).
2. Outline (Border Distance): You define the gap between the edge of Logo A and the edge of Logo B. Use this one.

In the video, the operator sets:

• Repetition Interval Type: Outline
• X Interval Distance: 15 mm
• Y Interval Distance: 20 mm


My spacing rule-of-thumb (so you don’t learn the hard way)

Why 15mm and 20mm? Why not just 5mm to save fabric?

• The Scissor Test: Can you physically fit your embroidery scissors (or your finger) between the patches to cut them apart later? 15mm is the "Safety Zone" for manual trimming.
• The Hoop Bounce: As the needle creates thousands of penetrations, the fabric vibrates (the "trampoline effect"). If designs are too close (under 10mm), the vibration from Design A can cause registration errors in the adjacent Design B.

If you’re using standard embroidery machine hoops for high-volume patch runs, spacing is your insurance policy against overlapping thread nests.

Pick the Correct Frame (Hoop) and Center the Layout: The Quiet Step That Prevents Loud Crashes

Next, the operator selects the hoop size from the frame list (the video shows Item 12 selected), then uses directional controls to move the virtual pattern to the center of the physical hoop.

This step is deceptively simple. In real production, most catastrophic failures (broken reciprocating levers, bent needle bars) happen here.

The Physics of Centering: Your machine has a "Soft Limit" (software warning) and a "Hard Limit" (physical end of the pantograph rail). Centering the design keeps the pantograph arm in the "Green Zone," where the motors have maximum torque and control.

If you stitch too close to the edge of a specialized, heavy industrial frame like those used on the smartstitch s1501, momentum can cause the frame to jitter, leading to poor satin stitch edges.

Pre-Flight Prep Checklist (Do this BEFORE tracing)

• File Verification: Is the "K" logo the correct version? (Check the stitch count).
• Grid Math: Confirm X=3, Y=2.
• Gap Check: Confirm "Outline" mode (not Center-to-Center) with 15mm/20mm buffers.
• Hoop Selection: Screen selection matches physical hoop (Item 12).
• Physical Clearance: Reach under the hoop. Is the garment bunching? Is a sleeve caught underneath?
• Consumables Check: Do you have enough bobbin thread for 6 logos? (A full distinct white bobbin should show at least 70% capacity).

Warning: Pinch Hazard. Keep hands, scissors, and loose clothing/jewelry away from the pantograph arm and needle area during any movement test. Industrial machines move with high torque and do not stop for fingers.

Switch to Needle 1 for Border Tracing: A Small Visibility Trick That Saves Big Money

The operator switches specifically to Needle 1 (usually the far right or left needle depending on the head) before tracing.

Why Needle 1? It’s about line-of-sight. On multi-needle heads, the central needles are obscured by the presser foot assembly and the laser guide (if equipped). Needle 1 (the outer needle) gives you the clearest view of the relationship between the needle point and the plastic hoop wall.

Checkpoint (Visual): When you manually lower the needle bar (with power off or using the test function), you should clearly see at least 5mm of clearance between the needle and the hoop edge at the tightest corner.

Run Border Tracing on the Smartstitch Hoop: Your Last Chance to Catch a Layout Mistake

Now the machine performs Border Tracing, physically moving the hoop to the outer limits of the design area.

Treat this like a pilot checking flaps. Listen to the machine.

• The Sound of Safety: The hoop should move smoothly with a consistent "whirring" sound.
• The Sound of Danger: If you hear a stutter, a grind, or a "clunk," STOP immediately. A clunk usually means the pantograph has hit the hard limit of the X/Y carriage, or the hoop is hitting the machine arm.

Safety Margin: If the tracing pointer comes within 2mm of the hoop frame, do not risk it. Reduce your X/Y spacing by 1-2mm or choose a larger hoop.

Set the Color Sequence, Confirm/Unlock, and Start: How the 6-Logo Batch Actually Runs

After tracing, the operator:

1. Sets the color sequence.
2. Changes to embroidery confirmation status (unlock/confirm).
3. Presses Start.

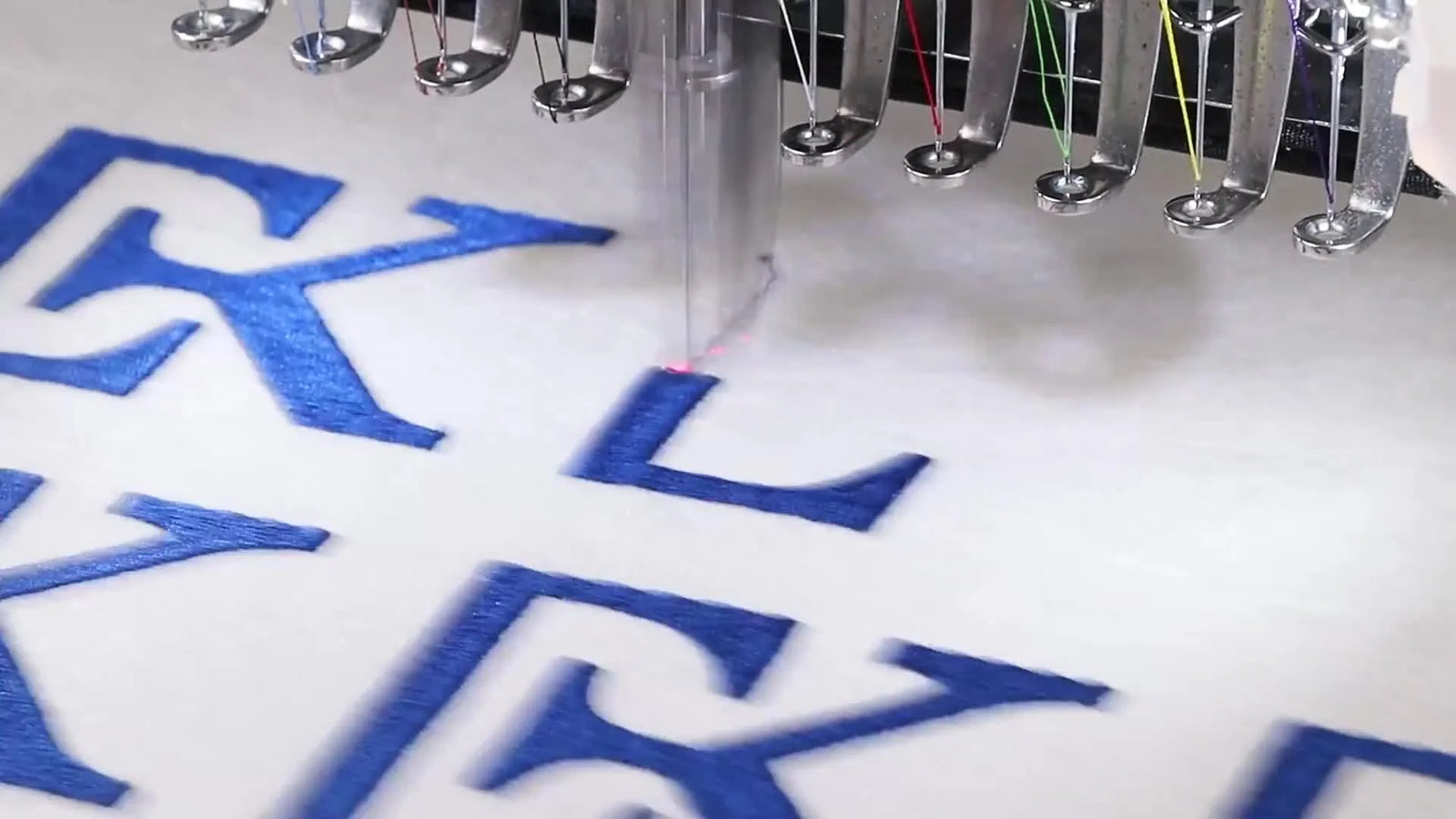

Once started, the machine stitches all six “K” designs automatically in sequence.

You can see the spacing working mid-run—the second “K” appears with clear horizontal separation.

The final result is six completed logos in one hoop.

Setup Checklist (The "Go/No-Go" Decision)

• Needle Select: Needle 1 active for visibility check? YES.
• Trace Result: Did the hoop clear all edges without stuttering? YES.
• Color Stop: Are the colors assigned to the correct needles? YES.
• Status: Machine status unlocked/Ready? YES.
• Thread Path: Quick glance at the thread tree—no tangles? YES.
• Backing: Is the stabilizer fully caught by the hoop (no "floating" edges inside the frame)? YES.

The “Why” Behind Clean Repeats: Tension, Stabilizer, and Grid Consistency Across 6 Designs

The video uses a white cut-away backing and a stable test fabric. This is the "Lab Environment." In the wild, you will face shirts that stretch and backings that slip.

1. The Stabilizer Foundation

For a 6-logo grid, your stabilizer isn't just supporting the thread; it's supporting the geometry of the grid.

• The Rule: Use Cut-away backing (2.5oz or 3.0oz) for grids. Tear-away is structurally weak; by the time you stitch the 5th logo, the perforations from the first 4 logos weaken the overall paper, leading to registration shifts.
• The Spray: A light mist of temporary spray adhesive (like 505) between the stabilizer and fabric is crucial here to prevent the fabric from "bubbling" in the center of the grid.

2. Tension: The "Drum Skin" fallacy

Beginners think the hoop must be as tight as a drum.

• The Reality: If you pull a stretchy knit shirt "drum tight," you stretch the fibers. When you unhoop, the fabric snaps back, and your square grid becomes a trapezoid.
• The Sweet Spot: The fabric should be taut (flat with no wrinkles) but not stretched. You should be able to pinch a tiny bit of fabric in the center.

3. Commercial Upgrade: The Hooping Station

If you are doing this all day, manual hooping leads to "Hooper's Wrist" and inconsistent alignment. A hooping station for embroidery standardizes the tension and placement. It ensures that Shirt #1 and Shirt #50 have the exact same grid placement relative to the collar.

Troubleshooting Repeated Embroidery on Smartstitch: Symptoms → Likely Cause → Fix

The video shows a perfect run. Here is what happens when things go wrong, and how to fix them (Low Cost first).

A Simple Decision Tree: Choose Stabilizer and Hooping Method for Repeated Logos

Follow this logic path to determine your setup:

1) Is the fabric stable (Canvas, Denim, Twill)?

• YES: Use Tear-away (2 layers) or Med-weight Cut-away. Standard hoops differ little here.
• NO: Go to step 2.

2) Is the fabric stretchy/unstable (Polo Pique, T-shirt, Performance Wear)?

• YES: MUST use Cut-away backing (no exceptions). Use Spray Adhesive floating method or strict hooping. Reduce grid size if puckering occurs.

3) Are you fighting "Hoop Burn" or struggling to hoop thick items (Carhartt jackets/Towels)?

• YES: A standard plastic hoop relies on friction and muscle. A magnetic embroidery hoop uses strong magnets to clamp without friction twist. This eliminates hoop burn and grips thick visual seams easier.
• NO: Continue with standard frames, but watch your screw tension.

Warning: Magnetic Field Hazard. Magnetic frames use industrial-strength neodymium magnets. They can pinch skin severely and disrupt pacemakers. Keep them at least 12 inches away from computerized medical devices and credit cards.

The Upgrade Path After You Nail the 3×2 Repeat: Faster Hooping, Cleaner Output, Better Profit per Hour

Once you master the 3x2 grid, you hit a new ceiling. It’s not the machine's speed; it's setup time. Here is how professionals upgrade their workflow:

1. Level 1: Consumable Optimization
   For repeated runs, ensure you use high-quality commercial thread and "Ballpoint" needles for knits / "Sharp" needles for wovens. A $0.50 needle change prevents a $20 garment ruin.
2. Level 2: The Efficacy of Magnets
   If your operators (or you) are spending 3+ minutes hooping a shirt, you are losing money. Many professional shops searching for how to use magnetic embroidery hoop videos find that switching to magnetic frames reduces hooping time to under 30 seconds while reducing strain on wrists.
3. Level 3: The Multi-Needle Scale
   If you are consistently running grids of 6, 12, or 20 items, a single-head machine—even a good one—is a bottleneck. Commercial multi-head or high-speed single-head platforms like the smartstitch s1501 (15 needles, 1200 SPM) allow you to run complex color sequences without stopping for manual thread changes, turning "batch jobs" into "set it and forget it" profit centers.

Operation Checklist (Post-Run)

• Completion Check: Did all 6 finish? (Don't unhoop yet!)
• Bobbin Check: Is the white bobbin thread visible (1/3 width) on the back of all 6 logos?
• Trimming Room: Is there enough space to cut them apart?
• Hoop Mark: Is there a burn mark? (Use steam or Magic Spray immediately).
• Save Settings: If this order repeats, save the Parameter File (X=3, Y=2, 15mm/20mm) so you don't have to guess next month.

The 3x2 grid is the "Hello World" of production embroidery. Master it, respect the safety margins, and you’ll stop gambling on your garments and start banking on your consistency.

FAQ

• Q: On a Smartstitch multi-needle embroidery machine, how do operators avoid choosing Cyclic Embroidery when a 3×2 grid inside one hoop requires Repeated Embroidery?
  A: Use Repeated Embroidery for any multi-up grid inside one hoop, and reserve Cyclic Embroidery for rehooping the same single design in a loop.
  • Select Repeated Embroidery when the job is defined by X/Y counts, intervals, and hoop boundaries.
  • Select Cyclic Embroidery only when the machine must stop so the operator can change the hoop between repeats.
  • Success check: the screen preview shows a clear 3×2 grid (not one stacked “blob”).
  • If it still fails: reset X/Y counts back to 1 and rebuild the grid to eliminate leftover settings.
• Q: On the Smartstitch “Set Design Parameter” screen, how can leftover offsets cause “ghost stitching” during repeated embroidery, and what is the quickest reset?
  A: Start every new repeated layout from a clean slate by resetting X/Y repetition counts to 1 before building the new grid.
  • Set Repetition X Amount = 1 and Repetition Y Amount = 1 first, then enter the new values (for example, 3 and 2).
  • Re-enter interval type and distances after the reset (do not assume prior values cleared).
  • Success check: the grid preview updates cleanly and matches the intended count/spacing with no unexpected shift.
  • If it still fails: re-check that the selected hoop on-screen matches the physical hoop before tracing.
• Q: In Smartstitch Repeated Embroidery, how do operators set spacing correctly using “Outline” interval type with 15 mm (X) and 20 mm (Y) to prevent designs touching?
  A: Use “Outline” interval type and set X=15 mm and Y=20 mm to create a real edge-to-edge safety gap between logos.
  • Choose Repetition Interval Type = Outline (not Center-to-Center).
  • Enter X Interval Distance = 15 mm and Y Interval Distance = 20 mm.
  • Success check: mid-run and on the finished hoop, each logo has visible separation and trimming room.
  • If it still fails: confirm the interval type did not revert to Center, and increase the gap if designs are still too close.
• Q: On a Smartstitch multi-needle embroidery machine, what is the safest way to run Border Tracing and recognize the “clunk/stutter” sound that signals a hoop crash risk?
  A: Run Border Tracing as the final safety test and stop immediately if the hoop movement stutters, grinds, or “clunks.”
  • Switch to Needle 1 before tracing for the clearest view of hoop-edge clearance.
  • Start Border Tracing and keep hands, scissors, and loose clothing away from the pantograph path.
  • Success check: the hoop travels the full trace smoothly with a consistent whirring sound and no hard stops.
  • If it still fails: re-center the layout and/or choose a larger hoop; do not proceed if tracing comes extremely close to the frame.
• Q: On a Smartstitch multi-needle embroidery machine, why do operators switch to Needle 1 for visibility before tracing, and what clearance should be confirmed near the hoop edge?
  A: Needle 1 usually provides the best line-of-sight, helping operators verify safe clearance between the needle point and the hoop wall before a repeat run.
  • Select Needle 1, then use the test/manual function to visually check the tightest corner.
  • Confirm the design is centered in the selected hoop before tracing.
  • Success check: the operator can clearly see clearance at the closest point and the needle path is not crowding the hoop edge.
  • If it still fails: reduce the grid size or adjust spacing/centering so the traced boundary stays comfortably inside the hoop.
• Q: In Smartstitch repeated embroidery, what causes Logo #6 to look distorted or puckered in a 3×2 run, and what stabilizer setup fixes fabric shift?
  A: Distortion late in the grid is commonly fabric shift over a long run, so switch to cut-away backing and secure fabric-to-backing to hold the grid geometry.
  • Use cut-away backing (2.5 oz or 3.0 oz) for multi-up grids instead of tear-away.
  • Apply a light mist of temporary spray adhesive between fabric and backing to prevent bubbling in the center.
  • Slow the machine down as needed (the blog example suggests 600–700 SPM when shift shows up).
  • Success check: the last logos in the grid stitch with the same shape and registration as the first logos.
  • If it still fails: reduce the grid (for example, run fewer logos per hoop) to reduce cumulative pull/push effects.
• Q: When repeated embroidery causes hoop burn (a shiny ring) on fabric with standard plastic hoops, when should operators switch to magnetic embroidery frames, and what magnetic safety hazard must be followed?
  A: If hoop burn or difficult hooping on thick items keeps happening, magnetic embroidery frames can reduce clamp friction and speed up hooping—but magnets require strict pinch and medical-device precautions.
  • Loosen the standard hoop screw slightly first and confirm the fabric is taut but not stretched.
  • Switch to a magnetic frame when delicate fabrics show consistent shine marks or thick seams/towels are hard to clamp evenly.
  • Keep magnetic frames away from pacemakers and computerized medical devices, and keep magnets away from credit cards; handle carefully to avoid severe pinching.
  • Success check: the fabric is held securely without a shiny ring after unhooping and the item does not slip during the 6-logo run.
  • If it still fails: verify stabilizer choice and adhesion method, because hooping method alone may not stop shifting in long repeats.
