Ricoma XT Pro Onboard Digitizing That Actually Works: Doodle Clean Lines, Auto-Digitize Simple Photos, and Avoid the “Why Did It Do That?” Moments

Master the Ricoma XT Pro: The "Zero-Frustration" Guide to Onboard Digitizing

If you’ve ever stared at your Ricoma XT Pro screen thinking, “I just need a quick design—why does this feel harder than it should?”, you are not alone. You are experiencing the gap between software logic and embroidery physics.

The good news: the XT Pro’s control panel can create usable stitch files in minutes—if you respect what it’s good at (simple shapes, clean lines, high-contrast images) and avoid the two classic traps: (1) sketching with "smartphone finger" pressure instead of "resistive screen" pressure, and (2) hitting “digitize/save” before you’re truly done.

Below is the exact workflow for using Cloud Doodle Embroidery and Photo Embroidery, calibrated with the "old operator" details that keep your results consistent when you move from playing on the screen to stitching on real fabric.

The Calm-Down Check: What Ricoma XT Pro Onboard Digitizing Can (and Can’t) Do on the Control Panel

Onboard tools are meant for speed and convenience—not perfection. Think of onboard digitizing like a Polaroid camera: instant and fun, but not suitable for a wedding portrait.

Two features are demonstrated here:

1. Cloud Doodle Embroidery: You draw directly on the resistive touchscreen with a stylus. The machine interprets your pressure and speed into stitches.
2. Photo Embroidery (Auto Digitizing): You import a simple image from a USB, and the machine’s algorithm generates a stitch pattern.

The "Sweet Spot" Strategy: Use onboard digitizing for quick labels, simple icons, kid-style doodles, or basic outlines. For detailed logos, tiny text (under 5mm), gradients, or high-value commercial orders, you need proper PC-based digitizing software.

If you’re new to a ricoma embroidery machine, using these tools is the fastest way to build confidence because you get instant feedback. You will learn exactly what the machine "likes" and where it struggles without needing a computer.

The “Hidden Prep” Before You Tap Doodle: Stylus Pressure, Canvas Size, and a Clean Plan

The video makes a point that many beginners miss: the XT Pro uses a resistive touchscreen. It is not a capacitive screen like your iPhone. It relies on physical pressure. If you touch it lightly, it will create "micro-gaps" that look fine on screen but result in jump stitches or broken threads on fabric.

The "Sensory" Prep Protocol:

1. Grab the right stylus: The presenter uses a blue stylus. It should feel firm in your hand.
2. Decide your canvas size: The video selects 100×100 mm. Pro Tip: Always choose a canvas slightly smaller than your actual hoop to prevent needle strikes on the frame.
3. Calibrate your hand: You need to press hard enough that you feel a slight drag friction. If the stylus glides silently, press harder.

Why this matters in physics: Broken sketch lines become broken stitch paths. Your machine will try to tie off and trim at every microscopic break, leading to a "bird's nest" of thread under the throat plate.

Warning: Keep fingers, loose sleeves, long hair, and jewelry away from the take-up levers and needle bars during any test run. The machine moves faster than your reflexes.

Prep Checklist (Do this once before you start drawing)

• Stylus Check: Tip is clean and smooth (no burrs that could scratch the screen).
• Screen Check: Wipe off finger oils; they can cause the stylus to skip.
• Canvas Logic: You have selected a size (e.g., 100x100mm) that fits inside your smallest hoop’s safety margin.
• Plan B: You have a scrap of denim or felt ready for the first test stitch-out.


Make Cloud Doodle Embroidery Behave: Set the 100×100 mm Canvas and Confirm It Correctly

From the main dashboard, tap the Doodle icon (pencil with a squiggly line). The screen changes to the Cloud Doodle Embroidery interface.

The Action Step:

1. Tap the size options at the bottom.
2. Select 100×100 mm from the preset list.
3. Sensory Check: You must tap the checkmark to confirm. Listen for the interface "beep" or look for the grid to snap into size.

The "Hooping" Reality Check: The grid on the screen is perfect math. Your hoop is physical reality. If you draw all the way to the edge of the 100mm box, and you rely on standard hoops, you risk hitting the frame.

• Commercial Insight: Precise placement is the hardest part of embroidery. If you find yourself constantly re-hooping to get the center right, professionals don’t just "try harder"—they upgrade their tools. Terms like hooping for embroidery machine refer to the physical skill, but the right tools (like magnetic frames) make the skill much easier to master.

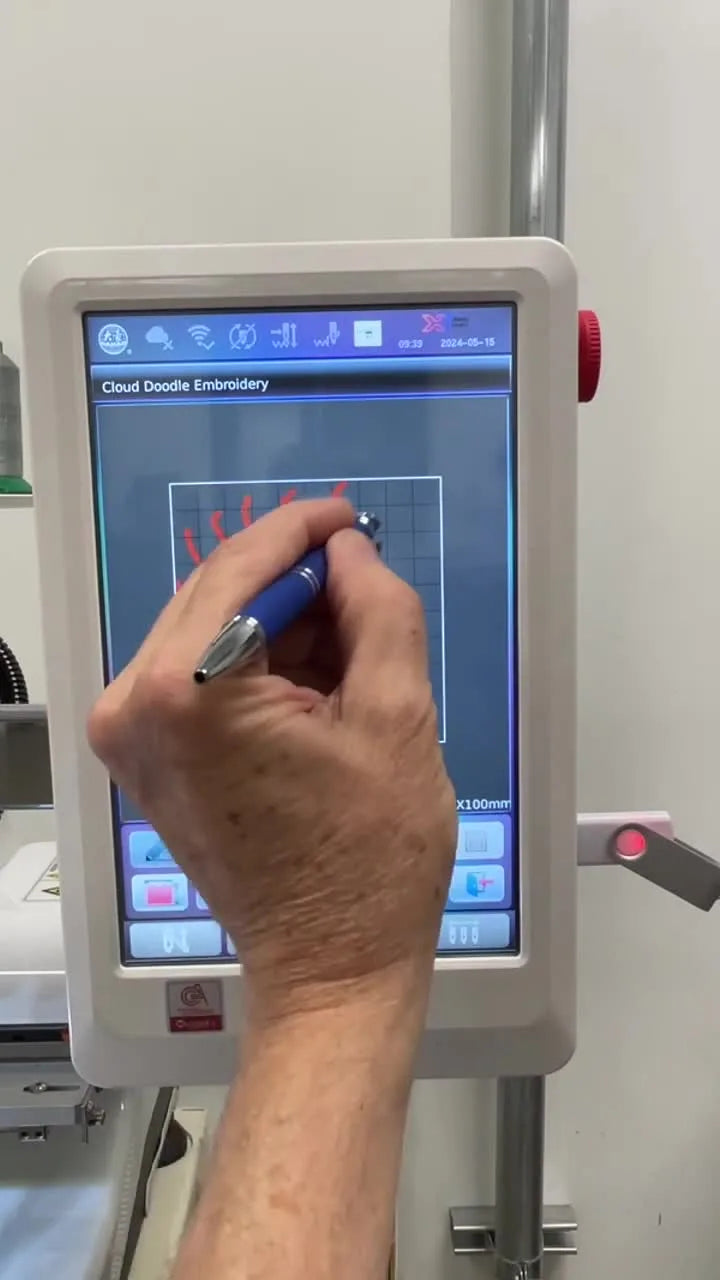

Draw Clean Lines on the Ricoma XT Pro Screen: Brush vs Pencil, Color Picks, and the “Press Harder” Fix

The video demonstrates two specific tools:

• Pencil: Creates a skinny, running stitch or single satin column.
• Brush: Creates a wider fill or broad satin path.

The "Drag" Technique: The presenter emphasizes applying good force. When drawing, do not lift the stylus until the stroke is complete.

• Bad Sound: Tapping noise (creating dots).
• Good Sound: A continuous sliding sound against the screen.

What to do if you see gaps while drawing

1. Stop immediately. Do not think the machine will "figure it out."
2. Press harder. Increase pressure by 20%.
3. Redraw. Use the undo button and draw the line again in one smooth motion. Patching a line usually results in a visible lump of thread in the final product.


The Point of No Return: Hit the “S” Digitize Button Only When You’re Truly Done Editing

In the video, once the doodle is finished, the presenter taps the “S” button. This stands for "Stitch" or "Simulate."

Critical Rule: The "S" button is a one-way door. Once you tap it, the machine converts your vector drawing into a stitch file (like a .DST or .DSB). You cannot go back to "drawing mode" to erase a line or change a color easily.

The Operator's Mindset: Treat the "S" button like a contract signature.

• Is the loop closed?
• Is the gap erased?
• Are you sure?

The video shows the presenter trying to erase after digitizing—it doesn't work. They have to save and move on. This mimics real production: once a file is sent to the machine, the time for editing is over.

Save the Pattern Like a Pro: Naming/Numbering So You Can Find It Again in the Design Library

After digitizing, a keypad popup appears.

• The Rookie Move: Saving everything as "001", "002", "TEST".
• The Pro Move: Develop a code. E.g., FACE_100_V1 (Name _ Size _ Version).

Hidden Consumable Alert: Keep a physical notebook or a whiteboard near your machine. Write down the file name and the corresponding thread colors. Onboard files often default to arbitrary colors; your notebook is your only true reference.

Erase Like You Mean It: Use the Eraser Tool Before Digitizing (Not After)

The video returns to doodling to demonstrate the Eraser.

• Draw a circle.
• Tap Eraser.
• The stylus now acts as a "whiteout" tool.

Workflow Optimization: If you are running a business, efficiency is profit. You want to catch errors here, on the screen, not after you have hooped a $20 hoodie. Speaking of efficiency, if you find that your preparation time is eating your profits, consider your hardware. A hooping station for embroidery machine helps you align garments perfectly before you even touch the screen, reducing the need to "fix it in post."

Photo Embroidery Auto Digitizing on Ricoma XT Pro: Import from USB and Keep the Artwork Simple

Return to the home screen and tap the Photo Embroidery icon (camera symbol). Select USB.

The "Garbage In, Garbage Out" Rule: The presenter’s warning is accurate: Auto-digitizing works only with simple files.

The "Goldilocks" Image Criteria:

• Too Complex: Photos of faces, gradients, watercolor fade effects. (Result: A mess of confetti stitches).
• Too Simple: A single pixel line. (Result: The machine ignores it).
• Just Right: Coloring book style images. Thick black lines, solid blocks of color, high contrast.

Comparing ricoma embroidery machines, the XT Pro has a robust processor, but no machine can invent detail that isn't there. It calculates stitches based on contrast edges. If the edge is blurry, the stitch will be messy.

Choose the File, Wait for Processing, Then Scale Safely: The Butterfly Example at 40 mm Width

The video selects a butterfly. The machine processes (loading circle). Then, the presenter changes the Width to 40 mm.

Safety Limits for Scaling: Changing size after the machine has calculated stitches can be dangerous.

• The Risk: If you take a 100mm design and shrink it to 40mm, the stitch count might not drop enough. This increases Density.
• The Consequence: A bulletproof butterfly. The needle will try to hammer too much thread into too little fabric, causing thread breaks or needle breaks.

The Rule of Thumb: Try to resize your image on your computer before putting it on the USB. If you must resize on the screen, stay within +/- 20% of the original image size for safety.

Preview the Stitch Simulation Before You Waste Fabric: Find the Design and Hit Play

Go to "My Designs," select the file, and tap Preview.

What to Look For (The Visual Check): Don't just watch it like a movie; watch it like a hawk.

1. Jump Stitches: Are there long red lines crossing the design? You’ll have to trim those manually.
2. Order: Does it stitch the background before the outline? (It should).
3. Density: Does any area look solid black (or solid red in preview)? That poses a needle break risk.

This preview is your "Simulated Reality." If it looks weird here, it will look worse on thread.

When Auto Digitizing Picks the Wrong Stitch Type: Fill vs Satin and How to Avoid the Trap

The video highlights a common glitch: The machine puts a Fill Stitch (tatami) where you wanted a Satin Stitch (smooth column), or vice versa.

The "Why": The machine decides stitch type based on width.

• Narrow areas (< 1-2mm) usually become Satin.
• Wide areas (> 7-10mm) usually become Fill to prevent snagging.
• The "In-Between" zone (3-6mm) is where the algorithm gets confused.

Expert Fix: You cannot force stitch types easily on the panel. If the machine keeps choosing the wrong stitch, your best bet is to redraw the artwork with thicker (for fill) or thinner (for satin) lines before importing.

A Quick Decision Tree: Which Artwork + Stabilizer Setup Gives You the Best Chance of a Clean Stitch-Out?

Use this logic flow before you hit the green start button.

Start: What is your fabric?

1. Stable / Woven (Denim, Canvas, Twill caps)
   • Stabiliizer: Tear-away (2 layers if medium weight).
   • Needle: 75/11 Sharp.
   • Risk: Low.
2. Unstable / Knit (T-Shirts, Polo shirts)
   • Stabilizer: Cut-away (Mandatory). Do not use tear-away or the stitches will pop when the shirt creates tension.
   • Needle: 75/11 Ballpoint.
   • Risk: Medium (Puckering).
   • Solution: Use spray adhesive to bond the shirt to the stabilizer.
3. High Pile / Texture (Towels, Fleece)
   • Stabilizer: Tear-away on back + Water Soluble Topping on top.
   • Risk: High (Stitches sinking in).
   • Action: You need the topping to keep the thread floating above the fabric loops.

Setup Checklist (Before you stitch any onboard-digitized file)

• Visual Preview: You watched the simulation and saw no "black holes" of density.
• Needle Check: Is the needle straight? Spin it on a flat table. If it wobbles, trash it.
• Bobbin Check: Do you have enough bobbin thread for the fill? (A fill stitch eats bobbin thread fast).
• Obstruction Check: Is the hoop clear of the presser foot arm?

The Real-World “Why”: Hooping Physics, Puckering, and Why Your Screen-Perfect Design Can Still Fail on Fabric

Here is the hard truth: 90% of "digitizing problems" are actually hooping problems.

When you draw a square on the screen, it is perfect. When you stitch that square on a T-shirt, and the T-shirt is stretched too tight in the hoop, the fabric will snap back when you remove it. The result? The square becomes an hourglass shape. This is called distortion.

Conversely, if the fabric is too loose, the needle builds up a "wave" of fabric in front of it. This is puckering.

The Commercial Solution: If you are doing this for a hobby, trial and error is fine. If you are doing this for production (50+ shirts), traditional screw-tightened hoops are slow and leave "hoop burn" (shiny rings) on delicate fabrics. This is why professional shops upgrade to Magnetic Hoops.

• Trigger: You hate the "hoop burn" marks or your wrists hurt from tightening screws.
• Criteria: If you change garments frequently or need perfect tension without effortless adjustments.
• Option: magnetic embroidery hoops fundamentally change the physics. They clamp flat instead of squeezing, reducing hoop burn and keeping tension even.

If you own a Ricoma, ensure you check compatibility. Many users search for hoops for ricoma to find magnetic options that fit their specific bracket arms (e.g., SEWTECH magnetic frames often fit these industrial brackets perfectly).

Warning: Magnetic Safety
Magnetic hoops use industrial-grade magnets. They are incredibly strong.
* Pinch Hazard: They can crush fingers. Handle with respect.
* Electronics: Keep them away from control panels, credit cards, and pacemakers.

Troubleshooting the Three Most Common Onboard Digitizing Headaches

(Symptoms → Cause → Fix)

The Upgrade Path That Makes This Profitable: Faster Hooping, Fewer Repeats, and When to Scale Up

Onboard digitizing on the XT Pro is a fantastic tool for "one-off" customs. But if you find yourself bottlenecks, look at your workflow.

1. Level 1: Stability Upgrade. If your fills look messy, upgrade your Stabilizer and consider high-quality Polyester Thread (like Simthread or equivalent) that can handle high-speed stitching (800+ SPM) without breaking.
2. Level 2: Hooping Upgrade. If you spend 5 minutes hooping and 2 minutes stitching, you are losing money. A magnetic hooping station allows you to hoop a shirt in 15 seconds with perfect placement repeatable accuracy.
3. Level 3: Capacity Upgrade. If simple designs are clogging your schedule because you need to change colors manually or run multiple jobs, consider the SEWTECH multi-needle ecosystem. Purpose-built for production, these machines allow you to queue jobs and scale your output effectively.

Operation Checklist (During the first real stitch-out)

• Speed Limit: Set the machine to 600-700 SPM (Stitches Per Minute) for the first run. Don't go full speed on a new digitized file.
• The "First 100" Watch: Watch the first 100 stitches. If the thread doesn't catch or shreds immediately, STOP.
• Sound Check: Listen for a rhythmic thump-thump. A loud clack-clack usually means the hoop is hitting something or the needle is dull.
• Notes: Save a note on your phone: "Butterfly file = 40mm width, Cutaway Mesh, 700 SPM." This is your recipe for next time.

FAQ

• Q: How do I prevent gaps in lines when drawing Cloud Doodle Embroidery on the Ricoma XT Pro resistive touchscreen?
  A: Redraw the stroke with firmer, continuous stylus pressure before digitizing, because light touch creates micro-breaks that become trims/jumps.
  • Press harder until you feel slight drag friction; avoid “tapping” the screen.
  • Draw each line in one smooth motion without lifting the stylus mid-stroke.
  • Use Undo and redraw instead of patching small sections.
  • Success check: the stroke looks unbroken on-screen and you hear/feel a steady sliding drag (not dot-tap sounds).
  • If it still fails: wipe finger oils off the screen and confirm the stylus tip is clean/smooth (no burrs).
• Q: Why can’t the Ricoma XT Pro erase or edit a Cloud Doodle after pressing the “S” Digitize button, and what is the fastest fix?
  A: The “S” button is a one-way conversion to stitches, so the quickest fix is to save the file as a new version and redraw before pressing “S” again.
  • Save the current result with a version name (for example, NAME_SIZE_V1) so nothing is lost.
  • Start a new file (V2) and make all Eraser corrections in drawing mode first.
  • Treat “S” like a final sign-off: confirm closed loops and no gaps before tapping it.
  • Success check: you can still use the Eraser tool and see edits change the drawing before digitizing.
  • If it still fails: restart the doodle clean rather than trying to “fix” post-digitize on the panel.
• Q: What stabilizer and needle setup should I use on the Ricoma XT Pro for onboard-digitized designs on T-shirts, towels, and denim?
  A: Match the stabilizer to fabric behavior first—this prevents puckering, distortion, and sinking even when the on-screen design looks perfect.
  • Use woven/steady fabric (denim/canvas/twill): tear-away (2 layers if medium weight) + 75/11 sharp needle.
  • Use knit/unstable fabric (T-shirts/polos): cut-away (mandatory) + 75/11 ballpoint needle; add spray adhesive to bond fabric to stabilizer.
  • Use high pile (towels/fleece): tear-away on back + water-soluble topping on top to keep stitches from sinking.
  • Success check: the fabric stays flat after unhooping (no hourglass distortion, no ripples, and stitches sit on top of towel loops).
  • If it still fails: reduce test speed to 600–700 SPM and do a test stitch on scrap before committing to the garment.
• Q: How do I stop thread nesting (bird’s nest) when stitching an onboard-digitized file on a Ricoma XT Pro?
  A: Rethread the upper thread completely with the presser foot UP and make sure the thread is seated in the tension discs—this is the most common cause.
  • Raise the presser foot, then rethread the entire upper path slowly, hitting every guide.
  • “Floss” the thread into the tension discs (a firm pull so it seats correctly).
  • Recheck the stitch simulation for unexpected jump-heavy paths that can worsen tangles.
  • Success check: stitches form cleanly in the first 100 stitches and the underside does not build a wad under the throat plate.
  • If it still fails: verify upper tension is not too loose and confirm no thread guide was missed.
• Q: What is the safe resizing limit for Ricoma XT Pro Photo Embroidery auto digitizing, and why does shrinking a design cause thread breaks?
  A: Keep on-screen resizing within about +/- 20% of the original image size, because heavy shrinking can spike stitch density and overload the needle.
  • Resize the artwork on a computer before putting it on the USB whenever possible.
  • If resizing on the panel, avoid drastic downsizing (for example, shrinking a large design to a small 40 mm width can get overly dense).
  • Preview the simulation and look for “solid black”/overpacked areas before stitching.
  • Success check: the preview shows clear stitch spacing (not solid blocks), and the first run at 600–700 SPM stitches without immediate shredding.
  • If it still fails: choose a simpler, higher-contrast image with thicker clean edges (coloring-book style).
• Q: What should I check in Ricoma XT Pro stitch preview simulation before stitching an onboard-digitized design to avoid wasted fabric?
  A: Use the preview like a quality inspection: confirm minimal jump stitches, correct stitch order, and no density “black holes” before hooping expensive garments.
  • Scan for long jump stitches crossing the design (expect extra trimming if you proceed).
  • Confirm the background stitches before the outline (order should make structural sense).
  • Watch for areas that look overly solid/dense, which can cause needle or thread breaks.
  • Success check: the preview shows a logical sequence with manageable jumps and no overly packed regions.
  • If it still fails: simplify the artwork or avoid heavy resizing after auto-digitizing.
• Q: What are the main safety risks when test-running onboard digitizing on a Ricoma XT Pro, and what is the safest first-run routine?
  A: Keep hands, hair, sleeves, and jewelry away from moving needle bars/take-up levers, and run the first stitch-out slower while watching the first 100 stitches.
  • Clear the hoop area and confirm nothing can hit the presser foot arm before starting.
  • Set speed to about 600–700 SPM for the first run of any new onboard-digitized file.
  • Stop immediately if you hear loud clacking or see thread shredding in the first seconds.
  • Success check: the machine runs with a steady rhythm (no harsh clacks) and the design anchors cleanly in the first 100 stitches.
  • If it still fails: inspect needle straightness (spin-test on a flat surface) and replace if it wobbles.
• Q: How do I decide between technique fixes, magnetic hoops, or a multi-needle upgrade when Ricoma XT Pro onboard digitizing keeps causing rehooping, hoop burn, or slow production?
  A: Use a step-up approach: optimize setup first, then upgrade hooping hardware if hooping is the bottleneck, and only consider capacity upgrades when job volume demands it.
  • Level 1 (technique): tighten stabilizer/fabric matching, slow first runs, and verify preview to cut repeats.
  • Level 2 (tooling): consider magnetic hoops if screw hoops are slow, cause hoop burn (shiny rings), or make consistent tension hard across many garments.
  • Level 3 (capacity): consider a multi-needle workflow if simple jobs pile up due to manual color changes or you need to queue more work.
  • Success check: hooping time drops and placement/tension become repeatable without rehooping.
  • If it still fails: review hoop clearance/obstructions and re-evaluate whether the workload is truly exceeding single-machine throughput.
