Ricoma “Thread Break Detected” With No Broken Thread? The Calm, Repeatable Fix—Plus a Stitch-Recovery Math Trick That Saves Your Patch Sheet

If your Ricoma throws a “Thread Break Detected” error and you’re staring at the machine thinking, “But… nothing is broken,” you are experiencing the most common frustration in machine embroidery: the False Positive. I’ve watched seasoned operators lose an hour—and their confidence—chasing this "ghost."

This guide rebuilds a real-world troubleshooting session involving a dense patch run on cork fabric. We will move beyond basic manual instructions to the sensory nuances (what it should feel and sound like) that prevent these errors. You will learn how to verify your bobbin tension by hand, why "glitchy" framing sensors are actually protecting you, and how to use stitch math to recover a batch job that resets to Stitch 0 of 69,000+ without ruining your expensive material.

First, Breathe: Ricoma “Thread Break Detected” Can Be a False Positive (and It’s Not Always Your Fault)

The video captures a panic moment: the machine reports a break, the operator checks, finds nothing, restarts, and the error returns instantly.

Shift your mindset: The machine isn't accusing you of failure; it is reporting a signal interruption. The thread break sensor usually works on a check spring or a wheel. If the thread doesn't vibrate that spring or turn that wheel with enough tension, the machine assumes the thread is broken.

Sensory Check:

• Visual: Is the thread slack anywhere in the upper path?
• Tactile: Gently pull the thread near the needle. Does it feel consistent, or does it jerk?
• Auditory: Listen to the sound of the machine. A rhythmic "thump-thump" is good; a slapping sound suggests loose tension triggering the sensor.

If you are running a production schedule on ricoma embroidery machines, your goal isn't to eliminate errors, but to diagnose them in under 2 minutes.

The “Hidden” Prep Before You Touch Anything: Set Yourself Up to Diagnose, Not Guess

Before you grab a screwdriver, perform a Pre-Flight System Check. The operator in the video faces a high-stakes scenario: 69,000 stitches on cork vinyl. Cork does not "heal." If the needle punctures the wrong spot, the material is ruined.

The "Old Pros" Rule:

Never leave a machine threaded and idle for a week. Dust settles in the tension disks, and thread memory (curling) can cause immediate tangles upon startup.

Prep Checklist (Do this BEFORE touching the screen)

• Verify Stitch Count: Note the total (e.g., 69,500). This is your GPS coordinates if the machine crashes.
• Check Layout: Confirm the grid (e.g., 3x3 layout, 9 patches total).
• Needle Inspection: Run your fingernail down the needle tip. If it catches, replace it. A burred needle causes fraying that mimics thread breaks.
• Emergency Stop Point: Identify a safe "abort" zone on the screen in case the frame moves toward the hard limit.


The Placement Ritual: Use the Ricoma Laser Trace to Prevent a Hoop Strike

Tracing is not optional—it is your primary safety mechanism. The operator uses the laser pointer to trace the outer boundary of the 9-patch design.

Why this matters: When stitching multiple patches on one sheet, you are pushing the limits of the hoop's usable area. Software coordinates might say "it fits," but physical reality (hoop calibration) might differ.

Warning: Mechanical Impact Hazard. If the machine refuses to trace or gives a "Limit Switch" error, STOP. Do not force it. A needle striking the heavy plastic hoop frame at 800 SPM (Stitches Per Minute) can shatter the needle, damage the reciprocating bar, and send metal shrapnel flying.

The Fix That Actually Moves the Needle: Clean the Bobbin Case, Then Re-Seat the Thread Path Like You Mean It

The operator escalates logically:

1. Level 1: Visual check.
2. Level 2: Remove bobbin case.
3. Level 3: Deep Clean. She pulls the bobbin case all the way out, blows out lint, and re-seats it.

The "Pigtail" Variable: A viewer comment highlights a critical detail: the Pigtail (spiral guide) on the bobbin case. If the thread jumps out of this pigtail, tension drops to almost zero. The sensor detects "no tension" and reports "Thread Break," even though the thread is physically intact.

The Tension "Floss" Test: When you re-thread the bobbin case, pull 3 inches of thread (like you are flossing teeth).

• Too Loose: It pulls with zero resistance (will cause looping/birdnesting).
• Too Tight: It lifts the bobbin case off your hand (will snap thread).
• Just Right: You feel a smooth, firm drag, and the bobbin case stands up but doesn't lift off your palm.

If you struggle with hooping heavy materials like cork, poor tension often results from the fabric "flagging" (bouncing) in the hoop. This is where hooping for embroidery machine technique becomes critical—if the fabric isn't drum-tight, the machine can't form a knot, triggering a sensor error.

Oil as a Troubleshooting Tool: A Few Drops at the Hook Can Quiet “Ghost” Thread Breaks

The creator applies one to two drops of clear machine oil to the rotary hook mechanism (the metal basket spinning under the needle plate).

The Physics: Friction generates heat. Heat causes thread to expand and drag. If the hook race is dry, the thread creates micro-vibrations that the sensors misinterpret as a break.

Hidden Consumables Strategy: Always keep a scrap piece of fabric nearby. After oiling, run a "test stitch" on scrap for 30 seconds. Excess oil will splatter, and you do not want oil stains on your expensive cork patches.

Setup Checklist (Post-Maintenance)

• Bobbin Click: Listen for the audible click when inserting the bobbin case. No click = loose case = needle break.
• Pigtail Check: Ensure the bobbin thread is curled through the pigtail guide.
• Upper Path Floss: Floss the upper thread through the tension disks to ensure it is seated between the disks, not riding on top.
• Hoop Stability: Push on the center of the framed cork. It should feel stiff, not spongy.


When Ricoma Says “Hoop Not In Frame” but the Hoop Looks Centered: Treat It Like a System Glitch, Not a Dare

The operator hits a "Hoop not in frame" soft-lock. Visually, it looks fine. She refuses to stitch. This is the correct professional instinct.

The Glitch Protocol: If the User Interface (UI) disagrees with physical reality, trust the UI. It may have lost its X/Y absolute positioning.

1. Shutdown: Power off completely.
2. Wait: Wait 30 seconds (discharge capacitors).
3. Restart: Allow the machine to re-calibrate its home position.

Commercial Pivot: Glitchy alignment often happens when heavy materials torque the standard hoop, causing slight misalignment in the carriage arms. This is a common pain point with standard tubular hoops. Many production shops switch to a magnetic embroidery frame for flat goods like patch sheets. These frames hold heavy/thick material flat without forcing the hoop shape to distort, reducing stress on the machine's pantograph (drive arms).

Warning: Magnetic Danger. Magnetic hoops use powerful N52 neodymium magnets. They cause a severe pinch hazard. Keep fingers clear of the mating surfaces. Pacemaker Safety: Keep magnets at least 6 inches away from implanted medical devices.

The “It Restarted at Stitch 0” Nightmare: How to Recover a 9-Patch Batch Without Re-Stitching Everything

The machine crashes and reboots at Stitch 0. The first row of patches is done. If she hits "Start," the needle will ruin the finished patches.

The Solution: Stitch Math Recovery Instead of guessing, use the logic from the video:

1. Knowns:
   • Total Stitches: ~69,000
   • Total Patches: 9
   • Completed Patches: 3
2. The Formula:
   $$(\text{Total Stitches} div \text{Total Patches}) \times \text{Completed Patches} = \text{Target Start Point}$$
   • $69,000 div 9 approx 7,666$ stitches per patch.
   • $7,666 \times 3 = 23,000$.
   • Action: Fast-forward to stitch count 23,000.

The "Float Test" (Crucial Step): Before sewing, fast-forward to the target stitch. The needle will move to the start position of Patch #4. Manually lower the needle bar (without power) to verify it hovers exactly over the start of the 4th patch. If it's off, adjust the stitch count +/- 500 stitches.

Material Stability: Recovering a specific location requires the material to have zero shift. Generally, ricoma embroidery hoops are robust, but for high-precision recovery work, ensure you tightened the hoop screw with a screwdriver, not just finger-tight.

Thread Color Swaps as a Diagnostic Move: Changing Black to Blue to Rule Out a Single-Needle/Thread Issue

She switches from Black Thread to Blue Thread. This is a classic diagnostic tactic known as Isolation.

• Hypothesis: Is the machine broken, or is Spool #1 bad?
• Test: Switch to Needle #2 (Blue).
• Result: If Needle #2 sews perfectly, the machine is fine. The problem is Needle #1's tension, the physical needle, or the thread cone itself (old thread becomes brittle).

Pro Tip: If a specific color keeps breaking, strip 5 yards of thread off the spool. The outer layer is often oxidized by UV light or dust.

Troubleshooting Map: Symptom → Likely Cause → Safe Fix

Use this logic flow to stop guessing.

Decision Tree: Patch Sheet Material → Stabilizer Choice → Hoop Selection

Standardize your setup to avoid fighting the machine.

1. What is the Patch Material?

• Rigid (Cork/Vinyl/Leather):
  • Stabilizer: Cutaway (2.5oz or 3.0oz). Tearaway is too weak for high stitch counts; it will perforate and the patch will fall out.
  • Needle: 75/11 Sharp (cuts cleanly). Avoid Ballpoint.
• Soft/Woven (Twill/Canvas):
  • Stabilizer: Medium Tearaway + temporary Spray Adhesive (hidden consumable).
  • Needle: 75/11 Universal.

2. Is Hooping Causing Issues?

• Symptoms: "Hoop Burn" (shiny ring marks), hand pain, or material popping out.
  • Solution A: Wrap standard hoop inner rings with cohesive bandage tape for grip.
  • Solution B (Upgrade): Switch to Magnetic Hoops.
    • Standard hoops rely on friction/muscle. Terms like magnetic embroidery hoops refer to frames that use vertical force. This eliminates "hoop burn" and makes clamping thick cork effortless.
    • For repetitive batching (pumping out 50+ patches), a magnetic hooping station ensures every sheet is aligned identically, reducing the risk of hitting the frame edges.


The “Why” Behind These Glitches: Friction, Feed Consistency, and the Reality of Production Stress

Why did this happen?

1. Sensor Sensitivity: Embroidery sensors are binary. They expect constant tension. A dirty bobbin race creates intermittent drag.
2. Stitch Density: 69,000 stitches creates massive friction. The needle heats up, adhesive from the cork melts on the needle, and thread travels slightly differently.
3. Human Variable: Restarting a job places the highest cognitive load on the operator. This is when mistakes happen.

The operator's success came from slowing down and trusting the math over the machine's default "Start" prompt.

The Upgrade Path: When to Buy Your Way Out of a Problem

Pain points are useful—they tell you when you have outgrown your current toolkit.

• Pain: "I spend more time hooping than sewing."
  • Analysis: If you struggle to clamp thick cork or leave marks that ruin the product, your tool is the bottleneck.
  • Solution: Magnetic Hoops. They snap on instantly. Review logic like how to use magnetic embroidery hoop to see if the speed gain justifies the cost (usually yes for production runs).
• Pain: "My wrists hurt from 50 repetitive hoopings."
  • Analysis: Ergonomic injury kills profitability.
  • Solution: Hooping Station. Aligns the garment/material for you, saving physical stress.
• Pain: "I can't fulfill orders fast enough with my single-head."
  • Analysis: If you are turning down work, you need scale.
  • Solution: Multi-Needle Production Machine (SEWTECH/Ricoma Class). Moving from hobbyist speeds to industrial reliability.

Operation Checklist (The "Save Your Sanity" Protocol)

• Mid-Run Audit: Every 20,000 stitches, pause and inspect the bobbin usage. Don't run it until it runs out completely.
• Consumable Check: If output looks sloppy, change the needle ONLY. It’s the cheapest fix (approx. $0.30) for the biggest gain.
• The "Stop While Ahead" Rule: As seen in the video, once the target patch was saved, she stopped. Don't push your luck on a recovered file.


The Takeaway: Control the Machine, Don't Let It Control You

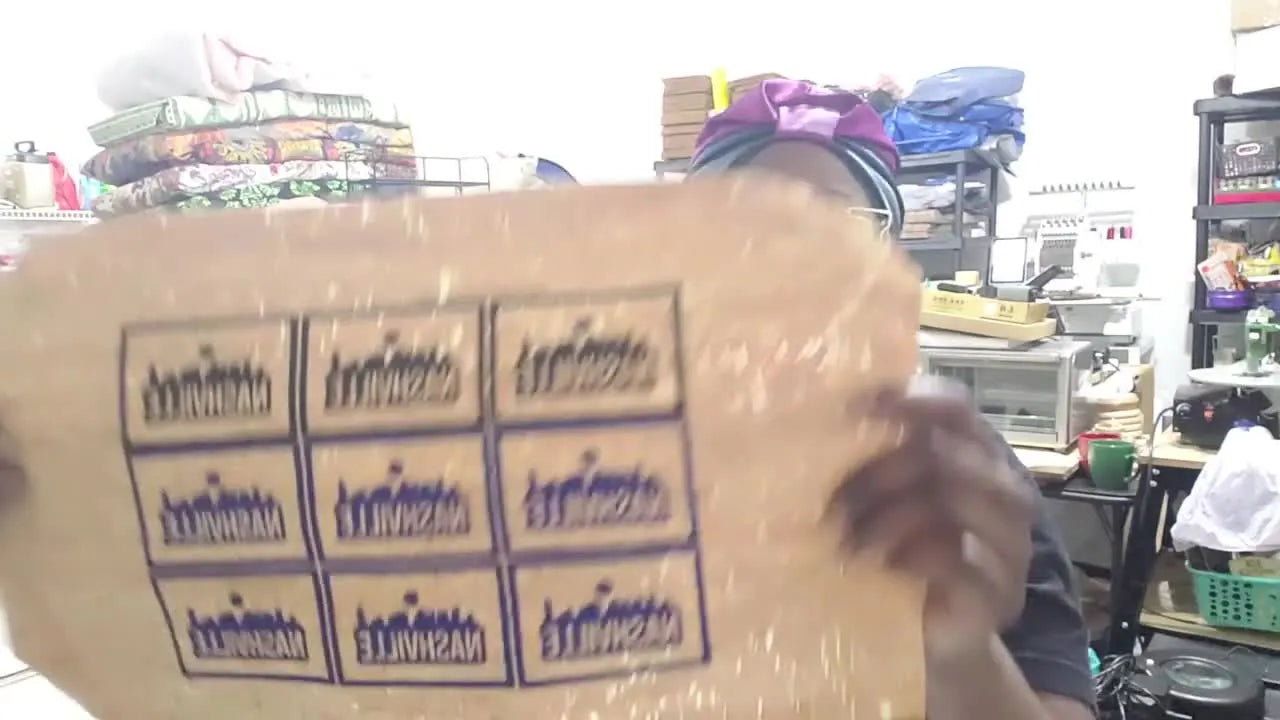

The video ends with a victory: a saved 9-patch sheet, saved material costs, and a lesson learned.

Your Final 3 Rules:

1. Clean Deep: A "thread break" is a dirty bobbin until proven otherwise.
2. Respect the UI: If it says "Hoop not in frame," reboot. Don't force it.
3. Use the Math: Never restart a batch at 0. Calculate your jump-stitch point.

Next time that error beeps, check the pigtail, verify your tension "floss," and keep sewing.

FAQ

• Q: Why does a Ricoma embroidery machine show “Thread Break Detected” when the upper thread is not broken during dense patch stitching?
  A: This is often a false positive caused by low/interrupted thread tension reaching the sensor, not a true break—don’t panic.
  • Re-seat the upper thread path by “flossing” the thread through the tension area so it is seated between the tension disks (not riding on top).
  • Remove the bobbin case, clear lint, then reinstall it fully (listen/feel for proper seating).
  • Verify the bobbin thread is routed through the bobbin case pigtail (spiral guide); missing the pigtail can drop tension to near zero.
  • Success check: Gently pull the upper thread near the needle—tension should feel smooth and consistent (not jerky), and the machine sound should be rhythmic (not “slapping”).
  • If it still fails… change the needle and isolate by switching to another needle/thread color to see if the issue is limited to one position.
• Q: How do you hand-check Ricoma bobbin tension using the bobbin case “floss test” to prevent looping and false thread breaks?
  A: Use a short, controlled pull to feel for a smooth, firm drag—this quick test catches “too loose” or “too tight” bobbin setups fast.
  • Pull about 3 inches of bobbin thread through the case like flossing teeth.
  • Adjust by re-threading the bobbin path correctly first (especially through the pigtail) before assuming a tension screw change is needed.
  • Success check: The pull should feel smooth with firm drag; it should not be “zero resistance,” and it should not yank the bobbin case off your palm.
  • If it still fails… clean the bobbin area again and re-seat the bobbin case; lint and mis-seating commonly mimic tension problems.
• Q: What should a Ricoma operator do when the Ricoma control panel says “Hoop not in frame” even though the hoop looks centered?
  A: Treat it as a positioning/glitch safety lock—stop and reboot instead of forcing a trace or stitch.
  • Stop the job and do not press Start; avoid any move that could drive the frame into a hard limit.
  • Power off completely, wait about 30 seconds, then restart to allow X/Y home recalibration.
  • Re-check the hoop selection on the screen matches the physical hoop setup before tracing again.
  • Success check: After restart, the machine traces normally without soft-locks and the UI agrees with the physical hoop position.
  • If it still fails… do not force the trace; re-evaluate hoop stability and mounting because misalignment stress can trigger repeat positioning faults.
• Q: How can Ricoma laser trace prevent a hoop strike when running a tight 3x3 patch layout near the hoop limits?
  A: Always laser trace the outer boundary before stitching—trace is the primary safety check for real-world clearance.
  • Trace the full perimeter of the multi-patch design and watch the clearance at all edges of the hoop/frame.
  • Stop immediately if the machine refuses to trace or reports a limit-related warning; do not “push through.”
  • Keep a known safe abort point ready on the screen in case the frame moves toward a hard limit.
  • Success check: The laser path stays clearly inside the hoop’s usable area with visible clearance—no near-misses at corners.
  • If it still fails… re-check design placement and hoop choice; pushing the usable area too far is a common cause of impact risk.
• Q: How many drops of oil should be applied to the Ricoma rotary hook to reduce “ghost” thread break errors on long, dense runs?
  A: A small amount—typically 1–2 drops at the hook—can reduce friction-driven vibration that triggers false breaks.
  • Apply 1–2 drops of clear machine oil to the rotary hook area under the needle plate (only where appropriate for the machine).
  • Run a short test stitch on scrap fabric for about 30 seconds to purge excess oil before returning to production material.
  • Re-check bobbin case seating and thread routing after oiling as part of the restart.
  • Success check: The machine runs quieter/smoother and stops flagging breaks without oil splatter on the actual patch material.
  • If it still fails… deep-clean the bobbin/hook area and verify the bobbin case pigtail and upper thread seating again.
• Q: How do you recover a Ricoma multi-patch job after a reboot resets to Stitch 0, without restitching finished patches?
  A: Use stitch math to jump to the correct stitch count, then confirm position with a manual “float test” before sewing.
  • Calculate the restart point: (Total stitches ÷ total patches) × completed patches, then fast-forward to that stitch count.
  • Perform a “float test”: fast-forward to the target stitch, then manually lower the needle bar (without power) to confirm it hovers over the next patch start point.
  • Fine-tune by small increments if needed (often adjusting a bit forward/back) until the needle aligns correctly.
  • Success check: The needle drop point lines up with the start of the next unfinished patch—not over completed stitching.
  • If it still fails… stop and check for any material shift; ensure the hoop screw is tightened securely (often needing a screwdriver, not finger-tight).
• Q: What are the safety risks of magnetic embroidery hoops for production patch sheets, and how can operators use magnetic hoops safely?
  A: Magnetic hoops are fast and reduce hoop stress, but the magnets can pinch hard—handle them like a powered clamp.
  • Keep fingers out of the mating surfaces and lower the magnetic ring straight down with control.
  • Keep magnetic hoops at least 6 inches away from implanted medical devices (pacemaker safety).
  • Use a stable work surface and a consistent loading routine to avoid sudden snap-down.
  • Success check: The frame closes without finger contact and the material is held flat and stable (no spongy center bounce).
  • If it still fails… switch back to a standard hoop temporarily for troubleshooting, then revisit magnetic hoop handling and alignment practices once the job is stable.
