Ricoma TC-1501 Keeps Stopping, Snapping Needles, or Refusing Designs? Fix the 4 “Money-Leak” Problems—and Lock In a Maintenance Rhythm

The Ricoma TC-1501 is a workhorse, but like any high-performance machine, it communicates in a language of clicks, thumps, and—unfortunately—silence. When it acts up, it’s not being "stubborn"; it’s reacting to physics.

As someone who has managed production floors for two decades, I know the sinking feeling of a machine stopping mid-logo. But I also know that 90% of "mystery problems" are actually operator setup errors.

This guide is your Field Manual. We are moving beyond "try this." We are establishing a protocol based on sensory feedback—how the machine sounds and feels—and providing safe, data-driven parameters to keep you running.

Ricoma TC-1501 “Common Problems” That Quietly Kill Production Time (and How to Stay Calm)

In a commercial environment, hesitation costs money. The four issues below are the usual suspects. We will tackle them not by guessing, but by eliminating variables.

1. Digital Blockage: Machine refuses files (User Interface & Formatting).
2. Needle Trauma: Snaps and shreds (Speed & Deflection).
3. Fabric Pinching: The "flagging" phenomenon (Hooping Physics).
4. Thread Breaks: The tension battle (Path & Quality).

Following this, we will establish a "Ritual of Maintenance" that separates the pros from the frustrated hobbyists.

When the Ricoma TC-1501 Won’t Upload a Design: Unlock the Embroidery Status First

Before you blame the computer, check the machine’s "State of Mind." The TC-1501 will not accept new data if it thinks it is currently working.

The Symptom: You insert the USB, but the machine ignores it or throws an error.

The Fix (Visual Check):

1. Look at the bottom right corner of the control panel screen.
2. Find the Embroidery Status icon (it looks like a needle/hoop).
3. Action: If it is yellow/locked, press it to Unlock (turn it grey/open). The machine must be in "Standby" mode, not "Ready to Stitch" mode, to accept files.


The 8GB Rule: Why "Bigger" is Worse

Modern computers use massive drives, but industrial embroidery firmware prefers simplicity.

• The Hard Limit: Use a USB flash drive 8 GB or smaller.
• The Format: Ensure the drive is formatted to FAT32. (NTFS formats often confuse embroidery machines).

Pro Tip: Do not use your "work" USB that holds spreadsheets and family photos. Dedicate one cheap, low-capacity 2GB - 8GB stick solely for the machine. It reduces data corruption ghosts.

Needle Breaks on the Ricoma TC-1501: It’s Not Bad Luck, It’s Deflection

Needles rarely break because they are weak; they break because they get bent (deflected) by the fabric or pulling tension, causing them to strike the metal needle plate.

The "Sweet Spot" Data for Beginners

The TC-1501 is rated for high speeds (1000+ SPM), but speed kills quality if your setup isn't perfect.

• Safe Zone: 650 - 750 SPM. Run here until you trust your setup.
• Danger Zone: 900+ SPM. Only use this on stable fabrics with perfect tension.

The Immediate Fix Checklist

1. Check Orientation: The "eye" of the needle must face the front. The long groove faces front; the scarf (indentation) faces back.
2. Sensory Check: When inserting a needle, push it all the way up until it hits the "ceiling" of the needle bar stop. You should feel a solid thud. If it’s even 1mm too low, it will hit the rotary hook.
3. Match the Needle to the Job:

Warning: Safety First. Always power down the machine or engage the emergency stop before changing needles. A startling machine movement can drive a needle through your finger in a fraction of a second.

Fabric “Pinching” on the Ricoma TC-1501: The Hooping Tension Sweet Spot

"Pinching" or "Puckering" happens when loose fabric gets pushed around by the foot, creating a fold that gets stitched over. It instantly ruins the garment.

The Fix: You need to master the "Tambourine" tension.

Sensory Anchor: The "Tambourine" Test

When the fabric is hooped:

• Touch: Tap the fabric with your finger. It should sound like a dull drum (thump-thump).
• Sight: The weave of the fabric should be straight, not bowed or distorted (which means it's over-stretched).

The Tool Upgrade: Solving "Hoop Burn"

Process improvement has a limit. If you are struggling with thick items (like Carhartt jackets) or slippery performance wear, traditional plastic hoops struggle to grip without leaving "hoop burn" (crushed fibers ring).

This is a classic trigger point for professional shops to upgrade. Upgrading to magnetic embroidery hoops isn't just about ease; it's about physics. The magnets clamp straight down, holding fabric firmly without the friction-burn of inner/outer plastic rings. This eliminates the "hoop burn" and significantly reduces pinching risks on uneven items.

Decision Tree: Fabric → Stabilizer Choice

Wrong stabilizer is the #1 cause of poor design registration.

1. Is the fabric Stretchy (Polo, T-shirt, Beanie)?

• YES: Use Cutaway Stabilizer (2.5oz - 3.0oz).
  • Why: Stitches need a permanent foundation. Tearaway will disintegrate, and the shirt will distort.
• NO: Go to step 2.

2. Is the fabric Stable (Denim, Twill, Canvas)?

• YES: Use Tearaway Stabilizer.
  • Why: The fabric supports itself; the backing is just for temporary crispness.
• NO: Go to step 3.

3. Does the fabric have "Pile" (Towel, Velvet, Fleece)?

• YES: Use Solvy (Water Soluble Topping) on top + Backing underneath.
  • Why: Topping prevents stitches from sinking into the fluff.

Warning: Magnet Safety. If you choose to upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. Do not use them if you have a pacemaker. Keep fingers clear of the snapping zone to avoid painful blood blisters.

Thread Breaks on the Ricoma TC-1501: The "Dental Floss" Test

Thread breaks are a symptom, not the disease. The video highlights multiple causes, but we need to prioritize them from "Likely" to "Rare."

The Triage Hierarchy

1. The Thread Path (Zero Cost): Is the thread caught on the tree? Is the spool cap too tight?
2. The Needle (Low Cost): Is it bent? Is it sticky with adhesive? Change it.
3. The Tension (Adjustment):
   • Sensory Anchor: Pull the top thread through the needle eye (presser foot down). It should feel like pulling dental floss through your teeth—resistance, but smooth. If it snaps your finger back, it's too tight. If it falls out, it's too loose.
4. The Consumable (Investment): Cheap thread breaks. High-speed commercial machines like the TC-1501 despise "bargain bin" thread. Ensure you are running high-tensile polyester designed for high-speed use.

If you are doing a lot of repetitive tasks and seeing breaks only on certain colors, check your hooping consistency. Many pros use a hooping station for machine embroidery to ensure every shirt is hooped with identical tension, removing "fabric drag" as a variable for thread breaks.

The “Hidden” Prep Before You Touch a Screw

Professional maintenance requires a "Mise-en-place" (everything in its place) approach.

Hidden Consumables Checklist

Before opening the machine, ensure you have:

• White Lithium Grease: For metal-on-metal gears.
• Clear Machine Oil (Sewing grade): For rotary hooks and needle bars.
• Canned Air & Tweezers: to remove "dust bunnies."
• Magnetic Tray: For screws (they will try to roll under the table).
• Scrap Fabric: For test stitching after oiling.

Daily Rotary Hook Oiling: The Heartbeat of the TC-1501

This is non-negotiable. The rotary hook spins at thousands of RPM. Without oil, it generates heat, expands, and snaps thread.

The Procedure (Action-First)

1. Stop: Turn the machine OFF.
2. Clear: Remove the bobbin case. Blast the area with canned air to remove lint.

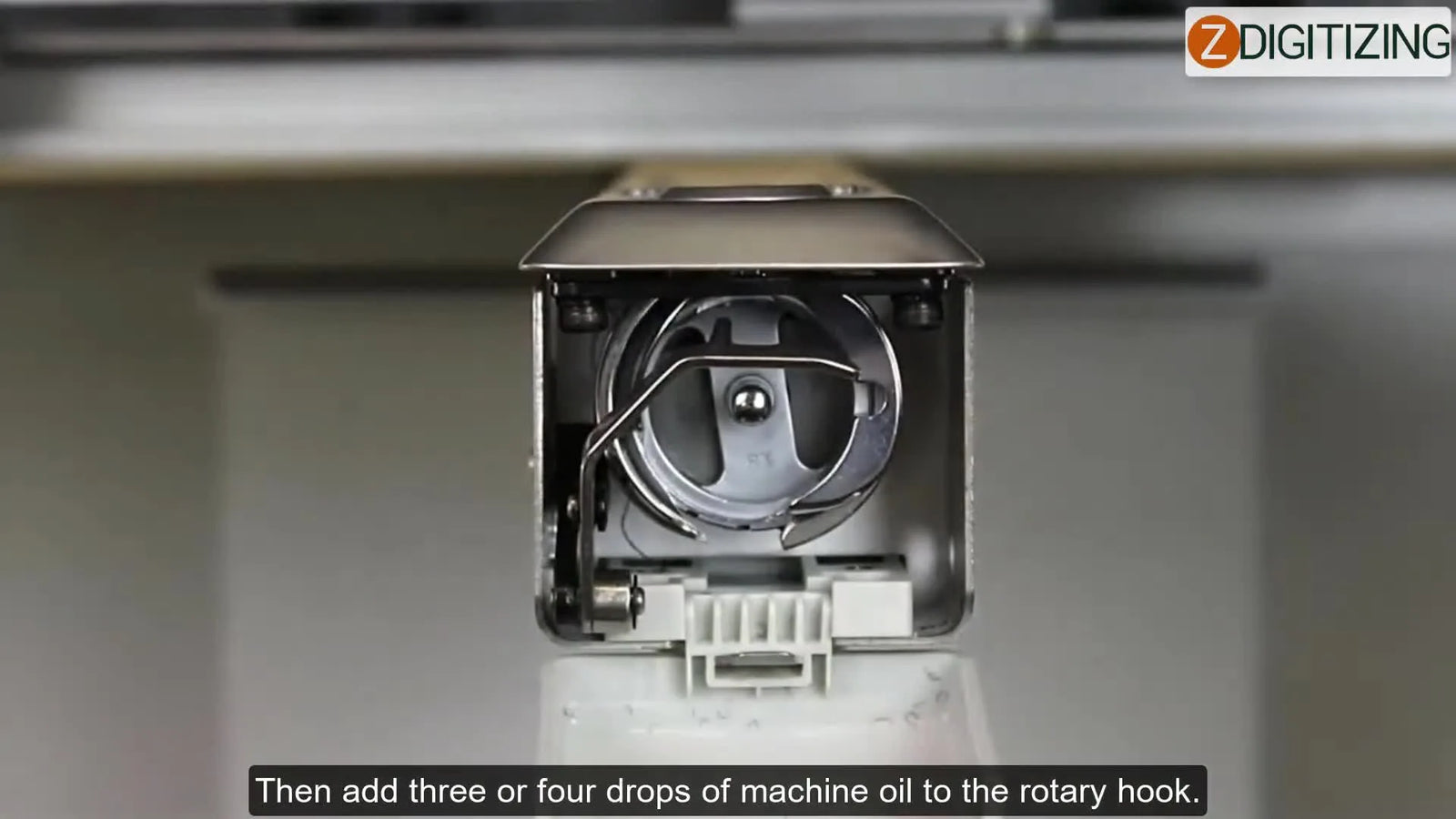

3. Oil: Apply 3 to 4 drops of clear oil into the race (the groove where the hook spins).
4. Spin: Hand-turn the wheel manually to distribute the oil.

Frequency: Every 4 hours of continuous running, or at the start/end of every shift.

Weekly Cleaning: Trimmers, Case, and Bars

Lint is the enemy of precision. It packs into corners and pushes gears out of alignment.

1. Trimmer Knives (The Cut)

• Remove the needle plate.
• Use a soft brush to sweep lint out of the moving knife area.
• Why: Impacted lint prevents the knife from retracting, causing "birdnesting."

2. Bobbin Case Slit (The Tension)

• Slide the corner of a stiff business card under the tension spring on the bobbin case.
• Why: A microscopic piece of lint here will blow open your bobbin tension, causing massive loops on the top of the garment.


3. Needle Bars (The Glide)

• Action: Add 1 drop of oil to the needle bars through the slots in the case.
• Pattern: Alternate weeks. Week A: Upper section. Week B: Lower section. Over-oiling here drips onto your garments!


3-5 Month Deep Maintenance: The Grease Points

Oil is for speed; grease is for load-bearing.

1. Drive Bars & Wheels

Apply White Lithium Grease to the horizontal color-change bar and the wheels behind the head.

2. Color Change Cam

Remove the small cover shown in the diagram. Apply grease to the cam spiral.

Crucial Step: After any greasing, run a test design on scrap fabric. The machine may "spit" excess oil for the first 500 stitches. Do not let that happen on a customer's jacket.

“My Ricoma Stopped With No Message”: The Silent Failure Triage

If the machine stops dead with no error code, rely on this triage list.

Safe Triage Checklist

• USB Check: Is the design size under 8GB? Is the USB formatted FAT32?
• Lock Check: Is the Embroidery Status Unlocked?
• Bobbin Check: Did the bobbin run out without the sensor catching it?
• Binding Check: Turn the handwheel (main shaft knob) manually (machine off). Does it turn smoothly? If it feels "gritty" or stuck, STOP. You have a mechanical birdnest or jam. Do not force it.

The Upgrade Conversation: Moving from "Struggling" to "Scaling"

There comes a point where skill isn't the bottleneck—your equipment is.

If you are spending 20 minutes hooping a jacket because you are fighting the rings, or if you are rejecting 10% of shirts due to hoop burn, you are losing profit.

• Trigger: Wrists hurt from clamping, or thick garments pop out of the hoop.
• Solution Level 1: Upgrade to heavy-duty stabilizers and 505 spray.
• Solution Level 2: Invest in hoops for ricoma that use magnetic force. The speed difference on a 50-shirt run can be an hour or more.
• Solution Level 3: If you are running a single-needle machine and reading this for advice, know that true production requires multi-needle capability. Machines like the TC-1501 or SEWTECH’s multi-needle line allow you to preset 15 colors, eliminating the manual thread-change downtime entirely.

When researching kits like a ricoma mighty hoop starter kit or generic mighty hoop for ricoma equivalents, calculate the ROI based on time saved per hoop. Saving 30 seconds per shirt on an order of 100 shirts is nearly an hour of labor saved.

The Final Recap: Your Maintenance Rhythm

Print this schedule and tape it to the side of your TC-1501.

Treat your machine with this level of respect, and it will print money for you. Ignore it, and it will become a very expensive paperweight. Happy stitching.

FAQ

• Q: Why does a Ricoma TC-1501 ignore a USB drive or refuse to upload an embroidery design file?
  A: Put the Ricoma TC-1501 into Standby by unlocking the Embroidery Status icon, then use a small FAT32 USB drive.
  • Unlock: Tap the Embroidery Status icon (needle/hoop) on the bottom-right of the screen; change yellow/locked to grey/open.
  • Swap USB: Use an 8GB-or-smaller flash drive dedicated to embroidery files.
  • Format: Ensure the USB is FAT32 (avoid NTFS for this machine workflow).
  • Success check: The Ricoma TC-1501 recognizes the USB and shows the design list instead of ignoring the drive.
  • If it still fails… Try a different low-capacity USB stick and confirm the machine is not in a “Ready to Stitch” state.
• Q: What USB size and file system format works best for Ricoma TC-1501 embroidery design transfers?
  A: Use an 8GB-or-smaller USB flash drive formatted as FAT32 for the most reliable Ricoma TC-1501 transfers.
  • Choose: Dedicate a 2GB–8GB stick for the machine only (no mixed office files).
  • Format: Set the drive to FAT32 before loading designs.
  • Simplify: Keep only necessary design files on the stick to reduce corruption “ghosts.”
  • Success check: The Ricoma TC-1501 reads the USB consistently without errors or missing files.
  • If it still fails… Reformat the USB to FAT32 again and test with a different small-capacity drive.
• Q: How do Ricoma TC-1501 needle breaks happen during stitching, and what is the fastest safe fix?
  A: Most Ricoma TC-1501 needle breaks come from needle deflection or incorrect needle installation, not “bad needles.”
  • Power down: Turn off the machine or use emergency stop before touching needles.
  • Reseat: Insert the needle fully up to the stop until a solid “thud” is felt.
  • Verify: Confirm needle orientation (eye faces front; long groove faces front; scarf/indentation faces back).
  • Slow down: Run a safe starting speed of 650–750 SPM until the setup is stable.
  • Success check: The machine stitches without needle-to-plate contact sounds (no clicking/metal strike) and needles stop snapping.
  • If it still fails… Match needle type to fabric (ballpoint for knits, sharp for thick woven) and avoid 900+ SPM until tension/hooping is proven stable.
• Q: What is the recommended speed range on a Ricoma TC-1501 to reduce needle breaks for beginners?
  A: Start Ricoma TC-1501 production at 650–750 SPM and only push past 900 SPM on stable fabrics with proven tension and hooping.
  • Set: Limit speed to the 650–750 SPM safe zone while dialing in basics.
  • Observe: Increase speed only after repeated clean runs on the same fabric/stabilizer combo.
  • Avoid: Treat 900+ SPM as a “danger zone” unless everything is consistent.
  • Success check: Stitching sounds smooth with no repeated needle strikes, shredding, or sudden snaps at the chosen speed.
  • If it still fails… Re-check needle height (fully seated) and fabric stabilization before changing any mechanical settings.
• Q: How can Ricoma TC-1501 operators stop fabric pinching or puckering caused by poor hooping tension?
  A: Hoop using the “tambourine” tension—firm like a dull drum, but not stretched—and pair the correct stabilizer to the fabric.
  • Tap-test: Hoop fabric, then tap the center; aim for a dull “thump-thump,” not a loose flutter.
  • Sight-check: Ensure the fabric weave is straight (not bowed/distorted from over-stretching).
  • Stabilize: Use cutaway for stretchy garments, tearaway for stable woven, and water-soluble topping for pile fabrics (with backing underneath).
  • Success check: The design sews without folds being stitched down, and the fabric stays flat around the stitch field.
  • If it still fails… Consider upgrading hooping hardware (magnetic clamping can reduce hoop burn and grip issues on thick or slippery items).
• Q: How can Ricoma TC-1501 operators diagnose thread breaks using the “dental floss” tension feel test?
  A: Use the Ricoma TC-1501 “dental floss” feel as the quick tension check, then triage thread path → needle → tension → thread quality.
  • Check path: Confirm thread is not caught on the thread tree and the spool cap is not too tight.
  • Change needle: Replace any bent needle or any needle contaminated by adhesive.
  • Feel-test: Pull top thread through the needle eye with presser foot down; it should feel like dental floss—resistant but smooth (not snapping back, not falling out).
  • Upgrade consumable: Use high-tensile polyester thread suited for high-speed commercial embroidery.
  • Success check: Thread runs continuously through color changes with no repeated snapping at the same point in the design.
  • If it still fails… Standardize hooping tension (a hooping station can reduce fabric drag variability that contributes to breaks).
• Q: What maintenance supplies should be prepared before opening a Ricoma TC-1501 for cleaning and lubrication?
  A: Stage the correct consumables first to avoid partial cleanups and missed steps on the Ricoma TC-1501.
  • Prepare: White lithium grease (gears/load points) and clear sewing-grade machine oil (rotary hook/needle bars).
  • Add tools: Canned air, tweezers, and a magnetic tray for screws.
  • Plan testing: Keep scrap fabric ready for a post-lube test run.
  • Success check: Cleaning/lubrication can be completed in one pass without searching for supplies mid-task.
  • If it still fails… Stop and reference the machine’s official service guidance before removing additional covers.
• Q: What are the key safety rules for using magnetic embroidery hoops near a Ricoma TC-1501 workflow?
  A: Magnetic embroidery hoops are fast and reduce hoop burn, but the magnets are powerful—protect fingers and avoid use with pacemakers.
  • Avoid pacemakers: Do not use magnetic hoops if an operator has a pacemaker.
  • Protect hands: Keep fingers out of the snapping zone when magnets clamp down.
  • Control placement: Set fabric and stabilizer flat before letting the magnets engage.
  • Success check: Hooping is secure without crushed-fiber rings and without pinched fingers or sudden “snap” surprises.
  • If it still fails… Re-evaluate hoop size/garment thickness and revert to process-only fixes (stabilizer choice and hooping tension) until safe handling is consistent.
