Ricoma Pillowcase Embroidery That Actually Comes Out Straight: Magnetic Hoop Setup, Panel Settings, and the One Flip That Saves the Whole Job

Master the Pillowcase Monogram: A "Zero-Fail" Guide for Ricoma Multi-Needle Users

If you’ve ever stared at a blank pillowcase and thought, “This should be easy… why does it feel like one wrong tap will ruin it?”—welcome to the club. Pillowcases are deceptively tricky. The opening forces you to think about orientation in reverse, the fabric is often slippery, and if you choose the wrong stabilizer, that crisp logo will pucker the moment it comes out of the dryer.

Courtney’s project is a perfect case study for beginners: a simple one-color “LHL” logo stitched in blue on a white pillowcase using a Ricoma multi-needle machine, a HoopMaster station, and a 5.5-inch magnetic hoop.

However, as an embroidery educator with two decades of floor experience, I see two "invisible" risks in her workflow that catch 90% of new operators:

1. The "Arm Gap" Trap: The machine arms don't fit the hoop width, leading to panic or stripped screws.
2. The Orientation Flip: Stitching the logo upside down relative to the pillow opening.

Below, I have rebuilt Courtney's process into a "Shop-Ready Standard Operating Procedure." We aren't just stitching a pillowcase; we are building a safety protocol that protects your machine, your fingers, and your inventory.

Phase 1: The "Hidden" Prep (Do This Before Touching the Machine)

The fastest way to ruin a pillowcase isn't bad stitching—it's bad planning. Courtney uses a tear-away stabilizer in her video, but later notes that the fabric puckered after washing. This is a crucial lesson in material science: Pillowcases are high-wear, high-wash items.

When you create commercial bedding or dorm décor, you must plan for the washing machine, not just the Instagram photo.

The Stabilizer Decision Tree: Tear-Away vs. Cutaway

Before you cut a single sheet, use this logic to decide your foundation:

• Is the fabric stretchy (knit/jersey)?
  • YES: STOP. You must use Cutaway stabilizer. Tear-away will result in gap-toosis (gaps in satin stitches) and distortion.
• Is the fabric stable (woven cotton) BUT washed weekly?
  • YES: Cutaway (Mesh styling) is preferred. It stays with the fabric forever, preventing the logo from crumpling like a receipt in the dryer.
• Is it purely decorative (never washed)?
  • YES: Tear-away is acceptable.

The "Hidden" Consumables Check

Professionals don't just grab a hoop. Ensure you have these often-forgotten items:

• Temporary Adhesive Spray (e.g., 505): Vital for floating fabric or keeping backing smooth.
• New Needles: A 75/11 Sharp is standard for woven cotton. If your needle has hit a hoop recently, change it now. A burred needle will shred pillowcase fibers.
• Screwdriver set: Specifically for the Ricoma arm adjustment.


Prep Checklist (Verify these before hooping):

• Pillowcase is pressed flat (wrinkles under the hoop become permanent creases).
• You have identified the opening of the pillowcase. (Hold it up: Where does the head go? Where does the text face?)
• Stabilizer is cut 1 inch larger than the hoop on all sides.
• Bobbin case is clean (blow out lint) and bobbin thread is sufficient.
• You have a screwdriver ready for the pantograph arms.

Phase 2: Hooping Logic – Consistency Over Force

Courtney’s setup uses a station and a magnetic hoop. This isn't just about luxury; it's about eliminating the "human variable." Traditional screw hoops rely on your hand strength, which varies. Magnetic hoops rely on physics, which is constant.

Using the HoopMaster Station & 5.5" Magnetic Hoop

The goal here is repeatability. If you get an order for 20 pillowcases, you cannot eyeball them.

1. Set the Base: Place the bottom ring into the station clips. It should click into place.
2. Apply Backing: Lay your stabilizer over the ring. (Pro Tip: A light mist of adhesive spray helps the pillowcase stick to the backing so it doesn't slide as you close the hoop.)
3. Align the Blank: Slide the pillowcase over the station. Center the area where you want the logo. Smooth the fabric with your palms—feel for wrinkles in the under-layer.
4. The Snap: Place the top magnetic frame. Let the magnetism do the work.

Warning: MAGNET SAFETY IS REAL. These magnets are industrial strength.
* Pinch Hazard: Keep fingers away from the edges where the rings meet. The snap is instantaneous and painful.
* Medical Device Safety: Keep these hoops at least 6 inches away from pacemakers or insulin pumps.

If you are researching the hoopmaster hooping station for your shop, treat it as an alignment tool first and a speed tool second. The value lies in the fact that item #1 and item #50 look identical.

Phase 3: The Mechanical Adjustment (Don't Strip the Screws!)

This is the step that intimidates beginners. You try to slide the hoop onto the Ricoma, and it hits the metal arms. The hoop is narrower than your previous setup.

The Fix: You must adjust the pantograph arm width.

1. Locate the Screws: There are thumb screws (or hex screws) under the machine arms holding the hoop brackets.
2. Loosen, DON'T Remove: Turn them counter-clockwise just enough so the bracket slides. Never take the screws all the way out. Dropping a screw into the machine chassis is a nightmare you want to avoid.
3. Slide to Fit: Move the arms inward until the hoop brackets slot in perfectly.
4. Tighten Firmly: Once the hoop is seated, tighten the screws. Wiggle the arm—if it moves, it's too loose and will cause registration errors (gaps in your design).

When shopping for a mighty hoop for ricoma or similar industrial upgrades, always verify that your machine’s pantograph arms have the range of motion to accommodate the specific width of the magnetic frame you prefer.

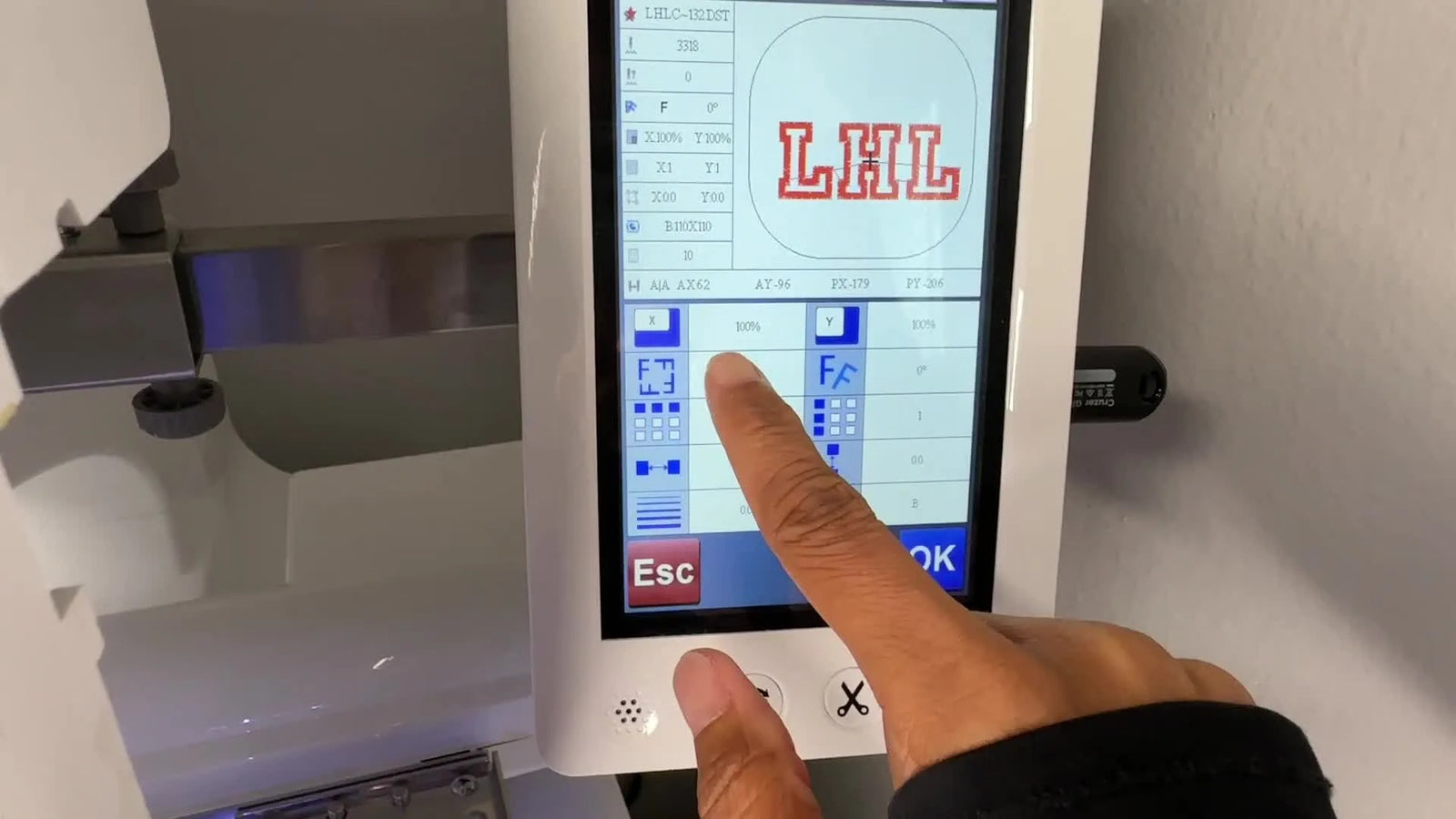

Phase 4: The "Cockpit" Setup (Ricoma Panel 1-5)

Courtney follows a distinct "10 steps" card. We will focus on the critical digital inputs that tell the machine how to behave.

1. Design Selection

Unlock the machine and select your file from the memory. (Courtney loads her "LHL" logo).

2. The Critical Safety Net: Hoop Boundary

You must tell the machine what hoop is physically attached. Courtney selects 110 × 110 mm (Small Square).

• Why this matters: The machine creates a software "fence." If your design exceeds this fence, the machine won't let you sew.
• The Trap: If you leave the machine set to "Large Jacket Back" but put on a small 5.5" hoop, the machine will let you sew—right into the metal frame, destroying your needle and hoop.

For those managing inventory of ricoma embroidery hoops, make it a strict rule: The physical hoop change doesn't happen until the screen selection matches.

3. Color & Speed

• Color: Set to "1" (or match your thread cones).
• Speed: Courtney bumps hers to 700 SPM (Stitches Per Minute).

Expert Note on Speed: 700 SPM is a "Sweet Spot" for satin stitches on Ricoma machines.

• Too slow (<500): Stitches can drag.
• Too fast (>900): On light pillowcase fabric, high speed increases friction and thread tension issues (puckering). Stick to 650-750 SPM for this project.


Setup Checklist (Do not proceed until all are YES):

• Machine arms are tightened and the hoop has zero wiggle.
• On-screen Hoop Setting selects 110x110 mm.
• Speed is capped at 700 SPM.
• You have visually confirmed the thread path (no tangled cones).

Phase 5: Trace & Clearance (The "Finger-Saver" Protocol)

Courtney performs the single most important safety check in embroidery: The Trace + Physical Confirmation.

1. The Digital Trace: Press the "Trace" button. Watch the pantograph move. Does the design icon stay well inside the hoop frame on the screen?
2. The Physical Clearance (The Pro Move):
   • Courtney manually pulls down Needle Bar #1 (the active needle) while the machine is stopped.
   • She moves the hoop to the four corners of the design using the arrow keys.
   • Visual Check: Look closely at the gap between the needle point and the magnetic plastic wall. You want at least a pinky-width (5mm) of clearance.

Plastic hoop strikes are bad; magnetic hoop strikes are worse because the frame is thicker and harder. If you are integrating a magnetic hooping station into your workflow, never let the speed of the magnet tempt you to skip the trace.

Warning: Keep hands clear of the needle case when pressing "Start" or "Trace." The head moves instantly. When manually lowering a needle bar, ensure the machine is in a "Stop" state so it doesn't fire unexpectedly.

Phase 6: The Logic Check – Orientation Flip

Courtney catches a mistake that saves the project: The design is upside down.

Because of how a pillowcase hangs on a hoop (usually the opening is at the top or bottom relative to the machine), standard file orientation is often wrong.

The "Real World" Rule: Stand at the machine. Hold the hoop in your hands exactly how the pillowcase will sit on the bed.

• Can you read the logo? Good.
• Is it upside down? You need to rotate.

Courtney uses the "F" Menu on the Ricoma screen and hits the Rotate 180° icon. The "LHL" now looks upside down on the screen—which is correct for the physical item.

Learning how to use mighty hoop or other magnetic systems involves mastering this mental rotation, as these hoops often require loading garments "bottom up" (upside down) to fit the machine throat.

Phase 7: Stitching & Sensory Monitoring

Press Start. The machine begins the blue satin stitch.

Do not walk away. Use your senses for the first 30 seconds:

• Listen: You should hear a rhythmic thump-thump-thump. A sharp clack-clack or grinding noise indicates a needle strike or bobbin jam.
• Watch: Is the fabric "flagging" (bouncing up and down)? If so, your fabric is too loose in the magnet using tear-away. (This is why sticky spray or cutaway is better).

If you are transitioning to magnetic hoop embroidery, be aware that the magnets hold the edges tight, but the center can sometimes be looser than a screw hoop if the fabric is thin. Floating a layer of stabilizer under the hoop can add necessary friction.

Operation Checklist:

• Needle clears the hoop edge 100% of the time.
• Satin stitches are smooth, not ragged.
• No "bird nesting" (bunching thread) forming under the throat plate.

Phase 8: Breakdown & The "Wash Test" Revelation

Remove the hoop. Tear away the stabilizer.

Courtney’s Result & Honest Review: The stitching looked great initially. However, after washing, she noted puckering around the "LHL." She correctly identified the issue: "I probably should have used cutaway."

This is the mark of a good operator—analyzing the failure. Tear-away dissolves its support structure as it tears. Cotton pillowcases shrink and shift in the wash. Without the permanent support of cutaway mesh, the embroidery thread pulls the fabric in, creating ripples.

Troubleshooting Guide: From Symptom to Solution

Here is a quick diagnostic table based on the issues Courtney encountered and common newbie pitfalls:

The Upgrade Path: Moving from "Fighting" to "Producing"

Courtney’s video proves that embroidery is accessible, but it also highlights where the friction points are. If you found yourself stressing about the hooping process or the arm adjustments, it might be time to evaluate your toolset.

The "Pain Point" Trigger for Upgrades

• Trigger: Are you spending 5 minutes hooping and only 2 minutes stitching?
• Trigger: Are you getting "hoop burn" (shiny crush marks) on delicate pillowcases from standard frames?
• Trigger: Do your wrists hurt from tightening screws all day?

If you answered "Yes," this is the commercial entry point for magnetic embroidery hoops.

• Level 1 Fix: Upgrade your stabilizer and use spray adhesive.
• Level 2 Upgrade: Invest in a Magnetic Hoop system (like Mighty Hoop or generic equivalents compatible with Ricoma). This solves the wrist pain and hoop burn instantly.
• Level 3 Scale: If you are rejecting orders because you can't change colors fast enough on a single-needle machine, look into multi-needle platforms like SEWTECH. The ability to set up 12-15 colors and run at 700-1000 SPM steadily is how you turn a hobby into a payroll.

Final Word

Embroidery is a game of variables. Courtney controlled the machine (speed/color) and the hoop (magnet), but missed the material variable (stabilizer). That’s okay—that’s how we learn.

Follow the checklists above. Respect the magnets. Trace every single time. Do these things, and you won't just hope for a good pillowcase; you'll guarantee one.

FAQ

• Q: What stabilizer should a Ricoma multi-needle operator use for a cotton pillowcase monogram to prevent puckering after washing?
  A: Use cutaway (preferably a no-show mesh style) for pillowcases that will be washed; tear-away often puckers after laundering.
  • Choose cutaway if the pillowcase is a high-wash item (weekly bedding/dorm use).
  • Cut the stabilizer at least 1 inch larger than the hoop on all sides before hooping.
  • Add a light mist of temporary adhesive spray to keep fabric and backing bonded during stitching.
  • Success check: After stitching and handling the fabric, the area around satin stitches stays flat without ripples forming.
  • If it still fails: Re-check hoop tightness/flagging and reduce speed toward the 650–750 SPM range as a safe starting point (confirm with the machine manual).
• Q: What pre-hooping checklist should a Ricoma multi-needle operator complete before embroidering a pillowcase monogram?
  A: Do the “hidden prep” checks first—most pillowcase failures start before the hoop ever touches the machine.
  • Press the pillowcase completely flat and identify the opening orientation before marking placement.
  • Install a fresh 75/11 sharp needle for woven cotton, especially if a needle recently hit a hoop.
  • Clean lint from the bobbin area and confirm bobbin thread is sufficient for the run.
  • Keep a screwdriver ready for pantograph arm adjustments so you don’t force the hoop onto the brackets.
  • Success check: The fabric lies smooth with no wrinkles under the hooping area, and the machine is ready to mount the hoop without improvising tools.
  • If it still fails: Pause and re-check stabilizer choice—high-wash pillowcases often need cutaway instead of tear-away.
• Q: How does a Ricoma multi-needle operator fix a hoop that will not slide onto the pantograph arms when using a 5.5-inch magnetic hoop?
  A: Adjust the pantograph arm width—do not force the hoop and do not remove the screws.
  • Locate the thumb/hex screws under the machine arms that hold the hoop brackets.
  • Loosen the screws just enough to slide the brackets inward to match the magnetic hoop width.
  • Seat the hoop fully in the brackets, then tighten firmly so nothing shifts during stitching.
  • Success check: The mounted hoop has zero wiggle when you gently try to move it by hand.
  • If it still fails: Stop and verify the bracket alignment is square; continuing with movement can cause registration errors and gaps.
• Q: What Ricoma multi-needle hoop setting should be selected on the control panel for a 5.5-inch magnetic hoop to prevent needle strikes?
  A: Select the on-screen hoop boundary that matches the physical hoop (in this workflow, 110 × 110 mm) before you trace or start.
  • Change the hoop selection on the Ricoma screen immediately after changing the physical hoop.
  • Run Trace and watch the design path stay inside the software “fence.”
  • Do a physical clearance check by moving to the corners and confirming spacing to the hoop wall.
  • Success check: The needle path stays clearly inside the hoop boundary during Trace, with visible clearance at the extremes.
  • If it still fails: Stop and re-check you didn’t leave the screen set to a larger hoop; never “test sew” a mismatch.
• Q: How can a Ricoma multi-needle operator prevent a pillowcase monogram from stitching upside down relative to the pillow opening?
  A: Do the “real world” orientation check at the machine and rotate the design 180° in the Ricoma F menu when needed.
  • Hold the hooped pillowcase the way it will sit on the bed and confirm the text reads correctly.
  • If the logo is inverted relative to the opening, use the Ricoma rotation function (Rotate 180°) before sewing.
  • Re-run Trace after rotating to confirm the design still fits the selected hoop boundary.
  • Success check: With the pillowcase held in final-use orientation, the monogram reads correctly before stitching begins.
  • If it still fails: Stop and re-check which edge is the pillow opening—this is the most common cause of “correct on screen, wrong on product.”
• Q: What safety steps should a Ricoma multi-needle operator follow during Trace and manual needle-bar lowering to avoid finger injuries?
  A: Treat Trace and needle-bar checks as a “finger-saver” protocol—keep hands out of the needle/head movement zone and only lower the needle bar when the machine is stopped.
  • Press Trace and keep fingers away from the needle case because the head moves instantly.
  • Confirm the machine is in a Stop state before manually pulling down Needle Bar #1.
  • Use the arrow keys to move to design corners and visually verify clearance before pressing Start.
  • Success check: The machine completes Trace without any near-contact between needle point and hoop wall, and hands never enter the pinch/motion area.
  • If it still fails: Stop immediately and re-check hoop selection and physical hoop mounting—clearance problems usually mean a mismatch or mis-seating.
• Q: What magnetic hoop safety rules should a Ricoma multi-needle operator follow when using a 5.5-inch magnetic hoop for pillowcases?
  A: Keep fingers out of the closing edge and keep magnetic hoops at least 6 inches away from pacemakers or insulin pumps—pinch injuries are common and preventable.
  • Close the magnetic frame by guiding from the safe areas, not the ring edges where the snap occurs.
  • Warn nearby operators before snapping the top frame down, especially on a busy production floor.
  • Store and handle magnetic hoops away from medical devices and follow facility safety policy.
  • Success check: The hoop closes without finger contact in the pinch zone, and the operator can open/close consistently without hesitation.
  • If it still fails: Switch to a slower, deliberate closing routine and reposition hands—speed is not worth an injury.
• Q: If a Ricoma multi-needle pillowcase monogram job takes 5 minutes to hoop and 2 minutes to stitch, what is a practical upgrade path from technique fixes to magnetic hoops to a multi-needle platform like SEWTECH?
  A: Start with process fixes, then upgrade the hooping tool, then scale the machine only if volume demands it.
  • Level 1 (technique): Improve stabilizer choice (cutaway for high-wash items) and use temporary adhesive spray to prevent fabric shift and gaps.
  • Level 2 (tooling): Use a magnetic hoop + hooping station for repeatable alignment and reduced hoop burn/wrist strain.
  • Level 3 (capacity): Consider a multi-needle platform like SEWTECH when single-needle limits cause order rejections or excessive downtime from color changes.
  • Success check: Hooping becomes repeatable (item #1 matches item #20), and defects like puckering/registration gaps drop noticeably.
  • If it still fails: Time each step (prep, hooping, tracing, stitching) to find the real bottleneck before spending on upgrades.
