Master the Ricoma MT-1501 Setup: A Field Guide to Flawless Hooping

If you’ve ever hooped a shirt, loaded it, hit start, and immediately felt that sinking “something’s off” sensation in your gut, you are not alone. On a commercial head like the Ricoma MT-1501, 90% of early failures on flat goods aren’t mysterious digitizing problems—they are physical setup errors. We are talking about hoop orientation, backing coverage, bracket slot choice, and that critical moment when the hoop locks (or doesn't) under the clips.

This guide rebuilds the workflow from the ground up, adding the sensory checks and shop-floor habits that keep your garments flat, your registration consistent, and your production pace profitable.

The Physics of "Flat" on a Cylinder Arm

Flat goods (T-shirts, tanks, sweatshirts) behave differently than caps or structured bags. They stretch, skew, and rebound. Your goal is to create a stable “sandwich” (garment + backing + hoop tension) and mount it so the machine’s pantograph drives it without shifting.

If you are running a 15 needle embroidery machine, remember: the machine provides the speed (up to 1,000+ SPM), but you provide the stability. It cannot compensate for a shirt stretched like a rubber band or a bracket mounted in the wrong rail slot. Get the physical foundation right, and everything downstream is smooth sailing.

Phase 1: The "Invisible" Prep (Backing & Tension)

Before you touch the garment, set yourself up for repeatability.

1. Backing Choice: The Structural Skeleton

The tutorial correctly uses Cut-Away backing. Here is the industry rule: If the fabric stretches (knits, performance wear), the backing must not.

• Density: For standard T-shirts, a 2.5oz to 3.0oz cut-away is the sweet spot.
• Coverage: The backing must extend at least 1 inch beyond the outer hoop ring on all sides. If the backing doesn't span the hoop, the fabric edge becomes the "weak link," leading to tunneling or puckering.

2. Hoop Tension: The "Drum Skin" Test

Adjusting the thumb screw is an art. You are balancing two forces:

• Too Loose: Fabric slips effectively ruining registration.
• Too Tight: You crush the fabric fibers. When un-hooped, the fabric relaxes, and the embroidery puckers (the dreaded "bacon" effect).

The Sensory Check: When hooped, the fabric should feel taut like a drum skin, but if you pull on the excess fabric outside the hoop, it should still have a tiny bit of give. It should not feel like a trampoline ready to snap.

Warning: Keep fingers clear of the inner ring's perimeter when pressing the outer ring down. The "snap" force on commercial hoops is enough to pinch skin severely.

Hidden Consumables List

Don't start without these nearby:

• Temporary Adhesive Spray (e.g., KK100 or 505): Vital for floating or stabilizing slippery performance wear.
• Spare Needles (75/11 Ballpoint): Sharp needles cut knit fibers; ballpoints push them aside.
• Ruler/Marking Pen: Air-erase pens for marking centers.

Prep Checklist:

• Cut-away backing selected (larger than the hoop diameter).
• Hoop rings wiped clean (lint on the inner ring causes slippage).
• Hoop screw loosened enough to accept fabric without forcing.
• Needles checked: Are they straight and free of burrs?


Phase 2: Hoop Orientation & The "U" Rule

This is the detail that saves you from the “why won’t it mount?” panic spiral.

Standard ricoma hoops have a specific geometry:

1. Locate the metal bracket on the hoop.
2. The U-shape on the bracket must face UPWARD.
3. The bracket acts as the connection point and must be on the RIGHT SIDE of the hoop relative to the operator.

Treat this as a pre-flight check. One flipped hoop wastes minutes; in a production run, minutes equal margin.

Phase 3: The "Sandwich" Hooping Method

The video demonstrates a standard manual hooping technique. Here is how to execute it without inducing fabric distortion.

1. Inner Ring Placement

Slide the inner ring inside the garment. Ensure the surface underneath is flat and hard (a dedicated hooping station is ideal).

2. Backing Alignment

Place the backing on top of the inner ring (inside the shirt).

• Check: Visually confirm the backing creates a white square that completely eclipses the inner ring.

3. Smoothing (The "No-Stretch" Zone)

This is where beginners fail. You must smooth the fabric over the backing, but do not pull it.

• The Physics: Knits have "memory." If you stretch them to get wrinkles out, they will snap back to their original size after you stitch, creating permanent puckers. Pat it flat, don't pull it flat.

4. Press and Lock

Press the outer ring down over the fabric and backing.

• Sensory Check: It should require firm pressure but not your entire body weight. If you have to stand on it, loosen the screw.


5. The Flip & Verify

Turn the garment over. Is the backing still covering the full area? If a corner folded under, un-hoop and restart. Do not hope for the best.

6. The "Sticky" Solution for Performance Wear

For slick materials (like the tank top in the demo), friction isn't enough. Use a light mist of adhesive spray on the backing before placing it in the shirt. This creates a "temporary bond" that stops micro-shifts during the high-speed stitching process.

If you are building a professional hooping for embroidery machine workflow, consistency with spray is key: hold the can 10 inches away and use a single light pass.

Decision Criteria: When to Upgrade Your Hoops?
Manual hooping creates friction. It causes wrist fatigue (Carpal Tunnel risk) and often leaves "hoop burn" rings on delicate fabrics.
* Level 1 (Technique): Use backing and correct tension.
* Level 2 (Tool Upgrade): If you are doing volume (50+ shirts), consider Magnetic Hoops. They clamp automatically without forcing the rings together, reducing hoop burn and strain.
* Level 3 (System Upgrade): For total consistency, look at SEWTECH Magnetic Hoops compliant with Ricoma arms to speed up reload times by 30%.

Warning (Magnetic Safety): Magnetic hoops use industrial-strength magnets. They can pinch fingers severely. KEEP AWAY from pacemakers and implanted medical devices.

Phase 4: Pantograph & Bracket Logic

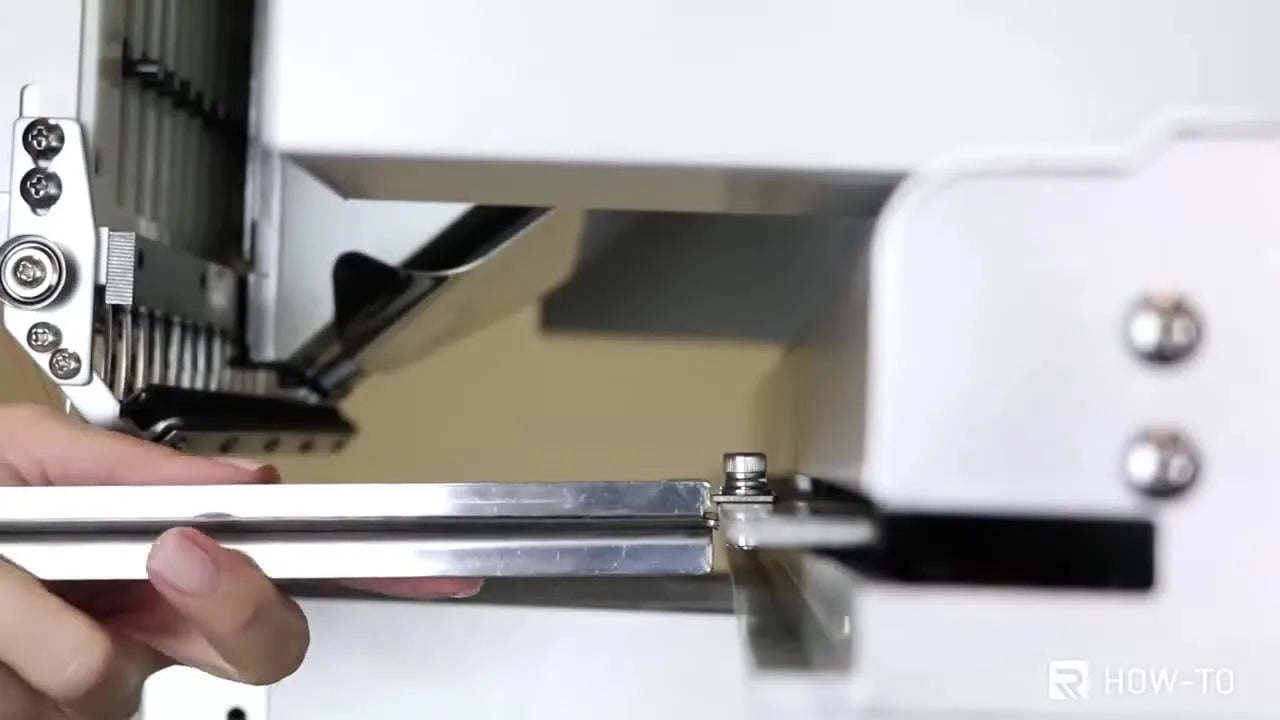

Now we move to the machine. The Ricoma MT-1501 uses a rail system where bracket width determines hoop fit.

The "Outside-In" Counting Rule

Do not guess the slots. Count from the far ends of the pantograph rail moving inward.

• Largest Hoop (Size F): Uses Slots 1 & 2 (The widest stance).
• Regular Hoops (A through E): Use Slots 5 & 6 (The narrower stance).

In the video, a Size C hoop requires slots 5 & 6.

[FIG-10] [FIG-11]

Bracket Orientation

1. Face Each Other: The brackets must mirror each other.
2. Curved In: The curved metal face points toward the needle plate.
3. Flat Out: The flat face points toward the operator.

Warning (Mechanical): Tighten the bracket screws with the 4mm Allen wrench until firm. Do not over-torque; stripping these threads will shut down your machine.

Expert Tip: The Symmetry Check

If you are running a ricoma mt 1501 embroidery machine, tape a cheat sheet to the stand: "A–E = 5&6, F = 1&2." If you mount one bracket on slot 5 and the other on slot 6, your hoop will enter crooked, potentially causing a needle strike on the hoop frame.

Phase 5: Loading & Lock-In

The final step before pressing start.

1. Route for Safety

Slip the garment through/under the sewing arm. The back of the shirt must hang free under the cylinder.

• The Horror Story: If you drape the shirt over the arm, you will sew the front of the shirt to the back of the shirt. This is the "Cardinal Sin" of tubular embroidery.

[FIG-13] [FIG-14]

2. The Audible "Click"

Slide the hoop arms into the brackets.

• The Auditory Anchor: Listen for a sharp, metallic CLICK.
• The Tactile Anchor: Give the hoop a gentle tug (not a yank). It should feel locked to the machine chassis. if it slides out, it wasn't seated.

[FIG-15] [FIG-16]

Operation Checklist:

• Back of shirt is verified hanging loose under the arm.
• Hoop U-notch is on the right, facing up.
• Both brackets clicked audibly.
• Excess fabric is clipped or pinned away from the needle bar path.

Quick Decision Tree: Fabric vs. Strategy

Stop guessing. Use this logic flow:

Troubleshooting Common Failures

If you are following the steps but still failing, check these specifically:

Symptom: Puckering "Bacon" Edges

• Likely Cause: You stretched the fabric while tightening the hoop screw.
• Immediate Fix: Release the hoop, steam the garment to relax fibers, and re-hoop with less hand tension.
• Long Term: Switch to magnetic embroidery hoop systems that clamp vertically rather than pulling radially.

Symptom: Hoop Pops Off Mid-Stitch

• Likely Cause: Brackets are in the wrong slots (e.g., Slot 5 on left, Slot 6 on right) OR the clips are worn.
• Immediate Fix: Verify the "5 & 6" symmetry. Check if the bracket spring clips are bent.

Symptom: Design Outline is Off (Bad Registration)

• Likely Cause: Fabric slipping in the hoop.
• Immediate Fix: Tighten the thumb screw slightly more. Ensure you are using the correct backing size.
• Check: Is the inner ring oily? Wipe it down with alcohol.

The Path to Production

Standardizing your setup is Step 1. As your volume grows, your tools should evolve. Start with the stock hoops for ricoma, but recognize when they become your bottleneck.

If you are fighting tedious screw adjustments or battling hoop burn on 100-shirt orders, that is the signal to upgrade to SEWTECH Magnetic Hoops. And when single-head output isn't enough, moving to multi-head solutions combined with a stable hooping station for machine embroidery is how you turn a hobby into a factory.

Get the setup right, trust the "click," and let the machine do the work.

FAQ

• Q: On a Ricoma MT-1501, how do I know the fabric hoop tension is correct before stitching a T-shirt?
  A: Use the “drum skin” feel—taut but not over-stretched—so the shirt stays stable without rebounding into puckers.
  • Adjust: Tighten the thumb screw until the fabric feels firm in the hoop, then stop before the fabric feels “trampoline tight.”
  • Test: Pull the excess fabric outside the hoop gently; it should have a tiny bit of give (not rigid).
  • Inspect: Confirm the hoop rings are clean; lint on the inner ring can cause slipping even when tension feels tight.
  • Success check: The hooped area feels evenly taut to the touch, and the fabric is not visibly distorted or stretched.
  • If it still fails… Re-hoop without pulling the knit smooth; pat it flat instead of stretching it.
• Q: For Ricoma MT-1501 flat embroidery, how large should cut-away backing be relative to the hoop to prevent tunneling and puckering?
  A: Cut-away backing should extend at least 1 inch beyond the outer hoop ring on all sides to keep the fabric edge from becoming the weak link.
  • Cut: Trim backing so it overhangs the hoop perimeter by 1 inch minimum on every side.
  • Place: Make sure the backing fully “eclipses” the inner ring area before locking the outer ring.
  • Verify: Flip the garment after hooping and confirm no backing corner folded under.
  • Success check: After the flip, backing coverage is still full and square with no missing corners.
  • If it still fails… Increase consistency by using temporary adhesive spray for slippery knits so the backing doesn’t drift during hooping.
• Q: On Ricoma commercial hoops for the Ricoma MT-1501, which direction should the hoop bracket “U-shape” face to avoid mounting problems?
  A: The hoop bracket U-shape must face upward, and the bracket should be on the operator’s right side so the hoop mounts correctly.
  • Locate: Find the metal bracket on the hoop before loading the garment.
  • Orient: Turn the hoop so the U-shaped notch faces UP and sits on the RIGHT side from the operator’s viewpoint.
  • Confirm: Treat this like a pre-flight check before walking to the machine.
  • Success check: The hoop slides into the brackets without forcing and seats normally instead of “fighting” the mount.
  • If it still fails… Re-check that the hoop was not flipped during handling after hooping.
• Q: On a Ricoma MT-1501, which pantograph rail slots should be used for Ricoma hoop sizes A–E versus size F to prevent crooked loading and hoop strikes?
  A: Use slots 5 & 6 for hoops A–E and slots 1 & 2 for size F, counting from the outside ends of the rail inward.
  • Count: Start at the far ends of the pantograph rail and count inward—do not guess.
  • Match: Install both brackets in the same slot numbers (e.g., both on 5 & 6), not mixed.
  • Tighten: Snug bracket screws firmly with a 4mm Allen wrench without over-torquing.
  • Success check: The hoop enters straight and locks in without scraping or sitting skewed.
  • If it still fails… Confirm bracket orientation: brackets face each other, curved faces toward the needle plate, flat faces toward the operator.
• Q: On a Ricoma MT-1501, how can I confirm the hoop is fully locked into the brackets before pressing start?
  A: Listen and feel for a sharp metallic click, then do a gentle tug test to confirm the hoop is seated.
  • Slide: Insert the hoop arms into the brackets smoothly until they seat.
  • Listen: Wait for the audible, metallic CLICK from each side.
  • Test: Give the hoop a gentle tug (not a yank) to confirm it does not slide out.
  • Success check: The click is clearly heard and the hoop feels locked to the machine chassis during the tug test.
  • If it still fails… Re-check pantograph slot symmetry and inspect whether bracket spring clips are worn or bent.
• Q: When embroidering performance/Dri-Fit on a Ricoma MT-1501, how should temporary adhesive spray be applied to stop micro-shifts during high-speed stitching?
  A: Use a light mist on the backing before placing it in the garment to create a temporary bond without soaking the material.
  • Spray: Hold the can about 10 inches away and apply a single light pass to the backing (not the needle area).
  • Place: Lay the sprayed backing onto the inner ring inside the shirt, then smooth fabric without pulling.
  • Hoop: Lock the hoop with controlled pressure; do not force with body weight—loosen the screw if needed.
  • Success check: The fabric and backing do not “creep” when touched lightly, and the hooped surface stays flat without shifting.
  • If it still fails… Switch to a lower-tension hooping approach or consider magnetic hoops to reduce reliance on friction clamping.
• Q: What safety steps should be followed when using Ricoma hoops or magnetic hoops on a Ricoma MT-1501 to avoid finger injuries and medical-device risks?
  A: Keep fingers clear during hoop “snap-in,” and treat magnetic hoops as pinch hazards that must be kept away from pacemakers and implanted devices.
  • Avoid: Keep fingers away from the inner ring perimeter when pressing the outer ring down—commercial hoops can pinch hard.
  • Control: Use firm, controlled pressure; if excessive force is needed, loosen the hoop screw rather than forcing it.
  • Warn: Keep magnetic hoops away from pacemakers and implanted medical devices; industrial magnets can be dangerous.
  • Success check: The hoop is seated without any “repositioning by force,” and hands never enter pinch points during locking.
  • If it still fails… Stop and reset the setup (hoop orientation, slot choice, garment routing) instead of trying to “muscle” the hoop into place.
