Ricoma Embroidery Hoops, Demystified: Pick the Right Frame Fast (and Stop Sewing Shirts Shut)

If you’re new to tubular embroidery, the first time you clamp a garment into a hoop can feel like you’re defusing a bomb: one wrong move and you’ll stitch the front to the back, stretch the neckline, or fight the frame so hard you start doubting the machine.

Take a breath—this is normal. Machine embroidery is an "empirical science," meaning it relies heavily on feel, sound, and repetition. Tubular hoops are simple hardware, but they demand a couple of “old hand” habits. Once you learn them, hooping becomes repeatable, fast, and safe.

The Tubular Flat Hoop “Calm-Down Check”: Find the U-Notch Before You Clamp Anything

The fastest way to turn a smooth setup into a wrestling match is mounting the hoop upside down. Beginners often try to force the brackets together, assuming they are just "stiff." They aren't.

On Ricoma tubular flat hoops (and many similar commercial styles), the top ring has a metal bracket. The video’s key visual tell is the U-shaped cutout on that bracket: the “U” must face up when the hoop is oriented correctly for the pantograph.

Here’s the practical reason I’m so strict about this: when the hoop is flipped, the geometry is slightly off. You might still manage to clamp fabric—creating a false sense of security—but you will waste time at the machine because the arms won't lock. That’s when the panic sets in, people start forcing parts, and forced parts become bent precision instruments.

Warning: Mechanical Safety. Keep fingers clear of the snap-zone when clamping hoop rings together. Never “muscle” a hoop onto the machine bracket. If you have to use force greater than a firm handshake, stop. Pinch points and sudden releases can cut you, and forcing hardware can permanently bend the pantograph arms, leading to costly repairs.

What you should see (your “expected outcome”)

• Visual: The U-notch is clearly visible and facing the ceiling.
• Tactile: The connection feels smooth, not gritty or resistant.
• Auditory: When attaching to the machine pantograph later, listen for a distinct metal-on-metal click or solid seating sound, indicating the pins have engaged.

The One Mistake That Ruins Hoodies and Sweatshirts: Isolate the Front Layer or You’ll Sew It Shut

Tubular hooping is entirely about isolating one layer of the garment. This is the number one cause of ruined inventory for new shops.

The video demonstrates the correct physics on a sweatshirt:

1. Insert the bottom (inner) ring inside the garment so it sits flat against the inside of the front layer (the wrong side of the fabric).
2. Keep the back of the garment hanging freely—gravity is your friend here. Do not trap the back fabric between the rings.
3. Clamp the top ring down over the fabric and inner ring.


This is the “why” behind the warning in the video: if you hoop both layers, the machine will stitch through both. You won’t know it until the machine stops, and you realize you have sewn the pocket of a hoodie shut or stitched the front to the back.

The Veteran's Sweep: Before you ever clamp the top ring, slide your non-dominant hand inside the garment, between the front and back layers. Your fingers should feel the metal of the inner hoop and the stabilizer only. If you feel fabric bunching underneath, stop.

If you’re searching for hooping for embroidery machine basics, this single habit—The Veteran's Sweep—is the difference between “first-day success” and “why is my sweatshirt a solid tube now?”

The Hidden Prep Pros Do Before Hooping: Hoop Size, Garment Clearance, and Backing Strategy

The video focuses on hoop types and sizes, but the prep work is what keeps your stitch quality consistent. This is where we discuss the "physics of distortion."

The “not too big, not too tight” hoop rule

The video states a simple guideline: choose a hoop that’s larger than your design, but not so large that there’s excessive empty space around the edges.

In practice, hoop size affects two critical variables:

1. Flagging (Fabric Distortion): If a hoop is too large, the fabric in the center acts like a trampoline. As the needle penetrates, the fabric bounces (flags). This causes poor registration (outlines not matching fill) and bird-nesting.
2. Stability Footprint: A hoop that is too small forces you to stitch dangerously close to the inner ring, where the presser foot can strike the frame (a catastrophic error).

The Sweet Spot: Ideally, you want about 0.75 to 1 inch of free space between your design edge and the hoop edge.

Hidden Consumables Checklist

New users often forget the invisible helpers. Ensure you have these near your station:

• Temporary Spray Adhesive (e.g., KK100): Essential for holding backing to the garment during hooping.
• Water Soluble Topping: Must-have for towels or fleece to prevent stitches sinking.
• Spare Needles (75/11 Ball Point): For knits.
• Disappearing Ink Pen: For marking center points.

Prep Checklist (Do this before you touch the hoop)

• Backing Check: Determine your "recipe." (e.g., Stretchy Knit = Cutaway Backing; Stable Woven = Tearaway).
• Clearance Check: Can the inner ring slide into the garment opening/sleeve without stretching the seams? If not, the hoop is too big physically, regardless of design size.
• Surface Check: Inspect hoop rings for burrs, dents, or sticky residue—anything that can snag delicate performance fabrics.
• Stage your backing: Spray and adhere your backing to the garment before inserting the inner ring.

Ricoma EM-1010 Hoop Sizes: What Each Frame Is Actually Good For (With Real Garment Examples)

The video explains that the Ricoma EM-1010 is a compact 10-needle, semi-commercial machine with a maximum embroidery area of 12.2 x 8.3 inches. Let's decode the "alphabet" of hoops.

Hoop A: 2.8 x 2 inches (The Detail Specialist)

This is the smallest hoop, shown on baby clothing and small details.

• Best Use: Cuff initials, baby onesies (0-3 months), or small branding on pockets.
• Pro Tip: Use this when you absolutely must control the fabric tension on a tiny area. A larger hoop on a baby onesie creates too much loose fabric, leading to puckering.

Hoop B: 4.3 x 4.3 inches (The Left Chest Standard)

Also positioned for small left-chest logos and children’s items.

• Best Use: The classic "corporate logo" on polo shirts.
• Context: A comment asked which hoops are “B & C” for training. Hoop B is the industry standard "starter" size because it covers 80% of corporate logo work. It is forgiving and rigid.

Hoop C (rectangular): 7.5 x 5.5 inches (The Mid-Size Workhorse)

This is the “middle workhorse” for medium designs on sweatshirts and jackets.

• Best Use: Large center-chest logos on youth sizes, or wide text layouts that don't fit in a 4-inch square.
• Geometry: Rectangular hoops are often easier for alignment because the straight edges give your eye a reference point parallel to the hem.

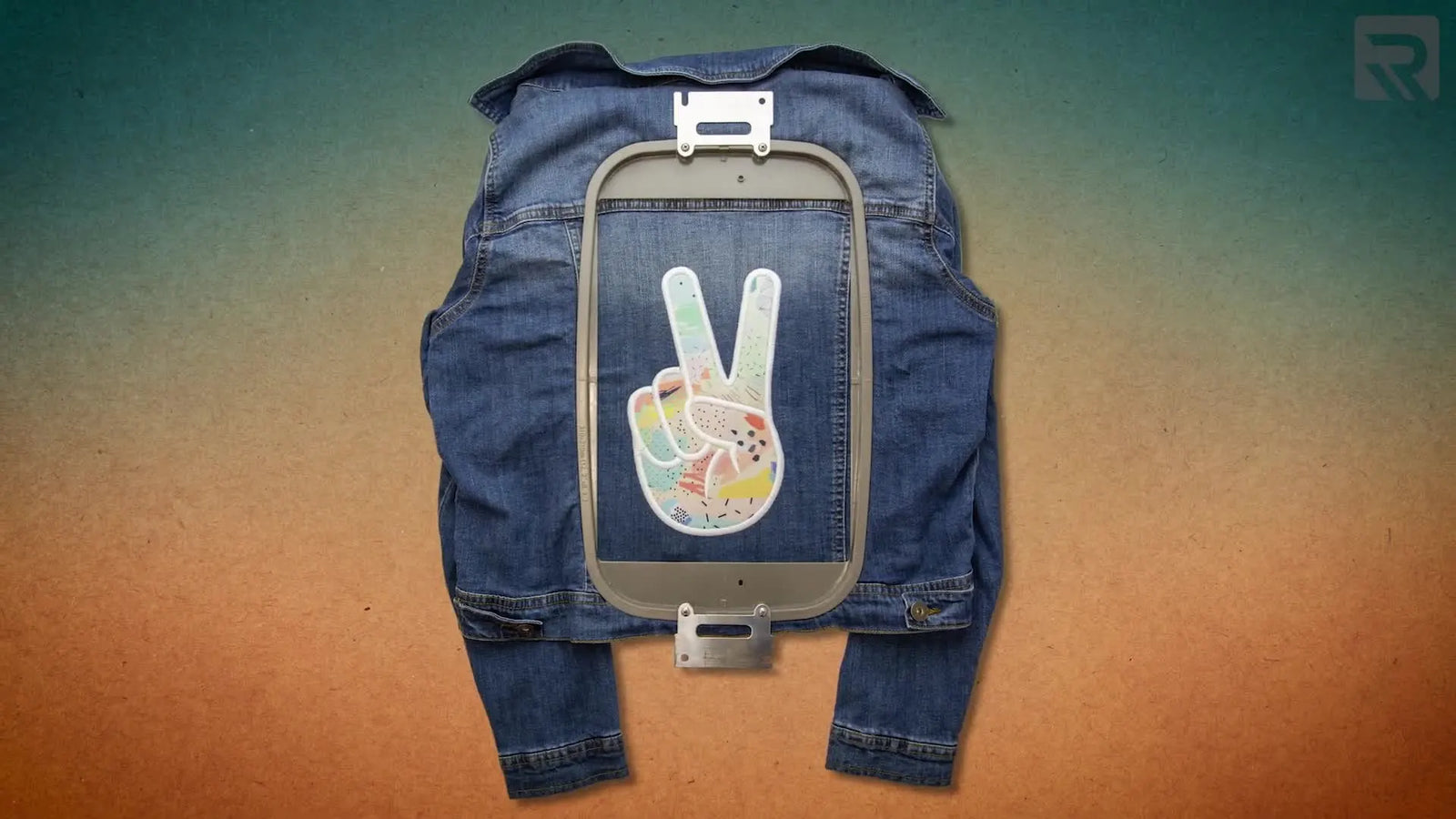

Hoop D: 12.2 x 8.3 inches (The Canvas)

Shown on the back of a denim jacket, this is the EM-1010’s largest included hoop.

• Best Use: Jacket backs, large tote bags, and full-front sweatshirt designs.
• Strategy: If you’re running the ricoma em 1010 embroidery machine, Hoop D is your gateway to high-ticket items. Jacket backs command premium pricing.

Setup Checklist (EM-1010 hoop selection)

• Design Check: Is the design at least 10mm smaller than the max hoop inner dimension?
• Garment Physics: Does the hoop fit inside the garment without stress?
• Constraint: Remember the max area is 12.2 x 8.3 inches; do not digitization beyond this or the machine will hit the limit switch.

Commercial Ricoma Single-Head Hoops (TC/MT/SWD): Why You Get Two of Everything—and How to Use That Like a Business

The video shifts to commercial single-head models (TC-15 needle, MT-15 needle, SWD-15 needle, and MT-20 needle). It states that commercial machines have a standard maximum embroidery area of 22 x 14 inches, with the SWD having a larger maximum area around 32 x 20 inches.

Here’s the part beginners miss: the video explains commercial machines include two of each hoop size for efficiency. This isn't a "bonus"—it is a mandate for workflow.

The "Continuous Run" Method: If you are doing paid work, the machine should never be waiting for you.

1. Machine is stitching Shirt A on Hoop #1.
2. Operator is hooping Shirt B on Hoop #2 at a separate station.
3. Machine finishes -> Swap hoops immediately -> Hit Start.

The included commercial hoop sizes shown in the video:

• Two 3.5 x 3.5 round hoops
• Two 4.7 x 4.7 round hoops
• Two 5.9 x 5.9 round hoops
• Two 7.5 x 7.5 round hoops
• Two 11.4 x 11.4 square hoops


If you’re comparing embroidery machine hoops across brands, this "double set" is a clear indicator of a machine meant for production, not just hobby use.

The Big F-Hoop Reality Check: Jacket Backs Are Great—Until the Frame Won’t Latch

The video introduces the large rounded F-hoop at 21.3 x 14.2 inches.

It also notes:

• TC and SWD come with one rounded F-hoop.
• MT-15 and MT-20 come with two rounded F-hoops.

Then, because the SWD has a larger embroidery area, it includes an additional square F-hoop at 15.8 x 16.5 inches.

Troubleshooting: "It Won't Latch!" A common issue in real shops—and raised in the comments—is the large F-frame failing to latch onto the pantograph arms. It feels like the arms are too short or the hoop is too wide.

The Diagnostic Protocol (Low Cost First):

1. Check Alignment (Cost: $0): Is the U-notch up? A flipped hoop changes the bracket height by millimeters, preventing latching.
2. Check Obstructions (Cost: $0): Is the jacket material bunked up near the connector slots? Thick seams can act as spacers, pushing the connector away from the latch.
3. Check Pantograph Width (Cost: Time): On some machines, the pantograph arms are moveable. Ensure they are set to the widest detent for the F-hoop.
4. Hardware Inspection: Look at the metal clips on the hoop. Are they bent inward? This happens if users try to "muscle" the hoop on.

Sash Frame vs Tubular Hoop: The Patch Workflow That Saves You Hours (and Looks Cleaner)

The video makes a critical distinction: the sash frame is not a tubular hoop. It’s a metal frame that holds fabric or backing down with special inserts/clips. It is a "flat" system.

Why use it? Stability. When making 50 patches, hooping a piece of twill 50 times in a tubular hoop is madness. With a sash frame, you hoop one giant sheet of fabric, stitch 50 patches in a grid, and cut them out later.

The video lists sash frame sizes:

• TC/MT sash frame: 21.3 x 14.4 inches
• SWD sash frame: 32.7 x 20.5 inches
• Extended table option: 48 inches (for banners/sashes).


Decision Tree: Tubular Hoop or Sash Frame?

Use this logic flow to avoid wasting time:

1. Is the item a finished garment (Shirt/Hoodie)?
   • YES: Use Tubular Hoop or Magnetic Hoop. (Go to Step 3).
   • NO: Go to Step 2.
2. Is the item a flat raw material (Twill for patches, uncut fabric)?
   • YES: Use Sash Frame. It provides superior tension and handles large areas without ring marks.
3. Decision Check:
   • If using Tubular, remember to check for "Hoop Burn" (ring marks). To mitigate this on sensitive pile fabrics (velvet, corduroy), float the material or switch to magnetic frames.

Note regarding availability: As mentioned in the video comments, bundle contents vary. Always confirm if your specific TC1501 package includes the sash frame or if it is an add-on.

Multi-Head Ricoma Hoop Configurations: The “More Heads = More Hoops” Rule

The video explains multi-head machines as the multiplier for business scaling. A two-head machine is effectively "Clone Mode"—two identical garments finished in the time of one.

The math is simple: Multi-head machines come with the same hoop types, but scaled to the head count. A 4-head machine will come with 8 hoops of each common size (2 per head).

The Wide Model Advantage: The video highlights CHT2 wide models (4, 6, 8 head). These have wider physical spacing between heads.

• Why it matters: Standard spacing might limit you to a 10-inch wide design before the hoops collide. Wide models allow for the extra W-hoop (15.8 x 15.8 inches).


If you are researching multi hooping machine embroidery for oversized jacket backs, you must verify the head spacing (boring width) of the machine.

Cap Attachments That Actually Work: The Holy Trinity

The video closes with cap embroidery hardware. This is often the most intimidating part for new users.

You must understand the three distinct parts. If one is missing or loose, you will break needles.

1. Hoop Station: This clamps to your table. It is the "loading dock" where you exert force to mount the cap.
2. Cap Rings: The round frames that grip the cap. (2 per head provided).
3. Cap Driver: The heavy metal apparatus that snaps into the machine (replacing the flat pantograph) to drive the rings.

Success Metric: When the cap ring snaps into the driver, it should be tight. If there is wiggle room, your design will be crooked.

If you are building your kit, a complete cap hoop for embroidery machine set must include all three.

The Upgrade Path I Recommend: From Manual Struggle to Commercial Flow

Once you master the basics discussed above, the bottleneck shifts from "how do I hoop?" to "my wrists hurt" or "hooping takes too long."

The "Pain Point" Triggers

• Hoop Burn: You are tired of steaming out ring marks on dark polyester shirts.
• Thick Garments: You are fighting to close the screw on Carhartt jackets or thick hoodies.
• Volume: You have an order for 100 shirts and the 2-minute hooping time is killing your profit margin.

Solution Level 1: Magnetic Hoops (The Tool Upgrade)

This is where magnetic hoops (like the MaggieFrame or Mighty Hoop) change the game. Instead of tightening a screw and forcing inner/outer rings together, powerful magnets snap the fabric into place.

• Benefit: Self-adjusts to any thickness (from thin tees to thick towels).
• Speed: Reduces hooping time by ~40%.
• Safety: Zero hoop burn on most fabrics.

When professionals look for magnetic hoops for embroidery machines, they are usually looking for SEWTECH or similar robust magnetic frames that are compatible with Ricoma brackets. They are an investment that pays for itself in labor savings on the first 500-shirt order.

Warning: Magnetic Hazard. These are industrial magnets, not fridge magnets. They carry a pinch hazard that can break fingers. Keep away from pacemakers, credit cards, and hard drives. Never leave them "open" where they can snap shut unexpectedly.

Solution Level 2: High-Speed Multi-Needle Machines (The Capacity Upgrade)

If you are currently on a single-needle home machine or an entry-level semi-commercial unit, and you are consistently booking orders over 24 pieces, your machine speed is the bottleneck.

• The Shift: Moving to a dedicated multi-needle system (like SEWTECH industrial models) allows for higher speeds (SPM) and larger bobbin capacities, drastically reducing downtime.
• Compatibility: Many users searching specifically for mighty hoops for ricoma find that these high-end hoops are also fully compatible with SEWTECH machines, making the ecosystem interchangeable.

Final Operation Checklist (The "Pre-Flight" Check)

Before you press start, verify these 5 points to prevent disaster:

1. [ ] U-Notch is UP (on flat tubular hoops).
2. [ ] Isolation Confirmed: Performed the "hand sweep" inside the garment.
3. [ ] Clearance: The hoop arms are not hitting the machine sides; the fabric is not caught on the needle bar.
4. [ ] Thread Path: No loose threads caught in the hoop area.
5. [ ] Bobbin Check: You have enough bobbin thread to finish the run.

Embroidery is a game of preparation. Master the hoop, respect the physics of the fabric, and upgrade your tools (magnets and machines) when the volume demands it.

FAQ

• Q: How do I confirm a Ricoma tubular flat hoop is mounted in the correct orientation before clamping the rings?
  A: Use the U-notch rule: the U-shaped cutout on the top ring bracket must face up before you clamp anything.
  • Find the metal bracket on the top ring and locate the U-shaped cutout.
  • Orient the hoop so the U-notch is clearly facing the ceiling, then bring the rings together without forcing.
  • Attach to the pantograph only after the hoop closes smoothly.
  • Success check: the connection feels smooth (not gritty) and you hear/feel a solid metal-on-metal “click” when seating on the pantograph pins.
  • If it still fails… stop forcing parts and re-check hoop flip/orientation and any bent clips before trying again.
• Q: How do I avoid sewing a hoodie shut when using a tubular hoop on a commercial embroidery machine?
  A: Isolate the front layer only—keep the back layer completely free before clamping the top ring.
  • Insert the inner (bottom) ring inside the garment so it sits flat against the inside of the front layer.
  • Let the back of the garment hang freely (do not trap it between rings).
  • Perform the “hand sweep” inside the garment between layers before clamping.
  • Success check: your fingers feel only the inner hoop metal and stabilizer under the front layer—no extra garment fabric is trapped.
  • If it still fails… unhoop immediately and re-hoop slower; any bunching you can feel by hand will become a stitched-together garment.
• Q: What hoop size rule prevents flagging and frame strikes when hooping garments for machine embroidery?
  A: Choose a hoop slightly larger than the design, with about 0.75–1 inch of free space from the design edge to the hoop edge.
  • Select a hoop that leaves visible clearance around the design, but not excessive empty “trampoline” fabric.
  • Avoid hoops that force stitching too close to the inner ring (presser foot can strike the frame).
  • Re-check physical clearance: the inner ring must slide into the garment opening without stretching seams.
  • Success check: fabric in the center feels supported (not bouncy), and the design area sits safely away from the inner ring edge.
  • If it still fails… move down one hoop size (to reduce flagging) or adjust the backing/topping approach for the fabric type.
• Q: What consumables should be staged before tubular hooping to prevent shifting, sinking stitches, and knit damage?
  A: Stage the “hidden helpers” at the hooping station: temporary spray adhesive, water-soluble topping (when needed), spare needles for knits, and a marking pen.
  • Spray and adhere backing to the garment before inserting the inner ring so the backing cannot drift during hooping.
  • Add water-soluble topping for towels or fleece to prevent stitches from sinking into the pile.
  • Swap to a 75/11 ball point needle for knits when the fabric is stretchy.
  • Success check: backing stays bonded during hooping (no sliding), and pile fabrics show clean, visible stitches without sinking.
  • If it still fails… stop and re-check the backing “recipe” (cutaway vs tearaway) based on fabric behavior, then test again.
• Q: Why won’t a large Ricoma F-hoop latch onto the pantograph arms on a commercial single-head machine?
  A: Most “won’t latch” cases are alignment or obstruction issues—confirm U-notch up, clear thick seams from the connector area, and ensure the pantograph is set wide enough.
  • Re-check the hoop orientation: U-notch must face up (a flipped hoop can prevent latching by millimeters).
  • Pull bulky jacket seams or bunched material away from the connector slots so nothing spaces the hoop off the latch.
  • Verify pantograph arms are set to the widest position/detent when using the large F-hoop.
  • Success check: the hoop seats squarely and locks without “muscling,” with a firm, confident latch engagement.
  • If it still fails… inspect hoop clips for bending from prior forcing; bent hardware must be corrected before continuing.
• Q: What mechanical safety rule prevents injuries and bent parts when clamping tubular hoops and mounting hoops to pantograph arms?
  A: Never force hoop hardware—keep fingers out of pinch zones and stop if more force than a firm handshake is required.
  • Keep fingertips clear of the snap-zone when closing inner/outer rings.
  • Stop immediately if the hoop feels like it must be “muscled” onto the machine bracket; re-check orientation and obstructions instead.
  • Inspect rings for burrs, dents, or sticky residue that can cause sudden releases or snag fabric.
  • Success check: the hoop closes with controlled pressure, and mounts smoothly without sudden snaps or grinding resistance.
  • If it still fails… do not continue—forcing can bend pantograph arms and create costly alignment problems.
• Q: When should a shop upgrade from manual tubular hoops to magnetic embroidery hoops or a multi-needle embroidery machine for production speed?
  A: Upgrade based on the trigger: reduce hooping pain/time first with magnetic hoops, then upgrade capacity with a multi-needle system when order volume consistently exceeds what the current machine can handle.
  • Diagnose the pain point: hoop burn/ring marks, difficulty clamping thick hoodies/jackets, or hooping time killing profit on large orders.
  • Try Level 1 optimization: tighten the hoop-size choice, improve backing/topping prep, and standardize the pre-flight checks.
  • Move to Level 2 tool upgrade: use magnetic hoops when speed and fabric thickness variability are the daily bottleneck (they self-adjust and reduce manual clamping).
  • Consider Level 3 capacity upgrade: move to a faster multi-needle production machine when consistent multi-dozen orders create a speed/downtime ceiling.
  • Success check: hooping time drops noticeably, hoop marks decrease, and the machine spends more time stitching than waiting for loading.
  • If it still fails… time a full job cycle (hoop-to-hoop) and identify whether the true bottleneck is hooping, thread changes, or machine speed before buying anything.
