Ricoma EM1010 Pink Ribbon Angel Stitch-Out: The Hooping, Screen Setup, and Trace Checks That Keep Beginners Out of Trouble

When you’re new to a multi-needle machine, the scariest part usually isn’t the stitching—it’s the paralysis right before you press Start. I call this "Pre-Flight Anxiety": Is my fabric tight enough? Did I pick the right hoop on screen? Will the needle smash into the frame?

In this stitch-out, Anisa (The Crafty Author) runs the “Pink Ribbon Angel” breast cancer awareness design on a Ricoma EM1010. The project is destined to become a hanging piece for a wire display stand, so precise placement and a clean finish are non-negotiable.

I’m going to walk you through the exact flow shown in the video—from hooping to the final tear-away. But more importantly, I will layer on the 20 years of production experience that isn't explicitly said in the video: the tactile checks, the sound cues, and the safety protocols that keep your fabric flat, your stitches crisp, and your machine safe.

The Pink Ribbon Angel Project on a Ricoma EM1010: Calm the “Am I Doing This Right?” Panic First

This is a beginner-friendly stitch-out, and that’s intentional. It represents a complete "Zero to Hero" loop: blank fabric to finished embroidery without complex appliqué or 3D foam tricks.

The video’s goal is simple:

• Create: A breast cancer awareness embroidery piece (Pink Ribbon Angel).
• Substrate: Pink quilting cotton with tearaway stabilizer.
• Finish: A clean back suitable for a hanging display.

Commercial Reality Check: If you’re watching because you want to sell items someday, pay attention to the time note: the stitch-out took about 17 minutes. In a production environment, we call this your "machine cycle time."

However, beginners often forget intended speed versus safe speed.

• Factory Speed: 1000 stitches per minute (SPM).
• Beginner Sweet Spot: 600–750 SPM.

Why slower? At 650 SPM, friction is lower, thread breakage is rarer, and if a mistake happens, you have more reaction time to hit output stop. Speed comes later; consistency pays the bills now.

The “Hidden” Prep Pros Do Automatically: Fabric, Stabilizer, Thread Plan, and a Clean Work Surface

Before you touch the hoop, you must set the environment. 90% of embroidery failures happen at the prep table, not the needle bar.

What the video uses (The Basics):

• Pink cotton fabric (woven, medium weight).
• Tearaway stabilizer (medium weight, ~1.5 oz - 2.0 oz).
• Embroidery threads (pink, gold/brown, teal/blue, white).
• Scissors and a standard manual hoop (large rectangular).

The "Hidden Consumables" You Need: Beginners often miss the invisible tools that make the difference:

• Temporary Spray Adhesive (e.g., KK100 or Odif 505): A light mist prevents the fabric from shifting on top of the stabilizer.
• Precision Tweezers: For grabbing thread tails without putting fingers near the needles.
• Replacement Needles (75/11 Sharp): For woven cotton, a sharp point penetrates better than a ballpoint.

The Physics of Stabilization: Cotton is stable, but it isn't rigid. Tearaway is chosen here because the design isn't ultra-dense.

• Rule of Thumb: If the design has heavy fills (over 10,000 stitches in a small area), switch to Cutaway. For this open, airy angel design, Tearaway is acceptable.
• Sizing: Keep your stabilizer piece at least 1-2 inches larger than the hoop on all sides. Stabilizer that barely fits the frame will pull inward, causing registration errors (gaps between outlines and fills).

If you’re building a small shop workflow, this prep stage is where efficiency dies. This is why many home-business owners eventually upgrade to a hooping station for embroidery machine. These stations hold the hoop outer ring stationary, allowing you to use both hands to smooth the fabric, ensuring consistent tension every single time.

Prep Checklist (Verify OR Fail):

• Stabilizer Sizing: Cut tearaway stabilizer so it extends at least 1.5 inches beyond the hoop frame edges.
• Fabric Ironing: Press the pink cotton flat. Any wrinkle now becomes a permanent crease later.
• Thread Path: Check that thread spools are seated correctly and thread tails are not tangled at the rack base.
• Needle Check: Run a fingernail down the needle. If you feel a burr, change it immediately.
• Clearance: Clear the table surface. A hoop sitting on a stray pair of scissors cannot be tightened evenly.


Manual Hooping on Pink Cotton + Tearaway Stabilizer: Get “Taut” Without Stretching the Grain

This is the single most critical physical skill in embroidery. In the video, the layering order is standard: Stabilizer bottom, Fabric top, Inner ring, Outer ring.

The key phrase Anisa repeats is “tight” and “taut.” However, beginners often misinterpret "taut" as "stretched," which ruins the project.

The Tactile Teaching Method: "The Drum Skin Test" When you tighten the thumbscrew and pull the fabric:

1. Listen: Tap the hooped fabric. It should sound like a dull drum (a low thump-thump).
2. Feel: Press your finger in the center. It should deflect slightly (about 3-5mm) but spring back immediately.
3. Look: Look at the weave of the cotton. If the horizontal and vertical threads look curved or distorted (like an hourglass), you have over-stretched. This will cause "hoop burn" and the design will shrink when unhooped.

The Ergonomic Reality: Manual hooping is hard on the wrists. Note the screw orientation tip: keep the screw facing you. If you have to contort your wrist to tighten it, you won't apply enough torque, and the fabric will slip.

This physical strain is the primary trigger for upgrading components. If you find yourself dreading the hoop-up process, this is exactly the pain point that pushes people toward magnetic embroidery hoops. It’s not just about luxury; it’s about biomechanics. Magnetic systems clamp instantly with vertical force, eliminating the need to wrench a thumbscrew and reducing the friction that causes "hoop burn" on delicate cotton fibers.

Warning: Mechanical Safety. Keep fingers, loose hair, jewelry, and hoodie drawstrings away from the needle area and the moving pantograph arm. The machine moves suddenly and with high torque. Never reach into the sewing field while the machine is tracing or stitching.

Why puckers happen (The Mechanics):

• Loose Hooping: The needle pushing through creates a "flagging" motion (fabric bouncing up and down). This prevents the loop from forming correctly and pulls fabric inward.
• Over-Stretched: You stitch on stretched fabric -> You unhoop -> Fabric wants to return to original size -> Fabric shrinks -> Stitches bunch up.
• The Goal: Neutral, supported tension. Flat, not forced.


Ricoma EM1010 Touchscreen: Load the DST File and Confirm You’re Looking at the Right Design

On the Ricoma EM1010 screen, the workflow is: File -> Select A9861.DST -> Load.

The "version control" trap: DST files are "stitch data" only—they don't contain color information like an EMB file. The screen will likely show random colors.

• Action: Do not panic. Rely on your printed worksheet or PDF production sheet to know which needle corresponds to which part of the design.

File Management for Scale: "A9861.DST" is a dangerous filename. In a busy shop, that means nothing. Rename your files on the computer before transferring: Angel_PinkRibbon_5x7_Cotton.dst. This tells you the Design, the Size, and the intended Fabric context immediately.

If you’re still learning your machine, it helps to remember that the Ricoma is a 10 needle embroidery machine. This gives you a massive advantage over single-needle machines: you can set all 4 colors at once. Double-check your screen assignments (e.g., Color 1 on Screen = Needle 1 on Machine).

Hoop Selection + 180° Rotation on the Ricoma EM1010: Fix Placement Before You Waste a Blank

Entering the configuration menu:

1. Select the Hoop Preset (e.g., Hoop D or E).
2. Rotate 180 degrees using the “F” icon.
3. Check the fit.

Why the 180° Rotation? On multi-needle machines, the hoop attachment arm is at the back. When embroidering a shirt or a hanging piece, you often load the item "upside down" (neck away from you) so the bulk of the fabric hangs off the front of the table rather than bunching up near the machine body. Rotating the design 180° ensures the angel stands upright relative to the item, not the machine.

The "Ghost Hoop" Error: Selecting a hoop on the screen does not tell the machine what physical hoop is attached. It only sets a software limit.

• Risk: You can select a massive hoop on screen but attach a tiny hoop physically. The machine will happily stitch right into your plastic frame, destroying the hoop and possibly the needle bar reciprocator.
• Rule: Look at the physical hoop. Look at the screen. Say the size out loud. "10 by 10 hoop attached. 10 by 10 hoop selected."

Data Analysis:

• Stitch count: 11,972 stitches.
• Size: 71.35 mm x 97.2 mm.
• Estimation: At a safe 700 SPM, plus color changes and trims, this is roughly 17-20 minutes.

If you’re comparing machines for business growth, this calculation is vital. High stitch counts are where industrial speed matters. That’s why some shops upgrade to a higher-output multi-needle like a SEWTECH unit for bulk orders, while others keep their current machine and upgrade the hooping system first to reduce downtime between runs.

The Trace Check on a Ricoma EM1010: Your Last Chance to Prevent a Hoop Strike

The video performs a contour trace. The pantograph moves the hoop around the design boundary without stitching.

Visual Focus Points during Trace:

1. Presser Foot Clearance: Watch the metal foot, not just the needle. The foot is wider. Will it scrape the inner edge of the hoop?
2. Clips and Screws: Ensure the needle bar doesn't travel near the metal clips holding the hoop together.
3. Fabric tension: Does the movement cause the fabric to bounce or ripple? If so, your hooping is too loose.

The "Finger Test" (Advanced): While the machine traces, place your finger lightly on the hoop frame (safely away from the needle). Feel for any hesitation or binding in the X/Y movement. It should feel smooth like gliding on ice. Grinding sensations indicate an obstruction.

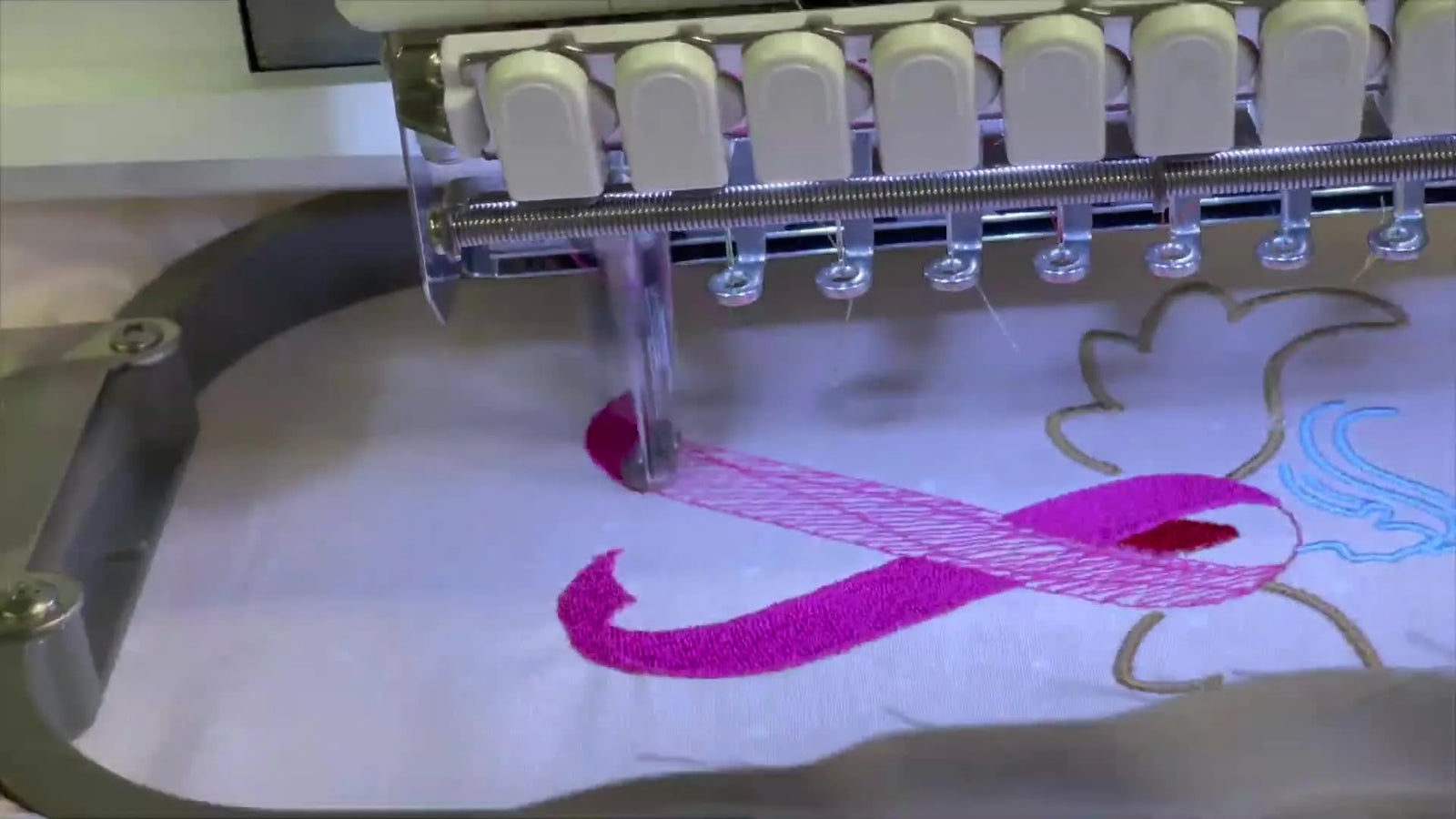

Stitching the Pink Ribbon Angel on the Ricoma EM1010: What “Normal” Looks and Sounds Like

The machine begins. The sequence: Fill -> Border -> Wings -> Accents.

Auditory Diagnostics (Listening to your Machine):

• Good Sound: A rhythmic, hum-like chuka-chuka-chuka. It should be hypnotic and steady.
• Bad Sound: A sharp tick-tick (needle hitting something), a slap (loose thread loop hitting fabric), or a grinding noise.
• Action: If the sound changes, hitting STOP is free. Replacing a motor is expensive. Pause and look.

Tension Check on the Fly: Look at the back of the embroidery while it runs (if safe) or immediately after the first color. You should see about 1/3 bobbin thread (white) in the center of the satin column, with top thread hugging the edges.

• If you see only top thread on the back: Top tension is too loose.
• If you see white bobbin thread pulling to the top: Top tension is too tight.

If you’re running a home business, track your real cycle time. It’s not just the 17 minutes of stitching. It includes the 5 minutes of prep and the 3 minutes of finishing. Total Cycle: 25 minutes per unit. Can you afford to sell this for $15? Probably not. Speed and efficiency tools are your path to profitability.

Finishing Like You Mean It: Unhoop Cleanly and Tear Away Stabilizer Without Distorting Stitches

The stitching is done. Now, the finish.

The "Support and Tear" Technique: Novices rip stabilizer off like a band-aid. This distorts the outline stitches.

1. Cut: Use scissors to rough-cut the excess stabilizer, leaving about 1 inch.
2. Support: Place your thumb on the embroidery stitches to hold them flat against the table.
3. Tear: Gently pull the stabilizer away from the stitches, laterally. Do not pull up. The perforation created by the needle should allow it to separate cleanly.

Quality Control (QC): Hold the angel up to the light. Clip any jump threads (connecting threads) that the machine missed. A lighter or heat gun can gently remove fine fuzz, but be careful with cotton—it burns, unlike polyester which melts.

The Pucker Problem Everyone Hits: Symptoms, Causes, and the Fast Fix That Actually Works

The video mentions puckering because it is the #1 enemy of flat embroidery.

Diagnostic Map:

The "Rim Slide" Check: After tightening your manual hoop, try to push the fabric near the rim with your thumb. If it slides into the hoop even a millimeter, it is not tight enough.

If you’re doing repeated orders and you’re tired of preventing "rim slide" with brute force, consider a tool upgrade path. Many shops move from manual hooping for embroidery machine to a magnetic system because it clamps the entire perimeter with equal force, making "rim slide" physically impossible for the fabric.

Decision Tree: Choosing Stabilizer + Hooping Method for Flat Cotton (Hobby vs Small-Business Reality)

Use this logic flow to determine your setup for woven cotton projects.

START: Assessment of Project Volume

1. Project Type: One-off Gift
   • Constraint: Low budget, time is not an issue.
   • Solution: Use standard manual hoop + Tearaway.
   • Technique: Take 5 minutes to hoop perfectly. Use the "Drum Skin" test.
2. Project Type: Etsy Order (5-10 items)
   • Constraint: Quality must be identical across all items.
   • Pain Point: Hand fatigue from screwing/unscrewing hoops.
   • Solution: Upgrade visualization. Keep manual hoops, but add a hooping station for embroidery machine. This aligns the fabric grain perfectly every time.
3. Project Type: Team Order / B2B (50+ items)
   • Constraint: Speed is money. Hoop burn is unacceptable.
   • Solution: Upgrade hardware. Move to magnetic embroidery hoops.
   • Why: You eliminate the "unscrew" time. You eliminate hoop burn. You can hoop a shirt in 15 seconds vs 60 seconds.
4. Scaling Limit:
   • If you are hooping faster than the machine can stitch, and you have a backlog: Look at a SEWTECH multi-needle machine to run parallel jobs.


The Magnetic Hoop Upgrade Conversation (Without the Hype): When It’s Actually Worth It

Manual hoops rely on friction (inner ring pressing against outer ring). Magnetic hoops rely on vertical clamping force.

The "Hoop Burn" Variable: On pink cotton, manual hoops can leave a shiny "ring" where the fibers were crushed. Steaming can sometimes fix this, but not always. Magnetic hoops sit flat on top of the fabric, drastically reducing this crushing effect.

Fitment Reality: If you’re on a Ricoma-style multi-needle workflow, finding compatible tools is easier than for home machines. You might search for terms like mighty hoops for ricoma compatibility. However, always measure your machine's arm width (e.g., 355mm or 500mm spacing) before buying. A magnetic hoop determines its fit by the brackets, not just the magnet size.

Warning: Magnetic Safety Hazard. Industrial magnetic hoops use high-power Neodymium magnets. They can pinch fingers with enough force to cause blood blisters or bone bruising.
* Pacemakers: Users with pacemakers should maintain a safe distance (usually 6-12 inches) or avoid handling them.
* Electronics: Do not place phones or credit cards directly on the magnets.
* Storage: Store them with the provided foam spacers to prevent them from snapping together permanently.

Setup Habits That Make Multi-Needle Embroidery Feel “Easy”: Placement, Clearance, and Repeatability

The video’s workflow is solid because it respects the Order of Operations.

The Professional's Sequence:

1. Hoop: Tactile check for tension.
2. Load: Verify Design + Colors on screen.
3. Preset: Select correct hoop size in software.
4. Orient: Rotate 180° (if needed for garment).
5. Trace: Visual confirmation of clearance.
6. Stitch: Auditory monitoring.

If you’re researching the machine itself, note that people search for it under multiple names like ricoma embroidery machine em-1010. Regardless of the brand sticker, the physics of embroidery remain the same. The machine is a robot; it follows your instructions. If you instruct it to stitch outside the hoop limits, it will try (and fail).

Setup Checklist (The "Pre-Flight" - Do not skip):

• File Identity: Does the screen preview match my work order?
• Hoop Truth: Does the screen hoop ("Hoop E") match the physical hoop stamped on the frame?
• Orientation: Is the angel's head pointing toward the quick-change bracket (bottom of screen/back of machine)?
• Obstruction: Is the fabric draped so it won't get caught under the needle plate?
• Trace: Did the trace complete without the presser foot touching plastic?


Running the Stitch-Out Smoothly: Small Operator Moves That Prevent Thread Nests and Rework

The video shows a perfect run. Real life is messier.

The "Bird's Nest" Prevention: A "bird's nest" is a tangled ball of thread under the needle plate. It usually happens in the first 5 seconds.

• Action: Hold the top thread tail gently for the first 3 stitches, then let go. This prevents the tail from being sucked down into the bobbin area.

Managing Breaks: If a thread breaks:

1. Don't just re-thread. Check why. Is the spool snagged? Is the needle bent?
2. Back up the machine (using the "Stitch Back" or "Float" function) about 5-10 stitches before the break point to overlap and lock the new thread.

For those scaling up, efficiency is key. Many small shops eventually invest in workflow upgrades—time-saving accessories like magnetic hooping station setups that allow you to prep the next garment while the machine is still stitching the previous one.

Operation Checklist (During the run):

• The "First Layer" Watch: Never walk away until the first color is established. If it's going to fail, it fails now.
• Bobbin Chicken: Check your bobbin level before starting a 12,000 stitch design. Running out mid-angel is annoying.
• Sound Check: Is the rhythmic hum constant?
• Stability: Is the hoop vibrating excessively? If so, lower the speed (SPM).


The Result—and the Smart Next Upgrade: Turn a Pretty Stitch-Out Into a Repeatable Product

The finished Pink Ribbon Angel looks clean, sharp, and professional. The outline matches the fill, and the fabric is flat. This is the definition of success.

The Path Forward:

• Level 1 (Hobbyist): Master the manual hoop. Learn the "drum skin" feel. Buy quality stabilizers.
• Level 2 (Side Hustle): You are getting orders. Your hands hurt. Action: Invest in Magnetic Hoops to speed up framing and reduce physical strain.
• Level 3 (Business): You have a backlog of 50 angels. Action: Looking at a single-head machine helps, but exploring multi-head options or a faster SEWTECH multi-needle machine changes your economics from "hourly wage" to "production profit."

And if you’re shopping or comparing models, remember that people also search the same platform as ricoma em 1010 embroidery machine—but the machine is only as good as the operator's discipline in hooping and tracing.

Quick FAQ From Real Beginners: The Two Questions Hiding Behind “Beautiful!”

The comments on the video are supportive, but let's answer the invisible questions that actually help you learn.

1) “Why did mine pucker when hers didn’t?” 95% of the time, it is hoop tension. You either stretched the fabric while tightening the screw (causing recoil puckers) or you left it too loose (causing flagging). Use spray adhesive and practice the "Drum Skin" tap test.

2) “I want to sell these. How do I go faster?” Do not just turn up the SPM dial. That breaks thread. To go faster, reduce your "down time."

• Pre-cut your stabilizer.
• Pre-load your threads.
• Use a Magnetic Hoop to load the fabric in 10 seconds instead of 60.
• Batch your work: Do all hooping at once, then all stitching.

FAQ

• Q: What are the must-have hidden consumables for hooping pink quilting cotton with tearaway stabilizer on a Ricoma EM1010 multi-needle embroidery machine?
  A: Use light temporary spray adhesive, precision tweezers, and a fresh 75/11 sharp needle to prevent shifting, thread handling mistakes, and fabric damage.
  • Spray: Mist adhesive lightly between cotton and tearaway to stop “fabric skating” during stitching.
  • Replace: Install a new 75/11 sharp needle if the current needle feels rough or has a burr.
  • Prepare: Clear the hooping surface so the hoop can tighten evenly (no scissors or tools under it).
  • Success check: The fabric stays aligned after a rim push near the hoop edge and does not ripple during trace.
  • If it still fails: Re-cut stabilizer larger (at least 1–2 inches beyond the hoop) and re-hoop from scratch.
• Q: How do you know manual hooping tension is correct for cotton + tearaway before running a Ricoma EM1010 trace check?
  A: Aim for “taut but not stretched” using the drum-skin method, then confirm the fabric cannot slide at the rim.
  • Tap: Tap the hooped fabric to hear a dull, low drum-like sound (not floppy).
  • Press: Press the center; it should deflect slightly (about 3–5 mm) and spring back.
  • Inspect: Look at the cotton weave; stop and re-hoop if the grain lines curve or distort (over-stretched).
  • Success check: The “rim slide” test shows zero movement when pushing fabric near the hoop edge.
  • If it still fails: Add a light mist of spray adhesive and tighten with the screw facing you for better torque.
• Q: What is the fastest way to prevent puckering on woven cotton when stitching a ~12,000-stitch DST design on a Ricoma EM1010?
  A: Re-hoop for neutral tension and stabilize correctly; puckering is usually caused by loose hooping (flagging) or over-stretching during hooping.
  • Re-hoop: Tighten the hoop, then stop pulling the fabric—do not “stretch to tighten.”
  • Stabilize: Use medium tearaway for an open design, and keep stabilizer at least 1–2 inches larger than the hoop on all sides.
  • Secure: Use light spray adhesive to keep fabric from shifting on the stabilizer.
  • Success check: During stitching, the fabric does not bounce (flag) and the finished area stays flat with no “bubbly” halo.
  • If it still fails: Move up to a heavier stabilizer (often cutaway for denser areas) and reduce machine speed into the 600–750 SPM range.
• Q: How do you confirm top tension is correct on a Ricoma EM1010 during the first color of an embroidery run?
  A: Use the bobbin-to-top balance rule: you want about 1/3 bobbin thread visible in the center of satin columns on the back.
  • Stop early: Check the back after the first color (or after a small test section) before committing the full design.
  • Adjust: If only top thread shows on the back, tighten top tension; if white bobbin thread pulls to the front, loosen top tension.
  • Monitor: Listen for sound changes that suggest drag or snapping before thread breaks happen.
  • Success check: The back shows a clean “railroad track” look with bobbin thread centered, not flooding the edges.
  • If it still fails: Change the needle (bent/burred needles mimic tension issues) and recheck the thread path for snags at the rack.
• Q: How can a Ricoma EM1010 operator prevent a “bird’s nest” thread tangle under the needle plate in the first 5 seconds of stitching?
  A: Hold the top thread tail gently for the first 3 stitches, then release once the stitch formation is stable.
  • Hold: Keep light tension on the top thread tail at start so it cannot get sucked into the bobbin area.
  • Watch: Stay with the machine through the first color—most nests happen immediately.
  • Check: Verify the thread path is not tangled at the rack base before pressing Start.
  • Success check: The start area forms clean stitches with no thread balling underneath and no “slap” sound from looping thread.
  • If it still fails: Stop immediately, remove the nest completely, rethread, and back up 5–10 stitches to overlap and lock in.
• Q: How can a Ricoma EM1010 user avoid a hoop strike when the touchscreen hoop preset does not match the physical hoop attached?
  A: Treat hoop selection as a safety limit only—match the exact physical hoop to the correct on-screen hoop preset, then run a trace check every time.
  • Verify: Compare the physical hoop size to the selected hoop preset on the screen and say it out loud before stitching.
  • Rotate: Apply 180° rotation only after confirming the correct hoop preset so placement is corrected safely.
  • Trace: Run a contour trace and watch presser foot clearance (the foot is wider than the needle).
  • Success check: The full trace completes without the presser foot scraping the inner hoop edge or approaching clips/screws.
  • If it still fails: Stop, reselect the correct hoop preset, reposition the design, and trace again—do not “risk it.”
• Q: What are the mechanical and magnetic safety rules when switching from manual hoops to industrial magnetic embroidery hoops on a multi-needle embroidery machine workflow?
  A: Keep hands and loose items away from moving parts during trace/stitching, and handle magnetic hoops as pinch hazards with strong neodymium force.
  • Clear: Keep fingers, hair, jewelry, and drawstrings away from the needle area and moving pantograph at all times.
  • Separate: Use foam spacers for storage so magnetic hoop parts do not snap together unexpectedly.
  • Protect: Keep phones/credit cards away from the magnets; users with pacemakers should keep a safe distance (often 6–12 inches) or avoid handling.
  • Success check: The hoop can be installed/removed without finger pinch risk and the machine area stays obstruction-free during motion.
  • If it still fails: Slow down the handling process and use a consistent placement routine; when in doubt, follow the hoop manufacturer guidance and the machine manual.
