Ricoma EM1010 Crop Top Sweater Embroidery: Hooping Thick Fleece Without Hoop Burn, Needle Breaks, or Sewing It Shut

If you have ever tried to hoop a thick sweatshirt and felt the hoop fighting back—or watched in horror as the inner ring popped out mid-setup—you are not alone. Bulky fleece and sweater knits do not behave like standard t-shirts. They are compressible springs, waiting to rebound. The goal is not to "crank it tighter" until your wrists hurt; it is to hold the fabric evenly, stitch it safely, and navigate the specific physics of thick garments.

This is the exact workflow Chonita Nicole demonstrates while embroidering a Five Below tie-dye crop top sweater on a Ricoma EM1010. However, watching a video is different from running a shop. As a production embroiderer, I am going to keep the steps faithful to the video while adding the "missing" sensory details and safety parameters that prevent the classic disasters: hoop burns, needle breaks, puckering, and the dreaded mistake of sewing the garment shut.

First, Breathe: Ricoma EM1010 Sweater Embroidery Is Totally Doable (Even When the Hoop Feels Too Small)

Thick garments induce panic in beginners because the mechanical feedback changes. Everything feels tight: the hoop struggles to close, the fabric wants to "flag" (bounce up and down), and the embroidery foot looks dangerously close to the material. The good news is that the video demonstrates a clean, repeatable process on the Ricoma EM1010 (10-needle machine), utilizing a standard 12.2" x 8.2" tubular hoop and cut-away stabilizer.

Many viewers in the comments are in the "Observation Stage"—fascinated but fearful of making a mistake on an expensive machine. That fear is healthy, but we need to convert it into a system. The trick is to replace guessing with a routine containing strict Fail/Pass checkpoints.

Clarification: The creator explicitly confirms she is using the Ricoma EM 1010. If you are following along, the touch-screen interface and physical clearance discussed here apply specifically to this class of multi-needle machines.

The Quiet Prep That Makes or Breaks Thick-Fabric Hooping on a Ricoma EM1010

Before you even touch the hoop, you must set the stage. Thick fleece compresses under hoop pressure, but it also stretches. If you over-tighten a standard hoop, you will distort the knit structure, leading to egg-shaped circles or puckered outlines. If you under-tighten, the fabric will "walk" or shift as the needle penetrates.

Chonita begins by grabbing cut-away stabilizer. This is the first critical decision. Unlike woven shirts, knits move. Cut-away stabilizer provides a permanent foundation that remains with the garment, preventing the stitches from distorting over time.

The "Oversize" Rule: She cuts the stabilizer larger than the hoop. This is non-negotiable. You need enough excess material ("hoop allowance") so that the hoop grips the stabilizer firmly, rather than just the edge of it.

She measures against the hoop and trims so it covers the frame with a comfortable margin.

Hidden Consumable Alert: While not explicitly highlighted in every video, for sweater knits, ensure you are using a Ballpoint Needle (e.g., 75/11 BP) so the needle slides between the knit fibers rather than cutting them. Also, keep a Water Soluble Topper nearby if the sweater has a high "pile" or fuzziness—this prevents stitches from sinking into the fabric.

If you are new to the nuances of hooping for embroidery machine, remember this principle: thick garments do not require brute force; they require consistent suspension.

Warning: Mechanical Safety. Keep scissors, loose threads, and hands strictly clear of the needle area when the machine is powered on. A sudden "Trace" command or accidental Start can cause the head to move rapidly. Always confirm the machine is in a "Stop" state before reaching near the presser foot or needle bar.

Prep Checklist (End-of-Prep Must-Pass):

• STABILIZER CHECK: Cut-away stabilizer is cut at least 1.5 inches larger than the 12.2" x 8.2" hoop opening on all sides.
• TOOL CHECK: Scissors are sharp (dull scissors jag the stabilizer, causing alignment issues).
• NEEDLE MATCH: You maintain a stock of Ballpoint needles (75/11) to protect the knit fabric.
• THREAD PLAN: You have identified which needle bar corresponds to your design color (she uses needle #6).
• CLEARANCE STRATEGY: You have assessed how you will fold or hold the excess sweater bulk once mounted.

Hooping a Thick Crop Top Sweater in Ricoma Hoops Without Crushing the Knit

This is where the physical battle often happens. Chonita’s sequence is simple, but the tactile feedback is where you must pay attention.

1. Placement: She inserts the bottom ring inside the crop top sweater.
2. Stabilization: She places the cut-away stabilizer on top of that bottom ring (inside the shirt), smoothing it out.
3. The Press: She aligns the top ring and presses down.


The Critical Adjustment: Mid-process, she realizes the sweater is significantly thicker than a standard tee. She has to stop, remove the top hoop, and loosen the adjustment screw (hoop knob).

The Physics of "Hoop Burn": This is a real-world thick-garment rule. If you have to use your entire body weight to force the ring down, you are compressing the fabric fibers too aggressively. This causes "hoop burn"—a permanent crush mark on the fabric.

• Sensory Anchor: The hoop should close with a firm "thud," not a high-pitched "snap."
• Tactile Check: Once hooped, run your fingers over the fabric surface. It should feel taut like a drum skin, but the knit ribs should not look distorted or stretched out.

Pro Tip on Stabilizer: A viewer suggested layering two sheets of tear-away. Expert Opinion: Avoid this for wearables. Tear-away eventually disintegrates, leaving the embroidery unsupported. For a partially exposed midriff sweater that will be washed, Cut-Away is the professional standard.

The Commercial Solution (Pain vs. Profit): If hooping thick garments becomes a daily frustration, this is the precise moment to look at your tools. Standard hoops rely on friction and muscle power. In a production environment, constantly adjusting screws kills efficiency and hurts your wrists. This is where magnetic embroidery hoops serve as a massive upgrade. Magnetic frames (like the MaggieFrame or Mighty Hoop) clamp automatically to the thickness of the fabric without adjustment screws, eliminating hoop burn and reducing wrist fatigue.

Warning: Magnetic Safety. Magnetic frames are incredibly powerful industrial tools. They can pinch fingers severely if mishandled. Keep them away from anyone with a pacemaker (maintain a safe distance) and keep them far from computerized machine screens or credit cards.

Mounting the Hoop on the Ricoma EM1010 Pantograph: The “Don’t Sew It Shut” Check

Once the garment is hooped, she slides the hoop brackets onto the machine’s pantograph arm, listening for the engagement click and ensuring the "U" slots seat correctly.

Now comes the single most important safety check in garment embroidery. She creates a "tunnel" with her hand to ensure the back of the sweater is not bunched up under the needle plate.

The "Tunnel Check" Ritual: Beginning embroiderers often focus entirely on the top of the hoop. However, gravity pulls the rest of the sweater down. If the back panel of the sweater drifts under the needle plate, the machine will stitch the front of the shirt to the back of the shirt. This ruins the garment instantly.

• Action: Lift the hoop slightly.
• Sense: Slide your hand under the needle plate. Feel for the clear metal of the machine arm (the cylinder). If you feel fabric, stop.
• Verify: You must have a clear "open tunnel" for the cylinder arm.

Ricoma EM 1010 Embroidery Machine Screen Setup: Centering, Needle #6, and a Trace You Can Trust

On the Ricoma panel, she standardizes her starting point by centering the design to the hoop ("Center to Hoop" function).

Next, she maps the color. She selects needle #6 for the pink thread.

Cognitive Load Reduction: Multi-needle machines can look intimidating because of the options. Think of it simply: You are just assigning a "worker" (Needle 6) to a "job" (The Pink Layer).

If you are transitioning from a single-needle home machine to a commercial unit, realize that ricoma em 1010 embroidery machine workflows are designed for "Set and Forget." The time you save not changing threads is time you can spend prepping the next hoop.

The Trace Habit That Saves Needles

Chonita traces the design twice. She also manually lowers the presser foot (often called the "foot stool" or reciprocating foot) to visually visually confirm clearance.

Why Lower the Foot? On a thick sweater, the fabric surface sits much higher than on a t-shirt. Standard tracing might look safe, but the presser foot dips lower than the needle bar during operation.

• Risk: The presser foot strikes the plastic edge of the hoop.
• Result: Broken hoop, broken needle, or knocked-out timing.
• The Fix: Lower the foot manually during the trace. If the foot clears the hoop edge, the needle will definitely clear.

Setup Checklist (End-of-Setup Must-Pass):

• CENTER: Design is verified centered relative to the physical hoop.
• COLOR MAP: Correct needle (#6) is assigned to the color block.
• CLEARANCE TRACE: Border trace run at least twice while watching the presser foot height relative to the bulky fabric.
• TUNNEL VERIFICATION: You have performed one final hand-sweep under the hoop to ensure the garment back is free.

Running the Stitch-Out: Why 450 RPM Felt Slow and 750 RPM Made Sense

She presses the green Start button and watches the first few stitches intently.

Midway through, she notes the machine started at a default 450 RPM (Stitches Per Minute). It felt sluggish. She increased the speed to 750 RPM.

The "Sweet Spot" for Beginners: Speed is a variable, not a constant. On thick fleece, higher speeds increase vibration.

• Beginner Safe Zone: 600 - 700 RPM. This provides a balance of productivity and control.
• The Sensory Check: Listen to the machine.
  • Rhythmic, steady hum: Good.
  • Labored, loud banging, or table shaking: Too fast. The heavy garment is swinging around and destabilizing the pantograph.
• Adjustment: If you see the fabric "flagging" (lifting up with the needle), slow down immediately.

It is during these production runs that ricoma embroidery machine em-1010 owners begin to understand throughput. Consistent speed relies on consistent hooping.

Operation Checklist (End-of-Operation Must-Pass):

• START PROTOCOL: Start button pressed only after passing the Setup Checklist.
• ANCHOR WATCH: Watch the first 50 stitches to ensure the fabric isn't shifting (creating gaps).
• AUDITORY CHECK: Adjust RPM (e.g., to 750) only if the machine sounds smooth and the table is stable.
• fabric MANAGEMENT: Ensure the hanging sleeves/hood of the sweater do not get caught on the table or pantograph arm as the hoop moves.
• EMERGENCY PREP: Keep your hand near the Stop button for the first minute.

Finishing Like a Pro: Bobbin-Back Inspection and Clean Cut-Away Trimming

After the machine signals completion, she removes the hoop. The first place she looks is not the front—it’s the back.

The 1/3 Rule: She checks the white bobbin thread. Ideally, on a satin stitch column, you want to see about 1/3 white thread running down the center of the back. This proves your top tension was correct (pulling the thread to the back) but not too tight.

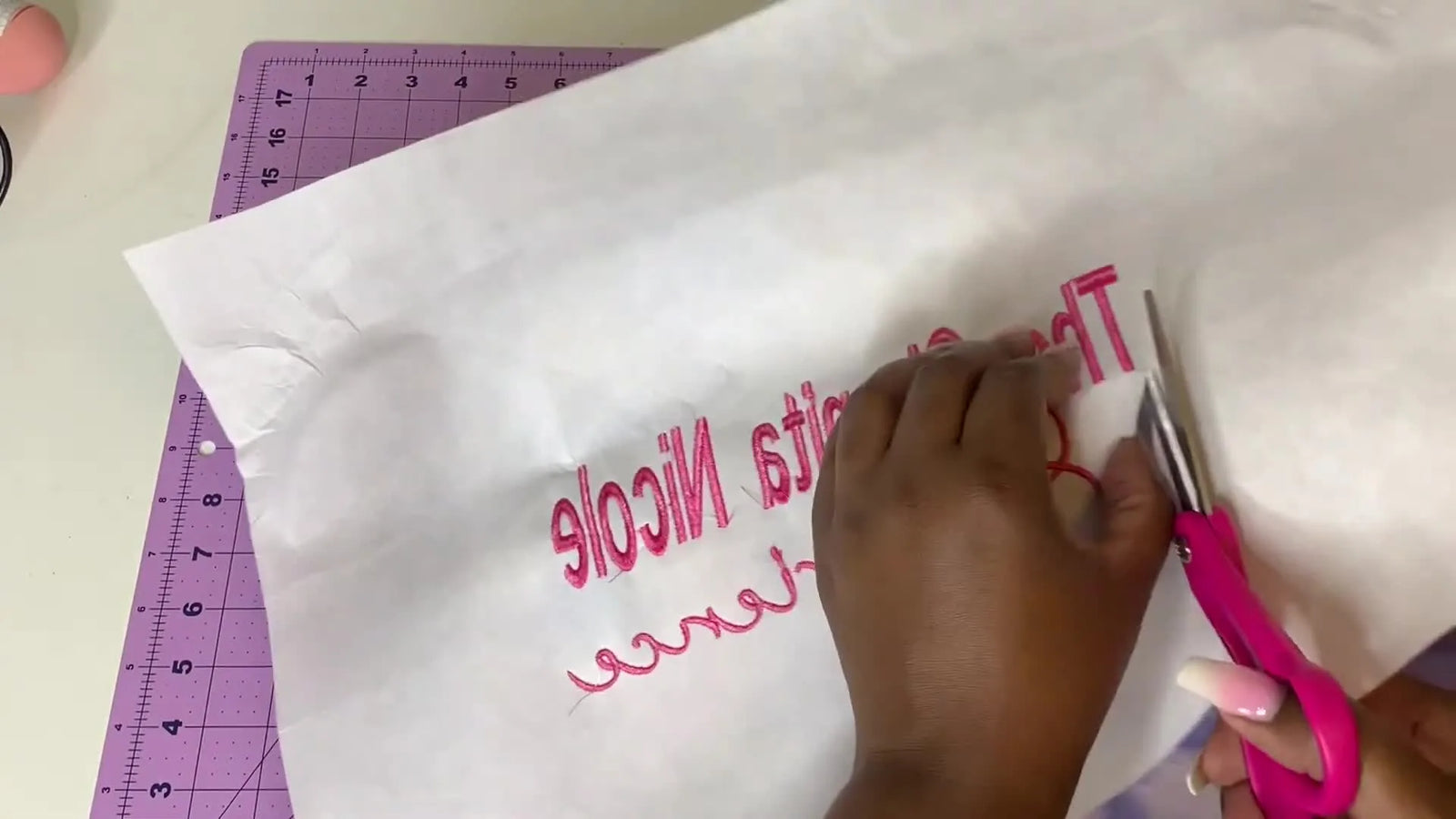

She trims the cut-away stabilizer, leaving a modest margin around the design.

Waste Reduction Tip: She saves the larger offcuts of stabilizer. In a commercial shop, these scraps are perfect for left-chest logos or hat embroidery.

The “Stabilizer Decision Tree” for Thick Sweatshirts (Cut-Away vs. Layering)

Choosing the right backing prevents puckering. Use this logic tree to decide what to grab from your supply shelf:

Decision Tree (Fabric Condition → Stabilizer Choice):

1. Is the garment a unstable knit (Sweater, Fleece, Hoodie) that stretches?
   • YES: Use Cut-Away (2.5oz or 3.0oz). Reason: It provides permanent structural integrity.
   • NO: Go to #2.
2. Is the design heavy (High stitch count, heavy fill)?
   • YES: Use Cut-Away (Use two layers if >15,000 stitches).
   • NO: Go to #3.
3. Is the fabric a stable woven (Denim jacket, Canvas) with zero stretch?
   • YES: You may use Tear-Away.
   • NO: When in doubt regarding wearables, Default to Cut-Away.

Troubleshooting Ricoma EM1010 Sweater Embroidery: Symptoms, Causes, Fixes (No Guessing)

When things go wrong, do not panic. Use this structured approach to diagnose the issue.

Symptom: Hoop won't close / Hoop pops open

• Likely Cause: Hoop screw is too tight for the sweater thickness; Material is too thick for standard hoops.
• Quick Fix: Loosen the tension screw significantly before applying the top ring.
• Long-term Fix: Upgrade to Magnetic Hoops to handle varying thicknesses without manual adjustment.

Symptom: "Flagging" (Fabric bounces up and down with the needle)

• Likely Cause: Hooping is too loose (fabric isn't drum-tight).
• Quick Fix: Stop the machine. Re-hoop tighter.
• Prevention: Use a Water Soluble Topper to hold the fabric down; slightly lower the presser foot height in settings (expert setting).

Symptom: Machine sews the garment shut

• Likely Cause: The back of the sweater bunched up under the cylinder arm.
• Quick Fix: Use a seam ripper (carefully!).
• Prevention: The "Tunnel Check" (feeling under the hoop) before pressing start. Use hair clips to clip excess fabric out of the way.

Symptom: Gaps between the outline and the fill

• Likely Cause: Excessive speed causes the fabric to shift; Insufficient stabilizer.
• Quick Fix: Slow down the RPM.
• Prevention: Use proper Cut-Away stabilizer; ensure the hoop is tight.

The Upgrade Path When You’re Ready: Faster Hooping, Less Fatigue, More Output

If you are doing one sweater for a personal project, the standard plastic hoop provided with the machine is perfectly adequate. However, if you are scaling up for holiday drops, team uniforms, or small business batches, standard hoops create bottlenecks.

Here is a logical path for upgrading your toolkit based on your pain points:

• Scenario A: "My Wrists Hurt."
  • Trigger: You are constantly screwing and unscrewing hoops for different thickness garments. You are leaving "hoop burn" marks.
  • The Diagnosis: Mechanical hoops are inefficient for bulk volume.
  • The Upgrade: Magnetic Hoops (e.g., MaggieFrame). These allow you to hoop a thick hoodie in 5 seconds compared to 45 seconds, with zero wrist strain and no hoop burn. Searching for terms like embroidery hoops magnetic or specifically ricoma hoops compatible with magnets is your next step toward professional efficiency.
• Scenario B: "I Need More Speed."
  • Trigger: You are turning away orders because you cannot stitch fast enough. You are tired of single-needle limitations.
  • The Diagnosis: You have outgrown the hobbyist phase.
  • The Upgrade: SEWTECH multi-needle solutions. If you are considering the leap, looking into robust platforms like mighty hoops for ricoma em 1010 compatibility or even dedicated multi-head machines can double your throughput.
• Scenario C: "My Quality Varies."
  • Trigger: One shirt looks great, the next is puckered.
  • The Diagnosis: Inconsistent stabilization.
  • The Upgrade: Premium Consumables. Buy pre-cut backing sheets (uniform size) and higher quality embroidery thread. Consistency in materials leads to consistency in stitch-outs.

Final Reality Check: What “Success” Looks Like on the Back and the Front

Chonita’s finished product demonstrates the two signs of a professional job:

1. Front: The design is centered, the registration (outline vs fill) is tight, and the fabric around the embroidery is flat (no puckering).
2. Back: The stabilizer is trimmed neatly (not ripped), and the thread tension is balanced.

If you can replicate these results, you have mastered the hardest part of the curve. Trust the process, respect the safety checks, and let the machine do the heavy lifting.

FAQ

• Q: How do I hoop a thick sweatshirt on a Ricoma EM1010 without hoop burn or the inner ring popping out?
  A: Loosen the Ricoma EM1010 hoop adjustment screw first and close the hoop with firm, even pressure—not body weight.
  • Loosen: Back off the hoop knob before pressing the top ring on thick fleece/knits.
  • Smooth: Lay cut-away stabilizer over the bottom ring and smooth the garment evenly before closing.
  • Press: Seat the top ring straight down to avoid twisting and uneven bite.
  • Success check: The hoop closes with a firm “thud,” the fabric feels drum-taut, and the knit ribs are not visibly stretched or distorted.
  • If it still fails… Switch from standard screw hoops to a magnetic embroidery hoop to auto-clamp varying thickness without over-compression.
• Q: What stabilizer should I use for sweater or hoodie embroidery on a Ricoma EM1010 to prevent puckering and distortion?
  A: Use cut-away stabilizer for Ricoma EM1010 sweater/hoodie embroidery, cut oversized so the hoop grips stabilizer—not just fabric.
  • Choose: Pick 2.5 oz or 3.0 oz cut-away for stretchy knits; use two layers when the design is very heavy (for example, over 15,000 stitches).
  • Cut: Trim stabilizer at least about 1.5 inches larger than the hoop opening on all sides.
  • Place: Put stabilizer inside the garment on the bottom ring and keep it flat before hooping.
  • Success check: After stitching, the area around the design stays flat with no “wave” or pulling, and the backing remains intact (not torn away).
  • If it still fails… Re-check hoop tightness and slow the machine if fabric shifting is visible during the first stitches.
• Q: How do I prevent a Ricoma EM1010 from sewing a sweatshirt shut when embroidering on a tubular/cylinder arm?
  A: Always do the Ricoma EM1010 “tunnel check” before pressing Start so the back of the garment is not under the needle plate.
  • Lift: Slightly lift the hooped garment to create a clear tunnel around the cylinder arm.
  • Feel: Slide a hand under the needle plate area; confirm only metal is felt, not fabric.
  • Secure: Clip or hold excess bulk (back panel/sleeves/hood) away from the pantograph movement path.
  • Success check: A clear open tunnel remains while the hoop moves, and the back layer never drifts under the stitching area.
  • If it still fails… Stop immediately and re-mount the hoop; do not “try to finish” hoping it clears.
• Q: Why should I trace twice on a Ricoma EM1010 when embroidering thick sweaters, and how do I avoid presser foot hitting the hoop?
  A: Trace the design twice and visually confirm presser-foot clearance, because thick fabric sits higher and reduces safe clearance.
  • Center: Use “Center to Hoop” first so the trace reflects the true stitch path.
  • Trace: Run a full border trace two times while watching the hoop edges.
  • Lower: Manually lower the presser foot during the trace to confirm the foot clears the hoop rim at the lowest point.
  • Success check: The presser foot clears the hoop edge everywhere during the trace; no near-strikes at corners or tight areas.
  • If it still fails… Re-center the design or choose a larger hoop/opening; do not start stitching if clearance is questionable.
• Q: What RPM is a safe starting speed on a Ricoma EM1010 for embroidering thick fleece or sweatshirts, and what signs mean it is too fast?
  A: Start around 600–700 RPM on thick garments and only increase if the Ricoma EM1010 runs smooth and stable.
  • Start: Run the first 50 stitches slowly enough to verify anchoring and no shifting.
  • Listen: Increase toward 750 RPM only if the machine sound stays rhythmic and the table does not shake.
  • Watch: Slow down immediately if the fabric “flags” (bounces with needle penetrations).
  • Success check: The machine hum stays steady, the garment bulk is not swinging, and stitch placement stays consistent (no registration drift).
  • If it still fails… Re-hoop tighter and confirm cut-away stabilizer is properly sized and gripped by the hoop.
• Q: How do I check Ricoma EM1010 thread tension after embroidering a sweatshirt using the bobbin-back “1/3 rule”?
  A: Inspect the back of the embroidery first; on satin columns, about one-third white bobbin thread centered on the back indicates balanced top tension.
  • Flip: Check the back immediately after removing the hoop—before trimming stabilizer.
  • Compare: Look for a centered bobbin “rail” rather than all top thread showing on the back or excessive bobbin showing.
  • Trim: Cut away stabilizer neatly, leaving a modest margin around the design for support.
  • Success check: The back shows a clean, centered bobbin presence (about 1/3 on satin areas), and the front looks smooth without puckering.
  • If it still fails… Re-test on scrap with the same sweater thickness; verify needle choice (ballpoint for knits) and re-check top tension per the machine manual.
• Q: What safety steps should I follow on a Ricoma EM1010 when working near the needle area, and what extra safety applies to magnetic embroidery hoops?
  A: Keep the Ricoma EM1010 in a confirmed Stop state before reaching near the presser foot/needle, and treat magnetic hoops as pinch-hazard tools.
  • Stop: Confirm the machine is stopped before placing hands near the needle area; avoid accidental Trace/Start movement.
  • Clear: Keep scissors and loose threads away from the needle zone when powered on.
  • Handle: When using magnetic hoops, separate and join magnets deliberately to avoid finger pinches.
  • Success check: Hands never enter the needle area while the machine can move, and magnetic frames are assembled without snapping onto fingers.
  • If it still fails… Pause production and review the machine’s safety guidance; keep magnetic frames away from pacemakers and sensitive items as a precaution.
