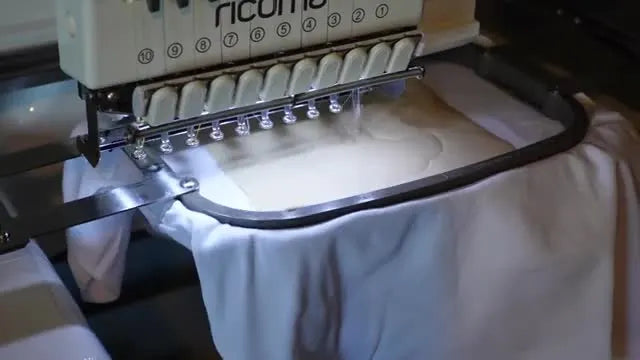

Ricoma EM1010 Appliqué Shirts, First Run: The Stops, the Hooping Struggle, and the Fixes That Save Your Sanity

If you’ve ever hovered over the Start button on a multi-needle machine with your heart in your throat… you’re not alone. That psychological pause is normal—especially on your first Ricoma EM1010 appliqué run. One missed setting isn't just a software error; on a 1,000 stitch-per-minute (SPM) machine, it can turn a clean shirt into a "why is it still sewing?" disaster in seconds.

This guide rebuilds the workflow shown in the video into an industrial-grade standard operating procedure (SOP). We move beyond "hoping it works" to a repeatable studio routine: precise Heat n Bond prep, mastering the physics of hooping knits, manually programming stops, and finishing for retail-quality comfort.

The “Start Button Panic” on the Ricoma EM1010—What’s Normal, What’s Not

A first run on a 10-needle machine feels different because the machine is built for throughput, not hand-holding. On a single-needle home machine, you’re accustomed to the machine pausing for every color change, practically begging for your input. On the EM1010, the default behavior is production-minded: it assumes you want speed and will happily race to the next needle unless you explicitly command a stop.

So yes—double-checking your sequence before you press Start is a healthy survival instinct, not a lack of confidence.

Two quick mindset shifts that will save you a lot of frustration:

• Sequence is King, Speed is Queen. Your "order of operations" (colors/stops/trace) matters infinitely more than running at 1000 SPM. Beginner Sweet Spot: Run your first appliqué at 600-700 SPM. You gain reaction time without sacrificing stitch quality.
• Hooping is the real boss fight on small shirts. The video creator stitched great results, but placement and specific "hoop marks" were the pain points. This is a mechanical limitation of standard plastic hoops on delicate knits.


The Hidden Prep Pros Do Before Heat n Bond Lite (So Appliqué Doesn’t Lift or Pucker)

In the video, the appliqué fabric is prepped by ironing Heat n Bond Lite onto the back of fabric scraps. That’s the correct foundation—but the "pro" difference lies in controlling distortion and adhesion temperature.

The Science of Adhesion: If the adhesive isn't fully bonded, the fabric shifts during the tack-down step, and your satin border will "chase" the edge, leaving gaps. If you over-heat, the glue absorbs into the fiber, leaving nothing to stick to the shirt.

Fabric Prep Protocol:

1. Iron setting: Medium heat (Synthetic/Wool). Zero steam. Steam prevents the bond.
2. The Press: Place Heat n Bond (textured side down) on the back of the scrap. Press for 2-3 seconds only.
3. The Sensory Check: The paper backing should look smooth. If it bubbles, your iron is too hot. If it peels off with the paper, it was too cool or too short.


Expert insight (why this matters): Properly backed fabric essentially becomes paper-like. It doesn't fray, and it doesn't stretch. This stability is the only way to get those crisp, razor-sharp satin edges where the fabric meets the thread.

Pro tip from the comments, made practical: One viewer mentioned using a heat press to apply Heat n Bond faster. That can be a real time-saver in a shop setting—as long as your press is on a stable table and you’re consistent with your press routine.

Prep Checklist (do this before you hoop anything)

• Heat n Bond Lite is pressed (2-3 sec, no steam) and paper peeled off.
• Hidden Consumable: Appliqué pieces are cut 1/2 inch larger than the placement line.
• Stabilizer Choice: Cut-away stabilizer (2.5 - 3.0 oz) is ready. Never use Tear-away for knit tees; the stitches will pop when the shirt stretches.
• Tender Touch backing is on hand for the final inside finish.
• Small curved appliqué scissors (duckbill preferred) are within reach.


Hooping a Small T-Shirt in a 5x7 Standard Hoop Without Stretching It Into a Weird Shape

The video shows hooping a small shirt with a standard 5x7 hoop: bottom ring inside the shirt, then pressing the top ring down. The creator calls it "tricky," especially coming from a Brother PE800 habit of floating.

The struggle is real because standard hoops rely on friction and distortion. To hold the fabric tight, you have to force the inner ring against the outer ring, creating tension that naturally wants to stretch stretchy knit fabric.

If you’re working with hooping for embroidery machine, here’s the practical goal: secure the shirt and stabilizer so the fabric creates a "drum skin" tension, without distorting the grain of the weave.

The Protocol:

• Visual Check: Look at the vertical ribs of the t-shirt knit. They must run straight up and down through the hoop, not curving like a banana.
• Tactile Check: Tap the hooped stabilizer. It should make a light thumping sound.

The "Physics" of the Struggle:

• Knit tees stretch easily. If you pull the shirt after the hoop is partially seated to smooth it out, you create a "memory" in the fabric that snaps back later, causing puckering.
• The Upgrade Path: This friction-based struggle is exactly why professional shops eventually upgrade to SEWTECH Magnetic Hoops. Magnets clamp straight down without forcing the fabric into a crevice, eliminating the "tug-of-war" that causes misalignment on small shirts.

Warning: Mechanical Safety. Keep fingers strictly clear of the inner/outer ring convergence zone when snapping a standard hoop together. When working with small shirts, pinning the excess fabric out of the way is crucial—ensure no part of the back of the shirt is folded under the needle area.

Setup Checklist (before the shirt goes on the machine arm)

• Cut-away stabilizer is smooth; no wrinkles trapped between layers.
• Shirt grain is vertical; no "smile" or "frown" distortion in the knit lines.
• Clearance Check: You can feel the plastic edges of the hoop through the shirt layers to ensure orientation.
• Hoop is fully seated and locked (listen for the final click or check the screw tightness).
• Excess shirt material is folded back and secured (clips or tape) so it doesn't get embroidered to the front.

Programming Manual Stops on the Ricoma EM1010 Touchscreen (The One Thing That Makes Appliqué Work)

This is the most critical technical lesson: The EM1010 does not know you are doing appliqué. It sees color data, not "fabric placement" data.

The creator manually taps the hand icon (stop command) between color steps on the touchscreen so the machine pauses for trimming.

If you miss this step, the machine will stitch the placement line and immediately begin the tack-down or satin stitch, ruining the effect.

The EM1010 “Cheat Sheet” Order (based on the video workflow)

1. Load Design: Import your DST/EMB file.
2. Color Sequence: Assign needle numbers to colors.
3. Insert Stops (The Critical Step):
   • Find the transition between Color 1 (Placement) and Color 2 (Tack-down). Tap the Hand/Stop Icon.
   • Find the transition between Color 2 (Tack-down) and Color 3 (Satin Border). Tap the Hand/Stop Icon.
4. Trace: Run the boundary check.
5. Review: Look at the screen. Do you see the "Stop" symbols in the timeline?


Watch out (common beginner trap): Color changes on the screen often look similar (e.g., Red to Red). Always rely on the step number, not just the visual color color, to place your stops.

The Boundary Trace on Ricoma EM1010: Your Last Safe Check Before You Commit

The video shows running the trace function right before pressing Start. On a multi-needle machine, the needle bar housing is bulky. A hoop strike here isn't just a broken needle; it can knock the machine's timing out, requiring a technician.

The Visual/Auditory Confirmation:

• Listen: You should hear the pantograph motors moving smoothly. Grinding noises mean obstruction.
• Look: Watch the presser foot (the metal toe). It must stay at least 3-5mm away from the inner plastic edge of the hoop at the tightest corners.

Why tracing matters: On small shirts (size 2T-4T), the hoop is small, and the design often fills it. Your margin for error is near zero.

The Appliqué Stitch-and-Trim Rhythm: Placement Line → Fabric → Tack-Down → Trim → Satin Border

Once programmed, the physical workflow follows a strict rhythm.

1. Placement Line: Machine stitches the outline. Machine Stops.
2. Action: Spray a light mist of temporary adhesive (like 505 spray) on the back of your Heat n Bonded fabric. Place it inside the stitch line.
3. Tack-Down: Machine stitches a zigzag or running stitch to hold the fabric. Machine Stops.
4. The Trim (Crucial Skill): Remove the hoop or slide it forward (if machine allows). Use Double-Curved Scissors.
   • Technique: Lift the fabric edge slightly. Rest the "bill" of the scissors on the stitches. Glide the blades. Don't "chop"—glide.
5. Satin Border: Machine finishes the edge.


Trimming technique (what I’d add as a shop owner): The goal is to cut close enough (1-2mm) so the satin stitch covers the raw edge, but not so close that you cut the tack-down threads. If you cut the tack-down threads, the fabric will pull out later.

Comment-based pro tip: Trim jump stitches as you go. It is much harder to dig out a thread tail buried under a dense satin column than it is to snip it now.

Operation Checklist (during the stitch-out)

• Stop 1 Confirmed: Machine paused after placement line.
• Material Coverage: Appliqué fabric covers the entire placement line by at least 3mm before tack-down.
• Stop 2 Confirmed: Machine paused after tack-down.
• Clean Trim: No "whiskers" of fabric sticking out further than the future satin stitch width (approx 3-4mm).
• Start Check: Before resuming for the final border, ensure the excess shirt fabric hasn't bunched up under the hoop during trimming.

Fixing “Design Placement Too Low” on Small Shirts (Without Blaming Yourself)

In the video, the first shirt landed too low. The second was better but drifted left. This is a classic symptom of "Floating" habits clashing with "Hooping" reality.

The Placement Standard: For a standard Youth XS or Small Tee (Size 4-6):

• Center: Fold the shirt vertically to find the centerline. Mark with a partially water-soluble pen or chalk.
• Height: The top of the design should sit approximately 2 to 2.5 inches down from the collar seam.

If you rely on your eyes, you will fail. Use a ruler.

If you’re currently using brother 5x7 hoop habits, remember: The Brother machine has a smaller physical footprint. The EM1010 has a large arm. You cannot "eyeball" center based on the machine arm; you must align the hoop marks to the shirt marks.

When Standard Hoops Leave Marks: Hoop Shadow, Hoop Burn, and What Actually Helps

The video shows a visible hoop outline ("hoop burn") on the finished shirt. This occurs because the inner ring crushes the cotton fibers against the outer ring, sometimes permanently damaging the pile of the fabric.

Diagnostics & Solutions:

• Quick Fix (Level 1): Use "Magic Spray" or simply steam with a distilled water iron. Often, re-hydrating the fibers allows them to spring back.
• Prevention (Level 2): Hooping with less tension (risky for registration) or using a "floating" technique with sticky stabilizer (messy).
• The Tool Upgrade (Level 3): This is the primary trigger for buying Magnetic Hoops (like SEWTECH brand or Mighty Hoops). Because they use vertical magnetic force rather than friction/wedging, they hold the shirt firmly without crushing the fibers. They virtually eliminate hoop burn on delicate knits.

Terms like magnetic embroidery hoops appear constantly in forums because they solve this specific "crushed fabric" problem while also making hooping 3x faster.

Warning: Magnetic Safety. Powerful magnetic hoops can pinch skin severely causing blood blisters. They can also interfere with pacemakers. Keep them at least 6 inches away from computerized medical devices and credit cards.

Stabilizer + Shirt Decision Tree: A Fast Way to Stop Guessing

The video uses cut-away stabilizer and finishes with Tender Touch backing. That’s a solid, wearable combo for kids’ shirts.

Use this decision tree to prevent puckering and skin irritation:

Decision Tree: Stabilizer for T-Shirts 1. Is the fabric stretchy (Knit/Jersey/Poly)?

• YES: Use Cut-Away (2.5oz). Why? The stabilizer must support the stitches forever. If you tear it away, the shirt stretches, and stitches distort.
• NO (Denim/Canvas): Tear-Away is acceptable.

2. Is the design dense (10,000+ stitches) or Appliqué?

• YES: Use 2 layers of No-Show Mesh OR 1 layer of heavy Cut-Away.
• NO: Standard Cut-Away.

3. Is it touching skin (Baby/Kid)?

• YES: Apply iron-on Fusible Cover (Tender Touch) over the back after trimming.

If you’re trying to build a repeatable supply list for embroidering t-shirts, stocking quality Cut-Away and Fusible Cover is non-negotiable.

Finishing the Inside Like a Pro: Trimming Stabilizer + Adding Tender Touch Backing

The "scratch factor" is the #1 complaint from customers regarding embroidery.

The Professional Finish Protocol:

1. Trim Stabilizer: Cut the Cut-Away stabilizer roughly 0.5 inches around the design. Do not cut flush to the stitches. You need a margin of stabilizer to maintain structure.
2. Round the Corners: Cut the stabilizer in a rounded shape (oval/circle). Sharp corners of stabilizer will poke the child's skin.
3. fuse: Cut a piece of Tender Touch slightly larger than the stabilizer. Press with an iron to fuse it. This seals the scratchy bobbin threads and stabilizer edges.


The Upgrade Path That Actually Makes Sense: 5x7 Hoop → 8x9 Magnetic Hoop → Production Flow

The creator explains her desire for an 8x9 hoop. The reasoning is sound: A 5x7 is often just too narrow for a wide design + a name, while an 8x12 is physically too long for a Size 4 shirt (stretching the neck hole).

The "Sweet Spot" Upgrade: If you are researching ricoma em 1010 mighty hoops, you will find that the 8x9 inch (approx 200x230mm) size is the "Golden Ratio" for youth and adult left-chest/center chest production.

Tool upgrade path (When to spend money):

• Pain Point: Hooping takes 5 minutes per shirt and leaves marks.
  • Solution: SEWTECH Magnetic Hoop. Reduces hooping to 30 seconds; eliminates burn.
• Pain Point: You need to add a name, but the 5x7 hoop is full.
  • Solution: Mid-size Production Hoop (8x9). Allows design + text without re-hooping.
• Pain Point: You have orders for 50+ shirts and hooping is your bottleneck.
  • Solution: This is when you look at SEWTECH Multi-Needle Machines with larger fields or adding a second machine to double output.

For anyone comparing mighty hoop for ricoma options, prioritize the size that fits your garment, not just the maximum size that fits your machine.

A Quick Reality Check for New Buyers: What People Really Struggle With on the EM1010

The video comments are filled with people asking for "cheat sheets." This indicates that the mechanics (threading/bobbin) are easy, but the software logic (stops/color order) is the hurdle.

If you’re considering ricoma em 1010 embroidery machine ownership, here is the honest assessment:

• Learning Curve: High on the screen interface (programming stops). Low on physical threading (it's intuitive).
• Physical Demand: Hooping small garments requires hand strength and dexterity unless you upgrade to magnetic frames.
• Reliability: Once the user dials in the settings (tension/speed), the machine is a workhorse.


The Results (Rubble + Batmobile) and the One Lesson to Carry Into Your Next Shirt

The video’s finished shirts stitched out great: clean appliqué with no gaps. The "issues"—placement drift and hoop marks—are environmental, not machine faults.

The Final Takeaway: Stitch quality is determined by your Prep (Heat n Bond/Stabilizer). Production speed is determined by your Tools (Magnetic Hoops).

If you master the "Stop" command and upgrade your hooping strategy, you stop feeling like a gambler at a slot machine and start running a professional shop.

FAQ

• Q: On the Ricoma EM1010, why does an appliqué design keep stitching past the placement line without stopping?
  A: Insert manual Stop commands (Hand/Stop icon) between the placement line, tack-down, and satin border so the Ricoma EM1010 pauses for fabric placement and trimming.
  • Tap the Hand/Stop icon at the transition from Color 1 (Placement) to Color 2 (Tack-down).
  • Tap the Hand/Stop icon at the transition from Color 2 (Tack-down) to Color 3 (Satin Border).
  • Success check: Stop symbols appear in the timeline, and the machine physically pauses after the placement line and after the tack-down.
  • If it still fails: Re-check by step number (not color appearance) because similar colors can look identical on-screen.
• Q: What iron settings prevent Heat n Bond Lite appliqué fabric from lifting or puckering during embroidery?
  A: Use medium heat with zero steam and press for only 2–3 seconds to bond Heat n Bond Lite without overheating the adhesive.
  • Set the iron to Medium (Synthetic/Wool) and turn steam off.
  • Press Heat n Bond Lite textured-side down for 2–3 seconds (do not “camp” on it).
  • Success check: The paper backing looks smooth (no bubbling) and peels cleanly; the fabric feels more stable/paper-like.
  • If it still fails: If bubbling occurs, lower heat; if the adhesive peels off with the paper, increase press time slightly while keeping steam off.
• Q: How do I hoop a small knit T-shirt in a 5x7 standard hoop on a Ricoma EM1010 without stretching the shirt out of shape?
  A: Hoop to stabilize the shirt and cut-away without distorting the knit grain, because standard hoops can stretch knits during clamping.
  • Align the shirt so the vertical knit ribs run straight through the hoop (no “banana” curve).
  • Smooth layers before fully seating the hoop; avoid pulling the shirt after the hoop is partly snapped in.
  • Success check: The hooped area looks square to the grain and gives a light “thump” when tapped (drum-skin tension without warp).
  • If it still fails: Reduce handling and re-hoop from scratch; if distortion/marks keep happening, a magnetic hoop often clamps without the friction stretch.
• Q: What is the safest way to avoid a hoop strike when running Boundary Trace on a Ricoma EM1010?
  A: Always run Boundary Trace and confirm presser-foot-to-hoop clearance before pressing Start, especially on small shirts where margins are tight.
  • Run the trace and watch the presser foot at the tightest corners.
  • Stop immediately if any obstruction or abnormal grinding sound occurs.
  • Success check: Pantograph motion sounds smooth, and the presser foot stays about 3–5 mm away from the inner hoop edge at closest points.
  • If it still fails: Re-center the hoop/design and trace again; do not stitch until clearance is confirmed to avoid a hoop strike and potential timing issues.
• Q: What causes “design placement too low” on youth T-shirts when using a Ricoma EM1010 5x7 hoop, and how do I fix it consistently?
  A: Use measurement-based marking (not eyeballing) and align hoop marks to shirt marks to prevent low or drifting placement on small garments.
  • Fold the shirt vertically to find the centerline and mark it with a washable marker/chalk.
  • Measure placement so the top of the design sits about 2 to 2.5 inches below the collar seam for Youth XS/Small (size 4–6).
  • Success check: The hoop’s center/guide marks line up exactly with the shirt’s centerline and measured height mark before stitching.
  • If it still fails: Re-check that excess shirt fabric is clipped/taped out of the sewing field so it does not tug the hoop during stitching.
• Q: How do I reduce hoop burn (hoop shadow) on knit T-shirts embroidered in a standard plastic hoop?
  A: Lightly rehydrate the fibers after sewing (steam or “Magic Spray”) for a quick improvement, and consider a magnetic hoop if hoop marks are a recurring problem.
  • Steam the hooped area with a distilled-water iron or use a fabric “Magic Spray” type product.
  • Re-hoop with only the tension needed for stability (too much pressure increases crushing).
  • Success check: The visible hoop outline fades as the knit fibers recover and the surface texture looks more even.
  • If it still fails: Move to a magnetic hoop approach, which often holds firmly without the friction/wedging pressure that crushes fibers.
• Q: What are the main safety risks when using standard hoops and magnetic hoops for embroidery, and how do I prevent injuries?
  A: Keep fingers clear when snapping standard hoops, and treat magnetic hoops as pinch hazards that can also affect pacemakers and magnetic-stripe items.
  • Keep fingers out of the convergence zone when pressing a standard inner/outer ring together; secure excess garment fabric so it cannot fold under the needle area.
  • Handle magnetic hoops deliberately and keep skin clear of magnet contact points to avoid severe pinches.
  • Success check: Hooping/unhooping is controlled with no sudden snaps, and the garment is fully secured away from the needle path before Start.
  • If it still fails: Stop and reset the setup; keep magnetic hoops at least 6 inches away from pacemakers/computerized medical devices and away from credit cards.
