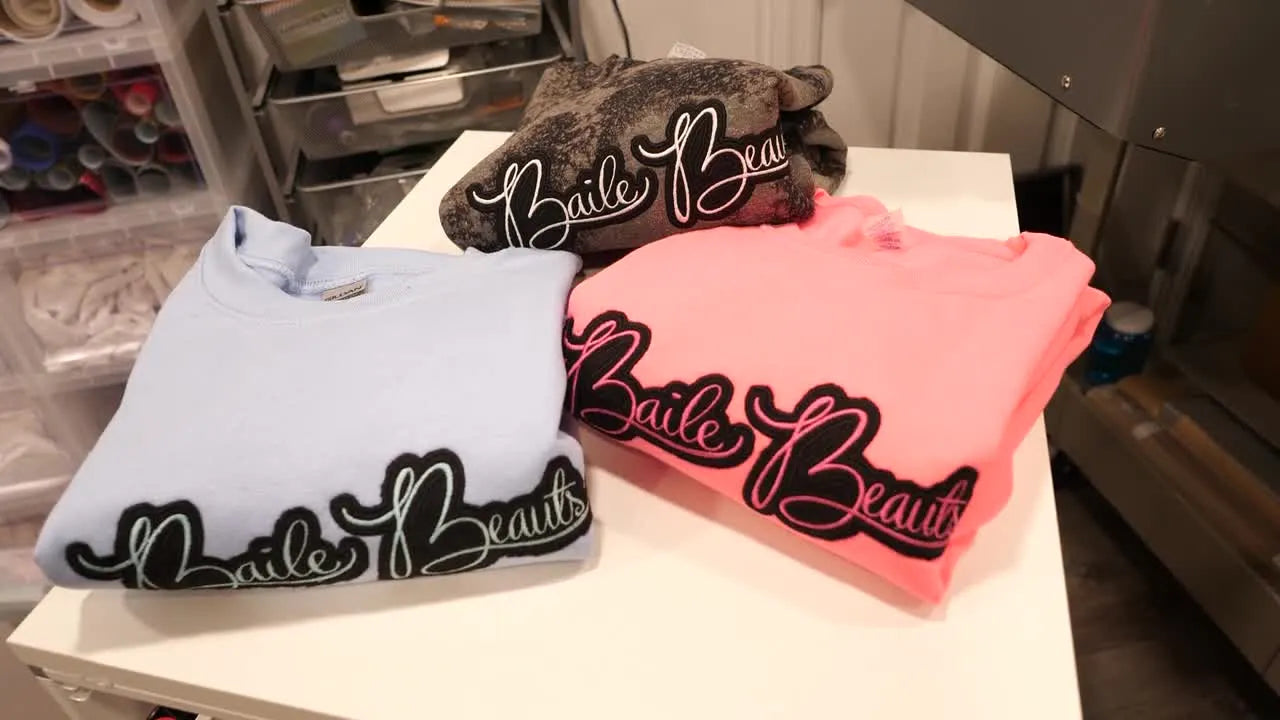

Ricoma EM1010 Appliqué on Tie-Dye Sweatshirts: The “Frame Out” Workflow That Saves Jobs (and Prevents Ruined Placement)

If you’ve ever watched an appliqué run and thought, “One tiny shift and this whole sweatshirt is toast,” you’re not being dramatic—you’re being realistic. On a multi-needle machine like the Ricoma EM1010, appliqué is fast and profitable only when your stops, hooping, and re-hooping discipline are tight.

Appliqué is where the "art" of embroidery meets the "science" of production engineering. It relies on a specific sequence of physical interventions. This post rebuilds the exact start-to-finish workflow demonstrated in the video: Chroma Luxe stitch order (placement → tack-down → border), export as DST, USB transfer (including the necessary recognition workaround), programming colors and Frame Out, tracing, placement stitch, fabric placement, tack-down, trimming, careful hoop reloading, final satin borders, and finishing with Tender Touch.

Don’t Panic—Appliqué on the Ricoma EM1010 Is Predictable When You Control the Stops

Appliqué feels “high risk” to novices because you are intentionally interrupting the machine’s flow: stitch, stop, place fabric, stitch, stop, trim, then stitch again. That’s exactly why the Frame Out function matters—your machine isn’t “messing up,” it’s continuously executing a logic chain you built.

The calm mindset I want you to adopt is this: Every stop is a quality checkpoint.

• Stop 1 (Placement): The Contract. This tells you exactly where the fabric lives.
• Stop 2 (Tack-down): The Anchor. This secures the fabric so you can cut.
• Stop 3+ (Satin/Fill): The Seal. This covers raw edges and finishes the design.

When you treat each stop like a checkpoint rather than an interruption, you’ll stop rushing. Rushing is the root cause of misalignment, thread breaks, and ugly borders.

The “Hidden” Prep Before You Touch Chroma Luxe: Sweatshirt + Stabilizer + Hoop Reality Check

The video assumes you already have thread loaded and you’re generally familiar with the EM1010. That’s fair—but in real shops, the jobs that fail are usually the ones that skipped the physical prep.

Here’s the empirical reality of embroidering on tie-dye sweatshirts (thicker knit, sometimes lofty, always stretchy): you are managing bulk and movement.

What the video shows (and what it implies)

• A standard tubular hoop (approx. 8x13 inches) is used.
• Cutaway stabilizer is visible in the hoop. Rule of Thumb: If the fabric stretches (like a sweatshirt), the stabilizer must not stretch. Always use good quality cutaway (2.5oz or 3.0oz).
• The garment is hooped and loaded before stitching.

My expert add-on: Why sweatshirts punish sloppy hooping

A sweatshirt can “feel tight” in a standard plastic hoop and still shift during the frame-out/frame-in cycles. Why? Because the knit rebounds against the hoop tension, and the thick fleece compresses differently every time you clamp it. The reloading moment (after you remove the hoop to trim) is your highest risk point.

The Sensory Check: When you hoop a sweatshirt with cutaway, tap the fabric in the center. It shouldn't sound like a high-pitched drum (too tight, stretches the knit) nor should it feel spongy (too loose). It should feel firm and stable, like a well-made bedsheet.

If you are constantly fighting hoop burn (circular marks left by pressure), slow hooping processes, or inconsistent tension, you have hit a hardware ceiling. This is where professional shops upgrade their tooling. Terms like magnetic embroidery hoops appear frequently in production searches for a reason—they use magnetic force to clamp thick fabrics instantly without the "unscrew-push-pull-screw" friction of traditional hoops, drastically reducing hoop burn and prep time.

Prep Checklist: The "No-Fail" Protocol

• Stabilizer Match: Confirm you are using Cutaway stabilizer (2.5oz+) for sweatshirts. Tearaway will fail here.
• Obstruction Check: Load the sweatshirt so seams, hood strings, pockets, and thick zippers are completely outside the stitch field.
• Material Prep: Pre-cut your appliqué fabric piece. It must be 1 inch larger than your design on all sides.
• Hoop Tension: If using standard hoops, loosen the screw almost entirely before inserting the inner ring, then tighten. Do not force the ring in; you will burn the fabric fibers.
• Tool Station: Place your curved appliqué scissors within arm's reach before hitting start.

Hidden Consumables:

• Temporary Spray Adhesive (KK100 or 505): Lightly mist the back of your appliqué fabric to keep it from bubbling during the tack-down.
• Fresh Needle: Start with a fresh 75/11 Ballpoint needle for knits.


Chroma Luxe Stitch Order: Placement → Tack-Down → Border (and the DST Export That Ricoma Reads)

In the software phase (Chroma Luxe), the design is reviewed with the stitch sequence clearly laid out: placement stitch first, then tack-down, then border.

Two details from the video are non-negotiable:

1. The file is saved explicitly as .DST. While machines read many formats, DST is the industrial "Esperanto" that the Ricoma EM1010 reads most reliably.
2. The design name is short and clear. Avoid special characters in filenames.

If you are designing workflows for a ricoma em 1010 embroidery machine, sticking to DST format ensures your coordinates (X/Y moves) and stops translate perfectly from computer to machine.

A digitizing nuance: The "Travel Gap"

Near the end of the stitch-out, the host points out he leaves slight gaps between letters. This is a critical machine behavior management technique.

• The Physics: Dense satin stitches raise the physical height of the embroidery. If letters touch, the presser foot has to "climb" up and down these thread mountains, causing flagging (bouncing fabric) and needle deflection.
• The Fix: A tiny gap (0.5mm - 1mm) allows the foot to travel smoothly on the fabric, preventing thread shreds.

USB Transfer on the Ricoma EM1010: The Workaround When the Thumb Drive Looks Empty

Is your machine refusing to see the files on your USB? This is a common firmware "handshake" issue on this interface. The video demonstrates the precise workaround.

The 100% Success Recognition Sequence

If the USB doesn’t load or show files:

1. Remove the USB drive physically.
2. Press the File/Design button menu on the screen first.
3. Re-insert the USB drive while on that screen.
4. Press the USB/flash drive icon.

Wait for the machine to "think" (about 2-5 seconds). You should see your file list populate.

Production Habit: Copy to Memory

• Select the file on the USB.
• Use the "Machine Memory" icon (usually an arrow pointing to a machine or folder) to copy it to internal storage.
• Why? Running directly from a USB stick is risky. If the stick vibrates loose by a millimeter during stitching, the machine freezes. Always run from internal memory.

Color Programming + “Frame Out” Stops: The Appliqué Control Panel Moves That Make This Whole Job Possible

This is where intermediate users often stumble. They pick colors but forget the motion commands. The video executes this correctly by telling the machine how to behave at each stop.

The "Frame Out" Logic

The EM1010 allows you to set a parameter often called "Frame Out" or "Offset" for specific stops.

• Stop 1 (Placement) → Frame Out: ON. The machine stitches the outline, then moves the hoop toward you (Y-axis) so you can place the fabric safely.
• Stop 2 (Tack-down) → Frame Out: ON. The machine stitches the anchor, then moves the hoop toward you so you can trim the fabric.

Setup Checklist: Before You Press Start

• Color Map: Have your printed worksheet ready. Know exactly which needle corresponds to the Placement, Tack-down, and Satin steps.
• Frame Out Check: Verify on the screen that the "Hand" or "Offset" icon is active for Stop 1 and Stop 2.
• Speed Limit: The video uses 700 SPM.
  • Beginner Safe Zone: 600 SPM.
  • Expert Zone: 800+ SPM (only if your stabilization is perfect).
  • Recommendation: Appliqué involves stopping frequently. High speed gains you very little time but increases risk of thread breakage. Stick to 650-700 SPM.


The Trace Habit on the Ricoma EM1010: One Button That Prevents Hoop Strikes

Before stitching, the video runs a Trace (Design Outline Check).

This is not optional. It is your insurance policy. A "Hoop Strike" (needle hitting the plastic frame) creates a catastrophic chain reaction: Broken Needle → Burred Hook Assembly → Timing Issue → expensive repair bill.

Warning: Hand Safety
During the Trace and actual stitching, keep hands at least 6 inches away from the active needle bar. Never reach under the presser foot to smooth fabric while the machine is live. If you need to adjust, hit the Emergency Stop or Pause button first.

Placement Stitch on a Hooped Sweatshirt: Your Outline Is Your Contract

The first step is the Placement Stitch. This is a simple running stitch. Once it finishes, the machine should immediately Frame Out (move the hoop toward you).

Quality Check: Look at the outline. Is it puckered? If the fabric is bunching inside the outline already, your hooping was too loose. Abort and re-hoop now. It will not get better.

Appliqué Fabric Placement + Tack-Down: Cover the Outline, Then Frame In and Stitch

With the hoop extended toward you, place your appliqué fabric (the video uses a black felt/material) over the outline.

Critical Rule: The fabric must extend at least 0.5 to 1.0 inch past the placement line on all sides. Do not skimp here.

• Move: Press Frame In (or Start, depending on settings) to retract the hoop.
• Stitch: The machine runs the Tack-down stitch. This is usually a double running stitch or a zigzag.


Note on Materials: The host mentions using felt from a fabric store (Joann Fabrics). Felt is excellent for beginners—it is stable, doesn't fray, and hides stitching errors well. Slippery satin or thin cotton is much harder to master.

Trimming Excess Appliqué Fabric: The Clean Edge Comes From the Cut, Not the Satin

After the tack-down, the machine Frames Out again. The video shows removing the hoop to trim at a table.

The Tactile Technique

1. Removal: Unlock the hoop arms carefully. Do not yank.
2. The Cut: Use Double Curved Appliqué Scissors (often called "duckbill" scissors). The paddle shape protects the base fabric while the blade cuts the appliqué.
3. The Feel: You should feel the scissors gliding against the edge of the stitches.
4. The Goal: Trim within 1-2mm of the tack-down stitch. Too much fabric left = tufts poking through the satin. Too close = cutting the stitch and unraveling everything.

Warning: The "Fatal Snippet"
Take your time. If you accidentally snip your sweatshirt fabric (the base layer), the garment is ruined. There is no easy fix for a hole in the base. Slow is smooth, smooth is fast.

The Make-or-Break Moment: Re-Loading the Tubular Hoop Without Shifting the Inner Ring

The video emphasizes being "very, very careful" when putting the hoop back in.

The Physics of Failure: Standard tubular hoops rely on friction. When you handle the hoop to trim, twisting the outer ring can cause the inner ring (holding the fabric) to slip or rotate slightly. Even a 1mm shift means your final satin border will not line up with your tack-down stitch.

My Shop Rule: When trimming, place the hoop flat on a table. Rotate the hoop to get better cutting angles, do not rotate the fabric inside it. Support the weight of the sweatshirt so it doesn't drag the hoop down.

If this step constantly slows you down or causes alignment errors, your workflow has outgrown standard hoops. Consider investing in a dedicated hooping station for embroidery. These devices hold the hoop rigid and ensure consistent placement, which is vital when you are doing volume runs (e.g., 50 hoodies).

Final Satin Stitching: Why the “Little Gaps” in Digitizing Make the Machine Run Smoother

With the hoop re-loaded, the machine runs the final Satin Borders.

If you experience frequent thread breaks here, troubleshoot in this order (Low Cost to High Cost):

1. Re-thread: 90% of issues are a thread jumping out of the tension disc.
2. Needle Check: Is the needle sticky from adhesive spray? Is it dull? Change it.
3. Speed: Drop speed to 600 SPM. Satin over thick felt creates high friction.
4. Tension: Only touch the tension knobs if the first three fail.

Comment-driven Insight

A viewer asked about thread breaks. The creator correctly identifies tension and pathing. My addition: Stabilizer density. If your satin is ultra-dense and you only used one layer of cutaway, the needle is hammering the fabric into the throat plate hole. Stability fixes breakages.

Tender Touch Finishing: The Comfort Upgrade Clients Notice Immediately

The video finishes by applying Tender Touch (a fusible tricot backing) to the inside of the garment.

This covers the scratchy bobbin thread.

• The Check: Cut a piece slightly larger than the design. round the corners (sharp corners peel up).
• The Application: Fuse it with an iron/presser on the inside of the sweatshirt.
• The Value: This turns a "commodity" product into a "retail ready" premium product.

A Practical Stabilizer Decision Tree for Sweatshirts + Appliqué (So You Don’t Guess)

Scenario: You are stitching an Appliqué on a Hoodie.

1. What Goes in the Hoop?
   • Decision: Cutaway Stabilizer (2.5 - 3.0 oz).
   • Why? Knits stretch; cutaway locks the fibers. Tearaway is forbidden.
2. Does the design have dense Satin Borders?
   • Decision: You might need two layers of Cutaway or one layer of "No Show Mesh" + one layer of Cutaway.
   • Why? To prevent "tunneling" (where the edges of the satin pull the fabric inward).
3. Is it wear-against-skin?
   • Decision: Apply Tender Touch (Cloud Cover) post-embroidery.

“Limit X” on the Screen: The Design Is Too Big for the Embroidery Field

If you see a "Limit X" or "Limit Y" error, the machine is shouting a safety warning: "The design you loaded is physically larger than the hoop area you told me I have."

Structured Troubleshooting:

1. Check Hoop Setting: Did you tell the machine (in settings) you are using Hoop A (large) but put on Hoop B (small)?
2. Check Center: Is the design centered? If a 4-inch design is centered 3 inches to the right, it will hit the limit.
3. Check File: Go back to software. Is the design actually 200mm wide when your hoop is only 190mm? Scale it down by 5-10%.

The Upgrade Path When You’re Ready to Produce (Not Just Practice)

The video concludes with advice on investing in yourself. In the embroidery business, "investment" means buying tools that purchase speed and consistency.

Here is your diagnostic for when to upgrade:

1. The Hooping Bottleneck:
   • Symptom: Your wrists hurt, you leave hoop burn marks on black hoodies, or re-hooping takes longer than stitching.
   • Solution: Level up your hooping. Terms like hoop master embroidery hooping station set the standard for alignment, but for the hoop itself, moving to magnetic frames is the game changer.
   • Upgrade: Magnetic Hoops. They self-align and clamp instantly. If you use generic hoops, ensure they are compatible with your specific machine arm width.
2. The Production Bottleneck:
   • Symptom: You are turning down orders because you can't stitch fast enough with one head.
   • Solution: Scale Capacity. A single-head EM1010 is a great starter. But for 50+ item orders, you need true commercial throughput. SEWTECH multi-needle embroidery machines offer the durability and speed required for shift-work production, often with larger sewing fields than entry-level units.
3. The Repeatability Issue:
   • Symptom: Every shirt looks slightly different.
   • Solution: Search for hooping for embroidery machine systems. Standardization is the only way to scale profits.

Warning: Magnetic Hoop Safety
If you upgrade to strong magnetic hoops (like Mighty Hoops or similar industrial brands), treat them with respect. The magnets are incredibly powerful.
* Do not let them snap together without fabric in between (pinch hazard).
* Keep away from pacemakers and sensitive electronics.
* Store with spacers provided.

Operation Checklist (Start-to-Finish Rhythm)

• Software: Sequence is Correct (Place -> Tack -> Satin). Saved as DST.
• Machine Prep: File Loaded to Memory. Colors Assigned. Frame Out Enabled (Stops 1 & 2). Speed set ~700 SPM.
• Hooping: Cutaway stabilizer used. Fabric tension is "firm, not drum-tight."
• Trace: Run Trace. confirm no hoop strikes.
• Step 1: Run Placement Stitch. Machine Frames Out.
• Step 2: Place Appliqué Fabric (Covering lines + margin). Run Tack-down.
• Step 3: Machine Frames Out. Remove Hoop Carefully. Trim fabric close (1-2mm).
• Step 4: Re-load hoop without twisting inner ring.
• Step 5: Run Final Satin.
• Finish: Remove from machine. Un-hoop. Trim jump stitches. Apply Tender Touch.


If you follow this data-driven workflow, appliqué stops being a gamble and starts being your most profitable product line.

For those looking to optimize their EM1010 setup specifically, standardizing your hoop kit is the next logical step. Whether you look at a mighty hoop 8x13 or a complete setup like a ricoma mighty hoop starter kit, the goal is the same: eliminate the variables so the only thing you have to focus on is the design.

Many users specifically search for mighty hoops for ricoma em 1010 because they realize that the hoop—not the needle—is often the critical link in the quality chain. Upgrade your tools, respect the physics of the fabric, and your results will follow.

FAQ

• Q: What is the correct Ricoma EM1010 appliqué stitch order in Chroma Luxe, and what file format should be exported for reliable reading?
  A: Use the placement → tack-down → border order and export the design as a .DST file with a short, simple filename.
  • Set sequence: Run placement first, then tack-down, then satin/border last.
  • Export: Save explicitly as DST and avoid special characters in the file name.
  • Load: Transfer via USB and (when possible) copy the design into Ricoma EM1010 internal memory before stitching.
  • Success check: The Ricoma EM1010 shows the design correctly and stops occur where placement and trimming are needed.
  • If it still fails: Re-export as DST again with a simpler name and re-transfer using the USB recognition sequence.
• Q: How do you fix a Ricoma EM1010 USB drive that looks empty or does not show DST files on the screen?
  A: Use the Ricoma EM1010 “recognition sequence”: remove USB, enter the File/Design screen, re-insert USB, then tap the USB icon.
  • Remove: Pull the USB drive out completely.
  • Open: Press the File/Design button first to enter the design loading screen.
  • Re-insert: Plug the USB back in while staying on that screen, then tap the USB/flash icon.
  • Success check: The file list populates within about 2–5 seconds.
  • If it still fails: Copy the file to machine memory once it appears (running directly from USB can freeze if the stick vibrates loose).
• Q: What stabilizer, needle, and adhesive are a safe starting setup for Ricoma EM1010 appliqué on a sweatshirt or hoodie?
  A: Start with cutaway stabilizer (2.5–3.0 oz), a fresh 75/11 ballpoint needle, and light temporary spray adhesive on the appliqué fabric.
  • Hoop: Use cutaway stabilizer because sweatshirts/knits stretch; tearaway is not appropriate for this scenario.
  • Prep: Pre-cut the appliqué fabric at least 1 inch larger than the design area.
  • Secure: Lightly mist the back of the appliqué fabric with temporary spray adhesive to reduce bubbling during tack-down.
  • Success check: After placement stitch, the outline stays flat (no bunching/puckering) and the fabric does not shift during tack-down.
  • If it still fails: Add more stability (often a second cutaway layer may help on dense satin borders) and slow the stitch speed before touching tension.
• Q: How tight should hooping be for a Ricoma EM1010 appliqué on a thick sweatshirt to prevent shifting during Frame Out/Frame In?
  A: Hoop “firm, not drum-tight” so the knit is stable without being stretched or crushed by the ring.
  • Tap-test: Tap the hooped center—avoid a high-pitched “drum” sound (too tight) and avoid a spongy feel (too loose).
  • Adjust: Loosen the hoop screw almost entirely before inserting the inner ring, then tighten—do not force the ring in.
  • Inspect: Keep bulky seams/hood strings/pockets/zippers fully outside the stitch field before starting.
  • Success check: The placement outline stitches cleanly and the fabric is not puckering inside the outline.
  • If it still fails: Abort early and re-hoop; the highest-risk moment is after trimming and reloading, so reduce handling and keep the garment weight supported.
• Q: What Ricoma EM1010 settings should be used for appliqué stops, and how should “Frame Out” be applied to placement and tack-down steps?
  A: Turn Frame Out ON for Stop 1 (placement) and Stop 2 (tack-down) so the hoop moves toward the operator for fabric placement and trimming.
  • Program: Assign the correct needles/colors for placement, tack-down, and satin/border steps.
  • Enable: Confirm the Frame Out/Hand/Offset indicator is active for Stop 1 and Stop 2 on the Ricoma EM1010 screen.
  • Limit speed: Use about 650–700 SPM as a practical range for frequent stops (600 SPM is a safer starting point for beginners).
  • Success check: After placement stitch the hoop moves out for fabric placement, and after tack-down the hoop moves out for trimming.
  • If it still fails: Re-check the stop programming (colors vs steps) before restarting, because missed Frame Out settings cause rushed, unsafe handling.
• Q: What safety steps prevent a Ricoma EM1010 needle injury or hoop strike during Trace and appliqué operation?
  A: Always run Trace before stitching and keep hands at least 6 inches away from the needle bar unless the machine is paused or stopped.
  • Trace: Use the Ricoma EM1010 Trace/outline check to confirm the design clears the hoop and garment bulk.
  • Pause first: Use Pause or Emergency Stop before touching fabric near the presser foot—never reach under a live needle.
  • Clear hazards: Ensure seams, zippers, and hood strings cannot enter the stitching area during Frame Out/Frame In moves.
  • Success check: Trace completes without contacting the hoop frame, and the needle path stays clear through the full travel.
  • If it still fails: Reposition the garment in the hoop and re-check the design centering before attempting to stitch again.
• Q: Why does the Ricoma EM1010 appliqué satin border break thread frequently on thick felt or dense edges, and what is the fastest troubleshooting order?
  A: Fix thread breaks by checking re-threading first, then needle condition (including adhesive buildup), then reducing speed, and only then touching tension.
  • Re-thread: Completely re-thread the top thread path (a thread jumped out of the tension discs is a common cause).
  • Change needle: Replace the needle if it is dull or sticky from spray adhesive.
  • Slow down: Drop speed to around 600 SPM for dense satin over thick materials.
  • Success check: The satin border runs continuously without repeated breaks and the stitches lay smoothly over the edge.
  • If it still fails: Review stabilization (often more support is needed for dense satin) before making tension adjustments.
• Q: When should a Ricoma EM1010 sweatshirt appliqué workflow upgrade from standard tubular hoops to magnetic hoops, a hooping station, or a multi-needle production machine?
  A: Upgrade when hooping and re-hooping become the bottleneck: start with technique improvements, then consider magnetic hoops for consistency, then scale to a multi-needle production machine when order volume outgrows one head.
  • Level 1 (technique): Improve hooping tension, reduce twisting during trimming, and support garment weight to prevent inner ring shift.
  • Level 2 (tooling): Consider magnetic hoops or a hooping station if hoop burn, slow hooping, or re-hoop misalignment keeps happening.
  • Level 3 (capacity): Consider a multi-needle commercial machine when you are turning down orders or need repeatable throughput for larger runs.
  • Success check: Re-hooping after trimming returns to the exact same alignment (borders land cleanly over tack-down without “shadowing”).
  • If it still fails: Track where time and defects occur (hooping, trimming, reloading, or stitching) and upgrade the step causing the most repeatable loss.
