Ricoma EM1010 Appliqué Banners Without the Headaches: Hooping, Trace-Check, Tape, Trim, and Finish Like a Shop

The Multi-Needle Mindset: A Field Guide to Appliqué on the Ricoma EM1010

If you have ever stood in front of a multi-needle machine, holding a hoop, with that tiny voice in your head whispering, "Please don’t let this shift… and please don’t let the needle hit the frame," you are not alone. That fear is the sign of a prudent operator.

This guide breaks down a Breast Cancer Awareness mini-banner project. While the end result looks cheerful and simple, the process is a masterclass in production-grade workflow: hoop tension that minimizes distortion, a panel setup that prevents collisions, and an appliqué routine that yields clean, sharp edges.

The Calm-Down Primer: Controlling the Variables

The Ricoma EM1010 is a powerful 10-needle beast, but its real superpower isn't speed—it's repeatability. When your hooping, file setup, and clearance checks are standardized, embroidery stops feeling like gambling and starts feeling like manufacturing.

In this tutorial, we are building a workflow around:

• Hoop "C" (Standard sizing): Using the 7.4" x 5.5" frame.
• Manual Color Assignment: Leveraging the multi-needle advantage to assign specific needles to design stops.
• The "Trace" Ritual: The absolute non-negotiable safety step.
• Appliqué Anchoring: Using tape and trim techniques to prevent fabric creep.
• Finishing: Turning the embroidery into a hanging banner with batting and backing.

If you are transitioning from single-needle home machines, here is the mindset shift: Embroidery quality is 90% determined before the start button is pressed. It lives in the prep.

The "Hidden" Prep That Saves Your Production

The video demonstrates using a standard tubular hoop with tearaway stabilizer and cotton fabric. This is a classic setup, but let's look at the physics of why it works (and when it fails).

Hooping is the art of controlled tension. You need the "sandwich" (fabric + stabilizer) to be flat and stable, but not stretched like a rubber band.

• The Risk: If you over-tighten and distort the fabric weave before stitching, the fabric will relax after you un-hoop it. This causes the dreaded "puckering" around satin stitches or wavy outlines.
• The Goal: You want neutral tension—taut, but not stretched.

When mastering the skill of hooping for embroidery machine panels on woven cotton, you have a margin for error. However, developing a "texture sense" now will save you when you eventually move to expensive polos or knits.

Pre-Flight Checklist: Physical Prep

• Stabilizer: Medium-weight Tearaway (1.8 - 2.5 oz) cut at least 1-2 inches larger than the hoop on all sides.
• Fabric: Pressed flat. Never hoop wrinkled fabric.
• Hardware: Hoop C (Inner and Outer rings separated). Screw loosened enough to accept the fabric thickness without forcing.
• Consumables:
  • Curved appliqué scissors (Essential for the trim step).
  • Lint roller.
  • Painter's tape or embroidery-specific tape.
  • Fresh Needle: A 75/11 Sharp is standard for woven cotton.

Hooping Technique: The "Drum-Tight" Reality Check

The host’s sequence is textbook:

1. Place the outer hoop on a flat surface.
2. Lay stabilizer over the hoop.
3. Lay fabric on top, ensuring grain lines are straight.
4. Press the inner hoop into the outer hoop.
5. Tighten the thumb screw.


The Expert Calibration: The host warns against pulling the fabric too aggressively. Here is the sensory standard you are aiming for:

• Auditory Check: Tap the hooped fabric with your fingernail. It should make a light, rhythmic thump-thump sound, like a taut drum.
• Tactile Check: Run your hand flat across the surface. It should feel firm, not spongy. If you can pinch the fabric up easily, it is too loose.
• Visual Check: Look at the storage grid of the woven fabric. The lines should be straight, not bowed or curved (which indicates over-stretching).

Warning (Pinch Hazard): When seating the inner hoop, keep your fingers clear of the rim. The snap-down action can pinch skin painfully.

Workflow Upgrade: The Hooping Station

If you find yourself chasing the hoop around the table or getting uneven tension, look into tool upgrades. Many production shops use an embroidery hooping station to hold the outer hoop static. This ensures that every shirt, banner, or patch is hooped at the exact same location and tension, drastically reducing wrist strain and rejects.

Touchscreen Setup: Orientation and Color mapping

Once the hoop is locked onto the machine arm, the specific workflow for the Ricoma EM1010 begins. Use the touchscreen to:

1. Import: Select the file from USB.
2. Define Hoop: Select "Hoop C" in the interface. This sets the software safety limits.
3. Rotate: Rotate the design 90 degrees to match the hoop's physical orientation.
4. Assign Needles: Manually map the colors.


Pro Tip on Color Sheets: For appliqué designs, the "Color Changes" in the file are actually "Process Stops."

• Stop 1 (Placement): Machine stitches a line to show you where the fabric goes. (Host uses Needle 2/Black for visibility).
• Stop 2 (Tack-down): Machine stitches the fabric down. (Host keeps it pink).
• Stop 5+ (Satin Finish): The final decorative edge.

If you are new to operating a ricoma em 1010 embroidery machine, never ignore the PDF color sheet that comes with digital designs. It is your roadmap for process (Stop = Trim), not just color.

Setup Checklist: Digital Verification

• File: Correct version selected.
• Hoop Selection: "Hoop C" active on screen.
• Orientation: Design rotated 90° (Top of design points to the back of machine).
• Needle Map: Appliqué stops identified; needle colors verify against actual thread cones.

The "Trace" Check: The Most Critical Safety Step

Before a single stitch is formed, the host runs a "Trace." The hoop moves around the outer boundary of the design without stitching.

Why we do this (Physics & Finance): If the design is too close to the edge, the needle bar will smash into the plastic hoop frame.

• Best case: You break a $0.50 needle.
• Worst case: You shatter the hoop or knock the machine's timing out, requiring a technician.

Sensory Cue: Watch the gap between the presser foot and the inner edge of the hoop. You want to see "daylight"—at least 2-3mm of clearance at the tightest distinct point.

Warning (Safety): Never stick your hands inside the hoop area during a Trace or Stitch-out. The machine moves unexpectedly and fast.

Appliqué Execution: Tape, Tack, and Trim

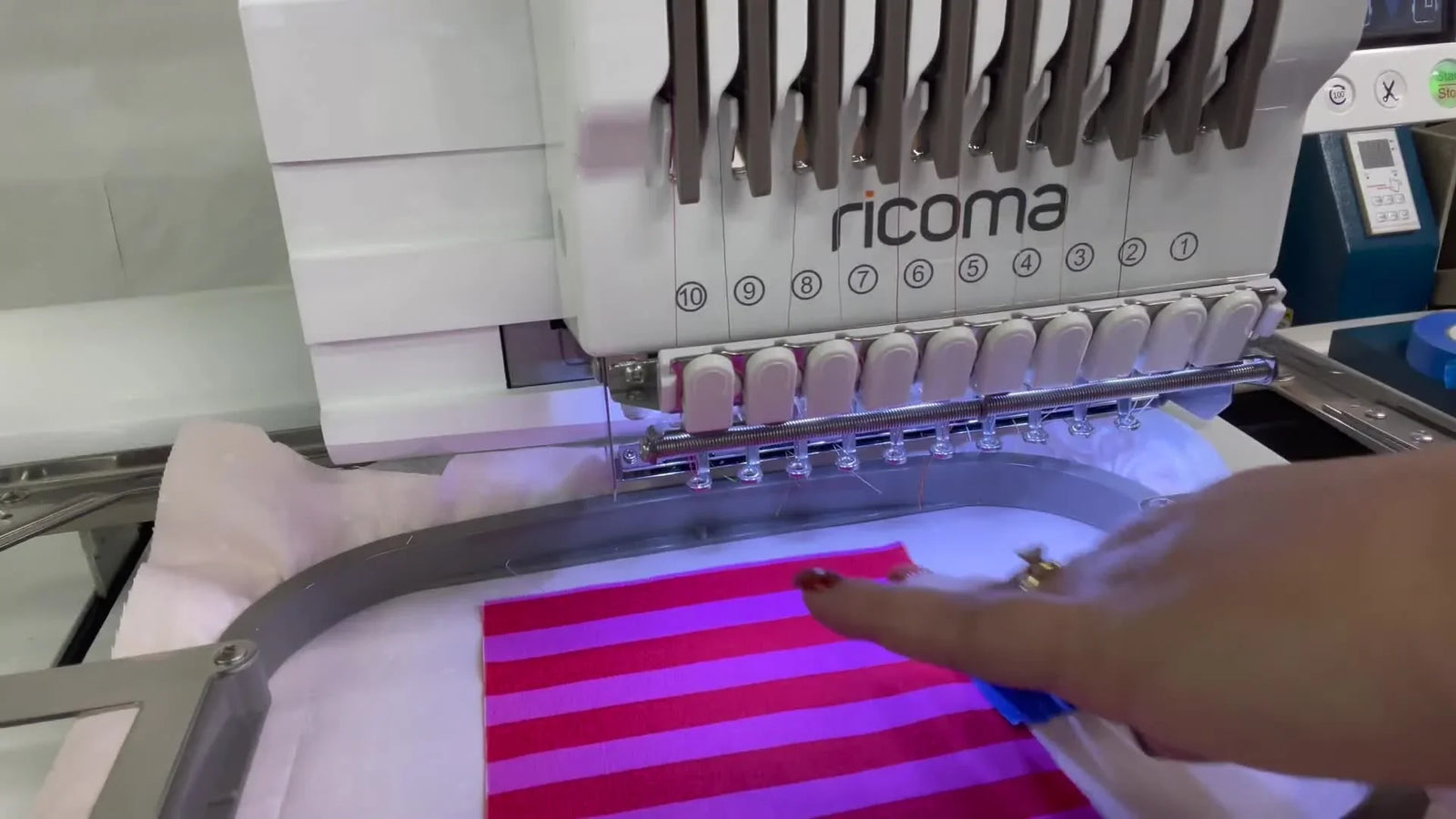

After the Placement Stitch runs, the machine stops. The host places a swatch of Tula Pink striped cotton over the outline.

The "Creep" Problem: As the machine stitches the tack-down line, the presser foot's hopping motion pushes a wave of fabric in front of it. If the fabric isn't anchored, it will shift, leading to a tack-down that misses the fabric entirely.

The Solution: The host uses two strips of blue painter's tape to secure the edges of the swatch.

This is a cheap, effective, low-residue solution. If you are building a tool kit containing various machine embroidery hoops, always keep a roll of painter's tape or medical paper tape hung nearby.

The Precision Trim

After the Tack-down stitch, the machine pauses again. The host trims the excess fabric.

• Technique: Use curved embroidery scissors (double-curved are best). Rest the curve of the blade flat against the stabilizer.
• Goal: Cut as close to the stitch line as possible without snipping the thread.




Quality Check: If you leave a 2mm fringe of fabric here, that fringe will poke out of the final satin stitch, looking messy ("hairy edges"). Take the time to trim clean.

The Debris Management Habit

Immediately after trimming, use a lint roller on the area.

Loose threads and fabric fuzz are the enemy. If a piece of fuzz gets pulled into the bobbin case creates a bird’s nest; if it gets stitched over, it's permanently trapped.

Production Note: If you are running batches (e.g., 20 banners), standard hoops can be slow because of the screw-tightening mechanism. This is where standard ricoma embroidery hoops are sometimes swapped for Magnetic Hoops by volume shops. Magnetic hoops clamp instantly without screws, reducing "hoop burn" marks on sensitive fabrics and speeding up the re-hooping process significantly.

Warning regarding Magnetic Hoops: These use industrial grade N52 magnets. They are incredibly strong. Keep them away from pacemakers, and never let them snap together on your fingers.

Project Assembly: Turning Embroidery into a Banner

Once the stitching is done, the host removes the hoop and tears away the stabilizer.

1. Trimming: Cut the embroidered block to exactly 6 inches wide using a quilting ruler.
2. Templates: Use the cut panel to measure the batting and backing fabric.


3. The Loop: A critical detail. She uses rickrack ribbon, measuring 1.5 inches from the edge for placement.
   • Why 1.5 inches? Physics. Too close to the edge, the banner corners droop. Too close to the center, it bunches up.


4. Sewing: Place right sides together (sandwiching the loops), sew around the perimeter, leave a gap, turn right side out, and topstitch.




Decision Tree: Fabric Optimization

Different fabrics require different "physics" to embroider correctly. Use this decision matrix:

If you frequently struggle with hoop marks on delicate items, searching for terms like magnetic embroidery hoops will lead you to clamp-based solutions that eliminate the need to force inner rings into outer rings.

Troubleshooting: The "Why Did That Happen?" Guide

The Growth Path: From Hobby to Production

This project bridges the gap between craft and production. If you are using a ricoma embroidery machine em-1010, you have the hardware to scale.

Your Upgrade Ladder:

1. Level 1 (Skill): Master the "Trace" and proper hooping tension on standard hoops.
2. Level 2 (Tools): If you are doing volume (50+ items), invest in Magnetic Hoops to reduce wrist fatigue and hoop marks, and high-quality Stabilizers (pre-cut squares save time).
3. Level 3 (Capacity): If the EM1010 is running 8 hours a day, you are ready for a second machine to run in tandem.

Operation Checklist (Final Go/No-Go)

• Trace Complete: Visual confirmation of clearance.
• Bobbin Check: Full bobbin inserted correctly?
• Appliqué Prep: Tape and Scissors ready within arm's reach.
• Safety: Area clear of barriers.

By respecting the physics of the machine and the fabric, you turn a simple banner project into a lesson in professional embroidery discipline. Happy stitching.

FAQ

• Q: How can a Ricoma EM1010 operator calibrate “drum-tight” hooping tension to avoid puckering on woven cotton panels?
  A: Aim for neutral tension—taut and flat, not stretched—so the fabric does not relax and pucker after un-hooping.
  • Tap the hooped fabric and listen for a light, rhythmic “thump-thump” (not a dull thud).
  • Smooth a palm across the surface; it should feel firm, not spongy, and you should not be able to pinch a big bubble of fabric.
  • Inspect the woven grid/grain lines; keep lines straight (bowed lines indicate over-stretching).
  • Success check: The fabric stays flat during stitching and looks smooth after removing the hoop, with no wavy outlines around satin edges.
  • If it still fails: Re-hoop without pulling the fabric, and verify stabilizer is medium-weight tearaway cut larger than the hoop on all sides.
• Q: What is the safest way to run a Ricoma EM1010 “Trace” check to prevent the needle bar from hitting Hoop C (7.4" x 5.5")?
  A: Always run Trace before stitching and confirm physical clearance between the presser foot path and the hoop edge.
  • Select Hoop C on the touchscreen so the machine uses the correct safety limits.
  • Run “Trace” with hands completely out of the hoop area while the arm moves.
  • Watch the tightest point and look for visible “daylight” clearance (about 2–3 mm) between the presser foot and the inner hoop edge.
  • Success check: The full trace path completes without the presser foot coming dangerously close to the hoop at any point.
  • If it still fails: Stop and resize/rotate the design or switch to a larger hoop before attempting another trace.
• Q: How can a Ricoma EM1010 appliqué workflow prevent appliqué fabric shifting during the tack-down stitch when using painter’s tape?
  A: Anchor the appliqué fabric swatch before tack-down so the presser foot motion cannot “creep” the fabric out of position.
  • Place the appliqué fabric only after the placement stitch stops the machine.
  • Tape the fabric down with painter’s tape (use enough coverage to keep edges from lifting while the foot hops).
  • Resume the tack-down, then trim immediately with curved appliqué scissors close to the stitch line.
  • Success check: The tack-down line fully captures the appliqué fabric all the way around with no missed edges.
  • If it still fails: Tape more securely (often all corners/edges need anchoring) and check presser foot height if the fabric is being pushed aggressively.
• Q: What causes “hoop burn” (shiny ring marks) when hooping on a Ricoma EM1010, and when should a shop consider magnetic embroidery hoops?
  A: Hoop burn usually comes from forcing the inner ring too tight or rubbing the fabric during hooping; magnetic hoops are a common tool upgrade when marks and re-hooping time become a repeat problem.
  • Reduce clamp force by tightening only enough to hold neutral tension (do not over-crank the screw).
  • Handle hooped fabric gently; avoid twisting or scrubbing the fabric against the hoop ring.
  • Steam the mark to relax fibers (do not iron the ring flat).
  • Success check: After steaming, the shine/ring fades and future pieces show fewer or no hoop rings.
  • If it still fails: For frequent delicate fabrics or volume runs, consider magnetic hoops to clamp faster and reduce marking compared with screw-tightened rings.
• Q: What is the magnetic embroidery hoop safety warning for N52 magnets when used in production embroidery settings?
  A: Treat N52 magnetic hoops like industrial clamps—keep them away from pacemakers and never allow the rings to snap together on fingers.
  • Separate and bring hoop halves together slowly and under control.
  • Keep fingertips off the mating surfaces before the magnets engage.
  • Store magnetic hoops so they cannot jump together unexpectedly.
  • Success check: The hoop halves meet without a “snap” event and hands stay clear during clamping.
  • If it still fails: Stop using the hoop until a safer handling routine/storage spot is set up, especially in shared work areas.
• Q: How can a Ricoma EM1010 operator prevent bobbin-case “bird’s nest” issues after trimming appliqué, using lint management and thread-path checks?
  A: Clean immediately after trimming and verify thread path before continuing, because fuzz and loose threads commonly trigger nesting.
  • Lint-roll the hooped area right after trimming appliqué fabric to remove loose fibers and threads.
  • Re-check the top thread path (“floss check” style) to ensure the thread is seated correctly.
  • Clean lint from the bobbin case area before the next run if buildup is visible.
  • Success check: Stitches form cleanly without sudden bunching underneath and the machine runs smoothly through color stops.
  • If it still fails: Stop and clean the bobbin area again, then re-thread both top thread and bobbin following the machine manual.
• Q: When does a Ricoma EM1010 workflow justify upgrading from standard screw-tightened hoops to magnetic embroidery hoops or adding a second multi-needle machine?
  A: Use a tiered approach: fix technique first, upgrade hoops when re-hooping and marks become chronic, and add capacity when the Ricoma EM1010 is already running long daily hours.
  • Level 1 (Technique): Standardize hooping tension and make Trace a non-negotiable step on every setup.
  • Level 2 (Tools): If running volume batches (often 50+ items) or fighting hoop burn/wrist fatigue, magnetic hoops and pre-cut stabilizers can reduce re-hoop time.
  • Level 3 (Capacity): If the Ricoma EM1010 is consistently running around 8 hours a day, consider a second machine to run in tandem.
  • Success check: Rejects drop (less shifting/marks) and throughput increases without adding operator strain.
  • If it still fails: Audit which step is consuming time (hooping, trimming, re-threading, trace collisions) and address that specific bottleneck before buying hardware.
