Ricoma EM1010 3D Puff Hat Embroidery: The Cap Hoop Workflow (and the One Arrow Mistake That Ruins a Hat)

If you have ever stood in front of your machine, watching the needle bar inch dangerously close to the metal cap frame while your stomach drops, you are not being dramatic. You are experiencing the specific anxiety of hat embroidery.

Structured caps are unforgiving. Unlike a flat T-shirt that lays compliant on the bed, a cap is a pre-formed, curved structure that actively fights your attempt to flatten it. Add 3D puff foam to the mix, and you lose even the small margin for error you had. A single millimeter of shift turns crisp lettering into a distorted mess, and one wrong button press during a thread break can send the frame crashing into the needle bar.

This guide is not just a summary of steps; it is a reconstruction of a safe, professional workflow based on the Ricoma EM1010 platform. We will cover the tactile cues you need to feel, the sounds you need to hear, and the "shop-floor" habits that turn a gamble into a guarantee.

The “Don’t Panic” Primer: What 3D Puff on a Ricoma EM1010 Really Demands

Successfully running 3D puff on a structured cap isn't about the machine being "picky." It is about physics. The cap wants to spring back to its original curve; your job is to force it into a temporary flat plane—without distorting the center seam—long enough for the needle to build a foam-encased satin column.

Here are the two rules of engagement for the ricoma em 1010 embroidery machine:

1. Hooping is 80% of the Work: If the cap is not seated tight enough to sound like a drum skin when tapped, the best digitizing in the world won't save it. The foam will sink into the gaps, and the 3D effect will fail.
2. Registration is Unforgiving: On 3D puff, the needle perforates the foam. If the hat shifts even 1mm, the needle will cut the foam in the wrong place, leaving ugly gaps or raw edges that you cannot fix.

Treat every cap run like a construction project: precise foundation, strict adherence to the blueprint, and zero improvisation once the machine starts moving.

Tools & Materials for Ricoma EM1010 3D Puff Hat Embroidery (What You’ll Actually Reach For)

To get professional results, you need more than just the basics. Below is the standard list, plus the "Hidden Consumables" that experienced operators keep in their apron pockets to solve problems before they happen.

The Essentials (From the Workflow):

• Machine: Ricoma EM1010 (or similar multi-needle platform).
• Cap System: Cap driver, Cap station (hooping gauge), and standard Cap Ring.
• Clamping: Binder clips (essential for the standard driver).
• Stabilizer: Tearaway stabilizer (pre-cut to cap width).
• Media: Structured Trucker Hat (e.g., Make Market or Richardson 112).
• 3D Puff Foam: 2mm or 3mm foam (color-matched to your thread or contrasting, depending on intent).
• Hardware: Screwdriver (for swapping the table bracket).

The "Hidden Consumables" (Pro Kit):

• Tweezers: For plucking tiny foam bits out of the inside of letters (like the top of an 'A').
• Lighter or Heat Gun: Used carefully to shrink visible "fuzz" of the puff foam after tearing it away.
• Masking Tape/Painter's Tape: A safer alternative to pins for holding foam.
• Magnetic Tray: Cap drivers have small screws; drop one in a carpeted shop, and your day is over. Put them in a tray.


Prep Checklist (Do this BEFORE touching the hoop)

• File Check: Is your design specifically digitized for caps (Center-out pathing)? Is the density increased (approx. double standard satin) to cut the foam?
• Consumables: Cut your tearaway strip long enough to reach the side posts. Cut your foam with a generous margin around the design area.
• Physical Safety: Clear the workspace. Ensure the machine bed is empty.
• Clip Audit: Squeeze your binder clips. If they feel weak or loose, throw them away. You need strong spring pressure here.

Locking the Cap Ring on the Hooping Station: The “Three Clicks” Test That Saves You Later

The cap station (the heavy gauge you clamp to a table) is your alignment bench. If the ring isn't locked here, your design will be crooked.

The Sensory Procedure:

1. Orientation: Place the cap ring face down on the station cylinder.
2. Alignment: Line up the notches at the top of the ring with the rail on the station.
3. The Sound: Push the ring firmly along the rail towards the back. You are listening for Three Distinct Clicks.
   • Click 1: Engagement.
   • Click 2: Tensioning.
   • Click 3: Locking.
4. The Check: Try to wiggle the ring. It should feel solid, like it is welded to the station. If it wobbles, pull it off and re-seat it.

Do not proceed until you hear that third click. A loose ring creates "flagging" (bouncing fabric), which breaks needles when working with thick foam.

Loading Tearaway Stabilizer + Sweatband Under the Silver Tab (Where Most Beginners Fight the Hat)

This step causes the most frustration. You are trying to manage the cap crown, the sweatband, and the stabilizer simultaneously.

The "Fold and Tuck" Method:

1. Flip the Sweatband: Pull the sweatband completely out of the hat so it hangs loose.
2. Place the Stabilizer: Slide your tearaway strip under the Silver Tab (the metal clip at the top center of the station). Friction should hold it there.
3. Load the Hat: Slide the hat onto the station. The bill should point up/backwards.
4. The Critical Tuck: Smooth the sweatband back inside the hat, trapping the stabilizer between the sweatband and the cap material.
5. The Tab Lock: Slide both the stabilizer and the sweatband under the Silver Tab.

Why this matters: The Silver Tab is your primary anchor. If the sweatband is bunched up here, your design will stitch too high or low. When mastering hooping for embroidery machine setups on caps, the smoothness of this tuck determines the smoothness of your final embroidery.

The Binder Clip Tension Ritual on Standard Cap Hoops (Tight, Not Stretched)

The standard cap driver relies on manual tension. This is a physical skill that you must develop to avoid "puckering."

The Action Plan:

1. The Strap:Pull the cap strap around the bottom of the ring and latch the buckle. It should require moderate thumb pressure to close.
2. The Smoothing: Run your hands from the center seam outward to the sides, pushing out air bubbles.
3. The Pull: Grip the back mesh/fabric of the hat at the bottom. Pull it snugly toward the alignment posts.
4. The Clip: While holding tension, apply a binder clip to secure the fabric to the bars. Repeat for the other side.

Sensory Check - The "Drum Skin" Test: Tap the front panel of the hat with your finger.

• Thud/Loose? Too loose. Re-hoop. 3D Puff will look sloppy.
• Sharp Tap? Good.
• Strained/Warped? Too tight. You are distorting the fabric grains.

Optimization Note: Standard clips are functional but fatiguing. If you have ricoma embroidery hoops that came with your machine, inspect the clips regularly for rust or lost spring tension.

Converting the Ricoma EM1010 for Caps: Removing the Flat Table Bracket + Installing the Cap Driver Correctly

Changing from flats to caps is a mechanical changeover. Rush this, and you risk machine damage.

The Protocol:

1. Power Down: It is safer for beginners to power off the machine to avoid accidental button presses while your hands are near the drive shaft.
2. Remove Table: Unscrew the flat table bracket (usually two thumbscrews or Phillips screws). Place these screws in your magnetic tray immediately.
3. Install Driver: Slide the cap driver onto the pantograph arm.
4. Wheel Check: Look underneath the driver. The guide wheels must sit on the track, not floating above it.
5. Tighten: Secure the driver screws. Hand-tight is not enough; use a screwdriver for a firm finish (but don't strip it).

Warning: Finger Safety
The area between the cap driver and the machine arm is a pinch point. When the machine initializes and moves to center, it moves with high torque. Keep hands clear of the driver area when powering the machine back on.

Loading the Hat Hoop onto the Cap Driver: The 90° Rotation Move + Clamp Check

This is the "threading the needle" maneuver. You need to get the bulky hat hoop into the driver without bending the machine's actual needles.

The Move:

1. The Twist: Hold the hooped hat and rotate it 90 degrees (bill facing side).
2. The Insert: Pass the bill under the needle head.
3. The Rotate: Once the hoop ring is aligned with the driver shaft, rotate the hat back to the upright position (bill facing up).
4. The Snap: Push the ring onto the driver until the three spring-loaded clamps engage.

The Fail-Safe Check: Visually inspect all three clamps (two top, one bottom/side). They must be snapped over the ring. Tug on the hat gently. If it slides, a clamp missed. A hoop popping off mid-stitch is catastrophic for the garment and potentially the machine.

Setup Checklist (Before you press start)

• Clearance: Is the bill hitting the machine body?
• Centering: Is the red light/needle 1 centered on the hat seam?
• Tension: Is the fabric still tight after loading?
• Driver Wheels: confirmed to be riding on the track?

Ricoma EM1010 Screen Setup: DST File + Cap Hoop Selection (Don’t Skip the Obvious)

Digital setup is just as important as physical setup.

1. File Format: Load your design. For industrial machines, .DST files are the standard. They contain the Command codes needed for trimmers and stops.
2. Hoop Selection: In the menu, verify you have selected "CAP HOOP".
   • Why? This flips the design 180 degrees automatically (since hats are loaded upside down relative to flats) and limits the sewing field to prevent frame hits.

Double-checking settings is a daily habit for anyone running ricoma embroidery machines. A file set to "Flat" run on a Cap driver will stitch your design upside down and backwards.

The Trace Pass on a Cap Frame: Your Clearance Insurance Policy

Never press start without a Trace. On a cap, the sewing field is small (typically roughly 2.5 inches high).

How to Trace:

1. Select the Trace icon (usually a square outline pattern).
2. Watch the presser foot (Needle 1). It will move around the perimeter of the design.
3. Visual Check: Does the foot come close to the metal cap ring? Does it hit the bill?
4. If it looks too close (less than 5mm clearance), move the design up or down.

Expert Tip: If you are running 3D Puff, remember the foam adds height. Ensure your presser foot height is adjusted slightly higher (if your machine allows) to avoid dragging on the foam.

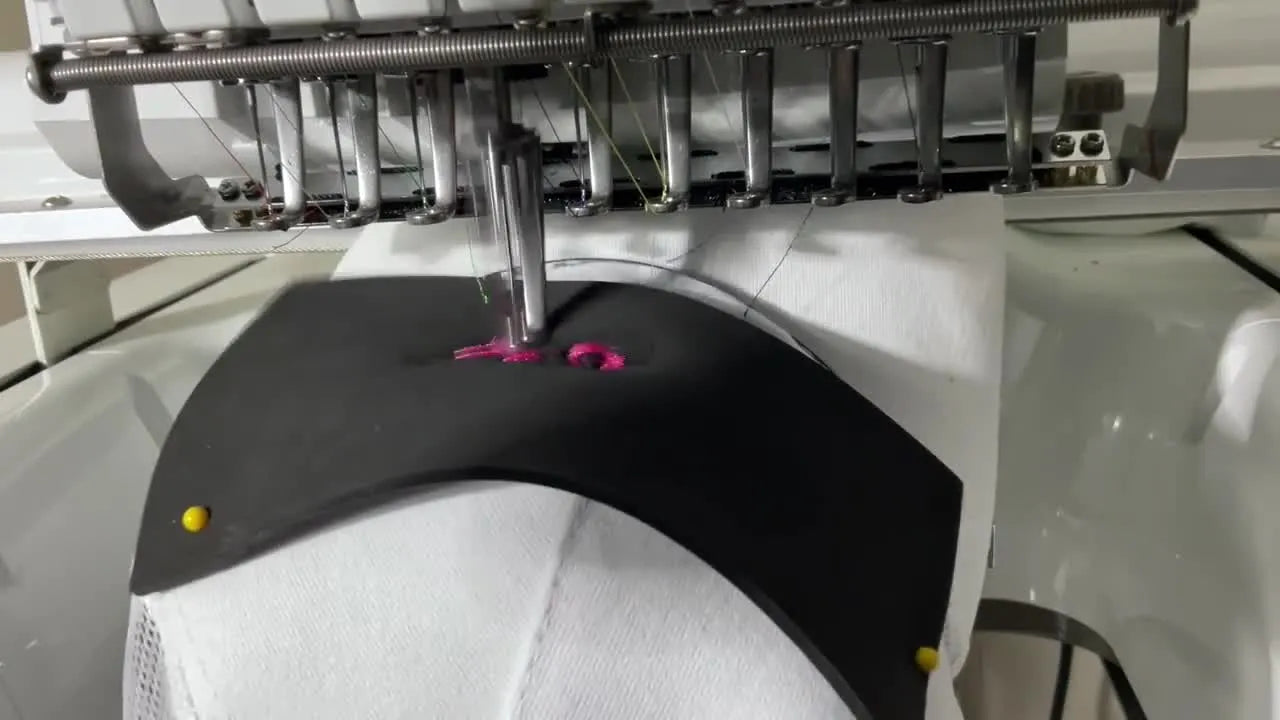

The “Automatic-Manual Pause” for 3D Puff Foam: The Moment That Makes or Breaks the Hat

The machine doesn't know you want to add foam unless you tell it. You need a programmed stop after the flat embroidery (underlay/flat logo parts) and before the 3D satin columns.

The Workflow:

1. Stitch Flats: Let the machine run the flat parts of the design first.
2. The Stop: The machine pauses (programmed color change or manual stop).
3. Place Foam: Lay your cut piece of puff foam over the area.
4. Anchor it:
   • Method A (Standard): A sewing pin. Crucial: pinning must be done far outside the needle path.
   • Method B (Safer): Tape. Use painter's tape on the edges of the foam to hold it to the bill or cap sides.
   • Method C (The "Wet" Trick): Lick your finger and dampen the back of the foam slightly; sometimes the tackiness of the foam holding to the stabilizer is enough.

Color Logic: If you are stitching red thread, red foam is forgiving. If you are stitching white thread on black hats, use white foam. Black foam under light thread creates a "salt and pepper" dirty look that is impossible to clean.

The Thread Break Trap: Frame Move vs Stitch Move (How One Wrong Arrow Scraps the Whole Hat)

This is the mistake that killed the hat in the source video. It is the #1 reason beginners scrap caps.

The Scenario: The thread breaks. You want to back up 10 stitches to cover the gap.

The Danger:

• Stitch Move (Correct): Usually an icon of a needle with +/-. This rewinds the memory of the design. The frame moves back along the design path.
• Frame Move (Fatal): Usually an icon of a hand or directional arrows. This moves the physical reference point of the frame.

The Crash: If you hit "Frame Move" (Right Arrow) to back up, you have actually told the machine: "The center of the hat is now 5mm to the right." When you resume, the machine will stitch the rest of the logo 5mm offset from the beginning. The hat is ruined.

The Rule: When a break happens, take your hands off the panel. Look for the "Back Up / Return" icon. Never touch the jog keys.

Removing the Hat + Tearaway + Puff Foam: Clean 3D Lettering Without Tearing Stitches

The run is done. Now you have a messy foam covered hat.

1. Unload: Pop the clips, rotate 90 degrees, remove from driver.
2. Strip: Remove the tearaway stabilizer from the inside before attacking the foam. It releases tension on the stitches.
3. The Peel: Pull the excess foam away gently. A well-digitized puff design will perforate the foam like a stamp. It should separate cleanly.
4. The Detail Work: Use tweezers to grab the "islands" of foam inside letters like O, A, or B.
5. The Heat: If you see tiny hairy bits of foam poking through the satin, quickly pass a heat gun or lighter flame over it (keep it moving!). The foam will shrink back inside the thread.






A Simple Decision Tree: Stabilizer + Holding Method Choices for Structured Trucker Hats

Not all hats are created equal. Use this logic to choose your setup.

Scenario A: Rigid Trucker Hat (Richardson 112 style)

• Stabilizer: 1 layer vivid tearaway.
• Foam Hold: Tape or Pins (Fabric is stiff enough to support it).
• Speed: 600-700 SPM (stitches per minute).

Scenario B: Unstructured "Dad Hat" (Chino Twill)

• Stabilizer: 2 layers of tearaway OR 1 layer of cutaway (for heavy stitch counts).
• Foam Hold: Tape only. (Pins distort the soft fabric).
• Speed: 500-600 SPM (Slower speed reduces flagging).

Scenario C: Foam Color Selection

• Dark Thread: Black Foam.
• Light Thread: White Foam.
• Neon/Custom Thread: Match foam color if possible, otherwise use White (easier to hide with markers later).

The “Hidden” Digitizing Reality for Puff Hats (What the Video Hints At)

You cannot download a standard "Left Chest" logo and put foam under it. It will look terrible.

Why?

1. Open Ends: Standard satin stitches have open ends. Puff designs need "capped" ends (like the ends of a sausage) to enclose the foam.
2. Density: Standard density allows foam to poke through. Puff files need roughly ~20-30% higher density.
3. Underlay: You must remove center-run underlay, or it will slice the foam in half before the satin covers it.

If you are outsourcing, tell your digitizer clearly: "This is for 3D Puff on a Hat."

The Upgrade Path: When Binder Clips and Standard Cap Stations Start Costing You Money

When you are starting, the standard clips are fine. But as you grow, you will notice two things: your thumbs hurt, and you are spending 5 minutes hooping for a 5-minute run time.

Here is how to judge when it is time to upgrade your tools:

Level 1: The Hobbyist/Starter

• Volume: 1-10 hats a week.
• Pain Point: Learning curve, alignment errors.
• Solution: Stick with standard hoops, use painter's tape for easier foam handling. Focus on technique.

Level 2: The Side Hustle (Production Bottleneck)

• Volume: 20-50 hats a week.
• Pain Point: "Hoop burn" (marks left by tight clamps), wrist fatigue, slow changeovers.
• Solution: Magnetic Hoops (e.g., MaggieFrame).
  • Benefit: They clamp instantly using magnets. No binder clips, no thumb pain. They hold thick caps firmly without crushing the mesh. This is the single biggest "quality of life" upgrade for hat embroiderers.

Level 3: The Volume Shop

• Volume: 50+ hats per order.
• Pain Point: The machine is waiting for you to hoop.
• Solution: Multi-Needle Scale (SEWTECH / Ricoma ecosystem). You move to a "Hoop distinct from Sew" workflow where you have multiple stations and multiple hoops. While one hat stitches, the next two are already hooped.

Warning: Magnetic Field Safety
Magnetic hoops use industrial neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can snap together with enough force to break a finger. Handle with care.
* Medical Safety: Keep them away from pacemakers and insulin pumps.
* Electronics: Do not place them directly on laptops or screens.

Operation Checklist (The Final 60 Seconds)

Before you walk away and let the machine run:

1. Trace Completed? Visually confirmed the bill clearance.
2. Color Sequence? Confirmed the machine is set to STOP (Manual) for the foam placement.
3. Speed Dial: Lowered to ~650 SPM for the puff section (high speed breaks needles on foam).
4. Bobbin Check: Do you have enough bobbin thread to finish? (Replacing a bobbin in the middle of a cap run is a nightmare).
5. Thread Path: Ensure no thread is snagged on the cap driver ears.

Mastering the ricoma embroidery machine em-1010 for 3D caps is a badge of honor. It combines the mechanical precision of proper hooping with the artistic touch of foam management. Follow the sound of the clicks, trust your trace, and never, ever hit the "Frame Move" button.

FAQ

• Q: How can Ricoma EM1010 operators prevent a cap frame crash into the needle bar during 3D puff hat embroidery?
  A: Prevent crashes by doing a full Trace on the Ricoma EM1010 cap setup and confirming cap driver/clamp seating before pressing Start—this is common, don’t worry.
  • Run Trace and watch Needle 1/presser foot around the full design boundary before every cap.
  • Verify CAP HOOP is selected on-screen so the sew field limits correctly and the design orientation is correct.
  • Inspect all three cap ring clamps are snapped over the ring and the cap driver wheels are riding on the track.
  • Success check: The traced perimeter maintains visible clearance (aim for about 5 mm) from the metal ring and the bill without rubbing or striking.
  • If it still fails: Move the design up/down slightly and trace again; re-seat the hoop if any clamp looks partially engaged.
• Q: What is the “three clicks” test on a Ricoma EM1010 cap station, and how does it prevent hat shifting on 3D puff?
  A: The Ricoma EM1010 cap ring must lock onto the cap station with three distinct clicks, or the ring can wobble and cause flagging and needle breaks.
  • Push the cap ring firmly along the station rail until three distinct clicks are heard/felt.
  • Wiggle-test the ring before loading the hat; do not continue if any movement is felt.
  • Re-seat the ring immediately if the third click is missing.
  • Success check: The ring feels solid “like welded” to the station and does not wobble under hand pressure.
  • If it still fails: Remove and re-seat the ring from the start; do not try to “make it work” once wobble is present.
• Q: How should Ricoma EM1010 users load tearaway stabilizer and the sweatband under the silver tab on a cap station without misalignment?
  A: Use the fold-and-tuck method so the stabilizer and sweatband lock smoothly under the silver tab—bunching here is a common cause of designs stitching too high/low.
  • Flip the sweatband fully out, then slide the tearaway strip under the silver tab first.
  • Load the hat onto the station, then smooth the sweatband back inside to trap the stabilizer.
  • Slide both sweatband and stabilizer under the silver tab together, keeping everything flat.
  • Success check: The sweatband sits smooth (no lumps) at the top center anchor point, and the cap seam stays centered.
  • If it still fails: Pull everything back out and repeat; forcing a bunched sweatband usually guarantees placement problems.
• Q: How tight should binder clips be on a Ricoma EM1010 standard cap hoop for 3D puff without causing puckering or distortion?
  A: Aim for “tight, not stretched” tension and rely on the drum-skin tap test—too loose ruins puff, too tight warps the panel.
  • Pull the cap strap around the ring and latch with moderate thumb pressure (not a struggle).
  • Smooth from the center seam outward, then pull the back fabric snug toward the alignment posts before clipping.
  • Replace weak binder clips; spring pressure matters on caps.
  • Success check: Tapping the front panel gives a sharp, drum-like tap (not a dull thud and not visibly strained/warped).
  • If it still fails: Re-hoop from scratch; 3D puff has very little tolerance for slack or distortion.
• Q: After a thread break on a Ricoma EM1010 cap job, how do Ricoma EM1010 operators back up stitches without shifting the design and ruining the hat?
  A: Use Stitch Move/Back Up (design memory) and avoid Frame Move/jog arrows—pressing the wrong arrows is a very common way to scrap caps.
  • Stop and locate the Back Up / Return or stitch +/- control (stitch position), not the directional jog keys.
  • Back up the required stitches using stitch controls, then resume to re-cover the gap.
  • Keep hands off the jog panel during recovery to avoid accidental frame origin shifts.
  • Success check: The restart stitches land exactly into the existing needle holes/track with no visible step-off.
  • If it still fails: Re-check you did not change the physical frame reference; if the remainder stitches offset, the job is typically unrecoverable on caps.
• Q: What is the safest way to place and secure 3D puff foam during a Ricoma EM1010 cap run using an automatic/manual pause?
  A: Pause between flat stitching and puff satin columns, then secure foam with tape or safe pin placement—rushing this step is where most foam misfeeds happen.
  • Program or use a stop after the flat portion, then lay pre-cut foam over the target area.
  • Anchor with painter’s tape on foam edges (safer) or pin far outside the needle path (standard but riskier).
  • Confirm foam color choice matches thread intent to reduce visible edges (especially on high-contrast hats).
  • Success check: Foam stays flat and does not lift as stitching starts; the presser foot does not drag the foam excessively.
  • If it still fails: Reposition and re-anchor the foam at the pause; if dragging persists, check presser-foot clearance settings if the machine allows adjustment.
• Q: What are the key safety risks when installing a cap driver on a Ricoma EM1010 and when using magnetic hoops in a production shop?
  A: Avoid pinch points during Ricoma EM1010 cap driver installation and treat magnetic hoops as high-force tools—both hazards are real but manageable.
  • Power off during changeover if new to caps, and keep fingers away from the cap driver/arm pinch area during power-on initialization.
  • Confirm cap driver guide wheels sit on the track before tightening—mis-seating can cause binding and sudden movement.
  • Handle magnetic hoops carefully to prevent pinch injuries; keep magnets away from pacemakers/insulin pumps and sensitive electronics.
  • Success check: Cap driver mounts securely with no wobble, and the machine centers without any contact or binding noises.
  • If it still fails: Stop immediately and re-check wheel-on-track seating and clamp engagement; do not “test run” through resistance.
• Q: When do hat embroiderers move from standard cap hoops to magnetic hoops or a multi-needle workflow for 3D puff cap production?
  A: Upgrade when hooping time, hoop burn, or operator fatigue becomes the bottleneck—start with technique, then tools, then capacity.
  • Level 1 (technique): Improve hooping consistency (three-click lock, drum-skin tension, trace every time) before buying hardware.
  • Level 2 (tool upgrade): Consider magnetic hoops when clip fatigue, hoop burn, and slow changeovers start costing time on 20–50 hats/week.
  • Level 3 (capacity upgrade): Move toward a multi-needle production workflow when the machine is waiting on hooping for 50+ hats/order.
  • Success check: Hooping time drops and repeat placement improves without increasing cap distortion or frame hits.
  • If it still fails: Audit the process first (cap hoop selection, trace, clamp seating, and thread-break recovery habits) before blaming the hardware.
