Ricoma EM-1010 Stocking Names Without the Headache: Fast Frame Hooping, Perfect Centering, and a Clean Gold Finish

If you’ve ever tried to embroider a name on a thick Christmas stocking cuff, you already know the feeling: the item is tubular, the cuff is bulky, and the machine arm clearance suddenly becomes the boss fight. The fear of "hoop burn" (permanent crush marks on velvet) or a needle strike against a metal frame is real.

Kayla’s method on a Ricoma EM-1010 is a solid, repeatable workflow—especially when you’re personalizing multiple stockings for customers and you can’t afford “almost centered.” The key moves are (1) a paper-template placement check, (2) hooping the stocking inside-out so the cuff lays flat, (3) using a flat frame with sticky stabilizer, and (4) telling the Ricoma the truth it needs (proxy hoop + flipped design) so the stitchout lands correctly.

The “It’s Upside Down!” Moment on the Ricoma EM-1010—Why You’re Not Doing Anything Wrong

When you load the stocking after hooping it inside-out, the design will look upside down relative to you. That’s normal. The cuff is closest to the machine body because you inverted the stocking to get a flat hooping surface.

This is exactly why the Ricoma panel adjustment matters: you’ll flip the design orientation 180° so the stitched name reads correctly when you turn the stocking right-side out.

If you’re running a ricoma em 1010 embroidery machine, treat “orientation” as a safety check, not a cosmetic preference—because the wrong orientation often leads to rushed re-hooping, and rushed re-hooping is where alignment and fabric distortion happen.

Expert Tip: Before you start, perform a physical "orientation check." Place the stocking on the table inside out. Place a sticky note on the cuff with an arrow pointing "UP" (towards the toe). When you hoop it, that arrow should point toward the machine. If your screen design doesn't match that arrow, stop.

Tools That Actually Matter for a Quilted Stocking Cuff (and What Each One Prevents)

Kayla’s supply list is short, but every item has a specific mechanical job. Missing one usually leads to a specific type of failure.

• 8-in-1 Fast Frame (or similar flat metal frame): Essential for getting inside tubular items without the bulk of a standard plastic hoop.
• Printed Paper Template: Visual centering. Don't guess; print it 1:1 scale.
• Sewing Pins: For checking placement on the floating fabric.
• Sticky Stabilizer (Tear-away): This is your "glue." It holds the cuff without hoop ring pressure.
  • Recommendation: Use a high-quality adhesive stabilizer (like Filmoplast or a generic equivalent) that doesn't leave gum on your needles.
• Water-soluble Topper: Prevents stitches from sinking into the velvet/quilted texture.
• Scissors: For trimming stabilizer and cleanup.
• Thread: Machine embroidery thread (40wt). Kayla used Candle Thread gold (color 6988).
• Hidden Consumable (The "Don't Forget" Item): Temporary Spray Adhesive. Even with sticky stabilizer, a light mist on the stabilizer surface can refresh the tackiness if you have to reposition the stocking multiple times.
• Needle Choice: On thick quilted cuffs, a standard 75/11 Sharp or Ballpoint needle usually works best. If the cuff is extremely thick canvas, move up to a 90/14.

A quick reality check from the comments: people will ask if they can do this without the specialty frame. Kayla’s answer is honest—you can try, but the flat frame “comes in clutch” because thick hoops reduce clearance between the sewing arm and the project.

If you’re comparing options like fast frames embroidery hoops, the practical advantage is clearance and access—not magic. Flat frames simply give you more usable space when the item itself is thick.

The “Hidden” Prep: Paper Template Centering That Saves You From Re-Hooping

Kayla starts by eyeballing center, then pins the printed name template onto the cuff to verify placement.

Here’s the detail that separates clean work from “why is my name drifting?”: she puts her hand inside the cuff while pinning so she doesn’t pin the front and back layers together.

Warning: Pins and needles are a real hazard here—keep your non-dominant hand flat and away from the pin path, and never pin blindly through a thick cuff. A quick poke is annoying; a deep puncture can end your production day. Always remove pins before the frame goes onto the machine to prevent catastrophic collisions.

What you’re looking for during placement verification:

• Visual Balance: The template looks centered when you hold the stocking up at arm’s length.
• Parallel Alignment: The text baseline is parallel to the cuff edge, not "crooked."
• Layer Safety: Pins only catch the front cuff layer (not the back liner).

This is also where a lot of small businesses quietly lose money: re-hooping a stocking can take longer than stitching the name. If you’re doing personalization services, the template step is your cheapest insurance.

Prep Checklist (do this before you touch the machine)

• Print Verification: Print the name template at 100% scale (measure it with a ruler to be sure).
• Physical Pinning: Pin the template to the cuff with your hand inside (ensure back layer is free).
• Visual Audit: Hold the stocking up; does the name look level with the cuff seam?
• Inversion: Turn the stocking fully inside-out and flatten/straighten the cuff area.
• Stabilizer Prep: Pre-cut sticky stabilizer large enough to cover the frame window with 1 inch of extra on all sides to fold over.

Inside-Out Hooping for a Tubular Stocking: The Flat-Frame Trick That Makes It Possible

After placement is verified, Kayla turns the stocking thoroughly inside-out and straightens the cuff. This creates a flatter surface so the frame can slide in and the cuff can be pressed onto the sticky stabilizer.

This is the part many people skip mentally: hooping is not just “holding fabric.” It’s controlling fabric tension and distortion.

In general, thick quilted cuffs can deform when you force them into a standard hoop. A flat frame plus sticky stabilizer reduces the amount of mechanical squeezing needed, which often means less distortion and zero hoop burn (those crushed rings on velvet).

If you’re constantly fighting hooping for embroidery machine on bulky tubular items, the win is not brute force—it’s reducing how much the fabric has to bend and compress to get secured.

Sticky Stabilizer on the 8-in-1 Fast Frame: Fold the “Wings” So the Backing Doesn’t Creep

Kayla places the frame upside down, cuts sticky stabilizer to size, removes the backing, and adheres it to the bottom of the metal frame.

Then she flips the frame over and folds the excess stabilizer over the sides of the frame. She mentions some people tear the excess off, but she prefers folding.

Why this matters (The Physics): That folding step creates a "tension lock." It increases grip and reduces the chance the stabilizer edge lifts while you’re sliding the frame into the stocking. If the stabilizer lifts, the sticky surface hits the inside of the stocking before you are ready, ruining your alignment.

If you’ve ever had a project shift mid-run, you know the ugly truth: “it was fine when I started” usually means something crept—fabric, stabilizer, or both.

Using a sticky hoop for embroidery machine approach (sticky backing + firm edge control) is one of the most reliable ways to stabilize a cuff that you can’t hoop traditionally.

The V-Notch Alignment Method on the 8-in-1 Frame: Stop Guessing, Start Referencing

Kayla slides the prepared frame into the inverted stocking and uses a simple visual reference system:

1. The frame has a metal “V” notch (usually at the center of the bracket side).
2. The paper template has a black center line / crosshair.
3. She draws an imaginary line from the V-notch to the template’s center line.

Once aligned, she presses the cuff fabric down onto the sticky stabilizer. Sensory Check: Run your palm firmly over the fabric. You should feel the adhesive "grab." If it feels loose or slides easily, the stabilizer isn't sticky enough—replace it.

This is a classic “repeatable reference” technique. In production, repeatable beats perfect—because repeatable becomes perfect after you do it 20 times.

Expected outcome at this checkpoint:

• The template’s center line visually lines up with the V-notch reference.
• The cuff is pressed down smoothly (no air bubbles, no diagonal drag lines).
• Tactile Clearance: You can feel with your fingers that the embroidery area is centered and not sitting on top of the metal frame edges.






Ricoma Panel Settings for the 8-in-1 Device: Flip 180° and Use Hoop C (5x7) as a Proxy

On the Ricoma control panel, Kayla goes into Design Set and flips the design orientation upside down (180°). She uses the “F” square button and confirms.

Then she selects Hoop C (5x7) as a proxy hoop size because there is no preset option for the 8-in-1 device in older firmware versions.

Two important details from her explanation:

1. She’s not obsessed with the “correct” hoop size on screen—she’s obsessed with trace clearance and real-world placement.
2. She avoids setting the hoop to “Other” because it can make the design appear tiny on the screen, making it harder to confirm the flip and placement.

If you’re working with the ricoma 8 in 1 device, this proxy-hoop approach is practical: you’re using the machine’s interface to keep the design readable, then using the physiical trace to verify safety.

Setup Checklist (before you hit Trace)

• Hooping Check: Confirm the stocking is hooped inside-out and the cuff is FLAT on the sticky stabilizer.
• Template: Leave the paper template pinned on for the trace (do NOT remove it yet).
• Orientation: On the Ricoma panel, confirm the standard "F" icon is flipped 180° (upside down).
• Proxy Hoop: Select Hoop C (5x7) to give yourself a visual frame of reference on screen.
• Speed Limit: Crucial Step. Lower your machine speed. For bulky stockings, I recommend 600-700 SPM. Do not run at 1000 SPM; the momentum can cause the stocking to swing and blur the registration.

The Trace Test That Prevents Frame Strikes: Watch the Needle Bar Like a Hawk

Kayla runs a trace function and watches the needle bar movement over the paper template. This is the moment of truth.

What to watch for:

• The red laser point (or needle position) must stay strictly within the paper template area.
• The pantograph (the moving arm) must not push the dangling part of the stocking against the machine head.

This is not optional when you’re using a specialty frame or any non-standard setup.

Warning: A trace that’s too close to the metal frame can cause a needle strike. Listen: If you hear the metal frame clicking against the needle plate during the trace, STOP. That sound is a warning that your clearance is zero. A strike at high speed can shatter the needle and damage the hook timing.

Expected outcome at this checkpoint:

• Trace box clears the metal on all sides by at least 5mm.
• Trace aligns over the printed name area.
• You feel confident enough to remove pins without losing placement.

After tracing, Kayla straightens the template area and removes the pins.

Stitching on Quilted Velvet/Microfiber: Why a Water-Soluble Topper Beats “Sinking Letters”

Kayla forgot to mention it at the start, but she adds a water-soluble stabilizer topper (Solvy) on top of the cuff before stitching. She floats it (lays it on top) and notes you can tape it if you want.

The "Why": On quilted or textured surfaces (like velvet, faux fur, or sherpa), stitches tend to sink into the nap. This makes thin satin columns disappear and text look ragged. A topper creates a temporary platform for the thread to sit on, keeping the letters crisp and raised.

A commenter asked about “knockdown stitches” (a stitched base layer) versus using a thin topper. Kayla’s preference here is simple: she likes “just the name.” Both approaches can work in general, but they serve different goals:

• Topper: Helps clarity on texture with minimal extra stitching. Best for velvet/plush.
• Knockdown: Creates a permanently flattened rectangular back-field. Best for extremely deep pile like shag or long faux fur.

If your customers want a clean, minimal personalization, topper is often the faster path.

Kayla stitches the name using Candle Thread gold.

If you’re shopping for an 8 in 1 embroidery hoop style solution, remember the hoop/frame is only half the quality equation—the other half is how you manage surface texture (topper) and stabilization (sticky backing).

Clean Unhooping and Finishing: Peel, Tear, Turn Right-Side Out—and Don’t Overwork It

After stitching, Kayla:

1. Removes the frame from the machine.
2. Tears away the water-soluble topper.
3. Peels the stocking off the sticky stabilizer (tear-away action).

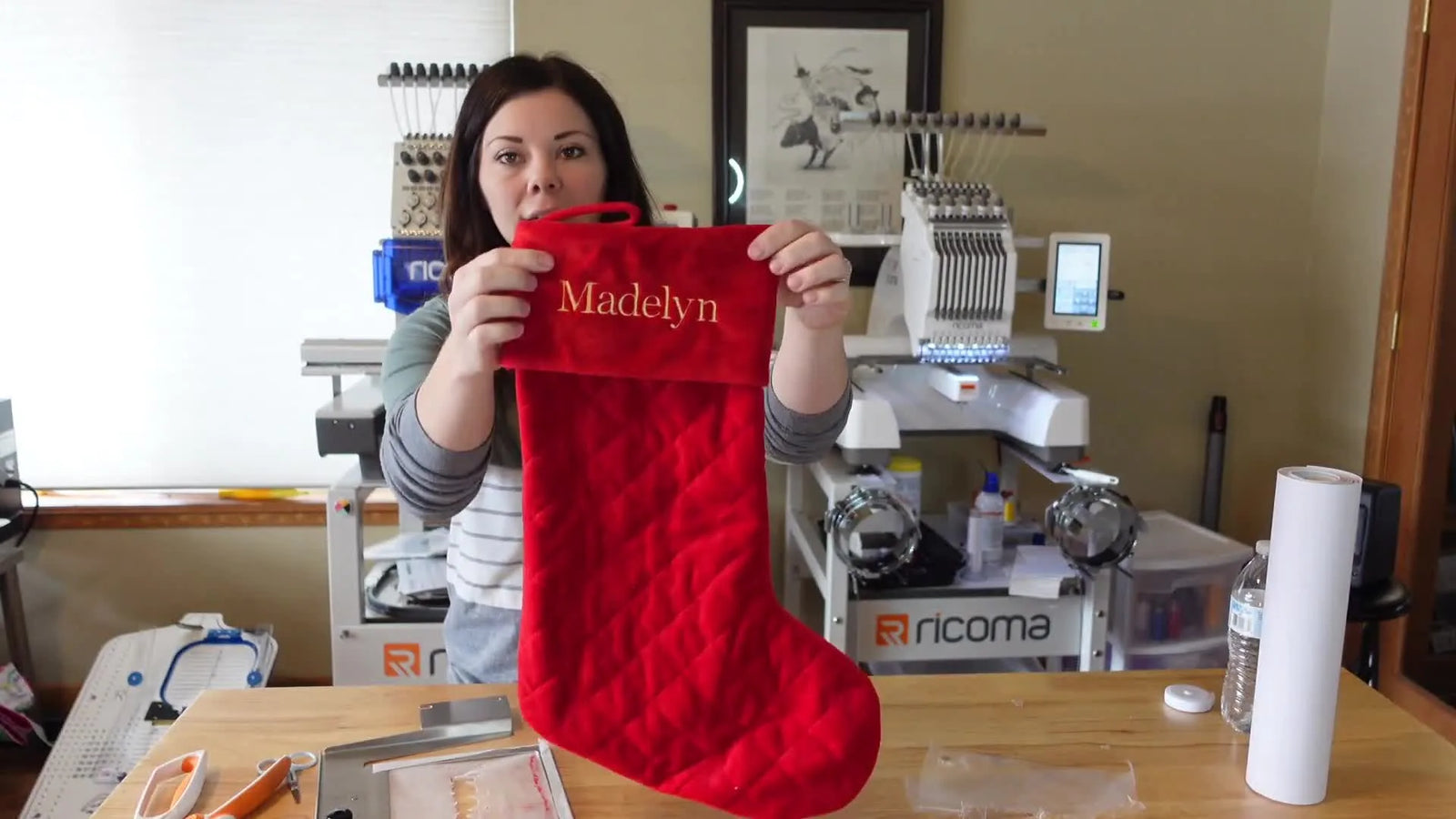

4. Turns the stocking right-side out to reveal the final result.

She describes it as “super easy, super fast,” and notes the whole process took about 10 minutes.

Finishing standard I recommend (especially for paid orders):

• Tweeze the Topper: Remove topper cleanly so no shiny film remains around satin stitches. A wet Q-tip can dissolve stubborn bits.
• Support the Tear: When peeling the stocking off the sticky backing, place your thumb on the stitches and peel the backing away from the thread. Do not just yank the fabric; you can distort the letters you just sewed.
• Trim Jumps: Clip any jump threads close to the surface.
• Final Inspection: Turn right-side out and inspect letter edges under good light.




Operation Checklist (the “don’t ruin it at the finish line” list)

• Topper: Float water-soluble topper over the cuff before pressing start (tape corners if the fan blows it around).
• Clearance: Ensure the dangling "boot" of the stocking isn't caught under the frame arm.
• Observation: Stay nearby for the first 30–60 seconds to confirm stable stitching. Listen for the rhythmic "thump-thump" of good stitching, not the "clack-clack" of the needle hitting something hard.
• Un-hooping: Gently peel stocking from sticky stabilizer; do not stretch the cuff.
• Cleanup: Remove all trace of the water-soluble topper.

Decision Tree: Choosing Stabilizer + Frame Strategy for Stockings (and When to Upgrade Your Tools)

Use this quick decision tree to avoid the two most common stocking failures: shifting and sinking.

1) Is the item tubular/bulky enough that a standard hoop reduces arm clearance?

• Yes: Prefer a flat frame approach (like the 8-in-1) or a magnetic frame. If you don’t have one, you can attempt a standard hoop, but expect clearance issues and slower hooping.
• No: A standard hoop may be fine.

2) Is the cuff textured/quilted (velvet/microfiber look, quilting lines, or nap)?

• Yes: Add water-soluble topper (float it).
• No: You may skip topper if your lettering stays crisp (test first).

3) Is the fabric trying to distort or “spring” when you secure it?

• Yes: Sticky stabilizer is your friend; press the cuff down smoothly after alignment.
• No: Standard cut/tear-away may work, but sticky still speeds placement.

4) Are you doing one stocking for fun—or 50 for a corporate order?

• One: Use what you have, go slower, trace twice.
• Fifty: Upgrade for repeatability and speed.

For high-volume personalization, this is where magnetic embroidery hoops become a serious productivity lever. Magnetic hoops (like those offered by SEWTECH) clamp the fabric instantly without adjusting screws, drastically reducing hooping time and hand strain. More importantly for stockings, they allow you to float the item easily without the "sticky residue" mess of adhesive stabilizer if you use strong magnets with a standard backing.

Warning: Magnetic frames are powerful industrial tools. Keep them away from pacemakers, implanted medical devices, and mechanical watches. Never let magnets snap together near fingers—the pinch force can be severe. Store magnets separated by their foam spacers.

“Can I Use a Regular Hoop or Mighty Hoop?”—A Straight Answer for Ricoma Stocking Work

This question shows up constantly in stocking season.

• Regular Hoop: You can try, but Kayla’s experience is that the thickness of regular plastic hoops (inner + outer ring) steals clearance between the sewing arm and the bulky stocking. This leads to the machine arm rubbing against the fabric, which ruins registration.
• Mighty Hoop: Kayla mentions she wanted to use a 5x5 Mighty Hoop but found it too thick for this specific stocking setup on her machine.

However, for many industrial machines or slightly larger items, Mighty Hoops are the gold standard. If you’re determined to test mighty hoops for ricoma em 1010, do it safely:

• Run the trace at the lowest possible speed.
• Watch for clearance at the thickest part of the cuff.
• Be ready to switch to a flatter frame (like the Fast Frame or a low-profile SEWTECH magnetic frame) if the trace gets close to metal/plastic edges.

From a business standpoint, the “right” tool is the one that reduces re-hoops. Re-hoops are where your profit disappears.

The Upgrade Path I’d Recommend for a Stocking Personalization Business (No Hype—Just Time Math)

If you’re doing a couple of gifts for family, Kayla’s workflow with the standard kit is excellent.

If you’re running a business, think in terms of bottlenecks:

1. Bottleneck #1: Hooping Speed. Tubular items are slow to hoop with screws.
2. Bottleneck #2: Alignment Confidence. Re-hooping kills margins.
3. Bottleneck #3: Thread Changes. Single-needle machines stopping for color changes = lost time.

Here’s a practical “tool upgrade” ladder that matches real shop growth:

• Level 1 (Consumables Upgrade): Buy specific 75/11 Ballpoint needles (prevents holes in knit cuffs), high-quality sticky stabilizer, and Solvy topper. This is the cheapest way to improve quality instantly.
• Level 2 (Tooling Upgrade): Move toward Magnetic Hoops. If the 8-in-1 is too fiddly, a 5x5 Magnetic Hoop (compatible with your machine arm clearance) allows for "Snap and Go" speed. SEWTECH offers magnetic solutions that fit many commercial machines, bridging the gap between hobby and pro speed.
• Level 3 (Capacity Upgrade): If stocking season turns into team orders (50+ items), a high-value multi-needle platform (like a SEWTECH multi-needle machine) is the difference between "I'm busy" and "I'm profitable." The ability to set up 15 colors and run all day without re-threading changes the economics of your business entirely.

The point isn’t to buy everything—it’s to remove the one step that’s slowing you down right now.

Quick Troubleshooting: Symptoms → Likely Cause → Fix (Based on This Exact Workflow)

Symptom: The name stitches upside down when the stocking is turned right-side out.

• Likely Cause: Stocking was hooped inside-out (correct) but the design was NOT flipped on screen (incorrect).
• Fix: In Design Set, press the "F" button to flip the design 180°.
• Prevention: The "Sticky Note Arrow" trick mentioned in Section 1.

Symptom: You can’t find the 8-in-1 frame in the hoop list.

• Likely Cause: No firmware preset exists for that specific device.
• Fix: Select Hoop C (5x7) as a proxy.
• Safety: You MUST rely on a physical trace; do not trust the screen boundary.

Symptom: Trace is dangerously close to the metal frame edge (Hearing a "Click" sound).

• Likely Cause: Misalignment between the V-notch and template, or the design is too large (>4 inches wide) for the usable window.
• Fix: Stop immediately. Re-align using the V-notch. If still tight, scale the design down by 10%.

Symptom: Letters look "thin" or like they are sinking into the quilted cuff.

• Likely Cause: Texture/nap of the velvet is swallowing the stitches.
• Fix: Float water-soluble topper on top before stitching.

Symptom: Fabric shifts/bunches when you start stitching.

• Likely Cause: Cuff wasn’t pressed down evenly onto sticky stabilizer, or the stabilizer "wings" weren't folded over, causing the sheet to lift.
• Fix: Fold stabilizer edges over the frame for a tension lock. Press fabric firmly (like a sticker).

If you copy Kayla’s sequence—template first, inside-out hooping, sticky stabilizer on a flat frame, proxy hoop + 180° flip, then trace before you stitch—you’ll get consistent, sellable stocking names without the usual stress. The method scales, and that’s what matters when the holidays hit and every customer wants their order “by Friday.”

FAQ

• Q: Why does a name look upside down on a Ricoma EM-1010 screen after hooping a Christmas stocking cuff inside-out?
  A: This is normal—inside-out hooping reverses your viewpoint, so the fix is to flip the design orientation 180° on the Ricoma EM-1010 before stitching.
  • Flip: Go to Design Set and use the “F” square button to rotate/flip 180°, then confirm.
  • Verify: Do a physical orientation check by placing an “UP” arrow on the cuff (pointing toward the toe) and make sure the hooped arrow direction matches what you expect at the machine.
  • Trace: Run a trace while the paper template is still pinned to confirm the needle path matches the intended reading direction.
  • Success check: After turning the stocking right-side out, the stitched name reads correctly and sits level to the cuff edge.
  • If it still fails… Re-hoop with the arrow method again and re-check that the on-screen design is flipped before pressing Start.
• Q: How do you center a name on a thick Christmas stocking cuff without re-hooping on a Ricoma EM-1010 workflow?
  A: Print a 1:1 paper template and pin it to the front layer only before you ever touch the frame.
  • Print: Output the name template at 100% scale and measure it with a ruler to confirm it’s truly 1:1.
  • Pin: Put a hand inside the cuff while pinning so pins catch only the front cuff layer (not the back/liner).
  • Audit: Hold the stocking up and check the baseline is parallel to the cuff edge (not visually “crooked”).
  • Success check: The template looks centered at arm’s length and pins do not capture the back layer.
  • If it still fails… Reprint at true scale and re-check that the cuff seam/edge you’re referencing is actually straight on that stocking.
• Q: What is the correct way to apply sticky tear-away stabilizer on an 8-in-1 fast frame so the stabilizer does not creep when hooping a stocking cuff?
  A: Don’t tear the excess off—fold the stabilizer “wings” over the frame edges to create a tension lock.
  • Cut: Pre-cut sticky stabilizer larger than the frame window with about 1 inch extra on all sides.
  • Stick: Apply stabilizer to the bottom of the metal frame after removing the backing.
  • Fold: Flip and fold the excess stabilizer over the sides of the frame to prevent edge lift while sliding into the stocking.
  • Success check: The stabilizer edge stays flat and the fabric feels like it “grabs” when you press it down (no easy sliding).
  • If it still fails… Replace the sticky stabilizer (adhesive may be weak) or lightly refresh tack with temporary spray adhesive if you had to reposition repeatedly.
• Q: How can a Ricoma EM-1010 user prevent a needle strike on a metal flat frame when embroidering a bulky stocking cuff?
  A: Always run a trace and stop immediately if clearance is tight or you hear clicking—trace is your collision test.
  • Set up: Leave the paper template pinned for tracing so you can see exactly where the stitch field will land.
  • Trace: Watch the needle bar/laser point and confirm the trace box stays inside the template area.
  • Listen: Stop if you hear the frame clicking against the needle plate—this indicates near-zero clearance.
  • Success check: The trace clears the metal frame by at least 5 mm on all sides and the pantograph does not push the dangling stocking into the head.
  • If it still fails… Re-align using the frame’s center reference (V-notch method) and/or scale the design down about 10% before tracing again.
• Q: What Ricoma EM-1010 settings should be used when the 8-in-1 device is not listed in the hoop menu?
  A: Use Hoop C (5x7) as a proxy for a readable on-screen boundary, then rely on a physical trace for real safety and placement.
  • Select: Choose Hoop C (5x7) on the Ricoma EM-1010 when the specialty device isn’t available in firmware presets.
  • Flip: Apply the 180° flip in Design Set if the stocking is hooped inside-out.
  • Slow down: Reduce speed to a safe starting point of 600–700 SPM for bulky stockings to reduce swing and registration blur.
  • Success check: The on-screen view is easy to interpret, and the physical trace confirms safe clearance and correct placement over the template.
  • If it still fails… Do not trust the screen boundary—re-trace after any adjustment and prioritize real-world clearance over menu accuracy.
• Q: Why do embroidered letters sink into quilted velvet/microfiber stocking cuffs, and what is the quickest fix for crisp text?
  A: Add a water-soluble topper (float it on top) to keep satin stitches from disappearing into texture.
  • Place: Lay a water-soluble topper over the cuff before stitching (tape corners only if airflow moves it).
  • Stitch: Run the name normally; remove topper afterward by tearing and cleaning remnants as needed.
  • Choose: Use topper when the surface has nap/texture; consider a knockdown only when you intentionally want a stitched background field.
  • Success check: Letter edges look clean and raised, with no “ragged” or buried satin columns.
  • If it still fails… Re-check stabilization (fabric may be shifting) and confirm the cuff is pressed smoothly onto the sticky stabilizer with no bubbles or drag lines.
• Q: What safety steps should be followed when pinning and tracing a thick stocking cuff on a Ricoma EM-1010 to avoid injuries and machine damage?
  A: Treat pins and metal-frame tracing as high-risk steps—control your hands, remove pins before stitching, and stop at any collision warning.
  • Pin safely: Keep the non-dominant hand flat and away from the pin path; never pin blindly through thick layers.
  • Remove pins: Pull all pins out after tracing confirms placement and before the frame runs under the needle.
  • Monitor start: Stay with the machine for the first 30–60 seconds and listen for smooth stitching (not hard “clack” sounds).
  • Success check: No pins remain in the hoop area, and the machine runs without any impact sounds during trace or stitch.
  • If it still fails… Stop immediately, re-check clearance (dangling stocking not caught), and re-trace at reduced speed before resuming.
