Ricoma EM-1010 Patch Production That Actually Flows: Hooping Felt Fast, Tracing Safely, and Letting Bulk Runs Pay You Back

If you’ve ever stared at your multi-needle machine thinking, “I bought this to be faster… so why does it still feel slow?”, you are not alone. It is a phenomenon I call "The Multi-Needle Paradox."

I see it constantly in my consulting work—especially with owners of machines like the Ricoma EM-1010. You love the idea of the machine, but you barely use it because the setup feels like launching a space shuttle. You worry about tension, you worry about hooping crooked, and mostly, you worry about crashing the machine.

Patrice’s patch workflow is a masterclass in breaking that paralysis. It is a perfect example of what "Production Thinking" looks like: stable hooping, clean materials, verified settings, and one non-negotiable safety habit.

Below, I have rebuilt her process into a "Studio-Ready Standard Operating Procedure (SOP)." We are moving beyond "hoping it works" to a system you can repeat for bulk felt patches without re-hooping drama, needle strikes, or wasted stops.

The Calm-Down Moment: Why Anxiety Ruins Patches (And How Stability Fixes It)

The Ricoma EM-1010 (and similar multi-needle workhorses) is perfectly capable of clean, consistent patch sheets. What usually breaks beginners isn’t the stitching mechanism; it’s the variable of human error in hooping.

When you hoop manually using standard friction hoops, you are relying on muscle memory and hand strength. If your wrist is tired, the tension changes. If you pull too hard, you get "hoop burn" or distorted fabric.

Patrice solves this by using a hooping station and a magnetic hoop. This turns a variable art into a fixed science. The materials go in flat, square, and—most importantly—repeatable. If you are trying to make patches for gifts, team orders, or a startup business, mechanical stability is what prevents you from throwing away expensive materials.

One viewer asked for a link to the felt Patrice used. While the specific brand isn’t the critical factor, the physics of the material is. You need a non-stretch patch backing material (like stiff felt or polyester twill).

The Rule of Thumb: If you pull the fabric and it stretches like a t-shirt, it needs heavy stabilization. If it stays rigid like cardstock, it is ready for patches.

The "Hidden" Prep That Prevents Re-Hooping: Locking In The Foundation

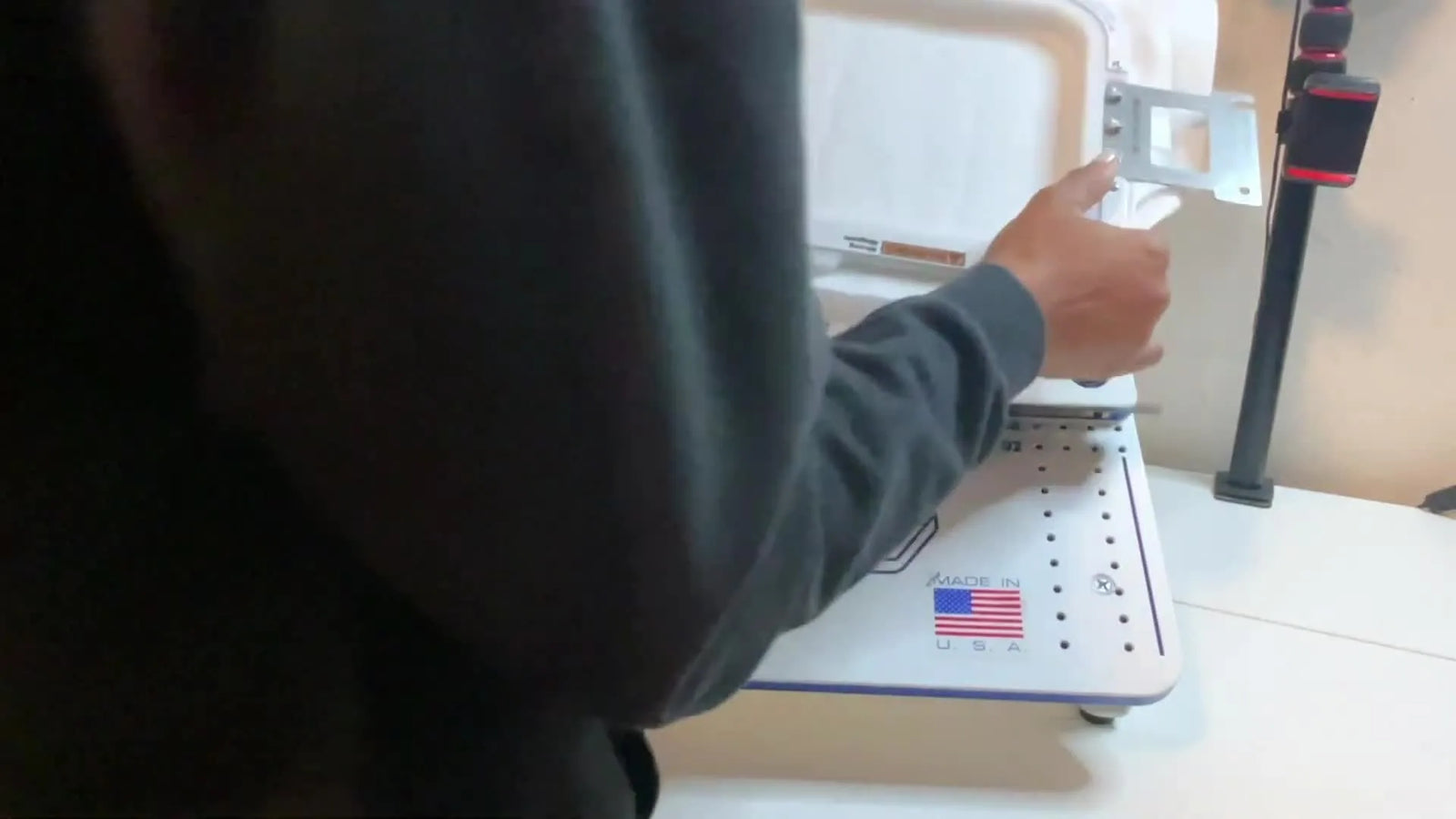

Patrice starts by setting the HoopMaster station on the table, placing the fixture onto the base, and locking the bottom ring of the magnetic hoop into the fixture using the side clips.

Do not gloss over this step. The tactile feedback here is crucial.

• Listen: You should hear a distinct click or feel a solid thud as the ring seats.
• Touch: Wiggle the bottom ring. If it moves, your design will be crooked.

By locking the bottom ring, you have created a stable foundation. You are no longer fighting the hoop while you layer your stabilizer and felt. This is how you achieve "factory consistency" in a home garage.

If you are using a hoopmaster station, treat it like a jig in a professional woodshop. Its job is not just convenience; its job is repeatability. Every patch comes out exactly the same because the jig removes your trembling hands from the equation.

Prep Checklist: The "Mise-en-place" (Do this before you cut anything)

• Foundation: Hooping station base on a solid table (no wobble).
• Fixture: Installed and seated correctly for the specific hoop size 8x13.
• Engagement: Bottom ring clicked/locked into the fixture with side clips.
• Consumables: Cutaway stabilizer roll and sharp fabric scissors within reach.
• Material: Felt sheet ready (ironed flat if it was stored rolled/curled).
• Data: USB drive ready with the tested patch file (.DST or machine format).


Cutaway Stabilizer + Felt: The Physics of the "Patch Sandwich"

Patrice measures and cuts a piece of cutaway stabilizer, lifts the magnetic flaps on the fixture, lays the stabilizer over the bottom ring, and closes the flaps to hold it taut.

Then she places the white felt directly on top of the stabilizer. Finally, she aligns the top magnetic frame and lets it snap down onto the bottom ring, sandwiching everything.

Here is the expert analysis on why this specific combination works, and where beginners often fail:

1. The Stabilizer Choice: Why Cutaway?

For patches, you are typically running dense fills (tatami stitches) and heavy satin borders.

• Tearaway implies: "I want this gone."
• Cutaway implies: "I need this to stay forever."

Patches need permanent structure. If you use tearaway, the needle perforations of a satin border effectively create a stamp—the patch will simply punch itself out of the stabilizer mid-stitch, leading to registration errors. Always use Cutaway for patches.

2. The Material: Non-Stretch is King

Patrice explicitly warns against stretchy materials.

• The Risk: Stretch + Dense Stitches = The "Pucker Effect." As the thread tightens, it pulls elasticity out of the fabric.
• The Fix: Felt behaves because it doesn't rebound like knits. It is historically the standard for patches because it absorbs stitches without complaining.

3. Hooping Physics: The "Drum Skin" Myth

You often hear "hoop it tight as a drum." For magnetic hooping, I prefer the "Taut Canvas" analogy. You aren't trying to stretch the fibers open; you are simply removing the slack. Magnetic hoops are superior here because they clamp vertically. Standard screw hoops rely on friction and drag, which often pulls the fabric unevenly (creating an oval instead of a circle).

If you are building a repeatable patch workflow, investing in magnetic embroidery hoops is less about having "cool gear" and more about consistent clamping pressure. Whether it is the 1st patch of the day or the 50th, the magnet applies the exact same force, saving your hands from repetitive strain injury.

Warning: Magnetic Safety (Read This!)
Magnetic hoops use powerful Neodymium magnets.
1. Pinch Hazard: Keep fingers clear of the rim when the top frame snaps down. The pinch can cause severe blood blisters. Never try to "catch" the hoop mid-close.
2. Device Safety: Keep these hoops at least 6 inches away from pacemakers, credit cards, and computerized machine screens.

The Setup That Makes Batch Work Possible: Maximizing the Stitch Field

Patrice uses an 8x13 magnetic hoop and shows the size before hooping. This specific size is strategic: it allows for a grid of patches in a single run.

When you are choosing a hoop for patches, think in two layers:

1. Physical Hoop Size: What actually fits onto the machine arms without hitting the pantograph.
2. Safe Stitch Field: The area inside the hoop where the needle can travel without hitting the metal/plastic frame.

Many beginners try to fill 100% of the hoop. Don't. Leave a safety margin of at least 15mm from the edge. That is why Patrice traces later—because "it looks like it fits" is not a valid safety check.

If you are running a mighty hoop 8x13 style layout, the real win is Setup Time Reduction. If it takes you 5 minutes to hoop and load, doing that once for 12 patches is infinitely more profitable than doing it 12 times for single patches. This is where multi-needle machines start paying you back.

Setup Checklist (Right after hooping, before walking to the machine)

• Tension Check: Tap the center of the hooped felt. It should sound relatively dull but feel firm, not sagging.
• Perimeter Check: Is the top frame fully seated all the way around? (Look for a "lifted corner"—this causes needle breakage).
• Wrinkle Check: Is the stabilizer flat underneath? Bubbles here cause loops often blamed on "tension."
• Clearance: Are the hoop edges clean? Ensure no stabilizer is folded over the top clamp area.


USB to Machine Memory: The Protocol for Stability

At the Ricoma EM-1010 panel, Patrice follows a strict data hygiene protocol:

1. Go to File.
2. Select the USB icon.
3. Select the patch file.
4. CRITICAL STEP: Copy it to machine memory (machine icon with arrow).
5. Open the file from the Machine Memory list.


Why copy it? Do not run designs directly from the USB stick if you can avoid it. If the vibration of the machine jiggles the USB connection for a microsecond, the data stream cuts, and your design stops (or corrupts) mid-stitch. Loading to memory is a professional habit that reduces glitch-related failures.

Needle Assignment & The "Automatic" Workflow

Patrice assigns:

• Needle 1 = Black (Border/Text)
• Needle 4 = White (Background/Highlight)

Then she changes the machine mode from Automatic Manual to Automatic.

This distinction is massive for workflow:

• Automatic Manual: The machine stitches Color A, cuts the thread, and stops. You have to press Start again. (Good for checking work).
• Automatic: The machine stitches Color A, cuts, moves to Color B, and immediately starts stitching.

If you are doing mighty hoops for ricoma em 1010 patch sheets, switching to Automatic is the "Beginner to Pro" graduation moment. You are removing interruptions that do not add quality. You cannot walk away and do other work if the machine is waiting for you to press "Start" every 3 minutes.

800 SPM: Speed is a Tool, Not a Flex

Patrice increases speed to 800 SPM (Stitches Per Minute). She notes she might adjust it later.

This is the correct mindset. Speed is a control knob, not a badge of honor.

My "Sweet Spot" Recommendation for Beginners: Start your first batch at 600-650 SPM. Listen to the machine. A happy embroidery machine has a rhythmic, "thump-thump-thump" sewing machine sound.

• If you hear: A harsh metallic "clack-clack" or high-pitched whining.
• Action: Slow down.

Once you confirm the machine isn't struggling with the dense felt, you can bump it to 800.

Signs you are going too fast:

1. Thread shredding (fraying).
2. Bobbin thread showing on top (tension issues).
3. Registration loss (outlines don't line up with fills).


The Contour Trace Habit: The "Don't Break Your Machine" Button

Patrice mounts the hoop, selects the Trace icon, and runs a detailed contour trace. She uses a pointer tool to verify position.

This is the single most important safety habit in this entire guide. Period.

The Horror Story: You skip the trace. You press start. The design is 2mm too far to the left. The needle comes down at 800 SPM, hits the metal hoop frame, and shatters. The shard flies into your eye (wear safety glasses!), or bends the needle bar, costing you $300 in repairs.

The Fix: Always run a trace. Watch the Presser Foot, not just the laser. The laser is a guide; the presser foot is the physical object that will collide with the frame.

If you are utilizing a hooping station for embroidery to speed up production, tracing is the final "Quality Assurance" gate that keeps your speed from turning into expensive mistakes.

Warning: Physical Safety
Never put your hand under the needle area during trace or stitch-out. Do not "help" the machine by pushing the hoop. The pantograph motors are stronger than your fingers. Use a pencil or pointer tool if you need to hold something down.

Bulk Stitching: Letting the Asset Work

Patrice presses Start and lets the machine stitch the patch sheet. It takes over an hour.

This is the business lesson: The profit is in the Walk-Away. If you have to stand there and watch it, you are an operator. If you can walk away and answer emails or prep the next hoop, you are a business owner.

Production Mode Best Practices:

1. The First Layer Rule: Stay close for the first 2 minutes. If a bird's nest (thread tangle) is going to happen, it usually happens at the start.
2. Bobbin Check: Before starting a long 1-hour run, put in a fresh bobbin. Don't risk running out at 90%.


Operation Checklist (The Final "Go/No-Go")

• Needles: Assigmnent verified (1=Black, 4=White).
• Mode: Set to Automatic (for continuous flow).
• Speed: Set to Safe Range (start 600, target 800).
• Clearance: Contour trace completed; no collision risk.
• Bobbin: Full bobbin installed? (Check visual window).
• Lock: Hoop arms locked onto the machine pantograph securely.


Clean Finishing: The Cut Out

After stitching, Patrice un-hoops, pops the magnetic frame, and cuts the squares.

Finishing Tips:

• Cutting: Use long-blade scissors for straight lines. Avoid "chomping" (short cuts) which leave jagged edges.
• Adhesive: Patrice mentions simple stitching, but for commercial patches, consider applying a heat-seal backing (like HeatnBond) before you cut them out. This gives the patch a professional, stiff feel and allows customers to iron it on.

Decision Tree: Fabric & Stabilizer Selection

Don't guess. Use this logic flow to ensure safety.

1. Is your Patch Material Stretchy?
   • Yes: STOP. Do not use for beginners. Switch to Felt or Twill.
   • No: Proceed to 2.
2. Is the Design Dense? (Full background stitching/Satin borders)
   • Yes: Use Cutaway Stabilizer (2.5oz or 3.0oz).
   • No (Outline only): You might get away with Tearaway, but Cutaway is safer.
3. Hoop Selection?
   • Single Patch: Smallest hoop that fits comfortably.
   • Batch Run: Largest safe hoop (e.g., 8x13 Mighty Hoop).

Troubleshooting: The "Quick Fix" Guide

The Upgrade Path: When to Scale Up?

If you are doing patches casually, Patrice’s setup is excellent. But when does it break?

When patch orders become weekly, or you are fulfilling 50+ item team orders, your bottleneck shifts. The machine stitches fine, but you become the slow part.

The Diagnostics for Upgrade:

1. Pain Point: Are you spending more time hooping than stitching?
   • Solution Level 1: Get a second hoop so you can hoop one while the other stitches.
   • Solution Level 2: Upgrade to Magnetic Hoops. They snap on instantly, reducing "hoop burn" on clothes and reducing wrist strain. This is the single best tool upgrade for existing machine owners.
2. Pain Point: Is the machine too slow for your volume?
   • Solution Level 3: If a 10-needle Ricoma isn't enough, or if you are on a single-needle machine struggling with color changes, look into high-efficiency SEWTECH multi-needle embroidery machines. They offer industrial reliability and speed, designed to bridge the gap between "hobby" and "factory" without the massive price tag of legacy brands.

Note for Single-Needle Users:
If you are reading this but own a single-needle home machine, you don't have to feel left out. There are specifically designed magnetic hoops for single-needle machines. They solve the "thick fabric" problem (like towels or hoodies) that standard plastic hoops can't grip.

The Takeaway

Patrice’s workflow succeeds not because of magic, but because of Systems.

• System 1: The Hooping Station (Physical Stability).
• System 2: The Trace (Safety Check).
• System 3: The Batch Run (Efficiency).

Copy her sequence. Respect the safety boundaries. Once your hands memorize the rhythm, the fear disappears, and the machine just becomes a tool that prints money (or great gifts) on demand.

FAQ

• Q: How can Ricoma EM-1010 owners prevent crooked patch sheets when hooping felt with a HoopMaster station and an 8x13 magnetic hoop?
  A: Lock the bottom ring into the HoopMaster fixture first, then build the stabilizer+felt stack on that fixed base for repeatability.
  • Seat: Clip the bottom ring into the fixture and confirm it “clicks/thuds” into place.
  • Test: Wiggle the bottom ring before adding stabilizer; re-seat if there is any movement.
  • Align: Lay cutaway stabilizer flat first, then place felt on top before closing the magnetic top frame.
  • Success check: The bottom ring does not shift when nudged, and the felt lies flat without ripples.
  • If it still fails: Re-check that the correct fixture is installed for the hoop size and that the table surface is not wobbling.
• Q: What is the safest stabilizer choice for dense felt patches on a Ricoma EM-1010: cutaway stabilizer or tearaway stabilizer?
  A: Use cutaway stabilizer for patch sheets because dense fills and satin borders can perforate tearaway and cause registration loss mid-stitch.
  • Choose: Pick cutaway as the default for patches, especially with full backgrounds and satin borders.
  • Avoid: Do not rely on tearaway for dense patch borders where needle perforations act like a “stamp line.”
  • Prep: Cut the cutaway large enough to be fully clamped and held flat in the hoop.
  • Success check: The patch sheet stays stable through the border without shifting or punching free.
  • If it still fails: Reduce speed and verify the hooped stack is clamped evenly (no lifted corner on the magnetic frame).
• Q: How can Ricoma EM-1010 operators tell if felt and stabilizer are hooped correctly in an 8x13 magnetic hoop before stitching a patch grid?
  A: Aim for “taut canvas,” not “drum tight,” and confirm the magnetic top frame is fully seated with no bubbles underneath.
  • Tap: Tap the center of the hooped felt to confirm it feels firm and not sagging.
  • Inspect: Look around the perimeter for any lifted corner of the top frame.
  • Smooth: Check the stabilizer underside is flat with no wrinkles or bubbles.
  • Success check: The hooped felt feels consistently firm across the field, and the frame sits flush all the way around.
  • If it still fails: Re-hoop using the hooping station and ensure no stabilizer is folded into the clamp area.
• Q: Why does a Ricoma EM-1010 stop after each color, and how can Ricoma EM-1010 users switch to continuous stitching for patch sheets?
  A: The machine is likely set to “Automatic Manual”; switch the Ricoma EM-1010 to “Automatic” so it trims, changes needles, and continues without waiting for Start each time.
  • Verify: Confirm needle assignments (example from the workflow: Needle 1 = Black, Needle 4 = White).
  • Change: Set the machine mode from “Automatic Manual” to “Automatic.”
  • Monitor: Stay close for the first couple of minutes to catch early thread tangles.
  • Success check: After a color change and trim, the Ricoma EM-1010 automatically resumes stitching the next color without stopping.
  • If it still fails: Re-check the panel mode selection and confirm the design file was opened from machine memory rather than directly from USB.
• Q: How can Ricoma EM-1010 users prevent design corruption or mid-run stops caused by stitching directly from a USB drive?
  A: Copy the design from USB into Ricoma EM-1010 machine memory and run the file from machine memory to avoid USB vibration disconnects.
  • Navigate: File → USB icon → select design file.
  • Copy: Use the copy-to-machine-memory function (machine icon with arrow).
  • Open: Start the design from the Machine Memory list, not the USB list.
  • Success check: The design loads and runs without random pauses that coincide with machine vibration.
  • If it still fails: Try a different USB stick and keep cable/port movement minimal; consult the machine manual for supported file handling.
• Q: How can Ricoma EM-1010 users prevent needle strikes on an 8x13 magnetic hoop when running felt patch grids at 800 SPM?
  A: Always run a full contour trace on the Ricoma EM-1010 and watch the presser foot clearance before pressing Start.
  • Trace: Use the Trace function and perform a detailed contour trace, not a quick guess.
  • Watch: Focus on the presser foot path (the physical collision risk), not only the laser.
  • Margin: Keep a safety margin from the hoop edge (do not try to use 100% of the hoop area).
  • Success check: During trace, the presser foot stays safely inside the stitch field with no near-misses at the frame.
  • If it still fails: Re-center the design, confirm the correct hoop setting on the control panel, and re-trace before stitching again.
• Q: What magnetic hoop safety precautions should Ricoma EM-1010 users follow when using Neodymium magnetic embroidery hoops for patch production?
  A: Treat magnetic hoops as pinch-hazard tools and keep magnets away from sensitive devices to prevent injuries and damage.
  • Clear: Keep fingers out of the closing path; never try to “catch” the top frame as it snaps down.
  • Distance: Keep magnetic hoops at least 6 inches away from pacemakers, credit cards, and computerized machine screens.
  • Control: Set the frame down deliberately and evenly to avoid surprise snap closures.
  • Success check: The hoop closes without pinching fingers, and the machine area stays free of magnet-related device issues.
  • If it still fails: Slow the workflow down and reposition hands; use a pointer tool for positioning checks instead of fingers near the clamp zone.
• Q: When patch orders increase, what is the upgrade path for reducing hooping time on a Ricoma EM-1010 before buying a higher-output SEWTECH multi-needle embroidery machine?
  A: Use a staged approach: optimize workflow first, then add capacity with more hoops or magnetic hoops, and only then consider a production machine upgrade if volume still outgrows the setup.
  • Level 1: Add a second hoop so one hoop can stitch while the next hoop is prepared.
  • Level 2: Upgrade to magnetic hoops to reduce hooping time, reduce hoop burn risk, and reduce wrist strain from screw hoops.
  • Level 3: If stitch time and weekly volume still exceed what the current machine can handle, consider moving up to a higher-efficiency SEWTECH multi-needle embroidery machine.
  • Success check: Hooping time stops being the main bottleneck, and batch runs require fewer stops and re-hoops.
  • If it still fails: Track where time is truly spent (hooping vs. stitch-out vs. thread breaks) and address the highest-delay step first.
