Ricoma EM-1010 Array Duplication for Patches: Fit More Logos in the 8x9 Magnetic Hoop Without Re-Doing Color Stops

The Patch Production Blueprint: Mastering On-Screen Arrays on the Ricoma EM-1010 without Wasting Fabric

When you’re making patches, the fastest way to lose money isn’t thread—it’s time: re-entering colors, re-hooping, and running the same setup steps repeatedly because the layout didn’t fit.

As someone who has spent two decades on the shop floor, I can tell you that machine embroidery is a "science of variables." The Ricoma EM-1010 is a capable workhorse, but its control panel has specific quirks that can terrify a beginner.

This guide is your operational white paper. We will break down a reliable workflow for duplicating a logo design directly on the panel. More importantly, we will integrate the "shop reality" checks—the sensory cues and physical limits—that experienced operators use to prevent needle breaks and profit loss.

Don’t Panic: The Ricoma EM-1010 Array Screen Is Simple Once You Know the Two Traps

The Ricoma EM-1010 multi-needle interface can trigger "Pilot's Anxiety"—too many buttons, too much fear of crashing. When you try to multiply a design, beginners often panic when the duplicate "disappears" or spacing goes wild.

Here is the calm truth: The logic is sound, but the feedback is poor. The two traps that cause frustration are:

1. The "Ghost" Stack: The duplicate is created at coordinates (0,0). It is stacked directly on top of the original. You did duplicate it; you just can't see it yet.
2. The Decimal Decoy: The system uses a specific decimal input format. If you type 1-2-5, the machine reads it as 12.5mm, not 125mm. This math error accounts for 90% of layout failures.

If you are scaling up patch production, learning this on-machine duplication is non-negotiable. It keeps the color sequence tied to the original design block, meaning you set your color stops once, and the machine repeats the logic for every patch in the array.

The “Hidden” Prep Before You Touch the Edit Grid: Hoop Orientation, File Access, and a Quick Reality Check

Before you touch a single pixel on the screen, you must stabilize your physical environment. 80% of wasted hoopings are caused by skipping these three pre-flight checks.

1) Confirm the job’s hoop orientation (Physics Check)

In the source video, the presenter notes the hoop fits better when duplicates are arranged up and down. This isn't just preference; it's about the pantograph mechanism.

• Vertical movement (Y-axis) on the EM-1010 moves the frame.
• Horizontal movement (X-axis) moves the heavy pantograph arm.
• Expert Insight: Keeping arrays vertical when possible usually results in slightly better registration (fewer gaps in outlines) because there is less inertia on the X-axis.

If you are using a ricoma em 1010 embroidery machine, treat orientation as a stability decision, not just a layout decision.

2) Make sure your design file is actually accessible

Nothing kills momentum like a "Read Error."

• Action: Insert USB.
• Sensory Check: Listen for the soft "beep" of recognition. If the machine freezes, do not force it.
• Golden Rule: Use USB drives smaller than 8GB, formatted to FAT32. Large, modern drives often confuse industrial embroidery operating systems.

Warning: Never force a USB stick into the port or "wiggle" it to get a connection. This can snap the motherboard pins, turning a $0 problem into a $500 repair.

3) Do a fast “fit math” check before you duplicate

Don't guess. Measure. You need:

• Design Height + 10mm gap + Design Height.
• Does that total number fit inside your hoop's actual sewing field (not the outer plastic measurement)?
• Why 10mm? You need room for the presser foot to travel without hitting the previous patch, and room to cut the patches apart later with scissors or a hot knife.

Prep Checklist (Pre-Flight):

• File: DST format is loaded; stitch count is reasonable for the fabric.
• Hardware: Needle plate is screwed down tight (no rattling).
• Consumables: Bobbin is full. Look at it: Is the thread cross-hatched properly?
• Layout Strategy: I know my target spacing (e.g., 20mm) before opening the menu.


Find the Design on the Ricoma EM-1010 Memory Screen (and Don’t Overthink It)

The process begins by verifying your asset. Locate your ".DST" file in the memory bank.

• Visual Check: Does the preview look correct? If the colors look inverted or strange in the preview, don't worry—DST files don't save color data, only coordinates. You will assign colors later.
• Action: Select the design (e.g., the "F3F" logo) to load it into the active workspace.


Unlock Edit Mode on the Ricoma EM-1010: The Blue Grid Icon That Starts Everything

To access the array tools, tap the Design Edit Icon (usually a blue square grid or pencil icon depending on firmware version).

The Decision Point:

• Vertical Array (Y-Axis): Best for narrow hoops or caps.
• Horizontal Array (X-Axis): Best for wide jacket backs.

If you are running a magnetic frame like the 8x9 mighty hoop, vertical arrays are often safer. They keep the needle bar away from the thick left/right magnetic clamping edges, reducing the risk of a "hoop strike" (where the needle hits the frame).

The “Invisible Duplicate” Moment: Setting Vertical Array Count Without Freaking Out

Here is the exact sequence to avoid confusion:

1. Select the Vertical Duplication icon.
2. Clear the default value.
3. Enter 2 (for two patches total).
4. Press Enter/Confirm.

The Moment of Truth: The screen will likely blink. The design outline might turn from simple lines to a bold color, or you might see a slight "shimmer" on the lines. You will not see two designs yet.

• Why? They are stacked like pancakes.
• Expert Advice: Trust the machine. Do not enter "3" thinking the "2" didn't work.


The Spacing Tool That Makes the Duplicate “Appear”: Separate the Stack with Y-Axis Spacing

Now we unstack the pancakes. Tap the Spacing Icon (often an arrow between two shapes). You are defining the distance from the center of Design A to the center of Design B (or sometimes edge-to-edge depending on firmware settings—usually center-to-center).

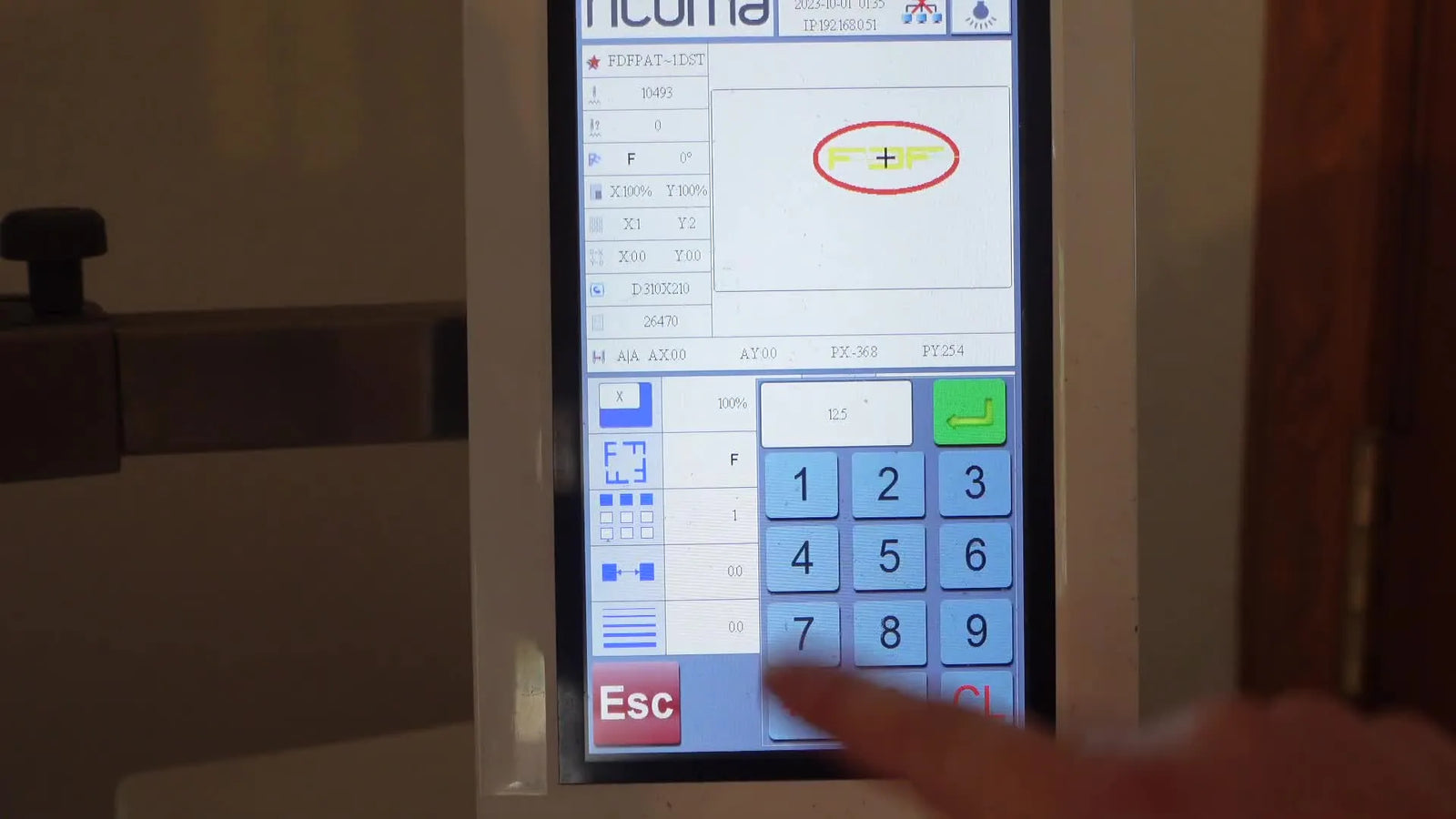

The Decimal Input Trap on Ricoma EM-1010 Spacing: Why “125” Becomes 12.5 (and How to Type 125 mm Correctly)

This is the most critical technical instruction in this guide. The Ricoma panel uses a fixed decimal system for this field.

• The Trap: You want 125mm. You type 1 2 5. The screen reads 12.5mm.
• The Result: Your patches stitch almost on top of each other, ruining the garment.

The Fix: The "Add a Zero" Rule. To get 125.0mm, you must type: 1 2 5 0.

If you produce intricate designs using the ricoma embroidery machine em-1010, put a sticky note on your machine: "PITCH = ADD ZERO." This simple visual cue saves thousands of dollars in ruined inventory.

Checkpoint: verify the displayed value, not what you typed

• Visual Check: Look at the text box after pressing enter.
• Criteria: Does it say 125.0?
  • Yes: Proceed.
  • No (e.g., 1250.0 or 12.5): STOP. Clear and re-enter.


When 125 mm Is Too Wide: Re-Adjust to 100 mm So the 8x9 Hoop Actually Fits

Embroidery is a game of millimeters. In the example, 125mm pushes the patches too close to the hoop edge.

• The Problem: If the design is too close to the edge, the "presser foot" will hit the plastic hoop.
• Sensory Warning: A loud CLACK-CLACK sound during sewing usually means the foot is hitting the hoop. This can break your reciprocity mechanism.

The Adjustment:

1. Clear the spacing value.
2. Type 1 0 0 0 (for 100.0mm).
3. Visual Confirmation: The outlines on the screen should move closer together, leaving a safe "White Space" margin around the edges of the grid.


Centering the Array in the Frame: Use Arrow Keys Before You Commit to Stitching

Never stitch an array that is off-center.

• Physics: Centering balances the weight on the pantograph.
• Tension: Fabric is tightest in the center of the hoop and looser at the edges. Stitching in the center guarantees the crispest details/text.

Use the arrow keys to jog the entire group until the crosshair on the screen is dead center of your array.

Why On-Machine Duplication Beats Software Duplication for Patch Runs: Color Stops Only Once

Why do this on the headache-inducing small screen instead of your PC? Commercial Efficiency.

• Software Method: You copy-paste the logo. You now have Logo A (Colors 1-5) and Logo B (Colors 6-10). You must program 10 color stops effectively. If you change a thread cone, you change it twice.
• Machine Array Method: You have Logo A (Colors 1-5). The machine repeats the logic.

The "Hoop Burn" Bottleneck: If you look at this array and think, "I could fit more if I just had a better grip," you have identified a tool limitation. Standard screw hoops leave "hoop burn" (crushed fibers) and limit your printable area.

This is the specific scenario where professionals upgrade to Magnetic Hoops. By using powerful magnets instead of screws, you can hoop faster and use practically the entire inner dimension of the frame without the "bulge" or "burn" of traditional hoops.

Comparing magnetic embroidery hoops against standard hoops is like comparing a nail gun to a hammer—both work, but one is designed for volume.

Horizontal Array on Ricoma EM-1010: Add Columns to Build a 2x2 Patch Grid

To maximize yield (profit per run), you may want a 2x2 grid.

1. Select Horizontal Duplication.
2. Input 2 columns.
3. Apply spacing (remember: Add a Zero!).


Pro tip from the shop floor: calculate total footprint before you chase perfect spacing

Don't wait for the machine to beep an error.

• Rule of Thumb: Keep at least 15mm of clearance between your design edge and the inner hoop wall. Use your finger as a gauge—if your finger can't fit between the needle and the hoop edge, you are too close.


Decision Tree: Choosing Stabilizer Strategy for Patch Layouts (So the Array Stays True)

The video shows the screen, but the battle is won with stabilizer. Arrays create "Push/Pull" forces that accumulate. If patch #1 distorts the fabric, patch #4 will be crooked.

Follow this Stabilizer Decision Tree:

1. Is the fabric unstable? (e.g., T-shirt material, loose twill)
   • YES: Use Cutaway (2.5oz). Do not use Tearaway. Use temporary spray adhesive to bond fabric to backing.
   • NO: Go to step 2.
2. Is the design dense (high stitch count, full fill)?
   • YES: Use 2 layers of Cutaway. Why? Dense stitches act like a saw; they will perforate a single layer.
   • NO: Go to step 3.
3. Are you using a Magnetic Hoop?
   • YES: Ensure your stabilizer is large enough to be gripped by all four magnets. If the stabilizer slips, the design shifts.
   • NO: Tighten the screw until "finger tight," then use a screwdriver to add one full turn. Tap the fabric—it should sound like a drum skin (Thump-Thump).

If you’re scaling patch production, embroidery hoops magnetic systems provide the most consistent tension handling for arrays because they clamp the stabilizer evenly around the perimeter.

Troubleshooting Ricoma EM-1010 Duplication: Symptoms, Causes, Fixes You Can Do Fast

Before you call tech support, run this diagnostic.

The Magnetic Hoop Upgrade Path: When a Hoop Change Saves More Time Than Any Screen Trick

The walkthrough used an 8x9 hoop. For patch work, this size is the "Sweet Spot"—large enough for a batch, small enough to maintain tension.

The Commercial Upgrade Logic:

• Trigger: Are your wrists hurting from tightening screws? Is "hooping time" longer than "sewing time"?
• Criteria: If you do production runs of 50+ items/week.
• Solution: A magnetic hoop system (like the MaggieFrame or SEWTECH equivalents).
  • Why? It transforms a 45-second struggle into a 5-second "Snap."
  • Safety: It removes the variable of "operator strength" from the equation.

Warning: Magnetic Force Hazard.
Commercial magnetic hoops use Neodymium magnets. They can pinch skin severely (blood blister risk) and can interfere with pacemakers.
* Do not place fingers between the rings.
* Do not let children handle them.
* Do slide them apart, don't pull them apart.

If you are serious about volume, combine the On-Screen Array technique with a dedicated machine embroidery hooping station and magnetic frames. This creates a "Commercial Closed Loop" where software and hardware work together for speed.

Setup Checklist (The "Save Your Machine" Protocol)

• Visual: Array count matches plan (e.g., 2x2).
• Data: Spacing reads X0.0 (correct decimal).
• Safety: Design is centered.
• The Trace: Press the TRACE button. Watch the needle case moves. Does the red laser/needle stay at least 1cm away from the plastic hoop edge at all times?
  • If No: Resize or spacing adjustment is mandatory.

Operation Checklist (Run time)

• Speed: Start slow (600 SPM). If stable, ramp to 750 SPM. For patches, do not exceed 800 SPM (high density heats up needles).
• The Sound: Listen for the rhythmic Hum-Chug-Hum. Any metallic Click or grinding means STOP immediately.
• The Watch: Watch the first 2 minutes. If the thread shreds, check your needle orientation (the groove must face front).

The Results You’re After: Fewer Color-Entry Headaches, Cleaner Layouts, and a Real Path to Higher Throughput

Mastering the Ricoma EM-1010 array function transforms you from a "hobbyist" to an "operator." You save time on data entry, you ensure color consistency, and you maximize fabric usage.

When you pair this digital skill with the right physical tools—proper stabilizer choices and the speed of modern magnetic hooping—you eliminate the frustration variables. You stop fighting the machine and start producing usable inventory.

FAQ

• Q: Why does the Ricoma EM-1010 vertical array duplication look like nothing happened after setting the count to 2?
  A: This is normal on the Ricoma EM-1010—the duplicate is created but stacked at the same (0,0) position, so it looks “invisible” until spacing is applied.
  • Tap Vertical Duplication, clear the field, enter 2, then confirm once.
  • Open the Spacing tool and enter a Y-axis spacing value to “separate the stack.”
  • Success check: the outline usually changes thickness/color or “shimmers,” then the second copy becomes visible after spacing is entered.
  • If it still fails: stop re-entering higher counts and re-check that the correct edit/array menu is active before spacing.
• Q: How do I enter 125 mm spacing correctly on the Ricoma EM-1010 spacing screen so it does not turn into 12.5 mm?
  A: Use the Ricoma EM-1010 fixed-decimal rule—type an extra zero so the display reads the intended value.
  • Clear the spacing value completely before typing.
  • For 125.0 mm, type 1 2 5 0, then confirm.
  • Success check: after pressing enter, the box must display 125.0 (judge the displayed number, not what was typed).
  • If it still fails: if the screen shows 12.5 or 1250.0, stop and re-enter—do not sew until the displayed value is correct.
• Q: What should I do when the Ricoma EM-1010 presser foot or needle hits the hoop rim during a patch array run?
  A: Stop immediately and re-create a safe zone by reducing spacing and/or re-centering, then run TRACE before stitching again.
  • Reduce the array spacing (the example adjusts from 125.0 to 100.0 to fit an 8x9 hoop).
  • Jog the entire array with arrow keys to center it in the hoop.
  • Press TRACE and watch the needle/laser path for clearance before restarting.
  • Success check: during TRACE, the needle path stays at least 1 cm away from the inner hoop edge the entire time (and no loud CLACK-CLACK occurs).
  • If it still fails: resize the design or reduce the array count—do not “force it” by sewing close to the rim.
• Q: What USB drive setup prevents “Read Error” or freezing when loading a DST file on the Ricoma EM-1010?
  A: Use a small FAT32 USB drive and confirm the machine recognizes it before selecting the DST.
  • Use a USB drive under 8GB and format it FAT32.
  • Insert the USB gently and listen for the recognition beep; if the machine freezes, stop and remove it carefully (do not force or wiggle it).
  • Load the DST and verify the preview shape looks correct (DST previews may not reflect real thread colors).
  • Success check: the machine beeps/does not freeze, and the design appears in memory and loads into the workspace without a “Read Error.”
  • If it still fails: try a different small FAT32 drive and inspect the USB port—forcing the stick can damage pins.
• Q: How can I prevent patch #2 or patch #4 from stitching crooked in a Ricoma EM-1010 on-screen array layout?
  A: Treat crooked duplicates as a stabilization/tension issue—use the stabilizer decision logic and ensure the material is clamped consistently.
  • Use Cutaway (2.5oz) for unstable fabrics; avoid Tearaway in that scenario.
  • Add a second layer of Cutaway for dense/high-stitch-count patch designs.
  • If using a magnetic hoop, make sure the stabilizer is large enough to be gripped by all magnets so it cannot slip.
  • Success check: fabric between patches stays flat (no rippling/flagging) and the later patches register like the first one.
  • If it still fails: slow down and reassess hooping tightness and stabilizer coverage before changing spacing or blaming the file.
• Q: What are the fastest pre-flight checks on a Ricoma EM-1010 before building an on-screen patch array to avoid wasted hoopings?
  A: Do three quick checks—orientation, file access, and fit math—before touching the edit grid.
  • Confirm hoop orientation: choose vertical (Y-axis) arrays when possible for smoother movement and stability.
  • Confirm file access: insert USB and confirm recognition before you commit time to editing.
  • Do fit math: Design Height + 10 mm gap + Design Height must fit inside the hoop’s actual sewing field (not the outer plastic size).
  • Success check: the array outline sits with clear white-space margins from the hoop edges after spacing is applied.
  • If it still fails: reduce spacing, reduce the array count, or choose a hoop size/layout that matches the sewing field.
• Q: What magnetic hoop safety rules should operators follow when using strong magnetic embroidery hoops for patch production?
  A: Treat magnetic hoops as pinch hazards—slide magnets apart and keep fingers out of the clamp zone.
  • Slide magnets apart instead of pulling them directly apart.
  • Keep fingers completely clear between the rings when placing magnets (blood blister risk).
  • Keep magnetic hoops away from children and anyone with a pacemaker.
  • Success check: magnets seat with a controlled “snap” without pinching skin, and the fabric/stabilizer is evenly clamped around the perimeter.
  • If it still fails: pause and reposition calmly—never fight the magnets with fingertips in the gap.
