Ricoma EM-1010 Appliqué on a Sweatshirt: The Frame Out Stops, the Hooping Reality, and the Clean Finish That Sells

Sweatshirt Appliqué on the Ricoma EM-1010: The "Zero-Panic" Production Guide

Appliqué on a thick sweatshirt is one of those projects that looks effortless on Instagram—until you are standing in front of your machine, wrestling a tubular hoop, watching your placement drift left, and realizing you needed a machine stop before you ever picked up the scissors.

If you are running a Ricoma EM-1010, you already have the power to make appliqué fast, profitable, and repeatable. The challenge isn't the machine; it is the physics of thick fabric. The trick is building a workflow that protects the garment (no accidental cuts), protects the machine (no mechanical grinding), and protects your time (no re-hooping three times per piece).

This guide is not just a tutorial; it is a production standard operating procedure (SOP). We will cover the full process: Heat n Bond Lite prep, floating poly mesh stabilizer, managing the notorious "sweatshirt drift," programming Frame Out (F) stops, and the "flat-blade" trimming technique.

The Psychology of Thick Garments: Why You Feel Like You're Failing

Thick garments make even good embroiderers doubt themselves. When you push the inner ring into the outer ring using a standard tubular hoop, the sweatshirt resists. It wants to twist. The friction is immense.

Here is the calm truth: The struggle you feel is normal physics. A standard hoop relies on friction to hold fabric. When the fabric is thicker than the hoop's optimal gap, you have to apply excessive force. This often leads to "hoop burn" (permanent crushing of fibers) or manual fatigue.

What matters is that you plan for movement, verify placement with a physical trace, and build in stops so you are never trimming blind.

One more mindset shift that saves money: Appliqué is not just "decorative." It is a production technique. You are replacing thousands of stitches (fills) with a single piece of fabric. This means less run time on your machine and a softer result on the wearer's chest.

Supplies: The Physics of Failure Prevention

You can do appliqué with many products, but a production-grade workflow requires specific tools to prevent specific failures. Here is the breakdown of the "Why" behind the "What."

The Core Kit

• Garment: Sweatshirt (e.g., Athletic Works, 50/50 blend).
• Appliqué Media: Cheetah print cotton + White glitter fabric (Texture variation).
• Adhesive: Heat n Bond Lite (The anchor).
• Stabilizer: Poly Mesh (The foundation).
• Fixative: Temporary Spray Adhesive (e.g., 505 or similar).
• Tools: Heat press (or iron), Curved appliqué scissors, Measuring tape, Packing tape.

The "Hidden" Consumables (Don't Start Without These)

• Needles: Ballpoint 75/11. (Standard sharps can cut knit fibers, causing holes that appear after washing).
• Fresh Rotary Cutter Blade: For clean appliqué fabric cuts.

Why This Combination?

If you are building a repeatable workflow for hooping for embroidery machine success, think in terms of "failure prevention":

1. Heat n Bond Lite: This is non-negotiable for beginners. It turns your floppy fabric into a stable, paper-like material that doesn't fray when cut.
2. Poly Mesh: We use this instead of heavy cutaway because sweatshirts are worn against the skin. Poly mesh supports the stitches without creating a stiff "cardboard armor" plate on the chest.
3. Curved Scissors: These create a mechanical clearance. The curve lifts the blade tips away from the sweatshirt loop, preventing the dreaded "I cut a hole in the shirt" disaster.

Warning: The "A" Hole Danger
Curved scissors are safer, not magic. When trimming inside small negative spaces (like the center of an "A"), keep the blades almost parallel to the fabric. If you angle the tips down, you will slice through the sweatshirt.

Phase 1: Material Prep (The Anchor Step)

The video’s prep step is simple, but this is where many shops quietly ruin their equipment.

The Protocol:

1. Rough Cut: Cut your fabric swatches slightly larger than the final design.
2. Pre-Press: Iron the fabric if wrinkled. Wrinkles in appliqué fabric become permanent creases in the final patch.
3. Fuse: Cut Heat n Bond Lite slightly smaller than your fabric piece. Place the rough/adhesive side against the wrong side of the fabric.
4. Press: Heat press according to package directions (usually 2-3 seconds).
5. Cool & Peel: Let it cool. Peel the paper backing. You should see a shiny, smooth adhesive film.

Expert Insight: Why cut the Heat n Bond smaller? If the fusible web hangs over the fabric edge, the adhesive melts onto your heat press platen. This invisible residue will transfer to the next five black shirts you press, leaving white, gummy stains.

Prep Checklist (Go/No-Go Decision)

• Fabric pieces cut and fused with Heat n Bond Lite.
• Paper backing removed; shiny film is visible and smooth.
• Poly mesh stabilizer sheet cut large enough to cover the hoop area plus 2 inches margin.
• Curved scissors and template printed at 100% scale are on the table.
• Machine needle plate area is free of lint.

Phase 2: The Floating Technique

"Floating" means we hoop the stabilizer, or stick the stabilizer to the garment, rather than clamping the thick garment into the hoop rings. For sweatshirts, this is superior because it eliminates stretching the knit fabric.

The "Inside-Out" Method:

1. Turn the sweatshirt inside out.
2. Lightly mist the Poly Mesh stabilizer with adhesive spray. Do not soak it. Just a tack.
3. Place the stabilizer sticky-side down onto the inside front of the sweatshirt.
4. Sensory Check: Smooth it with your hands. It should feel like a perfectly made bed—taut, with zero ripples. If you feel a bump, peel it back and re-smooth. A wrinkle in the stabilizer guarantees puckering in the embroidery.
5. Turn the sweatshirt right side out.

This is a practical version of a floating embroidery hoop workflow: the stabilizer is anchored to the garment, allowing the garment to "float" over the needle plate without being crushed by the hoop rings.

Phase 3: Precision Placement (The 4-Finger Rule)

The tutorial uses a paper template printed at the exact design size. This is the fastest way to avoid "Table Center" vs. "Body Center" confusion.

The Geometry of Placement:

• Vertical: Position the top of the design about four fingers (approx. 3-4 inches) down from the collar seam. This is the industry standard "sweet spot" across sizes S-XL.
• Horizontal: Measure 10 inches from each armpit seam to the center line of your template. This triangulates the center regardless of how the shirt is lying on the table.
• Secure: Tape the template with packing tape. Do not use pins; pins distort the knit.


Phase 4: Hooping the Beast (And Why You Might Hate It)

This is the part that makes people swear off sweatshirts. You have to force a thick, layered garment into a standard 8x12 tubular hoop.

The Struggle:

1. Place the bottom frame inside the garment.
2. Align the top frame's marks with your template lines.
3. Press down.
4. The Drift: Watch carefully as you press. The thickness of the fabric often causes the top frame to slide left or right by 2-5mm as it snaps in.

Recovery Protocol: If it shifts, do not just "nudge" it. Pop the top ring off and try again. You cannot fix a crooked hoop by pulling on the fabric—that stretches the knit and ruins the embroidery registration.

The Professional Solution: This struggle is exactly why production shops upgrade to magnetic embroidery hoops. On bulky garments like hoodies and Carhartt jackets, the strong magnetic clamping force snaps straight down without the "slide and drift" friction of traditional hoops. It eliminates hoop burn and significantly reduces wrist strain. If you plan to do runs of 50+ sweatshirts, the ROI on magnetic frames is measured in days, not months.

Warning: Magnet Safety
If you upgrade to a magnetic hoop system, be aware of pinch hazards. These magnets are industrial strength. Keep fingers away from the clamping zone, and keep hoops away from pacemakers or sensitive electronics.

Setup Checklist (Pre-Flight)

• Template is centered (4 fingers down; equidistant from armpits).
• Stabilizer is smooth (no wrinkles felt through the front).
• Hoop center marks align perfectly with template crosshairs.
• Sensory Check: Tap the hooped fabric. It should sound like a dull thud (secure), not loose/floppy.
• Hoop attached to the machine driver; arms are clear of fabric.
• Bobbin is full. (Checking now saves a mid-appliqué disaster).

Phase 5: Programming the Ricoma EM-1010

Appliqué relies on the machine stopping so you can work. On the Ricoma EM-1010, the magic function is Frame Out (F).

The Sequence Logic: Kayla uses a run sheet to map the digitizing to machine instructions. You must do this before you hit start.

• Step 1 (Placement): Machine sews an outline. -> Command: Frame Out.
• Step 2 (Tack Down): Machine sews fabric down. -> Command: Frame Out.
• Step 3 (Placement 2): Outline for second fabric. -> Command: Frame Out.
• Step 4 (Tack Down 2): Secure second fabric. -> Command: Frame Out.
• Step 5+ (Finishing): Satins and details run continuously.

The "Frame Out" Function: Adding the (F) icon to a color step tells the machine: "When you finish this color, do not just stop. Move the pantograph (hoop) forward toward the user so they can access the fabric."

If you are looking for ricoma em 1010 embroidery machine settings that make production feel automatic, this is it. It turns a manual struggle into a defined workflow.

Phase 6: The Stitching & Trimming Rhythm

Once the hoop is mounted, trace the design. Listen to the needle bar; ensure it doesn't hit the hoop. Remove your paper template.

1. The Placement Stitch

Running at a moderate speed (600-700 SPM), the machine stitches the "MAMA" outline. The Frame Out command kicks the hoop forward.

2. Fabric Application

Lay your prepared fabric (Shiny side down, fabric side up) over the outline. Cover the stitches entirely. A little overlap is good; too much is wasteful.

3. The Tack Down

Press start. The machine pulls the hoop back and stitches the fabric down. Sweet Spot Speed: Slow this down to 500 SPM if you are nervous. Precision matters more than speed here.

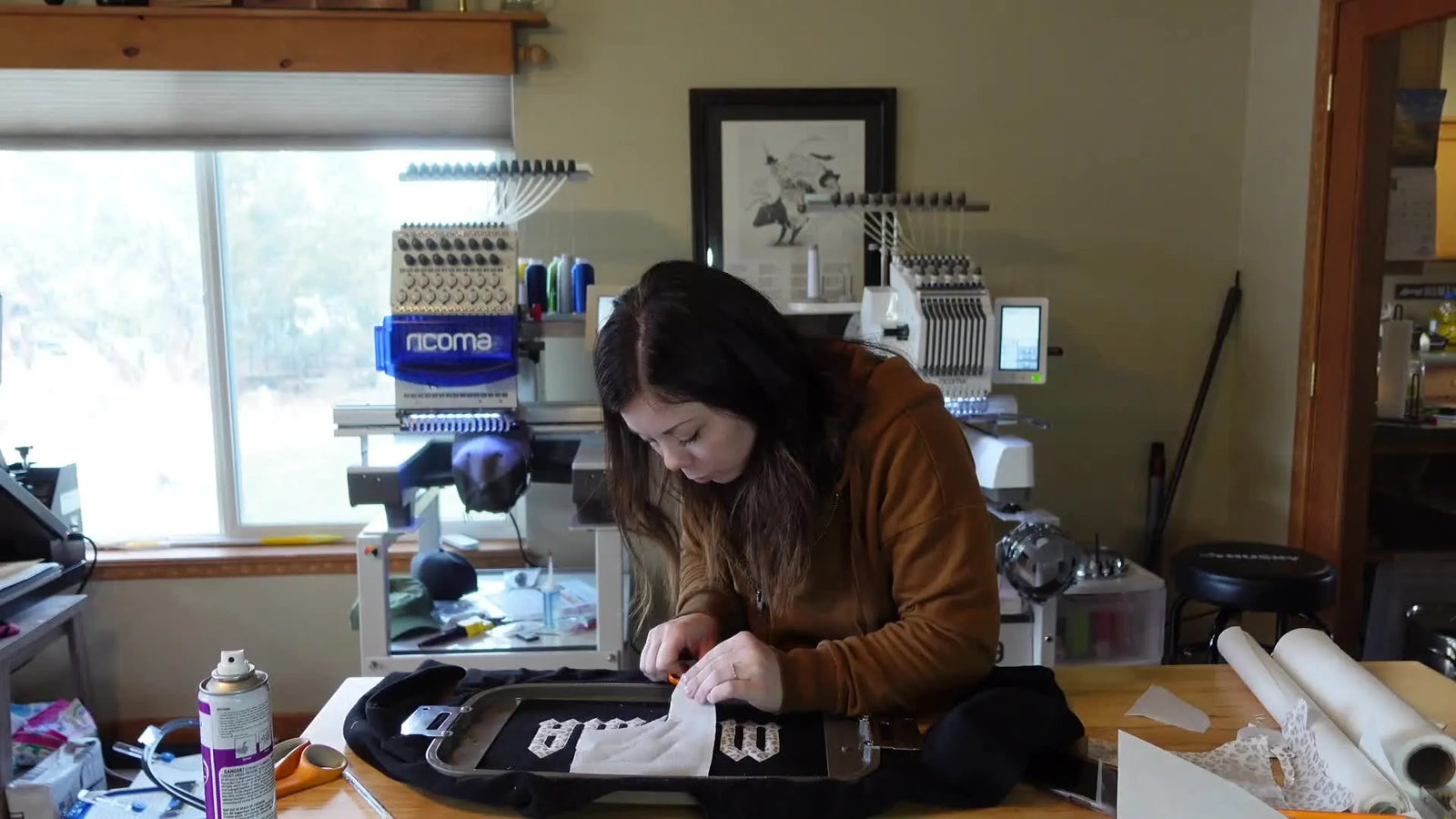

4. The Surgical Trim

The machine Frames Out again. Kayla prefers removing the hoop from the machine to trim at a table. This gives you stability.

The Flat-Blade Technique:

• Lift the excess fabric edge with your non-dominant hand.
• Slide the curved scissors in.
• Tactile Cue: Feel the lower blade resting flat on the stabilizer/sweatshirt. Do not angle it down.
• Cut smoothly. The Heat n Bond keeps the edge crisp. You want to cut close (1-2mm) to the stitching, but never through the stitching.




5. Repeat for Second Element

Reload the hoop. The machine runs the Lightning Bolt placement. You repeat the Place -> Tack -> Trim cycle. Consistency is the key to preventing mistakes.

Troubleshooting: The "Grinding Noise" Mystery

Kayla notes that using the "Frame Out" function with a Mighty Hoop on "Other" settings caused a grinding noise.

Expert Diagnostics: If you hear a grinding noise (a mechanical grrr-click), the pantograph is engaging the soft limits of the machine. The "Frame Out" command tries to push the hoop forward by a set distance. If the machine thinks the hoop works in a restricted area (often implied by "Other" or "Cap" settings), it forces the motors against a digital wall.

If you are experimenting with mighty hoops for ricoma em 1010, treat this as a compatibility signal.

• Immediate Action: Hit the Emergency Stop.
• Fix: Check your Hoop Selection settings in the Ricoma panel. Ensure you have selected a preset that allows the full range of motion required for the Frame Out offset.

Phase 7: Finishing

After the final satin stitches (the decorative borders):

1. Remove the hoop.
2. Flip to the back.
3. Trim the Poly Mesh stabilizer. Leave about 1/4 inch to 1/2 inch of stabilizer around the design. Do not cut flush to the stitches—that weakens the structure.
4. The Result: A soft, flexible backing that doesn't scratch the chest.

Operation Checklist (Quality Control)

• Trace verification: The needle never traveled outside the hoop limits.
• Stop verification: Frame Out executed after every placement and tack down.
• Fabric Cover: Appliqué fabric fully covered the placement line.
• Trim Quality: No loose threads poking out from the satin border.
• Stabilizer: Trimmed neatly on the back, not torn.

Decision Tree: Troubleshooting Fabric Show-Through

A common issue with black sweatshirts is the dark color showing through light appliqué fabric (like the white glitter).

Decision Tree: When to Add Layers

1. Question: Is the garment High Contrast (e.g., Black Shirt, White Appliqué)?
   • No: Proceed with standard Heat n Bond + Fabric.
   • Yes: Go to next step.
2. Question: Is your Appliqué fabric dense/opaque (e.g., Twill, Canvas)?
   • Yes: Proceed standard.
   • No (Glitter, Thin Cotton): YOU HAVE A GAP.
3. The Fix:
   • Option A: Double layer the appliqué fabric (fuse two layers together).
   • Option B (Best): Fuse a layer of white stabilizing interfacing to the back of the glitter fabric before applying Heat n Bond. This blocks the black shirt color.

The Scaling Path: From Hobby to Production

If you are making one sweatshirt for yourself, the standard hooping struggle is acceptable. But if you are taking orders for 20 team hoodies, the physical toll of tubular hooping will slow you down and hurt your wrists.

When to Upgrade Your Toolkit:

• The Problem: "I spend more time hooping than stitching."
• The Solution: SEWTECH Magnetic Hoops. They turn a 2-minute struggle into a 15-second snap.
• The Problem: "I have to change thread colors manually for every step."
• The Solution: This is where SEWTECH multi-needle embroidery machines shine. You can set up threads 1-10 once, and the machine handles the complex color swaps of appliqué borders automatically.

For the home user or side-hustle starter, the path to profit is about eliminating friction. Start with the right needles and stabilizer. When volume increases, upgrade your hoops. When volume explodes, upgrade your machine handles.

Final Pro Tip: Always keep a "trash shirt" (a ruined blank) in your shop. Before running a new appliqué design on a customer's expensive hoodie, run a test on the trash shirt. It is the cheapest insurance policy you can buy.

FAQ

• Q: Why does a thick sweatshirt shift 2–5 mm when hooping with a standard 8x12 tubular hoop on a Ricoma EM-1010?
  A: This is common on thick knits—the friction and bulk make the top ring “slide” as it snaps in, causing placement drift.
  • Pop the top ring off and re-hoop if the alignment shifts; do not “nudge” the fabric to correct it.
  • Align hoop center marks to the paper template crosshairs before pressing down.
  • Consider upgrading to a magnetic embroidery hoop for bulky garments to reduce snap-in drift and hoop burn.
  • Success check: The template crosshairs and hoop center marks stay perfectly aligned after the hoop is fully seated.
  • If it still fails… slow down the hooping motion and re-check that stabilizer and garment layers are smoothed flat before clamping.
• Q: How do you prevent Heat n Bond Lite adhesive from contaminating a heat press when prepping appliqué fabric for a Ricoma EM-1010 sweatshirt job?
  A: Cut Heat n Bond Lite slightly smaller than the fabric swatch so melted adhesive cannot squeeze onto the platen.
  • Rough-cut fabric larger than the design, then trim Heat n Bond Lite smaller than that fabric piece.
  • Press with the rough/adhesive side to the wrong side of the fabric, following the package time (often a few seconds).
  • Cool fully before peeling the paper backing to avoid shifting the adhesive film.
  • Success check: After peeling, the back shows a smooth shiny film and the heat press platen has no gummy residue.
  • If it still fails… stop and clean the platen before pressing more garments, because residue can transfer and stain future items.
• Q: What is the safest way to trim appliqué on a sweatshirt after a Ricoma EM-1010 Frame Out stop without cutting a hole in the garment?
  A: Use the flat-blade trimming technique with curved appliqué scissors to keep the blade riding on the stabilizer—not digging into the sweatshirt.
  • Remove the hoop from the machine for stable table trimming when the machine frames out.
  • Lift excess appliqué fabric with the non-dominant hand and slide curved scissors under the edge.
  • Keep the lower blade flat and nearly parallel, especially inside small negative spaces (like the center of an “A”).
  • Success check: The cut edge sits 1–2 mm from the tack stitch with no sweatshirt fibers sliced and no stitches cut.
  • If it still fails… leave a slightly wider margin and re-trim after the next securing stitch, rather than trying to cut ultra-close on the first pass.
• Q: How should Poly Mesh stabilizer be applied for a floating technique on sweatshirts when using a Ricoma EM-1010?
  A: Lightly tack Poly Mesh to the inside of the sweatshirt (inside-out method) so the garment floats without being stretched by hoop rings.
  • Turn the sweatshirt inside out and mist the Poly Mesh with temporary spray adhesive—do not soak it.
  • Smooth the stabilizer onto the inside front panel until it feels perfectly flat.
  • Turn the sweatshirt right side out before placement and hooping steps.
  • Success check: By touch, the stabilizer feels wrinkle-free “like a made bed,” with no bumps that will pucker stitches.
  • If it still fails… peel back and re-smooth immediately; any stabilizer wrinkle you can feel is likely to show as puckering.
• Q: How do you program Frame Out (F) for appliqué on a Ricoma EM-1010 so trimming is never done blind?
  A: Add Frame Out (F) after each placement stitch and each tack-down stitch so the hoop moves forward for safe fabric access.
  • Map the sequence before running: Placement outline → Frame Out; Tack-down → Frame Out; repeat for each appliqué element.
  • Run placement stitches at a moderate speed and slow down tack-down if needed for control.
  • Remove the paper template after tracing/verification and before stitching the main sequence.
  • Success check: After every placement and tack-down, the pantograph moves forward toward the operator automatically.
  • If it still fails… stop and verify the design file’s color steps actually contain Frame Out markers where intended.
• Q: What causes a grinding noise when using Frame Out on a Ricoma EM-1010 with a magnetic hoop setting like “Other,” and what should be done immediately?
  A: Grinding usually means the pantograph is hitting motion limits because the hoop selection restricts travel while Frame Out tries to move forward.
  • Hit the Emergency Stop immediately if a mechanical grrr-click/grinding starts.
  • Check the Ricoma panel hoop selection and choose a preset that allows the motion range needed for the Frame Out offset.
  • Re-test motion cautiously before restarting the stitch sequence.
  • Success check: Frame Out moves smoothly with no clicking/grinding and no hard stops at the ends of travel.
  • If it still fails… treat it as a compatibility signal and pause the job until hoop settings and allowed travel are confirmed (machine manual guidance is the safest reference).
• Q: What magnetic embroidery hoop safety rules should be followed when clamping bulky hoodies or sweatshirts for a Ricoma EM-1010?
  A: Treat magnetic hoops as industrial pinch hazards and keep hands and sensitive devices out of the clamp zone.
  • Keep fingers out of the closing area and “set down then release” magnets carefully to avoid sudden snap-in pinches.
  • Keep magnetic hoops away from pacemakers and sensitive electronics.
  • Work on a clear table so the hoop cannot jump onto tools or metal parts unexpectedly.
  • Success check: The hoop clamps straight down with controlled placement and no finger contact near the magnet landing zone.
  • If it still fails… switch back to a standard hoop for that run and reorganize the clamping workflow before attempting magnets again.
