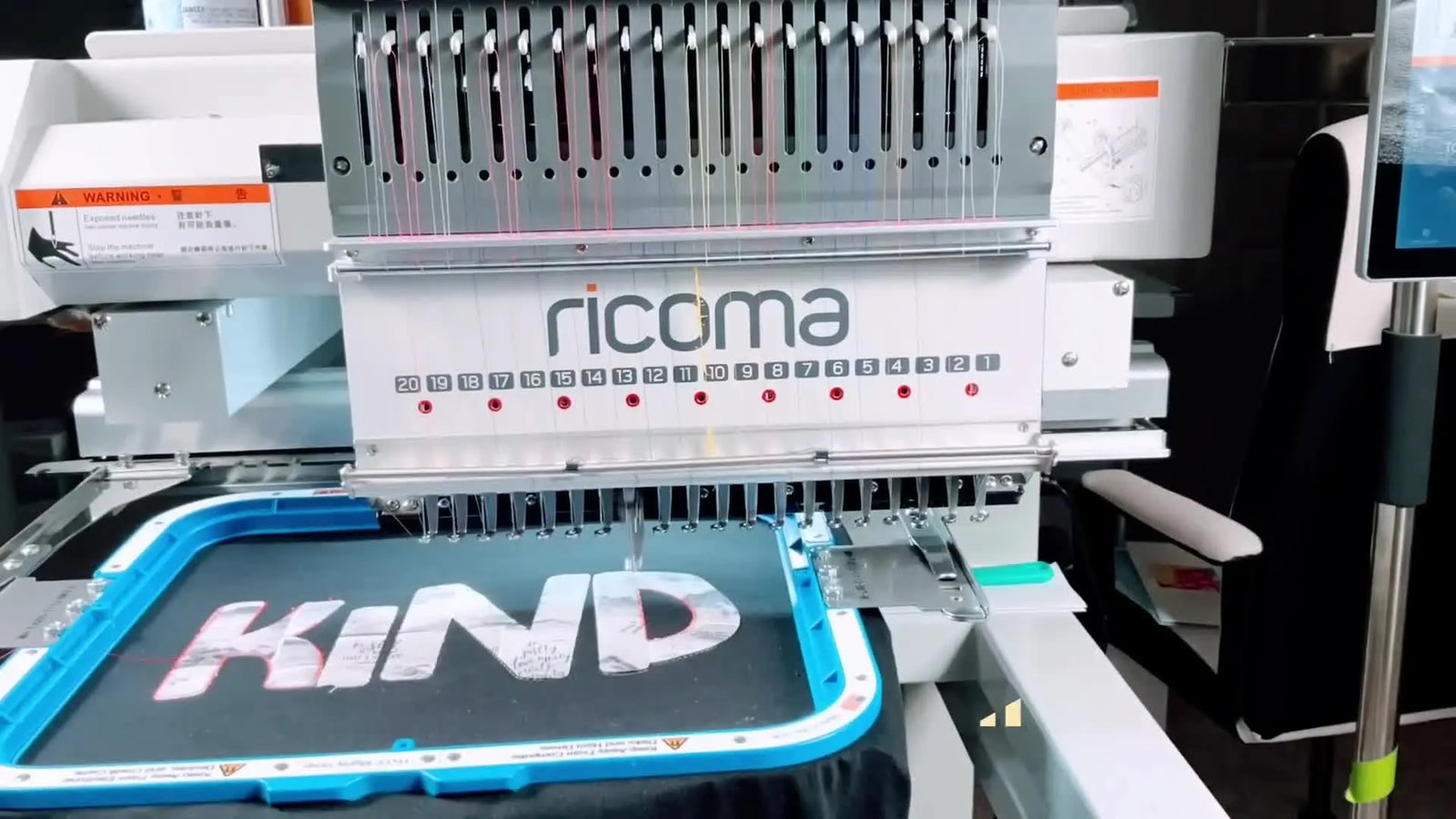

Ricoma Appliqué on a Finished Shirt: The Mighty Hoop 11x13 Workflow That Prevents Hoop Strikes, Shirt-Through-Stitching, and Crooked Letters

Most beginners hold their breath when they press "Start" on an appliqué project. Professional embroiderers don't. The difference isn't magic; it’s a system.

If you’ve ever hooped a finished shirt and felt that little spike of panic—“Please don’t let me stitch the shirt together… please don’t let the needle hit the hoop…”—you’re not alone. Appliqué on a multi-needle machine is fast and profitable, but only when your setup is disciplined.

This project is a “be KIND” appliqué on a black long-sleeve shirt using a Ricoma multi-needle embroidery machine and an 11x13 magnetic hoop. The video makes it look smooth—and it is—once you understand why each checkpoint exists.

Calm the Panic First: What Can Go Wrong on a Ricoma Multi-Needle Appliqué (and Why It’s Fixable)

The two failures that ruin most finished-garment appliqué runs happen before the first real stitch:

1) Hoop strike risk (needle/presser foot colliding with the thick magnetic frame).

2) “Stitched the shirt together” risk (the back of the shirt gets caught under the needle plate or bunched into the sewing field).

The good news: this workflow bakes in two safety nets—correct hoop selection on the Ricoma panel and a two-part trace routine—so you can catch problems while the machine is still “dry running.”

Warning: Keep hands, scissors, and loose sleeves away from the needle area during trace and stitch-out. A presser foot/needle path check is a visual verification—don’t reach into the moving field.

The “Hidden” Prep Pros Do Before Hooping a Shirt with a Magnetic Hoop 11x13

Before you touch the touchscreen, set yourself up so the appliqué placement is clean and the inside of the shirt feels professional.

What the video already has on the bench:

• Black long-sleeve shirt (size Large)
• Cutaway stabilizer (Specifically ~2.5oz density for stability)
• Cricut-cut fabric letters (with backing still on the mat)
• Spray adhesive (pattern adhesive, not permanent mounting spray)
• Thread colors assigned to needles (18, 13, 18, 2, 13)
• Tender Touch backing + parchment paper + heat press

Here’s the “old hand” layer that prevents rework:

• Pre-visualize the neckline clearance. On finished garments, the collar/shoulder seam bulk can push the hoop to sit slightly differently than on a flat blank. That’s why tracing matters so much with a thick magnetic frame.
• Decide your stabilizer strategy now. The video uses cutaway stabilizer (a solid choice for a shirt appliqué). In general, cutaway resists distortion better than tearaway on knits and blends, which helps satin borders stay smooth. Rule of thumb: If you stretch the fabric and it gives, use Cutaway.
• Plan your stop points. Appliqué is not “set it and walk away.” You need predictable pauses for fabric placement and inspection.

If you’re building a repeatable workflow for orders, this is where a dedicated magnetic hooping station can reduce hooping time and wrist fatigue—especially when you’re hooping multiple shirts back-to-back. The station ensures you aren't fighting gravity while trying to align straight lines.

Prep Checklist (do this before you go to the machine):

• Cleanliness: Confirm the shirt is clean, dry, and pressed flat. Use a lint roller on the black fabric now, not later.
• Stabilizer: Cut cutaway stabilizer 2 inches larger than the hoop on all sides.
• Tools: Keep spray adhesive, small curved scissors (snips), and a lint roller within reach.
• Components: Verify your fabric letters are fully cut and weeded on the mat.
• Finishing: Confirm you have Tender Touch (or equivalent) ready for the inside finish.


Lock In the Ricoma Panel Setup: Hoop Selection + Automatic Manual Mode (Your Appliqué “Pause Insurance”)

At the Ricoma panel, the video does three critical things in the right order. Do not skip the third step.

1) Select the design file (“Be Kind”).

2) Select the hoop size: 11x13 Mighty Hoop.

3) Set Color Change Mode to "Automatic Manual" so the machine stops after each color block.

That last step is the difference between a calm appliqué run and a ruined one. In standard "Auto" mode, the machine will stitch the placement line and immediately jump to the tack-down stitch without stopping. You will not have time to place your fabric. Automatic Manual forces a hard stop, giving you control.

This is also where the needle/color plan is programmed:

• 18 = placement
• 13 = tack down
• 18 = satin
• 2 = white text (“be”)
• 13 = hearts

Expert Speed Tip: For satin appliqué borders, speed kills quality. While your machine might hit 1000 SPM (Stitches Per Minute), set your max speed to 650-750 SPM. This "sweet spot" reduces thread breakage and ensures cleaner corners on the satin stitch.

Hooping for Embroidery Machine on a Finished Shirt: The Under-the-Shirt Hand Check That Saves You

Once the hoop is mounted on the machine arm, the video shows the move that prevents the most expensive mistake:

• Reach underneath the shirt and feel the embroidery arm to confirm the back layer of the shirt isn’t bunched or trapped.

This is not optional. Finished garments behave like a bag—fabric can fold into places you can’t see from above.

From a physics standpoint, magnetic hoops clamp strongly at the frame edge, but the shirt body can still “tent” or shift if excess fabric is pulled tight in one direction. Your hand check ensures the garment is free to move around the arm without being stitched into a tube.

If you’re doing this often, consider upgrading to industrial-style magnetic hoops (like our SEWTECH magnetic frames for multi-needle machines) when your pain point is speed and consistency:

• Scenario Trigger: You’re hooping 10+ garments per day and your wrists ache from standard clamps.
• Judgment Standard: You are spending more time fighting hoop alignment than actually stitching.
• The Option: A production-grade magnetic frame system that loads fast and reduces re-hooping allows you to focus on the art, not the struggle.


The Trace Routine That Prevents Hoop Strikes on Thick Magnetic Embroidery Hoops

The video demonstrates two trace actions. You must listen and watch during this phase.

1) Trace Design (a contour/path check): To verify the design centers on the shirt.

2) Trace Area (a square boundary check): To verify the needle bar won't hit the hoop frame.

Then comes the pro-level nuance: while tracing the design, the host manually holds down the first presser foot (Needle 1) to visually confirm the needle/presser foot won’t touch the thick magnetic frame.

Why this matters: Magnetic frames are bulkier than many standard plastic hoops. Even if the needle clears the stitch field, the presser foot or needle bar path can get uncomfortably close during fast moves.

Warning: Magnetic frames contain powerful neodymium magnets. Keep magnets away from pacemakers/medical implants. Be mindful around phones, credit cards, and small tools (scissors/tweezers) that can snap violently toward the frame, causing pinch injuries.

Quick Decision Tree: Stabilizer Choice for a Finished Shirt Appliqué

Use this decision logic to create a safe foundation (always defer to your machine manual and test on scraps):

• Is the shirt a standard Cotton/Poly blend (like in the video)?
  • Action: Choose Cutaway Stabilizer (2.5oz).
  • Why: It provides permanent support vs. the push/pull of the satin border.
• Is the shirt very stretchy or lightweight (T-shirt material)?
  • Action: Use Fusible Mesh Cutaway + consider a Water Soluble Topper.
  • Why: Fusible prevents the fabric from rippling; topper prevents stitches from sinking.
• Is the fabric thick and stable (Denim/Canvas)?
  • Action: You may get away with Tearaway, but Cutaway is still safer for longevity.
  • Why: If the item will be washed frequently, cutaway prevents the appliqué from warping over time.

Fix the “Too Low” Placement Problem on the Ricoma Screen Without Guessing

The video includes a real-world adjustment: the first time the design was stitched on a hoodie, it felt too low. So on this shirt, the design is moved.

Here’s the Ricoma-specific detail that trips people up:

• To move the design up relative to the shirt, the host presses the down arrow in Design Settings.

That’s not a typo—it’s how the interface behaves in this context (moving the pantograph vs. moving the design). Sensory check: After moving, save and trace again. Does the LED pointer look like it's in the right spot on the physical chest?

This is exactly the kind of small UI quirk that causes hoop strikes when people “just eyeball it.” If you’re using ricoma embroidery hoops with a thick magnetic frame, always re-trace after any coordinate change to ensure you haven't moved the design into the danger zone near the magnets.

Run the Placement Stitch First: Your Appliqué Alignment Map (Needle 18)

Once you’re satisfied with trace clearance and position, the first stitch-out is the placement outline for the letters.

In the video:

• Color 18 stitches the outline of “K I N D” directly onto the shirt.

Treat this as your map. Visual Check: If the outline looks skewed, un-centered, or too close to the hoop edge, STOP. It is cheap to rip out these running stitches now. It is expensive to fix it after you glue fabric down.

Place Cricut-Cut Fabric Letters Cleanly: Spray Adhesive + Orientation Check

The video’s appliqué letters are pre-cut on a Cricut mat. The key detail:

• The paper backing stays on the mat while the fabric letters are removed.

Then:

• Lightly apply spray adhesive to the back of the fabric letters. (Don't soak it; just enough to be tacky).
• Letters are aligned inside the placement stitches.

A comment asked about file availability (hoping for SVG). The creator replied that the SVG portion is linked under Patrice’s video—so if you’re building this workflow for your own shop, make sure your cutting file format matches your cutter before you commit to a production run.

Pro tip from the video that prevents a “facepalm” moment:

• If your fabric has words or directional patterns, make sure the words face the right way up before you tack down.


If you’re learning appliqué and want the fastest path to consistent placement, mastering hooping for embroidery machine on finished garments is the skill that pays you back every single order.

Tack-Down + Satin Stitch on Ricoma: Why Automatic Manual Mode Keeps You in Control

After fabric placement, the machine runs:

• Tack-down stitch (Color 13)
• Then switches back to satin stitch (Color 18)

Because the machine is set to Automatic Manual, it pauses at the right moments so you can inspect edges and confirm nothing shifted.

Observation Point: Watch the tack-down stitch. If the fabric bubbles up, stop the machine. Smooth it down. From a quality standpoint, the satin border is where most appliqué projects either look “store-bought” or “homemade.” Common causes of rough satin borders generally include fabric shifting, insufficient stabilization, or a garment that was stretched too tight in the hoop.

If you’re doing this on a schedule (orders, team shirts, gifts in bulk), this is where magnetic hoops shine: faster loading, fewer hoop burn marks, and less wrestling with thick garments. For home single-needle users who struggle with clamping pressure or hoop marks, our magnetic hoops for domestic machines are a practical upgrade path:

• Scenario Trigger: Hooping takes you 5 minutes per shirt and leaves "hoop burn" rings.
• Judgment Standard: You re-hoop more than once per shirt to get it straight.
• The Option: A compatible magnetic frame that loads quickly and reduces fabric distortion, working with brands like Brother, Janome, and Baby Lock.




Setup Checklist (right before you press Start on tack-down):

• Mode Check: Confirm Automatic Manual mode is still selected (machine won't run away).
• Needle Check: Confirm the correct needle is active for the next step (13 for tack-down).
• Adhesion Check: Smooth the fabric letters flat; ensure edges aren't curling.
• Clearance Check: Check under the hoop one last time for excess shirt fabric.
• Safety: Keep scissors ready, but do not trim near a moving needle.

Finish the Design: White “be” Text + Red Hearts (Colors 2 and 13)

After the satin border is complete, the video runs the final elements:

• Color 2 stitches the white cursive “be.”
• Color 13 stitches the red hearts.

At this stage, you’re in the “final stretch,” but don’t rush. Dense areas plus garment movement can still cause issues if the shirt shifts.

A viewer joked about “print then stitch,” and the creator replied she’d never heard of it—so if you’re coming from a Cricut-only background, don’t assume embroidery machines behave like print/cut workflows. On a Ricoma, your reliability comes from hooping, tracing, and controlled stops—not from an optical camera alignment system.

If you’re shopping for compatibility, people often search mighty hoop for ricoma because the right frame fit is what makes tracing and clearance checks predictable.

Professional Inside Finish: Trim Cutaway + Heat Press Tender Touch at 300°F for 15 Seconds

The difference between a "craft project" and "professional apparel" is the inside finish. The video finishes the garment the way a customer order deserves:

1) Remove the hoop. 2) Trim excess cutaway stabilizer from the inside with scissors. Leave about 1/4 inch to 1/2 inch around the design. Do not cut the garment. 3) Cut a rectangle of Tender Touch (or Cloud Cover) backing large enough to cover the stitches. 4) Flip the shirt inside out so you’re pressing on the backing side. 5) Use parchment paper on top to protect your heat press. 6) Heat press at 300°F (approx 150°C) for 15 seconds.

Sensory Check: After pressing, the backing should feel fused to the stabilizer but soft against the skin. If it peels up, press for another 5 seconds. This step prevents the "itchy shirt" complaint.

Troubleshooting the Stuff That Wastes Shirts: Symptoms, Causes, Fixes

Here are the most common “why did this happen?” moments that show up in this exact workflow.

The Upgrade Path When You’re Ready to Produce (Not Just Play)

If you’re doing one shirt, you can take your time. If you’re doing ten, the “little” steps become your bottleneck.

Here’s how an experienced operator analyzes upgrades without buying things they don’t need:

• If hooping is slow or you fight hoop marks: Magnetic hoops are the fastest quality-of-life improvement. Many makers start with a Mighty Hoop-style frame; when volume increases, industrial magnetic frames can cut loading time dramatically.
• If thread breaks or quality varies: Invest in consistent embroidery thread and, critically, ensure your needle is fresh (change every 8 hours of stitching). Stability and thread quality show up most on satin borders.
• If you’re outgrowing hobby pacing: A high-value jump is a reliable multi-needle platform. Our SEWTECH multi-needle embroidery machines are designed for productivity upgrades when you’re ready to run repeat jobs efficiently and need that extra speed and reliability.

If you’re specifically dialing in this workflow with ricoma mighty hoops, your best “ROI habit” is simple: trace every time you change position, and never skip the under-the-shirt hand check.

Operation Checklist (before you call it “done”):

• Visual Inspect: Check satin borders for gaps and confirm fabric edges are fully covered.
• Trim: Remove any small fray pieces ("whiskers") from the appliqué fabric using curved snips.
• Backing: Press with Tender Touch (300°F, 15s) and confirm the edges are bonded.
• Documentation: Photograph the finished shirt flat and in good light. Keep a log of the needle colors and hoop size used for repeat orders.

FAQ

• Q: On a Ricoma multi-needle embroidery machine, how do I prevent stitching the front and back of a finished shirt together during appliqué?
  A: Do an under-the-shirt hand check every time before you start stitching so the shirt back cannot get trapped in the sewing field.
  • Reach under the shirt and feel around the embroidery arm/under the hoop to confirm the back layer is completely free.
  • Pull excess garment fabric away from the needle plate area so nothing can fold into the stitch zone.
  • Pause and re-check again right before the placement stitch and again before tack-down.
  • Success check: The shirt body moves freely around the arm like a loose “bag,” and nothing feels pinched under the hoop/needle plate.
  • If it still fails: Stop immediately, carefully cut the connecting stitches, then re-hoop and repeat the hand check before restarting.
• Q: On a Ricoma multi-needle embroidery machine using an 11x13 magnetic hoop, what trace steps prevent a hoop strike with a thick magnetic frame?
  A: Run both “Trace Design” and “Trace Area,” and visually confirm presser-foot clearance before any real stitch-out.
  • Select the correct 11x13 hoop size on the Ricoma panel before tracing.
  • Run Trace Design to confirm the design is centered on the shirt.
  • Run Trace Area to confirm the stitch boundary will not collide with the magnetic frame.
  • Success check: During trace, the needle path and presser foot stay comfortably inside the hoop opening with no close passes toward the frame.
  • If it still fails: Reposition the design and trace again; do not stitch until the full boundary clears the frame.
• Q: On a Ricoma multi-needle appliqué job, why should Color Change Mode be set to “Automatic Manual” instead of “Auto”?
  A: Use “Automatic Manual” so the machine stops after each color block, giving time to place fabric and inspect before the next step runs.
  • Set Color Change Mode to Automatic Manual before starting the placement line.
  • Use the forced stops to place appliqué fabric after the placement stitch and to inspect after tack-down.
  • Confirm the next needle/color is correct before resuming each block.
  • Success check: The machine pauses predictably after each block, and you never have to race the machine to place fabric.
  • If it still fails: Re-check the mode setting on the panel before restarting the job (settings can be overlooked after loading a file).
• Q: On a Ricoma appliqué satin border, what stitching speed is a safe starting point to reduce thread breaks and improve corner quality?
  A: For satin appliqué borders, set max speed around 650–750 SPM as a practical quality-focused range.
  • Lower the max speed before running the satin border portion.
  • Monitor the first few corners and edges rather than letting the run continue unattended.
  • Keep the workflow controlled with stops (Automatic Manual) so adjustments are easy.
  • Success check: Satin corners look cleaner and thread breaks happen less often during the border.
  • If it still fails: Re-check stabilization and fabric shifting first, then test again at the lower speed (always follow the machine manual).
• Q: For a finished shirt appliqué like the “be KIND” project, when should cutaway stabilizer be used instead of tearaway stabilizer?
  A: Use cutaway stabilizer as the safe default for shirts—especially knits or any fabric that stretches—because it resists distortion under satin borders.
  • Choose ~2.5 oz cutaway for a cotton/poly blend shirt setup like the project.
  • Cut stabilizer at least 2 inches larger than the hoop on all sides for stable clamping.
  • For very stretchy/lightweight shirts, use fusible mesh cutaway and consider a water-soluble topper (test first).
  • Success check: The shirt stays flat during stitching and the satin border does not ripple or sink into the fabric.
  • If it still fails: Reduce fabric stretch in hooping and re-check that the garment is not being pulled overly tight in the frame.
• Q: On a Ricoma embroidery touchscreen, how do I move an appliqué design UP on the shirt if the on-screen placement looks too low?
  A: On this Ricoma interface behavior, pressing the DOWN arrow in Design Settings moves the design UP relative to the garment—then trace again to verify clearance.
  • Open Design Settings and use the down arrow to raise the design placement on the shirt.
  • Save the new position and immediately run Trace Design and Trace Area again.
  • Confirm the LED pointer alignment on the physical chest area before stitching.
  • Success check: The traced boundary sits where expected on the shirt and still clears the magnetic frame edges.
  • If it still fails: Stop guessing—repeat small moves and re-trace after every coordinate change.
• Q: What magnetic hoop safety precautions should be followed when using a powerful magnetic embroidery frame on a multi-needle machine?
  A: Treat magnetic hoops as high-force tools—keep magnets away from implants and keep small metal tools/electronics from snapping into the frame.
  • Keep magnetic frames away from pacemakers/medical implants and follow medical guidance.
  • Keep phones, credit cards, scissors, tweezers, and other small tools clear of the magnetic field.
  • Load and unload the frame with controlled hand placement to avoid pinch points.
  • Success check: No tools “jump” toward the frame, and fingers never feel at risk of being pinched during clamping.
  • If it still fails: Change the work area setup—store tools farther away and only bring scissors in after the machine is fully stopped.
