Ricoma 1501 “8-in-1 Device” Fast Frames Unboxing—What Each Frame Does (and How to Avoid the Fit & Tracing Traps)

If you’ve ever stared at a pile of metal "mystery frames" from a used kit and thought, What on earth is this one for?, you’re not alone. It feels less like an upgrade and more like a puzzle missing the picture on the box.

Dawn from Creative Appliques unboxes the Ricoma-compatible 8-in-1 device (often called Fast Frames) beside her Ricoma 1501. The video is short, but the real value is in the subtext: these frames are the antidote to the physical pain of traditional hooping—especially on awkward items like sleeves, pockets, bags, and the back of caps.

This post transforms that unboxing into a shop-floor working reference. We are moving beyond "what is it" to "how do I use it without breaking a needle," including the sensory checks and safety margins that separate a hobbyist from a professional.

Fast Frames on a Ricoma 1501: the calm truth when you’re overwhelmed by a new kit

When a box shows up labeled “USAGE GUIDANCE FOR 8 IN 1 DEVICE,” it’s easy to assume you’re missing parts—or, worse, that you bought the wrong thing. Take a deep breath.

In the video, the host stands next to a Ricoma 1501 (15-needle) and explains that Fast Frames are her go-to for efficiency. This is the correct mindset: this kit isn’t just "more hoops," it is a workflow shift. Traditional hoops rely on friction and inner/outer ring pressure. These frames rely on adhesive stabilizer (sticky backing) and clamps.

Expectation Set: The video is an unboxing. Installation and stitching require a "pilot mentality"—checking your flight controls before takeoff. Treat this guide as your pre-flight checklist.

The “box-back cheat sheet”: read the 8-in-1 device size chart before you even cut the tape

Dawn flips the box to show the back, where sizes are printed in centimeters. However, like many of us, she mentally estimates pocket-frame widths in inches.

The Danger Zone: In a production shop, mixing CM charts with Inch assumptions is the #1 cause of "Frame Hitting." You select a 4-inch frame in your mind, but the machine is set to a 100mm limit, and crunch—your needle bar hits the metal.

Warning: Use a proper retractable box cutter and always cut away from your body. A slip here can slice through your stabilizer rolls, expensive garments, or your hand. Production stops when you are bleeding.

Prep Checklist (Do this BEFORE you start)

• Clear the Decks: Clear a table so you can lay frames out by category (Sleeve / Bag / Cap / Pocket).
• Contain Hardware: Use a magnetic parts dish for knobs/screws. Losing a screw in a carpet means downtime.
• Pick Your Language: Decide now if you will work in Imperial (Inches) or Metric (CM). Stick to it.
• Audit: If the kit is used, photograph every piece immediately for reference.
• Label: Use painter's tape and a sharpie to label frames (e.g., "Pocket - Wide"). This saves mental energy later.

The Master Bracket is the whole game: if it doesn’t match your machine arm, nothing else matters

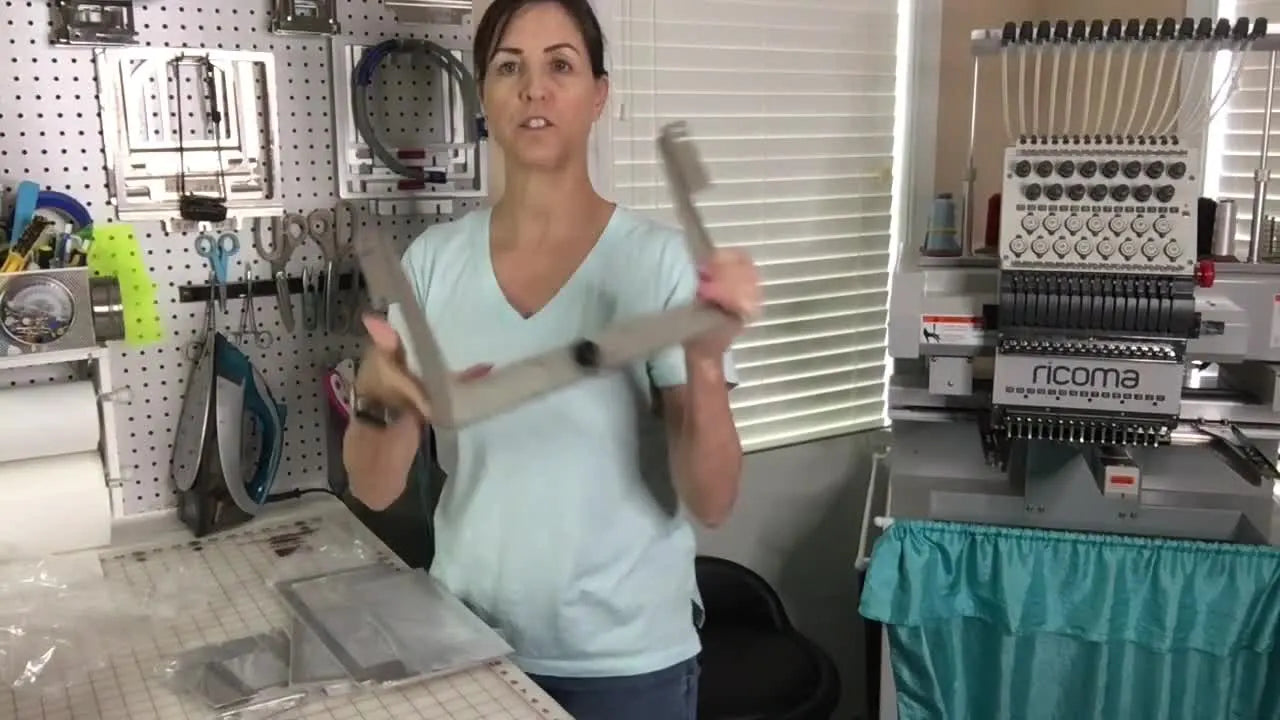

The largest metal component is the Master Bracket: a U-shaped silver bracket with a black attachment knob. This is the interface between the tool and your machine.

Here is the veteran advice that saves you from expensive mistakes:

• Tactile Check: When sliding the bracket onto the machine arm, it should feel snug but smooth, like a well-fitted drawer slide. If you have to force it, STOP. If it wobbles, STOP.
• Compatibility is Specific: The creator warns that even owning a Happy Voyager 12-needle alongside a Ricoma, the bracket sides differ.
• The Secondhand Risk: If you are shopping for a ricoma 8 in 1 device on the used market (eBay/Facebook), treat the Master Bracket like a "machine-specific adapter."

How to verify fit (The "No-Guess" Method)

1. Measure: Use calipers to measure the width of your machine's driver arm.
2. Verify: Ask the seller for the interior width measurement of the bracket's slide-in channel.
3. Visual: Ask for a photo of the mounting points. Does it require 2 screws or a knob? Match this to your machine manual.

Sleeve frames (also pant legs): the fastest way to stop fighting tubular items

Dawn unpacks two long, narrow rectangular frames. These are the "Sleeve/Leg" specialists.

The Physics of the Tube: Tubular items fight you because fabric tension isn't equal. One side is trapped by the tube, the other is stuck to your stabilizer.

• The Goal: You aren't trying to stretch the fabric; you are trying to isolate the stitch field.
• The Sweet Spot: Start with a slower machine speed (e.g., 600-700 SPM) on sleeves until you trust the stability.

If you currently struggle with a standard sleeve hoop on finished garments, these frames are superior because they eliminate the "inner ring" bulk that distorts tight sleeves.

Bag frames: two sizes, one goal—keep thick seams out of the stitch field

Next, she reveals two bag frames—wider, roughly square.

Bags are the heavyweight division. Canvas, seams, piping, foam, and lining all conspire to deflect your needle.

• Auditory Check: Listen to your machine. A rhythmic thump-thump is normal. A sharp, loud crack or slap means the needle is struggling to penetrate.
• The Fix: If you hear that crack, switch to a Titanium Needle (Sharp point, size 75/11 or 80/12) and slow the machine down.

Stabilizer Strategy: For bags, standard tear-away often fails. Use a sturdy Cutaway Stabilizer or a strong Sticky Stabilizer to ensure the heavy fabric doesn't shift under the weight of the bag itself.

The back-of-cap frame: the one that makes you money when customers want names above the keyhole

Dawn pulls out an arched frame. This is your revenue booster. It is designed for the "keyhole" area—the arched opening at the back of a baseball cap.

If you do team orders, a dedicated cap hoop for embroidery machine setup for the rear placement is essential. Customers love "Player Number" or "Last Name" personalization here.

Production Reality Check:

• Structure: This area is often unstructured and close to a thick plastic snap or velcro strap.
• Risk: The plastic strap must be taped or clipped out of the way. If the needle hits the plastic snap, it will shatter the needle and potentially ruin the hook timing.
• Trace: Always running a trace is non-negotiable here.


Pocket frames (three widths): stop guessing—match the pocket opening, not your design ego

Dawn unpacks three pocket frames comfortably graduated in width (approx 2.5", 3", 4").

The Golden Rule of Pockets: Pocket embroidery is constrained by the opening, not the pocket panel size.

• The Mistake: Choosing a frame that just barely fits inside the pocket.
• The Fix: Choose a frame that allows 5mm of clearance on each side. The fabric needs to "float" slightly. If the frame is too tight against the pocket seams, you will get friction burns on the fabric.

When selecting a pocket hoop for embroidery machine, measure the opening, subtract 0.5 inches (or 12mm), and pick the frame closest to that result.

Decision Tree: Stabilizer & Tooling Logic

Use this logic flow to make safe decisions quickly:

• Scenario A: Stretchy Knit (Performance Polo Sleeve)
  • Risk: Puckering / Distortion.
  • Solution: No-Show Mesh Cutaway + Light Spray Adhesive. Do not pull fabric tight.
• Scenario B: Heavy Canvas Bag
  • Risk: Needle deflection / Shifting.
  • Solution: Heavy Tearaway or Cutaway. Use a larger needle (80/12). Slow speed to 700 SPM.
• Scenario C: Back of Cap (Unstructured)
  • Risk: Flagging (fabric bouncing up and down).
  • Solution: Sticky Stabilizer (Tearaway) + Water Soluble Topping to keep stitches sitting on top.

The “Other hoop” trap on Ricoma: why tracing goes wrong and designs look bigger

A critical "save" comes from the comments regarding machine setup. Users reported selecting "Other" in the menu, only to find their designs scaling up or tracing wildly.

The Fix: Do not use "Other." Select the preloaded frame size on your Ricoma interface that is closest to (but smaller than) your physical fast frame.

• Example: If using a 4x3 fast frame, select "Frame D 170x170" (or closest metric equivalent) and rely on your trace.

If you are running an 8 in 1 hoop ricoma setup, your operational habit must be: Select closest internal frame -> Trace -> Center Eyes-on -> Stitch.

Setup Checklist (The "Save Your Machine" Protocol)

• Match Size: Select the closest pre-set hoop in the software.
• Visual Trace: Run a trace. Watch the needle bar relative to the metal frame.
• Clearance: Ensure there is at least a finger-width of clearance for the presser foot, not just the needle.
• Bulk Check: Where is the rest of the garment? Ensure it isn't bunched under the pantograph arm.

Warning: Tracing is not optional. On tight metal frames like these, a "bad guess" sends a needle moving at 1000 stitches per minute directly into steel. This can shatter the needle bar and damage the reciprocating mechanism. TRACE EVERY TIME.

“Can I use magnets with these?”—material questions, and the safer upgrade path

Can you use magnets? Dawn confirms: usually, yes. But proceed with caution.

The Upgrade Path: Stick-on stabilizers work, but peeling backing off tight frames 100 times a day is tedious. If your bottleneck is Hooping Time or Shop Floor Fatigue, this is where professionals upgrade to Magnetic Hoops.

• Home/Single Needle: If you struggle with hand strength or "hoop burn" (the shiny ring left on fabric), magnetic hoops eliminate the need to force inner/outer rings together.
• Production: Magnetic frames (like the SEWTECH Magnetic Series) allow you to clamp a bag or thick jacket in 2 seconds versus 20 seconds.

If you are looking at fast frames embroidery hoops because you hate traditional hooping, looking into magnetic options is the natural "Level 2" upgrade for your business.

Warning: Magnetic Safety. Powerful embroidery magnets are industrial tools. They can pinch fingers severely (blood blister risk) and must be kept away from pacemakers and sensitive electronics. Handle with respect.

The hidden efficiency math: hobby workflow vs production workflow (and when to upgrade)

Dawn’s efficiency claim is mathematically sound. In a hobby workflow, saving 60 seconds is convenient. In a shop running 50 left-chest logos, saving 60 seconds per shirt = 50 minutes of labor saved. That is almost an entire billable hour.

When to upgrade your machinery: If you find yourself constantly swapping frames, re-threading for colors, or turning down orders because "I can't hoop that bag," your tools are capping your revenue.

• Level 1: Better Hoops (Fast Frames / Magnetic).
• Level 2: Multi-Needle Machines (like the SEWTECH 15-needle) which allow you to keep these frames installed permanently for specific runs.

Common “used kit” pitfalls (pulled from the comments, cleaned up for shop use)

• The Mystery Round Hoop: If your kit has a round hoop that doesn't seem to fit a specific garment, it is likely a "general purpose" patch frame. Use it for badges.
• Bracket Mismatch: Never assume "Ricoma Compatible" means "Universal." Verify the bracket width.
• The "Scaling" Glitch: If your design stitches out larger than on screen, check your machine's "Hoop Maintain" or scaling settings. This is a software conflict, not a hardware fault.

What you should be able to do after this unboxing (and your next best move)

You now have the inventory list: 1 Master Bracket, 2 Sleeve/Leg frames, 2 Bag frames, 1 Cap back frame, and 3 Pocket frames.

Your next move is Calibration. Take a scrap piece of denim or canvas, and run a test on each frame type.

Operation Checklist (First Real Run)

• Start Slow: Set speed to 600 SPM.
• Design: Use a simple 2-inch circle or letter. Do not start with a 20,000 stitch dense fill.
• Trace: Verify needle clearance.
• Listen: Listen for the "thump" vs "crack."
• Inspect: Check the back of the embroidery. Is the bobbin thread tension correct (showing 1/3 white in the center)?






When you master these frames, you unlock the ability to say "Yes" to profitable jobs (caps, bags, pockets) that your competitors refuse. And when the volume gets too high for sticky stabilizer, remember that magnetic hoops and multi-needle machines are the tools waiting to help you scale.

FAQ

• Q: How do I prevent a Ricoma 1501 needle bar from hitting metal when using Ricoma-compatible Fast Frames (8-in-1 device)?
  A: Treat every first run like a clearance test: select a close preset hoop size and trace every time before stitching.
  • Select the closest preloaded Ricoma hoop size that is closest to (but smaller than) the physical Fast Frame.
  • Run a full visual trace and watch the needle bar travel relative to the metal frame (not just the needle point).
  • Confirm at least a finger-width clearance for the presser foot and check garment bulk is not bunched under the pantograph.
  • Success check: The trace completes with no near-misses, no contact, and smooth travel around the entire stitch field.
  • If it still fails: Stop immediately and re-check CM vs inch assumptions and the selected internal frame size before attempting again.
• Q: How do I verify the Master Bracket fit on a Ricoma 1501 before installing a Ricoma-compatible Fast Frames 8-in-1 device?
  A: Do not force the Master Bracket—proper fit should feel snug-but-smooth, not tight or wobbly.
  • Slide the bracket onto the machine arm gently and stop if resistance spikes or any rocking/wobble appears.
  • Measure the machine driver arm width with calipers and compare to the bracket’s slide-in channel (ask a seller for the interior width if buying used).
  • Match the mounting method (knob vs screws) to the machine’s mounting points as shown in the machine manual.
  • Success check: The bracket seats smoothly and holds position without play when lightly pushed side-to-side.
  • If it still fails: Do not stitch—treat the bracket as machine-specific and source the correct bracket for the exact machine arm.
• Q: Why does a Ricoma 1501 design trace “wild” or stitch larger after selecting “Other” for an 8-in-1 Fast Frame hoop?
  A: On a Ricoma 1501, avoid “Other” and use the closest preloaded hoop size instead to prevent scaling/tracing behavior.
  • Re-select a Ricoma preset hoop size closest to (but smaller than) the physical Fast Frame.
  • Run a trace and re-center with eyes on the needle bar path before starting the design.
  • Keep the habit: select closest internal frame → trace → verify clearance → stitch.
  • Success check: The traced boundary matches the expected design footprint and stays safely inside the metal frame.
  • If it still fails: Check the machine’s hoop maintain/scaling settings—this is often a setup/software conflict rather than a frame defect.
• Q: What is the safest starting speed on a Ricoma 1501 when stitching sleeves or pant legs with sleeve Fast Frames instead of a standard sleeve hoop?
  A: Start slower (about 600–700 SPM) until stability is proven, because tubular items shift differently than flat goods.
  • Mount the garment so the stitch field is isolated rather than stretched; avoid pulling tight just to “feel secure.”
  • Use sticky backing and clamps as intended, then trace before stitching.
  • Listen while stitching and be ready to stop if the fabric starts bouncing or drifting.
  • Success check: The sleeve stitches without shifting and the design edges stay consistent without distortion.
  • If it still fails: Slow down further and re-check that the garment is not fighting the stitch field due to uneven tube tension.
• Q: What should I do on a Ricoma 1501 when a canvas bag makes a sharp “crack/slap” sound while stitching with a bag Fast Frame?
  A: A sharp crack/slap usually means needle penetration/deflection trouble—slow down and change needle before you break something.
  • Reduce speed (a safe starting point is around 700 SPM for heavy items mentioned in the workflow).
  • Switch to a Titanium Sharp needle in size 75/11 or 80/12 as indicated for thick bag work.
  • Upgrade stabilizer from standard tear-away to sturdy cutaway or strong sticky stabilizer to reduce shifting under weight.
  • Success check: The sound returns to a normal rhythmic “thump-thump,” and stitches form without skipped hits or visible displacement.
  • If it still fails: Stop and re-evaluate seams/piping/foam placement—keep thick seams out of the stitch field before continuing.
• Q: How do I choose the correct pocket Fast Frame width to avoid hoop burn and seam rubbing on pocket embroidery?
  A: Choose the pocket frame by pocket opening width—not by the design size—and leave clearance so the fabric can “float.”
  • Measure the pocket opening, subtract about 0.5 in (or 12 mm), then choose the closest frame width.
  • Ensure about 5 mm clearance per side so the frame is not pressing hard against pocket seams.
  • Trace the design path before stitching to confirm the needle bar will not run into pocket edges or hardware.
  • Success check: No shiny ring/abrasion at the pocket edges and no drag marks where the frame contacts seams.
  • If it still fails: Go one size narrower and re-check garment alignment—frames that “just barely fit” are the most likely to burn fabric.
• Q: What safety steps prevent needle breakage on the Ricoma 1501 when embroidering the back of a baseball cap with a back-of-cap Fast Frame near the plastic snap?
  A: Always secure the plastic strap out of the stitch path and trace—needle strikes on snaps can shatter needles and damage timing.
  • Tape or clip the plastic snap/strap fully away from the needle travel and the presser foot path.
  • Run a full trace and watch the needle bar’s clearance around the arched keyhole area.
  • Use sticky stabilizer and add water-soluble topping for unstructured caps to reduce fabric “flagging.”
  • Success check: The trace clears all plastic/hardware and stitching runs without needle strikes or sudden deflection.
  • If it still fails: Stop immediately and reposition the cap/strap—do not “try again” at speed near plastic hardware.
• Q: What are the key safety rules for using SEWTECH Magnetic Hoops as an upgrade from sticky stabilizer Fast Frames in a production embroidery workflow?
  A: Use embroidery magnets like industrial tools—handle slowly to avoid pinched fingers and keep magnets away from pacemakers and sensitive electronics.
  • Keep fingertips out of the closing path and “land” magnets deliberately rather than letting them snap together.
  • Store magnets controlled and separated to prevent sudden attraction on the workbench.
  • Choose magnetic hoops when hooping time and operator fatigue become the bottleneck compared with sticky backing workflows.
  • Success check: Hooping/clamping becomes consistent and fast without finger pinch incidents or uncontrolled magnet snaps.
  • If it still fails: Step back to Level 1 technique optimization (stabilizer choice, trace habit, speed control) before increasing production pace.
