Richpeace Driver Slider Replacement: The Master Technician's Field Guide

Restoring Precision, Eliminating Vibration, and safeguarding Your Production Timeline

By the Chief Embroidery Education Officer

There is a specific feeling of dread that hits every embroidery operator. It’s not the sound of a thread break—that’s annoying, but fixable in seconds. It’s the sound of the machine changing. A new rattle. A slight hesitation in the needle bar. A recurring registration error that no amount of tension adjustment can fix.

If your Richpeace single or multi-head machine has started acting "off"—specifically regarding the vertical movement of the sewing head—you are likely dealing with a worn Driver Slider.

This isn’t a cosmetic repair. You are about to open the machine’s "chest cavity," remove the needle bar case, and touch components that dictate the fundamental alignment of your embroidery. To the novice, this is terrifying. To the veteran, it is a Tuesday.

This guide is designed to bridge that gap. Drawing on 20 years of floor experience, I have rebuilt the standard procedure into a Zero-Friction Safety Protocol. We will move beyond simple instructions and focus on the feel of the repair, the sounds of success, and the critical checkpoints that prevent a 15-minute part swap from becoming a week-long disaster.

Phase 1: The Tactical Setup

Tools, Mindset, and the "Hidden" Consumables

The original instructional video suggests you only need a Phillips screwdriver and an Allen key. While technically true, that is like saying you only need a knife to cook a five-course meal. To do this professionally—and safely—you need an environment that forgives mistakes.

The "Real World" Tool Kit

• #2 Phillips Screwdriver (Magnetic Tip): Do not use a worn tip. These cover screws are often soft metal; stripping one turns a 20-minute job into a drill-out nightmare.
• Allen Key Set (Hex Keys): Specifically a T-handle set if available, for better torque control on the jackscrews.
• Magnetic Parts Dish: Mandatory. You will be removing screws of different lengths. If one rolls under the heavy machine stand, it is gone forever.
• White Lithium Grease: (The hidden consumable). When installing a new plastic slider on a metal rail, a microscopic film of grease ensures it glides rather than grinds.
• Smartphone: Take a photo of the head assembly before you remove the first screw. Memory is a liar; photos are proof.

The "No-Force" Rule

Before we begin, internalize this rule: Embroidery machines are precision instruments, not tractors. If you have to force a part to fit, you are doing it wrong. If a screw fights you, you are cross-threading it. Stop. Reset. Breathe.

Warning: Physical Safety Protocol
You will be exposing the reciprocating mechanism. The needle bars are heavy, and the needles are distinct puncture hazards.
* Power Down: Unplug the machine completely. Do not rely on the soft power switch.
* Clear the Deck: Remove any hoops, fabric, or backing from the pantograph area to prevent snagging during the repair.

Phase 2: The "Hidden" Prep Checklist

What strict professionals do before touching a screw

Most failures happen because the operator rushed into disassembly without prepping the workspace.

Prep Checklist (Verify OR Fail):

• Part Verification: Match the new driver slider against the manual. Does it look exactly like the installed part (shape/color)?
• Labeling: If you are working on a multi-head machine, place a piece of blue tape on Head #3 (or whichever head you are fixing). It sounds silly until you get distracted and start unscrewing Head #4.
• Debris Control: Wipe down the exterior of the head. You do not want lint or oil dust falling into the open gear case once the covers are off.


Phase 3: Surgical Disassembly

Removing the Armor to Expose the Heart

We will now strip the head to access the vertical spindle. Move slowly.

Step 1: The Top Cover Set (00:00–00:05)

Using your Phillips screwdriver, engage the screws on the very top of the machine head bracket. Rotate counter-clockwise.

• Sensory Anchor (Touch): These screws usually break loose with a sharp "snap." Once loose, support the plastic cover with your non-dominant hand so it doesn't fall and crack.
• Action: Lift off the top cover set and place it in your magnetic tray (Section A).


Step 2: The Needle Bar Case (The Heavy Lift) (00:08–00:25)

This is the most intimidating step for beginners. You are removing the entire bank of needles and tension knobs.

• Action: Locate the four main Phillips screws holding the white needle bar case from the front. Loosen them in a "X" pattern (top-left, bottom-right, etc.) to prevent warping the plastic.
• The Pull: Gently pull the entire assembly straight forward.
• Sensory Anchor (Weight): Be ready—this unit is heavier than it looks. It contains solid metal bars. Do not let it drop.

Pro Tip: Do not disconnect the wiring harnesses if you don't have to. Usually, there is enough slack to gently lay the case on top of the machine arm or a padded surface nearby.

Step 3: Removing Side Covers (00:26–00:56)

Remove the screws securing the black metal plates on both the left and right sides. Place these screws in a separate section of your tray (Section B).

• Visual Check: With the covers off, you now have a clear view of the Vertical Spindle (the central rod) and the Driver Slider (the plastic/metal piece riding the rail). Take a picture here. Note the orientation of everything.


Phase 4: The Critical Extraction

Spindle Removal and the "Three-Screw" Dance

To replace the slider, the spindle (the rod it rides on) must come out. This requires loosening three distinct sets of locking screws.

Step 4: Loosen and Drop (00:57–01:25)

1. Left Side Jackscrew: Insert your thin Allen key into the access hole on the left side of the head. Loosen it.
2. Bearing Assembly Clamps: Locate the two sets of jackscrews on the bearing clamps. Loosen them efficiently.
3. The Drop: Grip the vertical metal spindle and slide it downwards.

Troubleshooting the Drop:

• If it slides like butter: Perfect.
• If it sticks: Stop. You haven't loosened the clamps enough. Do not use pliers. Do not hammer it. Loosen the screws more. The spindle is precision-ground steel; scratching it ruins the machine’s smoothness.


Phase 5: The Transplant

Replacing the Driver Slider (01:26–01:51)

This is the fastest, yet most important part of the job.

1. Remove Old: Slide the old, worn driver slider off the guide rail. Inspect it. Is it cracked? Is the groove worn wide? This confirms your diagnosis.
2. Clean: Wipe the guide rail with a lint-free cloth. Apply a tiny dot of white lithium grease.

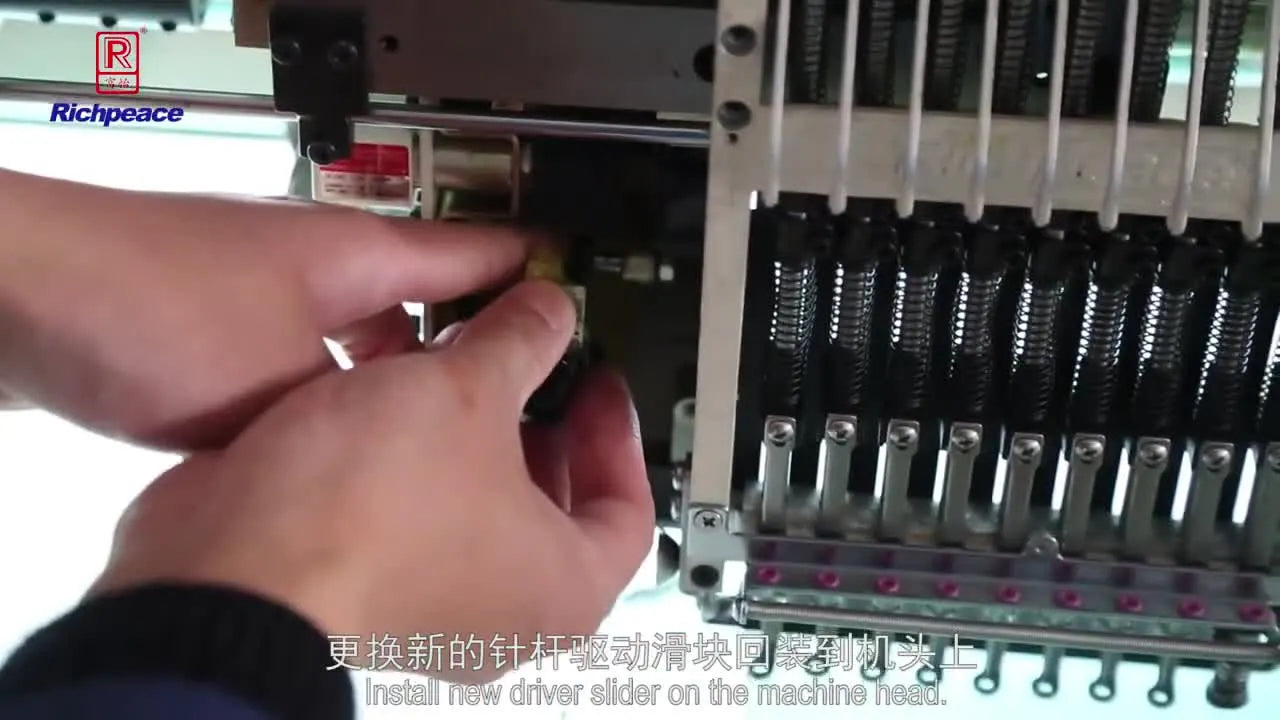

3. Install New: Slide the new driver slider onto the rail.
4. Sensory Anchor (Movement): Move it up and down by hand. It should feel "hydraulic"—smooth resistance, no grit, no wobble. If it rattles, you have the wrong part or a damaged rail.








Phase 6: Precision Reassembly

The "Platform to the Left" Rule

Reassembly is where alignment happens. If you get this wrong, the machine will sew, but it will vibrate destroy itself over time.

Step 5: Spindle Reinsertion (01:52–02:37)

Insert the vertical spindle back upwards into the assembly.

The Golden Rules of Alignment:

1. Orientation: The flat platform on the spindle must face exactly to the LEFT. Not forward, not diagonal. Left.
2. Height: Push the spindle up until the top is flush/level with the top of the machine head frame. Run your finger across the top—it should feel like one continuous surface.


Step 6: Locking it Down (02:38–03:48)

Tighten in the specific order shown in the video to ensure tension doesn't pull the alignment out of true.

1. Tighten the Left-Side Jackscrew.
2. Reinstall the Side Covers (Right and Left).
3. Only after covers are on, tighten the Bearing Assembly Jackscrews.

Setup Checklist (Mid-Point):

• Spindle platform facing Left?
• Spindle top flush with frame?
• Slider moving smoothly on the rail?
• All internal Allen screws tight?


Step 7: Re-seating the Needle Bar Case (The Final Click) (03:49–04:28)

This is the moment of truth.

• Action: Align the groove on the back of the needle bar case with the locking block on the machine head.
• Sensory Anchor (The "Clunk"): When you push the case back, you should feel a distinct mechanical positive lock. The case should sit flat against the frame without you holding it.
• Gap Check: Look from the side. Is there an even hairline gap? If the top is touching but the bottom has a 2mm gap, you are misaligned. Pull off and try again.
• Secure: Install the four main Phillips screws. Tighten safely. Reattach the top cover.




Phase 7: Troubleshooting & Verification

Don't Guess. Know.

Before you weave thread or load a design, perform this logic check.

Structured Troubleshooting Guide:

Phase 8: The "Why" behind the Wear (And how to stop it)

Turning a Repair into a Business Upgrade

You have successfully replaced the driver slider. But as a business owner, you must ask: Why did it fail?

The driver slider absorbs the friction of the machine's vertical movement. While they are wear parts, premature failure is often caused by excessive vibration and force. Where does this force come from? often, it comes from the struggle of hooping difficult garments.

When you are wrestling a thick hoodie or a slippery performance polo into a traditional screw-tightened hoop, you are inadvertently putting stress on the entire system—your wrists, the hoop arms, and eventually, the machine head itself.

This is where the difference between "hobbyist" tools and "industrial" solutions becomes clear.

1. The Vibration Killer: Magnetic Hoops

Many commercial shops are switching to magnetic embroidery hoops.

• The Logic: Instead of forcing an inner ring into an outer ring (friction), these use high-power magnets to sandwich the fabric.
• The Benefit: Zero "hoop burn." Zero force required to close. This implies smoother pantograph movement and less vibration transferred back to the machine head.
• Safety Note: These magnets are industrial strength.

Warning: Magnetic Field Safety
Magnetic embroidery frames generate powerful fields.
* Do NOT use if you have a pacemaker.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap together with enough force to bruise or break skin.

2. The Efficiency Multiplier: Hooping Stations

If you find yourself replacing parts because you are rushing production, your bottleneck is workflow. Consistently placing hoops in the exact same spot reduces rework. Consider investing in a hooping station for machine embroidery.

• Standardization means you aren't fighting the garment at the machine.
• Less fighting = smoother operation = longer life for your new driver slider.

3. The Scale-Up Solution: SEWTECH Multi-Needle Machines

Sometimes, the machine is breaking because it is overworked. If you are running a single-head machine for 8 hours a day on production runs, you are exceeding its "duty cycle."

• The Fix: A SEWTECH Multi-Needle Machine is built with heavier bearings, stronger sliders, and industrial cooling. It is designed to run all day.
• The ROI: It’s not just about speed; it’s about durability. Moving standard production to a dedicated workhorse saves your smaller machines for samples and personalization.

Decision Tree: Do I Repair or Upgrade?

Use this logic flow to decide your next move:

• Problem: Machine parts wearing out every 3 months?
  • Check: Are you running 500+ items/week?
  • Decision: Upgrade Machine. You need industrial capacity (SEWTECH).
• Problem: Fabric has "shine" marks (hoop burn) or hooping hurts your wrists?
  • Check: Are you using standard screw hoops?
  • Decision: Upgrade Tooling. Switch to magnetic embroidery hoops.
• Problem: Logos are crooked or placed inconsistently?
  • Decision: Upgrade Workflow. Get a hooping station for embroidery.

Final Operation Checklist (The "Go/No-Go")

Before you resume billing clients, perform this final test:

1. [ ] Hand Crank Test: Turn the main shaft by hand (100 degrees) to ensure the needle bar goes down and up without binding.
2. [ ] Sound Check: Power on. Listen for the fans. No grinding? Good.
3. [ ] Slow Stitch: Run a sample pattern at 400 SPM (Stitches Per Minute). Listen for the rhythm.
4. [ ] Speed Ramp: Gradually increase to your normal speed (e.g., 850 SPM).

If the sound is clean and the vibration is low, congratulations. You haven't just fixed a machine; you’ve mastered a piece of industrial engineering.

Keep your tools organized, your sliders greased, and your production profitable.

FAQ

• Q: What tools and consumables are truly required to replace a Richpeace driver slider without stripping screws or causing misalignment?
  A: Use the “real world” kit—especially a magnetic parts dish and a tiny amount of white lithium grease—to avoid preventable damage.
  • Use a #2 Phillips screwdriver with a fresh, unworn tip to prevent stripping soft cover screws.
  • Prepare Allen keys (a T-handle set if available) for controlled torque on jackscrews.
  • Stage a magnetic parts dish and separate screws by cover/section so lengths don’t get mixed.
  • Apply only a microscopic film/dot of white lithium grease on the guide rail before installing the new Richpeace driver slider.
  • Success check: Screws remove cleanly without cam-out, and the new slider glides smoothly without dry scraping.
  • If it still fails: Stop forcing parts—re-check that the replacement Richpeace driver slider matches the original shape/orientation before continuing.
• Q: What safety steps are mandatory before opening a Richpeace embroidery machine head to replace the driver slider?
  A: Fully unplug the Richpeace machine and clear the pantograph area before exposing the needle bar mechanism.
  • Unplug the machine completely (do not rely on the soft power switch).
  • Remove hoops, fabric, and backing from the pantograph area to prevent snagging while covers are off.
  • Keep hands clear of needle bars and needles; treat the assembly as heavy and pinch-prone.
  • Success check: No power to the machine (fans and lights stay off) and the work area is clear of anything that can catch.
  • If it still fails: Do not proceed—secure the head and reassess workspace stability before removing the needle bar case.
• Q: How do I know the Richpeace vertical spindle is loosened correctly before sliding it down for driver slider replacement?
  A: The Richpeace vertical spindle should slide down smoothly by hand after all three locking areas are properly loosened—never use pliers or a hammer.
  • Loosen the left-side jackscrew through the access hole on the left side of the head.
  • Loosen both sets of bearing assembly clamp jackscrews efficiently before attempting the drop.
  • Grip the spindle and slide it downward gently; increase loosening if any sticking is felt.
  • Success check: The spindle “drops” smoothly (no sticking, no scoring, no forced movement).
  • If it still fails: Stop immediately and loosen the bearing clamp jackscrews further—forcing the precision-ground spindle can permanently scratch it.
• Q: What is the correct “success feel” after installing a new Richpeace driver slider on the guide rail?
  A: The new Richpeace driver slider should move with smooth, “hydraulic” resistance—no grit, no wobble, no rattle.
  • Remove the old slider, then wipe the guide rail with a lint-free cloth to remove debris.
  • Apply a tiny dot/film of white lithium grease to the rail (do not over-grease).
  • Slide the new driver slider onto the rail and move it up/down by hand before reassembly.
  • Success check: Movement feels smooth and controlled, with zero rattling and no gritty sensation.
  • If it still fails: Suspect the wrong part or a damaged rail—do not reassemble until the cause of wobble/rattle is identified.
• Q: How do I correctly align the Richpeace vertical spindle during reassembly to prevent grinding noise on startup?
  A: Set the Richpeace spindle flat platform to face exactly LEFT and push the spindle top flush with the head frame before locking anything down.
  • Rotate the spindle so the flat platform faces precisely to the left (not forward, not diagonal).
  • Push the spindle upward until the top is flush/level with the top of the machine head frame (verify by running a finger across).
  • Tighten in order: left-side jackscrew first; reinstall side covers; then tighten bearing assembly jackscrews only after covers are on.
  • Success check: Power-on produces no grinding noise and the machine sounds normal at startup.
  • If it still fails: Loosen clamps and re-check platform-left orientation—startup grinding is a classic sign the spindle is not set correctly.
• Q: Why does a Richpeace needle bar case wobble after re-seating, and how do I re-seat it correctly?
  A: A wobbling Richpeace needle bar case usually means the rear groove missed the locking block—remove it and re-seat until a positive “clunk” lock is felt.
  • Align the groove on the back of the needle bar case with the locking block on the machine head.
  • Push the case straight back until the mechanical lock engages (you should feel a distinct “clunk”).
  • Check from the side for an even hairline gap; re-seat if one side shows a visible mismatch (e.g., top touching but bottom gapped).
  • Success check: The case sits flat against the frame without being held, and there is no wobble when gently tested.
  • If it still fails: Pull it off and re-align visually again—do not tighten screws to “pull” a misaligned case into place.
• Q: When should an embroidery shop choose process optimization, magnetic hoops, or a SEWTECH multi-needle machine after repeated Richpeace driver slider wear?
  A: Follow a tiered approach: optimize handling first, upgrade hooping tools next, and move to SEWTECH capacity if duty cycle is the real cause.
  • Level 1 (Technique): Reduce rushed, forceful hooping and standardize placement; consider a hooping station if placement inconsistency is driving rework.
  • Level 2 (Tooling): Switch from screw hoops to magnetic hoops if hooping force, wrist strain, or hoop burn is contributing to vibration and stress.
  • Level 3 (Capacity): Upgrade to a SEWTECH multi-needle machine if the machine is being overworked for long daily production runs and parts are wearing prematurely.
  • Success check: After changes, hooping requires less force, vibration decreases, and driver slider wear interval lengthens.
  • If it still fails: Reassess workload and workflow bottlenecks—persistent rapid wear often indicates the current machine is operating beyond its intended production duty cycle.
• Q: What magnetic hoop safety rules should be followed when using magnetic embroidery hoops or magnetic embroidery frames in a commercial shop?
  A: Treat magnetic embroidery hoops as industrial-strength pinch hazards and avoid use entirely for anyone with a pacemaker.
  • Do not use magnetic embroidery hoops or magnetic embroidery frames if an operator has a pacemaker.
  • Keep fingers clear of mating surfaces; magnets can snap together with enough force to bruise or break skin.
  • Control the closing motion deliberately—do not “let it slam” onto fabric or fixtures.
  • Success check: Hoops close without finger pinch incidents and fabric is clamped without excessive force or struggle.
  • If it still fails: Stop using the magnetic hoop until handling procedures are corrected and operators are retrained on safe closing technique.
