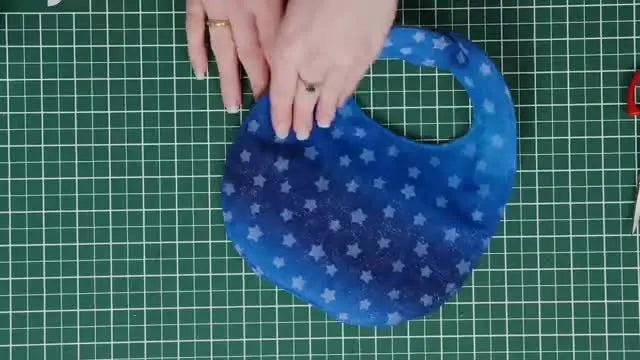

Reversible Whale Baby Bibs on the Brother NV180: Clean Placement, Smooth Curves, and a Finish That Looks Store-Bought

If you’ve ever embroidered a baby bib that looked cute… but felt a little wavy at the curves, bulky at the seams, or slightly “off” in embroidery placement, you’re not alone. Bibs are deceptively difficult: they are small, curved, and handled frequently, meaning tiny inaccuracies in construction show up immediately.

This project follows the workflow for making reversible embroidered baby bibs on the Brother NV180. Drawing from 20 years of production experience, I have calibrated this guide to include the “shop-floor” sensory details that prevent rework: how to feel the correct hoop tension, how to listen to your machine for warning signs, and how to control the notoriously difficult “terry cloth creep” on curves.

The Calm-Down Moment: Why the Brother NV180 Bib Project Is Easier Than It Looks (Even If You Hate Curves)

A reversible bib is essentially two distinct jobs: Precision Placement (Embroidery) followed by Textile Engineering (Construction). The method we are using here is forgiving because it uses a "fabric blank" larger than the final pattern, separating the embroidery step from the cutting step.

The two psychological barriers people usually face:

1. Placement Anxiety: “My embroidery won’t land where the bib shape needs it.”
   • The Fix: We rely on coordinate geometry (math), not guessing.
2. Fabric Fight: “Curves + terry cloth = shifting, puckers, and chunky seams.”
   • The Fix: We use specific sewing physics—friction management and needle-down pivoting—to tame the fabric.

If you treat this like a two-stage process (embroider cleanly first, construct cleanly second), you’ll get a bib that lays flat and withstands wash cycles—a boutique-quality product rather than a "homemade" craft.

The “Hidden” Prep That Saves the Whole Bib: Fabric Blank Size, Pattern Choice, and Stabilizer Reality

Rylee uses a 12" x 12" fabric square (approx. 30cm x 30cm) because she is using a standard 4x4 hoop (100mm x 100mm). This provides ample "safety margin" for tracing the pattern later.

The "Shop Floor" Reality Check

• Fabric Pairing: Woven cotton (front) + Terry cloth (back) is the gold standard. The cotton provides a stable substrate for detailed stitching, while the terry cloth provides absorbency.
• Stabilizer Choice: Medium-weight Tear-away (approx. 1.5 - 1.8 oz) is ideal here. Since the embroidery is stitched only on the woven cotton (not through the terry), and the back will be hidden inside the bib, tear-away keeps the bib soft.
• Hidden Danger: Terry cloth is a “moving target.” It compresses under the presser foot and drags. Do not rely on your hands alone to hold it; mechanical pinning is non-negotiable.

If you are new to the physics of hooping for embroidery machine projects, remember that prep is 80% of the battle. Once you cut a curve on woven fabric, you cannot "square it back up."

Prep Checklist: The "Go / No-Go" Flight Check

• Pattern: Downloaded and cut to size (Video uses Medium).
• Fabric Blank: Front cotton cut to 12" x 12" (30cm x 30cm).
• Stabilizer: Tear-away cut to at least 10" x 10" (ensure it extends past the hoop edges).
• Marking: Heat-erasable Friction pen (essential) + Chalk.
• Tools: Clear quilting ruler for coordinates.
• Hidden Consumables:
  • New Needle: Install a fresh 75/11 Embroidery Needle. (Old needles create burrs that snag terry loops).
  • Spray Adhesive (Optional): A light mist of 505 spray can prevent dampening fabric movement.


Nail the Placement: Marking the Crosshair So the Embroidery Sits “Low Enough” on the Bib Pattern

This is the step that separates "hope" from "confidence." We must mark the geometric center of the design relative to where the bib pattern will eventually be traced. Rylee places the center lower on the blank because the bib neckline consumes the top space.

The Coordinates

On your 12" x 12" fabric square:

1. X-Axis (Horizontal): Measure 6 inches from the side edge.
2. Y-Axis (Vertical): Measure 4 inches up from the bottom edge.
3. Action: Mark a crisp crosshair at this intersection.

This crosshair is your "Zero Point." Everything—hooping, alignment, and tracing—anchors to this mark.

Hooping the Brother 4x4 Hoop Without Distortion: Align the Crosshair, Then Tension Like You Mean It

Rylee hoops the fabric and stabilizer together in a standard 4x4 hoop. This is a critical mechanical junction.

The "Sensory Calibration" for Hoop Tension

1. Visual Alignment: Align your chalk crosshair with the raised plastic notches (North, South, East, West) on the inner hoop ring.
2. Tactile Check (The "Drum Skin" Test): Tighten the screw. Gently tap the fabric. It should sound like a dull drum thud.
3. The "Distortion" Trap: Do not pull the fabric after the screw is tight. If you pull woven cotton on the bias (diagonal), you will distort the weave; when you unhoop later, the embroidery will pucker as the fabric snaps back.

If you are working with a brother 4x4 embroidery hoop, the plastic template grid can help verify your crosshair is perfectly perpendicular before you commit.

The Production Upgrade (Solving the "Hoop Burn")

Standard mechanical hoops rely on friction and brute force, which often leaves "hoop burn" (shiny crushed fibers) or creates hand fatigue during repeat batches. This is the classic trigger point to consider magnetic embroidery hoops.

• Why Upgrade? Magnetic hoops use vertical clamping force rather than friction. This eliminates the "tug of war" with the screw and drastically reduces hoop burn on delicate cottons.
• The Benefit: If you plan to make 50 bibs for a craft fair, magnetic frames speed up the reloading process by approximately 40%.

Warning: Magnetic Safety
High-strength magnetic hoops are industrial tools. They can pinch fingers severely if they snap together unexpectedly. Keep them away from pacemakers, credit cards, and computerized machine screens.

Stitch-Out on the Brother NV180: What to Watch While the Whale Design Runs

The video demonstrates a whale design featuring Tatami fills (dense base) and Satin borders.

Expert Sensory Monitoring

Once you press "Start," do not walk away. Use your senses:

• Auditory (Sound): The machine should hum rhythmically. A rhythmic thump-thump suggests a dull needle struggling to penetrate. A sharp click-click often indicates the top thread is catching on the spool cap.
• Visual (Sight): Watch the fabric near the needle plate. It should remain flat. If you see "flagging" (fabric bouncing up and down with the needle), your hoop tension is too loose.

For users of a brother sewing and embroidery machine like the NV180, I recommend capping your speed at 400-600 SPM (Stitches Per Minute) for this design. While the machine helps regulate this, ensuring a moderate pace prevents the satin borders from pulling the fabric out of alignment.

Stabilizer Removal and Pressing the Embroidery Flat (Without Crushing the Thread)

After stitching, remove the hoop. Tear away the excess stabilizer.

The "Support and Tear" Technique

Don't just rip the paper away. Place your thumb directly on the satin stitches to support them, and tear the stabilizer away from your thumb. This prevents you from distorting the edge stitches.

Pressing Rule: Place the embroidery face down on a fluffy towel. Press from the back. This prevents the iron from crushing the 3D loft of the thread, keeping the whale looking plump and premium.

Tracing the Bib Pattern Around Embroidery: The Friction-Pen Trick That Lets You Fix a Slanted Outline

Because the bib pattern is symmetrical ("cut on the fold"), but your fabric cannot be folded through the embroidery, we must trace in two stages.

1. Align: Place the pattern on the left side, using your embroidered design as the visual center.
2. Trace: Use the Friction Pen.
3. Flip & Repeat: Flip the pattern to the right side and complete the outline.

The "Undo" Button: If you step back and look, and the design looks tilted or off-center, simply iron the fabric. The Friction pen marks will vanish, allowing you to re-trace without wasting the fabric.

Pro Tip for Batching: If you are struggling to keep the fabric square while tracing, using a specialized surface like a hooping station for machine embroidery can double as a non-slip marking station. Keeping the grainline straight during marking ensures the bib hangs straight on the baby.

Cutting and Marking Closures: Clean Scissor Work Now Prevents Lumpy Seams Later

Cut along your traced line.

• Technique: Use long, smooth scissor shears. "Choppy" short cuts create jagged edges that are difficult to sew over smoothly later.
• Marking: Transfer mark positions for the snaps/buttons at the neck strap now, while flat.


Layering Terry Cloth + Embroidered Front: Why “Wrong Sides Together” Matters Here

Switch Modes: Configure your NV180 from Embroidery to Sewing Mode.

Layer the embroidered front on top of your terry cloth piece, Wrong Sides Together.

• Why? We are creating a "quilted" effect where the towel becomes the permanent backing structure of the front panel.
• The Risk: Terry cloth loops engage with cotton fibers like Velcro, but they can shift under pressure.

Pin securely. If you spend time researching machine embroidery hoops for accurate stitching, apply that same rigor here: pinning is the "hooping" of the sewing world.

The Curve-Control Stitch: Basting the Towel Layer at 1/8" Seam Allowance Without Wobble

We baste the layers together to lock them in place before the final construction.

Settings

• Stitch: Straight Stitch (Length 3.0 - 3.5mm).
• Allowance: 1/8 inch (approx. 3mm) from the edge.
• Foot: 1/4" Piecing Foot (ideal for visibility).

The "Needle-Down" Pivot Technique

You are sewing a circle on slippery loops.

1. Speed: Slow down to 50% max speed.
2. The Pivot: Every 1-2 inches on the curve, Stop. Ensure the Needle is DOWN in the fabric. Raise Presser Foot. Rotate fabric 5 degrees. Lower Foot. Continue.

This relieves stress on the fabric and prevents "ripples."

Setup Checklist (Pre-Sewing)

• Machine converted to Sewing Mode.
• Straight stitch selected; stitch length increased to 3.5mm (basting).
• Layers aligned Wrong Sides Together.
• Check: Is the "Needle Down" position activated on your machine screen?
• Check: Are pins placed away from the stitch line to avoid needle strikes?


Final Assembly Seam at 1/4": Enclose the Embroidery, Mark the 2.5" Turning Gap, Then Commit

Now, place the backing fabric (Standard Cotton/Print) onto your basted combo, Right Sides Together. The embroidery should be sandwiched inside.

1. Mark the Gap: Leave a 2.5 inch (6cm) opening primarily at the bottom edge. Do not place the opening on a tight curve.
2. The Structural Stitch: Sew the perimeter with a 1/4 inch seam allowance. Set stitch length back to standard 2.5mm for strength. Backstitch securely at the start and end of the gap.


Clip Notches Like a Pro: Reduce Bulk on Curves Without Cutting Your Stitches

Curved seams require physics adjustment. If you turn it right side out now, the excess fabric inside will bunch up.

The Action: Clip triangular notches ("V" shapes) into the seam allowance all around the curves.

• Density: Notches should be approx. 0.5 to 1 inch apart.
• Safety Zone: Cut close to the stitch line, but leave at least 1-2mm clearance.

Warning: Physical Safety
Use fine-tip embroidery scissors for notching. Keep your fingers behind the blade path. One slip here cuts the construction thread, requiring you to re-sew the entire perimeter.

Turning and Shaping: Use the Purple Thang to Push Curves, Not to “Stab” Them

Turn the bib right-side out through the bottom gap. Use a blunt turning tool (like a "Purple Thang" or a chopstick).

• Technique: Gently roll the seam between your fingers to push the fabric edge out fully.
• Troubleshooting: If a curve looks angular or "stop-sign shaped," you likely missed a notch in that spot. Flip it back and clip again.


Press From the Wrong Side: Protect Embroidery Thread While You Set the Shape

Tuck the raw edges of the turning gap inside carefully. Press the entire bib flat.

• Thermodynamics: Again, press from the Terry Cloth Side. Direct heat on the embroidery polyester thread can flatten it or cause sheen variations.


Topstitch + Closure: Seal the Turning Hole, Then Use the Buttonhole Foot and Button Sewing Foot

The Finish Line

1. Topstitch: Sew around the exterior edge (approx. 1/8") to close the gap and give a crisp finish.
2. Closures:
   • Swap to the Buttonhole Foot to create the slot on one strap.
   • Swap to the Button Sewing Foot (or hand sew) to attach the button on the opposing strap.

Operation Checklist (The Final Quality Audit)

• Turning Gap: Is it invisible? (Edges tucked evenly).
• Topstitch: Is it parallel to the edge? (No run-offs).
• Embroidery: Is it centered visually?
• Tactile Check: Run your hand over the back—are there any sharp thread knots or burrs that could scratch a baby's neck?
• Solvents: Have you ironed away/washed away all marking pen lines?


The Fabric-to-Stabilizer Decision Tree for Bib Embroidery (So You Don’t Guess Next Time)

Use this logic guide to adapt this project for different materials.

1. What is your Front Fabric?

• Sturdy Woven Cotton (Denim/Drill): Use Tear-away.
• Lightweight Quilting Cotton: Use Cut-away (Mesh) or heavy Tear-away to prevent puckering around dense designs.
• Knit/Jersey: You MUST use Poly-Mesh Cut-away and a ballpoint needle. Tear-away will result in a distorted design.

2. What is your Production Volume?

• One Gift: Standard hoop + manual screw tightening.
• Ten Gifts: Considerable hand strain.
• Small Business (50+ units): High risk of Repetitive Strain Injury (RSI).
  • Decision: If you reach the volume stage, a magnetic hoop for brother is a necessary ergonomic investment.

The Upgrade Path That Actually Makes Sense: When to Add Magnetic Hoops or Move Up to Multi-Needle Production

I do not believe in buying tools "just in case." You should upgrade only when you hit a specific pain point.

Scenario A: The "Hoop Burn" & Fatigue Bottleneck

If you spend more time re-hooping to get the tension right than you do stitching, or if standard hoops are marking your fabric, it is time for a tool change. Learning how to use magnetic embroidery hoop systems can resolve inconsistent tensioning immediately. The magnets self-level the fabric, reducing the skill required to get a "drum-tight" hold.

Scenario B: The "Scaling" Bottleneck

If your bibs become popular and you sell 100 units a month, your bottleneck is the single needle. You are forced to stop and change threads manually for every color.

• The Fix: Moving to a multi-needle machine (like a SEWTECH 15-needle commercial unit) allows you to set up all colors at once.
• Batching: Combined with a jig system like a hoopmaster hooping station, you can hoop the next bib while the machine stitches the current one, doubling your throughput.

Quick Troubleshooting: The 5 Bib Problems That Waste the Most Time (and the Fixes That Don’t)

The Result: A Reversible Bib That’s Gift-Ready—and a Workflow You Can Repeat

By respecting the geometry of the setup (6" x 4" center) and the physics of the fabric (controlling terry cloth creep), you eliminate the variable of "luck." Whether using the stock hoop or optimizing with a Magnetic Hoop for batching, this workflow turns a frustrating curved project into a reliable, repeatable success suitable for any baby boutique.

FAQ

• Q: What fabric and stabilizer combination works best for a reversible embroidered baby bib on the Brother NV180 4x4 hoop?
  A: Use woven cotton for the embroidery front with a medium-weight tear-away stabilizer, and add terry cloth later as the backing layer.
  • Cut a 12" x 12" cotton front blank and a tear-away stabilizer piece that extends past the hoop edges (at least 10" x 10").
  • Stitch the design on the cotton only, then tear stabilizer away after stitching.
  • Add terry cloth during sewing construction (pinning/basting) instead of hooping through terry.
  • Success check: The embroidery area stays flat after unhooping, and the finished bib feels soft (not boardy) inside.
  • If it still fails: If puckering appears around dense fills, switch to a more supportive stabilizer option mentioned in the fabric-to-stabilizer decision tree (often a cut-away mesh for lightweight cotton).
• Q: Where should the embroidery center be marked on a 12" x 12" bib fabric blank for the Brother NV180 so the design sits low enough on the bib?
  A: Mark the crosshair at 6 inches from the side edge and 4 inches up from the bottom edge before hooping.
  • Measure 6" across for the X-axis and 4" up for the Y-axis on the 12" x 12" square.
  • Draw a crisp crosshair at the intersection (use chalk and a heat-erasable friction pen if preferred).
  • Align that crosshair to the hoop’s raised notches when hooping.
  • Success check: After tracing the bib pattern, the design visually sits lower (neckline area does not “eat” the top of the design).
  • If it still fails: Re-trace the pattern using the friction-pen “undo” method (iron to remove marks and re-align).
• Q: How do I know Brother 4x4 embroidery hoop tension is correct on woven cotton so the Brother NV180 does not pucker after unhooping?
  A: Tighten to “drum-skin” tension and never pull the fabric after the hoop screw is tight.
  • Align the marked crosshair to the inner hoop’s North/South/East/West notches first, then tighten the screw.
  • Tap the hooped fabric lightly to confirm the dull “drum thud” feel/sound.
  • Avoid bias distortion by not tugging the fabric after tightening.
  • Success check: During stitching the fabric stays flat (no “flagging” bounce near the needle plate), and after unhooping the fabric does not snap back into puckers.
  • If it still fails: Re-hoop with better alignment and tension, and consider a magnetic hoop if repeated screw-tightening causes inconsistent tension or hoop burn.
• Q: What should Brother NV180 owners listen and look for during a dense whale design stitch-out to catch needle or thread problems early?
  A: Monitor sound and fabric motion continuously; changes usually warn of a needle or thread-path issue.
  • Listen for a steady hum; a rhythmic “thump-thump” often means a dull needle struggling to penetrate.
  • Listen for a sharp “click-click,” which often points to top thread catching on the spool cap.
  • Watch for “flagging” (fabric bouncing up/down); that usually means hoop tension is too loose.
  • Success check: The machine runs with an even rhythm and the fabric stays flat around the needle plate.
  • If it still fails: Replace with a fresh 75/11 embroidery needle and re-check the top thread path/spool cap setup before restarting.
• Q: How do I prevent wavy edges when sewing terry cloth backing onto an embroidered bib after stitching on a Brother NV180?
  A: Control terry cloth creep by pinning aggressively and pivoting with the needle down on curves.
  • Pin the terry cloth and embroidered front securely (wrong sides together for the basting step) so the loops cannot “walk.”
  • Baste at 1/8" seam allowance using a longer straight stitch (3.0–3.5 mm), then sew the final seam at 1/4" with normal length (2.5 mm).
  • Pivot every 1–2 inches on the curve with needle DOWN, presser foot up, rotate slightly, then continue.
  • Success check: The curve lays flat after basting (no ripples before final assembly).
  • If it still fails: Slow to ~50% speed and increase pin count; terry cloth movement is common and usually improves with more mechanical control.
• Q: What is the safest way to clip notches on curved bib seams so the reversible bib turns smoothly without cutting the stitches?
  A: Clip “V” notches close to the stitch line while leaving a 1–2 mm safety margin to protect the seam.
  • Cut notches about every 0.5–1 inch around curves to release bulk.
  • Keep fingers behind the scissor path and use fine-tip embroidery scissors for control.
  • Stop and inspect frequently so you do not accidentally nick the seam stitching.
  • Success check: After turning, the curve looks round (not “stop-sign” angular) and the seam does not pop open.
  • If it still fails: Turn the bib back inside out and add a few more notches where the curve looks tight or faceted.
• Q: When should Brother NV180 bib makers upgrade from a standard screw hoop to a magnetic embroidery hoop, and when does it make sense to move to a SEWTECH multi-needle machine?
  A: Upgrade based on the bottleneck: magnetic hoops solve hoop burn/fatigue and rehooping time, while a multi-needle machine solves thread-change slowdown at scale.
  • Choose Level 1 (technique) when: placement or curve issues improve with better marking, pinning, and needle-down pivoting.
  • Choose Level 2 (magnetic hoop) when: standard hooping causes hoop burn, inconsistent tension, or hand fatigue during repeat batches.
  • Choose Level 3 (SEWTECH multi-needle) when: production volume grows and single-needle thread changes become the main time sink.
  • Success check: Reloading/hooping becomes consistent and faster, and rework from placement/tension drops noticeably across a batch.
  • If it still fails: Add a repeatable hooping/marking workflow (often a hooping station helps) so every blank loads with the same center reference and tension.
