Reversible 3D Felt Christmas Trees on a Brother PR1055X: Metallic Bobbin, Stiff “Felt Sandwich,” and the Slot-Cut That Actually Fits

The Chief Embroidery Officer’s Guide to 3D Felt: Constructing "The Forest" Without Fear

If you have ever attempted a free-standing 3D embroidery project and ended up with a floppy, sad result, or a slot that should fit but absolutely refuses to—stop. Take a deep breath.

You are not bad at embroidery. You are likely just fighting physics without the right engineering data.

Constructing 3D objects, like the felt Christmas trees in this guide, is less about "sewing" and more about structural engineering. It requires a specific "sandwich" of materials, a respect for the temperament of metallic thread, and a cutting technique that accounts for mass.

In this white-paper-level guide, we will decompose the process of creating free-standing 3D trees using a Brother PR multi-needle machine and Hatch Embroidery software. We will move beyond basic instructions into the sensory details—how it should sound, feel, and look—to ensure your first attempt is display-ready.

The Cognitive Shift: Why 3D Felt Triggers "Embroidery Anxiety"

Metallic thread, thick industrial felt, stiff buckram, and a high-speed machine sound like a recipe for a bird's nest. Many novices hear the dreaded "dry scraping" sound of metallic thread shredding and immediately give up.

But here is the truth: Felt is actually one of the most forgiving substrates in our industry. It is stable (non-stretch), it does not fray like woven cotton, and it holds a crisp edge. The anxiety usually stems from two rookie errors:

1. Velocity Mismatch: Treating metallic thread like Rayon (running it too fast).
2. Geometry Failure: Cutting the assembly slots like paper (zero clearance), forgetting that felt has thickness.

We will engineer these problems out of your workflow before you even thread the needle.

The Structural "Sandwich": Engineering Stiffness Without Fighting the Hoop

Structure does not happen by accident. In the video, the rigidity of the tree comes from a strategic stack of materials assembled directly at the hoop. Think of this as laying a foundation.

The "Tree Sandwich" Layering Strategy:

1. Top Layer: High-quality craft felt.
2. Fusion Layer: Iron-on interfacing (fused to the back of the top felt).
3. The Stiffener (The Core): Buckram or Heavy-weight Interfacing.
4. Bottom Layer: Backing felt (also fused with interfacing), slid underneath the hoop before the final satin stitch.

This stack prevents the "floppy tree" syndrome. However, clamping this thick sandwich in a standard plastic screw hoop creates a massive mechanical challenge.

The "Hoop Creep" Phenomenon: When you tighten a standard screw hoop over thick felt, the inner ring pushes the fabric forward, distorting your geometry. If you are experiencing "hoop burn" (permanent rings on the felt) or if your layers are shifting during the stitch, your tool is the bottleneck.

If you are struggling with hand fatigue or alignment issues on thick projects, this is the operational trigger to look at magnetic embroidery hoops. Unlike friction hoops, magnetic systems clamp straight down. This vertical clamping force prevents the "creep" of thick layers and saves your wrists from the repetitive strain of tightening screws on resistant materials.

Phase 1: Prep Checklist (The "No-Fail" Inventory)

Before you even turn the machine on, verify these physical assets.

• The Material: Felt sheets cut 2 inches wider than your hoop on all sides.
• The "Secret" Consumables:
  • Needles: Size 90/14 Topstitch or Metallic needles (Crucial: Using a standard 75/11 sharp here will shred your thread).
  • Adhesive: Temporary spray adhesive (to hold the buckram in place without shifting).
• The Stiffener: Buckram (for maximum rigidity) or Decor Bond.
• The Thread: Metallic thread for the top AND a matching bobbin.
• The Hardware: A hoop capable of holding thick layers (standard or magnetic).
• Hazmat Check: Ensure your scissor blades are sharp and not gummed up with old adhesive.

The Technician's Challenge: Metallic Thread in the Bobbin

The aesthetic "hook" of this project is reversibility. Because these tops are free-standing, the back is visible. The video demonstrates winding the bobbin with the same metallic thread used on top.

Why this scares people (and how to fix it): Metallic thread has "memory." It wants to coil and spring off the spool. putting it in the bobbin path changes the drag coefficient.

The Sensory Check: When you pull the metallic bobbin thread through the tension spring of your bobbin case, it should not flow freely like polyester. It should offer resistance similar to pulling exact dental floss through tight teeth. If it slides with zero drag, your tension is too loose, and you will get a bird's nest on the top of your tree.

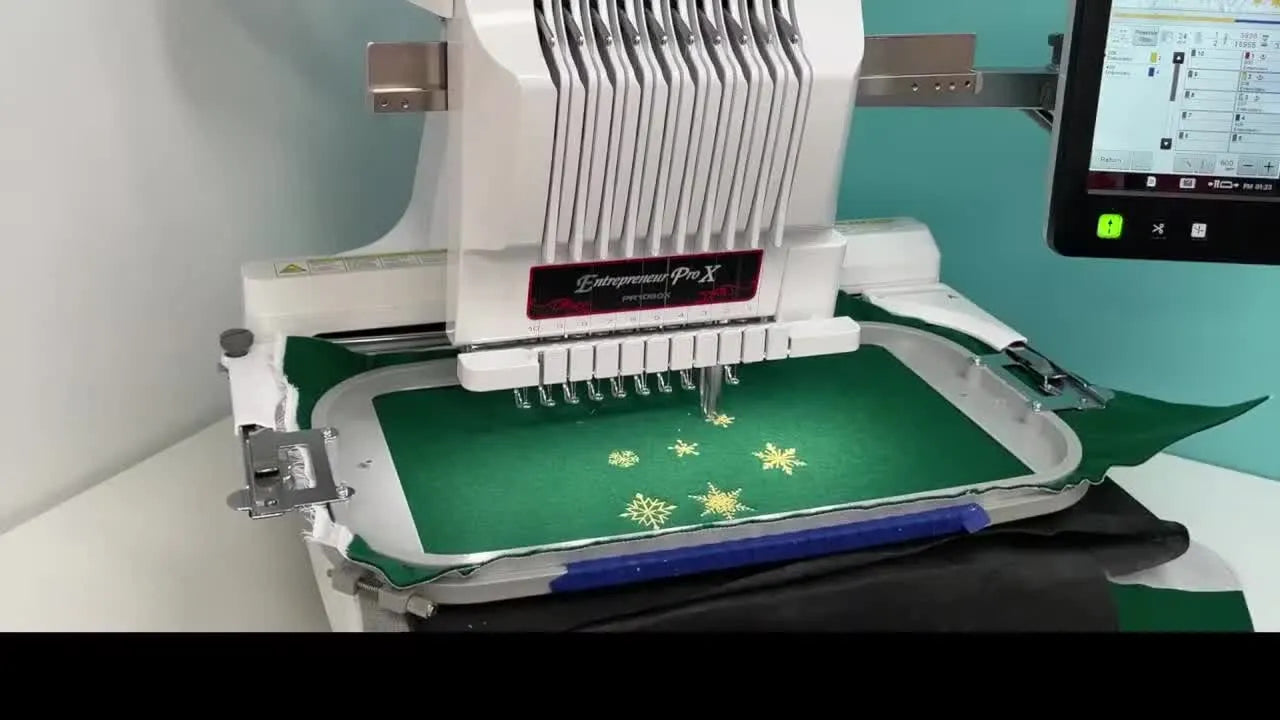

For owners of the brothers entrepreneur pro x pr1055x 10-needle embroidery machine, this is where your customized tension settings shine. You may need to bypass the standard pretension paths or loosen the bobbin case screw by a "clock hour" (15-degree turn) to accommodate the thicker metallic strand.

Warning: Physical Safety Constraint
Cutting through a sandwich of Felt + Interfacing + Buckram requires significant hand force. Do not force the cut. If you feel your wrist straining or the scissor blades twisting sideways, stop. Twisting blades often leads to slipping, which puts the sharp point directly into your stabilizing hand. Use moderate pressure or switch to a craft knife for thick sections.

Velocity Control: The "Sweet Spot" for Metallics

In the video, the host slows the machine down. This is not optional; it is physics.

Metallic thread is composed of a nylon core wrapped in foil. As it passes through the needle eye at 1000 stitches per minute (SPM), friction creates heat. Heat expands the foil, causing it to strip away from the core. This results in the "shredded tinsel" look.

For a project like this, forget maximum efficiency.

• Standard Speed: 1000 - 1200 SPM.
• Metallic Safe Zone: 600 - 700 SPM.


Visual Validation: Watch the thread path. If you see the thread "vibrating" violently or slapping against the machine casing, you are going too fast. A smooth, rhythmic flow is the goal.

Production Layout: Optimizing the Hoop Real Estate

The snowflakes and trees in the video are generated using Hatch Embroidery’s Circle Layout tool. But the real lesson here is Batch Production.

If you are setting up your machine for this sandwich (which requires specific tension and needles), do not make just one tree. Utilize the full field of your hoop. Nest the shapes to minimize fabric waste.

The "Hoop Time" Bottleneck: In commercial embroidery, "Hoop Time" (the time the machine is stopped while you wrestle fabric) is the enemy of profit. If you are currently doing a lot of hooping for embroidery machine work involving thick stacks, standard hoops are your biggest time sink. Every minute spent unscrewing, re-positioning, and screwing the hoop tight is a minute the machine isn't stitching. This is where the magnetic embroidery frame changes the ROI. By converting a 3-minute hooping struggle into a 10-second "snap," you essentially double your production speed on a project like this.

Phase 2: Setup Checklist (Pre-Flight Checks)

Complete this sequence immediately before pressing "Start".

• Bobbin Check: Metallic bobbin is wound evenly (no loops sticking out).
• Bobbin Case: Case is free of lint (metallic creates glitter dust—blow it out!).
• Needle: New 90/14 needle installed. (Do not use an old needle; a dull point will punch the felt into the bobbin area).
• Speed: Machine capped at 700 SPM maximum.
• Path: Ensure the metallic spool is unwinding vertically (using a thread stand) to prevent twisting.

The Visual Anchor: Contrast is King

The video demonstrates a critical design failure: stitching a green outline on green felt. The result looks flat and "homemade."

The Rule of Contrast: Edges define volume. To make a 2D object look 3D, the eye needs a boundary.

• Bad: Green Felt + Green Thread.
• Good: Green Felt + Gold/Silver Thread.
• Pro: White Felt + Variegated Metallic Thread.

Even if you are making a "natural" tree, use a thread that is two shades lighter or darker than the felt. This outline acts as the visual skeleton of the piece.

Batch Workflow: From Hobby to Production

The video host stitches multiple trees in one pass. This changes your mindset from "crafter" to "manufacturer."

If you are using brother pr1055x hoops, you likely have a large stitch field (up to 360x200mm or larger).

1. Prep Phase: Fuse interfacing to all your felt at once.
2. Hoop Phase: Load the largest hoop you own.
3. Stitch Phase: Run 4-6 tree halves in one go.

This reduces the "Stop/Start" cycle. If you plan to sell these at holiday markets, this batch efficiency is the only way to make the pricing viable.

Cutting Strategy: The Decision Matrix

The video is honest: cutting through two layers of felt plus buckram is difficult. Your hands will get tired.

You have a choice to make regarding the "Stiffener" layer. This is a trade-off between structural integrity and ease of cutting.

Decision Tree: Select Your Core Stiffener

Follow this logic path based on your priorities:

Scenario A: The "Showpiece" Requirement

• Goal: I want the tree to stand 100% vertical with zero sag for years.
• Material: Buckram.
• Consequence: Cutting will differ. You will need heavy-duty shears. Your hand will fatigue after 2 trees.
• Verdict: Best for gifts/sales, hardest to make.

Scenario B: The "Ease of Use" Requirement

• Goal: I want to make 50 of these for a school fair without getting carpal tunnel.
• Material: Heavy-Weight Decor Bond (Iron-on).
• Consequence: Tree is slightly softer. Might bend if stored improperly.
• Verdict: Best for high-volume production.

Scenario C: The "Scrappy" Approach

• Goal: I have no stiffener, but I have lots of felt.
• Material: Double Layer of Felt inside the sandwich (3 layers total).
• Consequence: Very thick. Hard to hoop. Soft structure.
• Verdict: Emergency use only.

The Engineering Key: The "Slot" vs. The "Slit"

This is the single most important technical detail in the article.

A "slit" is a single cut line. A "slot" is a rectangular channel with material removed. Because your sandwich is nearly 3mm thick, a single slit will not work. The felt will compress, buckle, and the tree will not stand straight.

The Correct Technique: You must cut a rectangle roughly 2mm to 3mm wide (depending on your felt thickness) out of the slot area. The Tactile Test: When you slide the two halves together, it should feel like a "snug handshake"—some friction, but no buckling. If you have to force it, the slot is too narrow. If it wobbles, it is too wide.

Phase 3: Operation Checklist (The "In-Flight" Monitor)

Monitor these variables while the machine runs.

• Sound Check: A rhythmic thump-thump. If it changes to a slap-slap or a grind, STOP immediately (check thread path).
• Halo Effect: Check the satin stitches. Are they clean? If they look "fuzzy," your needle eye is shredding the thread—change needle or lower tension.
• Shifting: Watch the outline run. Is it landing exactly on the edge of the fill? If it's drifting, your sandwich is moving in the hoop (upgrade to magnetic hoops for brother or similar solid clamping systems).

The Rotary vs. Scissor Debate

A rotary cutter is precise, but it struggles with Buckram (it is like cutting cardboard).

• Workflow: Use a rotary cutter + ruler for the straight bottom edges. Use sharp, short-bladed embroidery scissors (like curved snips) for the intricate branches and the internal slot.

Ergonomics Check: If you feel pain in the fleshy part of your thumb, your scissors are too dull or too small. Switch to shears with a larger handle loop to distribute the pressure.

Troubleshooting: The "Why is this happening?" Guide

Warning: Magnetic Field Safety
Professional magnetic embroidery hoops use neodymium magnets with industrial crushing force. They are not fridge magnets.
* Pinch Hazard: Never place fingers between the brackets. They snap together instantly.
* Medical: Keep at least 6 inches away from pacemakers.
* Tech: Keep away from credit cards and smartphones.

The "Forest Effect": Presentation Matters

A single tree looks lonely. A group of 3-5 trees in varying heights creates a "vignette."

Finishing Touches:

• Trim Cleanly: Use a lighter to quickly pass over the edges (blue flame only!) to melt any fuzzy nylon fibers from the metallic thread. (Practice on scrap first!).
• Pressing: Press the finished pieces flat before assembly using a pressing cloth to protect the metallic thread from melting.


Commercial Conclusion: The Upgrade Path

You can absolutely make this project with a single-needle machine and a standard hoop. It just requires patience and hand strength.

However, if you find yourself falling in love with 3D embroidery, or if you plan to sell these sets, listen to your pain points.

• If your wrists hurt from hooping: Magnetic Hoops.
• If you are tired of changing threads for every color stop: Multi-Needle Machine.
• If your slots are always mismatched: Better Stabilization.

Master the sandwich, respect the physics of the thread, and you will build a forest that stands tall season after season.

FAQ

• Q: What needle size should be used on a Brother PR multi-needle machine for metallic thread stitching on thick felt + buckram 3D embroidery?
  A: Use a new 90/14 Topstitch or Metallic needle as the default for this felt “sandwich.”
  • Install: Replace the needle before the run (do not start with a used/dull needle).
  • Match: Avoid a standard 75/11 sharp needle because it commonly shreds metallic thread in thick felt.
  • Success check: Satin stitches look clean (not fuzzy) and the metallic thread does not “fray” at the needle.
  • If it still fails: Slow the machine further and/or move up to a larger-eye needle such as a Topstitch 100/16.
• Q: How do you set a safe stitching speed on a Brother PR multi-needle embroidery machine to prevent metallic thread shredding on 3D felt projects?
  A: Cap the machine speed at 600–700 SPM for metallic thread to reduce heat and foil stripping.
  • Set: Lower speed from typical 1000–1200 SPM down into the 600–700 SPM range.
  • Watch: Observe the thread path for violent vibration or “slapping” against the machine.
  • Success check: Thread flow looks smooth and rhythmic, and the stitch-out stops producing “shredded tinsel.”
  • If it still fails: Re-thread the metallic path carefully and switch to a larger-eye needle (often helps).
• Q: How tight should metallic thread feel when pulling through a bobbin case on a Brother PR1055X when winding metallic thread in the bobbin?
  A: Metallic bobbin thread should not pull freely; it should feel like pulling dental floss through tight teeth.
  • Pull-test: Draw the metallic bobbin thread through the bobbin case tension spring and feel for controlled resistance.
  • Clean: Blow out lint/glitter dust from the bobbin area because metallic thread sheds debris.
  • Success check: The top side does not form a bird’s nest, and the bobbin feed feels consistently “dragged,” not slippery.
  • If it still fails: Adjust using the machine’s tension options (generally small changes), and follow the machine manual before making major bobbin-case screw changes.
• Q: How can embroidery “hoop burn” marks happen on thick felt when using a standard screw hoop, and how do you prevent felt layers from shifting during stitching?
  A: Hoop burn and layer shift usually come from over-tightening and “hoop creep” in thick stacks; reduce friction stress or switch clamping style.
  • Reduce: Tighten only as needed and rely on temporary spray adhesive to stabilize layers.
  • Prevent: Keep the felt pieces cut oversized (about 2 inches wider than the hoop on all sides) to maintain grip.
  • Success check: The outline lands exactly on the edge of the fill without drifting, and the felt shows minimal ring marks after unhooping.
  • If it still fails: Consider a magnetic hoop system that clamps straight down to reduce creep on thick felt sandwiches.
• Q: What is the correct way to cut the assembly slot for a free-standing 3D felt Christmas tree so the two halves fit without buckling?
  A: Cut a rectangular slot (not a single slit) and remove material to create clearance for the felt sandwich thickness.
  • Cut: Remove a rectangle roughly 2–3 mm wide (adjust to felt thickness) rather than making one straight cut line.
  • Test-fit: Slide the halves together gradually and adjust the slot width before trimming everything else.
  • Success check: The fit feels like a “snug handshake”—friction is present, but the felt does not buckle and the tree stands straight.
  • If it still fails: Widen the slot slightly; if the joint wobbles, the slot is too wide and the next set should be cut narrower.
• Q: What safety steps should be followed when cutting felt + interfacing + buckram for 3D embroidery tree parts to avoid hand injuries?
  A: Do not force cuts through thick stacks; stop at the first sign of blade twist or wrist strain and change tools.
  • Stop: Pause immediately if scissors twist sideways or your wrist starts straining.
  • Switch: Use heavy-duty shears for thick sections, or a craft knife for controlled cuts on dense areas.
  • Success check: Cuts feel controlled with moderate pressure (no slipping, no sudden “snap” through layers).
  • If it still fails: Sharpen/replace blades and reduce adhesive buildup on scissors before continuing.
• Q: What are the pinch and device safety precautions when using neodymium magnetic embroidery hoops on industrial or multi-needle embroidery machines?
  A: Treat magnetic hoops as industrial tools: keep fingers clear, and keep magnets away from sensitive medical devices and electronics.
  • Keep clear: Never place fingers between magnetic brackets; magnets can snap together instantly.
  • Separate: Keep magnetic hoops at least 6 inches away from pacemakers.
  • Protect: Keep magnetic hoops away from credit cards and smartphones.
  • Success check: The hoop closes in a controlled way without pinching, and the workpiece remains clamped without needing excessive force.
  • If it still fails: Re-position the layers and clamp again—do not “fight” the magnets by forcing alignment with your fingers in the gap.
• Q: For thick felt “sandwich” 3D embroidery, how should a production workflow be upgraded from technique fixes to magnetic hoops and then to a multi-needle machine?
  A: Start with speed/needle/tension technique, upgrade to magnetic hoops if hooping is the bottleneck, and move to a multi-needle machine when thread changes and stop/start cycles limit output.
  • Level 1 (Technique): Slow to 600–700 SPM, use a new 90/14 metallic/topstitch needle, and stabilize layers with temporary spray adhesive.
  • Level 2 (Tooling): Use a magnetic hoop when screw-hoop tightening causes wrist fatigue, hoop burn, or layer creep on thick stacks.
  • Level 3 (Capacity): Use a multi-needle setup when frequent color changes and repeated hooping stops prevent batch production in a large hoop field.
  • Success check: Hooping time drops significantly, outlines stop drifting, and multiple tree halves can run cleanly in one batch.
  • If it still fails: Re-check the material stack order (felt + interfacing + buckram + backing felt) and confirm the bobbin/needle/speed checklist before changing hardware again.
