Reverse Appliqué on a Brother PR1055X: The Clean “Peekaboo” Method That Won’t Ruin Your Garment

Reverse appliqué is one of those techniques that immediately separates "hobbyist" work from "boutique" production. It looks high-end because it plays with depth—creating a window into a textured world beneath the surface fabric. However, it also strikes fear into the heart of the operator because it involves the two scariest words in machine embroidery: cutting and layers.

If done poorly, it looks like a ragged science experiment. If done well, it commands a premium price. The difference isn't magic; it is simply a matter of workflow discipline. As someone who has ruined countless garments learning the subtle physics of tension and drag, I am here to tell you that the secret relies on respecting layer control and possessing cutting discipline.

In this white-paper-level guide, I am rebuilding Darcy’s process into a shop-ready routine you can repeat on plush towels, delicate tees, heavy denim, and tote bags—without stretching your garment, misplacing the under-fabric, or accidentally slicing through the wrong layer.

Reverse appliqué machine embroidery: the calm definition (and why it feels “handmade”)

Let's strip away the jargon. Reverse appliqué removes shapes from the top fabric layer so the fabric behind it shows through. That’s the whole mechanic: instead of stitching a patch on top (traditional appliqué), you stitch a boundary and reveal a hidden layer underneath.

Why does this matter commercially? It creates a bulkier, more "crafted" architectural look. It feels substantial to the touch.

If you are new to the technique, do not let the complexity of the design file scare you. You are essentially performing three physical actions in a loop, regardless of the machine model:

1. Stitch to mark (establishing the boundary).
2. Add/Secure the under-fabric (building the sandwich).
3. Cut the top layer (revealing the window).
4. Finish (satin stitch or raw edge to seal the deal).


Fabric choices for reverse appliqué: velvet, lace, sheer textiles—and what they do to your stitch-out

Darcy specifically highlights velvet, sparkly fabric, lace, and sheer textiles. This isn't just for aesthetics; it's a texture game. However, different fabrics introduce different physical risks to your machine production.

• Velvet / Plush Fabrics: These give a bold, dimensional reveal that catches the light.
  • The Risk: The "nap" (pile) of the velvet can be crushed by standard hoop clamps, leaving permanent "hoop burn."
  • The Production Fix: This is a classic scenario where upgrading to specific tools matters. If you aren't using a floating technique or a magnetic frame, you risk ruining the fabric before you stitch a single line.
• Sparkly / Sequin Fabrics: These look incredible but are hard on mechanics.
  • The Risk: They can deflect needles.
  • The Production Fix: Use a Titanium needle (size 75/11 or 80/12) to punch through coating without burring.
• Lace / Sheer Textiles: These create a "peekaboo" effect.
  • The Risk: They are unstable and can shift during the stitch cycle.

The Golden Rule of Material Selection: Reverse appliqué looks best when the top fabric is stable enough to cut cleanly. If your top layer is a flimsy 4-way stretch rayon, it will curl the moment you cut it. You can do it, but you must fuse a lightweight stabilizer (like Fusible No-Show Mesh) to the back of the top fabric before you start.

The “hidden” prep that prevents puckers: stabilizer, tape, scissors, and a sanity check

Before you even touch the machine interface, you need to set up your physical station. Chaos in prep leads to tragedy in cutting.

You will see Darcy use water-soluble stabilizer in Method 1 and backing stabilizer in Method 2. Both work, but your choice dictates your "Style of Risk." Water-soluble is great for towels (where you want no residue), but Cutaway is mandatory for wearables that stretch.

The Unsung Hero: Scissors Reverse appliqué is 40% stitching and 60% cutting. Using standard office scissors—or even straight embroidery scissors—is a recipe for snipping your base layer. You need Double-Curved Appliqué Scissors (often called Duckbill scissors). The "bill" pushes the bottom fabric away while you slice the top layer.

Warning: Mechanical Safety. Curved embroidery scissors are razor-sharp right to the point. When working inside a hoop attached to the machine, keep your other hand completely clear of the needle bar area. Ideally, remove the hoop from the machine to cut safely. Never cut while the machine is "Paused" with your foot near the start pedal.

Hidden Consumables You Need:

• Temporary Spray Adhesive (e.g., KK100 or 505): Tape is good; spray is better for preventing "bubble" gaps between layers.
• New Needle (Ballpoint for knits, Sharp for wovens): A dull needle pushes fabric rather than piercing it, causing alignment issues before you cut.
• Tweezers: For lifting that tiny edge of fabric to get your scissor blade underneath.

Prep Checklist (Pre-Flight Protocol):

• Stabilizer Selection: Water-soluble (Method 1) OR Cutaway/Tearaway (Method 2).
• Fabric Info: Top fabric is ironed; Appliqué fabric (velvet/lace) is cut to size.
• Adhesion: Tape (Painter's tape or embroidery tape) OR Spray Adhesive can is shaken.
• Cutting Tool: Curved scissors are clean and free of sticky residue.
• Machine State: Bobbin is full (don't run out mid-satin stitch!).
• Finish Plan: Decide now—Raw edge (stop after cut) or Satin finish (continue)?

Method 1 (water-soluble stabilizer): the safest way to learn reverse appliqué without stretching the garment

This section covers the "Float Method" using water-soluble stabilizer. Darcy demonstrates this as a beginner-friendly workflow because you hoop the stabilizer, not the garment.

Why this reduces fear: If you have ever distorted a t-shirt by cranking the hoop screw too tight, this method is your reset button. You are creating a stable "stage" with the stabilizer, and just laying the garment on top.

If you’re building this on a multi-needle setup like the brother pr1055x, the biggest advantage here is meaningful consistency. You can leave the hoop on the machine (if safe to cut) or pop it on and off quickly without re-hooping the shirt, allowing the machine's precision to handle the alignment.

Setup: hoop only the water-soluble stabilizer (not the garment)

1. Hooping: Secure one layer of heavy-duty water-soluble stabilizer (or adhesive tearaway) into the frame.
   • Sensory Check (Sound): Flick the stabilizer with your finger. It should sound like a drum—a crisp "thump," not a dull thud.
   • Sensory Check (Sight): No ripples. The grid of the stabilizer should be square, not warped.
2. Floating: Place your primary material (shirt/towel) on top of the hooped stabilizer.
   • The Anchor: Use pins (kept far from the stitch zone) or a basting box stitch to lock it down. Darcy’s nuance matters: focus on "dressing" the fabric so it lies flat in a natural state, not stretched artificially.


Operation: placement stitch → add under-fabric → cut top layer → satin stitch finish

1. The Placement Stitch: Run the first color stop.
   • Visual: This is just a running stitch (single line). It shows you exactly where the design will live.
   • Checkpoint: Does it look centered? If not, stop and adjust the fabric now. This is your last chance.
2. Placement (The Sandwich): Remove the hoop (or slide it forward). Place your appliqué fabric (the velvet/lace) on the back (underside) or sandwich it between layers if the design dictates.
   • Note: In strict unique reverse appliqué, the secondary fabric is under the main fabric.
   • Checkpoint: Ensure the under-fabric covers the stitched outline by at least 0.5 inches on all sides. Tape it down securely.
3. The Lockdown Stitch: Run the next round (usually a double run or zigzag).
   • Action: This stitches the top garment + stabilizer + under-fabric together.
4. The Surgery (Cutting): Remove the hoop. You must now cut away the top layer only inside the stitched shape.
   • Sensory Technique: Pinch the top fabric in the center of the shape to separate it from the bottom layer. Snip a small hole. Insert your curved scissors.
   • Feel: You should feel the scissors gliding on top of the under-fabric. If you feel resistance or a "crunch," stop—you are cutting layers you shouldn't be!
   • Expected Outcome: A clean window revealing the velvet/lace underneath.
5. The Finish: Return hoop to machine. Run the final Satin Stitch.
   • Visual: The satin stitch should bite onto the cut edge and the fabric, encapsulating the raw edge completely.


Operation Checklist (Method 1):

• Placement Accuracy: The first run stitch landed exactly where intended on the garment.
• Coverage: The under-fabric extends at least 0.5" past the stitch line on all sides.
• Layer Integrity: The top layer was cut cleanly; the under-fabric is 100% intact (no accidental snips).
• Edge Seal: The Satin stitch fully covers the transition (no "whiskers" of fabric poking out).

Method 2 (backing stabilizer + inside placement): the “pro” workflow when you can’t visually check the under-fabric

Darcy calls this method more sophisticated because it requires trust. You can't easily flip the hoop to check the under-fabric once you start, because the under-fabric is taped inside the garment before you float it.

This is the industry-standard way for t-shirts where you want the interior against the skin to be relatively smooth.

If you are doing floating embroidery hoop work regularly—meaning you rarely hoop the actual garment—Method 2 is where your process discipline pays dividends. It is faster for batching, but it punishes sloppy tape work.

Setup: tape the appliqué fabric inside the garment first

1. Inverse Prep: Turn the garment inside out (or access the inside). Tape the appliqué fabric piece exactly behind where the embroidery will go.
   • Checkpoint: Use plenty of tape or spray. If this shifts while you put the shirt on the machine, the embroidery will miss the fabric, and you will have a hole with nothing behind it.
2. Hoop the Backing: Hoop a piece of standard Cutaway or Tearaway stabilizer.
3. Float the Sandwich: Slide the garment (with the hidden fabric taped inside) onto the hoop.
   • Layer Strategy:
     • Top: Garment (Right side up)
     • Hidden: Appliqué fabric (Right side up, facing the garment wrong side)
     • Bottom: Hooped Stabilizer


Operation: stitch boundary → cut only the top layer → satin stitch finish

1. Run the Trace: Engage the machine.
   • Note: Since the fabric is already inside, you skip the "stop and place" step from Method 1. The machine immediately sews the boundary that locks all three layers together.

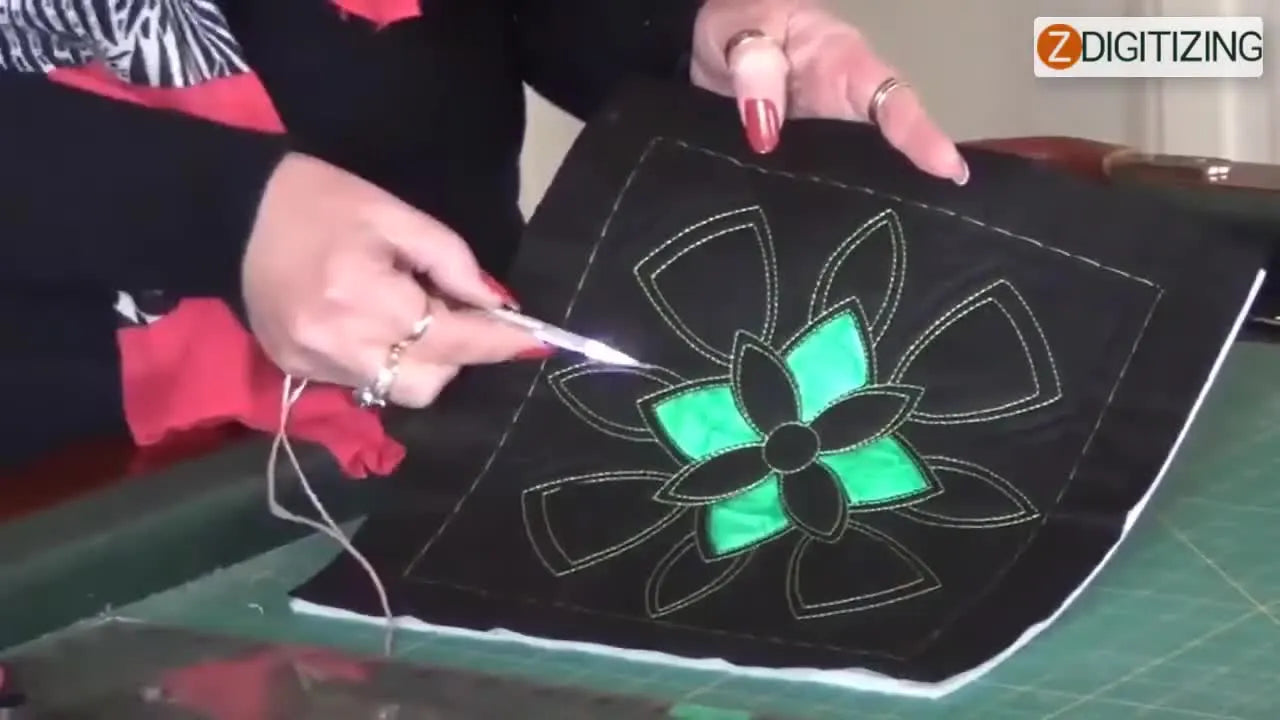

2. The Cut (Crucial Moment): Remove the hoop. You are now looking at the shirt front. You must cut the shirt fabric away to reveal the fabric taped underneath.

Warning: The "Don't Slice the Sandwich" Rule. In Method 2, your biggest enemy is downward pressure. When cutting the top shirt fabric, lift it up towards you. Do not press the scissors down. If you cut the under-fabric here, the project is dead. Slow down.

1. The Finish: Re-attach hoop. Run the satin column.
2. Post-Processing: Trim the excess under-fabric from the inside of the shirt for a clean finish against the skin.


Cutting and satin stitch finishing: the two habits that separate “clean” from “chewed up”

Darcy’s troubleshooting point is the one I see most in real shops: cutting fatigue leading to errors.

Symptom: You reveal the under-fabric and notice a slice, a hole, or fraying. Cause: Cutting too aggressively or using the tips of straight scissors.

The "Clean Cut" Technique:

1. Lift & Snip: Always pull the fabric being cut away from the stabilizer.
2. Gliding: Once you have a starting hole, slide the blade flat. Don't "chomp" (open and close) the scissors rapidly. Long, smooth glides yield cleaner edges than 50 tiny snips.
3. The Margin: Cut as close to the running stitch as possible (within 1-2mm) without cutting the thread.
   • Too close: You snip the lockdown threads = fabric pops out.
   • Too far: The satin stitch won't cover the raw edge = "fuzzy" finish.

The Satin Stitch Reality: Ideally, a satin stitch is a "C" shape that wraps over the raw edge. Density matters.

• Standard Density: 0.40mm - 0.45mm.
• Problem: If you see the underlying fabric poking through the satin stitches (called "gapping"), do not just increase density.
• Solution: Check your Underlay. A Zigzag or Edge Run underlay provides a "foundation" that lifts the satin stitches up, giving them better coverage without needing to pack the thread so tight it creates bulletproof stiffness.

If you’re running a multi-needle machine, keep your workflow tight: Stitch Red -> Stop -> Cut -> Stitch Blue. That rhythm prevents you from forgetting which round causes the irreversible cut.

A stabilizer decision tree for reverse appliqué (so you stop guessing mid-project)

Stop guessing. Use this logic flow to determine your setup.

Decision Tree: Stabilizer + Workflow Choice

1. Is the top fabric transparent, delicate, or sheer?

• YES: Use Method 1 (Water Soluble/Wash-away). You want the stabilizer to vanish so the window is clear.
• NO: Proceed to question 2.

2. Is the garment stretchy (T-shirt, Hoodie, Performance Polo)?

• YES: Use Method 2 (Cutaway Stabilizer). You must have permanent stability, or the hole you cut will distort into an oval over time.
  • Option: If you are terrified of layer shifting, use Method 1 but with "No-Show Mesh" (Polymesh) instead of water-soluble.
• NO (Denim, Canvas, Towel): Proceed to question 3.

3. Do you need high production speed?

• YES: Method 2 is faster. Tape 20 shirts at the prep table, then just float-stitch-cut-finish at the machine.
• NO: Method 1 offers more control for one-off boutiques.

The hooping reality nobody says out loud: floating is easy—until it’s slow

Reverse appliqué is deceptively time-consuming because of the "Hoop Motion." You hoop, you stitch, you un-hoop (or remove hoop from machine), you cut, you re-attach.

If you are doing one gift? No problem. If you are doing 50 pockets? This is a bottleneck. Your wrists will hurt, and your alignment will drift.

If you’re currently using a hooping station for embroidery to try and keep things straight, you know the struggle of standard tubular hoops: screwing the clamp tight enough to hold the float but loose enough not to burn the fabric.

The Commercial Upgrade Path: When you hit this wall—where the process is hurting your body or your efficiency—it is time to look at Magnetic Hoops.

• Scenario Trigger: You are working on thick hoodies or delicate velvet for reverse appliqué.
• The Diagnosis: Standard hoops require force. Force creates "hoop burn" (crushed fibers) that ruins the halo of the reverse appliqué effect.
• The Solution:
  • Level 1 (Technique): Use more spray adhesive and float loosely.
  • Level 2 (Tooling): Magnetic Embroidery Hoops (like the MaggieFrame or SEWTECH magnetic lines). These clamp automatically with magnets. There is no screw-tightening.
    • Benefit 1: No hoop burn. The pressure is distributed evenly.
    • Benefit 2: Speed. You can float a garment in 5 seconds without wrestling a clamp.
  • Level 3 (System): A magnetic hooping station allows you to align the shirt perfectly offline, snap the magnet on, and go.

Warning: Magnetic Frame Safety.
Magnetic frames use industrial Neodymium magnets. They snap together with immense force (often 10+ lbs).
* Pinch Hazard: Keep fingers away from the contact zone.
* Medical Device: Keep huge distance if you have a pacemaker.
* Electronics: Do not lay your phone or credit cards on the frame.
* Tip: Slide them apart; don't try to pull them apart vertically.

Hand-sewn reverse appliqué and sewing-machine zigzag: when the embroidery machine isn’t the best tool

Darcy also covers non-digitized options. Sometimes, the "perfect" satin stitch looks too commercial. For denim repair (Visible Mending) or art quilts, manual methods are superior.

Hand-sewn method (Darcy’s measurements)

1. Sketch: Draw design on main cloth.
2. Offset: Draw a 1/4 inch line inside the first line.
3. Clip: Cut the top fabric to the inner line. Clip the curves every 1/2 inch towards the outer line.
4. Fold & Stitch: Fold the raw edge under and blind-stitch by hand.
   • Result: A soft, pillowy edge that machines cannot replicate.


Sewing machine satin/zigzag method

This is "Free-Motion" or "Guided" appliqué.

1. Clip: Pin the appliqué piece beneath the top fabric.
2. Stitch: Select a tight Zigzag (Satin) on your domestic sewing machine. Stitch over the drawn line.
3. Cut: Carefully trim the fabric inside the stitching.
   • Note: This is much harder to control than the digitized method but offers total creative freedom without software.


Setup Checklist (Manual Methods):

• Marking: Lines are visible (use chalk or friction pen).
• Security: Pins are placed perpendicular to stitch line (if machine sewing) or well-spaced (hand sewing).
• Allowance: You have left enough seam allowance (1/4") to fold under without fraying.

Common reverse appliqué mistakes I see in shops (and how to dodge them)

These are the silent killers of profit and quality.

Troubleshooting Table: Symptom → Fix

The upgrade path that actually makes sense: from “one-off” to batch-ready reverse appliqué

Reverse appliqué sells because it looks expensive. But it acts like a Trojan Horse for your labor costs if you aren’t careful—the manual cutting time adds up fast.

If you are a hobbyist doing one tote bag on a Saturday? Focus on Method 1 and buying the best curved scissors you can afford. Enjoy the craft.

If you are a business taking orders for 25 team hoodies with reverse appliqué logos? You must look at your Total Cycle Time.

• Stop hooping with screws.
• Start using backing stabilizer + Method 2.
• Integrate hooping for embroidery machine efficiency tools like magnetic frames to save 30 seconds per shirt.

For shops scaling into repeat work, moving to a multi-needle platform (like the SEWTECH commercial lines) gives you the robust tension control needed for thick sandwiches, and pairing it with a magnetic embroidery frame system eliminates the physical strain of production.

The technique never changes: Stitch, Secure, Cut, Reveal. But the tools you use determine whether that reveal is a joyous "Wow!" or a painful "Finally." Choose the right stabilizer, respect the cut, and let the texture speak for itself.

FAQ

• Q: What prep tools and consumables are required for reverse appliqué machine embroidery to avoid cutting the base layer and misalignment?
  A: Use curved appliqué (duckbill) scissors plus reliable adhesion and a fresh needle before stitching—this prevents most “one slip ruins it” moments.
  • Use double-curved/duckbill appliqué scissors so the “bill” protects the bottom fabric while you cut the top layer.
  • Apply temporary spray adhesive (or tape) to prevent bubble gaps and layer shifting before the lockdown stitch.
  • Replace the needle appropriate to the fabric (ballpoint for knits, sharp for wovens) and confirm the bobbin is full before starting.
  • Success check: The cutting blade glides smoothly and the under-fabric remains 100% intact with a clean window.
  • If it still fails… Remove sticky residue from scissors and slow the cutting pace (long glides, not rapid snips).
• Q: How do I know water-soluble stabilizer is hooped correctly for the reverse appliqué “float method” before stitching starts?
  A: Hoop only the heavy-duty water-soluble stabilizer drum-tight—if it is rippled, placement and cutting accuracy will suffer.
  • Hoop one layer of heavy-duty water-soluble stabilizer (or adhesive tearaway) with no wrinkles.
  • Flick the hooped stabilizer to verify tension before placing the garment on top.
  • Anchor the floated garment with pins kept far from the stitch zone or use a basting box stitch to lock it down.
  • Success check: The stabilizer makes a crisp “thump” sound and the surface shows no ripples or warping.
  • If it still fails… Re-hoop and reduce handling—floating only works when the “stage” is stable.
• Q: How do I prevent hoop burn on velvet or plush fabrics during reverse appliqué machine embroidery using standard screw hoops?
  A: Avoid heavy clamping pressure on velvet/plush—float the fabric and/or upgrade the holding method to reduce fiber crushing.
  • Float the fabric instead of cranking down a screw clamp, and rely on spray adhesive/tape plus a basting stitch for stability.
  • Handle velvet by “dressing” it flat in a natural state (do not stretch it tight just to make it look smooth).
  • Consider switching to magnetic embroidery hoops to distribute pressure evenly and reduce clamp marks.
  • Success check: After stitching, the velvet nap is not permanently flattened in a ring and the reveal area keeps its texture.
  • If it still fails… Reduce clamp force further and prioritize floating + adhesion over tightening.
• Q: What is the safest way to cut the top layer only in reverse appliqué machine embroidery without slicing the under-fabric?
  A: Remove the hoop to cut, lift the top fabric away from the underlayer, and use curved appliqué scissors to “glide,” not “chomp.”
  • Remove the hoop from the machine for cutting; keep hands clear of the needle bar area.
  • Pinch the top fabric, snip a small starter hole, then slide curved scissors flat while the duckbill protects the under-fabric.
  • Cut close to the stitch line (about 1–2 mm) without cutting the threads that are holding the sandwich together.
  • Success check: The under-fabric shows no nicks and the window edge looks clean, not chewed or fuzzy.
  • If it still fails… Slow down and stop when you feel resistance or “crunch”—that sensation often means the blade is catching the wrong layer.
• Q: How do I fix gapping in reverse appliqué satin stitch finishing when fabric shows through the satin column?
  A: Don’t solve gapping by only increasing satin density—support the satin with underlay and verify tension so the edge wraps cleanly.
  • Add or confirm an Edge Run or Zigzag underlay to build a foundation under the satin stitch.
  • Reduce top thread tension if the satin is pulling open and exposing the fabric underneath.
  • Keep the cut margin tight (within 1–2 mm of the lockdown stitch) so the satin can fully cover the raw edge.
  • Success check: The satin stitch “C-wraps” the edge and no base fabric peeks through along the border.
  • If it still fails… Re-check the cut distance first; too wide a margin can look like a tension problem even when it isn’t.
• Q: What causes edge fraying (“whiskers”) in reverse appliqué machine embroidery, and what is the fastest fix mid-project?
  A: Edge fraying usually happens because the top layer was cut too far from the stitch line—trim closer and improve cutting discipline next run.
  • Use tweezers to lift whiskers and trim carefully with sharp scissors close to the lockdown stitching.
  • Switch from short snips to longer, smoother gliding cuts for a cleaner edge.
  • Maintain a consistent cut margin near the stitch line without snipping the securing threads.
  • Success check: After trimming, the satin stitch fully seals the edge and no fibers poke out after the finish run.
  • If it still fails… Stop and inspect whether the cut is too wide for the satin to cover; adjust the cutting margin before continuing.
• Q: What magnetic embroidery frame safety rules should operators follow when using magnetic hoops for reverse appliqué production?
  A: Treat magnetic embroidery hoops like industrial clamps—prevent pinch injuries and keep them away from medical devices and sensitive electronics.
  • Keep fingers out of the contact zone; magnets can snap together with high force.
  • Slide magnetic frames apart instead of pulling them apart vertically.
  • Keep magnetic hoops away from pacemakers and avoid placing phones or credit cards on the frame.
  • Success check: The frame closes under control without sudden snapping and no skin is near the mating edges during closure.
  • If it still fails… Pause production and change handling technique (two-hand control and “slide to separate”) before continuing.
