Retail-Ready Embroidered Patches on a Barudan: The Tight-Hoop Badge Film Method That Stops Slips, Ovals, and Messy Glue

If you’ve ever tried to sell embroidered patches, you already know the hard truth: the stitching is the easy part—the hooping and finishing are where patches either look retail-ready or look homemade.

I have spent two decades in embroidery shops, watching brilliant designers quit because their patches curled, their glue oozed, or their borders looked "fuzzy." The difference between a hobby project and a sellable product often comes down to friction, heat control, and the right tools.

Darren from Squeezed Orange Print Shop demonstrates a complete, production-minded workflow on a Barudan multi-needle machine: two-layer Madeira Badge Film hooping, stitching directly onto film, then a finishing sequence (heat gun + heat press glue + edge sealing). It is a masterclass in efficiency.

This article rebuilds that workflow into a repeatable system with checkpoints, expected outcomes, and the "don’t learn this the hard way" pitfalls. Whether you are running a single-needle home machine or a commercial powerhouse, this is your blueprint.

The Calm-Down Moment: Your Patch Isn’t Ruined—Your Process Just Needs a Few Non-Negotiables (Madeira Badge Film + Barudan workflow)

Patches can feel unforgiving because you’re asking thread to behave like a rigid product. You need a crisp shape, a clean back, a consistent edge, and a glue layer that presses on without ruining the garment.

The good news is Darren’s method is solid because it treats patches like manufacturing, not crafting. The two biggest success drivers you’ll see repeated throughout this guide are:

1. Friction + Tension in the hoop: If the film creeps 1mm, the border will be off-center.
2. Controlled Heat Steps: Heat is used to clean the back, bond the glue, and seal the edge.

If you’re setting up a patch line on a barudan embroidery machine—or upgrading your home setup to mimic one—the workflow below is a dependable baseline.

The “Hidden” Prep Pros Do First: Materials, Heat Tools, and a Clean Work Surface (before you even hoop)

Novices start hooping immediately. Pros prepare their "mise-en-place" (everything in its place) first. Darren’s material list is short, but every item has a specific job.

The Bill of Materials:

• Madeira Badge Film (Clear): The foundation.
• Madeira Heat Seal Glue Film: The adhesive backing.
• Thread: Madeira Polyneon 40 (industry standard for sheen and strength).
• Needles (Hidden Consumable): I recommend a 75/11 Sharp needle for film. Ballpoint needles can slide on the plastic; sharps pierce cleanly.
• Heat Gun: For cleaning up fuzzy threads on the back.
• Heat Press: Essential for bonding the glue evenly.
• Silicone Sheet: The critical barrier that saves your heat press from ruined glue.
• Lighter: For the final edge seal.

A quick note significantly impacts your results: Use Polyneon 40 thread. It balances coverage and durability perfectly for patches. Thicker threads (like 30wt) can bulk up the patch too much, and thinner threads (60wt) won't cover the film edges securely.

Prep Checklist (do this before hooping)

• Inventory Check: Confirm you have Madeira Badge Film (two layers per hoop) and Heat Seal Glue ready.
• Safety Zone: Plug in the heat gun and heat press; clear a safe area for hot tools away from loose backing paper.
• Protective Barrier: Place your silicone sheet near the heat press. (Skipping this will result in glue on your platen).
• Tool Staging: Keep scissors within reach for trimming glue overhang.
• Layout Plan: Ensure you have a flat table space to peel film later; you need to keep the patch flat during removal.

Warning: Heat guns, heat presses, and open flames can burn skin instantly and ignite accumulated lint. Keep loose thread, paper backers, and cleaning solvents away from the heat zone. Never aim a heat gun at your fingers while holding a small patch.

The Tight-Hoop Rule That Makes or Breaks Badge Film: Two Layers, Shiny Side In, Textured Side Out (Barudan tubular hoop)

Hooping film is different from hooping fabric. Fabric has a weave that grips; film is slippery. If it slips during stitching, your outline will not match your fill, and the patch is trash.

Darren’s key hooping detail is simple and extremely effective:

1. Use two layers of Madeira Badge Film.
2. Orient them shiny side in, textured side out.
3. Tighten the hoop screw as tight as you can.

The Physics of Why: Badge film is slick. If you stack "shiny on shiny," the layers stick together due to surface tension (like wet glass), creating a unified block. By putting the textured sides outward, you give the hoop rings something to grip onto.

This is the part where many people try to be gentle to avoid "hoop burn." Do not be gentle here. Patch film requires extreme tension.

What “drum-tight” should look like (your checkpoint)

Darren taps the hooped film to show tension. This is your sensory anchor. When you tap the film with your finger:

• Auditory: It should make a sharp "thrum" sound, like a tightly tuned drum. If it sounds like a loose "thud," it is too loose.
• Tactile: It should have zero give. It should feel rigid.
• Visual: The film should be glass-flat with no ripples near the edges.

If you are doing hooping for embroidery machine work all day, this is where fatigue sets in. Tightening screws manually to this degree wears out your wrists.

Tool upgrade path (when the scenario triggers it):

• Scenario: You are physically tired of tightening screws, or you notice the film slipping ("flagging") during high-stitch-count borders.
• Judgment Standard: If you are running batches of 50+ patches, manual tightening is a bottleneck and a safety risk for repetitive strain.
• Options: This is the prime use case for Magnetic Embroidery Hoops (like SEWTECH). They clamp automatically with immense force, eliminating the need to turn a screw and guaranteeing the "textured side" is gripped evenly every single time.


Running the Design on Badge Film: Barudan Speed 1000 RPM, 3728 Stitches, 8 Color Changes (what to watch while it sews)

Darren runs the patch directly on the transparent film—no fabric backing.

The Specifics:

• Speed: 1000 SPM (Stitches Per Minute).
• Stitch Count: 3728.
• Color Changes: 8.

Beginner Safety Calibration: Darren is using a commercial Barudan. If you are on a home machine or a prosumer single-needle, 1000 SPM might be too aggressive.

• The Sweet Spot: Start at 600-800 SPM. High speeds on film can cause the needle to heat up, which melts the film and causes thread breaks. Listen to your machine—if it sounds like it's struggling, slow down.


Setup Checklist (right before you press Start)

• Layer Check: Confirm two film layers are hooped shiny side in / textured side out.
• Tension Verification: Tap the film. If it's not a drum, re-hoop it.
• Alignment: Verify the design is centered (crucial if nesting multiple patches to save film).
• Needle/Thread: Confirm the thread path is clear. A snag layout pulls the film instantly.
• Eject Button: Keep scissors ready. If you hear a "crunching" sound, stop immediately.

The Back-Side Cleanup That Makes Glue Behave: Heat Gun the Threads, Don’t Panic if Film Melts a Bit

After stitching, remove the hoop. Do not pop the patch out yet. Darren removes the patch from the machine but keeps it in the ring for a moment (or removes it, depending on the heat gun method).

He places the patch face down and uses a heat gun on the back.

The Goal: Shrink and melt the loose bobbin thread tails. The Fear: "I'm melting the backing!" The Reality: It is okay if the badge film melts slightly around the stitches.

This step is mandatory because heat seal glue is transparent and thin. If you leave a "bird's nest" of thread on the back, the glue won't sit flat, and you'll get lumps in the final product.

What you’re aiming for (expected outcome)

• Visual: The back looks smooth. No long thread tails are sticking up.
• Tactile: Run your finger over the back. It should feel relatively flat, not scratchy.
• Damage Control: You have not melted the actual embroidery thread or distorted the patch shape.

Film Removal Without Distortion: Peel One Layer at a Time So Circles Don’t Turn Into Ovals

This is where 50% of beginners ruin a perfect patch. Darren’s removal method is gentle and deliberate.

• Rule: Peel the badge film one layer at a time.
• technique: Hold the patch flat against the table with one hand. Pull the film away horizontally with the other.

The Common Pitfall: If you grab both layers of film and rip them off like a band-aid, the tension will stretch your satin stitched border. Your perfect circle will turn into an oval.

Pro tip from the comments (turned into a shop rule)

A viewer asked about running multiple patches in one hoop. The creator replied that on large frames, he runs up to 12 patches, but the hooping must be incredibly tight—he even mentioned snapping a hoop from tension.

Expert Insight: Multi-up layouts amplify hooping errors. If your tension is "90% good," one patch works. Twelve patches will drag the film, and the patches on the far right will be distorted. If you are building an embroidery hooping system for volume production, you must prioritize repeatable tension (using magnetic frames or hooping stations) before you attempt 12-up layouts.

Heat Seal Glue the Clean Way: 150°C, 5-Second Pre-Press, 5-Second Press (and the silicone sheet saves your platen)

Darren cuts a square of Madeira heat seal glue film slightly larger than the patch.

The Sandwich (Bottom to Top):

1. Heat Press Platen
2. Silicone Sheet (Do not forget this!)
3. Patch (Face Down)
4. Glue Film (Shiny side/glue side touching the patch back)
5. Silicone Sheet (Optional top cover, recommended)

The Recipe:

• Temperature: 150°C (approx. 300°F).
• Pre-Press: 5 seconds (to flatten and warm the patch).
• Application Press: 5 seconds (to bond the glue).






Why the silicone sheet is non-negotiable

Heat seal glue turns into a liquid before it sets. If it touches your heat press platen, it will burn on, turning black and ruining the next 50 shirts you press. The silicone sheet (or high-quality parchment paper, in a pinch) is your insurance policy.

Handling Squeeze-Out: People often ask, "Will glue squeeze out?" Darren minimizes this by cutting the glue square close to the patch size. After pressing, the glue is bonded to the patch, and the excess on the silicone sheet peels away cleanly because it has nothing to stick to.

The Edge-Finish Trick Customers Notice: Tear Away Overhang, Then Pass a Lighter Fast to Seal the Border

After cooling slightly, peel the patch off the silicone sheet. Then, peel the white paper backing off the glue. You now have a patch with a sticky back (once reheated) and some excess glue hanging off the edges.

1. Remove Excess: Tear away the overhang gently. If the shape is complex, use small scissors.

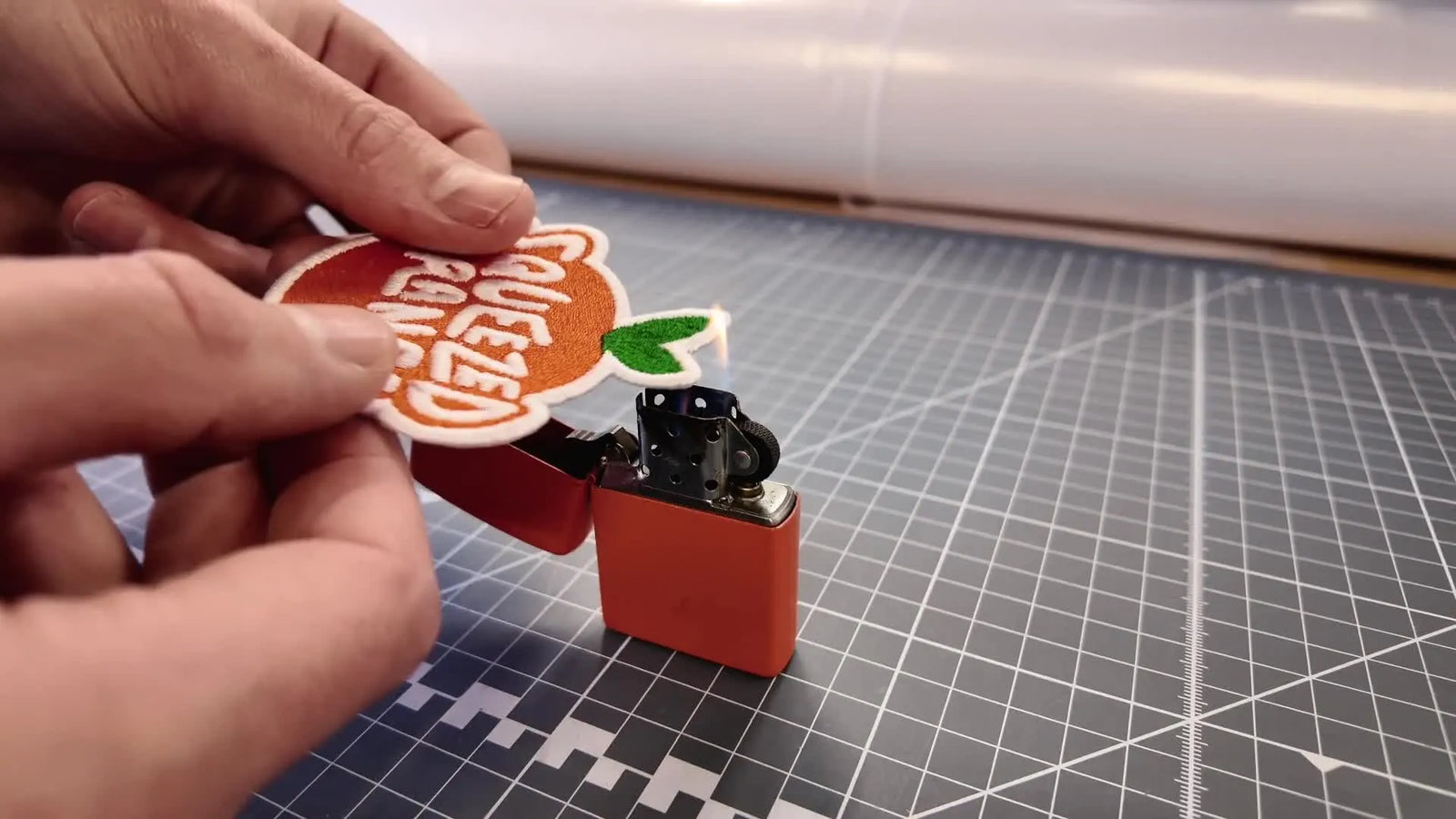

2. The Seal: Darren passes a lighter flame quickly around the edge of the patch.

Why Use a Lighter? The flame does two things:

1. It melts away any microscopic strands of glue protruding from the edge.
2. It slightly smooths the polyester thread on the satin border, giving it a polished, "hard" finish that resists fraying.






Expected outcome

• Visual: A crisp border with zero white glue visible.
• Tactile: The edge feels solid, not fuzzy.

Warning: Magnet Safety: If you follow the recommendation to use magnetic hoops for this process, be aware they use neodymium magnets. They can pinch skin severely and are hazardous to pacemakers and implanted medical devices. Keep them away from children and sensitive electronics.

Troubleshooting the Three Patch Killers: Film Slip, Ovaled Shapes, and Glue Sticking to the Press

When patches go wrong, they usually fail in specific ways. Here is the diagnostic table:

If you’re constantly fighting slip with standard barudan hoops, that is your signal to standardize operator strength or switch tools.

The Decision Tree I Use in Shops: Film vs. Fabric + Stabilizer (and when patches should stay “film-only”)

Darren’s method is "film-only" (stitching directly onto badge film). This creates a thin, flexible patch. However, it is not the only way.

Use this logic to decide your substrate:

1. Do you want a freestanding patch with NO fabric showing?

• YES: Use the Badge Film Workflow (2 layers, tight hoop). Best for logos with complex shapes.
• NO: Go to step 2.

2. Is the patch going to be sewn onto heavy gear (jackets, bags)?

• YES: You might prefer stitching on Twill Fabric + Stabilizer. This is cheaper for large patches and looks more traditional.
• NO: Stick to badge film for a modern, clean look.

3. Are you running high volume (12+ patches per hoop)?

• YES: You need a hooping station for machine embroidery or a Magnetic Hoop System. Screw hoops vary too much between operators to trust a 12-up layout.
• NO: Screw hoops are fine if you are patient.

If you are evaluating a set of tools like a totally tubular hooping station, the justification is simple: it reduces scrap. One ruined hoop of 12 patches costs more than the station.

The Upgrade Path That Actually Pays Off: Faster Hooping, Fewer Remakes, Cleaner Finishes

Once you can produce one perfect patch, the challenge becomes producing 50 identical ones. Here is the logical upgrade ladder:

Level 1: Consumables Consistency

• Stick with Madeira Badge Film and Polyneon 40. Do not mix brands halfway through a job.
• Use fresh 75/11 Sharp needles every time you start a patch run.

Level 2: Tool Stability (The "Anti-Slip" Upgrade)

• If your hands hurt or film keeps slipping, stop fighting physics. SEWTECH Magnetic Embroidery Hoops are the industry secret for film. They clamp the slick film evenly across the entire frame without the "tug of war" of screw hoops. Terms like magnetic embroidery hoops are your gateway to understanding efficient production.

Level 3: Machine Scalability

• If you are doing this on a single-needle machine, the color changes (8 in Darren's design!) will kill your profit margin. Moving to a SEWTECH Multi-Needle Machine allows you to set the colors, press start, and walk away to prep the heat press.

Level 4: Finishing Automation

• Darren’s lighter trick is great for 10 patches. For 100 patches, buy a Hot Knife or a cautery tool.


Operation Checklist (End-of-Run Quality Control)

• Back Check: Heat-gunned smooth; no large knots.
• Shape Check: Film removed gently; circles are still circles.
• Bond Check: Glue film fully bonded (150°C, 10s total press time).
• Trim Check: Excess glue overhang removed cleanly.
• Seal Check: Edge passed with a lighter/hot knife; no fraying threads.
• Final Polish: Surface is lint-free/fingerprint-free.

FAQ

• Q: How do I hoop Madeira Badge Film on a Barudan tubular hoop so the film does not slip during satin borders?
  A: Hoop two layers of Madeira Badge Film with shiny sides facing each other and textured sides facing out, then tighten the hoop screw as tight as you can.
  • Stack: Place two layers together (shiny-in/shiny-in) before hooping.
  • Grip: Make sure textured sides touch the hoop rings so the hoop can bite the surface.
  • Tighten: Crank the screw down hard; film needs extreme tension (this is normal for patches).
  • Success check: Tap the hooped film—listen for a sharp “thrum” and look for a glass-flat surface with no ripples.
  • If it still fails: Stop chasing screw tension and move to a magnetic embroidery hoop for more even clamping force across slick film.
• Q: What is the correct “drum-tight” tension checkpoint for Madeira Badge Film before running a patch design on a Barudan multi-needle embroidery machine?
  A: “Drum-tight” means the hooped film is rigid, sounds sharp when tapped, and shows zero edge ripples before you press Start.
  • Tap-test: Tap near the center and near the edges to confirm the same tight sound everywhere.
  • Re-hoop: If any area sounds like a dull “thud,” re-hoop immediately—do not “hope it holds.”
  • Inspect: Verify the film is centered and the design area is flat before stitching.
  • Success check: The film has no give when pressed with a fingertip and stays perfectly flat at the hoop edge.
  • If it still fails: Reduce multi-up layouts (fewer patches per hoop) until tension is repeatable, or switch to magnetic frames to remove operator variability.
• Q: What needle and thread should be used for stitching patches on Madeira Badge Film, and why does needle choice matter on plastic film?
  A: Use a 75/11 Sharp needle and Madeira Polyneon 40 thread for clean piercing, good coverage, and durable borders on badge film.
  • Install: Fit a fresh 75/11 Sharp (sharps pierce film cleanly; ballpoints may skid on plastic).
  • Standardize: Run Polyneon 40 for a balanced patch edge (too thick can bulk the patch; too thin may not cover edges well).
  • Replace: Change to a fresh needle at the start of a patch run to prevent skipped stitches and heat buildup.
  • Success check: The satin border looks smooth and dense with no “fuzzy” edge and no repeated thread breaks.
  • If it still fails: Slow the machine down and re-check hoop tension—film slip and excess speed often show up as border issues.
• Q: What speed should a home single-needle embroidery machine use when stitching directly on Madeira Badge Film to reduce needle heat and thread breaks?
  A: A safe starting point is 600–800 SPM on badge film; very high speed can heat the needle and melt film, causing thread breaks.
  • Start: Set speed to 600–800 SPM and run a small test patch first.
  • Listen: If the machine sounds strained or “angry,” slow down further.
  • Monitor: Watch for signs of melting or sudden thread snapping during dense borders.
  • Success check: The film stays intact around stitches and the machine runs smoothly without repeated breaks.
  • If it still fails: Re-check needle freshness (75/11 sharp), confirm two-layer hooping, and avoid pushing speed beyond what the machine handles comfortably (follow the machine manual).
• Q: How do I clean the back of a patch after stitching on Madeira Badge Film using a heat gun without ruining the patch?
  A: Heat-gun the back to shrink loose bobbin threads; slight film melting around stitches is normal—do not overheat the embroidery thread itself.
  • Flip: Place the patch face down so heat targets the thread tails on the back.
  • Sweep: Move the heat gun continuously; do not park it in one spot.
  • هدف: Melt/shrink the fuzzy thread tails so the glue film can sit flat later.
  • Success check: The back feels relatively smooth with no long thread tails sticking up, and the patch shape is not warped.
  • If it still fails: Reduce heat exposure time and check for excessive thread nests before heating—big knots should be addressed before glue application.
• Q: How do I remove Madeira Badge Film so a satin-stitched circle patch does not turn into an oval during peeling?
  A: Peel one badge film layer at a time while holding the patch flat against the table to prevent stretching the satin border.
  • Anchor: Press the patch flat to the table with one hand.
  • Peel: Pull the film away horizontally, slowly, removing one layer first, then the second.
  • Avoid: Do not rip both layers off like a bandage—this stretches borders fast.
  • Success check: Circles stay circles; the satin edge remains even with no pulled distortion.
  • If it still fails: Re-evaluate hoop tension and consider reducing multi-up layouts—more patches per hoop magnify small hooping errors.
• Q: How do I apply Madeira Heat Seal Glue Film with a heat press at 150°C without glue sticking to the platen?
  A: Press at 150°C with a silicone sheet barrier and use the 5-second pre-press + 5-second press routine to bond glue cleanly.
  • Sandwich: Platen → silicone sheet → patch (face down) → glue film (glue side to patch back) → optional top silicone sheet.
  • Press: Pre-press 5 seconds, then apply press 5 seconds to bond.
  • Trim: Cut glue film slightly larger than the patch to limit squeeze-out.
  • Success check: The glue bonds evenly and any excess peels off the silicone sheet cleanly with no residue on the platen.
  • If it still fails: Stop and add silicone protection immediately—glue on the platen will scorch and contaminate future presses.
• Q: What safety rules should be followed when using neodymium magnetic embroidery hoops and hot finishing tools (heat gun, heat press, lighter) for patch production?
  A: This is common shop equipment, but it can injure quickly—treat magnets as pinch hazards and heat tools/open flame as burn and ignition risks.
  • Protect: Keep fingers clear when magnetic hoops snap closed; neodymium magnets can pinch skin severely.
  • Medical: Keep magnetic hoops away from pacemakers and implanted medical devices; keep away from children and sensitive electronics.
  • Control: Clear lint, loose thread, and paper backers away from the heat zone; never aim a heat gun at your hand while holding a small patch.
  • Success check: No pinched fingers, no scorched silicone/platen, and no singed thread or warped patch edge after finishing.
  • If it still fails: Slow down the finishing steps, reorganize the work area for safe spacing, and use a stable flat surface for handling hot patches.
