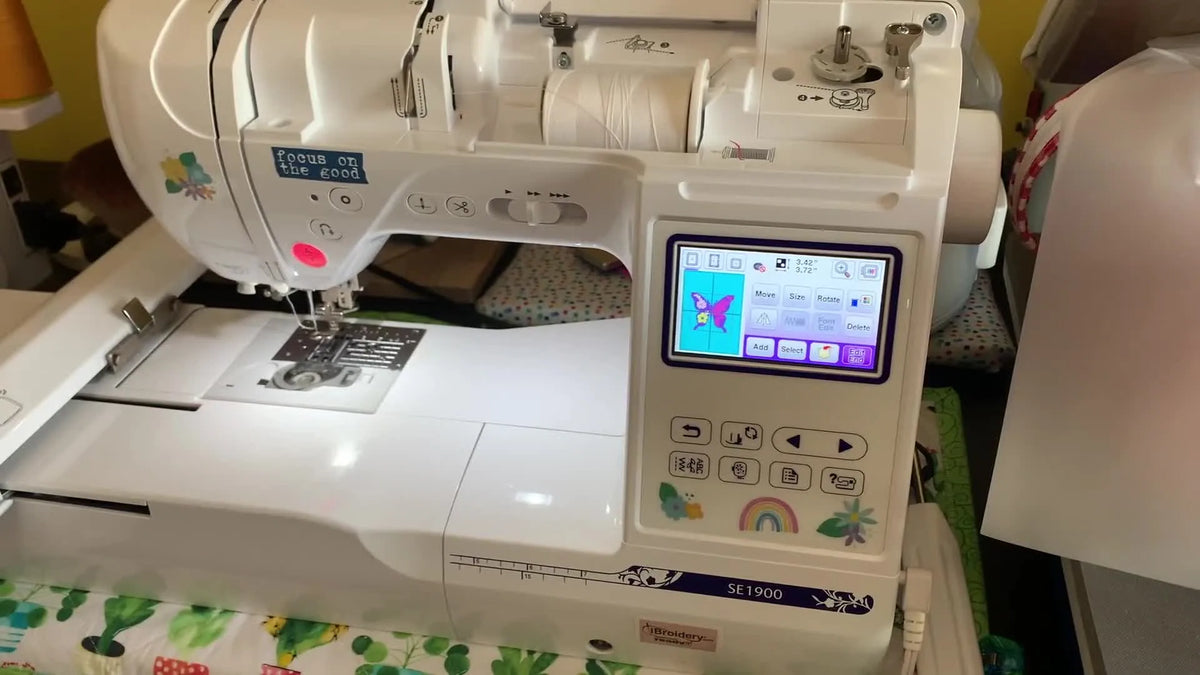

Resize, Move, and Rotate Built-In Designs on the Brother SE1900/SE2000 (Without Hitting the Hoop Limit Wall)

Master On-Screen Editing: A Complete Guide for Brother SE1900 & SE2000 Owners

If you have ever loaded a built-in design on a Brother SE1900 or SE2000, squinted at the tiny wireframe on the LCD, and thought, “I just need it a little bigger… why won’t it move… and what even is this design?”—you are in the right place.

As an embroidery educator, I have watched beginners lose hours—and ruin expensive garments—due to one simple misunderstanding: the machine isn’t “being difficult,” it is protecting you. It is calculating stitch density and physical clearance to prevent you from shattering a needle against the plastic frame.

Once you understand the physics behind the Size, Move, Rotate, and Preview tools, you will stop fighting the machine. You will place designs faster, waste fewer blanks, and eliminate the panic of re-hooping.

Brother SE1900 vs Brother SE2000: the 3 differences that matter before you start editing designs

The good news: the on-screen editing logic is identical. Whether you are on the trusted SE1900 or the newer SE2000, the "brain" of the machine handles geometry the same way.

However, from an operational standpoint, there are distinct differences that affect your workflow:

1. Speed Limits: The SE2000 is generally faster. However, just because you can drive a Ferrari at 200mph doesn't mean you should park it at that speed. My advice for beginners: Regardless of your model's max speed, cap your embroidery speed at 600-700 SPM (Stitches Per Minute) when learning placement. This creates a "sweet spot" where you can hear if the thread tension is struggling before a break occurs.
2. Jump Stitch Trimming: The SE2000 automatically cuts the long threads between design elements. On the SE1900, you are the trimmer. This doesn't change editing, but it changes your prep time.
3. Wi-Fi: Transferring designs is wireless on the SE2000.

Pro tip from the field: Increased speed and wireless tech are luxury features, but they do not solve physical placement issues. If your fabric shifts 2mm inside the hoop because of poor stabilization, the fanciest Wi-Fi transfer won't save the project. Precision starts with the hoop, not the screen.

Picking a built-in Brother design on the LCD screen—so you start with the right baseline size

From the home screen, select an embroidery category. Scroll and tap a design (the video guide uses a butterfly motif) and press Set.

Once "Set" is pressed, the design is loaded into the Edit Mode. Look immediately at the measurement box. This is your Physical Baseline.

• Height: 2.06 inches
• Width: 2.48 inches

Cognitive Check: Do these numbers make sense for your garment? Grab a ruler and physically hold it against your shirt pocket or towel band. Visualizing 2 inches is very different from seeing 2 inches on the fabric.

The Unit Trap (Millimeters vs. Inches): Most Brother machines default to millimeters. If your brain works in inches, this creates "Conversion Fatigue," leading to mistakes.

• Action: Go to the Settings menu (page 1 or 2).
• Change: Unit measurement from mm to inch.
• Benefit: Zero mental math errors when checking if a design fits a 4x4 or 5x7 hoop.


The “Hidden” prep pros do before touching the Brother Size/Move/Rotate buttons

Before you press a single button on that screen, you must perform a "Physical Pre-Flight Check." Professional shops do this to avoid wasting money on stabilizer and ruined blanks.

1. The "Hoop Reality" Check The machine has a software limit, but you have a physical limit. If you plan to stick a 5x7 design onto a newborn onesie, the software might say "OK," but the physical hoop won't fit inside the garment. Always hold the physical hoop up to the garment first.

2. The "Purpose" Check Are you resizing for aesthetics or clearance?

• Aesthetics: "I want this flower bigger." (Low Risk)
• Clearance: "This text must fit exactly between the pocket seam and the collar." (High Risk - requires precise measuring).

3. The Friction Point: Hooping Strategy If you are resizing on-screen because you hooped the fabric crookedly and are trying to "fix it in software," stop. Software rotation stitches out beautifully, but it cannot fix fabric that is bunched or loose.

The Commercial Solution: If you find yourself re-hooping a garment 3-4 times to get it straight, or if you are fighting thick seams that pop out of the standard plastic frames, your tool is the bottleneck. This is the moment most enthusiasts upgrade to a magnetic hoop for brother se1900. Unlike the standard two-piece plastic rings that require force and wrist strength, magnetic hoops clamp instantly and allow you to slide the fabric for micro-adjustments without un-hooping.

Prep Checklist (Do not skip)

• Needle Check: Is a fresh 75/11 embroidery needle installed? (Old needles cause thread shreds).
• Hoop Selection: Confirm physically: Are you using the 4x4 or 5x7 hoop?
• Consumable Check: Do you have the correct stabilizer? (See the Decision Tree below).
• Safety Zone: Ensure the machine arm has 6 inches of clearance on all sides so the hoop doesn't hit a wall or coffee cup.
• Stylus: Use a designated touch stylus, not a ballpoint pen, to avoid scratching your LCD.


The Brother SE1900/SE2000 Size menu: the one button that scales proportionally (and the one mistake that ruins designs)

Tap Edit, then Size. You will see a cluster of arrow icons.

The Golden Rule of Resizing: Only use the Proportional Resize button (the icon with four arrows pointing outward at the corners).

Why? The Physics of Stitch Density. Built-in designs are digitized with a specific density (stitches per inch).

• Standard Resizing (Brother SE series): The machine recalculates the stitch count to maintain density. However, it typically restricts you to scaling up or down by 20%.
• The Risk: If you take a 2-inch design and try to stretch it to 6 inches (if the machine allowed it), the stitches would spread out, exposing the fabric underneath. Conversely, shrinking it too much creates a "bulletproof" dense patch that snaps needles.

Sensory Feedback Loop:

1. Tap the outward arrow icon once.
2. Listen for the beep.
3. Watch the numbers change (e.g., 2.48" -> 2.52").
4. Repeat.

Do not just hold the button down blindly. Watch the numbers to ensure you stay within the safe margins of your intended project area.

The hoop limit “brick wall” on Brother machines: why your design won’t get bigger (and how to confirm it fast)

Eventually, you will tap the resize button, and the machine will beep, but the numbers won't change. You have hit the "Software Safety Wall."

This is not a glitch. The machine knows which hoop size you have selected in the software (top left of the screen). It prevents you from creating a design larger than that field.

The Common Trap: You want to stitch a large design. You physically attach the 5x7 hoop. But on the screen, the 4x4 hoop icon is still selected. The machine will lock your resizing to 3.93 inches (approx), refusing to go larger because it thinks you are using the small hoop.

Action: Toggle the hoop selection icon on the screen to tell the machine you have upgraded to the larger field.

Concrete Limit Examples (4x4 Field):

• Heart Design Max Height: 3.42"
• Heart Design Max Width: 3.50"

If you are shopping for accessories, terminology matters. You might see a brother 4x4 embroidery hoop listed, but remember that the internal stitching field is often slightly smaller than the outer physical dimensions of the frame. Always trust the on-screen numbers, not the ruler measurement of the outer plastic ring.

Warning: Mechanical High Impact Risk
Never try to "trick" the machine by selecting a larger hoop in software while using a smaller physical hoop. If you define a 5x7 area but attach a 4x4 frame, the needle bar will travel outside the small frame's boundaries and strike the plastic arm with full force. This can shatter the needle (sending metal shards flying), bend the presser foot rod, or destroy the embroidery carriage gears. Strictly match software settings to physical reality.

The Preview button (the “little TV” icon): the fastest way to avoid stitching the wrong built-in design

On the wireframe view, a complex floral design often looks like a tangled mess of black lines. You cannot identify colors, layers, or even the correct orientation.

The Fix: Tap the Magnifying Glass / Preview Icon (top right).

• Visual Check: The screen renders the design in full color block.
• Detail Check: Now you can see that the "blob" is actually an Easter egg with a bow.

Why this is a non-negotiable step:

1. Orientation: Is the butterfly upside down? You can't tell in wireframe; you can tell in Preview.
2. Color Layers: It helps you stage your thread cones in order (First Color: Pink, Second Color: Yellow).
3. Mistake Prevention: It confirms you haven't accidentally selected the wrong file from a USB drive.


Move on Brother SE1900/SE2000: place the design precisely without tapping arrows forever

Once sized, select the Move tab. You have two control methods:

1. The Drag (Macro): Use your finger/stylus to drag the pattern roughly where you want it (e.g., top left corner).
2. The Arrows (Micro): Tap the directional arrows to nudge the design by 0.5mm increments.

The "Trace" Function (The Ultimate Reality Check) Inside the Move menu, look for the icon showing a needle inside a square with an arrow. This is the Trace button.

• Action: Lower your presser foot (safely). Press Trace.
• Observation: The hoop will physically move, tracing the invisible rectangular box that surrounds your design.
• Success Metric: Watch the needle position relative to your garment. Does the needle cross over a zipper? Does it get too close to the bulky collar?

If the trace reveals that your placement is off-center, you have two choices: un-hoop and start over (painful), or urge your workflow toward better tools. For high-volume embroidery, mastering the art of hooping for embroidery machine placement reduces this friction. Using a grid mat or a specialized station allows you to align the fabric straight before it gets to the machine.

Rotate on Brother SE1900/SE2000: the 90° trick for towels, pockets, and awkward hooping

Sometimes, you cannot hoop a garment straight up and down.

• Scenario: A narrow tote bag won't fit over the machine arm unless hooped sideways.
• Solution: Hoop the bag sideways, then Rotate the design 90 degrees.

The Rotation Menu:

• 90°: Big flips. Use this for orientation changes.
• 10° / 1°: Fine tuning. Use this if your hooping was slightly crooked (e.g., the shirt is tilted 3 degrees to the left).

The Grainline Rule: When you rotate a design 90 degrees, remember the fabric grain hasn't changed.

• Visual Check: Preview the rotation. Does the text read correctly?
• Tactile Check: Is the fabric securely tight in the new direction?


Setup that prevents wasted blanks: match hoop size, stabilizer, and placement before you press Start

The video tutorial covers the screen, but the screen is safe. The danger zone is the physical setup. Here is the workflow to ensure success:

1. Physical Hooping: Apply stabilizer. Hoop the fabric. Sensory Check: Tap the fabric. It should sound like a tight drum skin. If it is loose, the stitches will pucker.
2. Hoop Selection: Tell the machine which hoop holds the fabric found in step 1.
3. Resize & Edit: Apply your size changes and rotation.
4. Trace: Run the trace outline to verify physical clearance.
5. Thread: Ensure the upper thread is seated in the tension discs (floss it in).

The Tooling Upgrade Path: If you strictly follow this workflow and still struggle with "Hoop Burn" (shiny ring marks on dark fabric) or slipping fabric, standard plastic hoops may be your limiting factor. Many intermediate users transition to generic or branded magnetic embroidery hoops for brother compatible frames. These avoid the "crush" of plastic rings and make re-hooping for alignment (Step 1) significantly faster.

Setup Checklist (The "Go/No-Go" Decision)

• [ ] Is the correct hoop selected on screen?
• [ ] Did the design resize proportionally (no distortion)?
• [ ] Did you run the Trace function to check zipper/button clearance?
• [ ] Is the embroidery foot height set correctly for the fabric thickness? (Check manual: typically 1.5mm - 2.5mm).
• [ ] Safety: Is the hoop attached securely with the locking mechanism clicked into place?


“Can I stop mid-project?” and other real questions from Brother owners

Community questions often highlight the gaps in manuals. Here are the answers to the most common panic moments.

Scale of Panic: "I have to leave the house mid-stitch!"

Solution:

1. Pause: Stop the machine.
2. Record: Write down the current stitch count (e.g., 4,502 / 12,000) and the color step.
3. Power Off: Turn the switch off.
4. Crucial Step: Do NOT remove the fabric from the hoop. Leave the hoop attached to the machine if safe, or remove the hoop carefully, but never unclamp the fabric.
5. Resume: Turn on -> Navigate to stitch count -> Fast forward to 4,500 -> Resume.

"Can I delete just the flower part?"

Answer: Generally, no. The onboard editing is for Global changes (Size, Move, Rotate). To delete specific elements (like removing a date from a logo), you need external embroidery software (like PE-Design or Embrilliance) on your computer.

"Why is my machine in millimeters?"

Answer: It is the factory default. Change it in the settings menu to match the way you buy fabric and hoops (Inches).

The stabilizer decision tree I use when resizing designs bigger

Resizing a design UP increases the pull force on the fabric. A stabilizer that worked for a 2-inch flower might fail for a 4-inch flower. Use this logic tree:

Decision Tree: Stabilizer Choice vs. Fabric

1. Is the fabric stretchy? (T-shirts, Knits, Spandex)
   • YES: Use Cut-Away Stabilizer. (Tear-away will disintegrate and cause the design to warp).
   • Upgrade: Use Fusible Poly Mesh for a softer feel against skin.
2. Is the fabric unstable/fuzzy? (Towels, Fleece, Velvet)
   • YES: Use Tear-Away on the back + Water Soluble Topper on the front. (The topper prevents stitches from sinking into the fluff).
3. Is the fabric woven/stable? (Denim, Canvas, Cotton)
   • YES: Tear-Away is usually sufficient.
   • Condition: If the design is very dense (lots of stitches), switch to Cut-Away to prevent bullet-hole tearing.

Hidden Consumable: Keep a can of Temporary Spray Adhesive (e.g., 505 Spray). It floats the fabric on the stabilizer without wrinkles, which is critical when capitalizing on the full hoop size.

The upgrade path that actually saves time: when hoops and workflow become your bottleneck

Once you master the SE1900/SE2000 screen, you will hit a new ceiling: Physical Production Speed.

Here is the natural evolution of an embroiderer:

• Stage 1 (The Learner): You struggle with the buttons. Solution: Read this guide.
• Stage 2 (The Hobbyist): You know the buttons, but hooping takes 5 minutes per shirt, and your wrists hurt. You frequently check compatibility for brother se2000 hoops to get more sizes.
  • The Fix: Upgrade to brother 5x7 magnetic hoop sets. They reduce hooping time to 15 seconds.
• Stage 3 (The Side Hustle): You have an order for 50 items. The stubborn single-needle machine takes too long to change colors.
  • The Fix: This is when you look at multi-needle machines (like SEWTECH models 10-needle or 15-needle).
  • Why? You hooping once, and the machine runs all 10 colors automatically.

If you are using a hooping station for embroidery machine to align specific logos on shirts, you are already thinking like a manufacturer. Tools like magnetic frames and alignment stations are the bridge between "crafting" and "production."

Warning: Magnetic Field Safety
Magnetic hoops use strong industrial neodymium magnets.
1. Pinch Hazard: They snap together with enough force to pinch skin painfully. Keep fingers clear of the contact zone.
2. Medical Devices: Maintain a safe distance (6 inches+) from pacemakers or other implanted medical devices.
3. Electronics: Do not place the magnets directly on your machine's LCD screen or computerized cards.

Operation Checklist (the “no-regrets” sequence on the Brother SE1900/SE2000 screen)

Follow this sequence every single time to guarantee results:

1. Load Design: Select built-in file → Set.
2. Visualize: Tap Preview (Magnifying Glass) to confirm orientation and colors.
3. Resize: Tap Size. Use Proportional Scaling (outward arrows) only. Stop when you reach the desired dimension or the machine beeps (limit reached).
4. Check Field: Verify the active hoop setting (top left) matches your physical hoop.
5. Move: Drag the design to the general area.
6. Rotate: Adjust angle if necessary (90° or fine tune).
7. Trace: Critical Step. Run the trace to confirm the needle won't hit the hoop or a button.
8. Final Eye Check: Stabilizer is tight? Thread path clear?
9. Press Green Button: Embroider.

By respecting the machine's logic and verifying the physical reality before the needle moves, you turn embroidery from a stressful gamble into a precise, repeatable craft.

FAQ

• Q: Why does a Brother SE1900 or Brother SE2000 refuse to resize a built-in design bigger even though the Resize button beeps?
  A: Brother SE1900/SE2000 machines stop resizing when the selected on-screen hoop field is at its limit, even if a larger hoop is physically attached.
  • Tap the hoop icon on the screen and confirm the selected hoop matches the hoop you actually installed (4x4 vs 5x7).
  • Return to Size and use the proportional resize icon (four arrows at the corners) to scale up within the allowed range.
  • Watch the height/width numbers while resizing instead of holding the button down.
  • Success check: The displayed width/height increases with each tap until the true hoop limit is reached.
  • If it still fails: Reconfirm the active hoop setting (top-left) and do not attempt to exceed the field the machine allows.
• Q: How do Brother SE1900 and Brother SE2000 owners resize built-in designs without distorting stitches or breaking needles?
  A: Use only proportional resizing on the Brother SE1900/SE2000 screen and stay within the machine’s safe scaling limits.
  • Tap Edit → Size and press the proportional scale icon (four arrows outward at the corners).
  • Tap-step the size up/down while watching the measurement box change, rather than holding the button.
  • Stop resizing when the machine hits its limit (beep with no number change).
  • Success check: The design keeps its proportions (no “stretched” look), and the size numbers change in small, controlled increments.
  • If it still fails: Avoid extreme size changes on-screen and consider editing in external embroidery software when element-level control is needed.
• Q: How do Brother SE1900 and Brother SE2000 owners confirm the correct built-in design and orientation before stitching, when the wireframe looks like a mess?
  A: Use the Brother SE1900/SE2000 Preview (magnifying glass / “little TV”) to verify the design in full-color blocks before pressing Start.
  • Tap Preview immediately after loading the built-in design.
  • Check orientation (upright vs upside down) and confirm it is the intended motif.
  • Use the color-layer view to stage thread colors in order.
  • Success check: The design is recognizable in Preview (not an ambiguous wireframe), and the orientation matches the garment direction.
  • If it still fails: Re-select the design from the built-in category list and preview again before setting up fabric.
• Q: How do Brother SE1900 and Brother SE2000 owners use the Trace function to prevent the needle from hitting a zipper, button, or hoop edge?
  A: Run the Brother SE1900/SE2000 Trace outline after sizing/moving/rotating to confirm real-world clearance before stitching.
  • Go to Move and find the Trace icon (needle in a square with an arrow).
  • Lower the presser foot safely and press Trace to make the hoop travel around the design boundary.
  • Watch the needle path relative to seams, collars, zippers, and bulky areas.
  • Success check: The traced boundary stays fully inside the safe fabric area and does not approach hard hardware or the hoop frame.
  • If it still fails: Reposition with Move, adjust with Rotate (fine degrees if needed), or re-hoop when the fabric is not aligned.
• Q: What physical prep checks should Brother SE1900 and Brother SE2000 owners do before using Size/Move/Rotate to avoid re-hooping and wasted blanks?
  A: Do a quick “physical pre-flight check” before touching on-screen editing to prevent placement mistakes that software cannot fix.
  • Hold the actual hoop up to the garment first to confirm the hoop can physically fit the project area.
  • Install a fresh 75/11 embroidery needle and confirm the correct hoop size is selected (4x4 or 5x7).
  • Apply the correct stabilizer and hoop so the fabric is tight and flat before relying on rotation/move tools.
  • Success check: The hooped fabric feels drum-tight when tapped and the hoop clears the garment area without forcing.
  • If it still fails: Stop trying to “fix crooked hooping” on-screen and re-hoop with better alignment aids (grid mat/hooping station).
• Q: What stabilizer should Brother SE1900 and Brother SE2000 owners choose when resizing a design bigger on T-shirts, towels, or denim?
  A: Increasing design size increases fabric pull, so match stabilizer to fabric type before stitching larger on a Brother SE1900/SE2000.
  • Use Cut-Away for stretchy knits (T-shirts/spandex); consider fusible poly mesh for comfort against skin.
  • Use Tear-Away on the back plus a Water Soluble Topper on the front for towels/fleece/velvet to prevent sink-in.
  • Use Tear-Away for stable wovens (denim/canvas/cotton), switching to Cut-Away if the design is very dense.
  • Success check: The stitched area stays flat (minimal puckering) and details do not sink into pile on fuzzy fabrics.
  • If it still fails: Add temporary spray adhesive to prevent shifting and re-check hooping tightness before increasing speed.
• Q: Is it safe to select a 5x7 hoop on a Brother SE1900 or Brother SE2000 screen while using a physical 4x4 hoop to “get more space”?
  A: No—Brother SE1900/SE2000 machines can drive the needle outside a smaller physical hoop if the software hoop is set larger, risking needle strike and mechanical damage.
  • Match the on-screen hoop setting to the hoop physically attached every time.
  • Use Trace after any hoop change to confirm the needle path stays inside the frame.
  • Stop immediately if clearance looks tight near the hoop edge.
  • Success check: Trace runs without the needle approaching the plastic frame boundary.
  • If it still fails: Re-select the correct hoop size on-screen and restart setup; do not attempt to override the safety limits.
• Q: When do Brother SE1900 and Brother SE2000 owners benefit more from a magnetic hoop upgrade versus upgrading to a multi-needle embroidery machine?
  A: Upgrade tools in layers: fix technique first, then reduce hooping friction with magnetic hoops, and only then consider multi-needle capacity when color changes become the bottleneck.
  • Level 1 (Technique): Follow the sequence—hoop tight, select correct hoop on-screen, resize proportionally, then Trace before stitching.
  • Level 2 (Tooling): If hoop burn, slipping fabric, thick seams, or repeated re-hooping is the main pain point, magnetic hoops often make alignment faster and gentler.
  • Level 3 (Capacity): If single-needle color changes limit throughput (for example, larger orders), a multi-needle machine is typically the next productivity step.
  • Success check: Hooping and alignment time drops noticeably, and fewer projects require re-hooping to get placement straight.
  • If it still fails: Reassess whether the issue is stabilization/fabric shifting (consumables) versus workflow volume (capacity).
