Resize Embroidery Designs in Embrilliance Essentials Without Ruining Stitch Quality (and Without Guesswork)

If you’ve ever resized a design, hit “stitch,” and immediately regretted it—hearing that sickening crunch of the needle struggling through a dense knot of thread—you are not alone. Resizing is one of those “looks simple” tasks that can quietly wreck a sew-out if you don’t respect the physics of the stitch file you are manipulating.

In this field guide, I am rebuilding Lindee Goodall’s Embrilliance Essentials lesson into a shop-floor workflow you can repeat under pressure. We won’t just cover the buttons; we will cover the sensory cues and safety margins that prevent needle breaks and ruined garments.

Don’t Panic: The Difference Between "Drawing" and "Stitching"

The first calming truth: Embrilliance Essentials is forgiving. But to use it safely, you must understand the material you are holding.

When you create a design from scratch (using built-in letters or shapes), you are working with an Object. It’s like a vector; you can scale it infinitely, and the software perfectly redraws the stitches.

However, when you merge a PES file (or DST, JEF, etc.), you are working with a Stitch File. Think of a stitch file like a map of GPS coordinates. It is a list of specific needle penetrations. When you resize it, the software has to mathematically guess where to move those holes. Essentials is excellent at this "recalculation," but it cannot perform magic on tiny details.

The Reality Check:

• The Green Zone: Scaling +/- 10% to 20% is usually safe for almost any file.
• The Danger Zone: Scaling a stitch file down by 50% often turns eyes into hard knots. Scaling up by 200% can leave gaps where fabric shows through.


The “Hidden” Prep Pros Do Before Resizing (So You Don’t Waste a Hoop)

Before you touch a black handle or type a number, you need to perform a "Pre-Flight Check." This prevents the frustration of realizing the design is wrong after you’ve hooped your garment.

Prep Checklist (Physical & Mental):

• Identify File Type: Confirm you are working with a PES stitch file (not an editable object).
• Check Your Consumables: If resizing down, do you have a smaller needle (e.g., 75/11 or 70/10) to prevent fabric perforation?
• Define the Target: Decide your exact target size (e.g., "Max width 3.8 inches for a pocket") before clicking.
• Inspect Key Hazards: Zoom in on the smallest details (like text or animal eyes). If they are already <1mm or just a few satin stitches wide, assume they will fail if you scale down further.
• Plan the Stabilization: If scaling up, the design becomes heavier. Have your Cutaway stabilizer and temporary spray adhesive ready.

If you are resizing to fit a specific boundary, like a brother 4x4 embroidery hoop, remember: software resizing helps you fit the design to the hoop, but it cannot fix the physics of the fabric if you overcrowd the space.

Start Clean: Merge the PES Stitch File the Same Way Every Time

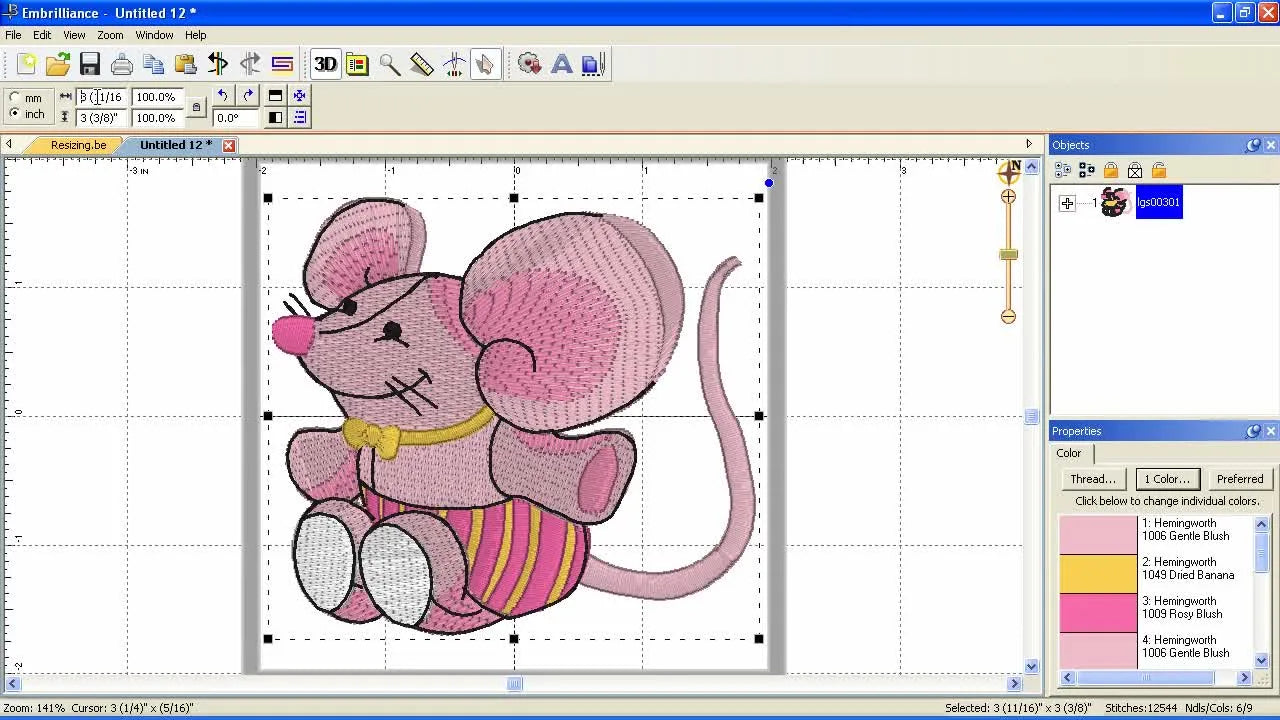

Lindee begins by creating a new document and importing a stitch file. Do not drag-and-drop from your desktop if you can help it; use the internal tools to ensure the format is read correctly.

1. Click the Merge Stitch File icon on the toolbar.
2. Select your file (Example: lgp0001.pes from "Rag Doll Critters").
3. The design appears centered. Visually Verify: Does it look balanced? Is the "Center" mark actually in the center of the hoop grid?

Pro Tip: This “merge first, resize second” order matters. If you resize a file in another program, save it, open it here, and resize it again, you are compounding "rounding errors." Always resize from the original, clean source file.

Method #1: Drag the Black Handles (Fast, Visual, High Risk)

When you click the design, you’ll see eight black handles around the bounding box.

• The Safe Move: Dragging a Corner Handle. Your cursor changes to a diagonal arrow. This scales the design proportionally (width and height change together).
• The Risky Move: Dragging a Side/Top/Bottom Handle. Your cursor looks like a cross or straight arrow. This stretches or squashes the design.

The Sensory Check: Watch the design as you drag. If the mouse looks like it put on weight or got flattened by a truck, you have broken the aspect ratio. This is the quickest way to ruin a logo.

In the video, Lindee ends up with odd percentages like 100.5% and 74.6%. This precise-imprecise math is normal for manual dragging.

The “Reset Ritual”: Use the Lock Proportional Padlock

If you dragged a side handle by mistake and your mouse looks distorted, do not try to "eyeball" it back to normal. You will never get it right. Use the Reset Ritual.

1. Look at the top property bar.
2. Click the Lock Proportional padlock to unlock it (open shackle).
3. Type 100 into both the width and height percentage fields.
4. Press Enter.
5. Re-lock the padlock immediately.

Essentials "remembers" the original state of the stitch file, allowing you to return to a perfect 100% without quality loss. This is a massive advantage over older software that degrades the file with every change.

Method #2: Type Exact Dimensions (The Professional Standard)

When you are doing paid work—like fitting a name above a pocket or a logo on a cuff—"eyeballing it" is not acceptable. You need precision.

1. Ensure the Padlock is Locked.
2. Highlight the value in the Width or Height field.
3. Type your target number with the unit (e.g., “3 in”).
4. Press Enter. The software calculates the other dimension automatically (e.g., landing at 2 11/16 inches).

Why this matters: If you are using a template or marking your fabric with a water-soluble pen, you need the digital file to match your physical marks exactly.

Method #3: Scale by Percentage (The "Sweet Spot" Rule)

Lindee demonstrates scaling a PES file down to 50% and up to 200%. While the software allows this, your machine might not forgive it.

The "Experience-Based" Safety Zones:

• 100% (Original): Optimum stitch quality.
• 80% – 120%: The Sweet Spot. Usually sews perfectly with standard stabilization.
• 50% – 79%: High Risk. Satin columns get too thin; needles may chop the fabric. Requires a thinner needle (70/10) and slowing the machine speed (SPM).
• 121% – 200%: Coverage Risk. The gaps between fill stitches may widen. Most software adds stitches (recalculates density) to compensate, but you must check for gaps on screen.

The "Knot" Test: Before stitching a file scaled to 50%, look at the densest part (like the eyes). If it looks like a solid black blob on screen, it will be a solid hard knot on fabric. A needle hitting a hard knot creates a distinctive sharp snap sound—often followed by a broken needle.

The Stitch Count “Magic Trick” (Recalculation)

Does Essentials actually change the number of stitches, or does it just push them closer together?

The Verification:

1. Look at the Introduction Status Bar (bottom right). Note the stitch count (e.g., 5,000 stitches).
2. Resize the design to 50%.
3. Watch the count drop (e.g., to 2,800 stitches).

This confirms that Essentials is recalculating density, not just squishing the original stitches. This is vital for preventing bulletproof embroidery. However, even with recalculation, the geometry of small details may still be too small for a physical needle and thread.

When the Design Turns Red: The Boundary Alarm

If you scale a design up to 200%, the bounding box may turn RED.

• What it means: The design is physically larger than your selected hoop.
• What to do: Do not try to center it and pray. Your machine will refuse to sew it (or worse, hit the frame).
• The Fix: Scale down until the box turns white/blue again, or select a larger hoop size in the preferences if your machine supports it.


Setup Checklist: Lock, Center, and Measure

You have resized the design. Before you save, run this quick check to ensure the math translates to reality.

Setup Checklist (Post-Resize):

• Padlock Check: Is the Lock Proportional icon closed?
• Centering: Click the "Center" button. (Resizing can sometimes shift the X/Y axis slightly).
• Hoop Margin: Is there at least a 5mm buffer between the design and the red/blue hoop line?
• Density Check: Zoom in to 600%. Do the satin stitches look like distinct lines, or a solid wall? If solid, you are too dense.
• Physical Match: Does the visible "width" on screen match the chalk mark on your fabric?


Decision Tree: Fabric & Stabilizer Strategy

Resizing changes the physical "pull" of the design. A design scaled up by 200% has 200% more pull force, meaning it is more likely to pucker your fabric. Use this logic to adjust your setup.

Decision Tree (Hooping Strategy based on Resize):

1. Did you scale UP significantly (>120%)?
   • Risk: Puckering and outcome distortion.
   • Action: Upgrade stabilization. If using tearaway, switch to Cutaway (2.5oz or 3.0oz). Ensure fabric is hooped "drum tight."
2. Did you scale DOWN significantly (<80%)?
   • Risk: Perforation (cookie-cutter effect) and stiffness.
   • Action: Use a smaller needle (75/11 or 70/10). Use a lighter weight stabilizer to avoid a "bulletproof" feel.
3. Is the fabric slippery or stretchy (Performance wear/Knits)?
   • Risk: The resized design will pull the fabric out of shape.
   • Action: This is where tools matter. Use magnetic embroidery hoops to clamp the fabric firmly without the "burn" or stretching caused by traditional inner-rings.
4. Is this a distinct "One-Off" or a "Batch"?
   • One-Off: Test on a scrap of similar fabric first.
   • Batch: Perform one full test run. Measure the final width on the fabric (it is often smaller than the screen due to shrinkage). Adjust the file size up by 1-2% to compensate if needed.


Two Common “Comment Section” Myth-Busters

“Why buy software if I just buy PES files?”

If you never change anything, you don't need software. But in the real world, customers want the logo "a little bigger" or the name "arched over the top." Without software like Essentials, you are paralyzed. Software turns you from a machine operator into a Creator.

“My jump stitches turned into messy drag lines!”

Sometimes, extreme resizing can confuse the software's recognition of "jumps" vs. "stitches." If you resize a file and see weird straight lines connecting elements that shouldn't be connected, check your simulator. If they persist, you may need to manually trim them or check the "Remove Hidden Stitches" setting in preferences.

The "Save As" Rule (The Golden Rule of Digital Assets)

Creating a resized file is destructive editing. You are changing the map.

• Never hit "Save" (Ctrl+S) on the original file.
• Always hit "Save As..."
• Naming Convention: Use a suffix. Mouse_Original.pes becomes Mouse_3inch_Pocket.pes.

This leaves your original "Master File" pristine in case you need to start over (and you will).

The Physics of Failure (And How to fix it with Hardware)

Lindee notes that valid scaling is 50%-200%. However, physics often disagrees.

When you scale up, you cover a larger surface area. The fabric inside the hoop is under immense stress as thousands of stitches pull it toward the center. If your hooping is weak, you get "Puckering"—wrinkles around the design.

The Level 1 Fix: Use spray adhesive (like Odif 505) to bond your fabric to the stabilizer. The Level 2 Fix: Upgrade your hooping tech. If you struggle to keep tension consistent, magnetic embroidery hoops distribute pressure evenly around the entire frame, holding the fabric flat against the pull of a large design.

Conversely, when scaling down, the density increases. If you are fighting to hoop a small, thick item (like a resized logo on a cuff), the struggle with traditional hoops can cause you to stretch the fabric just to get it in. This distortion snaps back after stitching, ruining the shape. Magnetic frames eliminate this "stretch-to-hoop" necessity.

The Upgrade Path: From Software Clicking to Production Efficiency

Mastering the resize function in Essentials is step one. Step two is ensuring your physical workflow can keep up with your new design capabilities.

Here is the progression for the serious embroiderer:

1. Solve the "Hoop Burn" & Strain:
   If resizing requires precise placement (like matching a logo to a pocket line), fighting with screw-tightened hoops is a nightmare. Learning how to use magnetic embroidery hoop systems allows you to slide the fabric in, align it to your marks, and snap it shut in seconds. This precision complements your software accuracy.
2. Consistency in Batches:
   If you resize a design for a team order (10+ shirts), manual hooping leads to crooked logos. A dedicated hooping station for embroidery machine ensures that every shirt is hooped at the exact same spot, every time.

Warning (Magnets): magnetic hooping station equipment and hoops use powerful Neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, credit cards, and computerized machine screens.

1. Scaling Capacity:
   If you find yourself resizing designs just so they fit into a single-needle machine's limited hoop area, you are capping your creativity. This is often the trigger point to look at multi-needle machines, which offer larger fields and faster stitching speeds for those complex, up-scaled designs.

Operation Checklist (Final "Go" Flight Check):

• Visual Simulator: Run the "ghost" simulator in Essentials. Do you see any bizarre jumps or crashed areas?
• Bobbin Check: Do you have a full bobbin? (Large resized designs eat thread).
• Clearance: Is the area behind the machine clear? (Larger hoops move further back).
• Safety: Power down (or lock) the machine when changing needles for dense work. Keep hands clear of the moving pantograph.

Resizing isn't just about making things bigger or smaller—it's about adapting a design to the physical reality of your fabric. Respect the limits, check your density, and use the right tools to hold it all together. Happy stitching!

FAQ

• Q: How can Embrilliance Essentials users safely resize a PES stitch file without creating dense knots and broken needles?
  A: Keep PES stitch file resizing in Embrilliance Essentials within about ±10–20% whenever possible, and inspect the smallest details before sewing.
  • Identify the file as a stitch file (PES/DST/JEF), not an editable object, before resizing.
  • Zoom in on tiny details (small text, animal eyes) and avoid shrinking if details are already extremely small.
  • Use the on-screen “knot” preview: if the densest area looks like a solid black blob, do not stitch at that size.
  • Success check: the densest areas still show individual stitch lines on screen (not a solid wall), and the first test sew does not produce a sharp “snap” sound.
  • If it still fails, keep the design closer to 80–120% or choose a version of the design digitized for the target size.
• Q: How do Embrilliance Essentials users reset a distorted PES design after dragging the wrong resize handle (stretched or squashed logo)?
  A: Use Embrilliance Essentials “Lock Proportional” to reset the stitch file back to a perfect 100% instead of eyeballing the shape.
  • Unlock the Lock Proportional padlock (open shackle) on the top property bar.
  • Type 100 into both the width and height percentage fields and press Enter.
  • Re-lock the padlock immediately before resizing again.
  • Success check: the design returns to its original proportions (no “fat/flat” look) and corner-handle resizing keeps the shape consistent.
  • If it still fails, re-merge the original stitch file again (start clean) instead of continuing from a repeatedly edited copy.
• Q: How can Embrilliance Essentials users resize embroidery designs to an exact physical size (for pocket lines or marked placement) instead of guessing?
  A: Type the exact width or height with units in Embrilliance Essentials while Lock Proportional is locked.
  • Lock the padlock so width and height stay proportional.
  • Click the Width or Height field, type the target with units (for example, “3 in”), then press Enter.
  • Click “Center” after resizing because resizing can shift X/Y slightly.
  • Success check: the on-screen dimension matches the physical chalk/water-soluble marks on the garment before hooping.
  • If it still fails, re-check the target boundary and leave a margin between the design and the hoop boundary line.
• Q: What should Embrilliance Essentials users do when a resized design turns RED because the design is bigger than the selected hoop?
  A: Treat the red bounding box in Embrilliance Essentials as a hard boundary alarm and resize down or select a larger hoop setting that the machine truly supports.
  • Scale down until the bounding box returns to the normal (non-red) state.
  • Alternatively, change the hoop size selection in preferences only if the embroidery machine can run that hoop.
  • Maintain a buffer around the design; avoid placing stitches right on the hoop boundary.
  • Success check: the bounding box is no longer red and there is visible clearance between the design and the hoop boundary line.
  • If it still fails, stop and do not “center and pray”; use a larger hooping option or choose a smaller design size.
• Q: How can Embrilliance Essentials users confirm the software is recalculating stitch density (not just squishing stitches) after resizing a PES file?
  A: Verify stitch recalculation in Embrilliance Essentials by watching the stitch count change in the bottom-right status bar after resizing.
  • Note the stitch count before resizing.
  • Resize (for example to 50%) and observe whether the stitch count drops.
  • If scaling up, still zoom in and look for coverage gaps because geometry changes can expose fabric.
  • Success check: the stitch count visibly changes after resizing, indicating recalculation rather than simple compression.
  • If it still fails, assume small-detail geometry is the limiting factor and reduce the amount of resizing or use a design digitized for the new size.
• Q: What needle and stabilizer changes should embroidery operators make after resizing a stitch file down below 80% or up above 120%?
  A: Match the physical setup to the resize direction: smaller sizes often need a smaller needle, larger sizes often need stronger stabilization.
  • If scaling down (<80%), switch to a smaller needle (often 75/11 or 70/10) to reduce perforation risk and consider lighter stabilization to avoid a “bulletproof” feel.
  • If scaling up (>120%), prepare stronger stabilization (often cutaway) and consider temporary spray adhesive to bond fabric to stabilizer.
  • Slow down if needed for dense, downscaled areas where the needle is working harder.
  • Success check: the sew-out shows flat fabric with no puckering around the design (scaled up) and no “cookie-cutter” perforation or stiff knots (scaled down).
  • If it still fails, do one full test run on similar scrap and adjust size by a small amount rather than making extreme jumps.
• Q: What embroidery safety steps should operators follow when resizing creates dense areas that can snap needles, and what safety risks exist around magnetic hooping systems?
  A: Stop and treat dense resized areas and strong magnets as real hazards: prevent needle break risk first, then handle magnets with strict caution.
  • Power down or lock the embroidery machine before changing needles for dense work, and keep hands clear of the moving pantograph during operation.
  • Listen for warning signs during stitching: a sharp “snap” sound often signals the needle hitting a hard knot—stop immediately and reassess density/size.
  • Keep strong neodymium magnets away from fingers (pinch risk), pacemakers, credit cards, and computerized screens when using magnetic hooping setups.
  • Success check: the machine runs without impact noises, needles do not deflect, and magnetic parts can be handled without uncontrolled snapping or finger pinches.
  • If it still fails, reduce density risk by avoiding extreme downscaling, and upgrade hooping control (magnetic frames often help hold fabric without stretch-to-hoop distortion).
