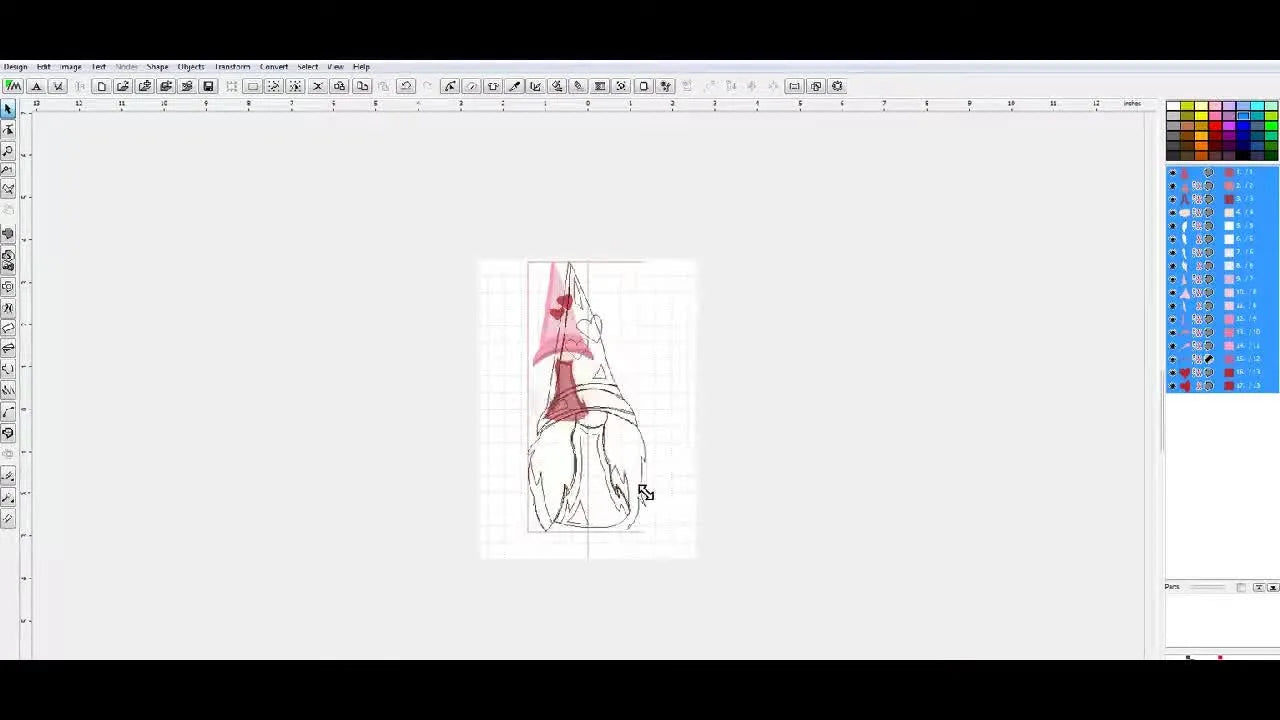

Resize a 4x4 Design to a Brother/Baby Lock 5x7 Hoop in Embird—Without Wrecking Density or Centering

If you have ever resized a design, stitched it out, and thought, “Why does this look thin, bulky, or just… off?”—you are not alone. Resizing is one of those deceptively simple tasks that can quietly ruin stitch quality if you skip the physics behind the pixels.

In this Embird workflow, we will take an existing digitized design (a gnome, in this case) and scale it up from a standard 4x4 hoop to a 5x7 hoop. But more importantly, we are going to re-generate the stitch architecture so the file behaves like it was born to be that size.

The Calm-Down Moment: Why Resizing Isn't "Cheating"

When you move from a 4x4 to a larger hoop, you are usually chasing one of three goals: bigger visual impact, fewer re-hoops for large layouts, or a cleaner presentation for sellable items. The danger lies in assuming “bigger hoop” automatically means “better result.” It doesn't—unless your stitch data is recalculated.

Simply stretching a design is like blowing up a low-resolution photo; it gets pixelated and blurry. In embroidery, "blurry" means gaps in your fill stitches or satin columns that are so wide they snag on zippers.

The method below works because it uses Embird Studio for object-level editing. It runs a specific command—Generate Stitches—after scaling. That is the difference between a design that looks bigger on screen and a design that sews faithfully on real fabric.

If you are planning to stitch this on a brother 5x7 hoop, remember: the software boundary is only half the battle. The physical hooping and stabilization are what actually decide if the final piece stays flat or puckers like a relief map.

The “Hidden” Prep: File Safety, Hoop Reality, and a Sanity Check

Before you touch a single resize handle, protect yourself from the two most common regrets in the industry: overwriting your original file, and resizing for a hoop you don't actually own.

The "10-20% Rule" vs. Regeneration: You might hear old-school advice saying, "Never resize more than 10-20%." That applies only if you aren't regenerating stitches (just stretching the existing ones). With the method we are using today (Stitch Regeneration), you can scale significantly more—often 50% or 100%—because the software recalculates the density. However, always run a test if doubling the size.

Hidden Consumables You Will Need:

• Fresh Needle: A new size often means denser piles of thread. Start with a sharp 75/11.
• Temporary Spray Adhesive (e.g., 505): Essential for larger hoops to prevent fabric shifting in the center.
• Correct Stabilizer: You likely need a heavier weight stabilizer for a 5x7 than you did for a 4x4.

Prep Checklist (Do this before opening software):

• Hardware Check: Confirm your machine physically accepts the target hoop (check your manual).
• Naming Convention: Decide a new file name now (e.g., Gnome_Design_5x7_v1). Never rely on "Untitled."
• Source Context: Open the original design and note its stitch count. If it’s 10,000 stitches now, expect the resized version to jump to 15,000+.
• Time Budget: A bigger design means longer run times. Factor this into your schedule.


Step 1: Switch to Embird Studio for Object-Level Control

The workflow starts in Embird Editor, but we must move to Embird Studio. Why? Because Editor often handles the design as a flat "image" of stitches, while Studio allows you to manipulate the "objects" (the shapes that create the stitches).

Action:

1. Close the current view in Editor.
2. Open the digitized file in Embird Studio (use “Open Recent” or "Import").

Thinking of this like architecture: Editor is for painting the walls; Studio is for moving the walls. We are moving walls today.

Step 2: Lock the Boundary (Preferences)

This step prevents the classic "I resized it… and then realized it doesn't fit the plastic frame" disaster.

Action (Exact path):

1. Go to Edit > Preferences.
2. Click the Hoop tab.
3. Select Brother Baby Lock 5x7 (130 x 180) vertical (or your specific machine's hoop).
4. Click Apply.

That hoop boundary becomes your visual guardrail. If you are upgrading from a standard brother 4x4 embroidery hoop, you will feel the workspace "open up." This extra space is freedom, but it creates a temptation to fill every millimeter. Don't. Always leave a "safety buffer" (about 5-10mm) inside the line to ensure the presser foot doesn't hit the hoop edge.

Step 3: Clean the Workspace

In the video, the creator deletes the background image. This is a pro move for clarity.

Why we do this: Background reference images can clutter your view and interfere with "Select All" commands. You want to resize the embroidery, not the drawing behind it.

Action:

• Delete the background image so only the stitch objects remain visible.
• Sensory Check: Zoom out. You should see your design floating clearly in the white space of the hoop grid.


Step 4: Select Everything (The Shift-Click Technique)

Uniform scaling requires every single object to be selected. If you miss one (like a small eye detail), the face will expand while the eye stays tiny and floats away.

Action:

• Method A: Click the first object in the list, hold Shift, and click the last object.
• Method B: Press Ctrl+A (Select All).

Success Metric: Look for the selection handles (little squares) appearing around the entire perimeter of the design.

Warning: Mechanical Safety
When moving from software to the physical stitch-out, keep your hands clear of the needle bar. Larger hoops (5x7 and up) move faster and cover more distance than 4x4 hoops. Never reach into the hoop area while the machine is running to trim a thread tail—pause the machine first. A 5x7 frame moving at 800 stitches per minute carries enough force to injure fingers.

Step 5: Resize the Safe Way

Now we scale.

Action:

• Click and hold the black square handle at the corner of the selection box.
• Drag outward/downward to increase the size.
• Stop when the design fills the hoop but still has that 5-10mm breathing room we discussed.

Visual Check: The design looks bigger, but if you zoomed in right now, the stitches might look "gappy" (low density) because the software hasn't done the math yet. Do not stop here.

Step 6: The "Magic Button" – Generate Stitches

This is the single most important step in the tutorial.

Action:

• Click Generate Stitches (often a lightning bolt icon or under the Design menu).

The Physics of Why: When you stretched the design in Step 5, you made the shape bigger. If you didn't regenerate, a satin stitch that was 3mm wide (perfect) might become 6mm wide (too loose/snag hazard). By hitting "Generate Stitches," Embird calculates: "Okay, the shape is bigger, so I need to add MORE stitches to keep the density correct."

You know it worked when the 3D preview looks solid and rich, not like a screen door.

Step 7: Center the Design

Never trust your manual dragging for the final position.

Action:

1. Select everything again.
2. Go to Transform > Bring to Center.

This snaps the design to the mathematical X/Y origin (0,0). When you load this onto your machine, the needle will start exactly where you expect.

Setup Checklist (Before Export):

• Hoop Check: Is the background set to 130x180mm (5x7)?
• Selection Check: Is the bounding box surrounding all objects?
• Calculation Check: Did you click Generate Stitches?
• Position Check: Did you run Bring to Center?
• Visual Margin: Is there empty space between the design and the virtual hoop edge?


Step 8: Save and Compile

Action:

1. Save As: Create your new file (e.g., Gnome_5x7.emb).
2. Compile: Click "Compile and Put into Embird Editor" to prepare the final machine format (like .PES or .DST).


The "Physics" of a 5x7: Why It Feels Different

Resizing is not just math; it is mechanics. A 5x7 hoop has almost double the surface area of a 4x4. This introduces new problems:

1. Fabric Flagging: The fabric in the center of a large hoop bounces more (flagging). This causes bird-nesting or skipped stitches.
2. Pull Compensation: A larger fill stitch pulls the fabric inward with more force. A circle might stitch out as an oval if not stabilized well.

If you find that your resized designs are puckering, the issue is rarely the software—it is usually the hooping tension. Traditional plastic hoops rely on a friction screw. On large surface areas, getting "drum-tight" tension without distorting the fabric grain is a skill that takes years to master.

This is where equipment can bridge the gap between "amateur" and "pro." If you are constantly fighting fabric slippage during hooping for embroidery machine tasks, consider the tool, not just your hands.

Decision Tree: Stabilizer Strategy for Resized Designs

Because 5x7 designs exert more force on the fabric, your "4x4 habits" might fail. Use this logic flow:

Fabric Type → Stabilizer Choice:

1. Is the fabric stretchy (T-shirt, Hoodie, Knit)?
   • YES: Cutaway Stabilizer (2.5oz or 3.0oz). Must use. Do not use tearaway; the stitches will distort. Use 505 spray to bond fabric to stabilizer.
   • NO: Go to #2.
2. Is the fabric loose/light (Rayon, thin Cotton)?
   • YES: No-Show Mesh (PolyMesh) + Tearaway. The mesh provides permanent support; the tearaway adds stiffness during stitching.
   • NO: Go to #3.
3. Is the fabric thick/stable (Denim, Canvas, Towel)?
   • YES: Tearaway Stabilizer. Usually sufficient. For towels, add a water-soluble topper to keep stitches from sinking.

Sensory Anchor: When hooped, tap the fabric. It should sound like a dull thud (tight), not a paper rattle (loose).

Troubleshooting: When Resizing Goes Wrong

The Efficiency Pivot: When Standard Hoops Hold You Back

If you are resizing designs to run production (e.g., 20 shirts for a local team), you will quickly hit a wall: standard screws hurt your wrists, and alignment takes forever.

The Workflow Upgrade Path:

• Level 1 (Skill): Use a hooping station for embroidery to ensure your placement is identical on every shirt.
• Level 2 (Tool): Switch to high-quality magnetic embroidery hoops. Unlike friction hoops, magnets clamp straight down. This eliminates "hoop burn" (those shiny rings on dark fabric) and holds thick garments (like Carhartt jackets) without popping open.
• Level 3 (Machine): If you are running Baby Lock gear, looking specifically for magnetic hoops for babylock embroidery machines can cut your re-hooping time by 50%. It turns a chore into a "click-and-go" process.

Warning: Magnetic Safety
Magnetic hoops use strong industrial magnets. Pinch Hazard: They snap together instantly; keep fingers away from the edge. Medical Safety: If you or a family member has a pacemaker or ICD, do NOT use magnetic hoops without consulting a doctor, as the magnetic field can interfere with medical devices.

Final Operation Checklist

Do not press "Start" until you pass these five checks:

1. [ ] File Version: Are you loading the "5x7" file, not the old "4x4"?
2. [ ] Center Check: Did the needle drop to the exact center of your marked fabric?
3. [ ] Clearance: Hand-turn the wheel (or do a trace/boundary check) to ensure the foot won't hit the hoop frame.
4. [ ] Thread Path: Is the bobbin full? (Running out mid-stitch on a large design is a nightmare).
5. [ ] Sensory Check: Is the hoop quiet? If it rattles when you tap it, re-hoop tighter.

Resizing in Embird is a powerful skill. Once you trust the "Generate Stitches" button and respect the physics of your hoop size, you can turn any small logo into a full-chest masterpiece.

FAQ

• Q: In Embird Studio, why do resized satin columns look loose or “gappy” after scaling a 4x4 design up to a Brother 5x7 hoop (130×180)?
  A: The design was scaled but the stitch density was not recalculated—run Generate Stitches after resizing.
  • Resize: Select all objects, then drag the corner black handle to the new size (leave 5–10 mm margin inside the hoop boundary).
  • Rebuild: Click Generate Stitches to regenerate stitch architecture for the new size.
  • Save: Use Save As to avoid overwriting the original file.
  • Success check: In 3D preview, fills look solid (not “screen-door” open) and satin columns look rich, not sparse.
  • If it still fails: Undo and repeat the sequence (resize → generate stitches), then do a small test stitch-out before committing.
• Q: In Embird Studio, how can Embird object selection miss small details (like an eye) when resizing a compiled embroidery design for a Brother 5x7 hoop?
  A: A background image or unselected objects are interfering—remove the background and use the Object List or Ctrl+A to select everything.
  • Delete: Remove the background/reference image so only stitch objects remain.
  • Select: Press Ctrl+A or Shift-click the first and last objects in the Object List.
  • Verify: Confirm selection handles surround the entire design perimeter before resizing.
  • Success check: The bounding box encloses every element, and no “tiny part” stays behind after scaling.
  • If it still fails: Select objects from the Object List sidebar one-by-one and confirm none are locked/hidden.
• Q: In Embird Studio, what exact settings prevent resizing a design that later does not fit a Brother Baby Lock 5x7 (130×180) vertical hoop?
  A: Set the hoop boundary first in Preferences so the 130×180 mm frame becomes a visual guardrail.
  • Set: Go to Edit > Preferences > Hoop and choose Brother Baby Lock 5x7 (130 x 180) vertical, then click Apply.
  • Margin: Keep a 5–10 mm “safety buffer” inside the hoop line to avoid presser-foot/hoop contact.
  • Center: After resizing and regenerating stitches, run Transform > Bring to Center.
  • Success check: The design sits clearly inside the hoop outline with visible space all around.
  • If it still fails: Shrink the design by about 5 mm and re-check stitch count and boundary before exporting.
• Q: When resizing a design from a 4x4 hoop to a 5x7 hoop, what “hidden consumables” should be changed to reduce fabric shifting and puckering during stitch-out?
  A: Treat the larger hoop as a higher-force job—start with a fresh 75/11 needle, use temporary spray adhesive (like 505), and choose a heavier stabilizer than the 4x4 setup.
  • Replace: Install a fresh needle (75/11 is a safe starting point).
  • Bond: Apply temporary spray adhesive to reduce center-area fabric shifting in larger hoops.
  • Upgrade: Move to an appropriate heavier stabilizer for 5x7-sized stitch forces.
  • Success check: During stitching, the fabric stays flat (minimal flagging) and the finished piece does not pucker into “relief map” ridges.
  • If it still fails: Re-check hooping tension first—puckering is often hooping mechanics, not software.
• Q: How can embroidery hooping tension be judged for a 5x7 design to reduce flagging, bird-nesting, and “hoop burn” on larger stitch areas?
  A: Aim for firm, even hooping without fabric distortion; larger 5x7 fields magnify slip and bounce, so test hoop tightness before stitching.
  • Hoop: Tighten evenly so fabric is secure but not stretched off-grain (avoid distorting the weave/knit).
  • Secure: Use spray adhesive when needed to prevent shifting in the hoop center.
  • Tap-test: Tap the hooped fabric to assess tension quickly.
  • Success check: The hooped fabric makes a dull “thud” sound (tight), not a loose rattly sound.
  • If it still fails: Consider upgrading the hooping mechanism—magnetic hoops often clamp more evenly than friction screw hoops on large areas.
• Q: What mechanical safety steps should be followed when stitching a large 5x7 hoop design on a home embroidery machine to avoid finger injuries near the needle bar?
  A: Never put hands inside the moving hoop area—pause the machine before trimming thread tails or adjusting fabric.
  • Pause: Stop the machine completely before reaching near the needle or hoop path.
  • Clear: Keep fingers away from the needle bar and frame travel area, especially with larger hoops that move faster over longer distances.
  • Trace: Run a boundary/trace check or hand-turn to confirm the presser foot will not hit the hoop frame.
  • Success check: The machine completes the trace without contacting the hoop, and hands never enter the stitch field while running.
  • If it still fails: Slow down the workflow—do setup and trimming only during pauses, not during active stitching.
• Q: What safety rules should be followed when using industrial magnetic embroidery hoops to reduce pinch injuries and pacemaker/ICD risk?
  A: Treat magnetic hoops as a pinch hazard and a medical hazard—keep fingers away from snapping edges and avoid use around pacemakers/ICDs without medical guidance.
  • Handle: Separate and assemble magnetic frames with hands positioned away from the closing edge.
  • Control: Let magnets close deliberately—do not “drop” the top ring onto the bottom.
  • Screen: Do not use magnetic hoops if a user has a pacemaker or ICD without consulting a doctor.
  • Success check: The hoop closes without finger contact at the edge, and the garment remains clamped evenly without popping open.
  • If it still fails: Switch to a safer handling routine (assemble on a flat surface) or use a standard hoop when medical constraints exist.
• Q: For production runs of resized 5x7 designs (like 20 shirts), when should embroidery workflow upgrades move from hooping skill improvements to magnetic hoops, and then to a multi-needle SEWTECH machine?
  A: Start by fixing consistency, then fix clamping, then fix throughput—upgrade in layers based on the bottleneck you can clearly name.
  • Level 1 (Skill): Add a hooping station when placement and repeatability are the main problem.
  • Level 2 (Tool): Move to magnetic hoops when screw-hoop wrist strain, fabric slippage, or hoop burn keeps causing re-hoops and rejects.
  • Level 3 (Capacity): Consider a multi-needle SEWTECH machine when stitch time and frequent thread changes become the limiting factor for delivery deadlines.
  • Success check: Re-hooping time drops, rejects decrease, and the run becomes predictable (same placement, same tension, fewer restarts).
  • If it still fails: Track the exact failure point (placement, slippage, or run-time) and address that specific constraint first instead of changing multiple variables at once.
