Relish Today, Ketchup Tomorrow on the Brother Luminaire XP1: The In-the-Hoop Appliqué Block Workflow That Actually Stays Flat

Master the "Quilt-As-You-Go" Block: A Brother Luminaire XP1 Field Guide

If you’ve ever stared at an in-the-hoop (ITH) appliqué block and thought, "Why does this feel like three separate battles—quilting, appliqué, and lettering—mashed into one hooping?" you are not alone. This "Relish Today, Ketchup Tomorrow" block is whimsical, but technically, it is a stress test for your workflow. It exposes every weak link: hoop tension, stabilizer choice, stitch order, and finishing discipline.

What follows is not just a recap of steps. It is a forensic reconstruction of the workflow shown on the Brother Luminaire Innov-is XP1 with a 9x14 hoop. We have rebuilt this into a clean, repeatable protocol—complete with the "veteran checkpoints" (sensory cues and safety margins) that keep the block flat, the edges crisp, and your sanity intact.

Calm the Chaos: The Hidden Logic of the "Quilt-First" Workflow

To the untrained eye, the machine is just "sewing." But to a master embroiderer, this block follows a strict architectural logic. Understanding this hierarchy prevents the dreaded "pucker" (where fabric bunches up around the stitching).

The machine operation must follow this sequence:

1. Foundation (Background Quilting): This secures the "sandwich" (stabilizer + batting + fabric) and compresses the loft before any detail work begins.
2. Structure (Appliqué Placement & Tack-down): The mustard bottle, relish, and ketchup jars.
3. Decoration (Satin Stitches & Lettering): The final heavy stitch counts.

The Physics of Failure: If you reverse this—adding appliqué fabrics and dense satin edges first—you change the surface tension and thickness of the block. If you try to quilt after that, the foot has to climb over bulk, pushing fabric waves ahead of it. The result? Distortion and gaps.

A viewer comment nailed the real pain point: they wished instructions combined quilting and embroidery in one file. That is exactly why this workflow is the industry standard for efficiency.

The "Hidden" Prep: Stabilizer, Batting, and The "Drum Skin" Standard

Before you open your software, you must engineer the foundation inside the hoop. This is where 90% of failures occur.

The Formula

• Stabilizer: No Show Mesh (Polymesh). Why? It is soft enough to leave in a quilt block but strong enough to support the stitch count.
• Batting: Cotton or Wool blend, floated.
• Needle: Topstitch 90/14 or Embroidery 75/11. Rule of Thumb: Use the 90/14 if your batting is thick; use 75/11 if you want cleaner, smaller holes in the appliqué.

The Tension Anchor

Here is the physics piece most learn the hard way: Hooping is not just holding fabric; it is controlling rebound.

• Tactile Check: When you hoop the stabilizer, tighten the screw, then pull the stabilizer gently. It should feel taut like a drum skin. If you tap it, it should make a dull thrum sound.
• Visual Check: The inner ring should not pop out more than 1-2mm above the outer ring.

If hooping is the bottleneck causing you physical wrist pain or leaving "hoop burn" (white marks) on delicate fabrics, this is the trigger point to investigate tools like magnetic hoops for brother luminaire. These use magnetic force rather than friction to hold the sandwich, drastically reducing strain and eliminating hoop burn markings entirely.

Software: Merge the Background Quilting + Appliqué in Embrilliance

We need to create a single "Master File" to avoid user error at the machine. In Embrilliance (or PE-Design), the workflow is:

1. Select Constraints: Set your hoop to 9x14 (240x360mm) in Preferences.
2. Import Layer 1: Bring in the 6x6 background quilting file. Choose the horizontal orientation.
3. Import Layer 2: Bring in the "Relish" appliqué file.
4. Verify the Stack: Look at the Object Pane.
   • Position 1: Quilting File.
   • Position 2: Appliqué Design.

Pro Prevention: If the quilting isn't first, don't fix it at the machine. Fix it here. Drag and drop until the quilting is at the top of the list.

Wireless Transfer: The "Air Gap" Safety Protocol

The video utilizes the Brother Luminaire’s wireless transfer (XP1/Solaris ecosystem):

• Utility -> Send to Solaris/XP1.
• File Name: "relish_master_v1".

Why this matters: Wireless transfer isn't just a luxury; it's a quality control gate. We've all grabbed the wrong USB stick or loaded "version_final_final_2.pes" by mistake. Wireless transfer ensures the exact file you just audited on screen is the one the machine receives.

Hooping Phase: The Setup That Prevents Puckers

At the machine, we are using the 9x14 hoop with No Show Mesh loaded.

Thread Strategy: The demonstrator uses Floriani Baby Blue, but notes: "Don't be a thread snob."

• My Expert Calibration: She is right, but with a caveat. You can mix brands, but match the weights. Don't mix 40wt embroidery thread with 50wt cotton sewing thread in the same block unless you want inconsistent coverage.
• Old Thread Warning: If your thread snaps every 2,000 stitches, listen to the snapped end. If it sounds "crisp" or looks frayed before the break, the thread is dry-rotted. Throw it out.

If you are setting up for a production run of 10+ blocks, standardization is key. Using a dedicated hooping station for embroidery ensures that every single block is centered exactly the same way, removing the "human wobble" factor from the equation.

Prep Checklist (Pre-Flight Safety)

• Needle Check: Is the needle straight and sharp? (Run your fingernail down the tip; if it clicks, it has a burr—replace it).
• Bobbin: Is it at least 50% full? (Running out mid-background quilting is a nightmare to patch).
• Stabilizer: No Show Mesh is drum-tight in the hoop.
• Stitch Order: Confirmed on machine screen: Quilting lines strictly before appliqué shapes.
• Consumables: Spray adhesive (optional but recommended) or tape is ready.
• Tools: Curved snips and fine-point tweezers are placed within arm's reach.

Warning: Keep scissors, snips, and metal tweezers at least 4 inches away from the needle bar area while the machine is running. A magnetic field or a vibration can inch tools under the needle, causing catastrophic damage to the hook assembly.

Phase 1: Batting Placement & The "Gliding" Trim

The machine runs a placement line on the stabilizer.

1. The Float: Lay your batting over the placement line. Do not hoop the batting.
2. The Tack-down: The machine stitches a box to hold the batting.
3. The Trim (Critical Skill): Use curved snips.
   • Technique: Pull the batting slightly up and away from the stabilizer. Slide the lower blade of the snips along the stitch line.
   • Sensory Goal: You want to cut the batting but glide over the stabilizer. If you feel resistance, stop—you might be cutting the mesh.

Note: Instruction manuals rarely tell you how to handle the background quilting file. Treat it as a "structural" layer. It must be trimmed cleanly, or your final block will have lumpy seams.

Phase 2: Background Fabric & Quilting

1. Placement Line: Stitched onto the batting.
2. Float the Fabric: Lay your background fabric (cut 1 inch larger than needed on all sides) over the batting.
3. Alignment: Use the notches (or a water-soluble pen mark) to center it.
4. Tack-down & Quilt: The machine stitches the box, then the horizontal lines.

Expert Calibration - Speed Control: For broad quilting lines on a domestic machine, do not run at 1050 SPM (Stitches Per Minute). The high speed can push the un-hooped fabric like a snowplow.

• Sweet Spot: 600 - 700 SPM. This gives the feed system time to manage the layers.

As the video notes, visual centering is usually sufficient because the block will be squared up later. Coverage is more important than millimeter-perfect placement.

Phase 3: Raw-Edge Appliqué & The "Heat Press" Hack

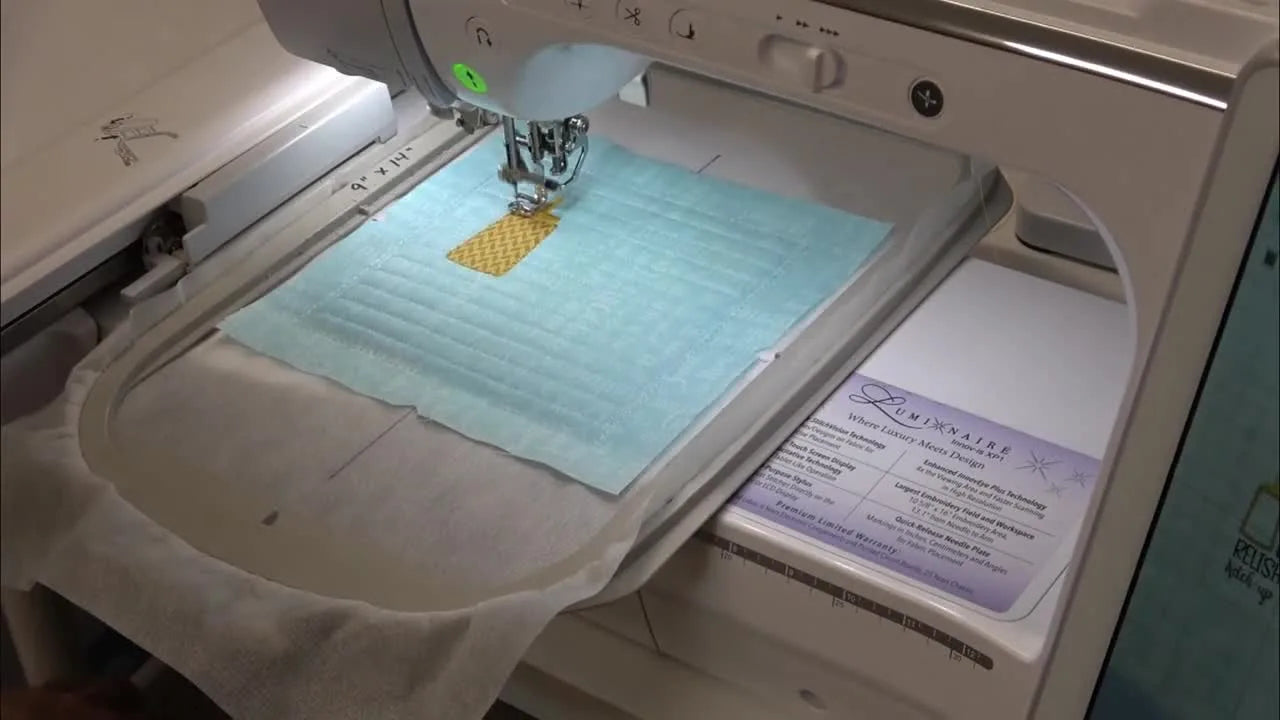

Now we build the Mustard Bottle.

1. Placement Line: Yellow thread.
2. Fabric Placement: Yellow fabric covers the line.
3. The Fuse: Use a Cricut Mini Iron with a wool ironing pad inside the hoop.

The "Why": Ironing in the hoop activates the Heat n Bond Lite on the back of the appliqué fabric. This fuses the fabric to the background, preventing it from rippling during the satin stitching.

Efficiency Hack: Ironing at the machine saves you from un-hooping (which risks registration errors) or walking to a station.

Warning: Thermal Safety. When ironing inside the hoop, ensure your ironing pad is strictly under the fabric area. Do not let the iron touch the plastic hoop frame (it will melt) or the polyester stabilizer directly (it will shrink/melt). Also, ensure the machine is paused/locked so the arm doesn't move while your hand is in the workspace.

The "Save": Grouping Colors on the Luminaire Screen

In the video, the creator realizes the design wasn't color-sorted. The machine wants to stitch yellow, then green, then yellow again.

The Fix: instead of re-doing the file:

• Use the Needle +/- touch controls.
• Jump past the green steps to find the remaining yellow parts (bottle cap, satin edges).
• Stitch all yellow components in one batch.

This is a Level 2 Skill: "Machine-Side Editing." It allows you to override the digitization to save thread changes.

• Caveat: Only do this if the layers do not overlap. In this block, the bottle cap doesn't touch the relish jar, so it is safe to stitch out of order.


Phase 4: Navigating History (The "Back-and-Forth" Dance)

After the yellow is done, she navigates backward in the stitch history to the "Relish" green steps, finishes them, then moves forward to "Ketchup."

Risk Assessment:

• Low Risk: If you fused your fabric well (Heat n Bond) and your hoop is tight (Drum Skin), jumping around is safe.
• High Risk: If your stabilizer is loose, the fabric will shift slightly every time the pantograph moves. By the time you come back to "Relish," the outline might be 2mm off.

The Commercial Upgrade: If you find yourself constantly battling shifting fabric during complex ITH projects, or if the "pinch clamp" mechanism of standard hoops is hurting your hands, this is the operational ceiling of traditional hoops. Transitioning to magnetic embroidery hoops provides a continuous, firm grip around the entire perimeter, maintaining registration even during aggressive needle movement.

Setup Checklist (Appliqué Phase)

• Hoop Check: Is the hoop still firmly seated in the carriage? (Push it gently to check for "play").
• Iron Safety: Wool pad is present; Iron is set to Medium (for Heat n Bond) not High.
• Adhesive: Appliqué fabric has fusible web (Heat n Bond Lite) applied to the back before placement.
• Thread Path: No loose tails from the background quilting are trapped under the new appliqué pieces.

Warning: Magnetic Safety. If you utilize magnetic hoops, treat them as industrial tools. Keep them away from pacemakers and implanted medical devices due to strong magnetic fields. Be mindful of "pinch points"—the magnets snap together with significant force. Do not leave them near credit cards or USB drives.

Phase 5: The "Store-Bought" Finish (Trimming Jump Stitches)

Nothing ruins a block faster than messy "eyelashes" (tiny thread tails). The video demonstrates the "Entry-Exit" Trimming Method:

1. Analyze Flow: Look at where the stitch ended and where the jump goes.
2. Trim Entry: Cut the thread close to the first letter/object.
3. Pop: This releases tension.
4. Trim Exit: Use tweezers to pull the jump stitch vertical, then snip the exit point.

Sensory Cue: If you pull the thread and the letter fabric puckers up "like a tent," your thread tension catches are too tight or your stabilizers are too weak. It should pull cleanly.

Final Square-Up: The Orange Pop Standard

The block is finished. Unhoop it. Remove excess stabilizer. Use an Orange Pop Ruler (or a standard clear acrylic ruler) to trim the block to exactly 6.5 inches (for a 6-inch finished block).

Why this step fails: Many users trust the visual center of the embroidery. Do not. Trust the ruler. Align your ruler so the embroidery is centered, then cut. This ensures that when you sew the blocks together, the design is perfectly aligned.

Operation Checklist (The Finish Line)

• Batting Trim: Trimmed close (1-2mm) without cutting stabilizer.
• Fusing: All appliqué pieces passed the "fingernail test" (scratch the edge; if it lifts, iron it again) before satin stitching.
• Jump Stitches: All trims completed between letters.
• Back Design: Check the back of the hoop—is the bobbin thread chaos? If yes, clean the bobbin case before the next block.

Decision Tree: Troubleshooting Your ITH Block

Use this logic flow to solve problems before you ruin expensive fabric.

• Problem 1: The Outline Stitches don't match the Appliqué Fabric.
  • Cause: Fabric shifted during iron/stitch.
  • Fix: Did you use Heat n Bond Lite? Yes -> Check hoop tension. No -> You must use fusible web for raw edge appliqué.
• Problem 2: The Block is "Cupped" or Wavy (doesn't lay flat).
  • Cause: The stabilizer was stretched too tight, or the background quilting was too dense.
  • Fix: Use No Show Mesh (not tear-away). Reduce speed during quilting lines.
• Problem 3: "Hoop Burn" (shiny/white ring on fabric).
  • Cause: Friction and pressure from the standard hoop rings.
  • Fix (Immediate): Spritz with water and steam iron.
  • Fix (Permanent): Upgrade to how to use magnetic embroidery hoop systems to eliminate ring friction entirely.
• Problem 4: Production Fatigue (Wrist pain).
  • Cause: Repetitive screw tightening on 9x14 hoops.
  • Fix: If you are doing 20+ blocks, a brother luminaire magnetic hoop is not an accessory; it is an ergonomic necessity.

The Upgrade Path: From Hobbyist to Production

After 20 years in this industry, I have learned that upgrades should solve specific bottlenecks, not just empty your wallet.

1. The "Registration" Bottleneck: If your designs are consistently slightly off-center or you struggle with hoop burn, look at embroidery hoops for brother machines that use magnetic technology. This is the single fastest way to improve sew-out quality without buying a new machine.
2. The "Volume" Bottleneck: When you are making 50 quilt blocks and the single-needle thread changes are eating your profit margin (or your weekend), that is the signal to look at multi-needle machines.

But for now? Master that 9x14 hoop. Float your batting. Fuse your fabric. And organize your files. Your machine is capable of perfection—it just needs you to lead the way.

FAQ

• Q: How do I hoop No Show Mesh stabilizer correctly for a Brother Luminaire Innov-is XP1 9x14 hoop to prevent puckers in ITH quilting blocks?
  A: Hoop the No Show Mesh stabilizer “drum-tight” before adding any batting or fabric to control rebound and keep the block flat.
  • Tighten: Secure the stabilizer first, then tighten the hoop screw and gently tug the mesh evenly.
  • Check: Keep the inner ring from sitting more than 1–2 mm above the outer ring.
  • Avoid: Do not hoop the batting; float the batting and tack it down with the placement/box stitch.
  • Success check: Tap the hooped stabilizer— it should feel taut like a drum skin and give a dull “thrum,” not a loose flutter.
  • If it still fails: Reduce quilting speed and re-check stitch order so quilting runs before appliqué and satin stitches.
• Q: What is the safest way to trim batting during the Brother Luminaire Innov-is XP1 in-the-hoop batting tack-down step without cutting No Show Mesh stabilizer?
  A: Trim batting with curved snips using a “glide” motion so the scissors ride the stitch line without grabbing the mesh.
  • Lift: Pull the batting slightly up and away from the stabilizer before cutting.
  • Glide: Slide the lower blade along the tack-down stitch line instead of stabbing downward.
  • Stop: Pause immediately if you feel resistance—resistance often means the snips are catching the mesh.
  • Success check: Batting trims away cleanly while the No Show Mesh remains uncut and stays taut in the hoop.
  • If it still fails: Slow down and reposition your hand so the batting stays lifted; replace dull snips that chew instead of slice.
• Q: What stitch order should a Brother Luminaire Innov-is XP1 use for a quilt-as-you-go ITH appliqué block to avoid distortion and gaps?
  A: Run background quilting first, then appliqué placement/tack-down, and finish with satin stitches and lettering.
  • Verify: Confirm on the machine screen that quilting lines stitch before any appliqué shapes.
  • Fix early: Reorder the file in software rather than trying to “wing it” at the machine when possible.
  • Stabilize: Keep the hoop tension consistent so registration stays stable during dense stitches.
  • Success check: Quilting lines stay straight and the appliqué outlines match the fabric edges without drift.
  • If it still fails: Check hoop tightness and fusing—fabric shift is often the root cause when outlines don’t land correctly.
• Q: What Brother Luminaire Innov-is XP1 speed should be used for background quilting lines in a floated-fabric ITH block to prevent the fabric from pushing and puckering?
  A: A safe starting point is slowing the Brother Luminaire Innov-is XP1 down to about 600–700 SPM for broad quilting lines on floated layers.
  • Set: Reduce speed before the quilting run, especially on un-hooped fabric layers.
  • Support: Ensure the background fabric is cut oversized and laid flat before tack-down and quilting.
  • Monitor: Watch for the fabric “snowplow” effect at the needle—slow further if the fabric waves.
  • Success check: Quilting stitches form smooth, even lines with no ripples forming ahead of the presser foot.
  • If it still fails: Re-check that quilting is stitched before appliqué bulk is added and confirm the stabilizer is hoop-tight.
• Q: How do I stop Brother Luminaire Innov-is XP1 raw-edge appliqué fabric from rippling before satin stitches when using Heat n Bond Lite and an in-hoop mini iron?
  A: Fuse the appliqué fabric in the hoop (carefully) so the piece is bonded before dense satin stitching pulls on it.
  • Apply: Use Heat n Bond Lite on the back of the appliqué fabric before placement.
  • Press: Use a mini iron with a wool pad inside the hoop and keep the iron only on the fabric area.
  • Protect: Do not touch the plastic hoop frame or the stabilizer directly with the iron to avoid melting or shrinking.
  • Success check: Perform a fingernail test—scratch the appliqué edge; it should not lift before satin stitching.
  • If it still fails: Re-press the edge and re-check hoop tension; loose hooping allows tiny shifts that show up as misaligned outlines.
• Q: What safety rule should Brother Luminaire Innov-is XP1 users follow to prevent hook assembly damage from scissors or tweezers during ITH embroidery?
  A: Keep metal tools well away from the needle bar area while the Brother Luminaire Innov-is XP1 is running to prevent them from vibrating into the stitching zone.
  • Clear: Keep scissors, snips, and metal tweezers at least 4 inches away from the needle bar area during stitching.
  • Pause: Stop/lock the machine before placing hands or tools in the work area (especially during in-hoop pressing or trimming).
  • Stage: Place tools within reach but outside the movement path of the arm and hoop.
  • Success check: No tools are within the machine’s active motion zone when the start button is pressed.
  • If it still fails: Create a fixed “tool parking spot” on the table so tools never migrate toward the hoop during vibration.
• Q: What magnetic hoop safety precautions should be followed when using magnetic embroidery hoops for in-the-hoop projects on a Brother Luminaire Innov-is XP1?
  A: Treat magnetic embroidery hoops as industrial magnets—control pinch points and keep them away from sensitive medical devices and magnetic data.
  • Protect: Keep magnetic hoops away from pacemakers and implanted medical devices.
  • Handle: Separate and join magnets slowly to avoid finger pinch injuries from snapping force.
  • Store: Keep magnetic hoops away from credit cards and USB drives to reduce risk of magnetic damage.
  • Success check: Magnets seat evenly without sudden snapping, and hands stay clear of pinch zones.
  • If it still fails: Switch to a slower, two-handed placement routine and reposition the hoop on a stable surface before bringing magnets together.
• Q: How do I decide between technique fixes, magnetic hoop upgrades, and multi-needle upgrades when Brother Luminaire Innov-is XP1 ITH blocks keep shifting or causing wrist pain?
  A: Use a tiered approach: optimize fundamentals first, then upgrade hooping if hoop burn/hand strain persists, and consider multi-needle only when volume makes thread changes the bottleneck.
  • Level 1 (Technique): Reconfirm drum-tight stabilizer, quilting-first stitch order, in-hoop fusing, and slower quilting speed.
  • Level 2 (Tool): If hoop burn or wrist pain comes from repeated screw tightening on the 9x14 hoop, magnetic hoops can reduce strain and improve registration consistency.
  • Level 3 (Capacity): If production runs are slowed mainly by single-needle thread changes, a multi-needle machine is often the next step.
  • Success check: Blocks sew flat with aligned outlines, and hooping no longer causes visible rings or repetitive hand pain during runs.
  • If it still fails: Identify the dominant symptom (shift vs. puckers vs. fatigue) and address that specific bottleneck before changing multiple variables at once.
