Reflective Foil Logos Above a Dress Shirt Pocket on an SWF 15-Needle: The Fast, Clean Workflow That Won’t Bite You Later

The Ultimate Guide to Reflective Foil on Dress Shirts (Madeira Reflectra Workflow)

Reflective foil on a dress shirt looks deceptively simple—until you are staring at puckered fabric, a crooked logo floating weirdly above the pocket, or tension that changes halfway through a production run.

Machine embroidery is a science of variables. When you introduce a technical material like Madeira Stitch Foil (Reflectra) to a lightweight woven dress shirt, you are removing the margin for error. This isn't just about loading a design; it is about managing the physics of fabric distortion and thermal bonding.

This workflow is calibrated around a real-world production setup: a commercial single-head SWF 15-needle machine. However, the principles of stabilization, tension, and hooping apply whether you are running a massive shop or a high-end home studio. We will break this down into a "zero-friction" operational guide to prevent remakes and frustration.

Don’t Panic: Understanding the Material Physics

Madeira Stitch Foil (Reflectra) is a reflective, rip-away applique-style material. It is not standard embroidery thread, and it is not basic vinyl.

The "Why" Behind the Method: The win here is visual impact and safety (high visibility for cyclists/night crews) combined with speed. You aren't doing a complicated multi-layer applique build. You are stitching, tearing, and pressing.

However, the finish is where most beginners fail. The specific heat press settings (330–365°F) act as the chemical activator for the adhesive. If you are too cool, it peels after one wash. If you are too hot, the reflective beads crush, and the logo looks dull.

Your Mental Shift: Treat this process like a Standard Operating Procedure (SOP), not an art project. Consistency in heat and pressure is the only way to keep your profit margins.

The “Hidden” Prep Pros Do First: Stabilization Strategy

Before you even touch the machine, you must win the battle against garment distortion. Dress shirts are "honest" fabrics—they have zero loft to hide mistakes. If your stabilizer game is weak, the fabric will shift under the needle, creating the dreaded "outline mismatch."

The Stabilizer Recipe

The video demonstrates a specific "Production Stack" that balances stability with wearability:

1. Against the Shirt: Two layers of Poly Mesh (Weblon).
   • The Why: Poly mesh is soft against the skin (crucial for dress shirts) but extremely resistant to stretching. It holds the grain of the shirt stable without turning the chest area into cardboard.
2. On the Bottom: One layer of Tear-Away.
   • The Why: This adds momentary crispness and rigidity for the needle penetration, ensuring the stitch formation is sharp. It is removed later to keep the garment flexible.

The Clean Table Rule

Reflective foil is a "surface material." It acts like a magnet for oil and dust.

• Action: Wipe down your staging area.
• Check: Ensure your scissors don't have adhesive residue on the blades.
• Consumable Alert: Keep a lint roller and a can of temporary spray adhesive (optional, for floating) nearby.

If you are running a placement system like a hoop master embroidery hooping station, stage your shirt the same way every time (buttons aligned, placket straight, pocket edge referenced). Consistency here is what makes "above pocket" profitable.

Prep Checklist: The "No-Fail" Protocol

• Material: verify you have Madeira Stitch Foil (Reflectra) cut large enough to cover the full design area + 1 inch margin.
• Heat Press: Pre-set to 330–365°F, medium pressure, timer to 15–20 seconds.
• Stabilizer: Stack built: 2× Poly Mesh + 1× Tear-Away.
• Needle: 75/11 Sharp or Ballpoint. (Use a fresh needle; a burred needle will wreck the foil).
• Thread Path: Check for lint in the tension discs.


Machine Setup: Finding the "Sweet Spot" (Speed & Tension)

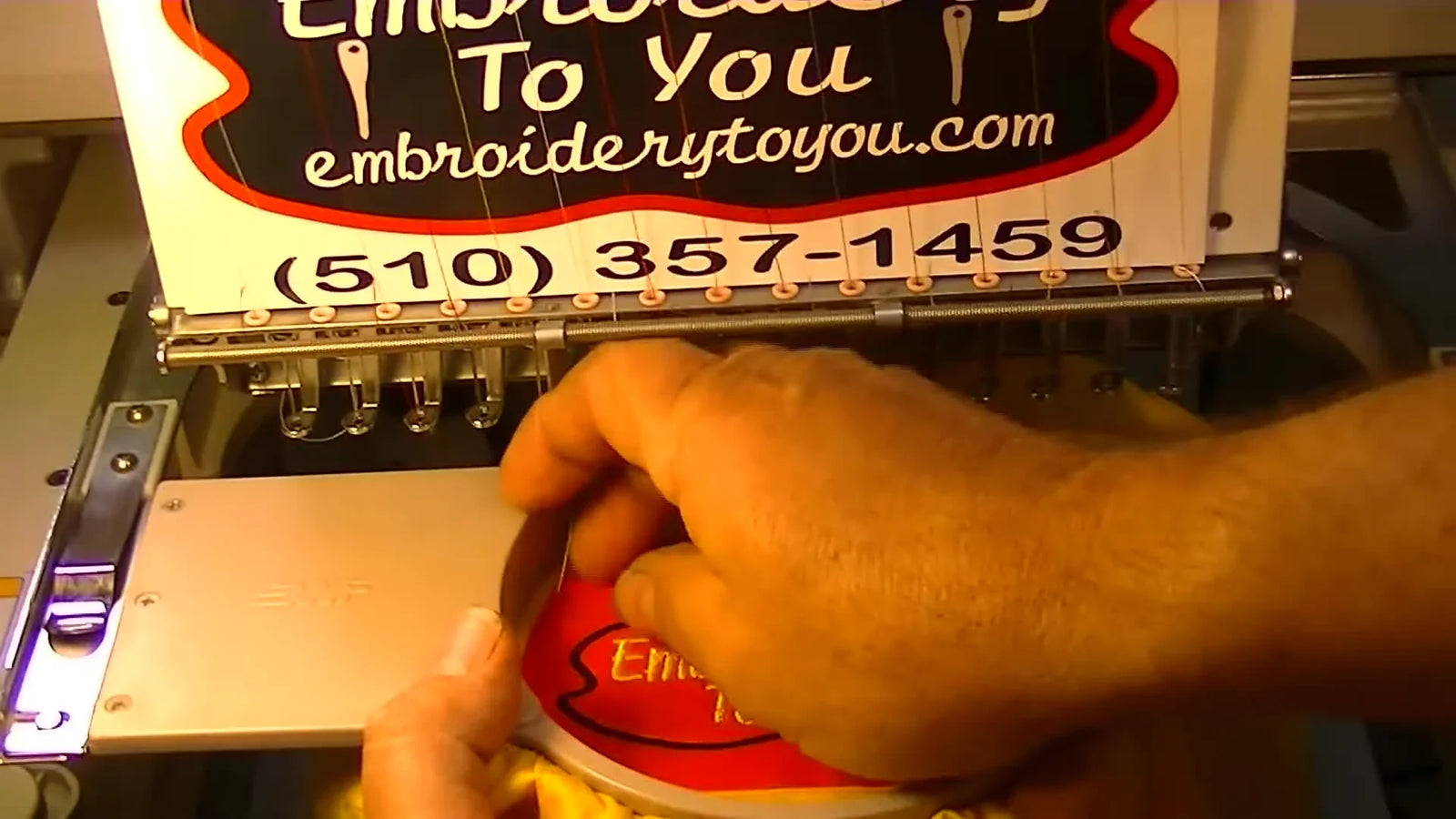

The video runs the job on a SWF 15 Needle Single Head Embroidery Machine at 800 RPM, with a design count of roughly 5,300 stitches.

The Experienced Calibration

While a commercial machine can run at 1000+ SPM, foil works best when the needle doesn't generated excessive heat friction.

• Beginner Sweet Spot: 600 – 700 RPM. Start here. Speed creates vibration; vibration creates movement.
• Pro Sweet Spot: 800 – 900 RPM. Only move here once you trust your hooping.

Sensory Check (Auditory): The machine should sound rhythmic and "thumpy," not high-pitched or clattering. If you hear a sharp "slap-slap-slap" sound, your stabilizer is drumming too loose, or your speed is too high for the fabric weight.

The "Why" of Speed Control: High speeds on dress shirts can cause the fabric to "flag" (bounce up and down with the needle), which leads to skipped stitches and bird-nesting. Slowing down by 200 RPM costs you 30 seconds but saves you a $40 shirt.

The Bobbin Truth: Tension Drift is the Enemy

The host highlights a subtle production killer: Paper-sided bobbins.

The Physics: As a paper-sided bobbin empties (past 50%), the friction coefficient changes because the paper weighs less and spins differently. This causes tension to drop (loosen) mid-run.

• The Upgrade: Fil-Tec Magnetic Core Bobbins. The magnetic core creates constant, mild drag against the bobbin case, ensuring tension is identical from the first stitch to the last.

If you are operating a swf 15 needle embroidery machine or any high-capacity gear, inconsistent bobbins are the #1 cause of "why does my text look sloppy on the last shirt?"

Sensory Check (Focus):

• Visual: Look at the back of your test sew. You should see 1/3 white bobbin thread down the center of the satin column.
• Tactile: When pulling the bobbin thread through the case spring, you should feel resistance similar to pulling dental floss between tight teeth—smooth resistance, not loose, not creating a groove in your finger.

Warning: Mechanical Safety. Keep fingers, snips, and loose sleeves away from the needle area and moving pantograph. Stop the machine completely before trimming thread tails or reaching near the presser foot. A 15-needle head has torque; it does not care about your fingers.

Stabilizer Logic: The Decision Tree

Why use the specific stack mentioned earlier? Because dress shirts are unstable. Here is how to make decisions for other fabrics without guessing.

Decision Tree: Choosing Your Backing

Use this logic to avoid "bulletproof vest" embroidery (too stiff) or puckered messes (too loose).

1. Is the fabric stable (e.g., Heavy Denim/Canvas)?

• Yes: Use 1× Tear-Away or 1× Cut-Away.
• No (Dress Shirt/Polo): Go to Step 2.

2. Is the fabric white or light-colored?

• Yes: Use Poly Mesh (Weblon). Heavy cut-away shows a "shadow" through white shirts. Mesh is invisible.
• No: Standard Cut-Away is acceptable, but Mesh is softer.

3. Is the design density high (Block letters/Full fill)?

• Yes: 2× Poly Mesh + 1× Tear-Away (The Video Method). You need the tear-away for immediate rigidity during the needle impacts.
• No (Open outline): 1× Poly Mesh might suffice, but test first.


Hooping Strategy: The "Above Pocket" Challenge

The video’s placement strategy is standard for B2B work: above the pocket. Embroidering on the pocket is a nightmare of seam thickness and limited space.

The Pain Point: Loading a button-down shirt into a standard round hoop is difficult. The buttons get in the way, the pocket seam creates a ridge that the outer ring can't grip, and the placket forces the hoop askew.

The Fix:

1. Standardize: A hoop master station removes the guesswork. You set the fixture to "Left Chest," and every shirt aligns perfectly.
2. Upgrade (The Game Changer): If you are struggling with "hoop burn" (the shiny ring marks left by clamping dress shirts too hard), this is where magnetic embroidery hoops validate their cost.
   • Why? Magnetic hoops hold the fabric flat using vertical force, not friction. They slide right over buttons and seams without crushing the fabric fibers.
   • Result: No ironing out hoop marks later, and much faster loading times.

Sensory Check (Hooping):

• Tactile: The fabric should be "taut like a bedsheet," not "tight like a drum." If you pull it like a drum, the fabric is stretched. When you un-hoop it, it will relax, and your embroidery will pucker.

Warning: Magnetic Hazard. Mighty Hoops and similar magnetic frames are powerful industrial magnets. Pinch Hazard. Keep fingers clear of the mating surfaces. Keep magnets away from pacemakers, medical implants, and sensitive electronics (phones/digitizer tablets).

The Run: Sequence and Monitoring

The stitching sequence for Reflectra is unique. You are not stitching the whole design; you are stitching the anchor.

The Workflow:

1. Placement (Optional): Some digitizers run a running stitch on the stabilizer to show you where to place the foil.
2. Place Foil: Lay the Reflectra sheet over the area. (Use a tiny dot of spray fix if you are nervous, but usually, gravity is enough).
3. Tack Down: The machine runs the Outline Stitch. This cuts the foil (perforates it) and anchors it to the shirt.
4. Fill/Text: The machine stitches the Satin columns or fills over the foil.

Operator Watch List:

• Watch for the foil "bubbling." It should lay flat.
• Watch the outline alignment. If the outline drifts, your hoop is loose.
• Listen: If the machine sound changes from a hum to a growl, stop immediately. You likely have a birdnest forming under the plate.


The Economics of Placement

Why avoid the pocket itself? The host is blunt: On-pocket embroidery kills efficiency. It often requires removing the pocket, stitching, and sewing it back on (or using specialized narrow clamps).

• The Lesson: "Above Pocket" is the industry standard for a reason. It is clean, repeatable, and scalable.
• B2B Tip: If you desire repeatability, using a hooping station for machine embroidery ensures that Shirt #1 and Shirt #50 have the logo at the exact same height. Corporate clients measure this.


The "Rip": Confidence is Key

Once the stitch is done, you have a sheet of foil stitched to a shirt. Now comes the "weed" or tear-away phase.

The Technique:

1. Support: Place your left hand under the hoop to support the fabric. Do not let the fabric stretch downwards.
2. Tear: Grab the excess foil corner. pull with a sharp, decisive motion away from the stitches.
   • Note: Reflectra is designed to tear cleanly at the needle perforation. If you pull slowly and hesitantly, you risk stretching the foil that is supposed to stay, leaving jagged edges.

Outcome: You should be left with a clean logo field, ready for the heat press.

The Heat Press Bond: The Final Seal

The stitching holds the foil mechanically, but the heat press holds it chemically. Without this step, the foil is just a loose sticker.

The Formula:

• Temp: 330–365°F (165-185°C).
• Pressure: Medium. (Too high creates "platen marks" or texture on the foil).
• Time: 15–20 Seconds.
• Cover Sheet: ALWAYS use a Teflon sheet or parchment paper. Direct metal-to-foil contact will melt the reflective surface instantly.

Finishing Step: Turn the shirt inside out and steam the back lightly to relax any hoop marks (if you didn't use magnetic hoops) and remove backing residues.

Troubleshooting: The "Quick Fix" Matrix

When things go wrong, do not guess. Use this symptom-based diagnosis.

The Upgrade Path: Scaling from Hobby to Profit

Mastering reflective foil on a single-head machine is a serious skill. But if you find yourself doing orders of 20, 50, or 100 shirts, you will hit a wall. That wall isn't your skill—it's your equipment.

Here is how to identify when you need to upgrade, based on your "Pain Points":

Level 1: The "Registration" Pain

• Symptom: You spend 5 minutes measuring every shirt, and they still look uneven.
• Solution: hoop master station. This fixtures the process. You buy consistency.

Level 2: The "Hoop Burn" & Fatigue Pain

• Symptom: Your wrists hurt from clamping; you are ironing shirts for hours to remove ring marks; you dread button-down shirts.
• Solution: magnetic embroidery hoops. These are essential for production speed and garment safety.

Level 3: The "Throughput" Pain

• Symptom: You have to stop the machine to change thread colors; single-needle machines are too slow for your volume; you are turning down orders.
• Solution: Multi-Needle Production Machines (e.g., SEWTECH). Moving to a 15-needle machine allows you to preload all colors, run faster stable speeds (1000 SPM), and produce commercial consistent quality without the babysitting required by home machines.

Final Operation Checklist

• Visual: Foil edges are clean, no jagged tears.
• Bond: Heat press cycle completed (330°F+, 15s+).
• Clean: Jump threads trimmed, tear-away removed from back.
• Safety: No "hoop burn" marks visible on the front.
• Consistency: Hold up 3 shirts—are the logos at the same height?

Embroidery is a journey of refining variables. Start with the right prep, listen to your machine, and upgrade your tools when the volume demands it.

FAQ

• Q: What stabilizer stack should be used for applying Madeira Stitch Foil (Reflectra) on lightweight dress shirts to prevent outline mismatch and puckering?
  A: Use a production-proven stack: 2× Poly Mesh (Weblon) against the shirt + 1× Tear-Away on the bottom.
  • Build the stack with Poly Mesh touching the skin side and Tear-Away underneath for temporary rigidity during stitching.
  • Keep the work surface clean and lint-free because reflective foil attracts oil and dust.
  • Avoid making the embroidery area “bulletproof”; this stack balances stability with wearability on dress shirts.
  • Success check: After a test sew, the shirt stays flat with no ripples around satin text and the outline matches the fill without drifting.
  • If it still fails: Re-check hooping technique (taut, not stretched) and reduce machine speed to lower vibration and fabric flagging.
• Q: What needle type and needle size should be used for Madeira Stitch Foil (Reflectra) embroidery on dress shirts, and when should the needle be replaced?
  A: Start with a fresh 75/11 Sharp or Ballpoint needle; replace immediately if foil edges start tearing or looking rough.
  • Install a new 75/11 needle before production runs because a burred tip can damage foil and create jagged edges.
  • Stop and change the needle if the foil begins to perforate unevenly or the stitch quality changes mid-run.
  • Keep scissors clean of adhesive residue to avoid contaminating the foil during handling.
  • Success check: Foil tears cleanly on the perforation line after stitching, leaving smooth logo edges (no ragged “bite marks”).
  • If it still fails: Verify the tearing technique is fast and decisive (do not peel slowly) and confirm stabilization is firm enough.
• Q: What embroidery machine speed (RPM/SPM) is a safe starting point for Madeira Stitch Foil (Reflectra) on dress shirts to reduce bird-nesting and skipped stitches?
  A: A safe starting point is 600–700 RPM, then increase to 800–900 RPM only after hooping and stabilization are consistently solid.
  • Start slower to reduce vibration and fabric “flagging” that can cause skipped stitches and nesting under the needle plate.
  • Listen during the run and stop immediately if the sound changes sharply (a hum turning into a growl often signals a birdnest forming).
  • Increase speed only after multiple clean samples show stable registration.
  • Success check: The machine sounds rhythmic and “thumpy,” not high-pitched or clattering, and stitches form evenly without looping underneath.
  • If it still fails: Check hoop tension (taut like a bedsheet) and inspect bobbin behavior for tension drift.
• Q: How can embroidery operators diagnose bobbin tension drift caused by paper-sided bobbins during Madeira Stitch Foil (Reflectra) runs?
  A: If stitch quality changes as the bobbin empties, switch away from paper-sided bobbins and use a more consistent option like Fil-Tec Magnetic Core bobbins.
  • Inspect the back of a test sew and look for the “1/3 bobbin thread” balance centered in satin columns.
  • Feel bobbin-case pull: it should resist smoothly like pulling dental floss between tight teeth (not loose, not jerky).
  • Replace bobbins before they get very low if you notice quality dropping late in the run.
  • Success check: First-shirt and last-shirt samples look the same, with consistent underside balance and no suddenly “sloppy” text.
  • If it still fails: Clean lint from tension discs and re-test with the same stabilizer stack and speed.
• Q: How should a dress shirt be hooped for above-pocket embroidery to prevent hoop burn and crooked logos when using standard hoops or magnetic embroidery hoops?
  A: Hoop the shirt “taut like a bedsheet, not tight like a drum,” and avoid crushing the fabric fibers—magnetic embroidery hoops often reduce hoop burn on button-down shirts.
  • Align consistently using measurable references (measure from the placket, not the side seam) to prevent gradual placement drift.
  • Avoid over-tightening standard hoops on dress shirts; excessive clamping pressure is a common cause of shiny ring marks.
  • For buttons, seams, and plackets, consider magnetic hoops because they apply vertical holding force and can load faster with less fabric distortion.
  • Success check: The shirt comes out of the hoop without shiny ring marks, and the logo sits level and parallel to the shirt’s front placket.
  • If it still fails: Standardize placement with a hooping station/fixture to remove eyeballing and improve repeatability.
• Q: What are the key safety rules for running a 15-needle commercial embroidery head during Madeira Stitch Foil (Reflectra) production (thread trimming, reaching near the needle, pantograph movement)?
  A: Stop the machine completely before reaching near the needle area—multi-needle heads have torque and can injure fingers instantly.
  • Keep fingers, snips, loose sleeves, and tools away from the needle and moving pantograph while the machine is running.
  • Trim thread tails only after the head is fully stopped and the needle area is safe to access.
  • Pause immediately if abnormal noise suggests nesting under the plate; do not “ride it out.”
  • Success check: Thread trimming and checks are done only at a full stop, with no hands entering the needle zone during motion.
  • If it still fails: Add a routine pause point in the run sequence for safe checks, and train operators to treat every stop as a full lockout moment.
• Q: What magnetic hoop safety precautions should be followed when using Mighty Hoop–style magnetic embroidery hoops on dress shirts?
  A: Treat magnetic embroidery hoops as industrial magnets: avoid pinch points and keep them away from pacemakers, implants, and sensitive electronics.
  • Keep fingers clear of mating surfaces during closure to prevent pinch injuries.
  • Store magnets away from phones, tablets, and digitizer devices to reduce risk of damage.
  • Do not allow operators with pacemakers or medical implants to handle strong magnetic frames.
  • Success check: Operators can load/unload without finger pinches, and the hoop closes smoothly without forced “slamming.”
  • If it still fails: Switch to a loading technique that sets the garment first and brings the magnetic ring down in a controlled, centered motion.
• Q: When should an embroidery shop upgrade from technique changes to magnetic embroidery hoops, and then to a 15-needle production machine (SEWTECH-class) for reflective foil dress shirt orders?
  A: Use a three-level escalation: optimize process first, add magnetic hoops for hoop burn/loading pain, and move to a multi-needle machine when throughput becomes the bottleneck.
  • Level 1 (Technique): Standardize measuring and hooping; slow speed if flagging occurs; lock down stabilizer stack consistency.
  • Level 2 (Tooling): Upgrade to magnetic embroidery hoops if hoop burn, clamping fatigue, and button-down loading time are hurting quality or output.
  • Level 3 (Capacity): Upgrade to a 15-needle production machine when frequent color changes, stop-start babysitting, or order volume forces you to turn work down.
  • Success check: Compare three consecutive shirts—logos match in height, tension remains consistent, and loading time per shirt is predictable.
  • If it still fails: Add a hooping station/fixture to remove placement variability before increasing machine speed or scaling order size.
