Quilting on a Baby Lock Altair Without the “Hoop Fight”: Clean Backs, Perfect Placement, and a Quilt Sandwich That Stays Put

If free-motion quilting feels like trying to sign your name while riding a rollercoaster, stop beating yourself up. Machine embroidery quilting (Quilting in the Hoop, or QITH) turns that chaotic muscle-memory challenge into a precise engineering process.

In this guide, we are deconstructing Cathy’s Baby Lock Altair demonstration, but we are going deeper. We are adding the sensory cues, safety margins, and industrial workflow secrets that turn a "hobby project" into a professional finish. The goal isn’t just pretty stitches—it is control.

The Calm-Down Moment: Why a Baby Lock Altair Embroidery Machine Can Quilt Like a “Better You”

Let’s remove the pressure immediately: you do not need to quilt the entire king-size bedspread in the hoop. That is a recipe for burnout.

Cathy’s approach—and the industry standard for small studios—is the Hybrid Method. Use the precision of the embroidery machine for the "Hero Blocks" (complex feathers, geometric mandalas, dense motifs) where mistakes are obvious. Then, use straight-line walking foot quilting or free-motion for the background.

From a production standpoint, this is about resource management. If you are doing a run of 20 blocks, the embroidery machine guarantees they are identical. Humans get tired; machines don't.

Pick a Quilting-Friendly Design on the Baby Lock Altair: Continuous Line Beats Dense Fill Every Time

Not all embroidery designs are created equal. If you pick a standard "fill stitch" design, your quilt will feel like a stiff board. You need designs that mimic the fluid path of a hand quilter.

The Physics of the Stiff Quilt: Embroidery designs often have "underlay" (foundation stitches). Quilting designs should not. Cathy filters for Redwork or Continuous Line styles.

The Filter Criteria (Memorize This):

1. Continuous Path: The machine should sew for long stretches without stopping.
2. Zero Density: Avoid "satins" or "tatami fills." You want outlines only.
3. Minimal Trims: Every trim is a potential knot on the back of your quilt.

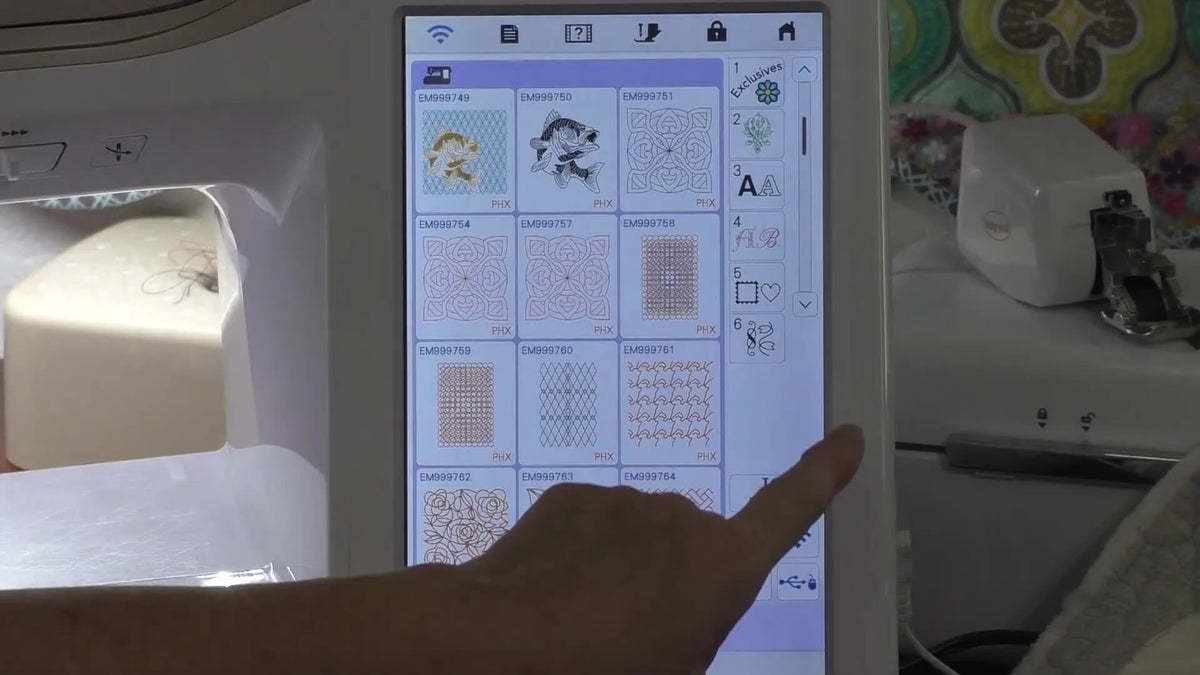

Sensory Check: Look at the digital preview. If the screen shows a solid block of color, that is a bulletproof vest, not a quilt. If it looks like a wireframe drawing, you are safe.

Pro tip from the field: “Pretty” isn’t always “quiltable”

A design that looks beautiful on a tea towel can destroy a quilt sandwich. Heavy needle penetration in one spot can shred batting. Use the machine’s Simulator/Preview function. Watch the virtual needle. If it hammers the same area repeatedly, skip that design for quilting.

The “Hidden” Prep Cathy Uses: Thread Choices, Hoop Size Strategy, and a Flat Hooping Station That Doesn’t Slide

Preparation is 90% of the battle. If you skip this, you will fight the machine for every stitch.

1. Thread: The Material Balance

Cathy suggests cotton quilting thread (30wt or 40wt) for a matte, traditional look.

• Expert Calibration: If using cotton thread (which creates more lint), use a Topstitch 90/14 needle. The larger eye prevents the cotton from shredding.
• Durability Option: For baby quilts that will be washed weekly, use 40wt Polyester embroidery thread. It is nearly indestructible.

2. The Hooping Station Physics

You cannot hoop a thick quilt sandwich in mid-air. You need a dedicated surface. Cathy uses non-slip shelf liner taped to the table.

• Why it works: Friction. When you push the inner hoop down, the outer hoop wants to slide away. The liner locks the outer hoop in place.
• Commercial Insight: Professionals refer to this setup as an embroidery hooping station. It ensures that your kinetic energy goes down into the hoop, not sideways across the table.

Prep Checklist (Do NOT skip)

• Needle Check: Install a fresh Topstitch 90/14 (for cotton) or Quilting 75/11 (for poly). Run your finger over the tip to check for burrs.
• Bobbin Check: Clean the bobbin case. Even a speck of lint causes tension issues.
• Surface Check: Tape down non-slip liner. Ensure the surface is hard and flat.
• Consumable Check: Have your temporary spray adhesive (like 505) and small scissors ready.
• Select Hoop: Choose a hoop at least 1 inch larger than your design to allow for rotation adjustments.


Hooping a Thick Quilt Sandwich in a Baby Lock Standard Hoop: The Tighten-Test That Prevents Mid-Quilt Slippage

This is the number one failure point for beginners. A quilt sandwich (Top + Batting + Backing) is thick, spongy, and resists the hoop.

The "Standard Hoop" Struggle:

1. Loosen significantly: Open the screw until the hoop feels loose.
2. The Press: Push the inner hoop down. It requires force.
3. The Tighten: You must tighten the screw while the fabric is under tension.

Sensory Anchor - The "Drum" Test: Once hooped, tap the fabric. It should not sound like a dull thud. It should sound taut, like a drum skin. Pull the fabric gently; if it moves easily, it is too loose.

The "Hoop Burn" Problem: Standard hoops rely on friction and extreme pressure. On delicate fabrics (velvet, satin) or thick battings, this leaves permanent "hoop burn" marks.

Commercial Solution Pivot (The Upgrade Path): If you are struggling to close the hoop, or if your wrists hurt after three blocks, this is your trigger to upgrade tools.

• Level 1: Use clamps or shelf liner.
• Level 2: Switch to not using the screw. Many professionals specifically search for magnetic embroidery hoops in this scenario.
  • Why: Magnets clamp directly down with vertical force—no friction rubbing, no "hoop burn," and no wrist strain. It handles thick sandwiches automatically.

Warning: Mechanical Safety
When forcing a standard inner hoop into a thick quilt, keep your fingers on the rim of the hoop, never underneath or purely on top where a slip could jam your finger between the rings. If using a screwdriver to tighten, push away from your body.

The physics (why this works)

Cathy performs the Lift Test: Pick up the entire quilt by the hoop. If the heavy quilt doesn't pull out of the hoop, you have enough tension. Gravity is your quality control officer here.

If the fabric slips during the "Lift Test," it will definitely slip when the needle starts pounding at 800 stitches per minute.

IQ Positioning App on iPad: Scan the Hoop Once, Then “Stitch It Right” Even If You Hooped It Crooked

You will never hoop a quilt block perfectly straight. Accept this. Cathy uses the Baby Lock IQ Positioning App to compensate for human error.

1. Capture: She holds the iPad parallel to the hoop. (Tip: Keep elbows tucked in for stability).
2. Transmit: Send the image to the machine.
3. Reality Layer: The machine screen now shows your crooked hoop with the design overlaid.

This technology answers the older search intent for hooping for embroidery machine precision tools. Instead of re-hooping five times, you scan once.

The 0.1° Fix: Fine-Tuning Baby Lock Altair Layout So Your Quilting Lands Inside the Seams

Digital alignment is the cheat code. Once the background image is loaded:

The Micro-Nudge: Use the arrow keys to center the design.

The 0.1° Rotation (The Secret Weapon): Most machines rotate in 1° or 10° increments. That is too coarse for quilting.

• Cathy rotates by 0.1 degrees.
• Why: Over a 10-inch block, a 1-degree error makes the design hit the seam allowance. A 0.1-degree adjustment keeps it perfectly parallel to the ditch.

Setup Checklist (Pre-Flight)

• Hoop Selection: Confirm screen matches physical hoop size.
• Background Scan: Verify the image on screen matches reality (look for a unique fabric mark to confirm orientation).
• Boundary Check: Ensure the design is at least 1/4 inch away from the bulky seam allowance to prevent needle deflection.
• Rotation: Use 0.1° rotation to align the design grid with the fabric grain/seams.

The Trial Key (W+) Needle-Drop Check: Verify Corners Before You Commit Thread to Quilt

Never trust the screen 100%. Trust the needle. Cathy uses the Trial Key (W+). This moves the hoop so the needle hovers exactly over the design's outer limits.

Sensory Confirmation: Lower the needle manually (handwheel toward you) to see exactly where it touches. If it touches a seam or a pin, move the design.

Clean Quilt Backs: Turn Off Auto Trim and Pull Up the Bobbin Thread Like a Quilter (Not Like an Embroiderer)

Standard Embroidery settings are the enemy of clean quilt backs. The Issue: "Bird's Nests" (tangled thread) on the bottom. The Cause: The automatic thread cutter leaves a 1cm tail. When the machine starts the next stitch, that tail gets sewn into a knot.

The Fix (Manual Override):

1. Disable Auto-Jump Stitch Trimming.
2. The "Fish" Technique:
   • Needle Down, Needle Up.
   • Pull the top thread to fish the bobbin loop to the top.
   • Hold both threads under your finger for the first 5 stitches.


Comment-driven watch-out: memory management matters

If you are editing designs, save them to the machine's memory, but delete old versions focused on specific blocks. A cluttered memory leads to stitching "Block_Version_2" instead of "Block_Version_Final."

Troubleshooting the Three Problems That Ruin Quilting-in-the-Hoop (and the Fast Fixes Cathy Uses)

Start with the physical, end with the digital.

Stabilizer Reality Check: When a Quilt Sandwich Is Enough—and When You Still Need Backing Help

Do you need stabilizer? It depends on the "Sandwich Integrity."

Decision Tree: To Stabilize or Not?

1. Is your batting cotton/poly (dense) and fabric cotton?
   • NO Stabilizer needed. The batting acts as the stabilizer.
2. Is your batting "High Loft" (Fluffy polyester)?
   • YES. Use a lightweight tear-away or water-soluble stabilizer on the bottom. The fluff allows too much movement.
3. Is your fabric stretchy (Minky, Jersey, Knit)?
   • YES. Use Cutaway Mesh Stabilizer and temporary spray adhesive (505). Knits will distort without it.
4. Is the design dense?
   • YES. Add stabilizer.
   • NO (Redwork). Sandwich is likely fine.

Hidden Consumable: Always keep a can of temporary spray adhesive. It prevents the layers from "bubbling" in the center of the hoop.

The Upgrade Path That Actually Makes Sense: Faster Hooping, Less Wrist Strain, and More Blocks Per Hour

Cathy’s demo shows the "Standard Method." It works, but it is slow. If you are doing one quilt a year, stay with the standard hoop. However, if you feel frustration with:

• Wrist pain from tightening screws.
• "Hoop burn" ruining fabric.
• Re-hooping taking longer than stitching.

Then you fit the criteria for a Tool Upgrade.

The Professional Solution: Switching to magnetic embroidery hoops changes the workflow. You simply lay the quilt down and snap the magnets on.

• Speed: Reduces hooping time by ~60%.
• Quality: No distortion of the fabric grain.
• Capacity: Easily handles double-batting thickness.

For Baby Lock owners, finding compatible magnetic embroidery hoops for babylock is often the first step toward "production speed" without buying a new machine.

Warning: Magnet Safety
Magnetic hoops use industrial neodymium magnets. They are powerful.
* Pinch Hazard: They snap shut instantly. Keep fingers clear.
* Medical: Keep away from pacemakers.
* Tech: Keep away from credit cards and phone screens.

Operation Rhythm on the Baby Lock Altair: The Small Habits That Keep Stitches Smooth and Backs Neat

Speed Calibration (The Beginner Sweet Spot): The Altair can go 1050 SPM (Stitches Per Minute). Do not do this on your first quilt.

• Set Speed to 600-700 SPM.
• Sensory Audio Anchor: Listen to the machine. It should create a rhythmic "hum." If it sounds like a frantic "tharp-tharp-tharp" pounding, you are going too fast for the batting thickness. Slow down until the sound smooths out.

Tension: Leave it on "Automatic" initially. If you see top thread loops on the back, lower top tension slightly.

Operation Checklist (The "Save Your Quilt" Routine)

• Needle Position: Use "Needle Down" setting if stopping mid-design.
• Tails: Manually pull bobbin thread up (The Fish Technique).
• Observation: Watch the first 100 stitches. If it's going to fail, it usually fails now.
• Completion: When finished, lift needle, pull hoop out, and trim threads flush immediately so they don’t get caught in the next block.


A Quick Note on “Is the Sale Still Going On?” (and How to Think About Machine ROI Without Regret)

Forget the specific sale price in the video. Focus on the Return on Investment (ROI) for your specific pain points.

• Hobbyist: ROI = Pleasure. Does the machine make quilting fun? (Features: Camera positioning, Auto-threading).
• Side-Hustle/Pro: ROI = Time.
  • If you are making 20+ items a week, a single-needle machine requires too many thread changes.
  • The Next Step: This is when you look at SEWTECH Multi-Needle Machines. They stitch faster, hold more colors, and free you to prep the next hoop while the machine works.


The Bottom Line: Quilt One Block Like a Pro, Then Repeat Without Losing Your Mind

Cathy’s workflow on the Baby Lock Altair proves that you don't need a Longarm machine to finish a quilt. You need:

1. Preparation: Flat station, right needle, continuous design.
2. Precision: IQ Positioning + 0.1° rotation.
3. Patience: Slower speeds, manual thread management.

Start with one block. Master the "Drum Sound" of the hoop. Master the "Fish Technique" for threads. Once you have that muscle memory, the machine does the rest.

And remember, if the physical wrestling with the hoop becomes your barrier, tools like baby lock magnetic hoops are there to remove the friction so you can get back to the creativity.

FAQ

• Q: What needle and thread setup works best for quilting-in-the-hoop on a Baby Lock Altair when using cotton quilting thread?
  A: Use 30wt or 40wt cotton quilting thread with a fresh Topstitch 90/14 needle to reduce shredding and lint-related issues.
  • Install: Put in a new Topstitch 90/14 needle (larger eye helps cotton pass cleanly).
  • Clean: Brush out the bobbin area before starting because cotton produces more lint.
  • Slow: Start around 600–700 SPM to reduce needle stress on thick areas.
  • Success check: Stitches look even and the thread does not fuzz or snap during the first 100 stitches.
  • If it still fails: Switch to 40wt polyester embroidery thread for higher durability, then re-check tension on Automatic.
• Q: How do you hoop a thick quilt sandwich in a Baby Lock standard screw hoop so the fabric does not slip mid-quilt?
  A: Loosen the screw a lot, press the inner hoop in firmly, then tighten while the sandwich is under tension and verify with a drum-tight surface.
  • Loosen: Open the screw until the hoop feels unusually loose before inserting the quilt sandwich.
  • Press: Push the inner hoop straight down (use a flat table so force goes downward, not sideways).
  • Tighten: Tighten the screw only after the layers are seated and tensioned.
  • Success check: Tap the hooped area— it should sound taut like a drum, not a dull thud.
  • If it still fails: Do the Lift Test by picking up the quilt by the hoop; if it slips, add anti-slip shelf liner on the table or move to a magnetic hoop to increase vertical clamping.
• Q: How do you prevent hoop burn marks on quilt fabric when quilting-in-the-hoop with a Baby Lock standard hoop?
  A: Reduce reliance on extreme ring pressure by changing the holding method instead of over-tightening the screw hoop.
  • Avoid: Do not crank the screw tighter than needed—standard hoops create marks by friction and pressure.
  • Stabilize: Hoop on a firm, non-slip hooping station so the hoop seats cleanly without extra force.
  • Switch: Consider a magnetic hoop when hoop burn keeps happening, because magnets clamp vertically with less rubbing.
  • Success check: After unhooping, the fabric surface shows minimal ring impression and rebounds without permanent marks.
  • If it still fails: Use a “float” method (hoop stabilizer only, then spray-baste the quilt on top) to reduce direct hoop pressure on the quilt layers.
• Q: How do you stop bird’s nests on the back when quilting-in-the-hoop on a Baby Lock Altair with embroidery settings?
  A: Turn off auto-jump stitch trimming and pull the bobbin thread to the top, then hold both tails for the first stitches.
  • Disable: Turn off Auto-Jump Stitch Trimming so short cut tails don’t knot on restart.
  • Fish: Do needle down/needle up, pull the top thread to bring the bobbin loop to the top.
  • Hold: Hold both thread tails under a finger for the first 3–5 stitches.
  • Success check: The back shows a clean start with no tangled knot or wad forming under the first few stitches.
  • If it still fails: Clean the bobbin case (even small lint can upset tension) and restart the block with fresh thread tails.
• Q: What is the safest way to force a thick quilt sandwich into a Baby Lock standard inner hoop without injuring fingers?
  A: Keep fingers on the hoop rim (not between rings), press straight down on a stable surface, and never tighten toward your body.
  • Position: Place the outer hoop on a flat, hard table with non-slip liner so it cannot slide.
  • Protect: Keep fingertips on the rim edges—never underneath where a slip can pinch hard.
  • Tighten safely: If using a screwdriver for the screw, push away from your body for control.
  • Success check: The hoop closes without sudden slips, and hands never enter the pinch zone between rings.
  • If it still fails: Stop and change the method (clamps/liner support or a magnetic hoop) rather than applying more force.
• Q: What magnet safety rules should be followed when using magnetic embroidery hoops for quilting-in-the-hoop?
  A: Treat magnetic hoops as industrial pinch hazards and keep them away from sensitive medical devices and electronics.
  • Clear fingers: Keep fingers out of the closing path—magnets can snap shut instantly.
  • Medical caution: Keep magnetic hoops away from pacemakers.
  • Protect tech: Keep magnets away from credit cards and phone screens.
  • Success check: Magnets seat without pinching skin, and the hoop closes in a controlled, deliberate motion.
  • If it still fails: Use fewer, smaller placement adjustments—lift and reset magnets carefully instead of sliding them near fingertips.
• Q: When should a quilting-in-the-hoop workflow move from Baby Lock standard hoops to magnetic hoops or even to a multi-needle machine for production efficiency?
  A: Upgrade in layers: optimize technique first, then change hoop technology if hooping is the bottleneck, and consider a multi-needle machine when thread changes limit output.
  • Level 1 (technique): Build a stable hooping station, slow to 600–700 SPM, and use clean-start thread handling for consistent blocks.
  • Level 2 (tool): Move to magnetic hoops if wrist pain, repeated re-hooping, fabric distortion, hoop burn, or sandwich slippage is frequent.
  • Level 3 (capacity): Consider a multi-needle machine when making 20+ items a week and single-needle thread changes consume more time than stitching.
  • Success check: Hooping time drops, re-hooping becomes rare, and blocks come off the machine consistent without edge drift or start-up tangles.
  • If it still fails: Track where time is lost (hooping vs. alignment vs. thread handling); fix the biggest bottleneck first before changing equipment.
