Quilting in the Hoop on a Baby Lock: Fix “Eyelashing” Fast and Get a Truly Reversible Stitch

If you have ever flipped your hoop over after a session of “quilting in the hoop,” expecting perfection, only to feel your stomach drop because the back looks messy, prickly, or “dotted” with top thread—you have entered the universal struggle of the machine embroiderer.

In any workshop I have managed over the last twenty years, I call this the "Tension Trap." The good news? Your project is likely not ruined. The bad news? Your machine is doing exactly what it was programmed to do for embroidery, which happens to be the opposite of what you need for quilting.

When we embroider, we are painting with thread. When we quilt, we are structuring fabric. The physics are different, and your machine needs you to tell it the rules have changed.

In this masterclass guide (demonstrated on a Baby Lock but applicable to most single-needle machines), we will move beyond guesswork. We will achieve a balanced, reversible stitch—the kind of quilting that looks professional from both sides of the sandwich. We will diagnose the dreaded “eyelashing” (top thread looping to the back) and fix it using two specific levers: hardware (bobbin case choice) and software (touchscreen tension).

Embroidery tension vs. quilting tension on a Baby Lock: why your “normal” settings betray you

To fix a problem, you must first understand the mechanism causing it. In standard embroidery, your machine is engineered to create an unbalanced stitch. The top tension is slightly looser, and the bobbin tension is tighter. Why? Because we want the top thread to wrap slightly around the back of the fabric, ensuring that no white bobbin thread ever peeks through to the front of your satin stitch or design.

The 1/3 Rule: In perfect embroidery, the back of a satin column should show 1/3 top thread, 1/3 bobbin thread in the center, and 1/3 top thread.

However, Quilting is a different beast. When you are quilting in the hoop (stippling, meandering, or texture fills), you are stitching through a thick "sandwich" (Top Fabric + Batting + Backing). You typically want a stitch that looks identical on both sides. This requires a Perfect 50/50 Balance—where the top thread and bobbin thread knot exactly in the center layer of the batting.

The Mental Reset

Visualizing this is key to fixing it.

• Embroidery Mindset: "Start a Tug-of-War where the Bobbin wins." (Hides thread on the back).
• Quilting Mindset: "Create a Stalemate." (Knots bury in the middle).

If you are building a workflow around speed and consistency—especially when hooping thick quilt sandwiches—standard plastic hoops can be a nightmare. They require massive hand force to close over batting, often causing "hoop burn" or shifting the fabric, which ruins that perfect tension balance. This is where tools like magnetic hoops for babylock embroidery machines become a production asset; they hold the sandwich firm without forcing the fibers apart, allowing you to keep your tension results repeatable from block to block.

The 10-second diagnosis: flip the hoop and spot “eyelashing” before you waste a whole design

The single most expensive mistake beginners make is pressing "Start" and walking away. The host’s first move is the one I wish every operator did religiously: The Flip Inspection.

She flips the hoop over and inspects the backside of the quilting sample. The dark green top thread is looping down to the back, creating a messy, prickly look. In the industry, we call this “Eyelashing.”

Sensory Diagnosis: What to Look and Feel For

• Visual Check: Do you see the color of your top thread spotting the back? Usually, it looks like little dashes or loops.
• Tactile Check: Run your fingernail gently over the back of the stitches.
  • Smooth? Good tension.
  • Scratchy/Catchy? Your top thread is too loose (eyelashing).
  • Bumpy/Hard knots? Your top tension might be too tight, pulling bobbin thread up.




The “AA” test sample: a quick reality check for what your machine thinks is “normal”

The host references letter samples (like a simple satin stitch "AA") as a common benchmark.

• Embroidery Result: Lots of top thread on the front, white bobbin thread visible only on the back. This is correct for lettering.
• Quilting Result: If you use settings that produced that "AA" for your quilting stipple, the back of your quilt will feel rough and look fuzzy.

Stippling exposes tension imbalances brutally because it consists of long running stitches in multiple directions. Unlike a satin stitch that clamps down on itself, a running stitch relies entirely on the knot balance to look good.

The “hidden” prep that prevents tension lies (thread weights, bobbin case, and quilt sandwich reality)

Before you touch a single tension number on your screen, you must ensure your physical setup isn't lying to you. Quilting in the hoop adds drag (friction) and bulk (thickness). If you use standard embroidery consumables, you are fighting physics.

Thread Physics: The 50wt vs 40wt/60wt Debate

The host explains a critical variable: Matching Weights.

• Standard Embroidery: 40wt Rayon/Poly on Top + 60wt thin Bobbin thread. (Unmatched).
• Standard Quilting: 50wt Cotton on Top + 50wt Cotton in Bobbin. (Matched).

If your machine is calibrated for that thin 60wt bobbin thread, and you shove a thick 50wt cotton thread into the bobbin case, you have effectively increased the specific density of the thread. This increases drag. If you don't adjust for this, your tension will never balance.

Expert Note: Cotton grabs; Polyester slides. If you switch from Poly to Cotton, you will feel more resistance. This is normal, but it requires tension adjustment.

Prep Checklist: The "Pre-Flight" Protocol

• 1. The Bobbin Audit: Are you using a pre-wound disposable bobbin (usually 60wt) or did you wind your own matching 50wt cotton? For reversible quilting, wind your own matching bobbin.
• 2. The Needle Choice: Are you still using an Embroidery 75/11? For quilting through batting, switch to a Quilting 75/11 or Topstitch 90/14. The larger eye reduces friction on the thread, helping minimize eyelashing.
• 3. The Sandwich Check: Is your test scrap consistent with your final project? Testing on a single layer of cotton is useless if your project has batting. Use the exact "sandwich" for testing.
• 4. Baseline Recording: Write down your current tension settings (e.g., "4.0"). Do not change them yet.

Warning: Physical Safety
Keep fingers, hair, and loose sleeves away from the needle area while testing. When inspecting the back of the hoop, always fully stop the machine. Do not just "Pause" it implies readiness to move. A sudden start while your hand is under the hoop can lead to severe needle puncture injuries.

The fix that actually works: two levers—standard sewing bobbin case + upper tension on the touchscreen

Most users try to fix everything with the touchscreen. This is a mistake. The host demonstrates the "Pro Approach": fix the hardware first, then fine-tune with software.

Expected Outcome (The Goal)

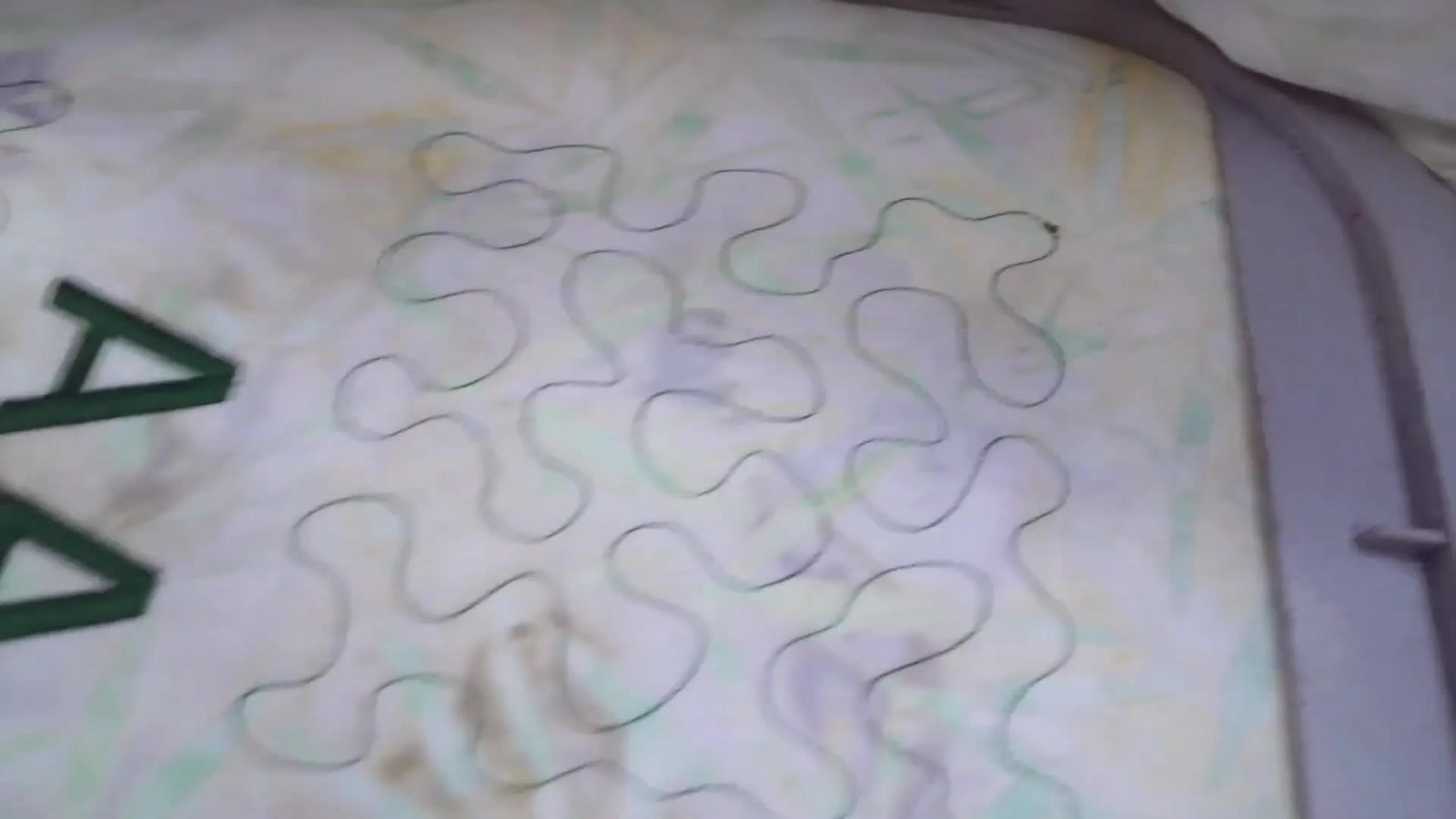

After adjustment, the host shows the same stippling pattern. The difference is night and day. The back side is clean. You see needle holes and a stitch line, but no "lashes" of top thread. This is a Balanced Stitch.

Fix #1: swap the embroidery bobbin case for a standard sewing bobbin case (the fastest hardware win)

If you own a Baby Lock or Brother machine, you likely have two bobbin cases. One has a green marking screw (or pink/blue depending on the model year) and one is plain or has a different mark.

• Embroidery Case (High Tension): Pre-set tightly to force the bobbin thread to hide.
• Sewing Case (Lower Tension): Pre-set loosely to allow the threads to meet in the middle.

The Fix: Do not try to screw and unscrew your embroidery bobbin case to make it work (you'll lose that perfect factory setting!). Instead, simply swap in the Standard Sewing Bobbin Case.

Action Steps:

1. Remove the throat plate cover.
2. Lift out the bobbin case (identifiable by the green/pink paint mark on the screw).
3. Drop in the gray/standard sewing bobbin case.
4. Sensory Check: Listen for the case to sit flat. It should rattle slightly if you wiggle it, but not spin.
5. Re-thread and test.






Why this works (The "Slack" Principle)

Think of the bobbin tension as an anchor. If the anchor is too heavy (tight embroidery case), the top thread has to pull incredibly hard to lift it. By swapping to the sewing case, you lighting the anchor. Now, the top thread doesn't have to work as hard to pull the knot up into the batting. This instantly reduces the "eyelashing" effect on the back.

Fix #2: adjust Baby Lock on-screen tension from 4.0 to 5.0 (the exact move shown)

Once the hardware is swapped, we use the digital controls for fine-tuning.

• Default Tension: 4.0 (Standard)
• Adjusted Tension: 5.0 (Tighter)

The Logic: Eyelashing means the top thread is too loose (it's falling out the back). Therefore, we must tighten the top tension to reel it back in.

Action Steps:

1. Navigate to the Tension screen.
2. Increase the value. Expert Tip: Do not jump straight to 5.0. Move in increments of 0.2 or 0.4 (e.g., 4.0 -> 4.4). Test. Then 4.8. Test.
3. Auditory Check: As you stitch, listen to the machine. A "slapping" sound typically means tension is too loose. A rhythmic "hum" is good. A high-pitched "straining" or "snapping" sound means you have gone too tight.








Setup Checklist: Verifying the Fix

• Baseline: Hardware = Sewing Bobbin Case. Screen Tension = 4.0.
• Test 1: Run a 2-inch line. Inspect Back. (Still loose?)
• Adjustment: Increase Screen Tension to 4.4 or 4.6.
• Test 2: Run another 2-inch line. Inspect.
• Success Metric: Top thread is barely visible or invisible on the back. Bobbin thread looks like a clean dash.

The “why” behind eyelashing: quilting stitches expose imbalance faster than embroidery fills

Why does your machine stitch a perfect Mickey Mouse but fail at a simple stippling line?

Eyelashing happens because satin stitches (like on a cartoon patch) zigzag back and forth, locking themselves in place. A running quilt stitch has nowhere to hide. It is linear. If the tension is off by even 10%, gravity and drag pull that excess thread to the path of least resistance: the back.

The Factor of Drag: A quilt sandwich (Fabric+Batting) has vertical height. The needle has to travel further down and further up. The friction of the batting grabs the thread.

• If your hoop is distorting the fabric (stretching it like a drum skin), the batting compresses unevenly. This makes tension inconsistent.
• Using a magnetic embroidery hoop helps solve this by clamping the quilt sandwich vertically without pulling it horizontally. This reduces the "Flagging" (fabric bouncing up and down) that causes bird-nesting and eyelashing.

Troubleshooting the two scary symptoms: what you see, what it means, what to change

When things go wrong, don't panic. Use this Symptom/Solution matrix.

Symptom A: Top Thread Loops on the Back ("Eyelashing")

• Visual: Dark/Colored thread loops looking like messy handwriting on the underside.
• Tactile: Feels scratchy.
• Cause: "Top is Week, Bottom is Strong." Top tension is too loose OR Bobbin is too tight.
• The Fix:
  1. Clean the top tension discs (floss with un-waxed dental floss).
  2. Swap to Sewing Bobbin Case (Loosen bottom).
  3. Increase Top Tension (e.g., 4.0 -> 4.6).

Symptom B: Bobbin Thread Pulled to Top ("Railroading")

• Visual: White dots or a solid white line appearing on your pretty top fabric.
• Tactile: Top feels like a tight wire; fabric may pucker.
• Cause: "Top is Hulk, Bottom is Weak." Top tension is too tight.
• The Fix:
  1. Check if thread is caught on the spool pin (common false tension).
  2. Lower Top Tension (e.g., 4.0 -> 3.2).
  3. Switch back to Embroidery Bobbin Case (Tighten bottom).

Warning: Never "crank" tension aggressively (e.g. 4.0 to 8.0). This puts massive stress on the take-up lever. If you need that much tension to fix a stitch, the problem is likely a piece of lint stuck in the thread path, not the setting itself.

Stabilizer/backing decision tree for quilting in the hoop (so tension isn’t fighting fabric movement)

Tension is useless if your foundation is shifting. In professional settings, stabilization is the unsung hero of perfect quilting.

Decision Tree: Stabilizing for Quilt Blocks

1. Is the Batting Loft High (Thick/Fluffy)?
   • YES: You face a "Shift Risk." The presser foot will push fabric like a bulldozer.
     • Solution: Use a Magnetic Frame for secure hold. Use No Show Mesh stabilizer to anchor without adding bulk. Use Odif 505 Temporary Spray to glue the sandwich layers together.
   • NO (Standard Cotton Batting):
     • Solution: Floating method works, but hooping is better for tension. Standard Tear-Away or Cut-Away is fine.
2. Are you stitching Edge-to-Edge (Continuous)?
   • YES: Alignment is critical.
     • Recommendation: In production environments, maintaining this alignment across 50+ blocks requires consistency. Many shops utilize magnetic embroidery frames because they allow you to slide fabric without un-clamping and re-clamping screw mechanisms, preserving the grain of the fabric.
3. Is the Back Visible (Reversible Project)?
   • YES: Use Water Soluble Stabilizer (Wash-Away).
     • Why? You don't want to pick tear-away bits out of your stitches. It vanishes, leaving only the perfect 50/50 tension knot.

The upgrade path that saves your wrists (and your time): hooping workflow matters more than people admit

Quilting in the hoop is technically demanding, not just on the machine, but on your body. If you are doing a king-size quilt involved 60+ blocks, you will be hooping and un-hooping 60 times.

The Physical Toll: Standard screw-hoops require wrist torque to tighten. Doing this repeatedly leads to fatigue, and fatigue leads to "good enough" hooping—which leads to bad tension.

The Solution Hierarchy:

1. Level 1: Better Technique. Learn to loosen the screw before inserting the inner ring. (Free).
2. Level 2: Tool Upgrade. If you struggle to clamp thick quilt sandwiches or see "Hoop Burn" (shiny crushed fabric marks), consider magnetic hooping station technology or simply magnetic frames. These use vertical force (magnets) rather than horizontal friction.
3. Level 3: Workflow Architecture. For small businesses, consistency is money. If you cannot afford to re-stitch a block because it was crooked, a hoop master embroidery hooping station ensures every logo or block lands in the exact same coordinate. While often used for shirts, the concept applies to tiling quilt blocks.
4. Level 4: Efficiency. The phrase "Time is Money" is real. Using a hooping station for embroidery reduces the setup time from 3 minutes per block to 45 seconds per block.

Warning: Magnetic Safety
Modern magnetic hoops are industrial strength. They can pinch fingers severely if they snap together unexpectedly.
* Pacemakers: Keep strong magnets at least 6-12 inches away from implanted medical devices.
* Electronics: Do not rest magnetic hoops on laptop hard drives or credit cards.
* Handling: Always slide magnets apart; do not try to pry them apart.

Operation checklist: the repeatable “balanced stitch” routine you can trust

Before you ruin your good fabric, run this checklist every single time you set up for Quilting in the Hoop.

• 1. The Mechanics:
  • Needle: New 75/11 Quilting or 90/14 Topstitch.
  • Bobbin Case: Standard Sewing Case installed (check for absence of green paint).
  • Bobbin Thread: Wound using same weight thread as top (50wt recommended).
• 2. The Setup:
  • Machine Tension: Set to 4.6 - 5.0 (or whatever your documented "Sweet Spot" is).
  • Consumables: Adhesive spray used to bond layers?
  • Hooping: Is the sandwich flat and "drum-tight" but not stretched? (Consider magnetic hooping station if struggling here).
• 3. The Test:
  • Stitch a 2-inch test line or "AA".
  • STOP.
  • Flip hoop.
  • Tactile Audit: Smooth back? Setup Approved. Scratchy back? Tighten top tension +0.2 and re-test.

Once you hit that perfect balance, take a piece of masking tape, write the settings down (e.g., "Cotton Sandwich: Tension 4.8, Sewing Case"), and stick it to the side of your machine. Trust your data, not your memory.

FAQ

• Q: How do I diagnose “eyelashing” (top thread looping to the back) when quilting in the hoop on a Baby Lock single-needle machine?
  A: Stop early and do a flip inspection—eyelashing shows as colored top-thread loops/dashes on the back and usually feels scratchy.
  • Stitch: Run a short 2-inch test line or a small quilting sample on the same quilt sandwich.
  • Stop: Fully stop the machine, then flip the hoop and inspect the underside.
  • Feel: Lightly drag a fingernail across the back to check for scratchy loops versus a smooth stitch.
  • Success check: The back looks clean (no “lashes” of top thread) and feels smooth rather than prickly.
  • If it still fails… Treat it as a tension imbalance: swap bobbin case first, then fine-tune upper tension in small steps.
• Q: Which Baby Lock bobbin case should be used for quilting in the hoop to prevent eyelashing: the embroidery bobbin case (green/pink marked screw) or the standard sewing bobbin case?
  A: Use the standard sewing bobbin case for quilting in the hoop; the embroidery bobbin case is pre-set tighter and commonly causes eyelashing on running stitches.
  • Remove: Take off the throat plate cover and lift out the marked embroidery bobbin case.
  • Install: Drop in the standard sewing bobbin case (the one without the green/pink marking).
  • Re-thread: Re-thread the machine and stitch a short test line.
  • Success check: The bobbin case seats flat and the quilting back side shows no messy top-thread loops.
  • If it still fails… Increase on-screen upper tension gradually after confirming correct threading and a consistent quilt sandwich test.
• Q: What Baby Lock on-screen upper tension change fixes top thread loops on the back when quilting in the hoop (example: 4.0 to 5.0)?
  A: Tighten the upper tension in small increments (the demonstrated move is from 4.0 toward 5.0) after installing the standard sewing bobbin case.
  • Baseline: Start at the recorded default (often 4.0) with the sewing bobbin case installed.
  • Adjust: Increase by 0.2–0.4 per test (for example 4.0 → 4.4 → 4.8), testing each time.
  • Listen: Pay attention to sound—“slapping” often indicates too loose; straining/snapping sounds indicate too tight.
  • Success check: The back shows a clean stitch line with little to no top-thread color poking through.
  • If it still fails… Clean/floss the tension discs and re-check thread path for drag or snags before pushing tension higher.
• Q: What thread and needle setup helps Baby Lock quilting-in-the-hoop tension balance when switching from embroidery supplies to quilting supplies?
  A: Match top and bobbin thread weights for reversible quilting and use a quilting/topstitch needle to reduce friction through batting.
  • Match: Wind a bobbin with the same weight thread used on top (the blog example contrasts 50wt/50wt quilting vs 40wt top + 60wt bobbin embroidery).
  • Swap needle: Replace an embroidery 75/11 with a Quilting 75/11 or a Topstitch 90/14 when stitching through batting.
  • Test correctly: Always test on the exact quilt sandwich (top + batting + backing), not a single cotton layer.
  • Success check: The stitch looks balanced and the back feels smooth without scratchy top-thread loops.
  • If it still fails… Expect cotton to add drag compared with polyester; re-test with small upper tension changes after confirming the bobbin case choice.
• Q: What is the success standard for balanced quilting-in-the-hoop tension on a Baby Lock machine (50/50 balance vs embroidery 1/3 rule)?
  A: For quilting in the hoop, aim for a reversible 50/50 balance where the knot lands in the middle of the batting, not an embroidery-style back that hides bobbin thread.
  • Inspect: Flip the hoop and check that neither thread dominates the opposite side.
  • Compare: Use a short stipple line or simple test sample to reveal imbalance quickly.
  • Feel: Use a fingernail “tactile audit” for smoothness on the back.
  • Success check: The back shows a clean dash-like bobbin line with no fuzzy looping of top thread and no bobbin dots pulled to the top.
  • If it still fails… Identify the symptom direction: eyelashing (top too loose or bobbin too tight) vs railroading (top too tight).
• Q: How do I fix Baby Lock “railroading” when bobbin thread is pulled to the top during quilting in the hoop?
  A: Reduce upper tension first; railroading is usually caused by upper tension being too tight.
  • Check: Confirm the top thread is not caught on the spool pin or snagging (false tight tension).
  • Lower: Decrease the on-screen upper tension (example move: 4.0 down toward 3.2) and re-test.
  • Consider case: If needed for your setup, switch back to the embroidery bobbin case to tighten the bobbin side.
  • Success check: White bobbin “dots” or lines on the top disappear and the fabric stops looking pulled/puckered.
  • If it still fails… Stop “cranking” numbers; look for lint or debris in the thread path and re-test after cleaning.
• Q: What safety rule should be followed when flipping a Baby Lock hoop to inspect quilting tension during a test stitch?
  A: Fully stop the machine before placing hands under or near the hoop—do not rely on “Pause,” because unexpected movement can cause serious needle injuries.
  • Stop: Use a full stop before reaching near the needle area or flipping the hoop.
  • Control: Keep fingers, hair, and loose sleeves away from the needle zone during testing.
  • Inspect safely: Flip and feel the backside only when the machine is completely stopped.
  • Success check: The inspection is done with zero movement from the needle mechanism.
  • If it still fails… Slow the workflow down—short test lines and safe stops prevent costly mistakes and injuries.
• Q: What are the magnetic hoop safety rules when using strong magnetic embroidery frames for quilting in the hoop?
  A: Treat magnetic hoops as industrial-strength clamps—prevent finger pinches, keep magnets away from pacemakers, and avoid contact with sensitive electronics.
  • Handle: Slide magnets apart; do not pry them apart where fingers can get trapped.
  • Protect: Keep magnets 6–12 inches away from implanted medical devices (follow medical guidance).
  • Store: Do not rest magnetic hoops on credit cards or near devices that can be affected by strong magnets.
  • Success check: The hoop closes without snapping onto fingers and the quilt sandwich is held firmly without shifting.
  • If it still fails… If consistent hooping is difficult with thick batting, improve technique first, then consider a more controlled hooping workflow to reduce mis-hoops and rework.
