Quilters Metal Hoop on the Husqvarna Viking Designer Epic 2: Magnetic Hooping That Stops Hoop Burn (and Stops the Fight)

If you have ever wrestled a thick quilt sandwich into a traditional two-piece hoop—sweating as you try to force the inner ring in without popping the outer ring off—or watched a delicate silk fabric emerge with permanent "hoop burn" rings, you already understand the emotional reality of this craft. Hooping is often the highest-friction point in the embroidery process. It shouldn’t look like a fight, and it definitely shouldn't feel like one.

In this tutorial, we are analyzing a workflow demonstrated by fashion designer and educator Anastasia Chatzka using the Husqvarna Viking Quilters Metal Hoop (200x200mm) on the Designer Epic 2. While Anastasia provides a seamless visual demonstration, my job as your guide is to pause the tape, look under the hood, and add the 20 years of production floor experience that ensures you don't just watch a success, but replicate it.

We will focus on the sensory details—the "clicks," the tension feel, and the specific physics—that separate a hobbyist’s struggle from a professional’s consistency.

The Calm-Down Moment: What a Metal Magnetic Embroidery Hoop Actually Does (and Why It Feels Like Cheating)

To the uninitiated, a metal magnetic hoop looks suspiciously simple: a flat metal frame goes under your fabric, and separate magnets clamp it from the top. There is no inner ring to squeeze inside an outer ring.

The magic isn’t just in the ease of use; it is in the physics of vertical force.

Traditional hoops rely on friction and lateral outlines. You have to distort the fabric fibers slightly to wedge them between two plastic rings. This friction is what causes "hoop burn"—the crushing of the nap (on velvet or towels) or the permanent creasing of delicate stiffeners.

By contrast, a magnetic embroidery hoop utilizes pure vertical clamping pressure. This matters for two reasons:

1. Zero-Distortion Holding: The fabric is held flat between the magnet and the metal base. There is no "rim" forcing the fabric to bend 90 degrees.
2. Infinite Adjustability: Unlike a fixed hoop that is either "clamped" or "loose," magnets allow the fabric to "float" until the final second, accommodating variable thicknesses like spongy batting or heavy denim seams without forcing you to loosen a screw.

From a production standpoint, this is the difference between "trapped" fabric and "stabilized" fabric.

Unboxing the Quilters Metal Hoop 200x200mm Kit: Don’t Skip the Grid (It Saves Your Centering)

Anastasia opens the kit and reveals the standard loadout:

• The large white metal hoop frame (the chassis).
• Eight high-strength magnets (the engine).
• A user guide.
• A clear plastic grid template marked for 200x200mm.

Novices often toss the plastic grid aside. Don't. In the world of "floating" materials (where you aren't locking fabric into a fixed plastic ring), your visual references disappear. That plastic grid is your only chaotic-neutral reality check against the X/Y axis of the machine.

Pro Tip (The "Parallax Error" Fix): When using the grid to center your design, do not look at it from an angle. Stand directly over the hoop. Identify the crosshairs. If your fabric has a pattern (like plaid or stripes), align the grid lines to the fabric pattern, not just the chalk mark. This ensures your quilt block doesn't end up rotated by 3 degrees—a mistake that screams "amateur" on a square pillow.

The “Hidden” Prep Pros Do First: Build a Flat Quilt Sandwich Before You Touch a Magnet

In the video, Anastasia preps on a flat table:

1. She lays the batting down first.
2. She smooths the taffeta (top fabric) on top.




Here is the "Invisible Consumable" step that most tutorials gloss over. If you simply lay slippery taffeta over fluffy batting, they will slide against each other like tectonic plates as the needle engages.

The Professional Upgrade: Temporary Adhesive. Before laying the top fabric, experts almost always use a light mist of temporary spray adhesive (like ODIF 505) or a fusible batting. This creates a "monolithic" structure. The goal is to make two layers act like one.

• Sensory Check: The fabric should not feel sticky to the touch, but if you lift a corner of the top fabric, the batting should lift with it.

Prep Checklist (Do this BEFORE the hoop touches the table)

• Needle Check: Are you using a Quilting 75/11 or 90/14? Universal needles often struggle to penetrate thick sandwiches cleanly, leading to skipped stitches.
• Bobbin Check: Is your bobbin at least 50% full? Running out of bobbin thread midway through a quilt block is a nightmare to patch invisibly.
• Surface Check: Is your workspace flat? Hooping on a lap or a cluttered desk invites gravity to pull your fabric off-grain.
• Hidden Consumable: Have your curved embroidery scissors and a temporary marking pen ready nearby.

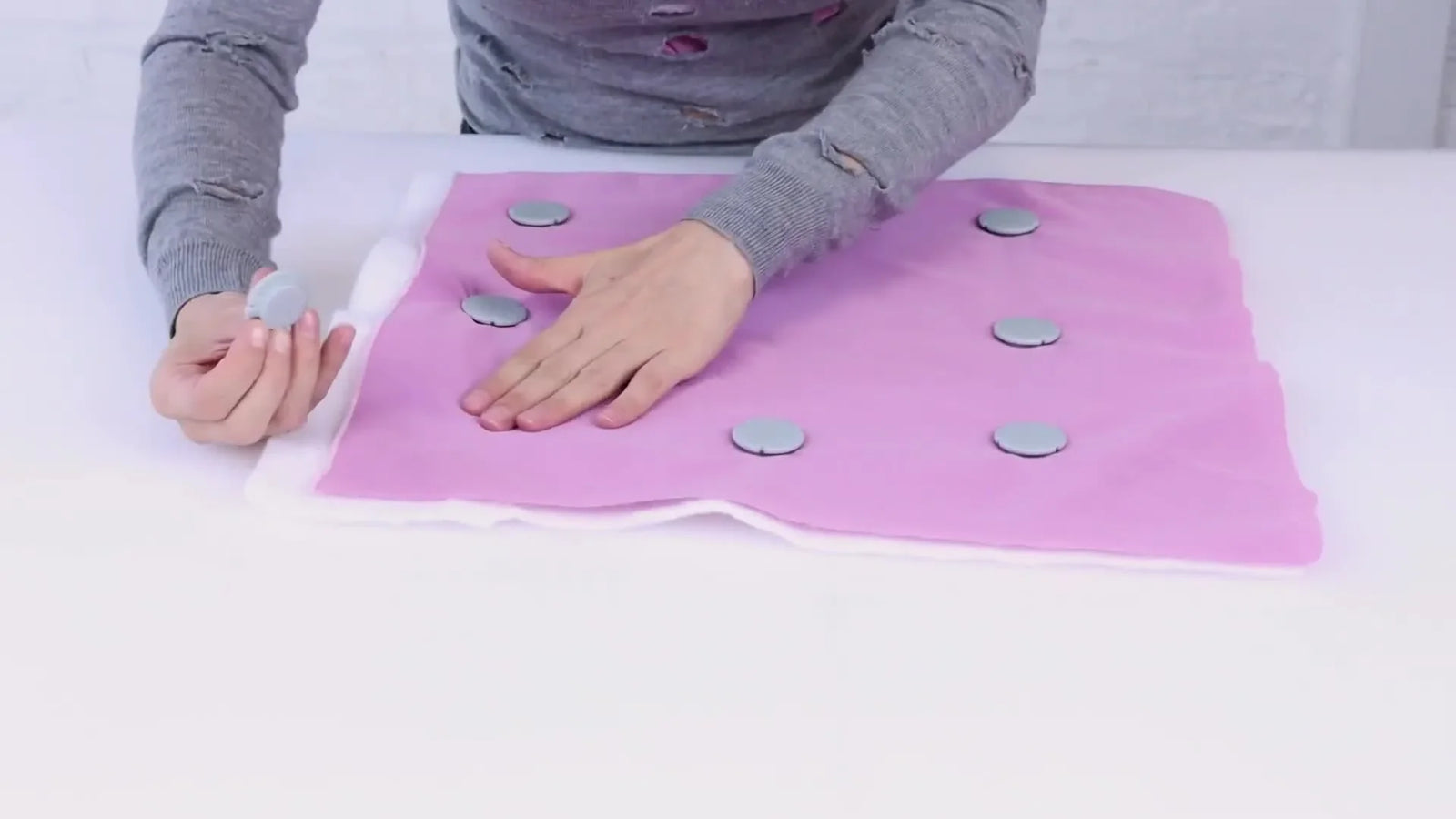

The Fast Hooping Method: Slide the Metal Frame Under, Then Place Magnets Like You’re “Pinning” Tension Evenly

Anastasia’s sequence is textbook perfect for a hooping station for machine embroidery or a flat table workflow:

1. Slide the metal frame under your pre-stacked sandwich.
2. Palpate the edges to ensure the metal frame is centered under your block.
3. Place the magnets one by one, working in a "North, South, East, West" pattern (like tightening lug nuts on a tire).




The "No-Stretch" Rule: Anastasia explicitly says: "Don't pull or push the fabric." This is counter-intuitive for embroiderers trained on wooden hoops. In the magnetic world, you are smoothing, not stretching. By placing the magnets gently, you lock the fabric in its "relaxed state."

Why this matters: If you stretch the fabric while clamping, you build potential energy into the fibers. As you stitch, the fabric fights to snap back to its original shape. This causes the dreaded "puckering" or "dishing" around the design.

• Tactile Cue: The fabric should feel flat and firm, like a well-made bed sheet, not tight like a drum skin.

Setup Checklist (The "Pre-Flight" Inspection)

• Magnet Clearance: Are the magnets pushed all the way against the internal rim? If they encroach into the stitching field, your needle bar will strike them. (Catastrophic mechanical failure).
• Fabric Drapery: Is the excess fabric outside the hoop supported? Heavy fabric hanging off the edge can drag the magnets out of alignment during high-speed movement.
• Sandwich Integrity: Run your hand over the surface. Do you feel any lumps regarding the batting? Smooth them now.

Wrinkle Rescue in 5 Seconds: Lift One Magnet, Smooth With Your Palm, Re-clamp

In the video, Anastasia spots a wrinkle. Instead of un-hooping the whole project (the nightmare of traditional hoops), she performs a precision strike:

1. Lift one specific magnet.
2. Sweep the wrinkle out with a thumb or palm.
3. Snap the magnet back down.


This "Micro-Adjustment Capability" is the single biggest ROI (Return on Investment) of a magnetic system. It allows you to refine tension locally without losing your global centering.

Expert Note on Drag: If you are working with a tubular item (like a sweatshirt) or a very heavy quilt, the weight of the item can shift the fabric even under magnets. In these cases, combining magnets with strong clips on the edges of the frame adds a second layer of security.

“Are These Magnets Going to Slip?” The Stability Test That Builds Confidence

Anastasia addresses the primary anxiety of new users: Will the magnets actually hold fast-moving fabric? She demonstrates by lifting the entire hoop by the fabric. The magnets hold.

However, we must respect the tool. These are rare-earth magnets. They snap with aggressive force.

Warning: Pinch Hazard & Safety
The "Blood Blister" Risk: Never place your finger between* the magnet and the metal frame. The snap is instantaneous and painful. Slide magnets onto the frame from the side whenever possible.
* Pacemaker Safety: These magnets generate strong fields. If you or a family member has a pacemaker, consult a doctor and maintain a safe distance (usually 6-12 inches) from the magnets.
* Electronics: Keep credit cards and phones away from the magnet cluster.

When searching for quality magnets for embroidery hoops, prioritize those with a rubberized or plastic casing. Raw metal magnets can chip, creating razor-sharp edges that will snag your expensive satin fabrics.

Locking the Hoop Into the Husqvarna Viking Designer Epic 2: The Click You Must Feel

Anastasia connects the hoop to the embroidery arm. This is a binary moment: it is either locked, or it is dangerous.

The Auditory Cue: You are listening for a distinct mechanical "Click."

• Visual Check: Attempt to drag the hoop gently away from the machine arm. It should pull the arm with it, not detach.
• Common Error: Supporting the weight of the hoop by holding the fabric while clicking it in. This can shift your carefully hooped center. Always support the frame itself.

The Bubble-Killer Move: Run the Machine Basting Stitch Before the Main Design

Anastasia selects the "Baste around Hoop" function. The machine runs a long running stitch around the perimeter.

Why is this non-negotiable? Magnets hold the edges. Basting holds the center. As the pantograph moves the hoop at 600+ stitches per minute, inertia tries to separate your top fabric from your batting. The basting stitch acts as a temporary "fence," locking the sandwich together within the embroidery field.

• Pro Tip: Use a contrasting thread color for the basting stitch if you plan to remove it later. It makes it easier to see and snip.

Safety Check - The "Trace" Feature: Before even basting, use the machine's "Trace" or "Check Size" button. Watch the needle position pointer travel the four corners of your design. Ensure it does not come within 5mm of any magnet. Hitting a magnet can shatter a needle and throw off the machine's timing.

Stitching the Floral Quilting Design: What “Tension Looks Good” Really Means

Anastasia runs the design. She notes the tension is good. But what does "Good" look like to a trained eye?

The "H-Test" for Tension: On a satin stitch (column), look at the back. You should see 1/3 top thread, 1/3 bobbin thread, 1/3 top thread. On a quilting run (running stitch) like this:

• Top: You should see distinct stitches, not a straight line of thread laying on surface (top tension too high) or loops (top tension too low).
• Bottom: You should feel small "nubs," but no loose loops (birdnesting).
• Speed Limit: While the Epic 2 is a beast, for detailed quilting with a magnetic hoop, I recommend capping your speed at 600-700 SPM (Stitches Per Minute). Lower speed reduces hoop vibration and ensures the magnets don't shift due to inertia.

The Flip-Test: Checking the Back of the Quilt Block Before You Celebrate

Anastasia flips the finished frame.

This view tells the truth. The back should look almost as clean as the front.

• Red Flag: If you see white bobbin thread pulled up to the top of the fabric, your top tension is too tight, or your bobbin path is clogged with lint.
• Green Light: The quilting lines on the batting side are smooth, with no puckers where the fabric gathered.

When the Screen Keeps Yelling “Recalibrate” or “Attach Hoop”: Practical Fixes

Let's address the frustration in the comment section. These errors are rarely "software bugs"—they are usually physical sensors triggered by misuse.

1) The "Recalibrate Loop"

• Symptom: Screen asks to calibrate repeatedly.
• Experience-Based Fix: This usually means the embroidery arm hit resistance.
  • Check: Is the heavy quilt draping off the table and pulling the arm? (Use a table extension).
  • Check: Did a loose thread tail get caught in the X/Y carriage?
  • Action: Power down. clear the obstruction. Restart.

Warning: Mechanical Safety
Never put your hands inside the hoop area while the machine is calibrating. The arm moves rapidly to the limits of the X/Y axis.

2) The "Attach Hoop" Ghost Error

• Symptom: You attached the hoop, but the machine says you didn't.
• Root Cause: The micro-switch in the embroidery arm connector isn't fully depressed.
• Fix: Remove hoop. Clean the connector pins on the hoop. Push it in again firmly until the latch engages.

3) Compatibility Confusion

A viewer struggled to select the 200x200 hoop on a Designer Brilliance 80. Crucial Lesson: Physical fit $\neq$ Digital fit. Just because a magnetic hoop for husqvarna viking clicks into the arm doesn't mean the machine's firmware knows how to drive it. Always check the official compatibility chart (e.g., Epic series vs. Ruby series) before purchase.

The Stabilizer Decision Tree: Batting-Only vs Adding Backing

Anastasia used batting as her stabilizer. Is that safe for you? Use this logic gate to decide.

Decision Tree (Fabric + Density = Strategy)

• Scenario A: Stiff Cotton / Taffeta + Low Density Quilting
  • Recommendation: Batting Only. The fabric structure is strong enough to support the running stitches.
• Scenario B: Stretchy T-Shirt / Knit + Any Design
  • Recommendation: Fusible Mesh (No-Show) Stabilizer. Magnets alone cannot stop a knit from stretching under the needle. You need a structural backing.
• Scenario C: High Density Design (50,000+ stitches) + Any Fabric
  • Recommendation: Cut-Away Stabilizer + Magnetic Hoop. Heavy stitching creates a "pull" effect that batting cannot resist.
• Scenario D: Slippery Satin + Precision Border
  • Recommendation: Hoop the Stabilizer, Float the Fabric. Use a sticky stabilizer (or spray) hooped in the frame, then stick the satin on top, then clamp with magnets.

The Upgrade Path: When Magnetic Frames and Multi-Needle Machines Pay You Back

We have covered the Technique, now let's talk about the Economics of your hobby or business.

Level 1: The Ergonomic Upgrade If you have arthritis, carpal tunnel, or simply weak grip strength, traditional screw-tighten hoops are a health hazard. A magnetic frames for embroidery machine system removes the torque and twist motion, saving your wrists for the actual sewing.

Level 2: The Volume Trigger If your hobby has turned into a "Side Hustle" and you are facing an order for 50 left-chest logos, hooping individual shirts on a flatbed machine is a bottleneck.

• The Pain Point: You are spending 5 minutes hooping for every 10 minutes of stitching.
• The Solution: This is the signal to consider a SEWTECH Multi-Needle Machine. These platforms are designed for tubular magnetic hoops that allow you to hoop a shirt in 15 seconds without un-tucking it. The jump from a domestic flatbed (like the Husqvarna Viking Epic 2) to a dedicated multi-needle setup is the standard path for scaling production.

If you are already invested in the husqvarna embroidery machines ecosystem, simply upgrading to a magnetic hoop is the most cost-effective way to immediately improve your stitch quality and reduce frustration on difficult fabrics.

Operation Checklist (Your Safety Net)

Before you press the green "Start" button, execute these five distinct checks. If any fail, do not stitch.

• 1. The Magnet Clearance: Have you visually verified that no magnet is in the path of the needle or the presser foot?
• 2. The Baste: Have you run the basting stitch to lock the layers?
• 3. The Float: Is the excess fabric fully supported on the table so it doesn't drag the hoop?
• 4. The Tail: Is the thread tail trimmed short or pulled aside so it doesn't get sewn under?
• 5. The Sound: Listen to the first 100 stitches. A rhythmic "thump-thump" is good. A harsh "clack-clack" means a needle is hitting something or the bobbin case is jumping.


Hooping doesn't have to be a fight. With the right physics (magnets), the right prep (flat surfaces + adhesive), and the right mindset (sensory awareness), you can turn the most stressful part of embroidery into the most satisfying.

FAQ

• Q: How do I prevent permanent hoop burn marks when using a Husqvarna Viking Quilters Metal Hoop 200x200mm on delicate fabrics like silk or taffeta?
  A: Use the metal magnetic hoop’s vertical clamping correctly and avoid crushing the fabric with stretch or over-handling.
  • Smooth the fabric into a relaxed, flat state before placing magnets; do not pull or push the fabric.
  • Clamp magnets gradually in a North–South–East–West pattern to spread pressure evenly.
  • Use the clear grid template to center without repeated re-hooping (re-hooping is when creases get “set”).
  • Success check: The fabric feels firm and flat “like a well-made bed sheet,” with no sharp ring line or nap crushing at the edges.
  • If it still fails: Reduce handling, re-clamp with lighter repositioning, and confirm the project is supported on a flat surface (no fabric weight dragging).
• Q: What is the fastest, most consistent way to hoop a thick quilt sandwich with the Husqvarna Viking Quilters Metal Hoop 200x200mm without puckering?
  A: Build a flat, unified quilt sandwich first, then clamp with magnets without stretching.
  • Lay batting flat first, then smooth the top fabric on top on a table (not on your lap).
  • Add a light mist of temporary spray adhesive (often used in practice) so the layers behave like one unit.
  • Slide the metal frame under the sandwich, then place magnets in a cross pattern (North/South/East/West).
  • Success check: When you run your palm across the hoop area, it feels uniformly flat with no lumps, and the fabric is firm but not drum-tight.
  • If it still fails: Re-check for hidden batting lumps and support the excess quilt weight outside the hoop so it cannot pull the clamped area off-grain.
• Q: How do I make sure Husqvarna Viking Designer EPIC 2 hoop attachment is actually locked when installing the Quilters Metal Hoop, and what does the correct “click” mean?
  A: Only stitch after the hoop physically latches with a distinct click and passes a gentle pull test.
  • Push the hoop frame into the embroidery arm connector until the latch engages audibly.
  • Support the hoop by holding the frame (not the fabric) while attaching to avoid shifting center.
  • Gently tug the hoop away from the arm to confirm it is locked.
  • Success check: You hear/feel a clear “click,” and a gentle pull moves the embroidery arm rather than letting the hoop detach.
  • If it still fails: Remove the hoop, inspect/clean the connector area, and reattach firmly until the latch fully seats.
• Q: Why should Husqvarna Viking Designer EPIC 2 users run “Baste Around Hoop” when quilting with a magnetic hoop, and when should “Trace/Check Size” be used?
  A: Run Trace first to avoid magnet strikes, then baste to lock the quilt sandwich in the stitching field.
  • Tap “Trace/Check Size” and watch the needle path travel the corners; keep magnets safely out of the design path.
  • Run “Baste Around Hoop” to prevent the top fabric and batting separating under high-speed movement.
  • Use a contrasting thread for basting if you plan to remove it later.
  • Success check: After basting, the center area no longer shifts relative to the batting when you lightly press and slide your hand across the surface.
  • If it still fails: Reposition magnets farther from the stitch field and re-run Trace before restarting any stitching.
• Q: How can Husqvarna Viking Designer EPIC 2 users fix a wrinkle inside a magnetic hoop without re-hooping the entire project?
  A: Do a micro-adjustment: lift one magnet, smooth the wrinkle, and re-clamp.
  • Identify the wrinkle location and lift only the nearest magnet (not all magnets).
  • Sweep the wrinkle outward with your palm or thumb, then snap the magnet back down.
  • Re-check that magnets are seated against the internal rim and not creeping into the stitch area.
  • Success check: The wrinkle disappears immediately and the fabric surface returns to a smooth, even tension.
  • If it still fails: Add support to the garment/quilt outside the hoop (and, for heavy items, consider using edge clips as extra security).
• Q: What does “good tension” look like on a Husqvarna Viking Designer EPIC 2 quilting run stitch, and how do I spot birdnesting early?
  A: Evaluate tension by looking at stitch definition on top and feeling for nubs—not loops—on the underside.
  • Inspect the top: stitches should be distinct (not a straight thread line from overly tight top tension, and not loopy from overly loose tension).
  • Inspect the bottom: you should feel small nubs but see no loose loops (loops are a birdnest warning sign).
  • Flip-check the back before celebrating; the back should look clean and smooth with no puckers.
  • Success check: The underside has no loose loops, and the quilting lines look smooth on the batting side.
  • If it still fails: Check for lint/clogging in the bobbin path and verify the machine is not pulling white bobbin thread to the top (a sign top tension is too tight).
• Q: How do I fix Husqvarna Viking Designer EPIC 2 “Recalibrate” repeats or the “Attach Hoop” message when the Quilters Metal Hoop is already installed?
  A: Treat both messages as physical-sensor triggers: remove resistance, then re-seat the hoop connection.
  • For repeated “Recalibrate”: Power down, clear any obstruction, and ensure the quilt is not draping off the table and pulling the embroidery arm.
  • For “Attach Hoop” while attached: Remove the hoop, clean the connector pins/contacts, and reattach firmly until the latch fully engages.
  • Keep hands out of the hoop area during calibration movement.
  • Success check: After restart/reattach, the machine completes calibration once and recognizes the hoop without repeating prompts.
  • If it still fails: Re-check for thread tails snagging in the X/Y path and confirm the hoop is the digitally supported size for that specific machine model (physical fit is not the same as firmware compatibility).
• Q: When should a small business switch from technique tweaks to magnetic hoops or a SEWTECH multi-needle machine for left-chest logo volume work?
  A: Upgrade in layers: optimize setup first, then reduce hooping bottlenecks with magnetic hoops, and move to multi-needle only when hooping time dominates production time.
  • Level 1 (technique): Use flat-table support, run Trace + baste, and cap speed to a safe starting point like 600–700 SPM for stability (confirm with the machine manual).
  • Level 2 (tool): Use magnetic hoops when traditional hooping causes hoop burn, wrist strain, or slow, inconsistent clamping—especially on thick or delicate materials.
  • Level 3 (capacity): Consider a SEWTECH multi-needle machine when repetitive hooping (for example, batches of left-chest logos) becomes the main bottleneck versus stitching time.
  • Success check: You can hoop consistently without fabric distortion, and hooping time no longer overwhelms your daily output.
  • If it still fails: Time your workflow (minutes hooping vs minutes stitching) and fix the largest drag point first before investing in the next tier.
