Quilt-Top Embroidery Without the Panic: Using a Brother PR1050X + Magnetic Hoop Station to Stitch a Dedication Label Cleanly

Quilts are emotional projects—so when someone hands you an *unfinished* quilt top and says, “Can you add a dedication in the corner?” your brain immediately runs through every nightmare: puckers, crooked placement, accidentally stitching the backing, or the whole quilt dragging on the arm.

Here’s the good news: if you follow a disciplined hooping-and-support routine, embroidering on a quilt top with batting can be clean, stable, and professional-looking—without hoop burn and without that “why did I agree to this?” stress.

In this guide, we are treating embroidery not just as an art, but as a mechanical process where friction, gravity, and tension must be managed. We will walk through how to execute this on a pro-sumer multi-needle machine, but the physics apply whether you are on a single-needle home unit or a massive industrial 15-needle beast.

Don’t Panic: A Brother PR1050X + Magnetic Hoop Can Handle a Bulky Quilt Top (If You Control the Layers)

This project is demonstrated on a Brother Entrepreneur Pro X PR1050X (a multi-needle machine) using a Freestyle Base Station and a 5.25" x 5.25" magnetic frame. The mission is specific: stitch a dedication label onto the quilt top and batting while the quilt is still unfinished. This allows the final backing to be sewn on later, hiding the ugly underside of the embroidery.

The “make-or-break” factor here is layer control. You must secure the quilt top and batting in the hoop while keeping the quilt backing completely out of the ring.

If you have ever fought a thick quilt sandwich in a traditional screw-tightened hoop, you know the struggle: hand strain, "hoop burn" (the ring leaving permanent crushed marks on the fabric), and the material popping out mid-stitch. This is why professionals migrate to a magnetic embroidery hoops setup for bulky items. It isn't just about speed; it's about the vertical clamping force that secures thick layers evenly without requiring the manual dexterity of a surgeon.

The Hidden Prep That Saves the Whole Job: Template + Crosshair Marks + Snowman Positioning Marker

Before you even look at the machine, you need a tactile placement plan. "Eyeballing it" is how 90% of quilt disasters happen.

In our workflow, the quilt already has center “X” marks on the corner area (drawn with a water-soluble marking pen). We use those marks as the "Truth." Then, we tape down a printed paper template that includes the Brother "Snowman" positioning marker. This template is generated from your digitizing software (like Embrilliance or Hatch).

What you’re doing here (The Cognitive Chunking):

1. The Crosshair: Gives you a physical, human-verified center on the fabric.
2. The Template: Visualizes the final text size to ensure it doesn't hit a seam.
3. The Snowman Marker: Translates your physical placement into data the machine's camera can understand.

If you are setting up a professional magnetic hooping station workflow, this template step is non-negotiable. It turns "I hope this is straight" into "I know this is straight."

Prep Checklist (The "Do Not Fail" List):

• Layer Check: Confirm the quilt is unfinished and you can physically peel the backing away from the batting.
• Marking: Locate center marks on the quilt top using a water-soluble pen (blue) or air-erase pen (purple).
• Template: Print the design template with the Snowman positioning marker (or your machine's equivalent reference point).
• Alignment: Tape the template securely to the fabric, matching the crosshairs.
• Consumables: Ensure you have water-soluble topping (Solvy) if the batting is very fluffy, to prevent text from sinking.


Why the Freestyle Base Station Matters: Clean Hooping on Thick Batting Without Wrestling

A hooping station serves as your "third hand." When dealing with a king-size quilt, you cannot hold the hoop, the stabilizer, the batting, and the top fabric simultaneously without slipping.

In this setup, the bottom magnetic ring is locked into the Freestyle Base Station. A single sheet of cutaway stabilizer is placed over it. This isolates variables: the stabilizer is now fixed. You are free to focus entirely on smoothing the quilt.

This is where hooping stations earn their ROI. They allow you to use both hands to manipulate the heavy textile, ensuring the grain line is straight before you commit to the clamp.

Expert Insight (The Physics of Stability): Bulky textiles don’t fail because they are "too thick." They fail because they are "uneven." When a quilt hangs off a table, gravity creates a lateral (sideways) pull. If you hoop while the fabric is dragging effectively, you lock that tension into the hoop. When you remove it later, the fabric relaxes, and your design puckers. A station keeps everything neutral during the locking phase.

The Make-or-Break Hooping Move: Separate the Quilt Backing, Hoop Only the Top + Batting

This is the step that prevents the fatal error: stitching the quilt backing to the front.

The Maneuver:

1. Peel: Explicitly peel the backing fabric back and away. Clip it if necessary.
2. Lay: Drape only the quilt top and batting over the station, stabilizer, and bottom ring.
3. Feel: Because batting is thick, you cannot always see the bottom ring. You must use your fingers to "trace" the rim of the hoop through the fabric.
4. Snap: Align the top magnetic ring and let it snap into place.

If you are researching how to use mighty hoop style techniques on thick projects, this "Tactile Centering" is the core skill to master. You align by feel, not just by sight.

Warning: Pinch Hazard
Magnetic hoops generate significant force (often 30+ lbs of clamping pressure).
* Do not hold the top ring by the edges.
* Keep fingers clear of the "snap zone."
* If you have a pacemaker, consult the manufacturer before using industrial magnets.

The 10-Second Flip Test: Verify Stabilizer Coverage and Confirm the Backing Isn’t Caught

Do not walk to the machine yet. After hooping, lift the hoop and flip it over.

The Visual Inspection:

1. Stabilizer Check: Is the cutaway stabilizer fully covering the hoop area? (It should be taut, like a drum skin).
2. Backing Check: Is the backing fabric caught in the magnetic seal?

This flip test is the cheapest insurance policy you have. If the backing is caught, you simply pop the magnet off and retry. If you find this mistake after stitching has started, you are looking at hours of picking out stitches—or replacing the panel.

Pro Tip: Many embroiderers own a freestanding station for caps but forget it solves flatwork problems too. If you have a station, use it for everything from T-shirts to quilts. The consistency it provides is unmatched.

Stop Letting Gravity Ruin Your Stitching: Use a Rolling Table to Support Quilt Weight at the Machine

Once hooped, carry the assembly to the machine. Do not let the quilt hang freely.

A heavy quilt acts like an anchor. If it hangs off the machine arm, it creates drag. This drag deflects the pantograph (the moving arm), leading to:

• Missed registration (outlines don't match fill).
• Elongated designs.
• Excessive noise and motor strain.

The Solution: Move a rolling table flush against the machine stand. Pile the excess quilt material onto this table. The goal is to have the fabric "pool" around the hoop so the pantograph can move North, South, East, and West with zero resistance.

If you do production runs—heavy jackets, blankets, or bags—optimizing your furniture is as important as the machine itself. This is where upgrading to industrial-strength magnetic frames (like the SEWTECH solutions we supply for multi-needle machines) combined with proper table support turns a "struggle" into a "process." Use the following standard: If you are fighting the fabric more than monitoring the needle, your support system is failing.

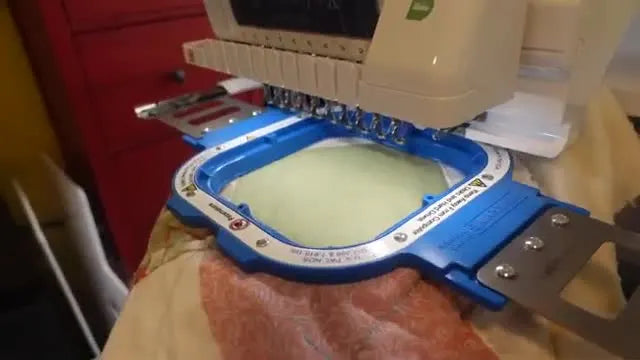

The Clearance Check Under the Embroidery Arm: Prevent Batting From Jamming the Throat Area

With the hoop snapped onto the machine arms, perform the "Throat Check."

Reach your hand under the embroidery arm (the throat of the machine) and feel for bunched-up batting or backing. In the video, the operator finds a wad of batting pushed underneath and pulls it clear.

Why this is critical: If batting bunches under the needle plate or arm:

1. It lifts the hoop, causing needle deflection (broken needles).
2. It restricts Y-axis movement, compressing the design.
3. The needle bar might strike the bunched fabric, causing a mechanical lockup.

Warning: Mechanical Safety
Never reach under the arm or near the needle bar while the machine is running or in "Ready to Stitch" mode. Perform this check only when the machine is stopped and the safety lock (if available) is engaged.

Setup Checklist (The "Pre-Flight" Check):

• Hoop Seating: Ensure the magnetic hoop is clicked firmly into the machine's driver arms.
• Weight Support: Quilt bulk is resting on the table, not dragging on the floor.
• Isolation: Quilt backing is hanging free, clearly separated from the embroidery arm.
• Throat Clearance: You have physically swept under the arm to un-bunch the batting.
• Needle Selection: Confirm the correct needle (e.g., Needle #1) is selected for the thread color.


The Brother Snowman Scan: Let the Camera Rotate and Center the Design for You

Now we use technology to fix human error.

On the Brother interface, select the Snowman function. The machine's camera scans the hoop area, locating the sticker we applied in Step 2.

• Identification: It finds the center of the sticker.
• Calculation: It calculates the angle of the sticker.
• Adjustment: It automatically rotates and moves your digital design to match the physical sticker perfectly.

Remove the sticker only after the machine confirms alignment.

This feature is invaluable for bulky items where "perfectly straight hooping" is physically difficult. Even if your hooping is 3 degrees crooked, the camera compensates. If you are shopping for a magnetic hoop for brother pr1050x or similar machines, ensure your hoop size is compatible with the camera scanning range to utilize this feature.

Speed, Runtime, and What the Numbers Really Mean on a Bulky Quilt Label

In the video, the machine speed is adjusted.

• Default: 1000 SPM (Stitches Per Minute).
• Adjusted: 700 SPM.

The "Sweet Spot" for Quilts: For thick, lofty sandwiches (Top + Batting + Stabilizer), I recommend a speed of 600 to 800 SPM.

• Why slow down? Batting introduces friction. A slower needle speed reduces heat buildup (preventing thread breaks) and gives the loop time to form properly inside the lofty material.
• Sensory Anchor: Listen to the machine. A frantic, high-pitched whine suggests too much resistance. A rhythmic, steady "thump-thump" indicates the machine is happy. If the machine shakes the table, slow down.


Unhooping and Trimming Cutaway Stabilizer: Leave a Margin So You Don’t Cut Your Stitches

After the run is complete (approx. 15 minutes for 6,000 stitches), remove the hoop.

Trimming Protocol:

1. Place the quilt face down.
2. Lift the cutaway stabilizer edges.
3. Use curved embroidery scissors (often called double-curved or duckbill scissors).
4. Trim the stabilizer, leaving a 1/4 inch to 1/2 inch margin around the text.

Crucial Advice: Never cut flush to the stitches. Cutaway stabilizer is structural. If you cut the stabilizer nodes that hold the stitches, your embroidery will unravel in the washing machine. Since this is inside a quilt, the margin will be hidden by the backing eventually.

Why Include the Batting At All? The Stability Answer (and When You Might Do It Differently)

Why hoop the batting? Why not just hoop the thin quilt top?

The Logic:

1. Friction: Batting acts as a friction layer, preventing the slippery quilt top from sliding around on the stabilizer.
2. Loft: It gives the embroidery a slightly raised, 3D effect that looks premium.
3. Risk Reduction: A single layer of cotton quilt top is fragile. The batting supports the needle penetrations.

Hidden Consumable Alert: If your customer wants fine text (under 5mm tall) on a quilt with batting, use a layer of Water Soluble Topping (Solvy) on top. This prevents the small stitches from sinking into the "puff" of the batting and becoming illegible.

Decision Tree: Stabilizer + Layer Strategy for Quilt-Top Embroidery (So You Don’t Guess)

Use this logic flow to determine your setup.

A) Is the quilt top unfinished (backing not attached)?

• YES: Go to B.
• NO: You must float the quilt or stitch through all layers (Back finishes will be visible). Stop and consult customer.

B) Can you physically separate the backing fabric from the hoop area?

• YES: Hoop [Stabilizer + Quilt Top + Batting]. Use Cutaway stabilizer (Video Method).
• NO: Stop. If you cannot separate them, you risk sewing the quilt shut.

C) Does the quilt have "high loft" (very puffy) batting?

• YES: Add Water Soluble Topping on top of the fabric. Slow machine to 600 SPM.
• NO (Standard cotton batting): No topping needed usually. Speed 700-800 SPM.

D) Setup Speed vs. Precision?

• Precision Priority: Use Template + Camera Scan (Snowman).
• Speed Priority: Use Grid on Hoop (High risk for beginners).


Troubleshooting the Two Most Common Quilt-Top Embroidery Problems

Even experts face issues. Here is how to diagnose them fast.

Symptom 1: Thread Shredding / Frequent Breaks

• Likely Cause: The needle is getting hot from friction with the batting, or the needle has a burr.
• Quick Check: Run your fingernail down the needle tip. If it catches, change the needle immediately.
• The Fix: Lower speed to 600 SPM. Ensure you are using a slightly larger needle (e.g., Size 75/11 or 90/14) to clear a path for the thread through the thick batting.

Symptom 2: The "Eiffel Tower" Effect (Distortion)

• Likely Cause: Drag. The weight of the quilt pulled the hoop while stitching the bottom of the letter, stretching it out.
• Quick Check: Pause the machine. wiggle the quilt. Is it tight against the machine arm?
• The Fix: Reposition your rolling support table. Push the excess fabric toward the machine to create slack.


The Upgrade Path (Without the Hype): When Magnetic Frames and Multi-Needle Capacity Pay You Back

If this is a one-off project for a grandchild, patience and standard tools work fine. However, if you are running a business where time is inventory, you need to identify bottlenecks.

Identify Your Pain Point:

1. "My wrists hurt / Hooping leaves marks": This is a mechanical clamping issue. The solution is Magnetic Hoops. Whether for a home single-needle or a 10-needle commercial unit, magnetic frames (like the SEWTECH line) eliminate hoop burn and reduce hooping time by 40%.
2. "Re-threading takes forever": If you are doing 3-4 color logos on quilts, a single-needle machine is costing you money. A SEWTECH Multi-Needle Machine solves this by holding all colors ready to fire.
3. "I can't align things straight": If you lack a camera system, a Hooping Station is the analog fix. It creates a standardized physical environment for consistent placement.

Operation Checklist (Final Go/No-Go):

• Template Removed: Did you take the paper template/sticker off (after scanning)?
• Clearance: Is the backing fabric still safely peeled back?
• Support: Is the table pushed flush to the machine?
• Topping: Is water-soluble topping added (if text is small)?
• Sound Check: Start the machine. Does it sound rhythmic? (If clunky, STOP and re-check throat clearance).


If you follow this sequence—Template $\rightarrow$ Station Hooping $\rightarrow$ Tactile Check $\rightarrow$ Weight Support $\rightarrow$ Scan—you remove the "luck" factor. You get crisp lettering, zero puckering, and a quilt dedication that looks like it was woven into the fabric, not forced upon it.

And remember: The same mighty hoop station logic applies to hoodies, bags, and towels. Master the friction and gravity here, and the rest is easy.

FAQ

• Q: How do I hoop an unfinished quilt top on a Brother PR1050X without accidentally stitching the quilt backing into the embroidery?
  A: Hoop only the quilt top + batting with stabilizer, and physically peel the backing completely out of the hoop area before the magnets clamp.
  • Peel: Pull the backing away from the corner area and clip it back if needed so it cannot drift under the hoop.
  • Hoop: Place cutaway stabilizer on the bottom ring, drape only quilt top + batting, then snap the top magnetic ring on.
  • Flip-test: Turn the hooped project over and confirm the backing fabric is not caught in the magnetic seal.
  • Success check: On the back side of the hoop opening, only stabilizer and batting should be visible—no backing fabric trapped in the clamp line.
  • If it still fails: Re-hoop and slow down—rushing hooping is the #1 reason backing gets captured.
• Q: What is the fastest way to verify stabilizer coverage after hooping a bulky quilt top with a magnetic embroidery hoop?
  A: Do the 10-second flip test immediately after hooping—before walking to the machine.
  • Flip: Lift the hoop and turn it over.
  • Inspect: Confirm cutaway stabilizer fully covers the entire hoop opening and is seated evenly.
  • Re-seat: If stabilizer is short or shifted, pop the top ring off and reset before stitching.
  • Success check: Stabilizer coverage is complete and looks evenly held (no obvious gaps at the hoop edge).
  • If it still fails: Use a hooping station to keep the bottom ring and stabilizer from sliding during setup.
• Q: How do I prevent design distortion and misregistration when embroidering a heavy quilt on a multi-needle embroidery machine?
  A: Eliminate fabric drag by fully supporting the quilt weight with a rolling table pushed flush to the machine.
  • Support: Move a rolling table right up against the machine stand.
  • Pool: Stack the excess quilt onto the table so the hooped area can move freely in all directions.
  • Re-check: Pause and gently wiggle the quilt; reposition if it feels tight against the machine arm.
  • Success check: The pantograph/hoop movement sounds and feels smooth, and the quilt is not pulling or “anchoring” the hoop.
  • If it still fails: Re-arrange the bulk again—most “Eiffel Tower” stretching is still drag, not digitizing.
• Q: What machine speed is a safe starting point for embroidering a quilt label through quilt top + batting + cutaway stabilizer?
  A: Run 600–800 SPM for thick quilt sandwiches to reduce heat and friction that cause thread breaks.
  • Set: Drop speed from high defaults (like 1000 SPM) down to the 600–800 SPM range.
  • Listen: Adjust based on sound—steady, rhythmic running is the goal.
  • Add topping: Use water-soluble topping if the batting is lofty and text is small so stitches don’t sink.
  • Success check: The machine sounds steady (not a frantic whine) and thread runs without frequent shredding or breaks.
  • If it still fails: Change the needle and re-check for drag under the embroidery arm (batting can bunch and increase resistance).
• Q: How do I troubleshoot frequent thread shredding or thread breaks when embroidering on batting-heavy quilt tops?
  A: Slow the machine and change the needle if there is any burr—batting friction heats the needle fast.
  • Inspect: Run a fingernail down the needle tip; replace the needle immediately if it catches.
  • Slow: Reduce speed toward 600 SPM to lower heat and improve loop formation in thick layers.
  • Size-up: Use a slightly larger needle size (commonly 75/11 or 90/14) as a safe starting point; confirm with the machine manual.
  • Success check: The thread runs a full section of lettering without fraying, shredding, or repeated breaks.
  • If it still fails: Re-check throat clearance—bunched batting under the arm can cause needle deflection and extra friction.
• Q: What safety steps should I follow to prevent pinch injuries when using magnetic embroidery hoops on thick quilts?
  A: Treat magnetic hoops like a clamp—keep fingers out of the snap zone and never grip the ring edges during closure.
  • Position: Hold the top ring securely and lower it with control; do not hover fingers between rings.
  • Clear: Keep fingertips away from the contact perimeter where the magnets snap together.
  • Special caution: If the user has a pacemaker, confirm magnet safety with the manufacturer before use.
  • Success check: The hoop closes cleanly without finger contact or “surprise snap,” and the fabric stack stays controlled.
  • If it still fails: Use a hooping station so both hands can control fabric placement without balancing the hoop in the air.
• Q: How do I safely check and clear bunched batting under the embroidery arm (throat area) before stitching a bulky quilt?
  A: Stop the machine completely and do a manual throat clearance sweep to remove any batting wad that could jam movement.
  • Stop: Ensure the machine is not running and is not in “Ready to Stitch” mode before reaching under the arm.
  • Sweep: Reach under the embroidery arm and feel for bunched batting/backing; pull it clear so nothing is trapped.
  • Verify: Confirm quilt backing is still isolated and hanging free, not drifting into the throat.
  • Success check: The area under the arm feels flat and free, and the hoop can travel without bumping or compressing.
  • If it still fails: Re-stage the quilt on the support table—poor weight support often re-pushes batting into the throat area.
