Quilt on a Ricoma 15-Needle Like a Pro: The 48-Inch Sash Frame Setup That Saves Hours (and Headaches)

Here is the comprehensive, expert-calibrated guide, reframed to transform beginner anxiety into production-level confidence.

The Engineering of Fabric: Mastering Quilt Production on Commercial Embroidery Machines

Quilting on a commercial embroidery machine feels like a magic trick the first time you witness it. The machine does the "driving," executing complex spirals and stippling while you sip coffee.

However, if you have ever stared at a massive patchwork quilt top and thought, "I love the design, but I am going to lose a weekend—and my patience—pushing this through a domestic machine," you are ready for a mindset shift.

In this analysis of a demo by Darlene from Cornerstone Sew and Vac, we break down the physics of quilting on a Ricoma 15-needle embroidery machine using a 48-inch sash-style clamping frame. The machine stitches consistent spiral patterns across quilt blocks while the heavy frame moves on the X/Y axes.

The goal here isn’t just to "make it work." It is to systemize the process so you can quilt large sections without constant re-hooping, hoop burn, or mental fatigue.

Don't Panic: The Physics of the 15-Needle vs. The Quilt Sandwich

A lot of embroiderers hesitate to put a quilt under a commercial head. The fear is tangible: quilts are thick, heavy, and seams create "speed bumps" that break needles.

But here is the engineering reality: A commercial machine is designed to punch through canvas, leather, and structured caps. A quilt sandwich (Top + Batting + Backing) is actually softer than a structured baseball cap.

The core concept in this demo is simple: you are substituting a dense "embroidery fill" for a "running stitch" path (spirals). Whether you are using ricoma embroidery machines or similar commercial multi-needle platforms, the machine doesn't know it's quilting. It only knows coordinate geometry.

Your job is not to force the machine; your job is to manage the mass of the fabric so the pantograph (the X/Y driver) doesn't lose steps.

The "Hidden" Prep: Managing Weight and Friction

Before you touch the start button, you must treat quilting like a system. On a 48-inch sash frame, the quilt is a moving load. If that load drags, catches, or sags off the table edge, physics will fight you.

The Symptom of Drag: If your designs look distorted (circles become ovals) or you hear a deep, straining grunt from the motors, your quilt is dragging.

The Support System (The Table)

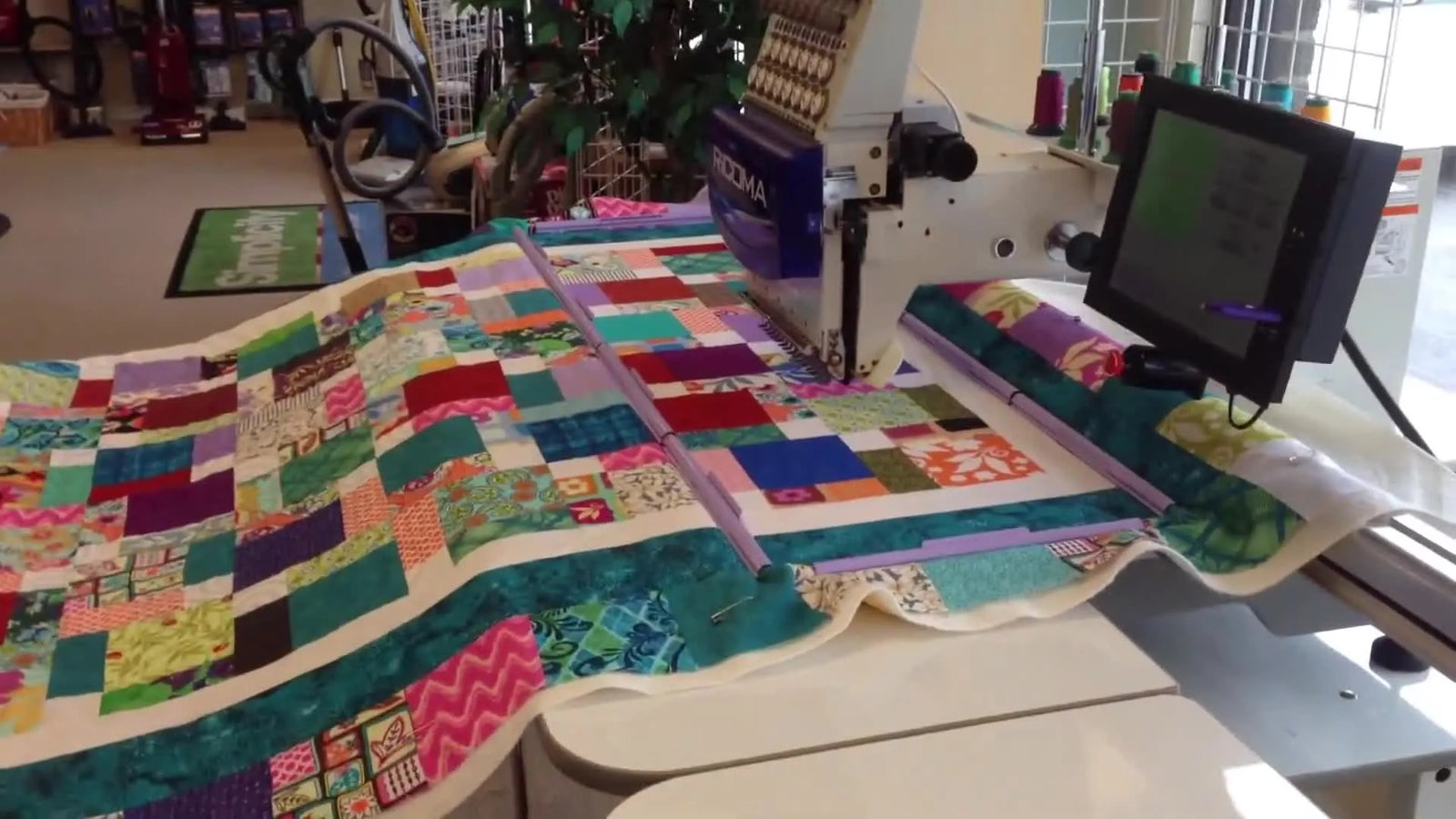

Darlene’s setup heavily relies on a large support table. This is non-negotiable.

• Without a table: Gravity pulls the heavy quilt down, creating drag on the Y-motor.
• With a table: The quilt floats, allowing the pantograph to slide effortlessly.

Warning: Project Safety & Personal Injury. Keep hands, sleeves, and trimming scissors away from the needle bar area while the machine is active. A multi-needle head moves at high velocity (upwards of 800 stitches per minute), and the sash frame creates a pinch point risk against the machine body. Pause completely before intervening.

Level 1 Prep Checklist (Do this BEFORE loading the frame)

• Inspection: Check the quilt backing. Is it large enough to be clamped securely without "creeping" in?
• Squareness: Ensure the quilt top is squared; a twisted quilt in a rigid sash frame guarantees puckers.
• Consumables: Have a fresh needle installed. For quilting, a Size 90/14 Topstitch or Titanium Sharp is often the "sweet spot" to penetrate batik or dense cotton seams without deflecting.
• Lubrication: If your machine hasn't been oiled in the last 4 hours of runtime, put a drop on the rotary hook. Quilting creates lint; a dry hook snaps thread.
• Support: Extend your table or use a hooping station for embroidery machine / support stand to ensure the quilt weight is fully neutralized.


Setting Up the Machine Head: Speed, Tension, and Sensory Checks

Darlene uses a 15-needle configuration to quilt spirals. While the video shows the result, we need to talk about the settings that get you there safely.

The "Beginner Sweet Spot" for Speed

Commercial machines can run 1000+ SPM (Stitches Per Minute). Do not start there.

• Recommended Start Speed: 650 - 750 SPM.
• Why? When the needle hits a thick seam intersection, a slower speed allows the needle to deflect slightly and find a path through the fiber without snapping. High speed equals high impact, which equals broken needles.

Sensory Diagnostics: Listen to your Machine

If you are quilting with a 15 needle embroidery machine, stop looking at the screen and start listening.

• The Sound: A rhythmic, soft thump-thump-thump is good. A sharp CRACK or POP means the needle is hitting the needle plate or a massive seam. Stop immediately.
• The Feel: Gently rest a finger on the quilt surface (away from the needle) as it moves. It should slide like a puck on an air hockey table. If it jerks or vibrates heavily, your hooping is too loose or the table drag is too high.
• The Look: The top thread should lay flat. If loops appear, your tension is too loose. If the quilt puckers around the spiral, your pressure foot is set too low (smashing the fabric) or the frame grip is uneven.


Level 2 Setup Checklist (The "Pre-Flight" Check)

• Foot Height: Adjust your presser foot height. It should barely kiss the top of the quilt sandwich—not compress it. (Rule of thumb: You should be able to slide a business card between the foot and fabric when stopped).
• Bobbin Check: Use a magnetic core bobbin if possible for consistent delivery. Ensure you have a full bobbin; running out mid-quilt is a nightmare to patch.
• Path Clearance: Ensure the quilt bulk isn't blocking the thread rack or rubbing against the machine head.
• Needle Check: Run a fingernail down the needle tip. If you feel a burr, replace it. A burred needle shreds batting and pulls threads.

The Operational Mindset: Spirals and Seams

Once the machine starts, the demo shows the sash frame moving along X and Y while the needle stitches continuous spirals. Spirals are an excellent "first project" choice because they are forgiving of minor registration errors.

The Danger Zone: Crossing Seams

The video includes an extreme close-up of stitching over a seam between two quilt blocks. This is the moment of truth.

The Physics of Failure: When the needle hits a seam allowance (where fabric thickness triples), three things happen:

1. Deflection: The needle bends slightly.
2. Friction: The thread is grabbed tighter by the fabric.
3. Timing: If deflection is bad, the needle misses the rotary hook. Result: Skipped Stitch or Broken Needle.

The Fix: If you hear the machine struggling at seams, slow down to 600 SPM and ensure you are using a sharp needle (Titanium coated) rather than a ballpoint.

The "Edge Zone" Safety Margin

Near the frame edge, the quilt is held rigidly by clamps. The machine head is dangerously close to the metal frame.

• Rule: Always leave a 10-15mm "Safety Zone" between your design and the physical frame edge. Striking a sash frame at 800 SPM will destroy your reciprocating assembly.


The Hooping Decision: Sash Clamps vs. Magnetic Frames

Here is the part most videos skip: Choosing the right tool for the job. Big frames don't just "hold fabric"—they manage tension across a large surface area.

Decision Tree: Which Frame Technique?

Use this logic flow to decide if you need to upgrade your tools:

1. Is your quilt sandwich exceptionally thick (e.g., High-loft batting)?
   • Sash Clamp: May leave severe "crush marks" or hoop burn.
   • Solution: Consider a magnetic embroidery hoop. Magnets distribute pressure vertically rather than pinching horizontally, eliminating hoop burn on sensitive fabrics.
2. Is ease of loading your priority?
   • Sash Clamp: Requires tightening screws/levers. Effective, but slow.
   • Solution: Magnetic Frames snap on/off instantly. For production runs, this saves 5-10 minutes per re-hooping.
3. Is the quilt extremely heavy/large (King Size)?
   • Sash Clamp: The 48-inch sash (shimmed correctly) provides the strongest mechanical grip for massive drag.
   • Solution: Stick to the Clamp, but double-check your table support.

When evaluating a large hoop embroidery machine setup, remember: Drag creates distortion. If your hoop holds tight but the weight drags the frame, no amount of software compensation will fix your design.

Warning: Magnetic Field Safety. Commercial magnetic hoops use industrial-strength neodymium magnets. They can pinch fingers severely. Do not use if you have a pacemaker or implanted medical device affected by strong magnetic fields. Keep away from credit cards and hard drives.

Scaling Up: From Hobby to Production

Darlene’s demo proves that a multi-needle machine is a viable quilting engine. But if you plan to do this for profit, efficiency is your metric.

The Bottleneck is Loading

In a production environment, the machine runs fast. The human loads slow. To make money quilting:

1. Reduce Load Time: A magnetic hooping station ensures you hoop the quilt square and taut every single time, reducing "do-overs."
2. Standardize: Use the same thread type and batting thickness for your first 5 quilts until you master the tension.
3. Upgrade Equipment: If you are fighting with screw-tightened hoops on 50 items a week, the labor cost outweighs the equipment cost. Upgrading to SEWTECH Magnetic Hoops is often the cheapest way to "buy back time."




Troubleshooting Guide: Real-World Solutions

When things go wrong, use this diagnostic table. Do not guess.

The Final Check: Finish Like a Pro

Even when the stitching looks great on screen, do not rush the unload. Quilting hides small issues until the tension is released.

Level 3 Operation Checklist (Post-Run)

• Back Inspection: Flip the quilt corner setup. Are the bobbin stitches balanced? (You should see 1/3 white bobbin thread in the center of the column for satin, or a clean lock for running stitch).
• Gap Check: Look at where the spirals cross seams. Any skipped stitches?
• Clean Cut: Trim your jump threads close so they don't get caught in the next pass.

Conclusion: Investing in Your Workflow

This demo confirms that a ricoma machine—or any robust commercial multi-needle platform—can be a quilting powerhouse. However, the machine is only as good as the System (Table + Frame + Needle + Operator).

• If you struggle with fabric slippage or hoop burn, upgrade to Magnetic Hoops.
• If you struggle with consistency, invest in a Hooping Station.
• If you struggle with production speed, consider if it is time to add a second head or a dedicated SEWTECH multi-needle machine to your fleet.

Master the physics of the frame, support the weight of the quilt, and you will turn that terrifying pile of patchwork into a finished masterpiece in hours, not weekends.

FAQ

• Q: How do I prevent design distortion (circles turning into ovals) when quilting on a Ricoma 15-needle embroidery machine with a 48-inch sash clamping frame?
  A: Remove drag first—support the quilt fully on a large table so the frame can move without pulling weight.
  • Add/extend a support table so the quilt “floats” instead of hanging off the edge.
  • Reposition bulky sections so nothing catches on the table edge or machine body.
  • Start at 650–750 SPM and watch for smooth, even motion before increasing speed.
  • Success check: spirals stay round and the motors sound smooth (no deep straining “grunt”).
  • If it still fails: re-check that the backing is clamped securely and the quilt top is squared before loading.
• Q: What needle should I use to quilt through thick seams on a Ricoma 15-needle embroidery machine to reduce skipped stitches and needle breaks?
  A: Use a sharp, stiffer needle—Size 90/14 Topstitch or a Titanium Sharp is often a safe starting point for dense cotton seams.
  • Install a fresh needle before quilting; replace immediately if any burr is felt.
  • Slow to ~600 SPM when crossing seam intersections to reduce impact and deflection.
  • Listen for a sharp “CRACK/POP”; stop right away if you hear it.
  • Success check: seam-crossing stitches stay continuous with no gaps and no needle “pings.”
  • If it still fails: verify presser foot height is not compressing the quilt sandwich too hard.
• Q: How do I set presser foot height for quilting a quilt sandwich on a commercial multi-needle embroidery machine to avoid puckering inside spirals?
  A: Set the presser foot to barely touch the quilt—do not compress the layers; use the “business card rule.”
  • Raise/adjust the presser foot so a business card can slide between foot and fabric when the machine is stopped.
  • Re-check hoop/clamp grip so the quilt is held evenly (uneven grip can pucker spirals).
  • Run a short test at moderate speed before committing to a full block.
  • Success check: the quilt surface stays flat around the spiral with no gathered rings.
  • If it still fails: re-hoop tighter or reduce drag by improving table support.
• Q: How do I stop birdnesting (thread wads underneath) when quilting on a 15-needle commercial embroidery machine?
  A: Treat birdnesting as a rethread-and-stability issue first—rethread the upper path and stop fabric “flagging.”
  • Rethread the entire top thread path carefully (most birdnests start with a missed guide/tension point).
  • Check the quilt is held firmly; prevent bouncing/flagging by improving clamp/hoop stability.
  • Confirm the quilt moves smoothly on the support table (drag can amplify looping and snags).
  • Success check: the underside shows a clean running-stitch lock with no wads forming after the first stitches.
  • If it still fails: inspect top tension setting and confirm the bobbin is properly installed and not near-empty.
• Q: How can I reduce random thread breaks when quilting on a commercial multi-needle embroidery machine (Ricoma-style setup)?
  A: Fix the two most common physical causes first—snags in the thread path and a dry rotary hook.
  • Inspect the entire thread path and rack for catches; remove any snag point before restarting.
  • Oil the rotary hook if the machine has not been oiled in the last ~4 hours of runtime (lint-heavy quilting runs dry).
  • Confirm quilt bulk is not rubbing the head or blocking the thread feed.
  • Success check: thread runs smoothly with consistent stitch formation and no sudden snap during steady spirals.
  • If it still fails: swap to a fresh needle and re-check tension balance with a small test area.
• Q: What safety margin should I leave between a quilting design and a 48-inch sash clamping frame on a commercial embroidery machine to prevent frame strikes?
  A: Keep the design at least 10–15 mm away from the physical frame edge to avoid hitting metal at speed.
  • Re-center the design before stitching and confirm the sewing field does not approach the clamps.
  • Slow down when working near borders to give more reaction time if anything shifts.
  • Keep hands, sleeves, and tools away from the needle bar area; pause fully before intervening.
  • Success check: the machine head never approaches the clamp zone during the entire stitch-out.
  • If it still fails: reduce the design size or reposition the quilt in the frame before restarting.
• Q: When should I choose a magnetic embroidery hoop instead of a sash clamping frame for quilting on a commercial multi-needle embroidery machine, and what are the magnetic safety risks?
  A: Choose a magnetic hoop when hoop burn/crush marks or slow loading is the bottleneck, but follow strict magnet safety.
  • Use a magnetic hoop if thick/high-loft quilts show clamp marks or if frequent re-hooping is slowing production.
  • Keep the sash clamp if maximum mechanical grip is needed for extremely heavy quilts—then focus on table support to eliminate drag.
  • Treat magnets as pinch hazards; keep fingers clear during closing and keep magnets away from sensitive medical implants and magnet-sensitive items.
  • Success check: the quilt holds securely with no visible crush marks and re-hooping time drops noticeably.
  • If it still fails: improve the support system (table/stand) because drag will distort designs even with perfect hoop tension.
