Quilt In-the-Hoop on a Baby Lock Pathfinder: The No-Panic Method for Hooping a Thick Quilt Sandwich (and Getting Perfect Placement)

If you’ve ever stared at a thick quilt sandwich and thought, “There is no way this is going into a hoop without shifting,” you are not alone. This is the single biggest barrier for machine embroiderers transitioning into quilting. The fabric is bulky, the layers slide against each other, and standard plastic hoops often feel like they are one turn of the screw away from snapping.

In this project, Pam Hayes demonstrates quilting with an embroidery machine—specifically quilting in-the-hoop on a Baby Lock Pathfinder Embroidery Machine—using a 6-inch quilting design inside a 7-inch quilt block. The method is simple, but as any seasoned pro knows, simplicity on the surface requires strict discipline underneath. We are going to break this down into a system that prevents the two big disasters: crooked placement (geometric failure) and dragging bulk (physics failure).

The Calm-Down Truth: Embroidery Machine Quilting Isn’t “Cheating”—It’s Controlled Stitching You Can Repeat

Pam’s whole point is practical: when you want quilting that’s quick, consistent, and doesn’t require you to warm up your free-motion muscle memory, letting the embroidery machine do the work is a smart move.

The key mindset shift is this: you’re not trying to wrestle the quilt into perfection by force. You’re building a system of repeatable alignment (marking + template + digital jog) so each block lands exactly where you intended.

And yes—when you’re hooping a quilt sandwich with a standard plastic hoop, it will feel “fiddly.” That is normal. The goal isn't to make it feel easy immediately; the goal is to make it predictable.

The “Hidden” Prep Before You Hoop: Block Math, Design Size, and Batting Rules That Save Your Quilt Later

Before you touch the machine, you must lock down three decisions. If you skip this, you aren't quilting; you're gambling.

1. Block size: Pam’s block is 7" x 7".
2. Design size: Pam chooses 6". This leaves a 0.5-inch safety margin on all sides (the "fudge factor").
3. Batting quilting distance: This is the invisible variable that determines if your quilt falls apart in the laundry.

Pam highlights two distinct batting behaviors based on fiber density:

• Warm & Natural / Warm & White (Cotton/Blend): Known for stability. Can be left up to 10 inches unquilted.
• Poly-Fil Project Fleece (High Loft/Polyester): Requires quilting every 4 inches. If you ignore this and leave large gaps, the batting will separate and bunch up after the first wash, creating a lumpy quilt.






Why the “fudge factor” matters (the physics, not the pep talk)

A quilt sandwich has loft (thickness). Loft means the hoop clamps unevenly, and the fabric can compress differently across the field. If your design is sized to 6.9" for a 7" block, even a 2mm shift during hooping will ruin the symmetry.

That’s why Pam’s 7" block + 6" design pairing is such a reliable starting ratio. It creates a Safety Zone that absorbs minor imperfections.

Hidden Consumables: The "Nice to Have" vs. "Must Have"

Beginners often focus on the thread, but you need these specific tools for quilting:

• Air-Erase or Water-Soluble Pen: Never use graphite or ballpoint; it will not wash out of batting.
• Topstitch Needles (Size 90/14): The eye is larger, reducing friction against the batting and preventing thread shredding.
• Temporary Spray Adhesive (like Odif 505): Essential for holding layers together if you aren't fusing.

Prep Checklist (Do this BEFORE you mark anything)

• Field Check: Confirm your machine's embroidery field fits the hoop (Pam uses an 8" x 12" field).
• Ratio Check: Ensure the design is at least 0.5" smaller than the block on all sides.
• Batting Check: Read your batting package for the "Maximum Quilt Distance" rating.
• Test Run: Decide if you are practicing on a scrap sandwich first (Highly Recommended).
• Tool Check: Ensure your marking pen is unmistakably removal-grade.

Mark the Center Like a Pro: The “Plus Sign” Trick That Prevents Rotation Errors

Pam measures the block and finds the center by doing the only math you need: half of 7 is 3.5 inches.

Then she marks a plus sign (+) at the center—not a dot.

Why a Plus Sign? A dot is a 0-dimensional point; it tells you where but not how. A dot cannot tell you if your block is rotated 5 degrees to the left. A plus sign creates an X and Y axis. When you hoop, your eyes can visually verify if the horizontal line of your "+" is parallel to the hoop's grid.

Pro Tip (Sensory Check): If your plus sign lines are too short (less than 1 inch), your eye cannot detect rotation. Make the lines at least 2 inches long to give yourself a reliable visual anchor against the template grid.

The Template Method: How to Use the Plastic Grid Template Without Flipping It (and Why the Notch Matters)

Pam utilizes the standard plastic hoop components: the inner ring, the outer ring, and the plastic grid template.

Two alignment rules she rigorously follows:

1. The Notch Lock: Match the notch on the inner ring to the outer ring. There is often a physical click or a visual alignment mark. Hoops are not perfect circles; they are calibrated to fit one way. Forcing it backward can warp the hoop.
2. The "Readable" Rule: Place the template so the "ABC" or brand text is readable (face up). If the text is backward, your grid center is wrong.

She aligns the template’s center crosshair directly over her fabric's marked plus sign.

If you’re trying to level up your accuracy and speed, this is where many embroiderers start looking at a hooping station for embroidery. While Pam uses a table surface, a dedicated station locks the outer hoop in place, preventing it from sliding away while you align the template—a massive help when wrestling bulky quilts.

Hooping a Quilt Sandwich in a Standard 8x12 Hoop: The “Feel and Shadow” Technique (Yes, It’s Fiddly)

Hooping a quilt sandwich is physically different from hooping a t-shirt. You aren't aiming for "drum tight"; you are aiming for "securely held."

Pam’s hooping sequence is specific:

1. Keep the template inside the inner hoop.
2. Slide the outer hoop underneath the quilt sandwich.
3. Tactile Step: Use your hands to feel the ridge of the outer ring through the batting.
4. Move the hoop until the block looks visually straight against the template grid.
5. Press the inner hoop down into the outer hoop.


The Physics of "Hoop Burn" and Distortion

When you clamp thick layers (Top + Batting + Backing), the plastic hoop must exert immense pressure to close. If you tighten the screw too much before inserting the inner ring, you will drag the top fabric, distorting your square block into a rhombus.

The "Sweet Spot" Tension: Loosen the screw significantly. The inner hoop should seat with moderate pressure—firm, but not a struggle. If your knuckles are white, it's too tight.

Warning: Scissors + Needle Area Risk

Warning: When trimming thread tails near the needle mechanism, keep fingers clear of the needle path. Never reach under the presser foot while the machine is active. Always use the machine’s "Lock" function or ensure the foot is up and the machine is stopped before bringing your hand near the sharp zone.

Diagnosis: When to upgrade your tools

If you are quilting a King Size quilt (50+ blocks), standard hooping will fatigue your wrists. This repetitive strain and the risk of "hooping burn" (shiny marks left on delicate fabric by high-pressure plastic rings) is the exact pain point that pushes professionals toward magnetic hoops for embroidery machines. The magnetic force clamps directly down rather than dragging sideways, eliminating distortion and saving your wrists.

Machine Setup on the Baby Lock Pathfinder: Load the Right Design Size and Trust the Time Estimate

Pam loads her design from USB and selects the 6-inch version. She also mentions a workflow improvement: saving the design into the machine’s memory.

Why save to memory? USB transfer speeds are slow. If you are doing 30 blocks, accessing the file from internal memory saves about 15 seconds per block. That’s 7.5 minutes of saved frustration.

The machine shows an estimated stitch time of 6 minutes. This is your active production time.

Machine Clarification: Pam is using a Baby Lock Pathfinder. This is a high-end single-needle machine. If you are on a smaller field machine (like a 5x7 only), ensure you scale your block down, not just the design. Do not shrink a dense quilting design more than 10-15% or you risk bullet-proof density.

Mount the Hoop Without Dragging the Quilt: “Fluff It Up” So the Carriage Doesn’t Fight the Weight

This is where quilts go wrong. A heavy quilt hanging off the table acts like an anchor. If the embroidery carriage tries to move North, but 5 lbs of quilt are pulling South, your design will register gaps.

Pam lifts and “fluffs” the quilt bulk.

The Physics of "Fluffing": You are creating a neutral gravity zone around the hoop. By bunching the fabric near the connection point, you ensure the hoop has full range of motion without tension.

Setup Checklist (The "Pre-Flight" Safety Check)

• Connector Lock: Is the hoop solidly clicked into the carriage? (Listen for the Click).
• Clearance Check: Is the quilt bulk pushed back enough that it won't hit the machine head?
• The "Under" Check: Pass your hand under the hoop to ensure no sleeve or quilt corner is trapped between the hoop and the needle plate.
• Foot Check: Is the presser foot down? (Pam notes the button turns green).
• Visual Check: Can you clearly see your marked crosshair?

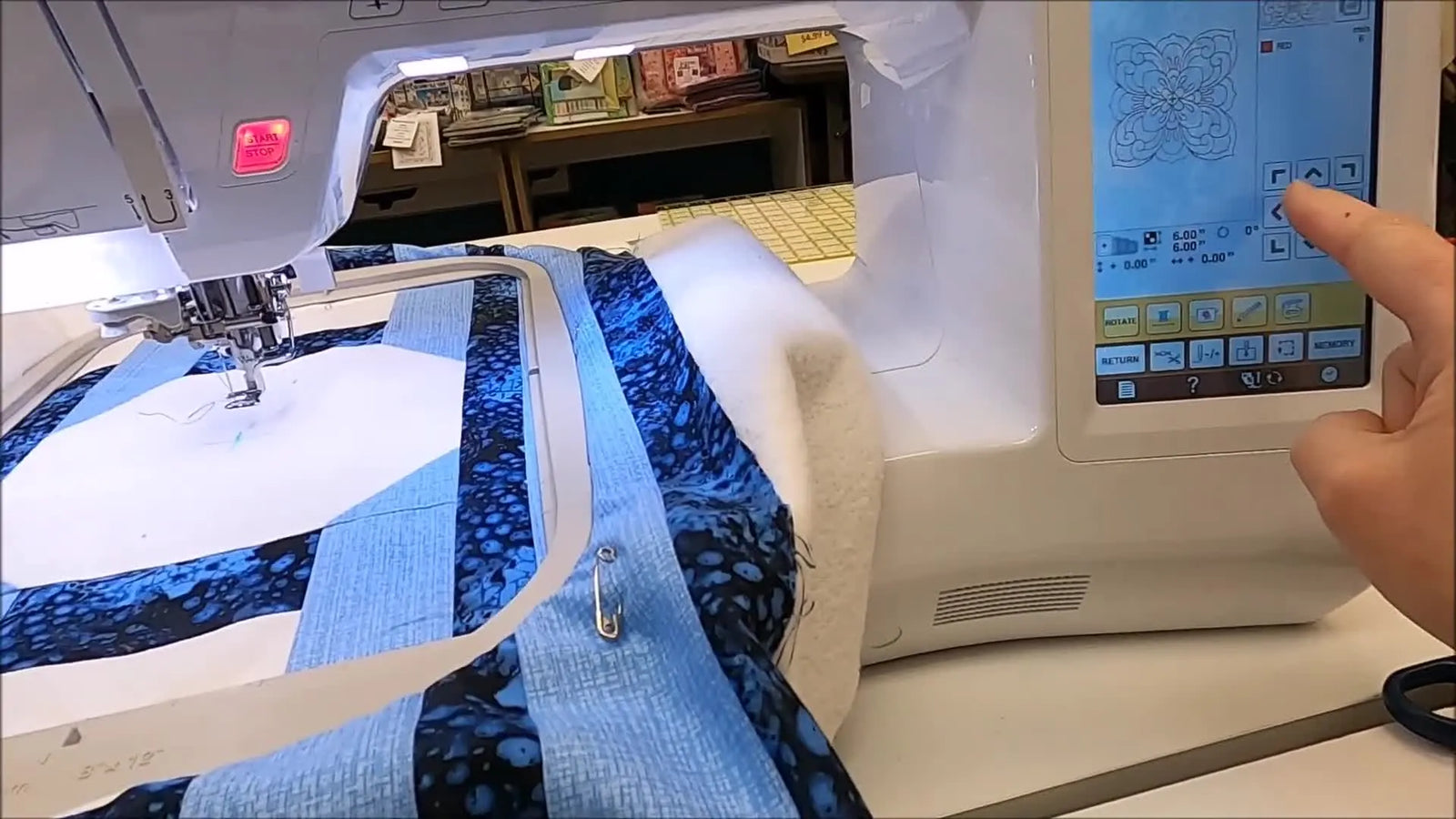

Digital Alignment with Arrow Keys: The “Three-Foot Rule” That Stops You From Overcorrecting

Even with perfect hooping, you might be off by 2mm. That is acceptable.

Pam checks the needle drop position against the marked crosshair. She uses the on-screen arrow keys to jog the needle position until it hovers exactly over the center mark.

The Viewing Distance Reality: Then she gives the most emotionally healthy advice in machine quilting: "If it looks good from three feet away, it’s good." Do not judge your quilting with a magnifying glass. Quilts are viewed from the couch or the foot of the bed.

This digital adjustment capability is standard on most machines. However, understanding how to pair this software feature with the physical stability of proper hooping for embroidery machine setups is what separates frustration from fun.

Clean Starts for Quilting: Pull Up the Bobbin Thread, Tack Down, Trim, Then Run

Pam treats this like traditional quilting, not standard embroidery. In standard embroidery, the machine usually sucks the tail down. In quilting, that creates a "bird's nest" on the back that is ugly and hard to remove.

The Professional Start Sequence:

1. Needle Down/Up: Press the button to drop the needle and raise it.
2. The Sweep: Pull the top thread. It will loop and bring the bobbin thread to the top.
3. The Anchor: Hold both tails (Top and Bobbin) with light tension.
4. The Tack: Sew the first 3-4 stitches.
5. The Trim: Stop the machine. Trim tight to the fabric.




Speed Control: She slows the machine down to 600 stitches per minute (SPM), even though the Pathfinder can run faster.

Why slow down? Quilt sandwiches create friction. Friction creates heat. High speed + High Friction = Shredded Thread. 600-700 SPM is the "Sweet Spot" for quilting layers.

Operation Checklist (The "No Birdnest" Protocol)

• Bobbin Pull: Did you bring the bobbin thread to the top surface?
• Tension Hold: Are you holding the tails for the first stitch to prevent them from being sucked into the race?
• The Clear: Did you trim the tails after the tack-down stitches?
• Gravity Watch: As the machine creates the pattern, keep an eye on the quilt weight—keep "fluffing" if it starts to drag.

Stabilizer or No Stabilizer on a Quilt Sandwich? Here’s the Real Answer

Viewers often ask: “Does it need stabilizer?”

In this demo, the shop confirms: They hooped the quilt top, batting, and backing with NO additional stabilizer.

Why this works: A quilt sandwich is a stabilizer. The batting provides structure, and the woven backing provides stability.

The Exception: If your quilt top is stretchy (t-shirt quilt) or very loose weave, sticking a layer of cut-away stabilizer on the back or using a wash-away topper (like Fabri-Solvy) is smart. The topper keeps stitches from sinking into high-loft batting, ensuring the thread sits nicely on top.

If you struggle with the "sandwich shift"—where the bottom layer ripples—many stitchers find that using magnetic embroidery hoops solves this. The continuous magnetic ring clamps all three layers evenly around the perimeter, unlike plastic hoops which pinch at specific points.

“Can I Float It?” (Table Runners, and When Hooping Just Isn’t Happening)

A viewer asked if you can “float” (lay the fabric on top of hooped stabilizer) when quilting.

The Verdict: Technically yes, but practically risky for quilts. Floating relies on adhesive/spray/pins to hold the weight. A heavy quilt will likely peel away from the stabilizer during movement.

If you cannot hoop the project due to awkward dimensions (like a rigid table runner), your best bet is to use a clamping system or a sticky stabilizer with aggressive tack. This is another scenario where a magnetic hooping station setup helps, but usually, in-the-hoop quilting demands that the sandwich be clamped, not floated.

Decision Tree: Batting Choice for Embroidery Machine Quilting

Use this logic flow to choose your materials so your quilt survives the wash:

Troubleshooting: The Two Problems That Ruin In-the-Hoop Quilting

Pam calls out quilt drag, and the comments highlight backside knots. Here is the structured fix:

Problem 1: Design Distortion / Registration Errors

• Symptom: The final outline doesn't meet the start point, or the square looks like a parallelogram.
• Likely Cause: "Quilt Drag." The weight of the blanket hanging off the table pulled the hoop during stitching.
• Primary Fix: Fluff and support the quilt weight on a table surface.
• Secondary Fix: Your hoop screw was too loose, allowing the fabric to slip inward.

Problem 2: "Rats Nest" on the Back

• Symptom: Large loops or tangles on the underside of the quilt.
• Likely Cause: You didn't hold the top thread tail when starting, or the tension is too loose.
• Primary Fix: Use the "Bobbin Pull-Up" method (Section 9).
• Secondary Fix: Re-thread the top thread. 90% of tension issues are actually threading issues.

Problem 3: Hoop Burn / Creases

• Symptom: The hoop leaves a permanent shiny ring or crushed batting that steaming won't fix.
• Likely Cause: Overtightening plastic hoops on delicate fabric (velvet/satin/high loft).
• Fix: Use a magnetic hoop which distributes pressure vertically, not horizontally.

The Upgrade Path (Commercial Logic for Home Quilters)

If you are quilting a single baby quilt, the standard plastic hoop and "fluffing" method works perfectly. Pam proves it.

However, if you catch the bug and start quilting larger projects or taking orders, the bottleneck will be hooping time and physical strain.

Here is the professional upgrade hierarchy:

1. Level 1 (Consumables): Upgrade to Titanium Topstitch needles and high-quality spray adhesive. Cost: Low.
2. Level 2 (Workflow): Incorporate embroidery hoops magnetic into your setup.
   • Why: They snap on in 5 seconds vs 2 minutes of screwing and adjusting. They handle thick sandwiches without burn.
   • Decision Trigger: If your wrists hurt or you are doing more than 10 blocks a week.
3. Level 3 (Hardware): Move to a Multi-Needle Machine (like SEWTECH).
   • Why: Larger hoops, faster speeds, and reliable tension that doesn't require constant baby-sitting.
   • Decision Trigger: You are selling quilts or running a business.

Warning: Magnet Safety is Real

Warning (Magnetic Hoops): These are not fridge magnets. They use industrial Neodymium magnets.
* Pinch Hazard: Keep fingers clear when snapping them together; they can bruise or break skin.
* Medical Device Safety: Keep at least 6 inches away from pacemakers.
* Electronics: Keep away from credit cards, phones, and USB drives.

Final Reality Check: What “Perfect” Looks Like

Pam’s method works because she embraces the reality of the material. She aligns visually with the Plus Sign. She accepts the physics of the quilt bulk. She stabilizes her start with the bobbin pull-up.

Once you execute one block successfully using this system, the fear evaporates. The machine becomes a tool for precision, not a generator of chaos. Do the math, mark properly, and let the machine do the stitching.

FAQ

• Q: How do I choose a safe embroidery design size for a 7" x 7" quilt block on a Baby Lock Pathfinder Embroidery Machine to avoid crooked placement?
  A: Use a 6" quilting design inside a 7" block to keep a 0.5" margin on all sides for alignment tolerance.
  • Measure and mark the true block center at 3.5" and draw a plus sign, not a dot.
  • Keep the design at least 0.5" smaller than the block on every side before stitching.
  • Jog the needle with the Baby Lock Pathfinder arrow keys until it hovers exactly over the center mark.
  • Success check: From about three feet away, the quilting looks centered and the margins look even.
  • If it still fails: Re-hoop with the screw loosened more and re-check that the block is not rotated against the template grid.
• Q: How do I hoop a thick quilt sandwich in a standard 8" x 12" plastic hoop on a Baby Lock Pathfinder without fabric distortion or hoop burn?
  A: Loosen the hoop screw more than you think and clamp “secure,” not drum-tight, to prevent drag distortion and shiny hoop marks.
  • Insert the template in the inner hoop and slide the outer hoop under the quilt sandwich.
  • Feel the outer hoop ridge through the batting, then align the block visually to the template grid before pressing the inner hoop in.
  • Tighten only to the “sweet spot” where the inner hoop seats firmly without a fight.
  • Success check: The block stays square (not rhombus-shaped) and the hoop closes without excessive force.
  • If it still fails: Reduce tightening and re-seat the hoop; if hooping causes wrist strain or burn marks on delicate fabric, a magnetic hoop is often the next step.
• Q: How do I stop “rats nest” thread tangles on the back when quilting in-the-hoop on a Baby Lock Pathfinder Embroidery Machine?
  A: Start like a quilter: pull up the bobbin thread, hold both tails, tack 3–4 stitches, then trim before running the design.
  • Press needle down/up, then pull the top thread to bring the bobbin thread to the top surface.
  • Hold both thread tails with light tension for the first stitches.
  • Stitch 3–4 stitches, stop, and trim tails close to the fabric.
  • Success check: The back shows clean starts with no big loops or knotted wad at the beginning.
  • If it still fails: Re-thread the top thread completely and re-check tension—many “tension” problems are actually threading problems.
• Q: What stitching speed is a safe starting point for quilting a quilt sandwich on a Baby Lock Pathfinder Embroidery Machine to reduce thread shredding?
  A: Slow the machine down to about 600–700 SPM as a safe starting point for quilting layers with higher friction.
  • Set the Baby Lock Pathfinder speed control to around 600 SPM for thick quilt sandwiches.
  • Use a size 90/14 topstitch needle to reduce friction through batting.
  • Watch for heat/friction signs (popping, shredding) and slow down further if needed.
  • Success check: The thread runs smoothly through a full block with no shredding or repeated breaks.
  • If it still fails: Re-check needle condition and re-thread the machine; consider testing on a scrap sandwich first.
• Q: Do I need stabilizer when quilting a quilt top, batting, and backing in-the-hoop on a Baby Lock Pathfinder Embroidery Machine?
  A: Often no—hooping the quilt top + batting + backing can act as the stabilizing structure by itself.
  • Hoop all three layers together evenly and avoid over-tightening the hoop screw.
  • Add cut-away stabilizer on the back if the quilt top fabric is stretchy or very loosely woven.
  • Add a wash-away topper if stitches are sinking into high-loft batting and you want cleaner definition.
  • Success check: Stitches look even on top and the bottom layer does not ripple or tunnel around the quilting.
  • If it still fails: Address “sandwich shift” by improving clamping consistency and supporting quilt weight so the layers cannot creep during stitching.
• Q: How do I prevent design registration errors caused by quilt drag when quilting in-the-hoop on a Baby Lock Pathfinder Embroidery Machine?
  A: Support the quilt weight and “fluff” the bulk near the hoop so the carriage moves freely without the quilt pulling against it.
  • Lift and bunch the quilt near the hoop connection point to create slack (a neutral gravity zone).
  • Verify clearance so quilt bulk cannot hit the machine head during movement.
  • Confirm the hoop is fully clicked/locked into the carriage before stitching.
  • Success check: The design path meets cleanly (no obvious gaps where the end doesn’t meet the start) and the block stays visually square.
  • If it still fails: Re-hoop and confirm the hoop screw is not so loose that the fabric can slip inward under motion.
• Q: What needle-area safety steps should I follow when trimming thread tails on a Baby Lock Pathfinder Embroidery Machine during in-the-hoop quilting?
  A: Keep hands out of the needle path and only trim when the machine is stopped and secured to prevent puncture injuries.
  • Stop the machine completely before bringing scissors near the needle area.
  • Use the machine’s lock function (or ensure the presser foot is up and motion is stopped) before reaching close to the needle.
  • Trim thread tails from a safe angle—never reach under the presser foot while the machine is active.
  • Success check: You can trim tails without your fingers crossing under the needle or near moving parts.
  • If it still fails: Change your trimming approach (long tweezers or a different scissor angle) and pause the machine earlier in the sequence.
• Q: What magnetic hoop safety rules should I follow when using magnetic embroidery hoops for quilting thick quilt sandwiches?
  A: Treat magnetic hoops as industrial-strength magnets and protect fingers, medical devices, and electronics.
  • Keep fingers clear when snapping the magnetic ring into place to avoid pinch injuries.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
  • Keep magnets away from phones, USB drives, and credit cards to prevent damage.
  • Success check: The hoop closes without finger pinches and the magnets are handled in a controlled, deliberate way.
  • If it still fails: Slow down setup, reposition hands before closing, and separate/attach magnets one side at a time for better control.
