Pulse DG16 Name Drops That Actually Save Time: Stack Uniform Names, Add Stops, and Run Bulk Orders Without File-Swapping

If you have ever personalized 30, 60, or 200 garments and found yourself thinking, “Why am I babysitting files instead of running the machine?”, you are experiencing the classic friction between craftsmanship and manufacturing. You are exactly who this Pulse DG16 workflow is designed for.

Jeff’s “Name Drop” method is simple on the surface: put a list of names into one design, force a stop between each name, stack them all in the exact same location, then let the machine run the same file while you swap garments at each stop.

However, executed correctly, it is one of the cleanest ways to turn personalization from a terrifying time-sink into a repeatable production process—especially for team uniforms, school spirit wear, staff polos, and event shirts. It moves you from "hoping it works" to "knowing it works."

Name Drops in Pulse DG16: the calm way to stop swapping files mid-order

Here is the reassurance up front: when you stack names on top of each other using this method, it looks like a chaotic mess on your computer screen. That is normal. Your brain sees a pile; the machine sees a linear queue.

The machine does not judge the visual clutter; it blindly follows the stitch sequence. The real win here is operational: one export, one load on the machine, and a predictable rhythm—stitch a name, stop, swap garment, stitch the next name.

If you are running bulk personalization, this is where hooping station for machine embroidery and a disciplined changeover routine start to matter as much as the digitizing itself. You need a physical workflow that matches the speed of your digital file.

The New Design Wizard in Pulse DG16: pick the Pique recipe so your defaults aren’t fighting you

Jeff intentionally avoids the standard “New” button and goes to File > New > New Design Wizard.

Why does this matter? Because embroidery is physics, not just graphics. The Wizard asks for a Recipe, and the recipe loads material-specific defaults automatically. This saves you from the "trial and error" loop.

What Jeff does (exactly as shown)

1. Go to File > New > New Design Wizard.
2. In the Recipe dropdown, select Pique.
3. He notes the Wizard populates settings such as:
   • Pull comp: Absolute (Crucial for knits to prevent distortion).
   • Fill density: 0.5 pt (Standard density is often too tight; 0.5 looseness allows the fabric to breathe).
   • Overlap: 0.3 mm.
4. Click Finish to create the new file with those defaults.

This is the “quiet pro move”: you are not guessing compensation and density from scratch—you are starting from a fabric-aware baseline.

The “Hidden” Prep that prevents ugly surprises later

Before you type a single name, treat this like a production job, not a one-off hobby project. "Hope" is not a strategy.

• Fabric Reality Check: If the garments are truly pique, the Pique recipe is a sensible starting point. Pique has a honeycomb texture that loves to "eat" small stitches.
• The Deviations: If you are actually sewing on something else (performance knit, tri-blend, fleece), the recipe may still work, but you should expect to test and adjust.
• The "Hidden" Consumables: Beginners often forget the support crew.
  • Water Soluble Topping (Solvy): Essential for pique to keep letters from sinking.
  • Needles: Use a 75/11 Ballpoint for knits to push fibers aside rather than cutting them.
  • Bobbin Check: Ensure your bobbin tension allows the top thread to show 1/3 on the back. It should drop like a spider on a web when holding the thread—smooth, controlled descent, not a freefall.

Prep Checklist (before digitizing the list):

• Fabric Audit: Confirm the actual garment type (pique vs tee vs satin-like performance fabric).
• Placement Strategy: Confirm the target placement (left chest, sleeve, back yoke) and available height. Mark a "Master Garment" with chalk or tape.
• Variable Scope: Decide whether you need one name per garment (typical) or two-line names per garment (less typical, but possible).
• Hooping Consistency: Plan your hooping method so the placement is repeatable across the whole batch.
• The "Golden" Test: Run one physical sew test on a scrap piece before committing to the full order.


Pulse DG16 Text Tool: type the names and use the tilde (~) to force machine stops

Jeff uses the Text Tool and a very specific syntax to control the machine's brain.

What Jeff does on screen

1. Click the Text Tool.
2. Left-click on the canvas.
3. Hold Shift to lock the axis (keeps your line perfectly straight).
4. Click again to set the baseline.
5. Press Enter to open the Enter Text dialog.
6. Type the first name (example shown: “Jeff”).
7. Before each subsequent name, insert a tilde (~).

Jeff explains the tilde is used as a command that creates a color change / stop at that point.

Think of the Tilde as a Red Light: When the machine reads this character in the code, it interprets it as "Stop here and wait for the operator." Even if you don't actually change thread colors, the machine's pause gives you the window to swap the garment.

Why the tilde matters in production

In bulk personalization, the stop is the whole point. Without a stop, the machine would stitch every name in one continuous run—on the same garment—ruining it instantly.

With stops, you get a controlled workflow:

• Stitch Name 1 → Machine Stops (Tilde trigger) → Swap Garment.
• Stitch Name 2 → Machine Stops (Tilde trigger) → Swap Garment.
• Repeat until finished.

That is the backbone of hooping station for embroidery style production: consistent placement + fast swaps. The rhythm should feel like a heartbeat: Sew, Stop, Swap. Sew, Stop, Swap.

Warning: Mechanical Hazard. When you are testing this workflow, keep hands and tools away from the needle area during stops and restarts. A restart at the wrong moment can snap a needle or catch a finger—especially if you are reaching in to trim or reposition fabric. Never place your fingers under the presser foot while the machine is powered on.

Text Height in Pulse DG16: drop from 25.4 mm to 15 mm so names fit real garments

After the names appear vertically, Jeff adjusts the text size. This is a critical calibration step.

What Jeff changes

• Default height shown: 25.4 mm (about 1 inch). This is massive for a left-chest name.
• New height he sets: 15.0 mm (approx 0.6 inch).

You will see the text shrink immediately on the canvas.

Expert Insight: This is where experienced digitizers think ahead: the “right” height isn’t what looks good on a monitor—it’s what reads cleanly on the garment after pull, push, and wash.

• 12mm - 15mm: The "Sweet Spot" for readability on polos.
• Under 10mm: Requires specialized 60wt thread and a smaller needle (65/9) to remain legible.
• Over 20mm: Often looks clunky on a corporate shirt.

If you are doing left-chest names on pique polos, 15 mm is a common practical range, but always test because thread, stabilizer, and fabric behavior can change the final look.

The -100% Line Spacing trick in Pulse DG16: stack every name in the exact same spot

This is the core move that confuses beginners but delights professionals.

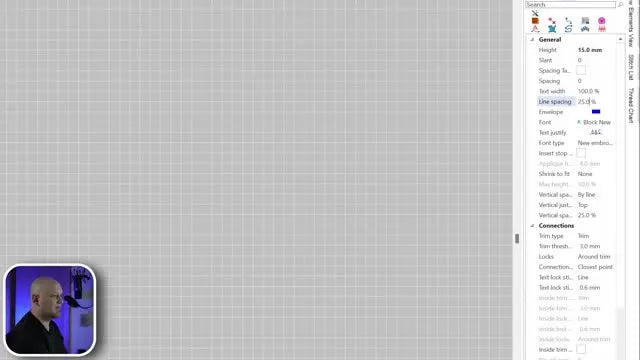

Jeff goes to the Line spacing property:

• He shows the default at 25%.
• He demonstrates that positive values (50%, 100%) spread names farther apart nicely.
• Then he enters -100%.

The Physics of the Move: By entering negative 100%, you are telling the software to retract the spacing entirely. Result: the names collapse upward and overlap completely, creating a single stacked “pile” on screen.

What you should expect to see (so you don’t panic)

• On the canvas: It looks confusing and jumbled, like a black ink blot.
• In the stitch order: Each name is still its own clean segment, separated by stops.

This is one of those digitizing moments where you trust the sequence, not the preview. You are programming a robot, not painting a picture.

If you are building a repeatable personalization workflow, this is also where a magnetic hooping station becomes a serious advantage. Why? Because if your digital file is optimized for speed (stacked names), but your physical hooping is slow and cumbersome (traditional screws), you create a bottleneck. The faster you can hoop and swap without shifting placement, the more this stacked-file method pays off.

Sequence View in Pulse DG16: prove the stitch order before you export a single file

Jeff opens Sequence View and pins it, then simulates the run. This is your "Safety Net."

What he demonstrates:

1. The machine stitches the first name ("Jeff").
2. It stops at the color change created by the tilde.
3. Imagine swapping the garment here.
4. It stitches the next name ("Justin").
5. Repeat through the list.

This verification step is non-negotiable in a commercial environment. If the stops aren’t where you think they are, you don’t “lose a little time”—you lose garments. Ruining a customer's supplied garment is the fastest way to lose reputation.

Setup Checklist (before exporting/sending to the machine)

• Sequence Integrity: Open Sequence View and confirm each name is separated by a stop command (color change).
• Start Point Verification: Confirm the very first stitched element is the name you intend to run first on your list.
• Dimension Check: Confirm the text height is correct for the placement (Jeff uses 15 mm; verify this fits your hoop area).
• Stack Logic: Confirm line spacing is set to -100% so all names share the same coordinate location.
• The "Ghost Run": Do a quick simulation/playback on screen and watch for the stop points.


“What if there is a logo on top of each name?”—build a safe, repeatable sequence

A common production question from the comments is what happens when every garment needs a logo plus the personalized name.

You can absolutely structure jobs that include both, but think like a production manager:

• Scenario A: Logo + Variable Name. If the logo is identical on every garment, you generally want the logo to stitch consistently without forcing you to re-hoop or re-align.
• Scenario B: Name Only. If the logo is pre-screened, you only stitch the name.

A practical approach is to keep the logo and the name in a controlled order and verify it in Sequence View. In many shops, the logo is stitched first (so you’re not risking a name on a garment that later shifts), but your best order depends on placement, garment stability, and how your machine handles stops.

If you are doing this at scale, the real bottleneck is rarely the software—it’s the physical changeover. That is where magnetic embroidery hoops can reduce hooping time and placement drift, especially when you are swapping garments at every stop. The lack of thumb screws means less wrist strain and faster cycle times.

“Can I stitch two names (top and bottom) before the machine stops?”—yes, but plan the logic

Another comment asks for a grouped workflow like:

• Stitch “Jeff” and under it “Manager”
• Then stop
• Then stitch the next two lines, and so on

Conceptually, that is just a sequencing decision: you are grouping two text objects per stop instead of one.

The Logic Check: The key is to verify in Sequence View that:

1. The two-line block stitches completely.
2. Then the stop occurs.
3. Then the next two-line block begins.

Safe Zone Advice: If you attempt this, test on scrap first. Two-line personalization increases stitch count and fabric stress in one area. Stabilization is critical here—if the fabric ripples between the two lines, it will look unprofessional.

The “broken i” problem: remove the connector by inserting a trim command

A very practical comment asks how to delete the connection in the letter “i” (the travel stitch up to the dot).

Jeff’s reply is direct: insert a trim in the commands tab.

That is a classic digitizer fix: if the software is connecting elements you do not want connected, you force a trim so the machine cuts the thread instead of traveling.

This is also where you should think about machine behavior: trims add time (about 6-8 seconds per trim cycle on some machines), but they can dramatically improve cleanliness on small text. On a 100-name order, those seconds add up, so use trims wisely—only where jump stitches would be ugly.

The “Why it works” (and how to avoid the two most expensive mistakes)

The Name Drop method works because you are separating two different realities:

1. Visual layout reality (on screen): Everything is stacked in one place to confuse the eye.
2. Stitch execution reality (on the machine): The machine follows the sequence—name by name—stopping at each tilde-coded color change.

However, I have seen shops fail with this. Here are the two most expensive mistakes:

Mistake #1: Trusting the Preview instead of Sequence View

If you don't confirm the stop points in the data list, you risk the machine running two names on one shirt. Always verify the data, not the image.

Mistake #2: Treating Hooping like an Afterthought

Name drops only save time if placement is consistent across the batch. If every garment is hooped slightly differently (1 inch lower, 0.5 inch left), the names will bounce around on the chest, and you will spend your “saved” time redoing pieces.

If you are currently fighting hoop burn (the ring mark left by tight hoops), slow clamping, or inconsistent placement, upgrading to a magnetic embroidery hoop style system is a practical diagnosis. It eliminates the variable of "how tight did I screw the hoop this time?"

Warning: Magnet Safety. Magnetic frames are powerful. Keep them away from pacemakers and implanted medical devices—maintain a safe distance (usually 6+ inches). Watch your fingers during closing—pinch injuries are real and painful. Store magnets away from computer hard drives and credit cards.

Decision Tree: choose stabilizer strategy for stacked-name personalization

Use this logic to avoid headers and puckered fabric.

1. Is the garment Pique (textured knit polo)?
   • Yes: Disregard "tearaway" advice. Use a Cutaway Stabilizer (2.5oz or 3.0oz). The pique texture pulls; cutaway holds the structure forever. Use Water Soluble Topping to keep letters crisp.
   • No: Go to 2.
2. Is it a lightweight T-shirt knit?
   • Yes: Danger zone. Use No-Show Mesh (Polymesh) plus a layer of tearaway for crispness. Do NOT pull the fabric tight in the hoop; float it or stick it calmly.
   • No: Go to 3.
3. Is it satin or a slick performance fabric?
   • Yes: Slippage risk. Use Fusible (Iron-on) Stabilizer or spray adhesive to bond the fabric to the backing. If it slips, your letters will tilt. Use a ballpoint needle.
   • No: Default to a medium, stable backing and test.

Operation Checklist: turn the stacked file into a smooth shop-floor rhythm

Once the file is verified and on the machine, the goal is consistency.

• Hooping Standard: Hoop every garment with the same placement reference (template, marks, or a repeatable hooping table).
• The Ritual: Run name 1 -> Machine Stops.
• The Swap: Remove hoop -> Remove garment -> Hoop next garment. Do not "stack" half-finished garments in a confusing pile; move finished goods to a "Done" bin immediately.
• The Check: Confirm the next name on the control panel (or print a paper list and cross them off) before pressing start.
• The Start: Press Start -> Watch the first few stitches to ensure the bobbin catches.

For bulk orders, this is where hooping stations and faster hooping tools can turn a clever digitizing trick into real throughput and profit margins.

The upgrade path (no hype—just what actually moves the needle)

If you are doing name drops occasionally, the software workflow alone is a big win. It reduces file management stress.

However, if you are doing them weekly (teams, schools, companies), you will eventually hit a ceiling. Your "pain points" will shift from software to hardware. Your next gains will come from:

1. Faster, more repeatable hooping: Reducing placement drift and operator wrist fatigue (Level 1: Magnetic Hoops).
2. Consumables that match the fabric: Using the right needle/backing system to prevent puckering.
3. Production-minded hardware: When volume grows beyond what a single needle can handle efficiently.

In many shops, moving to magnetic hoops/frames is the first “felt” upgrade because it drastically reduces clamping time. But when your order volume outgrows single-head pacing, a cost-effective multi-needle platform like SEWTECH multi-needle embroidery machines becomes the logical step. It allows you to stage the next color (or garment) while the machine works, effectively doubling your output capacity.

The point isn’t buying tools—it’s buying back minutes per garment until the math finally works in your favor.

FAQ

• Q: How do I use the tilde (~) in Pulse DG16 Text Tool to force a machine stop between each name in a stacked “Name Drop” file?
  A: Insert a tilde (~) before each next name so Pulse DG16 creates a color-change stop at that point.
  • Type the first name normally, then add ~ before every subsequent name in the text entry.
  • Simulate the run in Sequence View to confirm each name is followed by a stop.
  • Keep the same thread color if desired; the stop is still created by the color-change event.
  • Success check: Sequence View shows Name 1 → stop/color change → Name 2 → stop/color change, repeating through the list.
  • If it still fails… export once and re-open the stitch sequence on the machine/controller to confirm stops appear as separate segments.
• Q: In Pulse DG16 Name Drop stacking, why does setting Line Spacing to -100% make the names overlap, and is the “ink blot” preview normal?
  A: Yes—Line Spacing at -100% intentionally collapses all names onto the same coordinates, and the messy preview is expected.
  • Set Line Spacing to -100% so every name shares the exact same placement point.
  • Ignore the on-screen pile and verify stitch order in Sequence View instead of trusting the preview.
  • Run a quick on-screen playback (“ghost run”) to watch the stop points between names.
  • Success check: the canvas looks stacked/jumbled, but Sequence View still lists each name as its own clean section separated by stops.
  • If it still fails… re-check that the tilde (~) was inserted before each subsequent name, not after.
• Q: In Pulse DG16 New Design Wizard, why should the Recipe be set to Pique for polo-name personalization, and what defaults should be expected?
  A: Use New Design Wizard with the Pique Recipe as a fabric-aware starting point so defaults are not fighting knit behavior.
  • Go to File > New > New Design Wizard and select Pique in Recipe.
  • Confirm the Wizard populates a baseline such as Pull Comp Absolute, Fill Density 0.5 pt, and Overlap 0.3 mm.
  • Test-stitch one sample before committing to the full name list, especially if the garment is not truly pique.
  • Success check: the sew test shows cleaner letter edges with less distortion compared with a generic “New” file.
  • If it still fails… treat Pique as a safe starting point only and adjust after a physical test; fabric substitutions (performance knit/tri-blend/fleece) may need different stabilization behavior.
• Q: What needle, topping, and bobbin-tension checks prevent small names from sinking into pique when using the Pulse DG16 Pique Recipe?
  A: Use water-soluble topping, a knit-friendly needle, and verify bobbin tension before production to avoid letters sinking and uneven pull.
  • Add water-soluble topping (Solvy) on top of pique to keep stitches from dropping into the texture.
  • Install a 75/11 ballpoint needle for knits to push fibers aside rather than cutting them.
  • Check bobbin behavior so top thread shows about 1/3 on the back, and the bobbin drops smoothly (controlled descent, not freefall) when holding the thread.
  • Success check: the name stays readable on the surface of the pique and the back shows a balanced stitch with consistent tension.
  • If it still fails… run the “golden test” on scrap again and verify the actual garment type (true pique vs another knit) before changing design settings.
• Q: What is a safe text height range for left-chest names in Pulse DG16, and why does changing from 25.4 mm to 15 mm matter?
  A: For many polos, setting text height around 15 mm is a practical production choice because 25.4 mm is often oversized for left chest.
  • Change Text Height from the common default 25.4 mm down to 15.0 mm for typical left-chest readability.
  • Use 12–15 mm as a common readability range on polos and test sew to confirm the garment reads cleanly after pull/push.
  • Treat under 10 mm as a special-case zone that often needs finer thread/needle choices to stay legible.
  • Success check: the sewn name reads cleanly at normal viewing distance and fits the intended placement without crowding.
  • If it still fails… re-check placement strategy (mark a master garment) and run a scrap test because fabric and stabilizer can change the final apparent size.
• Q: What is the mechanical safety risk when testing Pulse DG16 tilde (~) stops, and what operator behavior prevents needle injuries at restart?
  A: Keep hands and tools away from the needle area during stops and restarts because an unexpected restart can snap a needle or injure fingers.
  • Step back during stop points and do not reach under the presser foot while power is on.
  • Trim or reposition only when the machine is fully safe to touch per the machine’s operating procedure.
  • Restart intentionally and watch the first moments of motion instead of reaching into the stitching zone.
  • Success check: garment swaps happen without hands entering the needle zone, and restarts occur with no sudden contact or needle strikes.
  • If it still fails… slow the changeover routine and train a repeatable “stop → hands off → swap → verify → start” habit before running customer garments.
• Q: When should a production shop upgrade from technique fixes to magnetic embroidery hoops or a multi-needle platform for stacked-name personalization?
  A: Upgrade when stacked-file efficiency is being lost to slow, inconsistent hooping or single-needle pacing rather than software setup.
  • Diagnose the bottleneck: if file handling is smooth but placement drift, hoop burn, or clamping time is eating minutes, improve hooping first.
  • Level 1 (technique): standardize placement with a master garment mark and repeatable hooping routine.
  • Level 2 (tool): use magnetic hoops/frames to reduce clamping time and reduce “how tight did I screw it” variability (often helps with drift and wrist strain).
  • Level 3 (capacity): move to a SEWTECH multi-needle embroidery machine when order volume outgrows single-head pacing and changeovers dominate the day.
  • Success check: swap time per garment drops and name placement consistency improves across the batch without rework.
  • If it still fails… revisit stabilizer choice and run a controlled test sew, because no hoop system can compensate for incorrect backing/topping on unstable knits.
• Q: What magnet safety rules should operators follow when using magnetic embroidery hoops/frames during frequent garment swaps?
  A: Treat magnetic frames as powerful tools—protect medical devices, fingers, and sensitive items during closing and storage.
  • Keep magnetic hoops away from pacemakers and implanted medical devices (maintain a safe distance, commonly 6+ inches).
  • Close frames deliberately and keep fingertips clear to prevent pinch injuries.
  • Store magnets away from computer hard drives and credit cards.
  • Success check: operators can open/close the frame without finger pinches and the workspace stays free of magnet-affected items.
  • If it still fails… slow down the changeover rhythm and assign a designated safe placement area for frames so magnets are not handled casually.
