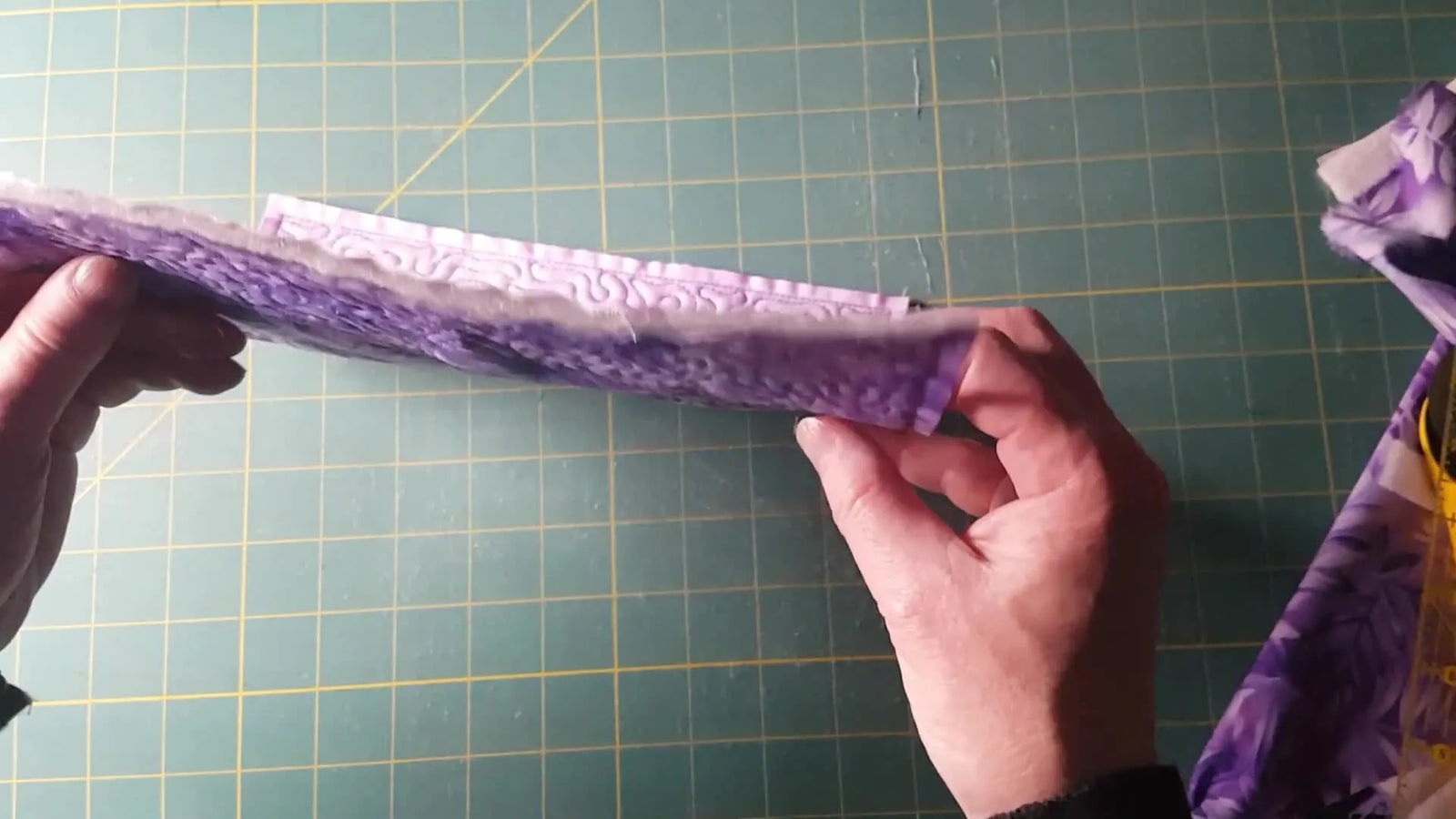

Puffy Trapunto on a Janome Horizon: The No-Pucker, No-Snag Method for Design 013T (Even With 3 Layers of Wool Wadding)

Trapunto is one of those techniques that makes experienced embroiderers grin—because the first time you see that flower stand up off the fabric, it feels like the machine just learned a magic trick.

But let’s be honest about the anxiety that comes with it. You are dealing with thick layers, a presser foot that wants to bulldoze your wadding, and that heart-stopping moment when you think, “If this shifts now, I’ve ruined a $20 piece of fabric.”

As someone who has trained hundreds of operators, I treat Trapunto not as "art" but as "engineering." This post transforms Sharon’s Design 013T video into a rigorous, failure-proof workflow. We will move beyond "hope it works" to "know it works," eliminating puckers, snags, and that dreaded bobbin-thread nest before they happen.

The “Don’t Panic” Primer: What Trapunto Machine Embroidery Actually Does to Your Fabric Sandwich

Trapunto embroidery is a controlled illusion: you add loft (wadding/batting) only where you want height, then you compress everything else with background stitching so the raised area looks even taller.

In Sharon’s Design 013T, the flower gets three layers of wool wadding in the center, while the stippling flattens the surrounding background. The result is a dramatic height difference that reads as true 3D.

If you’re new to this style, here’s the mindset shift that keeps you out of trouble: Do not treat this like quilting. When quilting, you hoop the whole sandwich. In machine Trapunto, you act like a construction crew building a foundation first. You are hooping one stable base layer, then floating the heavy materials on top only when necessary. This distinction is the difference between a pristine block and a warped mess.

The “Hidden” Prep Pros Do First: Materials, Cutting Strategy, and a Thickness Reality Check

Sharon’s supply list is refreshingly simple, but in my experience, Trapunto punishes sloppy prep more than any other technique. The goal is to control thickness transitions so the presser foot doesn’t snag (or "trip") when it climbs from thin backing to thick wadding.

What Sharon uses in the video

• Machine: Janome Horizon Embroidery Machine.
• Hoop: 9" x 9" hoop (matches the design size).
• Base: Backing fabric (cotton print).
• Loft: Wool wadding (batting): one full layer + two extra smaller layers for the center.
• Top: Top fabric (purple print).
• Tools: Curved appliqué scissors for trimming.
• Thread: Blue and purple embroidery thread.

The "Hidden" Consumables (What you also need):

• Needles: Use a Topstitch 90/14 or Universal 90/14. A standard 75/11 needle may deflect (bend) when hitting three layers of wool, causing needle breaks.
• Adhesion: A light misting of temporary spray adhesive (like 505) can help secure the floating wool layers if you are shaky with placement.
• Speed Control: Machine speed matters. For that first outline pass over thick wool, standard 1000 stitch-per-minute (SPM) speeds are dangerous. Dial your machine down to 400-600 SPM.

A quick note from the comments: one viewer mentioned a wool allergy and that polyester didn’t puff as nicely. Sharon replied that she’s had good results with Hobbs premium batting. She also confirmed you can add a third extra layer (smaller in the middle), as long as you keep a larger piece on top so the machine doesn’t get stuck.

A Note on Production & Wrists: If you’re planning to run this technique often—say, for a set of 12 quilt blocks—your hooping method becomes the bottleneck. Forcing thick backing and multiple layers into a traditional screw-tightened hoop requires significant hand strength and often leads to "hoop burn" (permanent white friction marks) on dark fabrics.

This is where equipment upgrades solve physical problems. Professionals often switch to magnetic embroidery hoops for these setups. Because these hoops use magnetic force rather than friction to hold the fabric, they eliminate the need to wrestle with screws and completely prevent hoop burn, making the workflow faster and painless for your wrists.

Prep Checklist (do this before you even thread the needle)

• Needle Check: Install a fresh 90/14 needle. Feel the tip—if it scratches your fingernail, toss it.
• Base Cut: Cut backing fabric 2 inches wider than your hoop on all sides for safe clamping.
• Loft Cut: Pre-cut one full layer of wool wadding to cover the hoop area.
• Booster Cut: Pre-cut two smaller “booster” wadding pieces for the center.
• Tool Station: Place curved appliqué scissors to the right of your machine (or dominant side).
• Speed Dial: Limit machine speed to 600 SPM maximum for the setup.

Warning: Sharp Object Safety. Curved appliqué scissors are surgical tools. The trimming happens millimeters from stitched lines. Cut slowly, keep fingers behind the blades to avoid nicks, and never, ever attempt to trim while the machine is running or even paused with your foot near the pedal.

Hooping Backing Fabric in a 9x9 Hoop: The One-Layer Rule That Prevents Distortion

Sharon hoops only the backing fabric—nothing else. She specifically hoops it with the back of the fabric facing up (bright side down), and she makes it taut in the 9" x 9" plastic hoop.

The Sensory Check: Tap the hooped fabric with your index finger. You should hear a distinct, drum-like "thump." If the fabric ripples or sounds dull, it is too loose. Re-hoop it.

This is the foundation that keeps everything stable. When novices try to hoop backing + wadding + top fabric all at once, the inner ring pushes the top layers down while the outer ring holds them up. This creates a "trampoline effect" that guarantees puckering. By hooping only the single base layer, you create a flat, predictable stage for the rest of the show.

The Consistency Problem: If you’re doing a lot of quilt blocks or production-style repeats, manual consistency is hard to maintain. A slight rotation of 2 degrees in the hoop means your square quilt block comes out as a diamond. That’s where a hooping station for embroidery can pay for itself. By using a station to standardize placement, you ensure that Block #1 and Block #12 are identical, reducing re-hoops and those frustrating "why is this block slightly skewed?" surprises.

Floating Wool Wadding Like a Pro: Why Sharon Places the Extra Layers on a Diagonal

After hooping the backing, Sharon floats the wadding: 1) She lays down a full base layer of wool wadding. 2) She adds two extra smaller layers in the center. 3) She places those extra rectangles on a diagonal.

The Physics of the Diagonal: That diagonal placement is not decorative—it’s defensive engineering. A square presser foot hitting a square stack of wool flat-on is like a car hitting a speed bump at 50mph—it will jump. By rotating the squares diagonally, the foot meets the corner first (a ramp) rather than a flat wall.

This is a classic “physics of hooping” moment: abrupt thickness edges are where the presser foot can catch, hesitate, or shove material, causing the X/Y motors to lose registration. Your job is to make the transition as smooth and predictable as possible.

Setup That Saves You From Nests: One-Stitch Stop + Pulling Up the Bobbin Thread

Before Sharon starts stitching, she sets the machine to one stitch stop (she uses this repeatedly through the project). She also pulls up the bobbin thread before stitching so she doesn’t get a nest.

Why this matters: Machine embroidery logic assumes the machine will pick up the bobbin thread automatically. However, when working with high loft (wadding), the bobbin thread is sitting 5mm–8mm below the needle plate surface. If you don't manually pull it up, the top thread has to dive deep to catch it, often creating a chaotic "bird's nest" of thread on the underside before tension stabilizes.

If you’re still building consistency with various hooping for embroidery machine projects, treat “pull up bobbin thread” as non-negotiable whenever you start a new seam line or color pass on thick materials.

Setup Checklist (quick checks right before the first stitch)

• Tension Check: Gently pull the top thread near the needle. It should feel like flossing teeth—resistance, but smooth.
• Stack Check: Is the wadding stack centered? Are the boosters diagonal?
• System: Set machine to one stitch stop (or manually pause after stitch #1).
• Thread Up: Hold the top thread, drop the needle, raise the needle, and pull the loop to bring the bobbin tail to the top surface.
• Clear Zone: Ensure the hoop path is clear of scissors or spare fabric.


The Outline Stitch Pass (Blue Thread): “Babysit” the Presser Foot Over Loft Transitions

Sharon runs the first color pass (blue) to stitch the outline of the flower. This outline does two jobs:

1. It tacks down the wadding layers.
2. It defines the shape you’ll trim around.

The "Babysitting" Technique: Do not walk away for coffee. Keep your hand near the "Emergency Stop" button. Watch the presser foot like a hawk.

• Audio Cue: Listen for a rhythmic, steady stitching sound. If the sound changes to a loud clunk-clunk, stop immediately—you likely have a needle deflection.
• Visual Cue: As the foot approaches the "hill" of the center wadding, use a stylus or the eraser end of a pencil to gently hold the wadding down in front of the foot, helping it glide up the slope.

Here’s the practical checkpoint:

• Expected outcome: a clean, continuous outline stitched through the thick wadding with no skipped stitches.
• Checkpoint: Look closely at the corners. If you see the thread "floating" above the fabric instead of locking in, your top tension is too tight or your speed is too high.


Trapunto Cut-Away Trimming With Curved Appliqué Scissors: Anti-Clockwise Control (Right-Hander Tip)

Once the outline is stitched, Sharon trims away the excess wadding outside the stitched flower shape. She leaves the wadding inside the flower to create the puff.

She uses angled/curved scissors and, as a right-hander, she trims anti-clockwise.

Why Anti-Clockwise? This keeps the bulk of the scissors outside the shape, while the blade tip rides the stitch line. This gives you a clear line of sight. If you cut clockwise, your hand often blocks your view of the cutting path.

Two important “permission slips” from Sharon:

• Imperfection is okay: It doesn’t have to be laser-perfect.
• Accidents happen: If you accidentally snip the outline thread, don't panic. This line is mainly a "basting" line holding things temporarily until the final satin or decorative stitching covers it. Just dab a tiny bit of fray check or fabric glue if it unravels.


Top Fabric Placement (Purple Print): The Moment Backing Fabric Tries to Lift—Fix It Before You Stitch

Sharon lays the top fabric face up over the raised wadding flower. She points out a common problem: adding the top fabric weight can cause the tight backing fabric to trampoline or lift up.

Her fix is manual: Smooth everything so the backing stays flat against the machine bed and the wadding is compressed straight down.

The Tool Solution for Large Scale: This smoothing step contributes to friction. With thick projects, traditional plastic hoops sometimes pop open if you push too hard on the center. If you’re frequently floating layers and generally prefer faster, cleaner loading, a magnetic hooping station setup reduces the wrestling match. The magnets allow minute adjustments to the fabric without un-hooping the whole project—a massive saver of time and sanity.

Tack-Down Perimeter + Stippling: How the Background Compression Makes the Flower Pop

Back at the machine, Sharon starts stitching again:

• She pulls up the bobbin thread (again) to avoid a nest.
• She babysits the early part to ensure the foot doesn't drag the loose top fabric.
• She keeps hands clear of the needle zone.

Then the machine stitches a square tack-down around the perimeter. Stop Point: Once this square is done, your "sandwich" is secure. You can now breathe easier. The machine no longer needs intense babysitting.

Next comes the magic-maker: stippling (quilting texture) in the background.

• The Physics: The stippling stitches are dense and cover the background area. They physically crush the batting and fabric down to the needle plate level.
• The Result: Because the center flower has extra batting and no stippling, it balloons upward in contrast to the flattened background.






The “Why It Works” Insight: Managing Thickness, Tension, and Fabric Memory So You Don’t Get Puckers

Trapunto success isn't magic; it's the successful management of forces:

1) Thickness transitions: The presser foot wants a smooth ramp, not a cliff. Sharon’s diagonal stacking turns cliffs into ramps. 2) Hoop tension vs. distortion: Hooping only the single backing layer ensures stability. Floating the loft prevents you from stretching the sensitive top fabrics unevenly. 3) Compression Creates Contrast: Stippling flattens the background; the raised area pops because you trimmed away the surrounding wadding.

Business Reality Check: Many embroiderers who love quilting-in-the-hoop eventually hit a "frustration ceiling." When you’re repeatedly loading thick sandwiches into standard machine embroidery hoops, the time you lose to re-hooping, adjusting screws, and massaging wrinkles adds up.

If you run a small local shop or accept orders for sets (e.g., 6 custom placemats), consider the "50-Piece Rule": If you have to hoop more than 50 times a month, manual screws are stealing your profit margin. This is when it's time to evaluate a more repeatable system like a hoop master embroidery hooping station—or at the very least, upgrading to magnetic frames that clamp thick layers instantly without distortion.

Troubleshooting the Three Scariest Trapunto Moments (and the Calm Fixes)

Below is the diagnostic matrix for when things go wrong.

A Simple Decision Tree: Choosing Wadding (and Avoiding Allergies) Without Losing the Puff

Use this logic flow to determine your material stack for optimal 3D effects.

1. Can you use Wool?

• YES: Use 100% Wool Wadding (e.g., Hobbs). It has the best "memory" and springs back after stitching.
• NO (Allergy): Use High-Loft Polyester Batting. Note: Poly is harder to trim cleanly (fibers pull).

2. How much "Pop" do you need?

• Subtle (Quilt look): 1 layer of batting.
• Dramatic (Trapunto look): 1 Base Layer + 2 Center Boosters (Sharon's Method).
• Extreme (Art piece): 1 Base Layer + 3 Center Boosters. Caution: Requires significant foot height adjustment.

3. Are you struggling with Needle Breaks?

• YES: Switch to a Titanium Topstitch 90/14 Needle and reduce density by 10%.
• NO: Continue with standard settings.

The Upgrade Path (When You Love Trapunto but Hate the Setup Time)

If you tried this and thought, “That was fun, but loading thick layers is slow,” you’re not alone. Trapunto is the "gateway drug" to professional finishing. It looks expensive, so customers pay more for it.

Here’s a practical framework for when to upgrade your tools based on your workload:

• Pain Point: Wrist Fatigue & Hoop Burn.
  • Solution: Magnetic Frames. They snap shut. Zero screwing. Zero friction burn on delicate fabrics.
• Pain Point: Blocks are crooked or don't match.
  • Solution: Hooping Station. Ensures every layer is mathematically centered and aligned before it touches the machine.
• Pain Point: Changing thread colors for 20 blocks.
  • Solution: Multi-Needle Machine (SEWTECH/Ricoma style). If you are moving from hobby to side hustle, the ability to set 10 colors and walk away is the only way to make the business profitable.

Warning: Magnetic Safety Alert. Magnetic hoops use industrial-grade neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can snap together with enough force to bruise fingers or break skin. Slide them apart; don't pry them.
* Health: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Tech: Keep away from credit cards and hard drives.

Operation Checklist (The Repeatable Staging Guide)

• Hoop Base: Hoop only the backing fabric (face down relative to hoop, face up relative to machine bed). Taut as a drum.
• Float: Lay down full wadding layer + diagonal center boosters.
• Stitch 1: Pull up bobbin thread -> Run Outline Pass -> Watch for foot snagging.
• Trim: Remove hoop (optional/careful) -> Trim wadding close to outline (Anti-clockwise).
• Top Layer: Place top fabric face up. Smooth out any air pockets.
• Stitch 2: Pull up bobbin thread -> Run Tack-down Stitch -> Ensure no wrinkles.
• Finish: Run Stippling/Decorative pass.
• Inspect: Remove from hoop. Check back for nests. Steam lightly if needed (hover iron, don't press the puff flat!).


If you finish a block and the back looks surprising neat, you’re in good company—one commenter on Sharon's video specifically called out how clean the reverse side looked. That is the hallmark of a pro: a stable base, no birds-nests, and managed tension.

And if you’re sitting there thinking, “WOW—this opened a whole new world of quilting,” that’s the Trapunto effect. Once you master the "float and compress" technique, flat embroidery starts to feel just a little bit... boring. Welcome to the third dimension.

FAQ

• Q: On a Janome Horizon embroidery machine, what needle type and size prevents needle deflection when stitching Trapunto with three layers of wool wadding?
  A: Use a fresh Topstitch 90/14 or Universal 90/14 needle to reduce bending and breaks on thick loft.
  • Install: Put in a brand-new 90/14 needle before the outline pass.
  • Slow down: Run the first outline at 400–600 SPM to avoid sudden impacts through the loft.
  • Listen: Stop if the stitch sound changes from steady to a loud “clunk-clunk.”
  • Success check: The outline stitches cleanly through the loft with no skipped stitches and no needle strike noise.
  • If it still fails: Reduce speed further and re-check that the wadding boosters are placed on a diagonal to soften the thickness edge.
• Q: In Trapunto machine embroidery using a 9" x 9" hoop, how do you hoop the backing fabric to avoid the “trampoline effect” and puckers?
  A: Hoop only the backing fabric (no batting, no top fabric) and make it taut like a drum.
  • Hoop: Place the backing with the back side facing up in the hoop, then tighten evenly.
  • Test: Tap the hooped backing with an index finger before stitching anything.
  • Correct: Re-hoop immediately if the fabric ripples or sounds dull.
  • Success check: The fabric gives a distinct drum-like “thump” and stays flat with no ripples.
  • If it still fails: Stop trying to clamp a full sandwich—float the wadding and top fabric instead of hooping them.
• Q: During Trapunto embroidery on high-loft wadding, how do you prevent a bobbin-thread bird’s nest at the start of an outline or new stitching pass?
  A: Manually pull up the bobbin thread and use a one-stitch stop before running the line.
  • Hold: Grip the top thread tail firmly.
  • Cycle: Drop the needle once, raise it, then pull the bobbin loop up to the top surface.
  • Pause: Use one-stitch stop (or manually stop after stitch #1) to confirm the lock is clean.
  • Success check: The underside shows a clean start with no thread wad forming before tension stabilizes.
  • If it still fails: Re-thread both top and bobbin and repeat the “pull-up” step at every new seam line on thick loft.
• Q: In Sharon’s Trapunto Design 013T-style workflow, why place the center wadding boosters diagonally, and how does that stop presser-foot snags?
  A: Place booster pieces on a diagonal so the presser foot climbs a “ramp,” not a square “cliff.”
  • Stack: Lay one full wadding layer, then add the smaller center boosters rotated to a diagonal.
  • Watch: Babysit the first outline pass as the foot approaches the raised center.
  • Guide: Use a stylus or pencil eraser to gently hold the wadding down in front of the foot if needed.
  • Success check: The foot moves over the center without hesitation and the outline remains registered with no shove or shift.
  • If it still fails: Slow to around 400 SPM and re-center the wadding stack before restarting the outline.
• Q: When trimming Trapunto wadding with curved appliqué scissors, how can a right-handed embroiderer avoid cutting the outline thread?
  A: Trim anti-clockwise so the scissor bulk stays outside the shape and the blade tip rides the stitch line with clear visibility.
  • Position: Keep the scissor tip close to the outline, but don’t rush the corners.
  • Control: Leave a small margin (don’t try to cut perfectly flush in one pass).
  • Recover: If the outline thread gets nicked, stabilize with a tiny dab of fray check or fabric glue if it starts to unravel.
  • Success check: The wadding outside the shape is removed cleanly while the outline remains intact enough to be covered by later stitches.
  • If it still fails: Slow down and reset hand position so the cutting path stays visible at all times.
• Q: In Trapunto, what should you do when placing the top fabric face up causes the hooped backing fabric to lift or bubble before tack-down stitching?
  A: Stop and smooth everything flat before stitching the tack-down perimeter so the base layer stays seated against the machine bed.
  • Flatten: Use both hands to press/smooth the top fabric so it compresses the loft straight down without dragging the backing up.
  • Verify: Ensure the hoop is still secure and the backing hasn’t loosened.
  • Secure: Do not proceed until the tack-down square can start without wrinkles being pulled in.
  • Success check: After the tack-down perimeter stitches, the full sandwich feels stable and no longer needs intense babysitting.
  • If it still fails: Consider a tool upgrade to reduce slippage—magnetic frames often clamp thick projects more evenly than friction hoops.
• Q: What are the key neodymium magnetic hoop safety rules when using magnetic embroidery frames for thick Trapunto setups?
  A: Treat magnetic hoops as pinch-hazard tools: slide apart—don’t pry—and keep them away from medical devices and sensitive items.
  • Protect: Keep fingers out of the closing path; let magnets meet under control to avoid bruising or skin breaks.
  • Separate: Slide magnets apart instead of pulling straight up or snapping them open.
  • Distance: Keep magnets at least 6 inches from pacemakers or insulin pumps.
  • Success check: The frame closes without finger pinches and holds the fabric securely without needing screw-tightening force.
  • If it still fails: If handling still feels unsafe or unstable, pause and switch back to a standard hoop until a safer handling routine is established.
