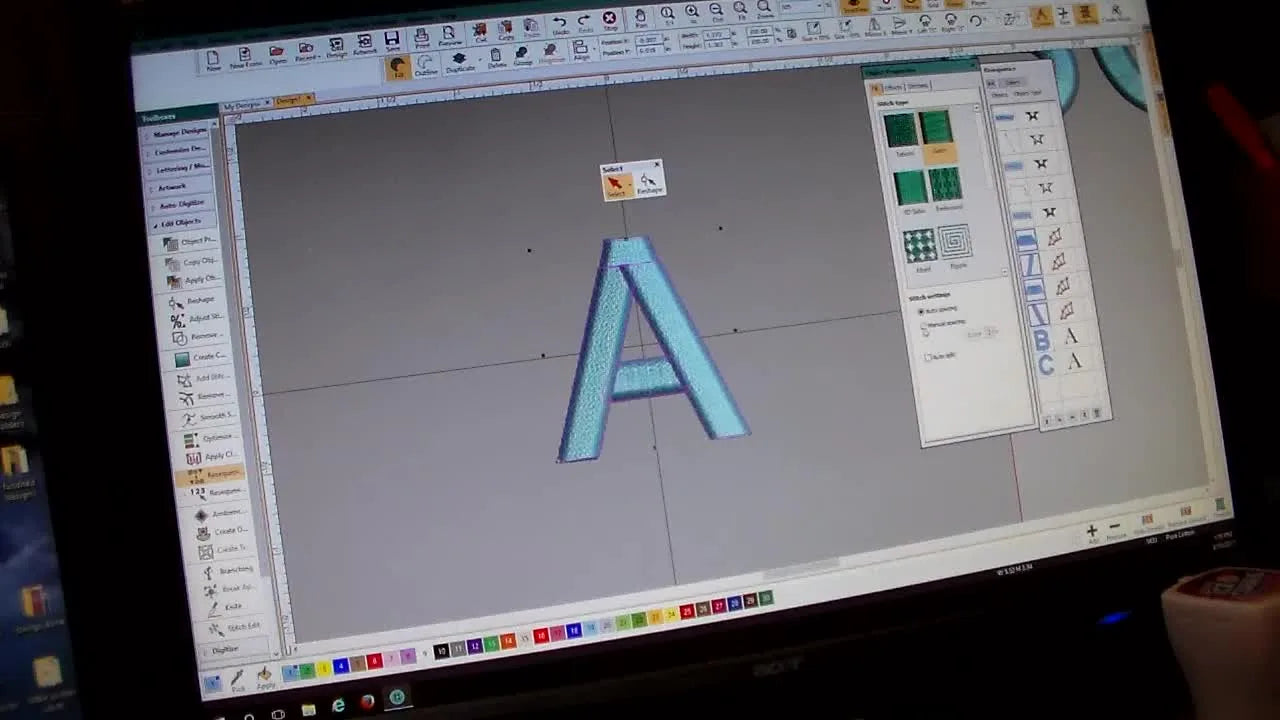

Puffy Foam Letters in Wilcom Hatch: The End-Cap Trick, the “Magic Numbers,” and a Stitch Order That Actually Peels Clean

If you’ve ever stitched “3D foam” and ended up with foam whiskers sticking out of the letter ends—or a satin column that splits down the middle—you’re not alone. Puffy foam is unforgiving: it rewards clean digitizing and punishes shortcuts.

Diane’s Wilcom Hatch demo is one of the rare tutorials that shows the why behind the settings, not just the clicks. Below is the same workflow rebuilt into a shop-ready process you can repeat on real orders (hats, jacket patches, team gear), with the common beginner traps called out along the way.

We will bridge the gap between software theory and the physical reality of needle, thread, and foam.

Puffy Foam (3D Foam) Isn’t “Just Thicker Felt”—Here’s Why Your Letter Ends Matter

Diane starts by holding up a sheet of blue puffy foam and comparing it visually to felt. The key difference is structural. Felt is a textile; foam is a delicate cellular structure that must be perforated by needle penetrations so the excess can tear away cleanly after stitching.

Imagine perforating a stamp. If the holes are too far apart, the paper tears unpredictably.

Closed shapes (like the loop in a block-style “B” or “O”) naturally get perforation all around because the satin stitch encloses them. But open-ended columns—think the top and bottom of an “A,” the ends of a “C,” or the tail of a “J”—can leave foam exposed unless you deliberately add stitches to “cap” those openings.

That’s the whole game: digitize so the foam gets cut exactly where you want it to separate.

The “Don’t Panic” Primer: What a Good Puffy Foam Sample Should Look Like

Diane shows a finished raised letter sample so you can see the goal: the satin sits high, edges look crisp, and the foam tears away without leaving fuzzy borders.

When your result looks wrong, it’s usually one of three things (all covered later):

• The "Whisker" Effect: The foam wasn’t perforated at open ends (needs end caps).
• The "Peekaboo" Effect: The satin wasn’t dense enough, showing the foam color through the thread.
• The "Grand Canyon" Effect: The software split your wide satin column down the middle, flattening the puff.

Keep that mental checklist—because it saves hours of frustration.

The Hidden Prep in Wilcom Hatch: Set Yourself Up Before You Touch Density

Before Diane even starts digitizing, she pulls up tools she uses constantly (like Reshape) so they’re easy to access. That sounds small, but it’s how experienced digitizers stay fast without rushing.

Also, she intentionally types multiple letters (“ABC”) so she can demonstrate which shapes need extra work.

One more practical note from the comments: Hatch is made by Wilcom (not “Welcom”). That matters when you’re searching for the right downloads and support.

Prep Checklist (Do this before editing objects)

• Confirm Software Access: Ensure you are in Wilcom Hatch and can access Lettering, Break Apart, Reshape, and Object Properties.
• The "ABC" Test: Type out a test set (Diane uses “ABC”) to compare open ends (A, C) vs. closed ends (B).
• Intent Check: Decide now if this is puffy foam (3D) or standard satin. Do not mix settings blindly.
• Mental Sequencing: You will need a distinct machine "Stop" command to place the foam. Plan for it now.
• Supply Check: Ensure you have sharp needles (Ballpoint needles struggle to cut foam cleanly).


Start With a Known-Good Font and Size: “Block 2” at About 1.5 Inches

Diane selects the built-in Hatch font “Block 2” and sizes the letters to roughly 1.5 inches tall as a solid baseline for foam.

Why this matters (Shop Logic > Theory): Foam needs column width to create the "loft" or puff.

• Too Narrow (<3mm): The needle penetrations shred the foam; it won't puff.
• Too Wide (>10-12mm): The loops become loose and snag prone, or the software tries to split them.

Starting with a block font at 1.5 inches keeps you in the sweet spot (Manual width approx 4mm - 8mm).

If you’re new and wondering “Do I do this on all letters?”—the answer is: you do the extra ‘cap’ work on any letter that has open-ended satin columns (A, C, J, L, some script fonts, etc.). Closed letters/loops usually don't need caps.

Break Apart in Hatch So You Can Control Each Letter (and Each Problem)

Diane uses Break Apart to separate the text block into individual letter objects. This is essential because foam fixes are rarely “one setting fits all.”

Once broken apart, you can move letters out of the way and focus on the one you’re engineering (she moves the “A” into position and pushes the others aside).

Practical Takeaway: Treat each letter like a mini-project. In a 3-letter monogram, the "L" might need heavy capping, while the "O" needs none. Breaking them apart prevents global changes from ruining specific letters.

The End-Cap Technique for the Letter “A”: Perforate the Foam Where It Wants to Escape

This is the heart of the tutorial and the step beginners skip most often.

Diane manually digitizes stitches to close the open ends of the “A” so the foam tears away cleanly:

1. Top Cap: She adds a horizontal satin bar at the top opening.
2. Travel Run: Uses a single run line to travel down a leg (hidden under the future top satin).
3. Bottom Cap: Adds another satin bar at the bottom feet.
4. Crossbar: Travels back up and adds a satin bar on the crossbar area.

The purpose is not decoration—it’s controlled perforation. You are essentially building a "knife" made of thread.

The Physics of Thickness: If you are struggling with standard hooping for embroidery machine technique on thick garments (like Carhartt jackets or letterman wool), this end-cap habit becomes critical. Thick fabric + thick foam = massive "push" distortion. The foam will try to squeeze out the ends like toothpaste. The caps act as the cap on the tube.

Warning: Needle Deflection Risk.
Satin tools and travel runs are just software steps, but the real risk shows up at the machine. Needles can deflect or break on dense foam work if they hit a previous knot. Wear eye protection. Keep hands clear during test-outs. If you hear a loud rhythmic "thump-thump," your needle is struggling—slow down your machine speed (recommended: 600-750 SPM for foam).

Clean Start/Stop Points in Hatch Reshape: The Small Fix That Prevents Big Thread Nests

Diane switches to Reshape and moves the Green (Start) and Red (Stop) points so the cap stitches flow logically.

She notes Hatch can auto-path well, but she always double-checks.

The Experienced Reason: Foam designs are dense and tall. Extra trims, jumps, or awkward entry points create specific problems:

• Bird Nests: A messy start under the foam creates a lump that won't lay flat.
• Visible Tails: If the machine trims in the middle of a column, you can't burn the thread tail away because you'll melt the foam.
• Foam Lifting: An awkward jump can pull the satin specifically off the foam edge.

Treat start/stop points like “traffic control.” Green go, red stop—ensure the path flows without crossing over itself unnecessarily.

The “Magic Numbers” in Hatch Object Properties: Density 0.18 mm (Manual Spacing)

Diane increases stitch density by going into Object Properties and changing spacing:

• She unchecks Auto Spacing.
• Sets Manual Spacing from the standard 0.36mm down to 0.18mm.

Sensory Check: This doubles the stitch count. You should see the stitch count in the bottom bar jump dramatically (e.g., from 3,300 to 6,000+).

Why 0.18mm? Standard satin (0.40mm) leaves gaps. When you stretch thread over foam, those gaps open up. 0.18mm provides the "solid wall" of color needed to hide the foam completely.

Note: This places high stress on your thread. If you experience shredding:

1. Use high-quality polyester thread.
2. Slightly lower your top tension.
3. Slow the machine down.

Setup Checklist (After building satin objects)

• Selection Check: Ensure only the top satin layer is selected (not the outline).
• Auto Spacing: Turn OFF.
• Manual Spacing: Set to 0.18 mm (or 0.20 mm if using 60wt thread).
• Sanity Check: Did the stitch count skyrocket? If yes, proceed.


Pull Compensation 0.56 in Hatch: Make the Satin Wrap the Foam, Not Strangle It

Next, Diane goes to the Stitching tab and increases Pull Compensation from the default (she references 0.20) up to 0.56.

On screen, you can see the column widen.

Why this works (Physics): Foam lifts the thread path, creating a larger circumference to cover. Without extra pull compensation, the satin stitch "shrinks" inward as it tightens, leaving the foam exposed at the sides (the "Peekaboo" effect). With 0.56mm Pull Comp, the satin wraps around the vertical sidewall of the foam, tucking in underneath like tight upholstery.

A commenter asked about file formats (saving to ART then DST). Diane confirmed the digitizing logic carries across when exported properly. The machine reads coordinates, not "Hatch settings."

Production Note: Testing foam requires strict stability. If your fabric shifts even 1mm, the foam will peek out. Many professionals upgrading their workflow turn to magnetic embroidery hoops because they clamp the fabric and backing with immense vertical pressure, preventing the "flagging" (bouncing fabric) that ruins foam alignment.

Disable Auto Split in Hatch: Stop Wide Satin Columns from “Cracking” Down the Middle

Diane calls out a critical trap: Hatch (and many systems) triggers Auto Split once satin columns exceed ~7–9 mm.

Her fix is non-negotiable for foam:

• Make sure Auto Split is unchecked (OFF).

The Visual Consequence: If you leave this on, the software puts a line of needle penetrations right down the center of your 3D letter. This acts like a perforation line, flattening your puff and creating an ugly "valley" or crease. You want a smooth, unbroken dome of thread.

The Hat Challenge: If you are doing this on caps, the curve makes this even harder. The "push" effect is amplified on a radius. Standard hat drivers can struggle to hold tension evenly across a wide unstructured cap. This is why specialized cap hoop for embroidery machine systems (often with specific tensioning bands) are standard in production to keep the cap surface "drum tight" against the foam.

Create Outlines and Offsets in Hatch: Build a 3 mm Satin Outline That Sews First

Diane uses Create Outlines and Offsets to generate a satin outline around the letter. She chooses a satin line option and applies it to both the outside and inside holes.

Pro Workflow Tip: Create your outline before breaking objects apart. Hatch treats the grouped letters as a single pathing unit, saving you from manually sequencing every contour.

She sets the outline width to 3 mm (usually in a contrasting color or same color depending on style).

The Logic: With foam, the outline usually sews ON THE FABRIC (before foam placement) or creates a dam. In Diane's specific style shown here, the outline provides a clean border that frames the eventual puff.

The Stitch Sequence That Makes Foam Easy: Outline → Placement Run → Stop → Dense Satin

Diane’s final sequencing is the production-friendly version. You must visualize the machine stopping physically.

1. Red Satin Outline (3 mm): Sews directly on the garment.
2. Placement Run (Single Run): She duplicates the outline and converts it to a run stitch. This shows you exactly where to lay the foam.
3. STOP Command: The machine stops (programmed color change). You spray a tiny bit of adhesive or use tape to lay the foam inside the placement box.
4. Blue Dense Satin: The final heavy stitch runs over the foam, cutting it and puffing it.

This clarifies the common confusion: "Does the A need a running stitch to close it?" In Diane’s method, the running stitch acts as a guide, but the cutting action comes from the density and end caps.

Batch Production Tip: If you use a hooping station for machine embroidery in your shop, you can maintain consistent placement across 10 or 20 shirts. Sequence your machine to run Step 1 & 2 on all shirts, then do a bulk session of laying foam and running Step 4.

Operation Checklist (Pre-Flight)

• Sequence Verification: Check the object list: Outline -> Run (Guide) -> STOP -> Puffy Satin.
• Underlay Check: OFF for the puffy satin layer (Crucial).
• Settings Check: Manual Spacing 0.18mm, Pull Comp 0.56mm.
• Auto Split Check: OFF.
• Visual Check: Preview in 3D mode. Does the satin look smooth and unbroken?


Underlay Choices: Where You Can Use It—and Where It Will Ruin the Puff

Diane’s rule is paramount:

• Outline/Base: You may use underlay (Zig-zig or Edge run) for the flat outline stitching on the fabric.
• Puffy Foam Layer: You DO NOT want underlay.

Why? Think of underlay as a foundation. If you put a foundation on top of the foam, you are effectively stitching the foam down flat before the satin has a chance to cover it. The underlay creates a "trampled" path, ruining the 3D loft. The foam itself is the underlay.

A Simple Decision Tree: Fabric & Stabilizer Strategy

The video focuses on software, but your physical setup dictates 50% of the result. Use this decision tree to avoid ruin.

1) What represents your base material?

• Sturdy Canvas/Patch Material: (Like Diane’s sample).
  • Stabilizer: Standard Tear-away or Cut-away (2.5oz).
• Stretchy Knits / Performance Polos:
  • Stabilizer: Must use Cut-away (No-show mesh or standard 2.5oz). Foam density will cut a hole in a t-shirt without strong backing.
• Caps/Hats:
  • Stabilizer: Cap backing (Tear-away stiffener).

2) Hooping Strategy for "Puff":

• The Problem: Foam adds vertical drag. As the needle pulls out, it tries to lift the fabric (Flagging).
• The Fix: You need "Drum Tight" tension.
  • Level 1: Tighten your standard hoop screw with a screwdriver (carefully).
  • Level 2 (Upgrade): Use magnetic embroidery hoop systems (like MaggieFrame). The magnets self-adjust to the fabric thickness, clamping the sandwich tight without the "hoop burn" friction marks common on thick jackets.
  • Level 3 (Scaling): Use a hoop master embroidery hooping station to align the logo perfectly every time, especially for difficult left-chest placements on hoodies.

Troubleshooting Puffy Foam in Hatch: Symptoms → Fixes

If your test stitch fails, match it to this grid.

The Upgrade Moment: When Your Digitizing Is Right but Production Still Feels Slow

Once your Hatch file is optimized, the bottleneck shifts to the physical world.

The Reality of Scale:

• Hobbyist: Stitching one 3D foam hat takes time and patience. Your current manual tools are sufficient.
• Business: If you have an order for 50 foam patches or caps, manual hooping and single-needle handling become the enemy of profit.

Strategic Upgrades:

1. Hooping: Upgrading to magnetic frames eliminates the struggle of forcing thick jackets into plastic rings, saving your wrists and reducing hoop burn.
2. Machines: Complex foam files run better on vertical-needle systems. SEWTECH multi-needle embroidery machines offer the stability and clearance needed for 3D work that domestic flat-bed machines often struggle with, allowing you to run orders faster with fewer thread breaks.

Warning: Magnetic Safety. High-strength magnetic hoops are industrial tools. They can pinch fingers severely. Keep them away from pacemakers, ICDs, and magnetic storage media (credit cards/hard drives).

Final Thought: Foam success isn't magic; it's engineering. It's about end caps, density (0.18mm), and the right physical support. Master these, and you stop "hoping" it works and start knowing it will.

FAQ

• Q: In Wilcom Hatch, how do I stop 3D foam embroidery letters from leaving foam “whiskers” at the ends of satin columns?
  A: Add manual satin end-caps wherever the satin column is open-ended so the foam is perforated and tears away cleanly.
  • Add a short horizontal satin bar at each open end (top/bottom of letters like A, C, J, L, some scripts).
  • Use a hidden run travel where needed so the caps connect cleanly before the main satin.
  • Reposition Start (green) and Stop (red) points in Reshape so the stitch path doesn’t jump across openings.
  • Success check: after tearing away foam, the letter ends look crisp with no fuzzy foam strands sticking out.
  • If it still fails: increase end-cap coverage slightly and confirm the final top satin is dense enough to “cut” the foam.
• Q: In Wilcom Hatch Object Properties, what manual spacing should be used for puffy foam satin so foam color does not “peek through”?
  A: Turn Auto Spacing OFF and set Manual Spacing to 0.18 mm for the top puffy satin layer to fully cover the foam.
  • Select only the top satin object (not the outline) before changing settings.
  • Uncheck Auto Spacing, then set Manual Spacing from 0.36 mm down to 0.18 mm (0.20 mm may be a safer starting point with 60wt thread).
  • Slow the machine down if thread stress increases during testing.
  • Success check: the foam color is not visible between satin stitches, even on curves and edges.
  • If it still fails: verify Pull Compensation is increased and check for thread shredding from tension or speed.
• Q: In Wilcom Hatch, how do I prevent wide 3D foam satin columns from splitting and creating a “Grand Canyon” crease down the middle?
  A: Disable Auto Split so Hatch does not add a center split line that perforates and flattens the puff.
  • Open the satin object settings and ensure Auto Split is unchecked (OFF).
  • Re-preview the design to confirm the column becomes one smooth, unbroken satin surface.
  • Keep the foam layer as a single dense satin pass rather than two split columns.
  • Success check: stitched letters look domed and smooth with no valley/crease line down the center.
  • If it still fails: re-check that underlay is OFF on the foam layer and reduce speed to limit needle deflection.
• Q: In Wilcom Hatch, should underlay be ON or OFF for the top puffy foam (3D foam) satin layer?
  A: Turn underlay OFF for the puffy foam satin layer because underlay can crush the foam and kill the 3D loft.
  • Allow underlay only on the flat outline/base that sews on fabric before foam placement (if needed).
  • Confirm the object list separates the outline/base from the foam satin layer so settings don’t bleed across.
  • Re-run a test stitch after disabling underlay on the foam layer.
  • Success check: the finished satin sits high and rounded, not trampled or flattened.
  • If it still fails: check hooping stability (flagging) and confirm density is set for foam.
• Q: For 3D foam embroidery in Wilcom Hatch, what stitch sequence should be used so foam placement is accurate and repeatable?
  A: Use Outline → Placement Run → STOP (color change) → Dense Satin over foam to guide placement and cut the foam cleanly.
  • Sew the satin outline on the garment first, then sew a single run placement line as a guide.
  • Insert a STOP using a programmed color change so the machine pauses for foam placement.
  • Lay foam inside the placement boundary (light adhesive or tape as needed), then run the final dense satin.
  • Success check: foam aligns inside the stitched boundary and tears away cleanly without shifting.
  • If it still fails: tighten hooping to reduce fabric flagging and verify start/stop points are not creating extra trims/jumps.
• Q: What machine safety steps should be followed when stitching dense 3D foam designs to reduce needle break and deflection risk?
  A: Slow down and treat dense foam stitching as a higher-risk operation because needles can deflect or break on heavy penetrations.
  • Reduce speed to about 600–750 SPM for foam tests and production runs.
  • Wear eye protection and keep hands clear during sew-out, especially on dense caps and end-caps.
  • Listen for a loud rhythmic “thump-thump,” which can indicate the needle is struggling through density.
  • Success check: stitching sounds smooth and consistent with no repeated heavy impacts or sudden snapping.
  • If it still fails: stop immediately, inspect for excessive density/awkward start points, and confirm needle choice is appropriate (ballpoint needles often struggle to cut foam cleanly).
• Q: When 3D foam embroidery keeps shifting from fabric flagging, when should a shop upgrade from standard hoops to magnetic embroidery hoops or to SEWTECH multi-needle embroidery machines?
  A: If digitizing settings are correct but foam still misaligns or production is too slow, upgrade in levels: technique first, then hooping tools, then machine capacity.
  • Level 1 (technique): tighten standard hoops carefully and improve stabilization so the fabric stays “drum tight.”
  • Level 2 (tool): use magnetic embroidery hoops to clamp thick fabric + backing more consistently and reduce shifting that causes foam peek-out.
  • Level 3 (capacity): consider SEWTECH multi-needle embroidery machines when order volume (caps/patches) makes manual hooping and frequent thread breaks a profit bottleneck.
  • Success check: registration stays consistent across repeats, and foam coverage remains even at edges without frequent restarts.
  • If it still fails: revisit the STOP/placement sequence and confirm Pull Compensation and density are set for foam before investing further.
