Publish BX Fonts in Embrilliance Stitch Artist Level 3 Without the “Whoops” Errors: Clean Metrics, Correct Baselines, and Customer-Ready .BX Files

The Definitive Guide to Publishing BX Fonts: From Digitized Object to Keyboard-Ready Product

When you are publishing a BX font in Embrilliance, you are not simply "saving a file"—you are packaging a functioning product. Whether you are selling to customers or creating tools for your own production line, a BX font must behave predictably. When something goes wrong—missing stitches, erratic spacing, or that dreaded "Whoops" pop-up—it can feel like the software is gaslighting you.

Take a breath. The workflow is straightforward once you treat it like a controlled engineering process: measure your assets, set your metrics, verify your baselines, and then publish with permissions that match your intent.

Why a BX installer font matters (and why customers notice the small stuff)

A BX font is the bridge that allows you (or your customers) to type text like a standard keyboard font inside Embrilliance, rather than tediously importing individual letter designs one by one. That convenience is exactly why spacing, baseline alignment, and size limits matter—because the user will judge the quality of your font in the first 10 seconds of typing.

If you are selling fonts, your hidden goal is consistency: every letter should "sit" correctly on the baseline, scale without density issues, and space cleanly across different word combinations. If you are building for your own shop, the goal is speed: fewer manual edits per name means more finished caps or shirts per hour.

The Physical Reality Check: One practical business note: Software perfection means nothing if the physical stitch-out fails. If you are producing stitched samples of your font on garments to validate them, a stable, repeatable hooping workflow matters as much as the digitizing. A dedicated machine embroidery hooping station can significantly reduce sample rejects (and wrist fatigue) when you are stitching the same test phrases, like "The Quick Brown Fox," over and over again to check kerning.

The “don’t skip this” reference check: measuring the letter M height in Stitch Artist Level 3

Before you even open the Publish dialog, you need one specific piece of forensic data: the height of your reference letter "M." In the industry, the "M" is our standard anchor for scaling logic.

How to capture the data (Sensory Check):

1. Select: Click to select your digitized letter M on the canvas.
2. Verify: Look at the status pane at the very bottom of the interface.
3. Record: Read the height value. In the tutorial scenario, the digital caliper reads exactly 50.00 mm.

That "M height" is not trivia—it is the foundational number you will enter as Current Height in the Publish Font dialog. If you guess here, everything downstream—size range, density scaling, and customer expectations—will be mathematically incorrect.

Open the Publish Fonts dialog in Embrilliance Stitch Artist Level 3 (the exact menu path)

Navigating to the correct tool is step one. Note that BX publishing is a feature specific to StitchArtist Level 3.

From the top menu bar:

1. Click Create.
2. Hover over Publish.
3. Click Fonts.

This opens the Publish Font dialog, the control center where you will name the font and define its behavior rules.

Common Misconception: Beginners often ask, "How did you get the font there? Are you using another font first?" The Reality: No. You must already have your alphabet digitized (shapes drawn, stitches applied) and prepared as object files before efficient publishing occurs. Publishing does not generate letters; it packages what you have already digitized into a keystroke-ready format.

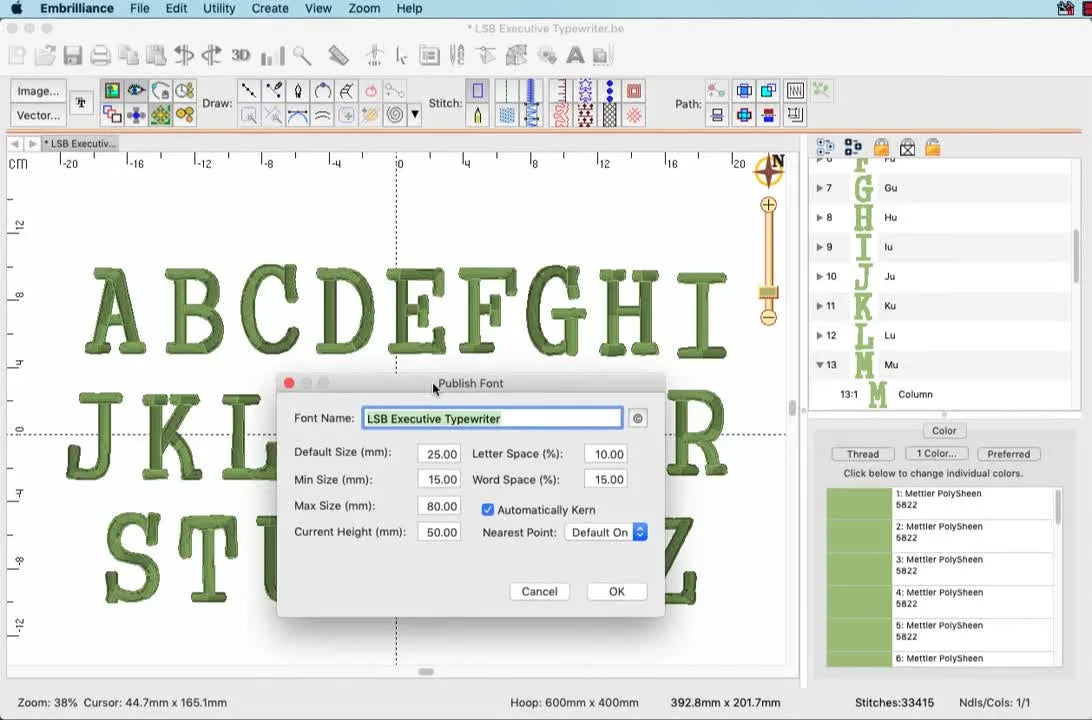

Dial in the Publish Font dialog settings (name, sizes, spacing, kerning) so your BX behaves like a real product

This is where most people rush—and where most customer complaints are born. You are defining the "physics" of your font here.

In the standard workflow, you will enter:

• Font Name: “LSB Executive Typewriter” (This is the display name).
• Current Height: 50.00 (This must match your measured "M").
• Min Size: 15.00
• Max Size: 80.00
• Default Size: 25.00
• Letter Space (%): 10.00
• Word Space (%): 15.00
• Automatically Kern: Checked.
• Nearest Point: Left at default (This controls entry/exit logic).


What these settings really control (so you don’t “fix” the wrong thing later)

• Font Name (Internal List Name): This is what users see in their typography dropdown menu. Make it descriptive.
• Default Size: The size that appears on screen when a customer first clicks the text tool.
• Min/Max Size: This is your Safety Guarantee to the customer. It translates to: "I have tested this font, and within this range, the satin stitches won't be too tight (breaking needles) or too sparse (showing fabric)."
• Letter/Word Spacing: Your default recipe for air. Block fonts need different air than scripts.
• Automatically Kern: This algorithm helps manage the gap between specific letter pairs (like A and V). It isn't magic, but it reduces the need for manual spacing edits significantly.

Expert Insight: If you are building fonts for sale, treat Min/Max as a quality boundary, not a marketing flex. A huge max size looks impressive on a spec sheet—until a customer scales up, the density doesn't adjust correctly, and they punch a hole in their shirt.

Furthermore, when you are swapping blanks rapidly to test these size ranges, efficiency is key. Many professionals adopt a hooping station for embroidery workflow to save real time—especially if you are performing multiple sample runs to validate spacing and baseline behavior across different fabric types.

Prep Checklist (Do this BEFORE clicking OK in the Publish dialog)

• Measurement Verification: Confirm your reference "M" height from the status pane matches the Current Height field exactly.
• Safety Range: Decide your Min / Max sizes based on actual physical stitch-outs, not guesses. (Can your machine handle the density at max size?)
• Spacing Base: Start with the standard defaults (10% letter, 15% word) unless your specific font style demands otherwise.
• Kerning: Ensure Automatically Kern is enabled to let the software handle the math for letter pairs.
• Documentation: Write down your "release notes" (e.g., "Tested on denim with cutaway stabilizer").

The baseline fix that separates “works on my screen” from “types cleanly”: adjusting descenders like Q

Here is the step that separates amateur fonts from pro fonts: Baseline Alignment.

In the tutorial, most letters are capitals sitting on the line, but the letter Q is a "descender"—its tail needs to dip below the line. If you don't adjust this, the Q will float awkwardly mid-air when typed next to an A.

The Adjustment Protocol:

1. Locate: Find the letter Q (or g, j, p, y) on your canvas.
2. Identify: Look for the baseline handle/guide (usually a line or node associated with the letter's floor).
3. Modify: Click and drag the letter or baseline so the main "bowl" of the Q sits on the line, and the tail hangs below it.
4. Repeat: Do this for every single character that has a descender.

Visual Check: When you look at the Q, imagine a floor running under the circle part. If the tail isn't "underground," it's wrong.

Pro tip from the shop floor

If your font "looks fine" as disparate individual files but types poorly as words, do not immediately blame the spacing percentage. Check your baselines first. Vertical misalignment often masquerades as a spacing problem to the untrained eye.

Publish Fonts again, then lock in copyright + permissions (so customers use it the way you intend)

After you have physically adjusted the baselines on the canvas, you must update the package.

Return to: Create > Publish > Fonts.

The settings you entered earlier should persist. This is the moment to verify them. This is also where you input the legal data:

• Copyright: Your Name / Company.
• Rights: Define if the user can "republish" (rarely allows) or "convert to objects" (allows them to edit the nodes).

Real-world Note: Customers rarely read license text files, but they do encounter these permissions if the software blocks them from editing. Clear permissions here reduce support emails later.

Setup Checklist (Before generating the BX file)

• Consistency Check: Re-open the Publish dialog and verify no numbers shifted.
• Descender Verify: Confirm you visually adjusted baselines for Q, g, j, p, y.
• Refine Spacing: If your previous test stitch-out was too airy, lower the Letter Space %.
• Attribution: Fill in copyright/creator details so your file is traceable to your shop.
• Permissions: Consciously decide on "Convert to Objects" permissions based on your business model (e.g., allow if you want users to be able to tweak pull compensation).

Save the .BX file correctly (and don’t confuse the file name with the font name)

When you click OK to generate the BX, the software prompts you to save the file to your computer.

Crucial Distinction:

• The BX File Name: This is the name of the file on your hard drive (e.g., Typewriter_Font_v1.bx).
• The Internal Font Name: This is the name shown in the user's font list (e.g., LSB Executive).

The Save Protocol:

1. Ensure the filename ends with .bx.
2. Choose a logical save location (like a "Ready for Release" folder).
3. If prompted to replace an existing file, confirm only if you are 100% sure you want to overwrite a previous version.


Warning: Data Loss Risk
When overwriting an existing .bx file, you can accidentally replace a "good" working version with a broken test version. Always keep versioned backups (e.g., FontName_v1, FontName_v2) so you can roll back instantly if a new publish introduces a bug.

Fix spacing that “isn’t right” (without randomly changing numbers)

Troubleshooting spacing is an iterative loop.

• Symptom: Letters feel "gappy" or collide.
• Cause: Default settings usually favor block fonts. Scripts or Swirly fonts often need negative letter spacing (e.g., -5%) to touch.
• Fix: Adjust Letter Spacing and Word Spacing percentages in the Publish dialog.

Actionable Testing: Test with "Torture Test" words like "AVATAR," "WAVE," "LYT," and "TwO." These pairs reveal awkward gaps. Change only one variable at a time (Letter space first, then Word space).

The Stability Factor: If you are doing this for commercial release, you must stitch your test on a stable fabric setup. If your fabric puckers, you cannot judge the spacing. In high-volume font testing, operator consistency is vital. Experienced digitizers know that terms like magnetic embroidery hoop are your gateways to understanding efficient production; using one ensures that your fabric tension remains absolutely consistent across fifty different test runs, eliminating "hooping error" as a variable in your spacing test.

“Whoops, this font has automatic columns and cannot be published.” What it means, and what to do next

This specific error message is a quality gate. It prevents you from publishing a broken product.

• Logic: The software detects that you have used "Automatic Columns" (a digitizing object type) but have not assigned inclination angles to them.
• Fix: Read the error—it lists the guilty glyphs. Go back to those letters on the canvas, select the column objects, and assign the proper stitch angles.
• Prevent: Don't brute-force it by deleting letters. Fix the underlying geometry.

“My stitches disappear after saving as BX”

This usually happens when the source objects aren't fully recognized stitch types.

• Why: BX publishing expects specific object properties.
• The Fix: Ensure your objects are converted to stitches or are standard StitchArtist objects before publishing. Test with just the letter 'A' before doing the whole alphabet.

A decision tree you can actually use: test size range + stitch-out workflow before you sell

Use this logic flow to avoid the two most common disasters: bad scaling breaks needles, and bad spacing breaks hearts.

Decision Tree: Establishing Safe Parameters

1. Did you stitch-test the font at the SMALLEST size you want to offer?
   • NO: Stop. Test it. If letters turn into thread-blobs, increase Min Size.
   • YES: Proceed. Keep that tested value as Min.
2. Did you stitch-test the font at the LARGEST size you want to offer?
   • NO: Stop. Test it. Listen to the machine. Does it sound like it's hammering (thump-thump)? The density is likely too high. Decrease Max Size.
   • YES: Proceed. Keep that tested value as Max.
3. Do typed words show baseline drift (letters floating)?
   • YES: Fix geometrical Baselines (Drag the 'Q' down) first.
   • NO: Proceed to tune spacing percentages.
4. Does the font connect properly (script only)?
   • NO: Adjust Nearest Point or lower Letter Spacing % to negative values.

The upgrade path (when your bottleneck isn’t software anymore)

Font publishing is digital, but your revenue is physical: samples, product photos, customer stitch-outs, and repeatable production. If you are moving from "I made a font" to "I sell fonts and stitch samples weekly," your bottleneck will shift from software clicks to physical setup time.

This is where tool upgrades become a business necessity:

• Sample Consistency: If you are constantly re-hooping test swatches, a hooping station standardizes placement, ensuring your "baseline test" isn't just a crooked hoop.
• Hoop Burn & Speed: If "hoop burn" (marks on the fabric) or slow clamping is killing your throughput, a magnetic embroidery hoop is a logical upgrade. It reduces handling time and maintains uniform tension without the "unscrew-tighten-pray" cycle of traditional hoops.
• Volume: If you are producing dozens of stitched samples or taking orders, a multi-needle machine (like the SEWTECH line) becomes the next step, allowing you to set up the next run while the current one stitches.

Warning: Magnetic Safety
Magnetic hoops are industrial tools, not toys. They use powerful neodymium magnets.
* Pinch Hazard: Handle with care to avoid pinching fingers between the magnets.
* Medical Safety: Keep magnetic frames away from pacemakers, ICDs, and other implanted medical devices.
* Electronics: Store away from magnetic storage media and sensitive electronics.

Operation Checklist (Your final “Release” routine)

• Type Test: Type out "The Quick Brown Fox" in Embrilliance. Look for visual spacing errors.
• Baseline Final: Ensure descenders (Q, g, p, y) sit below the line.
• Physical Proof: Stitch-test at Min, Default, and Max sizes. (If Max size breaks a needle, your customers will experience the same).
• Iteration: If spacing is off, adjust Letter Space (%) / Word Space (%) and Re-Publish.
• Final Save: Save with a clean filename ending in .bx and archive a backup.

By treating BX publishing as an engineering release process rather, than a simple file export, you ensure that your font installs cleanly, types beautifully, and stitches exactly as you intended.

FAQ

• Q: In Embrilliance StitchArtist Level 3, how do I measure the reference “M” height correctly before publishing a BX font?
  A: Measure the digitized letter “M” on the canvas and copy the exact height shown in the status pane into “Current Height.”
  • Select: Click the stitched object for the letter M on the canvas.
  • Verify: Read the height in the status pane at the very bottom of the interface.
  • Enter: Type that same number into Current Height in the Publish Font dialog.
  • Success check: The measured “M” height and “Current Height” match exactly (for example, 50.00 mm in the tutorial scenario).
  • If it still fails: Re-check that the selected item is the stitched “M” object (not a guide or different layer) before recording the value.
• Q: In Embrilliance StitchArtist Level 3, what is the exact menu path to open the Publish Fonts dialog for a BX font?
  A: Use the top menu path Create > Publish > Fonts (BX publishing is a StitchArtist Level 3 feature).
  • Click: Create on the top menu bar.
  • Hover: Publish.
  • Select: Fonts to open the Publish Font dialog.
  • Success check: The Publish Font dialog opens and shows fields like Font Name, Current Height, Min/Max size, and spacing.
  • If it still fails: Confirm the software is StitchArtist Level 3, because lower levels may not include BX publishing.
• Q: In Embrilliance BX publishing, what do Min Size, Max Size, and Default Size actually control, and what is a safe starting setup?
  A: Min/Max sizes are a tested “safe range,” and Default Size is the customer’s first-click size; a common starting point is Min 15.00 / Max 80.00 / Default 25.00 (then confirm by stitch-outs).
  • Set: Enter Min Size, Max Size, and Default Size in the Publish Font dialog (use the tutorial values as a baseline).
  • Test: Stitch the font at Min, Default, and Max sizes before release to confirm the range is physically safe.
  • Document: Note what fabric/stabilizer you tested so the range is defensible later.
  • Success check: Small sizes are readable (not thread blobs) and large sizes stitch cleanly (no “hammering” sound or needle issues mentioned in testing guidance).
  • If it still fails: Reduce Max Size if large sizes sound overly dense, or increase Min Size if small sizes lose definition.
• Q: In Embrilliance StitchArtist Level 3 BX fonts, how do I fix baseline alignment problems caused by descenders like the letter Q?
  A: Adjust the baseline so the main body sits on the line and the Q tail drops below it, then re-publish the font.
  • Locate: Find Q (and also check g, j, p, y) on the canvas.
  • Modify: Drag the letter/baseline handle so the bowl sits on the baseline and the tail descends below it.
  • Repeat: Apply the same baseline logic to every descender character.
  • Success check: When typing words, letters no longer “float,” and the Q tail clearly sits below the baseline instead of hovering.
  • If it still fails: Do not chase spacing first—re-check vertical alignment across all descenders before changing Letter Space %.
• Q: In Embrilliance BX publishing, how do I fix “spacing isn’t right” without randomly changing numbers in the Publish Font dialog?
  A: Change only one spacing variable at a time and validate with specific test words before re-publishing.
  • Test: Type torture-test words like “AVATAR,” “WAVE,” “LYT,” and “TwO” to reveal gaps/collisions.
  • Adjust: Change Letter Space (%) first, then Word Space (%) (the tutorial starting point is 10% letter / 15% word).
  • Re-publish: Use Create > Publish > Fonts after each single change so results are traceable.
  • Success check: Those test words look visually even, with no obvious collisions and no “gappy” pairs like A/V.
  • If it still fails: Re-check baselines (vertical drift often looks like a spacing problem) before making bigger spacing swings.
• Q: In Embrilliance StitchArtist Level 3, what does “Whoops, this font has automatic columns and cannot be published” mean, and how do I fix it?
  A: The font contains Automatic Columns without proper inclination angles; assign the angles on the listed glyphs and try publishing again.
  • Read: Note which characters the error message identifies as the problem glyphs.
  • Select: Go to each listed letter on the canvas and select the Automatic Column objects.
  • Assign: Set the required inclination angles for those column objects.
  • Success check: The Publish step completes without the “Whoops” pop-up and the font generates normally.
  • If it still fails: Fix the underlying column geometry instead of deleting letters, then attempt publishing again.
• Q: What magnetic embroidery hoop safety rules should be followed when using strong neodymium magnetic frames for repeatable test stitch-outs?
  A: Treat magnetic hoops as industrial tools: avoid pinch points, keep them away from implanted medical devices, and store them away from sensitive electronics.
  • Handle: Keep fingers clear when closing the frame to prevent pinching between magnets.
  • Separate: Keep magnetic hoops away from pacemakers/ICDs and other implanted medical devices.
  • Store: Keep frames away from magnetic storage media and sensitive electronics.
  • Success check: The hoop closes without finger contact in the magnet gap, and the work area remains organized so the frame is not near restricted devices.
  • If it still fails: Pause and change handling method (two-handed control, slow closure, clear workspace) before continuing.
