When you’re digitizing in PSW Deluxe, the Freeform Tool feels empowering—and a little dangerous. Empowering because you can draw anything. Dangerous because you aren't just drawing; you are programming a robot to stab a piece of fabric thousands of times using a sharp needle. One sloppy curve point, one missing hole, or one “I’ll fix it later” setting can turn a cute design into a stiff, bulletproof patch that puckers fabric and snaps needles.

This walkthrough rebuilds the exact workflow from Tanya Owens’ PSW Deluxe Freeform Tool lesson (digitizing a winking smiley from a BMP), but rewritten the way I would teach it on the factory floor to someone who needs a safe, sellable result.

The Calm-Down Moment: PSW Deluxe Freeform Tool Digitizing Is Fixable (Even When It Looks Wrong)

If your first Freeform attempt looks jagged, bulky, or “off,” don’t panic. Manual digitizing is an iterative engineering process, not a one-shot art contest. You trace, you preview, you correct points, and only then do you commit to a stitchout.

A lot of beginners assume expert digitizers get it perfect on the first click. We don't. We just know how to fix it faster. In practice, the winning habit is: build a clean base shape first, control thread build-up by cutting holes, then refine stitch density and angles in Editing mode.

Quick Tech Check: Occasionally, keyboard shortcuts in PSW Deluxe may seem unresponsive. As Tanya points out, these shortcuts rely on the USB security dongle being active. If your Ctrl key or G key isn't working, check your USB connection before rebooting the software.

The “Hidden” Prep That Saves Your Stitchout: Resize the BMP to 3.00 Inches for a 4x4 Hoop

The video’s project is strictly designed for the standard 4x4 hoop. Tanya resizes the artwork to 3.00 inches immediately after import. This serves a critical purpose in physics: Stitch Density is relative to size.

If you digitize a face at 6 inches and then shrink it to 3 inches on your machine screen, the stitch count often doesn't scale down perfectly, resulting in a design that is twice as dense. This leads to needle deflection and thread nests.

The Workflow:

1. Import: Load the BMP artwork (e.g., “Winking_Smiley.bmp”).
2. Resize: Used the Dimensions dialog to lock the width to 3.00 inches.
3. Zoom: Zoom in until the pixel edges are distinct.

Why zoom matters: When you digitize zoomed out, you place fewer points and force the software to calculate long, unnatural curves. This creates "wobbly" satin stitches. If you are stitching on a standardized setup like a brother 4x4 embroidery hoop, the margin for error is tiny. A 1mm wobble on a 3-inch design is visible from across the room.

Prep Checklist (Do this BEFORE you place a single node)

• Size Check: Is the artwork resized to exactly 3.00 inches (or your target size)?
• Visual Check: Are you zoomed in enough to see the jagged edges of the pixels?
• Path Planning: Have you identified where the "holes" (negative space) will go?
• Consumables Check: Do you have the right needle (Project recommendation: 75/11 Ballpoint for knits or 75/11 Sharp for wovens)?


Clean Visibility, Clean Points: Remove the Black Background in PSW Deluxe Draw Package (Without Regrets)

Digitizing black outlines over a black background is a nightmare for visibility. Tanya recommends removing the background using the Draw Package so your vector points pop against the white canvas.

The Clean-Up Steps:

1. Click Create Draw Package (the pencil icon).
2. Select the Magic Wand tool from the left palette.
3. Click the black background area to select the pixels.
4. Click the X button (top toolbar) to delete.
5. Exit to Home.

PSW Deluxe will ask to save changes to the artwork.

Warning: This step is destructive. It permanently alters your source BMP file. Always duplicate your source image (e.g., smiley_working_copy.bmp) before importing. If you ever need to re-digitize using the original background for reference, you will thank yourself for keeping a master copy.

Set Yourself Up for Control: Freeform Tool + Normal Fill + Keep Embroidery Settings Open (G Key)

Before you start clicking, you must define the "ingredients" of the stitch.

1. Activate: Click the image to enter digitizing mode.
2. Select: Choose Freeform on the toolbar.
3. Recipe: Select Normal Fill (Tatami fill).

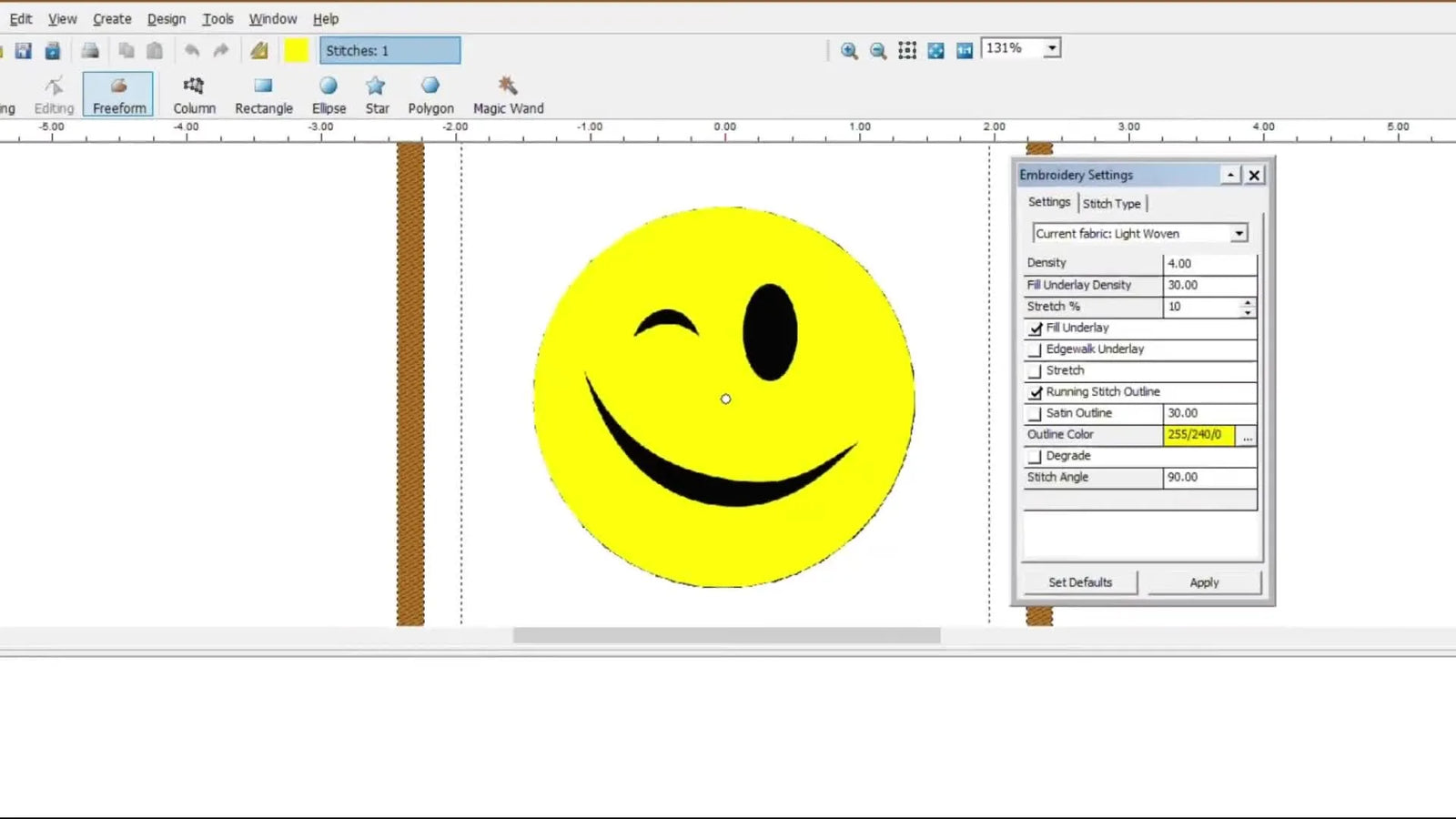

4. Lock Panel: Press G to open the Embroidery Settings window, then click the Down Arrow in that window to "pin" it open.

The "Sweet Spot" Settings: The video shows defaults, but for a 3-inch smiley face on standard cotton or knit, here are the Safe Zone Parameters to avoid bulletproof embroidery:

• Density: 4.0 (0.40mm). Do not go lower than 3.5 without a specific reason; it will chop your fabric.
• Underlay: Ensure Tatami or Edge Walk underlay is active. This stabilizes the fabric before the visible top stitches land.

If you are currently learning hooping for embroidery machine mechanics alongside digitizing, keep your software settings standard. If a design puckers, you need to know if it's the digitizing (density too high) or the hooping (fabric too loose). Don't fight a war on two fronts.

Color Like a Pro (Not a Guess): Use the Eyedropper and Thread Palette Before You Trace

Don't guess colors; sample them.

1. Open the Color Mixer.
2. Hover over the yellow artwork until the cursor becomes an Eyedropper.
3. Click to sample the exact yellow.

Expert Insight: While the screen color matters for previewing, your actual result depends on your thread cone. A digitized "Gold" might look great on screen but stitch out muddy if you pick the wrong thread. Always match your screen color to the physical thread chart (e.g., Robison-Anton, Madeira, or Isacord) you have in stock.

The Make-or-Break Skill: Freeform Points for Curves vs Corners (and the Control-Key Fix)

This is the tactile part of digitizing. You are defining the shape's skeleton. Tanya demonstrates the critical "Click Rhythm" of PSW Deluxe:

• Short Click (Tap): Creates a Curve Node (Round). Use this for the cheeks and head.
• Long Click (Hold): Creates a Corner Node (Square). Use this for sharp turns.

The "Control" Safety Net: If you accidentally make a sharp corner on a round face (we all do it), you do not need to delete the point. Go back, hold the Control Key, and click the point again. It will toggle from Square to Round.

Warning: Avoid placing points too close together (under 1.0mm). When points are clustered, the machine slows down and stitches pile up, creating hard lumps that are notorious for breaking needles. Listen to your machine—if it sounds like a jackhammer (thump-thump-thump), your points are too close or density is too high.

Stop Thread Build-Up Before It Starts: Insert Hole for the Wink Eye (5 mm Rule)

Novice digitizers often stitch a black eye on top of the yellow face. Do not do this. Layering a fill on top of a fill creates a thick, stiff "badge" that feels terrible to wear.

The "5mm Rule": If a detail is larger than 5mm wide, cut a hole in the background fill.

How to Cut the Void:

1. Right-click the yellow filled shape.
2. Select Insert Hole.
3. Trace the "Winking Eye" shape.
4. Right-click and select Stitch It.

This leaves clear negative space (fabric showing through) where the eye creates a break in the stitching, keeping the patch flexible.

Decision Tree: Fabric vs. Stabilizer Strategy

Since we are cutting a hole in the design, the fabric inside that hole must remain stable. Use this guide to choose your backing:

• Is the fabric STRETCHY? (T-Shirt, Polo, Beanie)
  • Stabilizer: Cutaway (2.5oz or 3.0oz).
  • Why: Knits stretch. If you slice a hole in the stitching, the fabric will distort into an oval without the permanent support of cutaway mesh.
• Is the fabric STABLE? (Denim, Canvas, Twill)
  • Stabilizer: Tearaway (Medium weight).
  • Why: The fabric's own structure can hold the shape, so temporary support is sufficient.
• Is the fabric LOOPY/FLUFFY? (Towel, Fleece)
  • Stabilizer: Tearaway/Cutaway backing PLUS a Water Soluble Topper (Solvy) on top.
  • Why: The topper prevents the stitches from sinking into the pile and disappearing.


Want a Bold Border? Switch to Triple (Bean) Stitch and Close the Shape with the 0 Key

A standard running stitch is too thin to see. For that hand-stitched look, Tanya switches to a Triple Stitch (often called Bean Stitch).

1. Change Recipe: In Encryption Settings, switch from Fill to Running Stitch.
2. Type: Select Triple. Set length to roughly 3.0mm (Video shows 25.00 internal units, roughly 2.5mm-3.0mm).
3. Trace: Click the perimeter.
4. Close: Press the 0 (Zero) Key to automatically snap the last point to the first point, closing the loop perfectly.

Ergonomic Note: Tracing borders requires steady hands. If you are doing this daily, or if you are struggling with physical hooping consistency that makes borders miss their mark, consider your physical tools. An embroidery hooping station ensures that every shirt is hooped at the exact same tension, meaning your digitized borders will land exactly where you planned them, every single time.

The Smart Outline Trick in PSW Deluxe: Use Running Stitch Outline + Ellipse Color (Do It Before Holes)

If you don't want to manually trace the border, PSW can automate it.

1. Check the box: Running Stitch Outline.
2. Click the Ellipse Button next to it to pick the color (Black).

Sequencing is Critical: You must apply this automated outline BEFORE you cut the holes. If you cut the holes first, the auto-outliner might try to outline the inside of the eye hole, which you may not want.

The "Hoop Burn" Factor: When doing multiple test stitchouts of these outlines, traditional hoops can leave "burn marks" (pressure rings) on sensitive fabrics like performance wear. If you find yourself ironing out rings constantly, professionals often switch to a magnetic embroidery hoop. These use magnetic force rather than friction to hold the fabric, eliminating hoop burn and making it much faster to swap garments during testing.

Save It Like You Mean It: CHE for Editing, XXX for Stitching (Keep Them Together)

You need two files. Always.

1. The Master File (.CHE): Save as "Single Home Embroidery". This retains the "objects" (circles, squares, density settings). You can edit this.
2. The Machine File (.XXX / .DST / .PES): Save as the format your machine reads. This is just coordinate data. You cannot easily edit density or shapes here.

Rule: Never delete the CHE file. If a client asks for the smiley face to be "just a little bigger" next year, you need the CHE. If you only have the machine file, you have to start over from scratch.

Fix the “Wrong Stitch Type” Mistake Without Re-Digitizing: Editing Mode + Step Pattern 011

Did you stitch it out and realize the yellow face looks like a satin ribbon instead of a flat fill? Do not panic.

1. Go to Editing Mode.
2. Select the smiley face object.
3. Open Embroidery Settings.
4. Change stitch type to Step Pattern (Tatami) and select Pattern 011 (Standard smooth fill).
5. Apply.

This ability to "hot swap" stitch properties is why we digitize shapes, not just lines.

Scaling Up: As you move from hobby to pro, you will find yourself doing these edits frequently. Efficiency becomes your profit margin. If you are spending 20 minutes hooping a shirt and 10 minutes changing thread colors on a single-needle machine, your hourly wage plummets. This is the stage where many invest in a hooping station for machine embroidery to cut hooping time in half, or upgrade to a Multi-Needle SEWTECH Machine to automate the color changes.

Setup Checklist (Before you click "Generate Stitches")

• Density Check: Is fill density around 4.0 (0.4mm)?
• Underlay Check: Is center walk or edge walk enabled to prevent shifting?
• Safety Check: Are there any satin stitches wider than 7mm? (If yes, switch to Fill/Tatami to prevent snagging).
• Hole Check: Did you cut the hole for the winking eye (5mm rule)?
• Sequence Check: Does the design stitch from the Center -> Out? (Prevents puckering).


When the Artwork Gets in Your Way: Hide the Background Image with the L Key

If you can't tell if your stitches are aligning because the background image is confusing your eye:

1. Press L on your keyboard.
2. The background bitmap toggles OFF.
3. Press L again to bring it back.

Final Verification: Tanya recommends opening the final stitch file in a viewer like Wilcom TrueSizer. A third-party viewer acts like a "spell check"—it shows you exactly what the machine sees, stripping away the helper lines of PSW Deluxe.

Troubleshooting PSW Deluxe Freeform Tool Problems (The Fast Fixes)

The Upgrade Path: Solving Physical Bottlenecks

Once you master the software, the bottleneck moves to the physical world. No amount of perfect digitizing can fix a shirt that was hooped crookedly or a needle that breaks from stress.

Here is how to analyze your pain points and upgrade logically:

1. Pain Point: "My designs are crooked or off-center."

• The Fix: You need mechanical consistency. A hoop master embroidery hooping station or similar fixture provides a template to lock the hoop in the exact same spot for every shirt.

2. Pain Point: "My hands hurt / Hooping takes too long."

• The Fix: Upgrade your ergonomics. Magnetic Hoops (e.g., SEWTECH Magnetic Frames) snap together instantly. They are the industry standard for minimizing "hoop burn" and speeding up production runs.

Warning: Magnetic frames contain powerful neodymium magnets. Keep them away from pacemakers. Watch your fingers—they snap shut with significant force.

3. Pain Point: "I spend half my time changing thread colors."

• The Fix: This is the ceiling of a single-needle machine. To turn embroidery into a business, look at SEWTECH Multi-Needle Machines. Being able to set up 10 colors and walk away is the only way to scale your profit.

Operation Checklist (Final Pre-Flight)

• File Export: Saved as .XXX (or machine format) onto USB.
• Bobbin Check: Is the bobbin full? (Running out mid-eye is a pain).
• Needle Check: Is the needle sharp and straight?
• Hoop Tension: Is the fabric "drum tight" but not stretched?
• Trace: Did you run a "Trace" on the machine to ensure the needle won't hit the hoop frame?

Go forth and stitch. Digitizing is a skill of patience. Your first one will be okay. Your tenth one will be good. Your hundredth one will be professional.

FAQ

• Q: In PSW Deluxe Freeform Tool digitizing, why do PSW Deluxe keyboard shortcuts like G, L, Ctrl, or 0 stop working during digitizing?
  A: The fastest fix is to check whether the PSW Deluxe USB security dongle is connected and recognized, because the shortcuts depend on the dongle.
  • Reseat: Unplug and re-plug the USB dongle, then wait a few seconds.
  • Verify: Confirm the software is running the Deluxe version that uses the dongle.
  • Retry: Press G (Embroidery Settings), L (toggle bitmap), 0 (close shape), or Ctrl+click (toggle node type) again.
  • Success check: The Embroidery Settings window opens with G, and the background image visibly toggles on/off with L.
  • If it still fails: Try a different USB port and restart PSW Deluxe after confirming the dongle is inserted.
• Q: In PSW Deluxe Freeform Tool digitizing from a BMP, why do curves turn jagged or “square” when tracing a round face shape?
  A: Convert the incorrect corner nodes back to curve nodes by using Ctrl+click on the point—this is common and fixable.
  • Identify: Click the stitched object and locate the point where the curve looks kinked.
  • Toggle: Hold Ctrl and click the problem node to switch Square (corner) to Round (curve).
  • Prevent: Use a short tap for curves and a long click only for true corners.
  • Success check: The previewed outline becomes smooth and round instead of faceted.
  • If it still fails: Delete extra clustered points and re-place fewer, cleaner nodes along the curve.
• Q: In PSW Deluxe, how do you prevent a 3-inch design from stitching “bulletproof” or causing thread nesting after resizing a BMP for a 4x4 hoop?
  A: Set the artwork size first (e.g., 3.00 inches for a 4x4 hoop) and keep fill density in a safe zone (around 4.0 / 0.40 mm) before generating stitches.
  • Resize: Set the BMP width to 3.00 inches immediately after import (before digitizing).
  • Set: Keep Normal Fill (Tatami) and avoid pushing density tighter than the safe starting point (about 4.0 / 0.40 mm).
  • Enable: Make sure Tatami/Edge Walk underlay is on to stabilize the fabric before top stitches.
  • Success check: The stitch preview does not look overly packed, and the machine does not form thread nests during a test stitchout.
  • If it still fails: Re-check that the design was not digitized large and then shrunk later on the machine screen.
• Q: In PSW Deluxe Freeform Tool digitizing, how do you stop needle-breaking “machine gun” sounds caused by tight points or excessive density?
  A: Reduce point clustering and avoid overly tight density settings—closely spaced nodes and heavy stitch buildup commonly create hard lumps that break needles.
  • Delete: Remove extra points that are placed extremely close together (especially along curves).
  • Verify: Keep fill density from going too tight (do not go below about 0.35 mm without a specific reason).
  • Rebuild: Re-trace with smoother, longer curves instead of many tiny segments.
  • Success check: The machine sound becomes steady instead of rapid thumping, and the stitched area feels flexible rather than hard.
  • If it still fails: Re-check stitch type (Fill vs Satin) and confirm underlay is appropriate for the fabric.
• Q: In PSW Deluxe, when digitizing a wink eye detail on a filled face, how do you use Insert Hole to prevent thick, stiff thread build-up (the “5 mm rule”)?
  A: If the detail is larger than about 5 mm, cut a hole in the background fill instead of stitching another fill on top.
  • Select: Right-click the background fill object (the face).
  • Insert: Choose Insert Hole, then trace the wink-eye shape.
  • Confirm: Right-click and choose Stitch It to apply the hole.
  • Success check: The preview shows clean negative space (fabric showing) where the eye is, and the finished stitchout stays flexible instead of badge-stiff.
  • If it still fails: Stabilize better for the fabric type (knits often need cutaway; fluffy fabrics often need topper).
• Q: What is the safest needle choice from the PSW Deluxe Freeform Tool workflow when stitching the 3-inch smiley on knits vs wovens?
  A: Use a 75/11 Ballpoint for knits and a 75/11 Sharp for wovens as a safe starting point for this type of design.
  • Match: Choose 75/11 Ballpoint for T-shirts/polos/beanies (knit) and 75/11 Sharp for cotton/denim/canvas (woven).
  • Inspect: Replace any bent or dull needle before test stitchouts.
  • Test: Run a small sample stitchout before committing to production.
  • Success check: Stitches form cleanly without skipped stitches, shredding, or needle deflection.
  • If it still fails: Re-check density/underlay first, then confirm hooping tension and stabilizer choice.
• Q: What are the key safety precautions for using magnetic embroidery hoops (magnetic frames) during repeated test stitchouts to reduce hoop burn?
  A: Treat magnetic hoops as high-force tools: keep them away from pacemakers and keep fingers clear because the magnets can snap shut hard.
  • Separate: Open and close the frame slowly with controlled hand placement.
  • Protect: Keep fingers out of the closing path to avoid pinching.
  • Medical: Keep strong magnets away from pacemakers and similar devices.
  • Success check: Fabric holds securely without pressure rings (hoop burn) and changeovers feel faster and more consistent.
  • If it still fails: Verify the fabric is stabilized correctly and confirm the frame size matches the hooping area needed for the design.
• Q: If PSW Deluxe digitizing settings look correct but stitchouts still run crooked or hooping takes too long, what is the “Level 1 to Level 3” upgrade path for embroidery production efficiency?
  A: Use a staged approach: fix technique first, then upgrade hooping tools, then upgrade machine capacity if color changes and throughput are the bottleneck.
  • Level 1 (Technique): Standardize density/underlay, follow center-to-out sequencing, and do a machine trace to confirm placement.
  • Level 2 (Tooling): Add a hooping station for repeatable alignment and/or switch to magnetic hoops to reduce hoop burn and speed garment swaps.
  • Level 3 (Capacity): If thread color changes are consuming the workday, move to a multi-needle setup so multiple colors stay loaded.
  • Success check: Hoop placement becomes repeatable across garments, test cycles shorten, and rework from misalignment drops.
  • If it still fails: Separate variables—run the same design on one stable fabric/stabilizer setup to confirm whether the issue is digitizing or hooping consistency.
