Mastering On-Board Lettering: From Panic to Professional Results

On-board lettering looks “too easy” until you’re standing at the machine with a deadline, a customer waiting in the lobby, and a control panel that suddenly refuses to load fonts.

I have spent twenty years in embroidery shops, and I can tell you that fear is the biggest cause of ruined garments. When you rush the digital setup, the machine punishes you with birdnests, broken needles, and crooked names. This Promaker-style interface (common on many modern multi-needle machines) is genuinely powerful: it allows you to create stitch-ready text without opening a laptop. But to get results that look like they were professionally digitized, you need to understand the machine’s logic—specifically the "Generate" requirement.

This guide is your safety net. We will walk through the interface shown in the video, but we will also cover the physical reality of how to hoop and stabilize so that your perfect digital file doesn't turn into a puckered mess on the fabric.

1. The Calm-Down Moment: Connectivity & Pre-Flight

The built-in font program shown in the video is cloud-based. This means the machine acts like a browser: if it’s not connected to Wi-Fi, the font library simply won't exist.

The Panic Scenario: You tap the "T" icon. The screen flashes or stays blank. You assume the machine is broken. You reboot. You lose 15 minutes. The Fix: Look at the Wi-Fi icon in the top right corner. If it's crossed out, stop. Reconnect first.

The "Hidden" Consumables

Before you even touch the screen, ensure you have these physical tools ready:

• A plastic stylus or finger cot: Touchscreens on industrial machines can be less sensitive than an iPhone; oil from your fingers can make precision dragging difficult.
• Scrap fabric: Never, ever run a new lettering file directly on a customer’s garment.
• Iso-Propyl Alcohol: To clean the screen if "ghost touches" occur.

Warning: Mechanical Safety. When you enter the lettering mode, the pantograph (the X-Y arm) may reset to center. Keep hands, hair, and loose sleeves away from the moving arm and needle bar case. A moving pantograph has enough torque to break fingers.

Prep Checklist: The Go/No-Go Decision

• Connectivity: Is the Wi-Fi icon solid green/white?
• Specs: Do you know the exact height needed? (e.g., Left Chest is typically 10–15mm; Jacket Back is 50mm+).
• Function: Do you know the exact spelling? Write it down on post-it note and stick it to the machine head.
• Safety: Is the hoop clear of the needle plate?

2. Navigating the Interface: The "British Flag" Protocol

Once inside the interface, you will see a flag icon. On many machines using this operating system (often found in the commercial embroidery machines sector), the default library is set to Chinese fonts.

Action: Tap the flag icon until you see the British Flag.

This filters the database to Western/Latin alphabets. In the video, we scroll through five pages of fonts to find Handel Gothic.

Expert Insight:

• Serif vs. Sans-Serif: For text under 12mm (0.5 inch), avoid complex serifs (like Times New Roman). The tiny columns will clutter and cause thread breaks. Handel Gothic (shown here) is a robust, blocky font that stitches well on varied fabrics.

3. Typing Without Getting Stuck in "Edit Purgatory"

The video demonstrates using the on-screen QWERTY keyboard. You must explicitly select English and Uppercase to get the result "TEST".

The Cognitive Trap: Beginners often leave the keyboard open and try to hit "Generate." The machine ignores you because it thinks you are still typing. The Fix: precise inputs.

1. Type the text.
2. Visually Verify: Did spelling auto-correct?
3. Action: Tap the Keyboard icon (or 'Enter' arrow) to close the input method.

4. The "S" Button: Your Compile Trigger

This is the most critical concept in this entire tutorial. On a computer, fonts are vectors. On a machine, they must be converted into X-Y coordinates (stitches). The “S” button is your Generator.

Sensory Check:

• Visual: The text should change from a hollow outline to a textured, filled-in look.
• Tactile: The machine might pause for a second. This is normal processing time.

If you are operating a promaker embroidery machine or similar hardware, memorize this: No S = No Stitches.

5. Resizing: The Density Danger Zone

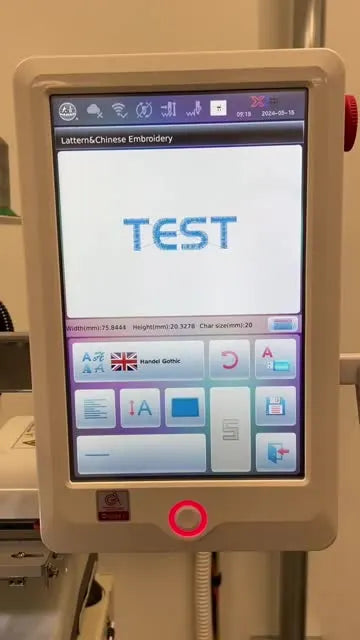

The video shows resizing "TEST" from 20 mm to 50 mm.

The Critical Error: If you change the size without pressing "S" again, the machine might stretch the existing stitches instead of adding new ones.

• Result if you forget: A 50mm letter with 20mm worth of stitches = giant gaps and loose threads.
• Result if you do it right: The machine recalculates the density (Stiches Per Millimeter) to maintain solid coverage.


The "20% Rule" for Safety: If you resize a font by more than 20% up or down, always do a test sew. Drastic shrinking can cause needles to hammer the same spot (birdnesting), and drastic expanding can create long "jump stitches" that snag.

6. Kerning (Spacing): The "200" Sweet Spot

Spacing separates amateurs from pros. In the video, the operator selects the Straight Line layout and changes the spacing parameter to 200.

Why 200? The number is abstract, but the visual result is key.

• Action: Input 200.
• Action: Press S (Regenerate).
• Visual Check: Look at the gap between the "E" and the "S". You want enough space so the letters don't bleed together on fuzzy fabric (like fleece), but not so much that they look disconnected.


Experience Tip: On thick fabrics (hoodies), increase spacing by another 10-15%. The fabric "eats" the space.

7. Saving and Verifying: The "Trust But Verify" Step

The operator taps the Disk icon and saves to Pattern Num 27.

The Professional Verification: Do not just assume it saved. Exit the lettering program and go to the main Design Library.

Action:

1. Open Design Library.
2. Scroll to Slot 27.
3. Visual Match: Does the thumbnail look like your text?

Setup Checklist (Before You Hoop)

• File Verified: Is the design in the correct memory slot (Slot 27)?
• Needle Check: Is your needle sharp and straight? (Run your fingernail down the shaft; if you feel a snag, replace it).
• Bobbin Check: Is the bobbin full? Running out of bobbin thread on the last letter of a name is a classic tragedy.

8. The Physical Reality: Hooping Decision Tree

The screen is only 50% of the job. The machine will execute the file perfectly, but if your fabric moves, the text will be crooked. Here is how to make the right physical choices.

Decision Tree: Fabric → Stabilizer → Hoop

The "Hoop Burn" & Production Pain Point

If you are doing a run of 50 shirts, traditional screw-tightened hoops are a nightmare. They cause wrist strain (Carpal Tunnel is real in this industry) and they often leave permanent rings on dark polyester.

• Trigger: Are you fighting to hoop thick text (like 50mm names) on a thick Carhartt jacket?
• The Upgrade: This is where professionals search for magnetic embroidery hoop solutions.
  • Why? They auto-adjust to thickness. You don't adjust screws. You just snap it shut.
  • Result: Faster throughput and zero hoop marks.

Warning: Magnetic Hazard. Magnetic frames use industrial-strength magnets (Neodymium). They can carry a pinch force of 30+ lbs. Keep them away from pacemakers, credit cards, and watch your fingers! Do not let two magnets snap together without a buffer.

9. Troubleshooting Guide: Reading the Symptoms

If your "TEST" sew-out looks bad, don't blame the font immediately. Check the physics first.

10. The Upgrade Path: From Hobby to Production

Creating text on-screen is excellent for one-off names ("Personalization"). But if your business grows to the point where you are doing team rosters or corporate orders, the bottleneck will move.

Level 1: Skill Optimization Master the interface. Create "Reference Files" (e.g., Slot 1 = 15mm Block, Slot 2 = 12mm Script) so you don't have to redesign every time.

Level 2: Tool Upgrade (Efficiency) If you are losing 3 minutes per shirt just wrangling hoops, or ruining shirts with hoop marks, this is the time to invest in magnetic embroidery hoops. They allow you to hoop a shirt in 10 seconds versus 60 seconds.

Level 3: Machine Scale (Throughput) If you find the on-board lettering is too slow or limited, or you need to run 15 colors without re-threading, this is when you search for a commercial embroidery machine for sale. Multi-needle machines (6, 10, 15 needles) allow you to set up the next job while the current one runs.

Final Operations Checklist

• Design: File loaded from Slot 27?
• Hoop: Is the hoop attached securely? (Listen for the "Click" of the pantograph clips).
• Trace: Have you run the "Trace" or "Contour" function to ensure the needle won't hit the hoop frame?
• Thread: Is the correct color assigned to the needle bar you are using?
• Go: Press Start. Watch the first 100 stitches. (Never walk away during the start).

Mastering the on-board lettering is your first step. Mastering the physics of embroidery is your career.

FAQ

• Q: Why does the Promaker-style on-board lettering screen show a blank font list when creating text on a commercial multi-needle embroidery machine?
  A: Reconnect Wi-Fi first, because the on-board font library is cloud-based and won’t load offline.
  • Check: Look at the Wi-Fi icon in the top-right; if it’s crossed out, stop and reconnect.
  • Action: Re-enter the lettering mode after Wi-Fi is stable.
  • Action: Avoid rebooting first; it usually wastes time and doesn’t fix missing cloud fonts.
  • Success check: The font pages populate and scrolling reveals selectable font names instead of an empty/blank screen.
  • If it still fails… Clean the touchscreen with isopropyl alcohol and try using a plastic stylus in case “ghost touches” or poor touch response is blocking the tap.
• Q: Which “hidden consumables” should be prepared before using on-board lettering on a Promaker-style commercial embroidery machine touchscreen?
  A: Prepare a plastic stylus (or finger cot), scrap fabric, and isopropyl alcohol before touching the screen or sewing.
  • Action: Use a stylus/finger cot to improve precision dragging on less-sensitive industrial touchscreens.
  • Action: Run every new lettering setup on scrap fabric first—never on a customer garment.
  • Action: Wipe the screen with isopropyl alcohol if taps register incorrectly or the screen “ghost touches.”
  • Success check: The touchscreen reliably selects icons and the test sew-out matches the preview without risking the customer item.
  • If it still fails… Pause and re-check the pre-flight checklist (Wi-Fi, correct text height, correct spelling written down) before generating stitches.
• Q: How do I switch a Promaker-style on-board lettering system from Chinese fonts to Western/Latin fonts using the British flag icon?
  A: Tap the flag icon until the British flag appears to filter the font library to Western/Latin alphabets.
  • Action: Enter lettering mode and locate the flag icon.
  • Action: Tap repeatedly until the British flag is shown.
  • Action: Scroll the font pages and select a robust font for small text (often a blocky sans-serif stitches cleaner under 12 mm).
  • Success check: The font list changes to Western-style font names and your typed letters display correctly.
  • If it still fails… Reconfirm Wi-Fi connectivity, because the font library may not load without a working connection.
• Q: Why does a Promaker-style on-board lettering design sew as outlines or not sew correctly until the “S” button is pressed?
  A: Press the “S” button to generate stitches, because the machine must compile the font into stitch coordinates before sewing.
  • Action: Type the text, then close the on-screen keyboard (do not stay in typing mode).
  • Action: Press the “S” button to regenerate/compile the lettering.
  • Action: Save only after generating, so the stored design contains stitch data.
  • Success check: The preview changes from a hollow outline to a textured, filled-in stitch look (the machine may pause briefly while processing).
  • If it still fails… Exit and re-open the lettering program and confirm the keyboard is closed before pressing “S.”
• Q: How do I prevent thin, gappy lettering after resizing text from 20 mm to 50 mm on a Promaker-style on-board lettering screen?
  A: After resizing, press “S” again so the machine recalculates stitch density instead of stretching old stitches.
  • Action: Resize the lettering to the new height.
  • Action: Press “S” (regenerate) immediately after the size change.
  • Action: Do a test sew-out if the resize change is more than about 20% in either direction.
  • Success check: The 50 mm letters look fully covered (not sparse) and the stitch fill appears consistent across the whole word.
  • If it still fails… Re-check that you saved the regenerated version (not the pre-regenerated outline) and verify the correct slot thumbnail in the design library.
• Q: What causes birdnesting (thread ball under the needle plate) when sewing on-board lettering on a commercial multi-needle embroidery machine, and how do I fix it fast?
  A: Re-thread the upper thread and make sure it “clicks” into the tension discs, because loose upper threading is a common cause of birdnesting.
  • Action: Stop the machine immediately and remove the jam safely.
  • Action: Re-thread the top path carefully and ensure the thread seats into the tension discs.
  • Action: Restart and watch the first 100 stitches rather than walking away.
  • Success check: The loud “thump-thump” jam sound stops and the underside shows normal bobbin stitches instead of a tangled mass.
  • If it still fails… Inspect needle condition (bent/dull needles can escalate problems) and run a small test on scrap fabric before returning to the garment.
• Q: What are the key safety risks when entering on-board lettering mode and when using magnetic embroidery hoops on commercial embroidery machines?
  A: Keep hands and loose items away from the moving pantograph during lettering mode, and protect fingers and medical devices around strong magnetic frames.
  • Action: Expect the X-Y arm (pantograph) to reset/center when lettering mode starts; keep hands, hair, and sleeves clear.
  • Action: For magnetic hoops, keep fingers out of pinch points and do not let magnets snap together without a buffer.
  • Action: Keep magnetic frames away from pacemakers and items like credit cards.
  • Success check: The pantograph moves freely without contact, and the magnetic hoop closes under control without pinching.
  • If it still fails… Stop operation and follow the machine’s safety guidance before continuing; do not troubleshoot with hands near moving parts or snapping magnets.
