Profit-Ready ITH Vinyl Key Fobs on a Brother SE630: Cleaner Stitching, Faster Snaps, and the “Too-Thick Vinyl” Trap

Mastering ITH Vinyl Key Fobs: The 2025 Field Guide for Brother SE630 Users

If you’ve ever watched your embroidery machine stitch a gorgeous ITH (In-The-Hoop) key fob… and then lost 10 minutes fighting a snap that refuses to close, you’re not alone. The video you just watched is a perfect “real life” example: the Brother SE630 stitches the designs beautifully, the dog and ladybug assemble smoothly, and then the camera design hits the classic wall—the vinyl stack is too thick for the snap prong length.

This post rebuilds the exact workflow shown (stitch-out → sort → punch → press), but I am going to layer in the shop-floor physics that prevent these failures. We are moving beyond "hope it works" to "know it works."

The Brother SE630 “Calm Down” Primer: Managing Physics in a 4x4 Hoop

The Brother SE630 in the video is doing its job: stitching outlines on vinyl. However, when ITH vinyl looks rough or outlines don't match up, it is rarely the machine's fault. It is usually because vinyl is unforgiving about three variables:

1. Sheer Force (Movement): Vinyl is heavy. If it drags, the needle deflection causes gaps.
2. Bulk Accumulation: Layers add up fast at tabs and folds, exceeding standard clearance.
3. Hole Drift: Snaps amplify any off-center punch by 10x visually.

If you are new, here is your first rule: Slow down. Vinyl generates friction (heat) on the needle.

• Expert Setting: Cap your speed at 450–600 SPM (Stitches Per Minute). Do not run at max speed. The slower speed reduces needle deflection on the dense vinyl, ensuring your outline lands exactly where the running stitch says it should.


The “Hidden” Prep: Material Science, Stabilizer Physics, and the "Floating" Technique

The video shows the visible steps: design selection and stitching. But the difference between a amateur project and a sellable product happens in the setup. Vinyl does not "relax" or heal like cotton fabric. A needle hole is permanent.

The Toolkit Essentials (Shop Standards)

• Needles: Use a 75/11 Sharp (or Microtex). Avoid Ballpoint needles; they push vinyl aside rather than piercing it, causing distortion.
• Thread: 40wt Polyester is standard.
• Stabilizer: Medium-weight Tear-Away (2.5oz).
• The "Secret" Weapons:
  • Non-Permanent Spray Adhesive (e.g., Odif 505): Essential for "floating" vinyl.
  • Teflon/Non-Stick Foot: If your machine struggles to drag the vinyl, this reduces friction.
  • Painter's Tape: For securing the back vinyl piece.

The "Float" Method vs. Hooping

The video implies a standard hooping method, but for vinyl key fobs, I strongly recommend "Floating."

1. Hoop only the stabilizer tight as a drum.
2. Spray a light mist of adhesive on the stabilizer.
3. Place your vinyl on top.
4. Run a basting box (if your machine allows) or rely on the tape/spray.

Why? Hooping vinyl directly often causes "Hoop Burn"—a permanent crushed ring on the material.

If you are unfamiliar with this term, looking into a floating embroidery hoop technique is your first step toward professional finish without material damage.

Stabilizer Decision Tree: The Thickness Equation

Stop guessing. Use this logic gate to determine your support layer.

Decision Tree: Vinyl Key Fob Support

• Scenario A: Standard Marine Vinyl (Medium body)
  • Action: 1 Layer Medium Tear-Away.
  • Why: Sufficient stability, easy removal.
• Scenario B: Stretchy Faux Leather / Thin Vinyl
  • Action: 1 Layer Cut-Away + 1 Layer Tear-Away (on top).
  • Why: The Cut-Away prevents the satin stitches from "puckering" or shrinking the key fob shape.
• Scenario C: Glitter Vinyl (Thick & Rough)
  • Action: 1 Layer Heavy Tear-Away + 75/11 Needle.
  • Why: Glitter eats needles. You need stability without adding bulk to the snap area.

Prep Checklist: The "No-Go" Criteria

• Needle Check: Is the needle fresh? (Run finger heavily over tip; if it scratches, replace it).
• Bobbin Check: Is the bobbin at least 50% full? (Running out mid-vinyl stitch is catastrophic).
• Clearance: Is the embroidery arm free of obstructions?
• Stabilizer Feel: Tap the stabilizer in the hoop. It should sound like a tight drum/paper, not a loose thud.


Stitching ITH Vinyl: The "Hover and Trim" Discipline

In the video, the Brother SE630 stitches the designs (dog, camera, rainbow) while the maker trims jump stitches.

The Golden Rule of Trimming: Never, ever distort the hoop while trimming. When you reach in with scissors, brace your hand against the machine body, not the hoop. A 1mm shift relies on the stepper motors to correct—but with heavy vinyl, they might slip.

The Registration Test

Watch your first outline stitch. If the satin stitch (the thick border) does not land perfectly on top of it:

1. Your hoop is loose.
2. Or your stabilizer is too light.

Stop immediately. Do not finish the fob. It will look unprofessional.

Using a brother 4x4 embroidery hoop is standard, but ensure the inner ring screw is tightened with a screwdriver (gently), not just fingers, to combat the weight of the vinyl.

Snap Sorting: The Architecture of Assembly

The creator sorts snaps to match the vinyl. This is good, but let's go deeper. KAM snaps (plastic) come in prong lengths.

• Standard (T3 or T5): Roughly 5.6mm prong. Good for 2 layers of standard vinyl.
• Long Prong: Roughly 6.2mm+ prong. Mandatory for glitter vinyl or 3-layer stacks.

Pro Tip: If you only have standard snaps, you must use thinner vinyl for the back-tab or countersink your holes (press the material down hard around the hole) before installing.

The Awl-and-Pliers Routine: Converting Force to Mechanics

The dog key fob demonstrates the clean process:

1. The Punch: Use the awl. Auditory Cue: You should hear a distinct "pop" as it pierces both layers. If it just stretches through, your awl is dull.
2. The Sandwich: Cap facing out, Socket (female) on inside of tab.
3. The Press: This is where most beginners fail.

The "Vertical Crush" Technique

When using handheld pliers:

1. Align the snap in the die (tray).
2. Squeeze until you feel initial resistance.
3. Adjust: Ensure the pliers are violently perpendicular (90 degrees) to the snap face.
4. Final Squeeze: Squeeze until you feel a "dead stop" or a "crunch."
   • Rubbery bounce = Prong bent sideways (Failure).
   • Solid stop = Prong flattened into a mushroom (Success).






Warning: Physical Safety
Vinyl awls are extremely sharp and require force. Never punch toward your hand. Place the fob on a self-healing mat or a predictable surface like a dedicated wooden block. One slip on slick vinyl leads to deep puncture wounds.

Setup Checklist: The Mechanical Verify

• Awl Sharpness: Does it pierce paper cleanly without tearing?
• Plier Alignment: Close the empty pliers and look at the gap—is the rubber head perfectly centered over the metal tray?
• Prong Length: Test fit—does the prong stick out at least 1-1.5mm past the stacked vinyl?

The "Too-Thick Black Vinyl" Trap: A Forensic Analysis

In the video, the camera design fails because the stack (Top Vinyl + Stabilizer + Backing Vinyl + Backing Vinyl Fold) is thicker than the snap prong.

Why this happens

Vinyl compresses, but only so much. If the prong tip is flush with the surface, the pliers have no material to "mushroom" out. They simply crush the plastic tip down into the hole, creating a weak lock that will pop open the first time a customer uses it.

The 3-Level Solution Protocol

Level 1: The Material Fix (Cost: $0) Does the tab need two layers of thick vinyl? Trim the stabilizer away from the tab area completely before sewing the back piece. Using a tear-away? Remove the paper inside the tab allowance before turning.

Level 2: The Hardware Fix (Cost: $) Buy "Long Prong" Size 20 snaps specifically for key fobs. Keep them in a separate red bin labeled "THICK ONLY."

Level 3: The Design Fix (Cost: Time) If you digitized this, move the snap placement off the embroidery area. If you simply bought the file, avoid using heavy "marine grade" vinyl for the backing layer; use a thinner Oly-Fun or thin faux leather for the back.

Ladybug Key Fob: The "Pre-Fold" Alignment Trick

Do not punch the socket hole and stud hole separately.

1. Install the Cap/Socket on the main body.
2. Fold the tab over exactly where you want it to sit.
3. Press down hard with your thumb on the installed socket.
4. The Imprint: The socket will leave a tiny ring mark on the tab. That is your target for the second hole.

This guarantees perfect alignment every time.

Installing Split Rings: The Final Stress Test

The last step is threading the metal ring. The video shows the struggle. Technique: Use "Split Ring Pliers" ($5 tool). They hold the ring open. Risk: Dragging a sharp split ring edge over the vinyl fold can slice the polyurethane coating, leading to peeling weeks later. Open the ring wide, slide it over, do not "saw" it back and forth.

The Production Mindset: From Hobbyist to Manufacturer

The creator mentions craft fairs. This changes the game from "Art" to "Manufacturing."

The Batching Law: Do not make one complete fob.

1. Stitch 10 fobs (change thread only when necessary).
2. Trim 10 fobs.
3. Punch 10 fobs.
4. Snap 10 fobs.

This rhythm builds muscle memory. You will feel a "bad press" instantly because it feels different from the previous nine.

However, repetitive clamping of a screw-hoop causes Carpal Tunnel and slows you down. If you do 50 fobs, you are screwing/unscrewing that hoop 100 times.

The Upgrade Path: Solving the Bottleneck

When you are ready to scale, your equipment triggers change.

Trigger 1: "My hands hurt / I have hoop burn marks."

Solution: magnetic embroidery hoops. Unlike standard hoops that force one ring inside another (crushing the vinyl), magnetic hoops clamp from the top and bottom.

• Result: Zero hoop burn.
• Speed: Hooping takes 5 seconds instead of 45 seconds.
• Compatibility: You can find a specific magnetic hoop for brother machines like the SE630 that slides right into your existing arm.

Trigger 2: "I spend more time changing thread than sewing."

Solution: Multi-Needle Machines (e.g., SEWTECH). Single-needle machines require you to baby-sit every color change. A multi-needle machine runs the whole 10-minute chameleon file automatically.

• ROI Math: If you save 5 minutes per fob, and make 100 fobs a month, you save 8.3 hours of labor. At $20/hr shop rate, that machine pays for itself in efficiency.

Trigger 3: "My designs are crooked."

Solution: A hooping station for machine embroidery. This holds your hoop and garment/vinyl in a fixed position, ensuring the design lands in the exact same spot on Fob #1 and Fob #50.

Warning: Magnet Safety
Magnetic hoops use industrial neodymium magnets. They are incredibly strong.
* Pinch Hazard: They can snap together with enough force to break a finger or blood blister skin. Handle with deliberate grip.
* Medical Devices: Keep at least 6 inches away from pacemakers.
* Electronics: Do not rest them on your phone or computerized sewing machine screen.

Troubleshooting: The "Why is this happening?" Matrix

Final Reveal Standards: The "Sellable" Check

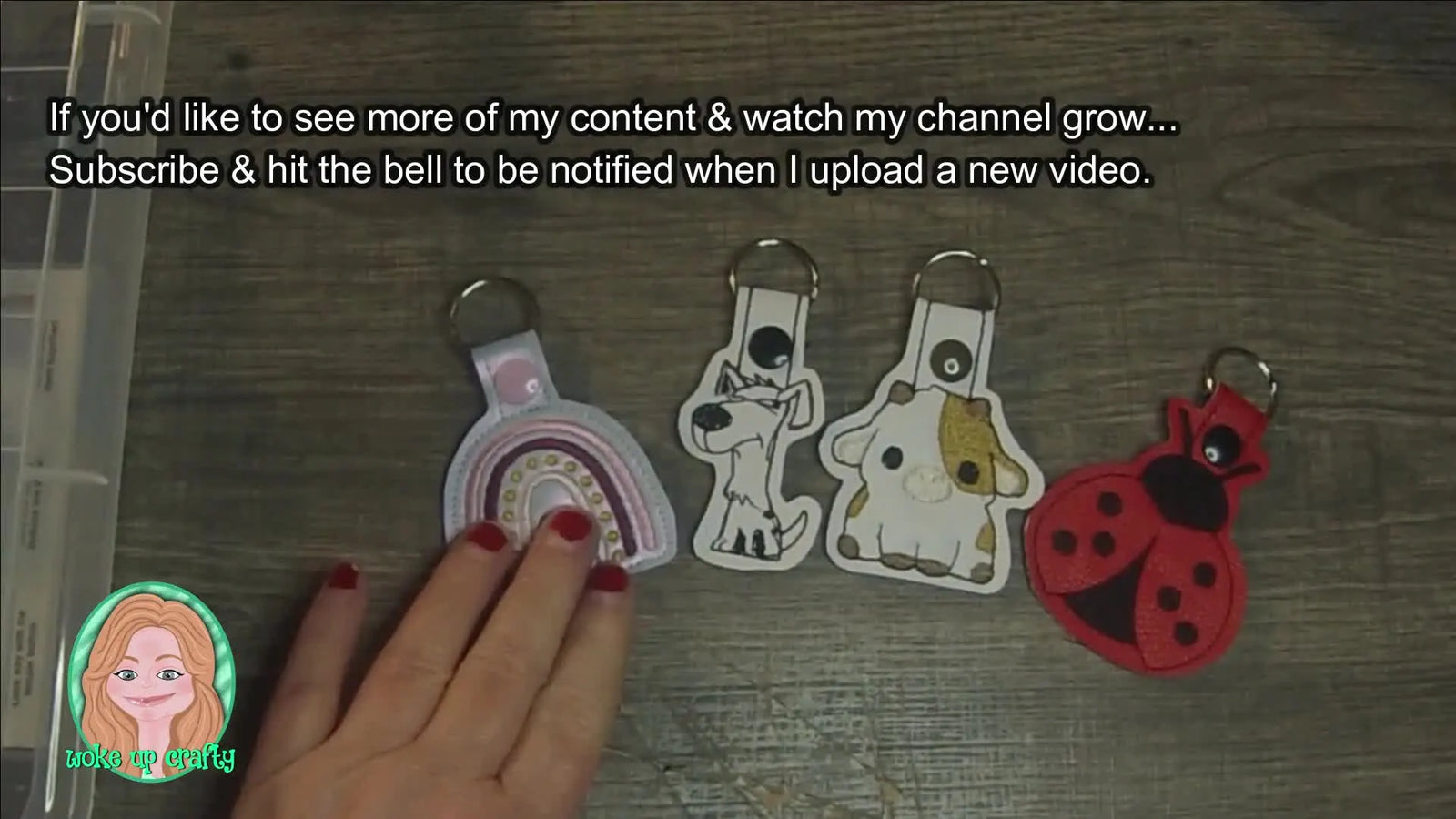

The video ends with a beautiful fan of fobs. But before you bag them:

1. The Snap Check: Snap it. Uns-nap it. Detailed "Snap-Unsnap-Snap" cycle. It must be crisp.
2. The Edge Check: Look at the cut edges. Any white stabilizer poking out? Singe it with a lighter (blue flame, fast pass) or trim with curved scissors.


Operation Checklist: The Final QC

• Tactile Test: Run finger over stitch. Is it smooth? (Rough = tension issue).
• Auditory Test: Does the snap click loudly?
• Visual Test: Is the border even on all sides?
• Stress Test: Give the key ring a firm tug. Does the vinyl hold?

By mastering these variables, you stop playing "embroidery roulette" and start running a micro-factory. The Brother SE630 is capable—but only if you respect the physics of the vinyl.

FAQ

• Q: What Brother SE630 embroidery speed prevents outline misalignment when stitching ITH vinyl key fobs?
  A: Set the Brother SE630 to a slower speed—about 450–600 SPM—to reduce needle deflection and vinyl drag.
  • Lower the speed before the first outline runs (do not stitch vinyl at max speed).
  • Watch the first outline and the following satin border as a test run.
  • Stabilize the setup by hooping stabilizer tight and floating the vinyl with light spray adhesive when needed.
  • Success check: the satin stitch lands perfectly on top of the running-stitch outline with no visible “shadow.”
  • If it still fails, stop and tighten the hoop screw gently with a screwdriver or upgrade stabilizer weight before continuing.
• Q: How do Brother SE630 users avoid hoop burn marks on vinyl when making ITH key fobs?
  A: Avoid hooping vinyl directly—hoop only the stabilizer and float the vinyl on top to prevent permanent hoop rings.
  • Hoop medium tear-away stabilizer “tight as a drum.”
  • Mist non-permanent spray adhesive on the stabilizer, then place vinyl on top.
  • Secure edges with painter’s tape if the vinyl wants to shift.
  • Success check: after stitching, the vinyl shows no crushed ring or shiny pressure circle from the hoop.
  • If it still fails, reduce handling/pressing on the hoop during trimming, or move to a magnetic hoop to clamp without crushing.
• Q: What needle, thread, and stabilizer setup is a safe starting point for Brother SE630 ITH vinyl key fobs?
  A: Use a 75/11 Sharp (Microtex) needle, 40wt polyester thread, and medium-weight 2.5oz tear-away as the baseline.
  • Install a fresh 75/11 Sharp/Microtex needle (avoid ballpoint on vinyl).
  • Pair with 40wt polyester and medium tear-away; adjust stabilizer by vinyl type if distortion appears.
  • Add a non-stick/Teflon foot if the Brother SE630 struggles to move sticky vinyl smoothly.
  • Success check: stitches look smooth and flat, and the key fob shape does not shrink/pucker around satin borders.
  • If it still fails, change stabilizer strategy (for thin/stretchy vinyl, often more support is needed) and re-test the first outline before committing.
• Q: How can Brother SE630 users tell if the hooping and stabilization are correct before finishing an ITH vinyl key fob?
  A: Use the “drum-tight” hoop test plus a first-outline registration test before running the full design.
  • Tap the hooped stabilizer: it should sound/feel like tight paper (not a loose thud).
  • Run the first outline and pause to inspect alignment before continuing.
  • Avoid shifting the hoop while trimming—brace your hand on the machine body, not the hoop.
  • Success check: the border stitches register cleanly with no drift, gaps, or offset between outline and satin.
  • If it still fails, stop immediately and correct hoop tightness or stabilizer weight—continuing will lock in a crooked result.
• Q: Why do Size 20 KAM snaps fail to close on thick vinyl ITH key fobs, and what is the fastest fix?
  A: The vinyl stack is thicker than the snap prong length, so the prong cannot “mushroom” and lock—reduce bulk at the tab or switch to long-prong snaps.
  • Trim or remove stabilizer from the snap/tab area before assembly so the prong can protrude.
  • Use long-prong Size 20 snaps for glitter vinyl or multi-layer stacks.
  • Press with pliers perfectly perpendicular (90°) to avoid bending the prong sideways.
  • Success check: the snap closes with a crisp click and does not pop open when tugged.
  • If it still fails, redesign the tab/backing to use a thinner backing layer or move snap placement away from the thickest fold.
• Q: How do Brother SE630 crafters fix an embroidery problem where “white bobbin thread shows on top” during vinyl key fobs?
  A: Clean the bobbin case race first, then lower top tension slightly if the issue persists.
  • Remove lint/debris and clean the bobbin area (vinyl projects often magnify tension issues).
  • Re-thread the top thread path carefully and test stitch again.
  • Adjust by lowering top tension in small steps (a safe starting move is down by about 1.0) if cleaning doesn’t help.
  • Success check: top stitches show the top thread color cleanly, with no bobbin thread “peeking” on the surface.
  • If it still fails, stop and consult the Brother SE630 manual for tension guidance, and re-test with a fresh needle.
• Q: What safety steps prevent injuries when punching holes with an awl and pressing snaps on vinyl key fobs?
  A: Never punch toward a hand—use a stable surface and controlled alignment to prevent slips on slick vinyl.
  • Place the key fob on a self-healing mat or dedicated wooden block before punching.
  • Punch straight down and listen/feel for a clean “pop” (dull tools tend to slip and stretch).
  • Align snap pliers perpendicular before the final squeeze to prevent the snap from shooting or bending.
  • Success check: holes are clean (not stretched), and the snap sets with a solid “dead stop” feel instead of a rubbery bounce.
  • If it still fails, replace or sharpen the awl and re-check plier alignment (centered head over tray) before trying again.
• Q: What magnetic hoop safety rules should Brother SE630 users follow when switching from screw hoops to magnetic embroidery hoops for vinyl?
  A: Treat magnetic hoops like industrial clamps—control finger placement and keep magnets away from sensitive devices.
  • Keep fingers out of pinch points when bringing the magnetic rings together.
  • Store and handle magnets deliberately so they cannot snap together unexpectedly.
  • Keep magnetic hoops at least 6 inches away from pacemakers and avoid resting them on phones or machine screens.
  • Success check: hooping feels controlled with no “snap shut” surprises, and vinyl shows no hoop burn after stitching.
  • If it still fails, slow down the handling routine and reposition grips before closing the magnet—speed is not worth an injury.
