PrintModa + ScanNCut SDX325 + Stellaire XJ2/XE2: The “No-Scissors” Appliqué Workflow That Finally Looks Professional

If you’ve ever finished an appliqué project, looked closely at the satin stitch edge, and thought, “Why does it look… chewed?” allow me to validate that frustration. After twenty years in this industry, I can tell you: 90% of appliqué failures have nothing to do with your needle or your thread. They are caused by cutting accuracy and hooping tension—variables that are decided before you even press "Start."

This guide reconstructs a high-end workflow demonstrated with three specific Brother machines—the PrintModa Studio HL-JF1, the ScanNCut SDX325, and the Stellaire XJ2/XE2. However, my goal isn't just to tell you which buttons to push. It is to teach you the sensory cues and physical mechanics that turn a "home project" into a professional, sellable product.

We will eliminate the guesswork of hand-cutting. We will banish the fear of misalignment. And we will look at when it is time to upgrade your tools to match your ambition.

The "Creative Trifecta": Why Integration Beats Brute Force

In a professional shop, data flow is everything. If you are tracing shapes onto fabric with a pencil and cutting them with scissors, you are introducing human error at the foundational level.

The workflow we are building here uses the Brother ecosystem to remove human hands from the dangerous parts of the process:

1. PrintModa Studio HL-JF1: Prints your custom fabric (photos, patterns) directly onto a treated cotton roll.
2. ScanNCut SDX325: Reads the digital shape and cuts the fabric with laser-like precision (0.1mm tolerance).
3. Stellaire XJ2/XE2: Receives that same shape data to create the Placement, Cut, and Tack-down lines, ensuring the embroidery matches the cut fabric perfectly.

The "No-Scissors" Leap: The most significant visual upgrade comes from step 2. A scissor cut creates microscopic jagged edges ("flats") that poke through satin stitching. A blade cut creates a continuous curve. That is the difference between "homemade" and "boutique."

Step 1: Print Custom Cotton Fabric (The PrintModa Workflow)

The demo begins by generating a custom rose pattern in the Artspira app and sending it to the PrintModa Studio. While the technology is impressive, the fabric mechanics are what you need to watch.

The machine uses standard inkjet technology but prints on a fabric roll backed with a carrier sheet. This carrier sheet is critical—it creates the stiffness of paper, allowing the fabric to feed.

Field Note: The "Stiffness" Factor

When you print heavy saturation (photos or dark colors) on cotton, the ink itself adds a microscopic layer of stiffness once dried.

• Touch Check: Run your thumb over a printed area versus unprinted. You will feel a slight texture difference.
• Why it matters: Saturated areas behave differently under hoop tension. They are less pliable. If you plan to laminate this fabric (creating a faux vinyl), it becomes even more rigid. You must account for this when selecting your stabilizer later.

PREP CHECKLIST: Fabric & Print Handling

• Check the Roll Path: Ensure the fabric roll is feeding straight. A 1mm skew at the start becomes a 10mm skew after a yard of printing.
• Drying Time: Allow the ink to fully set (follow the specific manual instructions for the ink type). Hooping damp ink can cause smudging and hoop stains.
• Laminate Test: If adding iron-on vinyl laminate, test a 2x2 inch square first. Check if it peels when flexed.
• Carrier Sheet Removal: Peel the carrier sheet slowly at a sharp angle to prevent fraying the cotton edge.

Step 2: Stop Jagged Edges (The ScanNCut Intervention)

Here is the brutal truth: You cannot cut a perfect circle with scissors. Your hand naturally pivots, creating small straight lines instead of a curve.

The ScanNCut SDX325 solves this by reading PES embroidery files. It doesn't just "see" an image; it understands the stitch data. It can isolate the appliqué cut line and execute it with a blade.

The Physics of the Cut

The video shows the machine cutting material up to 3mm thick.

• The Sound of Success: When cutting fabric, listen for a consistent "zipping" sound. A jagged or tearing sound means your blade is dull or your mat has lost tackiness.
• Mat Adhesion: The fabric must lay flat. If you can slide a fingernail under the corner of the fabric, it is too loose. Use a brayer (roller) to press it down until it looks like it is bonded to the mat.

If you are eventually building a workflow around magnetic hoops for embroidery, this step is your best friend. Magnetic hoops provide superior tension consistency, but they rely on the fabric being cut accurately before or during the process to maintain that tension.

Step 3: Wireless Transfer (The "Air Gap" Solution)

In the demo, a heart shape is transferred wirelessly from the ScanNCut to the Stellaire’s My Design Center.

Why this reduces cognitive load: eliminating USB sticks implies fewer file version errors. You aren't accidentally loading "Heart_Final_v2.pes" when you meant to load "Heart_Final_v3.pes." The machine sends exactly what you just viewed.

Safety Check: Always verify the dimensions on the receiving screen. A standard 100mm shape should arrive as 100mm. If it arrives as 98mm, your satin border will expose the raw edge.

Step 4: Building the Appliqué Object (Digitizing Logic)

Inside My Design Center, we convert the shape into an embroidery object. This is not just a "fill." You are programming a sequence of physical events.

A robust appliqué sequence consists of three non-negotiable layers:

1. Placement Line: A running stitch that marks the target on your stabilizer/base fabric.
2. Cut/Guide Line: The data sent to the cutter.
3. Tack-Down: A lighter zig-zag or running stitch that secures the fabric edges before the heavy satin stitching begins.
4. Cover Stitch: The final satin column.


The "Drift" Phenomenon

Why do we need a Tack-Down line? Because as a needle penetrates fabric 800 times a minute, it creates a "push-pull" effect. Without a tack-down stitch, the appliqué fabric will "crawl" or drift under the foot.

If you are using a hooping station for embroidery machine to ensure your initial hoop is perfect, that is excellent pre-production discipline. However, once the hoop is on the machine, the digitizing must take over to maintain that stability.

Step 5: The Multitasking Cut

The video highlights a productivity hack: The ScanNCut cuts the appliqué fabric while the Stellaire is embroidering the background of the project. This is parallel processing.

Warning: Mechanical Safety
Keep fingers, loose sleeves, and tools away from the moving carriage and blade path on the ScanNCut. Never attempt to "catch" a piece of fabric while the machine is cutting. Wait for the cycle to finish and the mat to eject.

SETUP CHECKLIST: The Cut Station

• Blade Depth Check: For standard cotton, use the Auto Blade. For laminated fabric, ensure the blade is clean of adhesive buildup.
• Mat Hygiene: Is there lint on the mat? Lint reduces grip. Use a baby wipe (alcohol-free) to clean the mat if adhesion is low.
• Fabric Orientation: Does the grain line of your fabric on the mat match the grain line intended for the final garment? (e.g., Vertical grain prevents sagging).

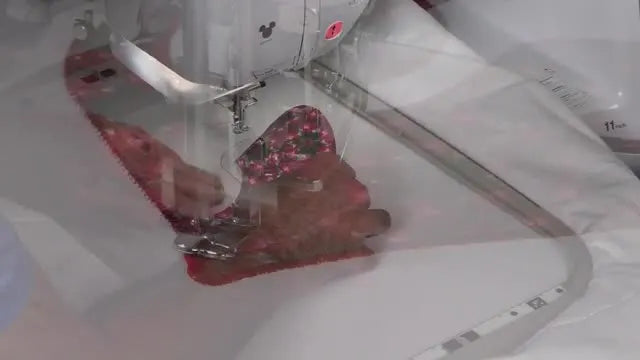

Step 6: The Stitching Ritual (Stellaire Execution)

This is the moment of truth. You stitch the placement line onto your base material, apply a fusible like Applique Wonder to the back of your pre-cut shape, and place it.

Sensory Check: The "Drum Skin" Tension

When you place your pre-cut fabric into the placement line:

• Visual: It should fit inside the lines with less than 1mm of clearance on any side.
• Tactile: When you press the appliqué piece down, it should feel secure. If you are using fusible web, iron it down (if your loop allows) or rely on the tackiness.

Warning: Magnetic Field Safety
If you upgrade to magnetic hoops, be aware they generate strong magnetic fields. Keep them away from pacemakers, insulin pumps, and magnetic storage media. Also, watch your fingers—the "snap" of high-quality magnets can pinch skin painfully.

OPERATION CHECKLIST: Final Layout

• Placement: Stitch Placement Line. Stop.
• Adhesion: Place the cut fabric. Smooth it from the center outward to remove air bubbles.
• Tack-Down: Run the Tack-Down stitch at a lower speed (e.g., 600 SPM) to ensure edges don't flip up.
• Inspection: Trim any loose threads now before the final Satin Stitch covers them.
• Finish: Run the final Satin Border at normal speed.

Step 7: The "Laser Savior" for Crooked Hooping

We have all been there: You unhoop the finished garment, hold it up, and... the text is slanted 3 degrees to the left.

The Stellaire’s two-point laser positioning system allows you to define a line on the fabric (using a chalk mark or invisible pen) and tell the machine, "This is my straight line." The machine then rotates the entire digital file to match your physical reality.

The Expert's View: While this feature is a lifesaver, relying on it constantly slows you down. If you find yourself using the laser on every shirt, your hooping technique is the bottleneck. This is often where I suggest looking into mechanical aids like hooping stations or magnetic frames to fix the root cause.

Troubleshooting: The "Why is this happening?" Matrix

When things go wrong, do not guess. Follow this diagnostic path (Low Cost -> High Cost).

Decision Tree: Fabric vs. Stabilizer

One of the most common questions I get is, "What backing do I use?" Here is the logic I use for production runs.

START: What is your Base Fabric?

• A: Stretchy (T-Shirt, Jersey, Performance Wear)
  • Action: You MUST use Cutaway stabilizer.
  • Why: The needle perforations compromise the structural integrity of knits. Tearaway will leave a hole. Appliqué adds weight; Cutaway supports that weight for the life of the garment.
• B: Stable Woven (Denim, Canvas, Twill)
  • Action: Tearaway is usually acceptable.
  • Expert Tip: If the design has a very high stitch count (>15,000 stitches), float a layer of tearaway under the hoop for extra support.
• C: Unstable/Loose Woven (Linen, Gauze)
  • Action: Use Fusible Mesh (PolyMesh) + Tearaway.
  • Why: The fusible mesh bonds to the fibers to stop shifting; the tearaway adds rigidity during stitching.

The Professional Upgrade Path: When to Switch to Magnetic Hoops

The video concludes by showcasing bundle offers specifically including 7x12 and 5x7 magnetic hoops.

As a technician, I don't recommend upgrades just for "bling." I recommend them when they solve a specific friction point in your business.

The "Hoop Burn" Crisis: Standard plastic hoops work by friction and wedging fabric between rings. On delicate fabrics (velvet, performance wear), this leaves a permanent "burn" mark or crease.

• The Solution: Many users search for brother magnetic hoop 7 x 12 specifically to solve this. The magnetic force clamps down vertically rather than wedging, eliminating the friction burn.

The "Repetitive Strain" Crisis: If you are hooping 50 shirts a day, the twisting motion of tightening a screw can lead to carpal tunnel issues.

• The Solution: A brother 5x7 magnetic hoop snaps on and off. There is no screwing mechanism. It is faster and ergonomically safer.

Compatibility Intelligence: If you own a high-end machine, you might be looking for a brother luminaire magnetic hoop or specifically magnetic hoops for brother luminaire. Note that high-quality aftermarket magnetic frames (like those from SEWTECH) often offer the exact same magnetic lock strength and durability as OEM parts but allow you to afford multiple sizes for a more versatile shop.

If you are generally searching for magnetic embroidery hoops for brother, you are likely trying to solve for Time and Consistency. Magnetic hoops are the industry standard for production shops because they reduce the time-between-hoops from 3 minutes to 30 seconds.

The Next Level: Multi-Needle Machines Finally, if you find that even with a Stellaire, you are bottlenecked because you have to change thread colors manually (or the machine is tied up doing single-needle work), this is the indicator to look at SEWTECH Multi-Needle Machines.

• Trigger: When you turn down orders because you "don't have time."
• Solution: A multi-needle machine runs all colors automatically and allows you to hoop the next garment while the first one runs.

Final Thoughts: The One Weekend Challenge

To master this "Trifecta" workflow, I challenge you to dedicate one weekend to it.

Run the cycle: Print -> Transfer -> Cut -> Stitch.

Do it three times. By the third time, you will stop looking at the manual. You will hear the "zip" of the cutter and know it's right. You will hear the "thump-thump" of the satin stitch and know your tension is perfect.

And remember: The goal isn't just a finished patch. The goal is a repeatable process that respects your time and your creativity. Treat your consumables (stabilizers, needles) and your tools (magnetic hoops) as investments in that consistency.

FAQ

• Q: Why do appliqué satin stitch edges look “chewed” on Brother Stellaire XJ2/XE2 appliqué projects even with good thread and needle?
  A: In most cases, “chewed” edges come from inaccurate hand-cut appliqué fabric and inconsistent hooping tension, not thread or needle.
  • Switch from scissors to blade-cut appliqué shapes (for example, using a Brother ScanNCut workflow) to eliminate jagged micro-edges.
  • Re-hoop with even, firm tension before stitching the final satin border.
  • Slow down for the tack-down step so the edge cannot flip or drift before the satin stitch.
  • Success check: The appliqué edge looks like one continuous curve under satin (no tiny flats or fabric “teeth” poking through).
  • If it still fails: Re-check that the received shape size matches the intended size on-screen before stitching (a slight size mismatch can expose raw edges).
• Q: How do I check correct hoop tension for Brother Stellaire XJ2/XE2 appliqué so fabric doesn’t drift during stitching?
  A: Use a “drum-skin” tension target—tight and even, but not stretched out of shape.
  • Press the hooped area with your fingertip and aim for a firm, even rebound (no soft pockets).
  • Ensure the appliqué piece fits inside the placement line with minimal clearance before running tack-down.
  • Run the tack-down stitch at a lower speed (a safe starting point is a reduced speed like 600 SPM if available on the machine) to reduce push-pull drift.
  • Success check: After tack-down, the appliqué edge stays exactly where placed and does not “crawl” outward before the satin border starts.
  • If it still fails: Upgrade stabilization (often cutaway for knits) or add adhesion (fusible web) so the fabric cannot migrate under needle penetration.
• Q: What stabilizer should I use for Brother Stellaire XJ2/XE2 appliqué on T-shirts (jersey/performance knit) versus denim/canvas?
  A: Match stabilizer to fabric structure—knits generally require cutaway; stable wovens can often use tearaway.
  • Choose cutaway stabilizer for stretchy T-shirts/jersey/performance wear to support needle perforations and the added appliqué weight.
  • Use tearaway for stable woven fabrics like denim/canvas/twill in many cases.
  • Add extra support for high stitch-count designs (often by floating an extra layer under the hoop) when distortion appears.
  • Success check: The garment does not tunnel, wave, or distort around the appliqué after unhooping.
  • If it still fails: Add a fusible mesh layer for loose/unstable woven fabrics to stop fiber shifting, then re-test.
• Q: Why is my Brother Stellaire XJ2/XE2 appliqué fabric bunching inside the shape after stitching the placement and tack-down lines?
  A: Fabric bunching usually means the stabilizer is too weak and/or the appliqué fabric was not fused or secured before the satin stitch.
  • Add iron-on fusible to the back of the appliqué fabric before placement so the piece cannot bubble.
  • Switch to a stronger stabilizer choice (commonly cutaway when the base fabric is stretchy or the design is heavy).
  • Reduce speed for tack-down so the edge is locked before dense stitching begins.
  • Success check: The appliqué surface stays flat after tack-down, with no puckers forming toward the center.
  • If it still fails: Review design density in the center area (high density can force gathering) and test a lighter fill strategy within the same shape.
• Q: How do I fix white bobbin thread showing on top when stitching appliqué satin borders on Brother Stellaire XJ2/XE2?
  A: White bobbin showing on top is typically a threading/tension issue—start with re-threading and cleaning before adjusting tension.
  • Re-thread the top path completely with presser foot up (a common missed step) and confirm the thread is seated correctly.
  • Clean lint/fuzz from the bobbin case area and re-seat the bobbin properly.
  • Lower top tension slightly only after confirming correct threading and a clean bobbin area.
  • Success check: The satin border shows the top thread cleanly on the surface without white “ticks” or lines.
  • If it still fails: Test on a scrap with the same stabilizer and fabric stack to isolate whether the issue is material-related rather than machine setup.
• Q: How do I prevent Brother ScanNCut SDX325 from tearing fabric or making jagged cuts when cutting appliqué pieces from PES cut lines?
  A: Most tearing/jagged cuts come from dull blade or poor mat adhesion—fix the cut station before changing the file.
  • Listen for a consistent “zipping” sound during cutting; stop and inspect if you hear tearing or chattering.
  • Press fabric firmly onto the mat (use a brayer/roller if available) so corners cannot lift.
  • Clean lint off the mat surface (a gentle, alcohol-free wipe can help) to restore grip when adhesion drops.
  • Success check: The cut edge lifts cleanly as one smooth curve with no frayed fuzz or pulled threads.
  • If it still fails: Inspect blade condition and remove any adhesive buildup (especially after cutting laminated materials).
• Q: What safety steps should I follow when using Brother ScanNCut SDX325 cutting and embroidery multitasking near a Brother Stellaire XJ2/XE2 workstation?
  A: Keep hands and loose items away from moving parts and never reach into the blade path while the cycle is running.
  • Keep fingers, sleeves, tools, and scraps clear of the moving carriage and blade area until the machine fully stops and ejects.
  • Avoid trying to “catch” fabric during cutting; wait for the full cycle to finish.
  • Set up a dedicated cut station so mats and tools don’t migrate into the embroidery area.
  • Success check: The mat ejects cleanly and all pieces remain flat—no emergency stops, no snagged fabric, no contact with moving parts.
  • If it still fails: Pause production and reorganize the workstation layout so the operator does not need to reach across moving mechanisms.
• Q: What magnetic hoop safety rules should I follow when using aftermarket magnetic embroidery hoops on Brother-style projects to reduce hoop burn and speed hooping?
  A: Treat magnetic hoops as strong magnets—protect medical devices, protect fingers, and keep sensitive items away.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and magnetic storage media.
  • Snap the frame together with controlled placement to prevent finger pinching from sudden magnet pull.
  • Store hoops with a stable separation method so they do not slam together unexpectedly.
  • Success check: The hoop closes smoothly without pinching, and the fabric is clamped evenly without friction “burn” marks after unhooping.
  • If it still fails: Move to a larger hooping aid (like a hooping station) or re-evaluate stabilizer/stack thickness so the magnets can clamp evenly without shifting.
