Premier+ 2 QuickFont & Font Manager: Build a Clean Appliqué Alphabet (and Stop Losing Fonts in the Chaos)

Lettering is the "moment of truth" in embroidery. It is where a project either looks like a high-end boutique item or falls apart into a mess of jump stitches and illegible text.

If you have ever stared at a font list thinking, I know I used that script last week—where did it hide?, or if you have tried converting a computer font only to end up with thread breaks, gaps, and jumpy connections, you are not alone.

This guide reconstructs the professional lettering workflow in Premier+ 2 Embroidery Ultra. We are moving beyond just "clicking buttons." We are going to build a repeatable, shop-friendly process: first, we find the right font instantly using data (not scrolling), and then we create a custom appliqué font that stitches cleaner, faster, and more profitably.

The “Don’t Panic” Reset: Clearing the Premier+ 2 Embroidery Ultra Workspace Without Breaking Anything

When your software screen feels cluttered with failed experiments, your brain gets cluttered too. The fastest way to regain control is to start from a clean geometric grid.

What the video does (exactly):

• Charlene clears the screen by pressing Ctrl + A (Select All), then Delete.
• The existing design disappears, and you return to a blank grid.

Checkpoint: You should see a blank workspace grid with no design objects selected in the filmstrip.

Expected outcome: You are not "breaking" the software or losing your settings—you are simply clearing the digital table to focus on the next task.

Warning: Safety First at the Station. If you are using a mouse and keyboard while also trimming threads or handling needles at your workstation, keep sharp tools strictly off the keyboard area. One distracted reach for a shortcut key is how scissors puncture screens or slide into live cables.

Font Manager in Premier+ 2: Find the Exact Embroidery Font Fast (3-Color Search + 1-Inch Size Filter)

Font libraries are massive. In the video, Charlene notes there reside over 210 built-in fonts—and that is before you add your custom purchases. Scrolling through this list is a waste of production time.

The professional approach is to search by attributes (color count, size limits) rather than scrolling by name.

A. Search for 3-color fonts using “3c”

What the video does (exactly):

1. Click the Font Manager icon (one click opens it).
2. In the search box, type 3c.
3. Press Enter.

Checkpoint: The font list updates dynamically. You will see icons that clearly indicate multi-color structures.

Expected outcome: You immediately filter down to complex, decorative fonts without guessing.

Field Note: Searching by color count is a "cheat code" for finding fonts designed with built-in shading or borders. However, be aware: 3-color fonts have three times the trim commands.

B. Search for 1-inch fonts using quotes + tolerance

Charlene demonstrates two key ideas: searching by physical size and allowing a "tolerance" (a safety margin).

What the video does (exactly):

1. In Font Manager search, type 1" (the number one with quotation marks).
2. Set the size tolerance to +/- 5 mm.

The video also references 25 mm (approx 1 inch) as the target size.

Checkpoint: The list repopulates with fonts engineered to stitch correctly at that specific scale.

Expected outcome: You get a realistic list of fonts that will remain legible at 1 inch.

Why this works (expert insight): Embroidery fonts are not scalable vector graphics like on a screen. If you shrink a standard font too much, the column stitches bunch up, causing needle breaks. If you enlarge it too much, the satin stitches become long loops that snag. A tolerance search finds fonts where the digitizer intended them to be 1 inch.

The QuickFont “Scan” Moment: What Premier+ 2 QuickFont Is Really Doing (and Why Some Fonts Don’t Show Up)

Charlene opens QuickFont by clicking the QF icon. QuickFont scans your computer for TrueType fonts (TTF) or OpenType fonts (OTF) to convert them into stitches.

What the video says (key boundary):

• QuickFont works with TrueType fonts installed on your Windows system.
• Some specific Adobe fonts may need conversion or may not appear if they are cloud-synced rather than installed locally.

Checkpoint: A new window labeled Premier+ 2 QuickFont opens.

Expected outcome: You can browse your standard computer fonts (like Arial, Comic Sans, Impact) to build an embroidery version.

Decision Time: If you are building fonts for a business workflow, choose fonts with consistent line weights (like Impact or Helvetica). Avoid fonts with "distressed" or "grunge" edges—these turn into a mess of unnecessary jump stitches.

Building an Appliqué Alphabet from Impact Bold: QuickFont Settings That Keep Letters Crisp

Charlene chooses Impact and makes a critical production choice: Bold.

What the video does (exactly):

1. Select Impact from the font dropdown.
2. Set Style to Bold.
3. Set Character Set to Extended (she explains this covers accents for international names).

Checkpoint: The preview pane broadens the letter shapes significantly.

Expected outcome: "Beefier" letter shapes that provide enough surface area for fabric.

Why Bold matters for appliqué (expert insight): Appliqué is a physical process. You are placing fabric, tacking it down, and cutting it (or using pre-cuts).

• Thin fonts: The satin border will fall off the edge of the fabric, leading to fraying.
• Bold fonts: Provide a wide "margin of error" for the satin stitch to bite into both the appliqué fabric and the base garment.

This is where your physical technique—specifically hooping for embroidery machine—becomes the make-or-break factor. Even the boldest font will fail if your fabric is not hooped drum-tight, causing the border to miss the fabric edge.

Stitch Type Choices in QuickFont: Satin vs Pattern Fill vs Appliqué (Pick the One That Matches Your Reality)

QuickFont allows you to reinterpret the same font geometry into different stitch types.

What the video does (exactly):

• She explores stitch types, then returns to Appliqué because she wants to demonstrate that specific workflow.

Checkpoint: Watch the preview. A "Satin" 'A' looks like thread; an "Appliqué" 'A' looks like a fabric cutout with a border.

Expected outcome: The software recommends different size ranges based on the physics of the stitch type.

Expert “Don’t Get Burned” Guide:

• Satin: Best for small to medium text (10mm - 40mm). Risk: Too wide, and stitches snag.
• Pattern Fill: Best for large text (50mm+). Risk: High stitch count and stiffness (bulletproof vest effect).
• Appliqué: The production winner for large team names (80mm+). It uses fabric for color, saving thousands of stitches and drastically reducing run time.

If you are doing repeat orders (like varsity jackets), appliqué is your profitability secret weapon. However, re-hooping bulky jackets for appliqué is physically demanding; that is why upgrading to magnetic embroidery hoops is a common move for shops looking to speed up this specific process without wrist strain.

The Texture Trick: Premier+ 2 Stitch Options (Brick Pattern, Density 2, Angle 360) Without Weak Coverage

Charlene switches to Pattern Fill briefly to customize the look.

What the video does (exactly):

1. Change Stitch Type to Pattern Fill.
2. Open Stitch Options.
3. Choose Squares 1 (Brick texture).
4. Set Density to 2 (This creates a looser, more open effect than standard 0.4 density).
5. Enter Angle = 360.

Checkpoint: The preview letters show a textured specific pattern rather than a solid wall of color.

Expected outcome: A lighter, more flexible fill that drapes better on the garment.

Why density is a balancing act: Low density (higher number) feels softer but exposes the garment underneath. If you stitch a low-density white fill on a black shirt, the black will show through ("grinning").

Underlay Support in Premier+ 2: The Fix for Show-Through When Pattern Fill Density Is Low

Charlene identifies the solution to the "show-through" problem immediately: Underlay.

What the video recommends (exactly):

• Increase the Underlay setting (move it to Medium or High).

Checkpoint: You cannot always "see" underlay in the simple preview, but the software adds a foundation grid before the visible stitches.

Expected outcome: The underlay lifts the top stitches up, preventing them from sinking into the fabric pile.

Pro Tip: Think of underlay like the drywall behind the paint. You don't see it, but without it, the surface collapses. Always use Edge Walk + Double Zigzag underlay for large open fills on knits to prevent distortion.

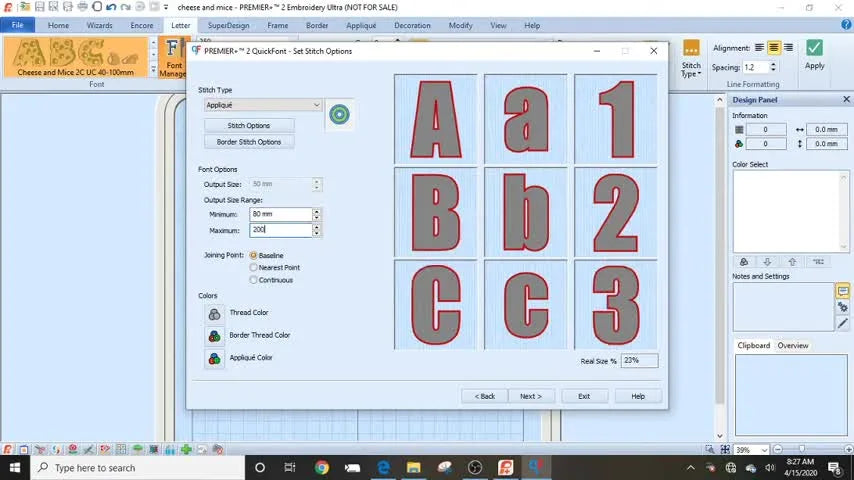

The 200 mm Rule for Appliqué Fonts: Setting Minimum/Maximum Size So You Don’t Create a “One-Use” Font

Appliqué fonts are meant to be large. Charlene adjusts the constraints to reflect this reality.

What the video does (exactly):

1. Select Appliqué as the stitch type.
2. Set Maximum size to 200 mm (approx 8 inches).
3. The video sets Min size = 80 mm (approx 3 inches).

Checkpoint: The Output Size Range fields update.

Expected outcome: The generated font file will contain stitch algorithms valid for this specific size window.

Why sizing limits matter (expert insight): You cannot create a "Magic Font" that works from 10mm to 200mm.

• At 10mm, an appliqué border would be a microscopic blob.
• At 200mm, a standard satin column would need to split into a fill.

By setting the range to 80-200mm, you tell the software: "Optimize the physics for big letters."

Baseline Joining Point in QuickFont: The Simple Setting That Stops Weird Jumps Between Letters

This setting changes how the machine moves from the end of the letter 'A' to the start of the letter 'B'.

What the video does (exactly):

• Change Joining Point to Baseline.

Charlene’s reasoning:

• Nearest Point often takes the shortest path, which can result in diagonal jump stitches that cut across the fabric or "ugly" tie-offs in visible areas.

Checkpoint: Visually, the connection line moves to the bottom of the letters.

Expected outcome: Predictable movements. The machine will finish a letter at the bottom right and move horizontally to the next. This makes trimming easier and reduces the chance of the foot catching a loop.

Color Preview Isn’t “Just Pretty”: Border Thread Color vs Appliqué Fabric Swatch in QuickFont

Visualization prevents basic design errors.

What the video does (exactly):

1. Click the border color swatch and change it to blue.
2. Open the appliqué fabric selection and choose a matching blue-toned swatch.

Checkpoint: The preview updates. You are no longer looking at a generic wireframe; you are looking at a simulation of the finished product.

Expected outcome: You can judge contrast.

Expert Finishing Insight: If you select a thread color that matches your fabric too perfectly, the text may look soft or blurry from a distance. If you want "pop," ensure there is a value contrast (light fabric, dark thread) between the appliqué material and the satin border.

Save It Like a Pro: QuickFont Naming + MyFonts Category So You Can Find Your Work Later

Organization is what separates a hobbyist from a professional. Charlene explains the auto-naming convention.

What the video shows (exactly):

• The generated name codes the properties: Impact_B_A_E…
  • Impact = Source Font
  • B = Bold
  • A = Appliqué
  • E = Extended
  • 80-200 = Size Range

What the video recommends (exactly):

• Save the font into the MyFonts category.

Checkpoint: Ensure "MyFonts" is selected in the category dropdown before clicking finish.

Expected outcome: Your custom fonts stay separate from the factory system fonts. When you upgrade software or move to a new computer, you know exactly which files are yours.

The “Last Chance” Print Screen: Font Book Option Before You Leave QuickFont

Charlene points out a fleeting opportunity.

What the video says (exactly):

• If you want a physical catalog of your fonts, print now. Once you click "Finish," the option to print a specimen sheet for this specific generation is gone.

Checkpoint: Look for the Print icon on the final wizard screen.

Expected outcome: A paper reference sheet showing the font style and size limits.

Field Note: In a multi-user shop, put these printed sheets in a binder near the machine. It helps customers point and say, "I want that font," eliminating guesswork.

Verify the Font in Premier+ 2 Lettering: Find It in MyFonts and Test “ABC” Before You Commit

The final step is proof of life.

What the video does (exactly):

1. Open the main Lettering tab.
2. Scroll the category list to MyFonts.
3. Select the Impact Appliqué file you just made.
4. Type A B C and click Apply.

Checkpoint: The letters appear on the hoop grid.

Expected outcome: Success. You have converted a TrueType font into a stitch-ready appliqué design.

The Hidden Prep That Prevents Bad Fonts: A Pre-Flight Checklist Before You Generate Anything

QuickFont is powerful, but it obeys the rule of "Garbage In, Garbage Out." Use this checklist to ensure you generate a usable file.

Prep Checklist (before Font Manager or QuickFont):

• Clean Slate: Did you clear the workspace (Ctrl+A -> Delete)?
• Source Integrity: Is the TrueType font installed locally (not just in the cloud)?
• Style Choice: Did you select Bold if planning for appliqué?
• Consumables Check: Do you have the right Hidden Consumables ready for the test stitch?
  • Duckbill Scissors (for trimming appliqué fabric close to stitches).
  • Heat-Away or Water-Soluble Pen (for marking placement).
  • Spray Adhesive (Tempo or similar) to hold appliqué fabric flat.

A Practical Decision Tree: Choose Stabilizer + Hooping Strategy for Lettering (So Your New Font Actually Stitches Well)

Software is only 50% of the battle. The rest is physics. Use this logic flow to set up your machine.

Decision Tree (Fabric → Stabilizer → Hooping approach):

1. Is the fabric a stable woven (Denim, Canvas, Twill)?
   • YES: Use Tearaway (2 layers).
   • NO: Go to step 2.
2. Is the fabric a Knit/Stretch (T-shirt, Hoodie, Performance Wear)?
   • YES: You must use Cutaway stabilizer (Mesh or medium weight).
   • TIP: If you use Tearaway on knits, the letters will distort into ovals.
3. Is the fabric High Pile (Towels, Fleece, Velvet)?
   • YES: Use Cutaway on the back AND Water Soluble Topper (Solvy) on top.
   • WHY: Prevents stitches from sinking and disappearing into the fuzz.
4. Are you experiencing "Hoop Burn" or difficulty clamping thick items?
   • YES: Stop forcing the plastic hoop. This is the indicator to switch to a magnetic hooping station or magnetic frame to hold fabric without crushing the fibers.

Troubleshooting Premier+ 2 QuickFont Results: Symptoms → Likely Cause → Fix

When your font doesn't look like the preview, check this table.

The Production Upgrade Path: When Better Hooping and Better Machines Pay You Back

Once you master creating fonts, your bottleneck will shift from "designing" to "producing."

• Level 1: The Hooping Struggle.
  If you dread doing appliqué because clamping the hoop creates wrinkles or hurts your wrists, your tool is the problem. Professional shops use a magnetic embroidery frame because it snaps thick hoodies and delicate knits securely without the "unscrewing and tugging" battle.
• Level 2: The Speed Limit.
  If you are successfully selling name Drops or team gear, a single-needle machine becomes a liability. The constant thread changes for multi-color logos kill your profit margin. This is the standard trigger to look at a SEWTECH multi-needle embroidery machine. The ability to set up 10+ colors and walk away is how a hobby becomes a business.

Warning: Magnet Safety. If you upgrade to magnetic hoops, be aware they use powerful Neodymium magnets. Do not place them near pacemakers, and keep fingers clear of the snap-zone to avoid painful pinches.

Setup Checklist: The Exact Settings to Copy from the Video (So You Don’t Miss a Critical Toggle)

Setup Checklist (Font Manager + QuickFont):

• Search: Typed "3c" or "1"" (with quotes).
• Tolerance: Set to +/- 5mm.
• Style: Selected Bold (Critical for Appliqué).
• Character Set: Changed to Extended.
• Output Range: Max size set to 200 mm.
• Joining: Switched to Baseline (Not Nearest Point).
• Category: Set to MyFonts before saving.
• Output Format: Validated as compatible with your machine (VP3/PES/etc).

Operation Checklist: How to Test the New Font Like a Shop Owner (Not Like a Hobby Experiment)

Operation Checklist (First Stitch-Out):

• The "ABC" Test: Type specific letters that have curves and corners (like A, B, O, X).
• Scale Test: Stitch one at the minimum size (80mm) and one at max (200mm).
• Sensory Check (Auditory): Listen for rhythmic stitching. If you hear "thump-thump-SNAP," your density might be too high causing needle drag.
• Sensory Check (Tactile): Rub the satin border. Is it smooth? If it feels rough/sharp, the stitch density is too low.
• Documentation: Write the density and underlay settings on the back of the stabilizer for future reference.


One Last Reality Check: Custom Fonts Are Only as Good as Your Consistency

Charlene ends with the advice: play with it.

I will add to that: Standardize it.

The power of QuickFont isn't just making more fonts; it is making better fonts tailored to your specific jobs. When you find a combination—like Impact Bold Appliqué with Baseline Joining—that works perfectly for your best-selling sweatshirts, save it, back it up, and build your business around that reliability.

FAQ

• Q: In Premier+ 2 Embroidery Ultra, how do I reset the workspace grid without deleting my software settings?
  A: Use Ctrl + A then Delete to clear only the current design objects, not the software settings.
  • Press Ctrl + A to Select All objects in the workspace.
  • Press Delete to remove the selected objects and return to a blank grid.
  • Success check: the workspace shows a clean grid and the filmstrip has no objects selected.
  • If it still fails: click into the workspace once (so it is active) and try Ctrl + A again before deleting.
• Q: In Premier+ 2 Font Manager, how do I find built-in 3-color embroidery fonts fast using the “3c” search?
  A: Type 3c in the Font Manager search box to filter to multi-color fonts instantly.
  • Open Font Manager (one click).
  • Enter 3c in the search box and press Enter.
  • Success check: the font list updates and shows icons indicating multi-color structures.
  • If it still fails: clear the search box completely and retype 3c, then press Enter again.
• Q: In Premier+ 2 Font Manager, how do I filter embroidery fonts designed for 1-inch lettering using the 1" size search and +/- 5 mm tolerance?
  A: Search 1" and set tolerance to +/- 5 mm to see fonts intended to stitch well at that physical size.
  • Open Font Manager and type 1" (include the quotation mark) in the search field.
  • Set the size tolerance to +/- 5 mm (the video references 25 mm as ~1 inch).
  • Success check: the font list repopulates with fonts engineered for that scale, not just visually “shrunk” ones.
  • If it still fails: confirm the quote mark is included (1") and re-run the search with the tolerance set.
• Q: In Premier+ 2 QuickFont, why do some Adobe fonts not appear when QuickFont scans for TrueType fonts?
  A: QuickFont only converts locally installed TrueType/OpenType fonts, and some Adobe fonts may not show if they are cloud-synced rather than installed.
  • Confirm the font is installed on the Windows system (not just available via a cloud library).
  • Reopen Premier+ 2 QuickFont (QF icon) to trigger a fresh scan.
  • Success check: the missing font appears in the QuickFont font dropdown alongside standard system fonts.
  • If it still fails: choose a locally installed font with consistent line weight (often a safer starting point for production) and proceed with testing.
• Q: In Premier+ 2 QuickFont, how do I stop weird diagonal jump stitches between letters by changing the Joining Point to Baseline?
  A: Set Joining Point = Baseline to keep letter-to-letter travel predictable and easier to trim.
  • In QuickFont, locate the Joining Point setting.
  • Switch from Nearest Point to Baseline.
  • Success check: the connection line moves to the bottom of the letters and travel looks more horizontal and consistent.
  • If it still fails: generate the font again with Baseline joining and stitch a short test like ABC to confirm real-world results.
• Q: In Premier+ 2 QuickFont Pattern Fill, how do I fix fabric show-through when Density is set to 2 by adjusting Underlay?
  A: Increase Underlay to Medium or High to support the open fill and reduce show-through.
  • Keep the intended look (e.g., Pattern Fill texture) but raise Underlay to Medium or High.
  • Re-test on the same garment color combination that showed the problem.
  • Success check: the fill looks more solid and sits “on top” of the fabric instead of sinking in.
  • If it still fails: test a slightly less open fill setting (density closer to standard) and stitch on scrap first.
• Q: During appliqué lettering stitch-outs, what fixes gaps between the satin outline and the appliqué fabric when the appliqué fabric shifts?
  A: Secure the appliqué fabric better (spray adhesive helps) and use a bold letter shape to give the border more bite.
  • Apply spray adhesive to hold the appliqué fabric flat before stitching.
  • Choose Bold when generating the appliqué font so the border has a wider margin.
  • Success check: the satin border fully catches the appliqué edge with no exposed fabric gaps around curves and corners.
  • If it still fails: improve hooping stability (avoid forcing a plastic hoop on thick/delicate items; a magnetic frame is often used to increase grip without crushing fibers).
• Q: What safety rules should embroidery operators follow when using keyboard shortcuts and when upgrading to magnetic embroidery hoops with strong Neodymium magnets?
  A: Keep sharp tools away from the keyboard area, and treat magnetic hoops as pinch-and-medical-risk tools.
  • Keep scissors/needles off the keyboard zone before using shortcuts like Ctrl + A and Delete.
  • Keep fingers out of the snap-zone when closing magnetic hoops to prevent pinches.
  • Success check: hands stay clear during snapping/shortcuts and no tools are resting where a distracted reach can cause injury or damage.
  • If it still fails: stop and reorganize the station layout (tools in a dedicated tray; hoops placed away from electronics), and follow the machine and hoop safety instructions for your setup.
