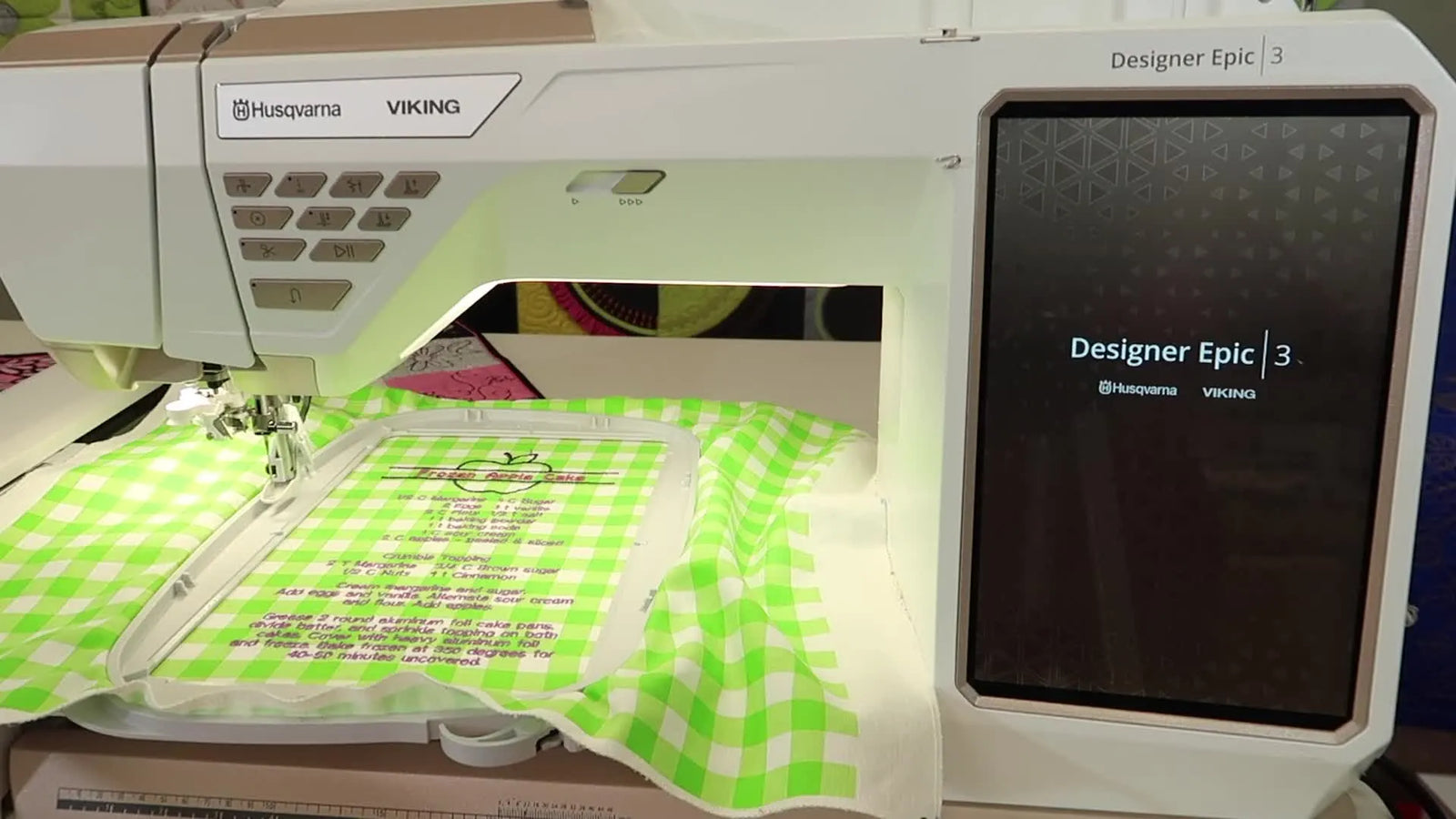

Power Outage Mid-Design on the Husqvarna Viking Designer Epic 3? Here’s the Calm, Repeatable “Resume Embroidery” Routine

The Panic-to-Plan Primer: What the Designer Epic 3 *Can* Remember (and What It Won’t)

If you have ever stared at your machine mid-design, paralyzed by the fear that power cycling will erase hours of work, you are not being dramatic—you are being prudent. In the world of precision embroidery, power loss is usually synonymous with disaster.

However, on the Husqvarna Viking Designer Epic 3, the architecture is different. The machine can recover from a power outage or a deliberate shutdown and return to the exact stitch count. But as an educator with two decades of floor experience, I must warn you: this is not magic. It is a logic gate.

The Rule of Engagement: The machine will only offer the "Resume" safety net if you have crossed a physical threshold—the machine must have successfully taken actual stitches.

This guide rebuilds the standard demonstration into a "Battle-Tested Protocol." We will move beyond the screen and talk about the physics of thread, hoop tension, and the stabilizing strategies that ensure your design lines up perfectly when you power back on.

The Panic-to-Plan Primer: What the Designer Epic 3 *Can* Remember (and What It Won’t)

The Designer Epic 3 utilizes a non-volatile memory cache that logs the last active embroidery session. This is why, following an interruption, you get the lifeline pop-up:

“Your embroidery ended unexpectedly. Do you want to resume embroidery?”

When you tap Yes, the software reloads the design and places the needle cursor exactly where it stopped (in Sarah’s demo, at stitch 11).

The Critical "But": Being on the screen is not enough. The internal logic of the husqvarna embroidery machine distinguishes between "setup mode" and "execution mode."

• Setup Mode: You are editing, resizing, or staring at the stitch-out screen. Memory Status: Volatile. If you turn off the power here, it forgets everything.
• Execution Mode: The needle has cycled up and down. Memory Status: Locked.

Visualizing this helps: Imagine the machine ignores everything until it feels the physical resistance of the first needle penetration. No penetration, no memory.

The “Hidden” Prep Before You Stitch: Save the Combination So Tomorrow-You Has Options

Before we even discuss resuming, we must discuss insurance. Sarah demonstrates a critical habit: Saving the design combination before stitching.

When you merge lettering with a motif, or combine multiple elements, that layout typically exists only in the machine’s temporary RAM. If you need to restart from scratch (perhaps due to a catastrophic thread nest), "Resume" won't help you. You need the source file.

The Expert Workflow:

1. Tap the Save icon.
2. Name it something descriptive (e.g., "Love_Logo_Final").
3. Sensory Check: Ensure you see the file icon appear in the "My Files" folder.

This protects you against the "Total Restart" scenario, which is different from the "Resume" scenario.

Prep Checklist (do this before you ever hit Start)

Every successful resumption starts with physical preparation. If your fabric isn't secure, the software features are useless.

• File Safety: Confirm the design combination (lettering + elements) is saved to the machine's memory.
• Needle Check: Run your fingernail down the needle tip. If you feel a "click" or snag, replace it (recommend 75/11 for woven, 75/11 Ballpoint for knits). A burred needle causes drag that shifts fabric during stops.
• Hoop Tension: Tap the hooped fabric. It should sound like a tight drum skin ("thump"), not a loose paper bag ("rustle").
• Stabilizer Match: Ensure your stabilizer is heavy enough to support the stitch count. (See Decision Tree below).
• Supplies on Deck: Have fine-tip snips and a spare bobbin ready.


The Golden Rule: Why the Designer Epic 3 Needs “Real Stitches” to Activate Resume Embroidery

Sarah initiates Stitch Out mode. The arm moves. The machine asks for the hoop. This is standard.

Then, she performs the act that triggers the memory safety net: she presses Start/Stop and allows the machine to sew 11 stitches.

Why 11? It’s not a magic number, but it’s a safe buffer. I recommend letting the machine sew at least 5 to 10 seconds of underlay.

• The Physics: When the main shaft rotates and the needle bar engages, the machine writes a "flag" to its internal drive: Project Active.
• The Trap: Many users get everything set up, attach the hoop, and then think, "I'll start tomorrow." They turn off the machine. Result: The machine wakes up blank tomorrow.

Expert Rule: If the needle hasn't pierced the fabric, you are still in the planning phase.

The Calm Shutdown: Turning the Power Off Mid-Design Without Creating a Bigger Problem

Sarah simulates a power outage by flipping the side switch. In your studio, you might just be done for the day.

The Physical Reality of "Pausing": When the machine is off, the magnetic motors holding the embroidery arm lose power. The arm can be moved if pushed.

1. Do Not Touch the Arm: Once the power is off, treat the embroidery arm as high-voltage. Do not bump it. Do not use it as a handle.
2. Leave the Hoop (If Possible): If your environment is safe (no cats, no kids), leave the hoop attached. This guarantees perfect alignment.
3. Hoop Removal (If Necessary): If you must remove the hoop, do so gently. Do not "pop" the fabric.
   • Tip: If you are using husqvarna viking embroidery machines for production, consider a "Designated Parking" zone for hoops that are mid-project to prevent thermal warping or accidental items being stacked on them.


The Pop-Up That Matters: “Your Embroidery Ended Unexpectedly” and the One Button You Must Tap

Upon rebooting, you enter the calibration sequence. This is the moment of truth.

The Sequence:

1. Audio Cue: You will hear the familiar mechanical whir-click as the machine tests its axes.
2. The Prompt: “Your embroidery ended unexpectedly. Do you want to resume embroidery?”
3. The Action: Tap Yes.

Critical Fail Point: If you tap 'No' or 'Cancel', the cache is cleared. There is no "Undo" for this choice.

Warning: Mechanical Pinch Hazard
During the startup calibration, the embroidery arm travels to its limits to "find itself." It moves fast and with significant torque. Keep hands, coffee mugs, and loose thread cones completely clear of the arm's path. Never try to hold the hoop "still" during calibration; you will damage the stepper motors or injure your fingers.

Setup Checklist (right as you reboot)

• Clear the Deck: Ensure the space behind the machine is clear for arm movement.
• Hoop Status: Remove the hoop before turning power on (unless the machine specifically permits calibration with it on, which most do not). Place it on a flat surface.
• The "Yes" Moment: Watch the screen like a hawk. When the "Resume" prompt appears, tap Yes immediately.
• Complete Calibration: Wait for the arm to stop moving and the whirring sound to cease.
• Re-Hoop: Attach the hoop only when prompted. Listen for the audible click of the locking mechanism engaging.


The Stitch Counter Proof: How to Confirm You’re Truly Back Where You Left Off

After calibration, the machine returns to the Stitch Out screen. Sarah points out that the stitch counter reads 11—exactly where she stopped.

The Verification Ritual: Do not just trust the prompt. Look at the numbers.

• Visual Check: Does the stitch number match your mental note?
• Screen Check: Does the crosshair on the screen look like it’s in the correct section of the design?

If the numbers are at "0", the resume failed (likely because no stitches were taken initially). If they are at "11", you are theoretically ready—but physically, you need to adjust for the "Gap."

The No-Gap Restart: Back Up a Few Stitches Before You Hit Start Again

This is the most valuable technique in the entire video. Sarah uses the Stitch - (minus) button to step back.

The "Why" (Thread Physics): When a machine stops abruptly (power loss) or cuts thread, tension is released. The last stitch is loose, and the bobbin thread may have relaxed. If you start exactly at stitch 11, the first new stitch (stitch 12) might not pull tight against stitch 11, leaving a visible gap or a "loop."

The Solution:

1. Step Back: Move backward 5 to 10 stitches.
2. The Overlap: This forces the machine to sew over the existing stitches.
3. The Lock: This overlap acts as a knot, securing the loose end of the previous session and blending the start of the new session.

Scenario: If you are stitching a satin border, this is non-negotiable. Without overlapping, you will see a hairline fracture in the satin column.

For those running a business using embroidery hoops for husqvarna viking, avoiding these gaps prevents "seconds" (unsellable items) and saves you from picking out stitches manually.

Operation Checklist (the moment you resume stitching)

• Verify Position: Confirm stitch count matches the stop point.
• Step Back: Manually reverse 5-10 stitches using the on-screen controls.
• Bobbin Check: Look at your bobbin. Is the tail trapped? Pull it up or ensure it’s short enough (under 1/2 inch) not to snag.
• Speed Reduction: Crucial. Lower your machine speed (SPM) to 50% (approx. 400-600 SPM) for the first 30 seconds.
  • Why? It gives you reaction time if the alignment is off.
• Visual Watch: Watch the needle enter the existing holes. If it’s missing the previous holes by more than 1mm, stop immediately—your stabilizer has shifted.


The Negative Test That Explains Everything: Why You Sometimes Don’t Get the Resume Prompt

Sarah proves the negative: Turn on -> Select Design -> Turn Off (No Stitches). Result: No Resume Prompt.

This confirms that the "Trigger" for memory is mechanical engagement, not software selection.

Troubleshooting Script:

• User: "My machine is broken; it forgot my design!"
• Expert: "Did you hear the needle go thump-thump before you turned it off?"
• User: "No."
• Expert: "Then there was nothing to remember."


Decision Tree: Fabric + Stabilizer Choices That Make Stop-and-Resume More Forgiving

The video shows a gingham fabric (stable woven) with Cut-Away stabilizer. This is the "Easy Mode" for resuming. Why? Because Cut-Away doesn't distort over time.

However, if you are stitching on other materials, "Resuming" requires specific stabilizer tactics to ensure the fabric hasn't shrunk or relaxed while sitting on the hoop overnight.

Decision Tree: Will My Design Line Up Tomorrow?

1. Is the fabric stable (Denim, Canvas, Quilting Cotton)?
* Stabilizer: Tear-Away is acceptable, but Cut-Away is preferred for dense designs.
* Risk: Low. These fabrics hold their shape well in the hoop.

2. Is the fabric stretchy (T-Shirts, Polo Pique, Performance Knits)?
* Stabilizer: MUST use Cut-Away (Mesh or Heavy). Never use Tear-Away alone.
* Risk: High. If you leave a knit hooped overnight, the fibers relax. When you resume, outlines may not align.
* Adhesive: Use a temporary spray adhesive (like Odif 505) to bond fabric to stabilizer prevents "creep."

3. Is the fabric slippery/delicate (Silk, Satin, Rayon)?
* Stabilizer: Fusible Mesh Cut-Away.
* Risk: Medium. The main risk here is "Hoop Burn" from keeping it tightly hooped for 24 hours.
* Tool Upgrade: This is a prime scenario for a magnetic hoop for husqvarna viking to hold fabric firm without crushing the fibers.

The Hooping Reality Check: Keeping Alignment When Life Interrupts You

Software assumes a perfect world. In the real world, things move. The majority of "Resume Failures" aren't the software; they are the fabric slipping 1mm inside the hoop frame.

The "Hoop Burn" & Fatigue Cycle: If you find yourself needing to resume often because you are fatigued, or if you dread re-hooping because your wrists hurt, analyze your physical workflow:

• Trigger: You see "ghost marks" (hoop burn) on dark fabrics, or you struggle to tighten the screw enough to hold a thick sweatshirt.
• Criteria: Are you doing production runs (10+ items) or heavy items (jackets)?
• The Upgrade:
  • First Level: Use a hooping station for machine embroidery. This ensures you apply even pressure every time.
  • Second Level: Switch to Magnetic Hoops.

Why Magnetic Hoops for "Resume" Situations? Unlike screw-tightened hoops which can suffer from "creep" (fabric slowly slipping loose over hours), a high-quality magnetic frame exerts continuous vertical pressure. If you have to pause a job overnight, a magnetic hoop is statistically more likely to maintain perfect x/y registration than a standard hoop that might loosen with temperature changes.

Warning: Magnetic Field Safety
Magnetic hoops use strong industrial neodymium magnets.
1. Pinch Hazard: They snap together with enough force to bruise skin or break fingernails. Slide them apart; do not pry.
2. Medical Devices: Keep at least 6 inches away from pacemakers and insulin pumps.
3. Electronics: Do not place directly on top of laptops or tablets.

The Two Most Common “Resume” Problems (and the Fixes That Actually Work)

Here is a structured troubleshooting guide based on shop-floor diagnostics.

Problem 1: No Resume Prompt on Startup

• Symptom: Screen loads to Home; standard "New Design" buttons satisfy.
• Likely Cause: You didn't take any stitches.
• Quick Fix: Reload design manually.
• Prevention: Always stitch the first color stop (or at least 20 stitches) before powering down.

Problem 2: Visible Gap / Hairline Crack in Stitching

• Symptom: You can see stabilizer peeking through a satin column where you restarted.
• Likely Cause: Tension release/Thread relaxation.
• Quick Fix: Unpick the last 5 stitches manually, then step back the machine 10 stitches to overlap.
• Prevention: Always use the "Step Back" ("-") feature to overlap 5-10 stitches.

Problem 3: Design is Misaligned (Shifted)

• Symptom: The machine resumes, but the needle lands 2mm away from the existing embroidery.
• Likely Cause: Fabric slipped in hoop, or hoop wasn't seated fully in the arm.
• Quick Fix: Stop immediately. Use "Design Positioning" (if available) to realign, or re-hoop if the fabric is loose.
• Prevention: Use Cut-Away stabilizer + Spray Adhesive. Consider magnetic embroidery hoop systems for better grip on difficult fabrics.


The Upgrade Path: When This Becomes a Production Workflow (Not Just a One-Off Save)

Understanding the "Resume" feature is Step 1. Mastering your workflow is Step 2.

• The Hobbyist Level: You save the design to ensure you can finish a quilt block after dinner.
• The Pro Level: You use tools that reduce the need to stop.

If you are constantly relying on "Resume" because your single-needle machine takes too long to change thread colors, that is a bottleneck indicator.

• Efficiency: Transitioning to SEWTECH Hat Hoops or standard frames allows for faster prep.
• Scale: When you are doing 50 logos, you don't want to "Resume"; you want to "Run." This is when many users look at SEWTECH multi-needle solutions, where thread changes are automatic, and magnetic hoops snap on instantly.

For now, master the provided hoops. But if you see embroidery machine hoops leaving marks or causing you to re-hoop constantly, recognize that as a tool problem, not a skill problem.

The Takeaway You’ll Actually Remember at 11 PM

When you are tired, frustrated, and just want to go to bed, remember the "Three S Protocol":

1. SAVE: Save the combination file manually.
2. STITCH: Ensure the needle has gone thump-thump at least 10 times.
3. STEP BACK: When you return, back up 5 stitches to lock the thread.

Follow this, and the Designer Epic 3 becomes a reliable partner rather than a source of anxiety. Sleep well, knowing your work is safe.

FAQ

• Q: Why does the Husqvarna Viking Designer Epic 3 not show the “Resume embroidery” prompt after a shutdown or power outage?
  A: The Husqvarna Viking Designer Epic 3 only offers “Resume” after the machine has sewn real stitches (needle penetration), so turning off in setup mode leaves nothing saved to resume.
  • Stitch first: Run at least 5–10 seconds of stitching (or a small underlay) before powering off for the day.
  • Save insurance: Save the design combination file (lettering + motif) to “My Files” before you ever stitch.
  • Avoid the trap: Do not turn off right after selecting the design if the needle has not cycled.
  • Success check: After reboot, the screen shows “Your embroidery ended unexpectedly. Do you want to resume embroidery?” and the stitch counter returns to the last number (not 0).
  • If it still fails… Reload the design manually and continue from your saved combination file.
• Q: What is the safest way to shut down a Husqvarna Viking Designer Epic 3 mid-design without causing misalignment?
  A: Power down only after stitches have been taken, then avoid any movement of the embroidery arm and keep the hoop stable to protect registration.
  • Do not touch: Keep hands off the embroidery arm once power is off (it can shift when motors are unpowered).
  • Leave hooped if safe: Keep the hoop attached if the area is secure (no pets/kids) to preserve alignment.
  • Remove gently if needed: If you must remove the hoop, do it slowly and avoid “popping” the fabric.
  • Success check: On return, the needle lands into the existing needle holes (not visibly offset) when you test a few slow stitches.
  • If it still fails… Stop immediately if the needle is off by more than about 1 mm and re-check hoop seating and fabric stability.
• Q: What should be done on Husqvarna Viking Designer Epic 3 startup to prevent damage during calibration and still resume embroidery correctly?
  A: Keep the calibration path clear, keep hands away, and choose “Yes” on the resume prompt—tapping “No/Cancel” clears the cache.
  • Clear the deck: Remove cups, cones, tools, and loose thread from behind/around the arm travel area.
  • Avoid pinch hazard: Never try to hold the hoop or restrain the arm while the machine “whir-click” calibrates.
  • Choose correctly: Tap “Yes” when “Your embroidery ended unexpectedly. Do you want to resume embroidery?” appears.
  • Success check: Calibration completes with the arm stopping normally, and the stitch-out screen returns showing the previous stitch count.
  • If it still fails… If “No” was tapped by accident, reload from the saved combination file because the resume cache is cleared.
• Q: How do you restart on a Husqvarna Viking Designer Epic 3 after resuming so there is no visible gap or hairline crack in satin stitching?
  A: Always back up 5–10 stitches before restarting so the machine overlaps and locks in the loosened thread from the stop.
  • Step back: Use the Stitch “-” control to reverse 5–10 stitches before pressing Start.
  • Slow down: Reduce speed to about 50% (roughly 400–600 SPM) for the first 30 seconds so you can confirm alignment.
  • Check bobbin tail: Ensure the bobbin tail is trapped or short (under 1/2 inch) so it cannot snag on restart.
  • Success check: The restart area blends with no visible “fracture line,” loop, or stabilizer showing through the satin column.
  • If it still fails… Unpick the last few stitches and restart again with a larger overlap.
• Q: What are the Husqvarna Viking Designer Epic 3 prep checks before stitching to make stop-and-resume more reliable?
  A: Do a quick physical checklist—needle condition, hoop tension, stabilizer match, and supplies ready—because resume depends on the fabric staying put.
  • Replace needle if burred: Run a fingernail over the tip; if it “clicks” or snags, swap it (75/11 for wovens, 75/11 ballpoint for knits is a common starting point—follow the machine manual).
  • Set hoop tension: Hoop so it sounds like a tight drum “thump,” not a loose “rustle.”
  • Match stabilizer: Use stabilizer heavy enough for the stitch count (cut-away is more forgiving for resuming).
  • Stage tools: Keep fine-tip snips and a spare bobbin ready to avoid rushed handling mid-job.
  • Success check: Fabric stays flat with no shifting when tapped, and early stitches form cleanly without dragging or distortion.
  • If it still fails… Re-hoop and increase stabilization rather than forcing the stitch-out.
• Q: Which stabilizer choices make Husqvarna Viking Designer Epic 3 stop-and-resume alignment more forgiving on knits, wovens, and delicate fabrics?
  A: Use cut-away as the “safer” base for resuming, especially on knits; add adhesive support when fabrics may creep in the hoop.
  • Stable wovens: Tear-away may work, but cut-away is often better for dense designs to reduce distortion over time.
  • Stretchy knits: Use cut-away (mesh or heavy); avoid tear-away alone, and bond fabric to stabilizer with temporary spray adhesive to reduce creep.
  • Slippery/delicate fabrics: Use fusible mesh cut-away and watch for hoop burn if left hooped for long periods.
  • Success check: After an overnight pause, outlines and needle hits still land in the original holes without visible offset.
  • If it still fails… Treat it as hoop/fabric movement: re-hoop, increase stabilization, and consider a frame that grips more consistently.
• Q: When frequent “resume embroidery” use on a Husqvarna Viking Designer Epic 3 becomes a workflow problem, what is a practical upgrade path (skills → tools → production)?
  A: Start with technique fixes, then upgrade hooping consistency, and only then consider capacity upgrades if thread-change time is the real bottleneck.
  • Level 1 (technique): Save the combination file, stitch a short underlay before shutdown, and step back 5–10 stitches on restart.
  • Level 2 (tooling): Use a hooping station for repeatable tension; consider magnetic hoops if hoop creep, hoop burn, or hand fatigue causes shifting.
  • Level 3 (capacity): If stopping happens mainly because single-needle color changes take too long, a multi-needle workflow may reduce the need to pause.
  • Success check: Fewer re-hoops, fewer misalignment restarts, and the restart area shows no gap or shift.
  • If it still fails… Track the failure type (no prompt vs gap vs shift); each points to a different fix (stitch-activation, overlap, or hoop stability).
