Poolin EOC06 Appliqué on a T-Shirt: The Magnetic Hoop Workflow That Stops Puckers (and Saves Your Hands)

If you have ever attempted appliqué on a T-shirt and ended up with ripples, shifting fabric, or that dreaded sinking feeling when the satin stitch misses the fabric edge completely—take a deep breath. You are not fighting a lack of talent; you are fighting physics.

The workflow demonstrated in this Poolin EOC06 appliqué demo is solid, but to make it repeatable in a commercial or high-standards home shop, we need to add specific sensory checkpoints and safety boundaries.

This guide rebuilds Marilyn’s process into a shop-ready Standard Operating Procedure (SOP): preview the file, stabilize the knit structure, hoop with magnetic precision, and execute the four phases of appliqué (Placement, Tack-down, Trim, Finish) without danger to your fingers or your garment.

The Calm-Down Primer: Why Knits Are “Honest” (And How to Handle Them)

Stretch fabric (knits) does not forgive sloppy tension, sloppy hooping, or weak stabilization. It is an "honest" material—it tells you exactly where you cut corners.

When a needle penetrates a T-shirt, it pushes the fabric down. When the thread pulls up, it tugs the fabric. On a woven shirt, the fabric resists. On a knit, the fabric elongates. If you hoop a T-shirt like a drum in a traditional screw-hoop, you stretch the fibers open. When you unhoop later, the fibers relax, and your design looks like a raisin—wrinkled and puckered.

The method below attacks the two enemies—fabric movement and fiber distortion—before the needle moves. If you are using a magnetic embroidery hoop, you are already winning because it allows you to secure the fabric without torque-stretching it.

Phase 1: The “Digital Twin” Prep (Don’t Skip This)

Before Marilyn touches the machine, she opens the design in Embrilliance and runs the stitch simulator. In professional embroidery, we call this the "Digital Twin" check. You must visualize the path before you commit expensive garments.

The Anatomy of an Appliqué File

Novices often ask, "Which button on the machine makes it appliqué?" The answer is: None. The machine is dumb; it just follows the map. The "intelligence" is in the file layers.

Using the simulator, verify these clear blocks:

1. Placement Stitch (Run Stitch): A single line that shows you where to put the fabric.
2. Stop Command: The machine must stop here.
3. Tack-Down Stitch (Run/Zigzag): Secures the fabric to the shirt.
4. Stop Command: Crucial pause for trimming.
5. Satin/Finish Stitch: Covers the raw edges.

Sensory Check: Drag the slider in your software. If you do not see stops between these layers, you need to add them manually. If you miss a stop during the actual stitch-out, the machine will start satin stitching right over your untrimmed fabric, ruining the project instantly.

Hidden Consumables: What You actually Need

Beyond the machine and hoop, ensure you have these within arm's reach:

• Needles: Ballpoint 75/11 (Ballpoint pushes knit fibers aside rather than cutting them).
• Adhesion: Temporary spray adhesive (e.g., Odif 505) or a fusible web.
• Safety Tool: A chopstick, stylus, or "Purple Thang" to hold fabric. Never use your fingers near the needle bar.
• Scissors: Double-curved appliqué scissors are non-negotiable for getting close cuts without snipping the shirt.

Prep Checklist (Pre-Flight)

• File Verification: Design loaded? Color stops confirmed? Orientation correct (is the shirt upside down)?
• Needle Freshness: If the current needle has done 8+ hours of work or hit a hoop recently, change it. A burred needle causes snags on knits.
• Bobbin Check: visually inspect the bobbin. It should be full enough to complete the job.
• Test Run: If this is a new file, run it on a scrap piece of similar knit fabric first.

Phase 2: The Stabilization Science (No-Show Mesh + Chemistry)

Marilyn uses no-show mesh (a soft, translucent cutaway) and basting spray. This isn't just a preference; it's the industry standard for knits.

The Physics of the Bond

Stabilizer on knits acts as a "foundation." By using spray adhesive, you are chemically bonding the stretchy T-shirt to the non-stretchy stabilizer. You are briefly turning the knit into a stable woven fabric.

Action:

1. Spray the stabilizer (away from the machine to prevent gumming up mechanics).
2. Smooth the shirt onto the sticky stabilizer.
3. Sensory Check: Rub your hand firmly across the fabric. It should feel like one solid unit. If the shirt slides over the stabilizer, apply more pressure or a light mist of spray again. Bubbles here equal puckers later.

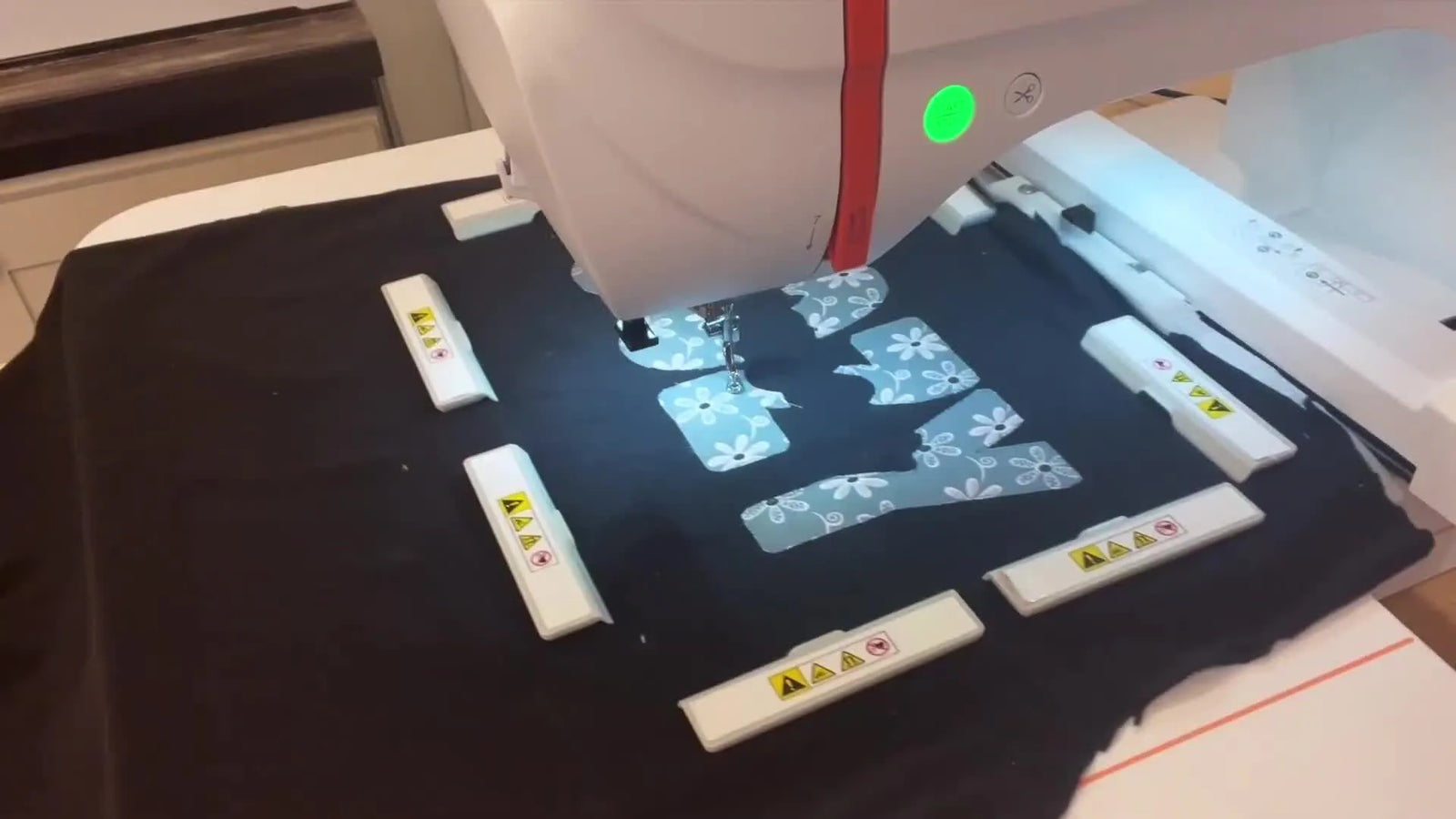

Phase 3: The Magnetic Hooping Routine (Zero-Distortion)

Marilyn demonstrates this on a Sew Tech magnetic hoop compatible with the Poolin EOC06. Magnetic hoops are the "cheat code" for knits because they eliminate the "pull and screw" friction of traditional hoops.

The "Drop and Snap" Technique

1. Base: Slide the bottom metal frame inside the shirt.
2. Align: Smooth the shirt/stabilizer sandwich over the frame.
3. Anchor: Place the top frame (or individual magnets) gently.
4. Secure: Allow the magnets to engage.

The Golden Rule of Knits: Do not pull on the fabric once the magnets are on. If it's crooked, take the magnets off and reset. Pulling on hooped fabric creates "pre-tension," which snaps back into puckers the second you unhoop.

If you’re building a repeatable workflow, think of your table as a hooping station for embroidery machine: keep the hoop flat, keep the garment supported, and place magnets in a consistent pattern so the tension is even.

Warning: Magnetic Safety
Modern magnetic hoops use high-powered Neodymium magnets.
* Pinch Hazard: They snap together with enough force to pinch skin severely or break a fingernail. Handle with a full grip.
* Electronics: Keep them at least 6 inches away from pacemaker devices, credit cards, and computerized machine screens.

Setup Checklist (Before Pressing Start)

• Clearance: Check underneath the hoop. Is the back of the shirt or a sleeve bunched up under the needle area? (This is the #1 cause of ruining shirts).
• Hoop Seated: Push the hoop into the Pantograph bracket. Sensory Check: You should hear/feel a distinct click or solid stop. Give it a gentle wiggle—it should move the whole X/Y carriage, not wobble inside the bracket.
• Speed Limit: For T-shirts, lower your machine speed. If your max is 1000 SPM (Stitches Per Minute), drop it to 600-700 SPM. Speed causes vibration, and vibration shifts knits.

Phase 4: The Operation (The 4 Steps)

Step 1: The Placement Stitch

Running the first color block creates the "Map Line" on your shirt.

Visual Check: Watch the outline stitch out. Is the fabric rippling ahead of the foot? If yes, your stabilizer bond failed. Stop, unhoop, and re-spray. It is cheaper to waste stabilizer than the shirt.

Step 2: The Tack-Down (The Danger Zone)

Marilyn prepares usually with HeatnBond Lite on the appliqué fabric. This fuses the fabric to the shape, making the trimming phase cleaner.

1. Place the appliqué fabric over the placement line.
2. Start the machine for the Tack-Down stitch.

The "Chopstick" Trick: The fabric edges might curl up. Do not use your fingers. Use a chopstick, a stylus, or the eraser end of a pencil to gently guide the fabric.

Warning: Physical Safety
The needle moves faster than your reaction time. Even a "slow" 400 SPM is 6 stitches per second. Keep hands completely outside the hoop area while the machine is running.

Step 3: The Trim (The Surgeon's Hand)

The machine stops. Action: Remove the hoop from the machine arm. Critical Rule: DO NOT remove the fabric from the hoop. If you pop those magnets, you will never get the alignment back perfectly.

use your double-curved scissors. Lay the blades parallel to the fabric. Glide them cut close to the tack-down limit. Sensory Check: You should feel the scissors gliding against the thread ridge. You want to cut close (1-2mm), but not through the stitches. Prevention: hold the excess fabric up and away as you cut ensuring you don't snip the T-shirt underneath.

Stabilizer Decision Tree: What to Use When?

Use this logic flow to determine your backing. When in doubt, "over-stabilize" is safer than "under-stabilize."

• Scenario A: Standard Cotton T-Shirt (Light to Medium stretch)
  • Recipe: 1 Layer No-Show Mesh (Fusible or with Spray).
• Scenario B: Performance/Athletic Knit (Slippery, High stretch)
  • Recipe: 2 Layers No-Show Mesh (Crossed at 90 degrees) + Heavy Spray.
• Scenario C: Heavy Hoodie/Sweatshirt
  • Recipe: 1 Layer Medium Cutaway. (Mesh is often too weak for heavy fleece).
• Scenario D: White/Light T-Shirt (Visibility concern)
  • Recipe: No-Show Mesh (Beige or White per shirt color) to prevent the "Badge Effect" showing through.

Step 4: The Satin Finish

Re-attach the hoop. Listen for the click. Run the final satin stitch.

Lint Roller Trap: Marilyn notes using a lint roller. Advice: Support the fabric from the back with your hand while rolling the front. Pushing down on unsupported hooped fabric can stretch it right at the finish line.

The "Why It Worked" (Commercial Analysis)

Marilyn’s success wasn't luck; it was the reduction of variables.

1. Software: Predicted the path.
2. Chemistry: Removed stretch via adhesive.
3. Physics: Removed torque via magnetic hooping.

Expert Troubleshooting: If It Goes Wrong

The Upgrade Path: Moving from Hobby to Production

If you are doing one shirt for a grandchild, you can fumble through with standard hoops and patience. But if you are doing 50 corporate polos, friction kills profit.

Here is how to diagnose when you need to upgrade your tools:

1. The "Hoop Burn" Bottleneck If you spend 5 minutes ironing out "hoop rings" (crushed velvet, marked sensitive poly) after every job, calculate that time cost.

• Solution: embroidery hoops magnetic. They hold without crushing. Professionals often search for how to use magnetic embroidery hoop specifically to solve this fabric damage issue.

2. The "Wrist Fatigue" Bottleneck If your wrists hurt from tightening screws and forcing inner rings into outer rings 20 times a day.

• Solution: A poolin magnetic hoop (or Sew Tech equivalent) uses magnetic force, not your wrist tendons, to secure the garment.

3. The "Color Change" Bottleneck If you are sitting by the Poolin EOC06 waiting to change threads manually 12 times per design, you are the bottleneck.

• Solution: This is the trigger for a SEWTECH Multi-Needle Machine. When you can set 12 colors and walk away to hoop the next shirt, your hourly revenue doubles.

Operation Checklist (End-of-Job Quality Control)

• Registration: Does the satin stitch cover the raw edge 100%? (No "peeking" fabric).
• Flatness: Lay the shirt on a table. Does it lie flat, or does the embroidery curl up like a potato chip? (Curling = Stabilizer was too light or tension too tight).
• Backside: Turn the shirt inside out. Is the bobbin thread width consistent (usually 1/3 width)? Are there "birdnests" (tangles)? A clean back indicates a healthy machine.
• Residue: Did you trim the jump stitches? Did the basting spray wash out (if needed)?

Appliqué on knits is a rite of passage. By respecting the physics of the fabric and upgrading your holding method (magnets), you turn a "hopeful attempt" into a "standard product."

FAQ

• Q: What exact appliqué layer order should Embrilliance show for Poolin EOC06 T-shirt appliqué so the satin stitch does not run over untrimmed fabric?
  A: Confirm the file has Placement → Stop → Tack-down → Stop → Satin/Finish before stitching anything; the machine will not “auto-appliqué” without those stops.
  • Open the design in Embrilliance and run the stitch simulator.
  • Drag the slider and look for a visible stop between Placement and Tack-down, and another stop before Satin/Finish.
  • Add manual stops in the file if the simulator shows continuous stitching with no pause.
  • Success check: The simulator clearly pauses at the two trim points, not just color changes.
  • If it still fails: Test-stitch on scrap knit; if the machine does not stop, the stop commands are not in the file layer sequence.
• Q: What needle, scissors, and holding tools are the safest consumables for appliqué on a knit T-shirt on a Poolin EOC06?
  A: Use a 75/11 ballpoint needle, double-curved appliqué scissors, and a chopstick/stylus—keep fingers out of the hoop area.
  • Install a fresh 75/11 ballpoint needle before starting (especially if the needle has 8+ hours or hit a hoop).
  • Keep double-curved appliqué scissors for close trimming without cutting the shirt.
  • Use a chopstick, stylus, “Purple Thang,” or pencil eraser to guide curling fabric during tack-down.
  • Success check: The knit is not snagging, and trimming can get within 1–2 mm of the tack-down without nicking the shirt.
  • If it still fails: Slow the machine and re-check that the needle is new and correctly installed.
• Q: How do I stabilize a knit T-shirt for appliqué using no-show mesh cutaway and temporary spray adhesive to prevent puckers?
  A: Chemically bond the shirt to no-show mesh so the knit behaves stable before the needle penetrates.
  • Spray the stabilizer away from the machine to avoid gumming up mechanics.
  • Smooth the T-shirt onto the sticky no-show mesh with firm, even pressure.
  • Re-smooth any bubbles or loose areas before hooping.
  • Success check: Rubbing a hand across the fabric feels like one solid unit with no sliding between shirt and stabilizer.
  • If it still fails: Re-spray lightly and press again; bubbles or slip now almost always become puckers later.
• Q: How do I hoop a knit T-shirt with a Sew Tech magnetic hoop for Poolin EOC06 without stretching the fabric and causing post-unhoop puckers?
  A: Use a “drop and snap” routine and never pull fabric after magnets engage.
  • Slide the bottom metal frame inside the shirt, then smooth the shirt/stabilizer sandwich over the frame.
  • Place the top frame or magnets gently in a consistent pattern for even hold.
  • If alignment is off, remove magnets and reset—do not tug the hooped knit.
  • Success check: The fabric is flat (not drum-stretched) and stays in position without rippling when touched lightly.
  • If it still fails: Re-do hooping on a flat, supported surface and confirm the stabilizer bond is solid before re-hooping.
• Q: What safety rules should be followed during Poolin EOC06 appliqué tack-down stitching to avoid needle injuries while positioning fabric?
  A: Keep hands completely outside the hoop area while the machine runs and use a tool to guide fabric edges.
  • Stop the machine before making any adjustments near the needle area.
  • Use a chopstick/stylus/pencil eraser to guide curling appliqué fabric during tack-down.
  • Lower speed if needed so movements are controlled (a safe starting point for T-shirts is 600–700 SPM as shown).
  • Success check: Fabric edges are guided flat with a tool and fingers never enter the stitch field while the needle is moving.
  • If it still fails: Pause, re-position fabric, and restart; do not “chase” fabric while the needle is cycling.
• Q: What magnetic hoop safety precautions should be used with Neodymium embroidery magnets when hooping garments?
  A: Treat Neodymium magnets as pinch hazards and keep them away from sensitive electronics and medical devices.
  • Grip magnets fully and place them down gently; do not let magnets snap together uncontrolled.
  • Keep magnets at least 6 inches away from pacemakers, credit cards, and computerized machine screens.
  • Store magnets so they cannot jump together on the table or near small metal tools.
  • Success check: No sudden snapping occurs during placement, and hands are never between two magnets.
  • If it still fails: Change the handling routine—place one magnet at a time and reposition by lifting straight up, not sliding fingers under the edge.
• Q: How do I fix Poolin EOC06 appliqué satin stitch problems like needle breaks, fabric bunching, or gaps between outline and fabric on knit T-shirts?
  A: Match the symptom to the cause and apply the lowest-cost correction before changing hardware.
  • Needle breaks on satin stitch: Change to a new needle and slow down (the blog’s fix is 500 SPM), then re-run.
  • Fabric bunching inside letters: Re-hoop with magnets and improve spray adhesion so the knit cannot creep.
  • Gaps between outline and fabric: Fuse the appliqué fabric first (e.g., HeatnBond Lite) and do not pull fabric during trimming.
  • Success check: Satin stitch fully covers the raw edge with no “peeking” fabric, and the shirt lies flat on a table after unhooping.
  • If it still fails: Re-check the design density in software and repeat the stitch-out on scrap knit to isolate file vs. setup issues.
